Tiger TI-01SS User manual

1
THANKS FOR USING OUR EQUIPMENT,PLEASE READ THIS MANUAL CAREFULLY BEFORE
USAGE.PREFACE THE PRODUCTS ARE SERIES TOP GRADE FULL STAINLESS STEEL
ELECTRONIC WEIGHING INDICATOR AND STAINLESS STEEL WATERPROOF PLATFORM
SCALE, WE USED THE LATEST HIGH-TECH, IT HAS THE CHARACTERISTIC OF HIGH
PRECISION, DISPLAY CELERITY, DURABLE, BEST AFTER SALE SERVICES, GOOD
CORROSION-PROOF. VARIOUS MEASURES ADOPTED TO ENSURE IT‟ S EXCELLENT
WATERPROOF AND DAMPPROOF.IT IS WIDELY USED FOR NOT ONLY RETAIL STORES,
RATION PACKING BUT ALSO FOR HIGH HUMIDITY SURROUNDING OF FOOD AND SEAFOOD
PACKING. WE HAD GET SEVERAL NATIONAL PATENTS FOR THE PRODUCTS.
1 MAIN TECHNICAL INDEX
1.1 BASIC DATA OF XK3101SS STAINLESS STEEL INDICATOR：
ITEM
LITHIUM BATTERY VERSION
LEAD-ACID BATTERY VERSION
WATERPROOF AND
DUSTPROOF GRADE
IP68
OVERALL DIMENSION（W X T X
H）
254×86×170 mm
ACCURACY OF INDICATOR
3000~30000
HEIGHT OF WEIGHING LED “8”
36mm
HEIGHT OF WEIGHING LCD “8”
43mm
ZERO RANGE
±4%
TARE RANGE
100%
RECHARGEABLE BATTERY
5V/4000mAH LITHIUM BATTERY
6V/4500mAH LEAD-ACID
BATTERY
TRANSFORMER
5V/2A ELECTRONIC
100~240V/50~60Hz
9V/1A ELECTRONIC
100~240V/50~60Hz
T TYPE FRAME ASSEMBLY
OPTIONAL ASSEMBLY，FOR INSTALL 38mm POLE，INCLUDES
STAINLESS STEEL T TYPE FRAME 1PC，STAINLESS STEEL TUBE
SUPPORT 1PC，M6×8 JACKSCREW 2PCS，L TYPE SMALL WRENCH
1PC，M4×8 STAINLESS STEEL SCREW 4PCS
232 INTERFACE
OPTIONAL
485 INTERFACE
OPTIONAL
1.2 BASIC DATA OF FULL STAINLESS STEEL PLATFORM：
PLATE SIZE
2828cm
3040cm
4050cm
5060cm
6080cm
WATERPROOF AND
DUSTPROOF GRADE
IP68
CAPACITY
15/30/60kg
30/60/150kg
60/150/300kg
60/150/300kg
150/300/600kg
LOAD CELL SIZE (mm)
150×35×40
150×44×40
150×60×62
150×60×62
150×90×74
SIDE HOLE
1.3 WORKING TEMPERATURE：-5~+35℃
1.4 STORAGE TEMPERATURE：-25~50℃

2

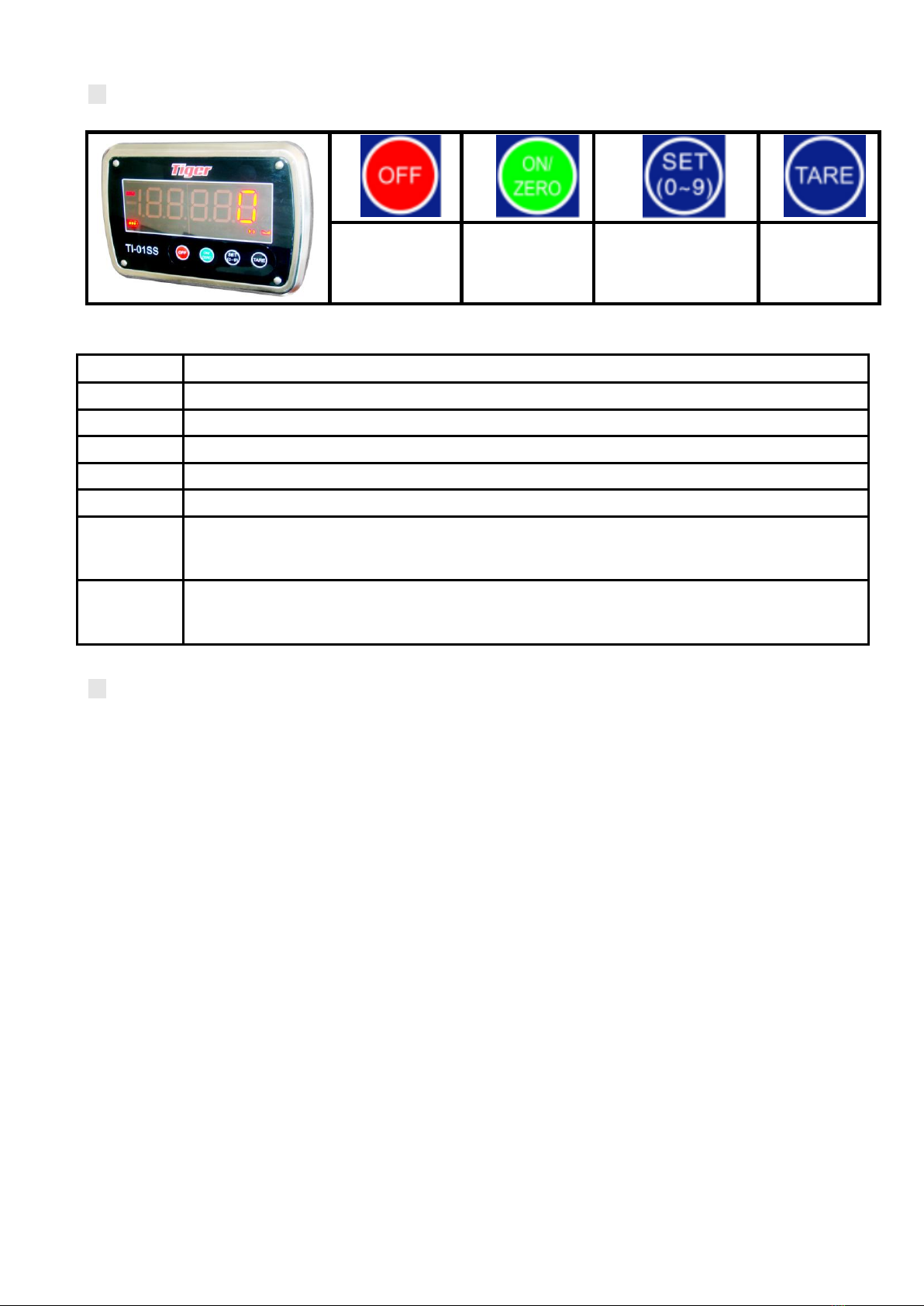

2 KEYBOARD AND CHARACTER PROMPT
2.1 KEYBOARD
TURN OFF KEY
TURN ON/
ZERO KEY
SET/FIG,SET/PARA,
INPUT FIG KEY
TARE KEY
2.2 CHARACTER PROMPT
INDICATION
MEANING
3101.x
SOFTWARE VERSION NUMBER
dc x.xx
AFTER POWER ON, IT SHOW THIS PROMPT, Mean the voltage of battery is x.xxV
Err-00
AFTER POWER ON, LOAD CELL WIRING ERROR OR AD ERROR
Err-01
CALIBRATION SWITCH IS NOT SHORT WHILE CALIBRATING
Err-02
COUNTING MODE, UNDERSAMPLING
Err-03
WHEN CALIBRATING, THE PLACED WEIGHT IS TOO SMALL, REFUSE TO CALIBRATE, THE
WEIGHT SHOULD
BE MORE THAN 10% MAX.CAPACITY
- - - -
OVERLOAD, SHOW THIS AS THE WEIGHT OVER 100%FS+9E, WITH THE „DING‟ SOUNDING,
THIS MEANS
OVERLOAD, REDUCE THE WEIGHT
3 OPERATION GUIDE
3.1 INSTALL AND ADJUST
3.1.1 STAINLESS STEEL INDICATOR
OPEN THE BACK COVER OF INDICATOR, WELDING THE LEADS OF LOAD CELL BY
COLOUR, RING THE WELDING POINTWITH HEAT SHRINKABLE TUBE, CONTRACTION
AFTER HEATING, THEN PLACE ALL THE LINES INTO SEALING BOWL, FIX THE LINES
AND SEALING BY 704 GLUE,AIR DRYAFTER ONE HOUR. MEANING：RED(POWER+)，
BLACK(POWER-)，GREEN(SIGNAL+)，WHITE(SINGAL-)
3.1.2 STAINLESS STEEL PLATFORM SCALE
INSERT THE POLE INTO PLATFORM BASE AND FIX IT BY L TYPE SMALL WRENCH,
THEN INSTALL INDICATOR ON T TYPE FRAME.
3.2 TURN ON AND TURN OFF
①TURN ON：
PRESS <ON/ZERO> KEY ，CURRENT CONNECTED, THE “DING”SOUNDED, IT DISPLAYS
SOFTWARE VERSION, dc-x.xx(VOLTAGE
OF BATTERY IS 3.0~4.2V)，SELF-INSPECTION, 9,8,7···1,0, THE “ZERO” LAMP LIGHTING. NOW IT
IS IN A WORKING STATE.

3
②TURN OFF：
PRESS <OFF> KEY.
③AUTO TURN OFF：
WHEN SCALE IS IN AUTO OFF STATE. IT WILL BE AUTO OFF AFTER 10 MINUTES WHEN SCALE
IS AT ZERO AND NO
OPERATION.（SEE 3.9.3 ）
④LOW VOLTAGE OFF:
WHEN THE VOLTAGE IS TOO LOW, IT WILL AUTO TURN OFF.
3.3 ZERO
WHEN WITHOUT TARING THE WEIGHT DISPLAY IS ≤4% MAX. CAPA.,，PRESS <ON /ZERO>，THE
DISPLAY SHOWS “ 0 ”，”ZERO” LAMP LIGHTING.
3.4 WEIGHING
PUT WEIGHT ONTO THE PAN，IT SHOWS THE WEIGHT，LAMP LIGHTING.
3.5 TARE WEIGHING
FIRST PUT A CONTAINER ON PLATE, PRESS <TARE >，IT SHOWS 0，”ZERO” LAMP OFF，”TARE” LAMP
LIGHTING, PUT THE WEIGHT
ON CONTAINER IT WLL SHOW NET WEIGHT. REMOVE THE WEIGHT AND CONTAINER TOGETHER, IT
DISPLAYS NEGATIVE TARE,
“ZERO” LAMP LIGHTING. NOW PRESS <TARE >，”TARE” LAMP OFF, RETURN TO NORMAL STATE.
3.6 SAVE POWER FUNCTION
ZERO AFTER 40 SECONDS, AUTO SAVE POWER, SHOWS “o”. PUT A WEIGHT, START WEIGHING.
3.7 BATTERY INDICATE
BATTERY LAMP
FLASHING
BATTERY VOLTAGE
FULL
HALF
LOW
WILL TURN OFF
3.8 CHARGE
PUT THE PLUG IN THE SOCKET, IS CHARGING LAMP，IS LIGHTINGWHEN
CHARGING.
SHOW VOLTAGE：AFTER POWER ON AND ON “0”, THE SAME TIME PRESS <ON
/ZERO> AND <TARE > THREE SECONDS, NOW
DISPLAY THE BATTERY VOLTAGE, PRESS <SET/0~9> TO EXIT.

4
3.9 SET AND USE PARAMETER
PRESS <SET/0~9>3 SECONDS，ENTER SET AND SHOW MAIN MENU，PRESS <SET/0~9> CONTINUOUS，
IT DISPLAYS：
rAngE(SET LIMIT)
UnItS(CHOOSE UNIT)
A-OFF（CHOOSE AUTO POWER OFF）
FILt(SET DISPLAY MODE)
ZEro(SET AUTO ZERO)
bUZZE(SET BUZZLE)
d(CHOOSE DIVISION)
LU-( BRIGHTNESS ADJUSTING)
3.9.1 rAngE(SET UPPER AND LOW LIMIT)
3.9.1.1 WHEN IT SHOWS rAngE，PRESS <TARE> ENTER TO SET LIMIT，PRESS <SET/0~9> TO
CHOOSE on OR oFF, on IS START LIMIT FUNCTION，Off IS EXIT LIMIT FUNCTION，PRESS
<TARE> TO CONFIRM.
3.9.1.2 WHEN CHOOSE on AND PRESS <TARE>，NOW ENTER TO SET LIMIT，“UNDER”LAMP IS
LIGHTING , MAX FIGURE IS
BLINKING，PRESS<SET/0~9> ONCE TO ADD 1，PRESS <TARE> TO CONFIRM，WHEN
FINISHING AUTO EXIT AND SET
“OVER”(SAME AS SET UNDER LIMIT).AFTER FINISH SETTING INTO WEIGHING.
3.9.1.3 WHEN LOW LIMIT > HIGH LIMIT, IT DISPLAYS OFF, THEN EXIT.
3.9.1.4 ALARMING INDICATE:m IS THE WEIGHT
WHEN m≥HIGH LIMIT, “OVER” LAMP IS LIGHTING AND FLICKERING.
WHEN LOW LIMIT < m < HIGH LIMIT，“ACCEPT” LAMP IS LIGHTING(NOT FLICKERING).
WHEN m≤LOW LIMIT, “UNDER” LAMP IS LIGHTING.
CAUTION：WHEN THE DISPLAY IS NOT STABILIZATION, NO LAMP LIGHTS.
3.9.2 UnItS(CHOOSE UNIT)
3.9.2.1 WHEN IT DISPLAYS UnItS，PRESS <TARE> TO ENTER，PRESS <SET/0~9> TO CHANGE，PRESS
<TARE> TO CONFIRM. UNITS：
H9(KG)、PcS（COUNTING）、Lb.Lb(DECIMAL POUNDS)
3.9.2.2 COUNTING：WHEN IT DISPLAYS “PCS”, PRESS<TARE>. NOW “PCS” LAMP LIGHTING.
LONGTIME PRESS<ON/ZERO>,IT DISPLAYS COUNT AND RETURN TO 0. THEN PUT THE
SAMPLE (AS MUCH AS
POSSIBLE,BUT DON’T MORE THAN MAX.CAPACITY), AFTER STABLE, PRESS<TARE>.
PRESS <SET/0~9> TO ADD 1

5
AND PRESS<TARE>TO CHOOSE. AFTER FINISHING IT DISPLAY PCS AND PCS LAMP
LIGHTING.
EXIT COUNTING: CHOOSE A UNIT.
CAUTION: PICK QUANTITIES OF MAX LESS 30000
3.9.3 A-oFF（CHOOSE AUTO POWER OFF）
WHEN IT DISPLAYS A-oFF，PRESS <TARE> TO ENTER，PRESS <SET/0~9> TO CHOOSE n
OR y, n IS NOT IN AUTO POWER OFF SITUATION，y IS AFTER 10 MINUTES IN ZEROING,
AUTO-OFF.
3.9.4 FILt(SET DISPLAY MODE)
WHEN IT DISPLAYS FILt，PRESS <TARE>TO ENTER，PRESS <SET/0~9> TO CHOOSE FILt-1 OR
FILt-2 OR FILt-3 OR FILt-4，
PRESS <TARE>TO CONFIRM.
FILt-1：SINGLE ANIMAL SCALE FUNCTION，AFTER PLACE WEIGHT，WEIGHT
LOCKED IN 3 SECONDS，LIGHTING，
UNLOCKED AFTER REDUCE MORE THAN HALF PLACED WEIGHT，CAN
NOT USE FOR TRADE SETTLEMENT
FILt-2：MANY ANIMALS SCALE FUNCTION，AFTER PLACE WEIGHT，IT SHOWS
VERY SLOWLY，THEN LIGHTING，CAN
USE FOR TRADE SETTLEMENT
FILt-3：WHEN ADD WEIGHT TO SCALE, IT WILL SHOW FAST.（SUGGESTION）
FILt-4：WHEN ADD WEIGHT TO SCALE, IT WILL SHOW MORE FASTER.
3.9.5 ZEro(SET AUTO ZERO RANGE)
WHEN IT DISPLAYS ZEro，PRESS <TARE>TO ENTER，IT DISPLAYS ZEro x.x(x.x IS AUTO ZERO
RANGE：
0.5d,1d,1.5d,2d,2.5d,3d,3.5d,4d,4.5d AND 5d,d IS DIVISION VALUE WHEN n=3000) ，PRESS
<SET/0~9> TO CHOOSE，PRESS
<TARE> TO CONFIRM AND RETURN WEIGHING.
3.9.6 bUZZE(SET BUZZLE IN UPPER AND LOWER LIMIT SITUATION)
WHEN IT DISPLAYS bUZZEr，PRESS <TARE> TO ENTER，PRESS <SET/0~9> TO CHOOSE on
OR oFF, on IS USING “DING…” SOUND IN UPPER AND LOWER LIMIT SITUATION，oFF IS
WITHOUT “DING…” SOUND.
3.9.7 d(CHOOSE DIVISION)
WHEN IT DISPLAYS d，PRESS <TARE> TO ENTER，PRESS <SET/0~9> TO CHOOSE
DIVISION，PRESS <TARE> TO CONFIRM，
THERE HAVE THREE DIVISIONS OF EACH CAPACITY. WHEN YOU CHOOSE THE LITTLE ONE,

6
THE SPEED OF DISPLAY WILL
BE SLOWER.
3.9.8 LU-（BRIGHTNESS ADJUSTING）
WHEN IT DISPLAYS LU-, PRESS <TARE> TO ENTER，PRESS <SET/0~9> TO CHOOSE，LU-1
IS LOWER BRIGHTNESS，LU-2 IS
HIGHER BRIGHTNESS，PRESS <TARE> TO CONFIRM.
4 NOTES
4.1 NORMAL NOTE
4.1.1 PLEASE READ THE INSTRUCTION MANUAL BEFORE USAGE.
4.1.2 PLEASE CALIBRATE SCALE REGULARLY.
4.1.3 DO NOT OVERLOADING. DO NOT THROW HEAVY THINGS ON THE SCALE VIOLENTLY. THE
DAMAGE FOR OVERLOADING IS
NOT WITHIN THE RANGE OF GUARANTEED MAINTENANCE.
4.1.4 DON’T TOUCH CHEMICALS SUCH LIKE SOLVENT, ETC.
4.1.5 KEEP THE SCALE CLEAN IN ORDER TO WEIGHING WELL.
4.1.6 THERE IS A LEAD SEAL ON THE BOTTOM OF THE SCALE. USERS ARE NOT ALLOWED TO REMOVE
THE SEAL. IF THE SEAL IS
DAMAGED THE SCALE IS NOT GUARANTEED FOR MAINTENANCE.
4.2 FOR SEALED LITHIUM BATTERY
4.2.1 THE WORKING TEMPERATURE OF BATTERY IS -10℃~+50℃. IT CAN BE CIRCLE CHARGED
ABOUT 500 TIMES AT 20℃.
4.2.2 PLEASE DON‟T CHANGE BATTERY BY YOURSELF.
4.2.3 PLEASE CHARGE IN TIME. PLEASE FULL CHARGE IF YOU DON‟T USE THE
SCALE FOR A LONG TIME. PLEASE CHARGE AT LEAST
EVERY 3 MONTHS.
4.2.4 THE CAPACITY OF BATTERY WILL BE REDUCED AFTER CHARGE/DISCHARGE
MANY TIMES.
5 CALIBRATION
5.1 PUSH THE ADJUST KEY TO SWITCH ON（THE ADJUST KEY IS IN INDICATOR），PRESS <ON/ZERO> TO
TURN ON，AFTER
SELF-INSPECTION IT COMES INTO WEIGHING(NO WIND AND QUAKING) AND UNDER ZERO；
5.2 THE SAME TIME PRESS <SET/0~9> AND <ON/ZERO> 3 SECONDS，IT SHOWS THE LAST CAPACITY，
FOR EXAMPLE c-60 MEANS 60kg.
PRESS <SET/0~9> TO CHOOSE c-30，c-60，c-100, c-150，c-200, c-300，c-600，c-1500，c-3000，c-6000
（C IS CAPACITY，UNIT IS kg）；

7
5.3 PRESS <TARE> TO CONFIRM；
5.4 NOW DISPLAY INTERNAL NUMBER 0，IF IT IS NOT 0, PRESS <ON/ZERO> TO ZERO；
5.5 PLACE MORE THAN 10% MAX.CAPACITY STANDARD WEIGHTS ON PLATE, AFTER INTERNAL NUMBER
IS STABLE, PRESS <TARE>
TO INPUT THE VALUE OF WEIGHTS，PRESS <SET/0~9> TO ADD 1，PRESS <TARE> TO INPUT NEXT
VALUE, TILL TO FINISH, IT
SHOWS CAEnd ONE SECOND, RETURN TO WEIGHING. PLEASE ATTENTION THE PLACE OF DECIMAL
WHEN INPUTING；
5.6 IF DISPLAY Err03，MEANS CALIBRATION FAULT. THE REASON IS: WEIGHTS ARE TOO SMALL OR
INPUT WRONG VALUE.
