Tiger TI-02 User manual

WEIGHING INDICATOR user manual
Please read this manual carefully before operation
----Important safety info
----Operating condition and other attentions
----Guarantee info
Model: TI-02

@TI-02 USER MANUAL
2
Please read the manual in details Please use the right plug and right voltage
before operation. Be much attention of 110V or 220V!!!
Don’t clean the indicator with the Keep it away from the corruptive gas or liquid.
flush water.
Don’t touch the keypad with the Don’t open the indicator by yourself and
items with sharp end. please call the service people or our distributor
when you get the problem with it.
Please recharge the scale on time to assure the health of the battery, and replace the battery if it runs out of
life. The replaced battery must be handled correctly.
Important Safety And Operation Info

@TI-02 USER MANUAL
3
Specifications
4
Power
4
Before using
4
System power consumption
4
Display description
4
Basic function operation
5
Connection of load cell and RS232
5
Basic parameter setting
6
UF-1 A/D count
6
UF-2 High / Low limits setting
6
UF-3 Auto-power off
7
UF-4 Backlight setting
7
UF-5 Hold function (*)
7
UF-6 RS-232 output
8
UF-7 Speed setting (*)
10
UF-8 Zero tracking (*)
10
UF-9 G Value setting
11
UF-10 Filt setting
11
UF-12 Beep setting
11
Weight Calibrations (*)
12
ECF-1 Zero and Span Calibration
12
ECF-2 Zero Calibration
12
ECF-3 Span Calibration
12
Guarantee
13
INDEX

@TI-02 USER MANUAL
4
SPECIFICATIONS
Accuracy: Class III
Nonlinear: ≤0.01%F.S
Excitation voltage: DC 5V,up to 4 load cells 350 Ω
Large display connector: Sampling serial output way
Sample rate: 20 times per second (can select)
POWER
Input: 120 ~ 240 V
Output: 9 V/ 500mA
Rechargeable battery: 6 V/ 1.3AH
BEFORE USING
1) Place this product on a firm and smooth place, don´t place it in vibration or shaking,
use bench for use on four only adjust foot, adjust the balance using the bubble level.
2) Use independent source, avoid other electrical disturbance.
3) Don´t put any object on the platter when turn on the balance.
4) Please, turn on 2-3 minutes before using.
5) Avoid temperature change too large and air flow strenuous sites.
6) Don´t overload the balance, don´t exceed the maximal capacity.
SYSTEM POWER CONSUMPTION
Main system power consumption: about 12mA
Main system power consumption (with backlight): about 36mA
Main system power consumption (with backlight and RS-232): about 48mA
Battery life: none backlight, about 320 hours.
DISPLAY DESCRIPTION
TI-02 Model:

@TI-02 USER MANUAL
5

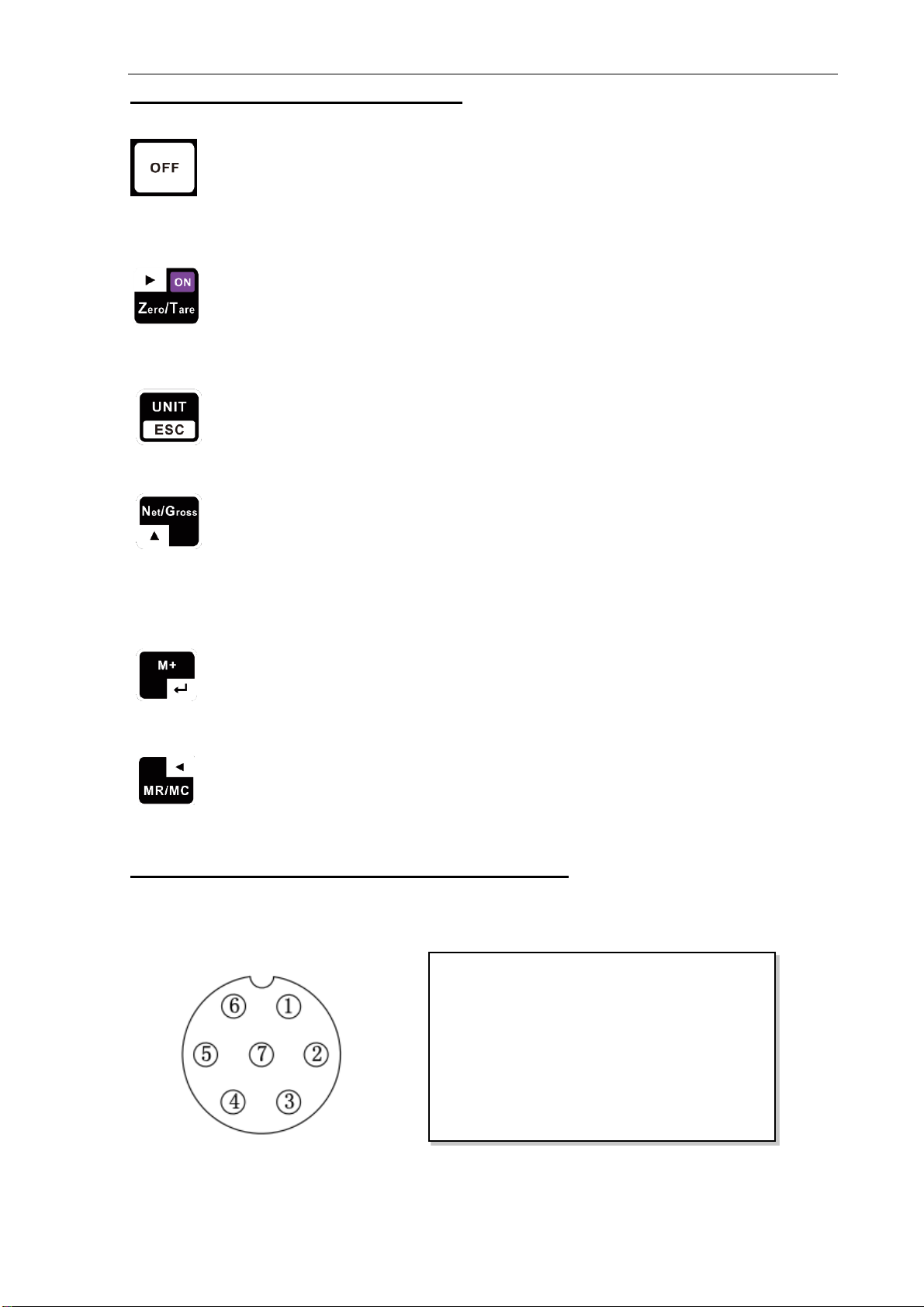

BASIC FUNCTION OPERATION
Press and hold this key for 2 seconds to turn off the balance.
Function 1. Press this key to turn on the balance
Function 2. To reset the weight to “0”, but the display value has to be
lesser than ± 2% of maximum capacity.
Function 3. To subtract the container´s weight.
Function 4. To move one space to the right or upward in setup mode.
Function 1. To select the desired weight unit.
Function 2. To exit from setup mode.
Function 1. To view gross or net weight when the balance is on tare
status. All other keys will be disabled when gross weight is activated.
Function 2. To increase values upward in setup mode.
Function 1. Key of confirmation in setup mode.
Function 2. Manually transmitting data through RS232 to computer or
printer.
Function 3. To accumulate weights, the max of the weight times is 9999
Function 1. To recall accumulations
Function 2. Long press the key will clear accumulated weight
Function 3. To move one space to the left or downward in setup mode.
CONNECTION OF LOAD CELL AND RS232
1) Connection of the load cell to indicator
INDICATOR LOAD CELL
1 ------------- +Excitation
2 ------------- +Sense
3------------- -Excitation
4------------- -Sense
5------------- +Signal
6 ------------- (GND) shield
7 ------------- -Signal

@TI-02 USER MANUAL
6
2) Connection of RS232 to PC or Printer
BASIC PARAMETER SETTING
To access to functions setting, press the and key at the same time in
weighing mode.Press the key to select the parameter (UF-1 ~ UF-12 )
“*”This flag indicates that the function is locked when “Approval Version”.

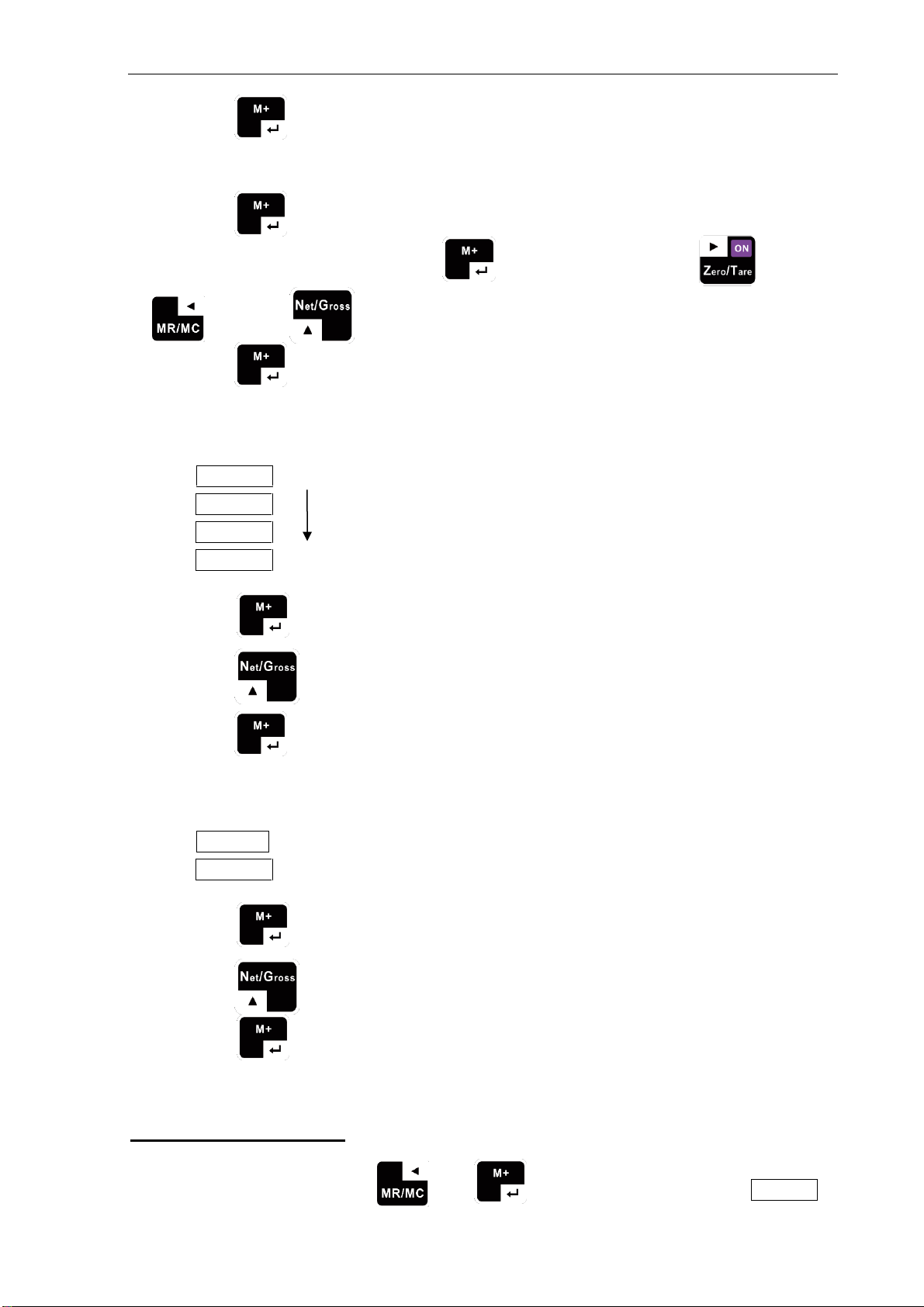

UF-1 A/D count
1. Press the key to view the A/D count.
2. Press the key to view the the battery voltage or press the key to exit
back to menu UF-1
3. To move to next parameter press the key.
4. To exit and return to normal weighing press the key.
UF-2 High / Low limits setting
1. Press the key to enter.
2. The display will show 00.000L (set low limit).
3. Use the keys and to move cursor and press the to select
number.
4. Press the key to confirm.
5. The display will show 00.000H (set high limit).
6. Use the keys and to move cursor and press the to select
number.
7. Press the key to confirm.
8. The display will show o.000 ,look at the remarks below.
9. Use the keys and to move cursor and press the to select
INDICATOR PC/PRINTER
1------------- RXD
2------------- TXD
3------------- GND
4------------- NC

@TI-02 USER MANUAL
7
number.
10. Press the key to confirm.
Remarks: 0 0 0
A B C
A --- Buzzer on: 0= Stable not required 1= Stable required
B –- LCD indicator and RELAY on: 0= Stable not required 1= Stable required
C : Buzzer beeps when: 0= Buzzer off 1= OK 2= LO and HI
Low limit set as 0 will clear all check weigh values.
This function is locked when UF-5 is set as “HoLD 1”
UF-3 Auto-power off
Modes: AoFF00 :Auto-turn off disable.
AoFF01 : The balance will automatically turn off after 1 minute of non use.
This time can be set up to 99 minutes.
1. Press the key to access to auto-power configuration.
2. Use the keys and to move cursor and press the to select
number.
3. Press the key to confirm.
UF-4 Backlight setting
Modes: lit a : Automatic
lit on : Backlight on
litoFF : Backlight off
1. Press the key to access to backlight configuration.
2. Use the key to select the desired mode.
3. Press the key to confirm.

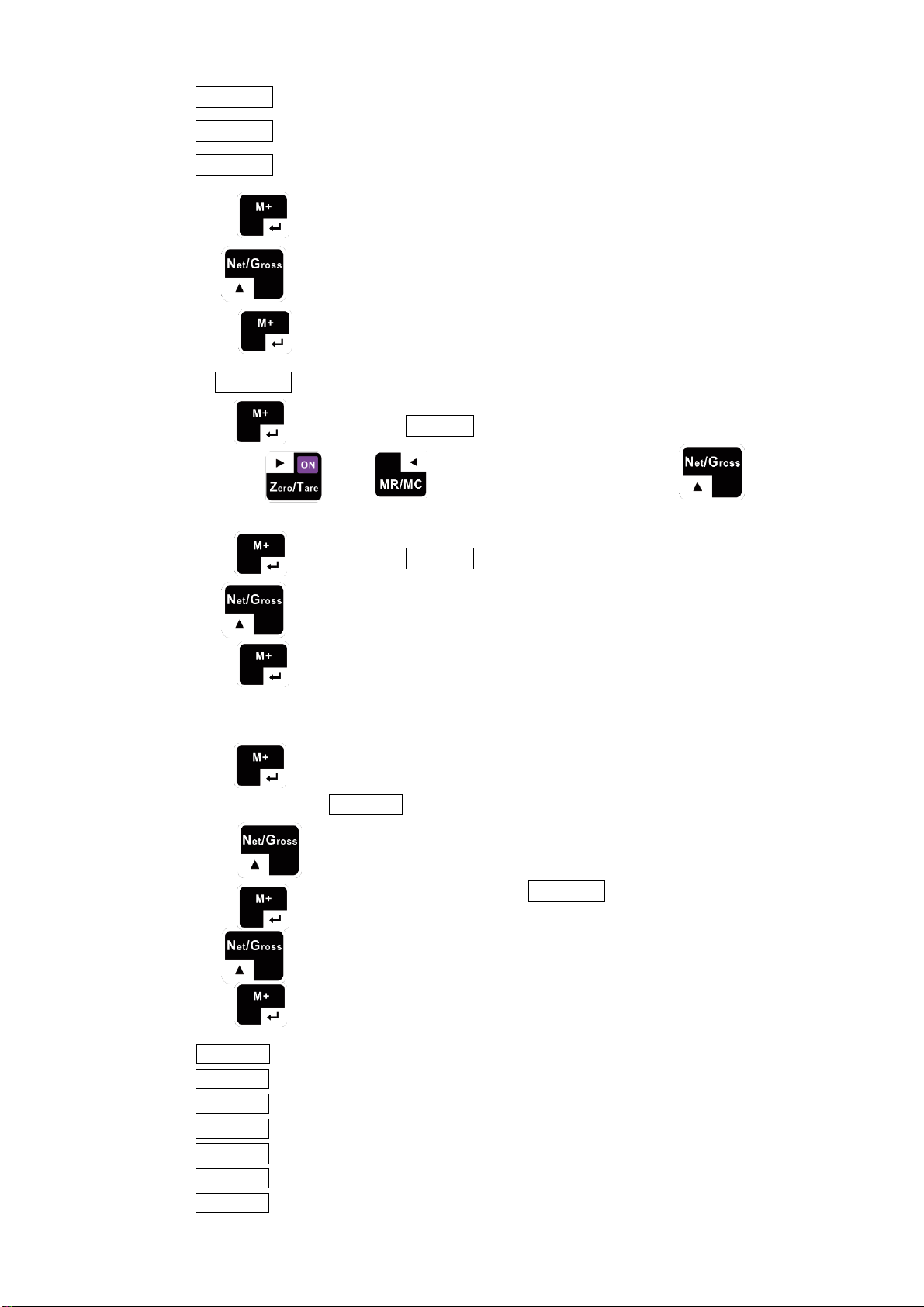

UF-5 HOLD function (*)
Modes: HoLd 0 : Disable
HoLd 1 : Animal (motion) Hold function

@TI-02 USER MANUAL
8
HoLd 2 : Peak value hold (when held can press any key to cancel)
HoLd 3 : Stable hold (when held can press any key to cancel)
HoLd 4 : Stable hold (when held can auto cancel at zero)
1. Press the key to access to hold function configuration.
2. Use the key to select the desired mode.
3. Press the key to confirm.
Remarks: HoLd 1 :
1. Press the key will show PCT002
2. Use the keys and to move cursor and press the to select
number, this can set the range from 001 ~ 100 units of the animal hold.
3. Press the key will show TiME 8
4. Use the key to select 1,2,4,8,16,32 or 64 times within the hold range.
5. Press the key to confirm.

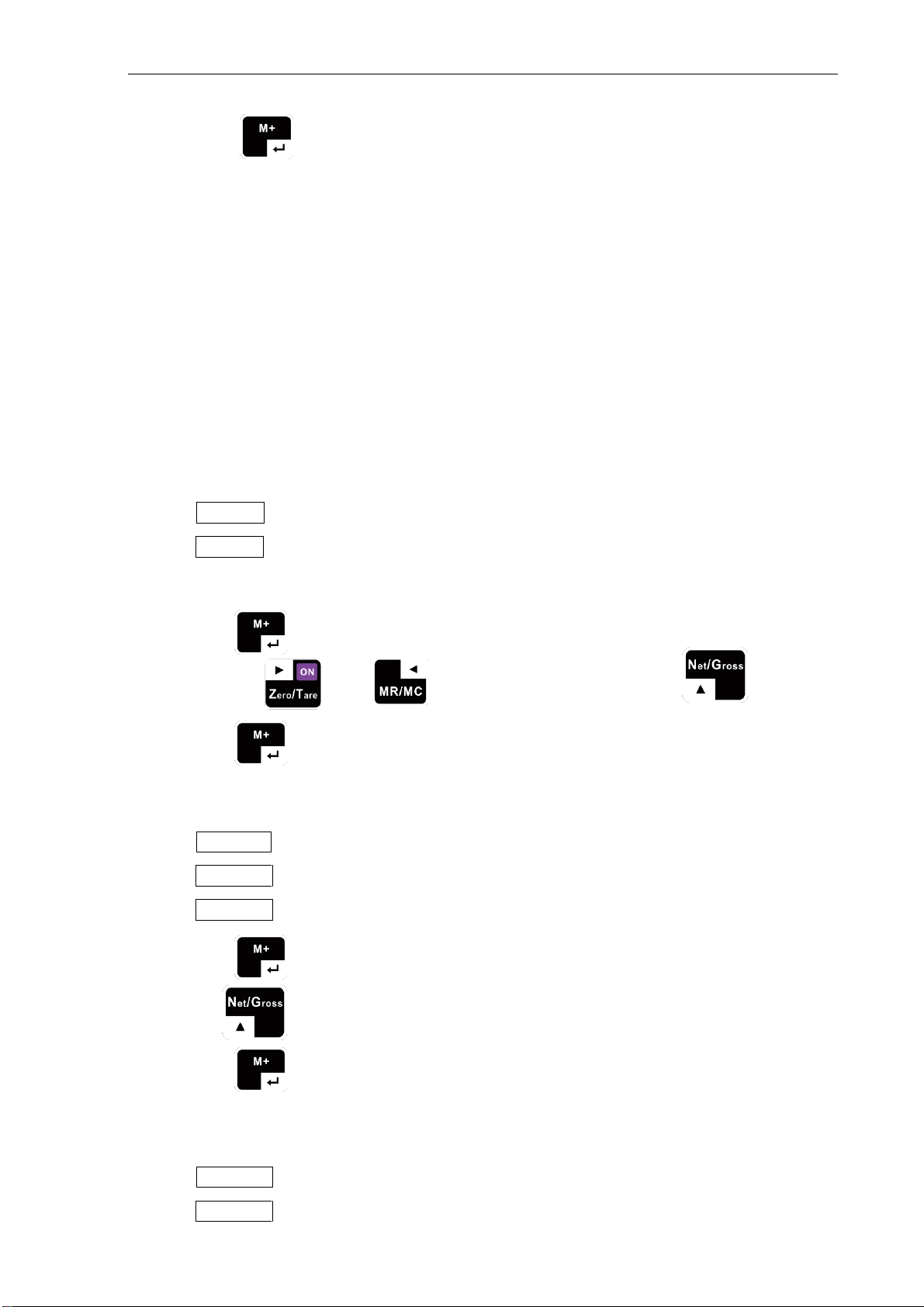

UF-6 RS-232 Output
1. Press the key to enter.
2. The display will show 232 1 .
3. Press the key to select the modes.
4. Press the key to confirm,and will show b 9600 .
5. Use the key to select the baud rate.
6. Press the key to confirm.
Modes: 232 0 : RS-232 disable
232 1 : Stable output –Format 1
232 2 : Stream output –Format 1
232 3 : Manual output –Format 1
232 4 : Stable output –Format 2
232 5 : Stream output –Format 2
232 6 : Manual output –Format 2

@TI-02 USER MANUAL
9
232 7 : Manual accumulate output –Format 3
232 8 : Auto accumulate output –Format 3
232 9 : Manual accumulate output –Format 4
232 10 : Auto accumulate output –Format 4
232 11 ~ 232 13 : LP50 printer is used
Baud rate: B 1200 : Baud rate 1200
B 2400 : Baud rate 2400
B 4800 : Baud rate 4800
B 9600 : Baud rate 9600
B19200 : Baud rate 19200
B38400 : Baud rate 38400
Remarks:

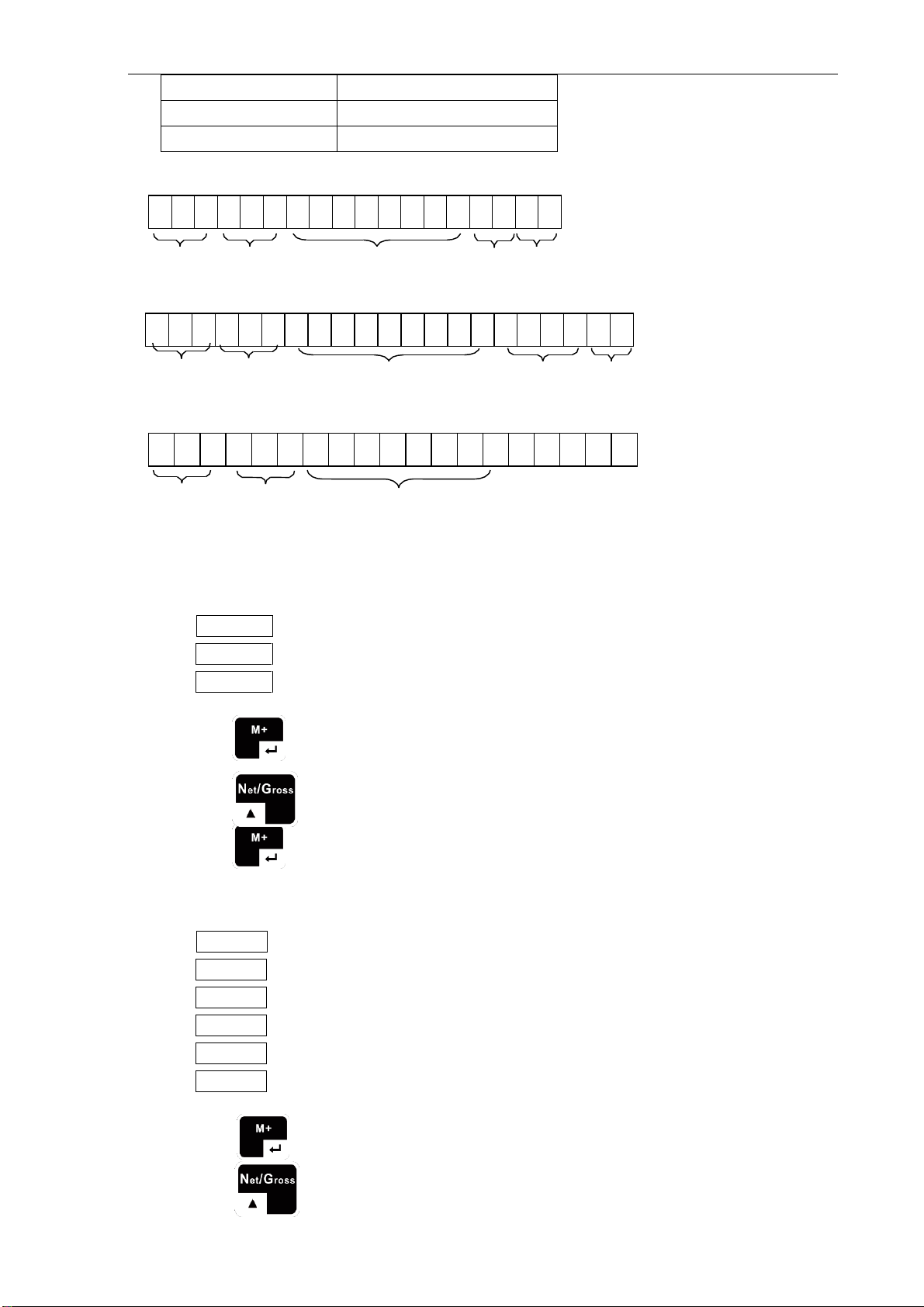

Format 1 o u tp u t e x am pl e s :
Format 2 o u tp u t e x am pl e s :
Format 3 o u tp u t e x am pl e s :
Format 4 o u tp u t e x am pl e s :
Format 3 and format 4 if you want to print the total weight, press the key
twice, and the accumulative weight will be removed.
Communication Protocol:
UART signal of EIA-RS232 C
Format:
1. Baud rate: 9600
2. Data bits : 8 bits
3. Parity bits: None
4. Stop bits : 1 bit
Format 1 (232 1 –3):
HEAD1 (2 BYTES)
HEAD2 (2 BYTES)
S/N WT/lb
---------------
0001 2.205
0002 2.205
---------------
0002 4.410
TICKET NO.0001
G 3.000lb
T 1.000lb
N 2.000lb
TOTAL NUMBER
OF TICKETS 0001
TOTAL
NET 2.000

@TI-02 USER MANUAL
10
OL –Overload
ST –Stable
NT –Net weight
US –Unstable
GS –Gross weight
F i x ed 18 B Y T E S AS C II ( k g g t lb )
1
2
1
1
2
1
1
2
3
4
5
6
7
8
1
2
1
2
H E AD1 , H E AD2 , DA T A U N IT CR LF
F i x ed 21 B Y T E S AS C II ( t l. T lbo z)
1 2 1 1 2 1 1 2 3 4 5 6 7 8 9 1 2 3 4 1 2
H E AD1 , H E AD2 , DA T A U N IT CR L F
F i x ed 19 B Y T E S AS C II ( p c s )
1
2
1
1
2
1
1
2
3
4
5
6
7
8
1
2
3
1
2
H E AD1 , H E AD2 , DA T A U N IT CR L F
UF-7 Speed setting (*)
Modes: spEED1 : Standard speed
spEED2 : High speed
spEED3 : Low speed
1. Press the key to enter.
2. Press the key to select the desired mode.
3. Press the key to confirm.
UF-8 Zero tracking(*)
Modes: Zp 0 : OFF
Zp 1 : One division tracking at zero
Zp 2 : Two division tracking at zero
Zp 3 : Three division tracking at zero
Zp 4 : Four division tracking at zero
Zp 5 : Five division tracking at zero
1. Press the key to enter.
2. Press the key to select the desired mode.

@TI-02 USER MANUAL
11
3. Press the key to confirm.
UF-9 G Value setting
1. Press the key to display the G value of manufacture place.
2. If set the G value of local press the key and then press the or
key and key to input the new G value.
3. Press the key to confirm.
UF-10 Filt setting
Modes: FiLt 1 : Low
FiLt 2 :
FiLt 3 :
FiLt 4 : High
1. Press the key to enter.
2. Press the key to select the desired mode.
3. Press the key to confirm.
UF-12 Beep setting
Modes: yS oN : ON
yS oFF : OFF
1. Press the key to enter.
2. Press the key to select the desired mode.
3. Press the key to confirm.
Weight Calibrations (*)
1. In weight mode, press the and keys, the display will show ECF-1 .

@TI-02 USER MANUAL
12
2. Press the or key to select ECF-1 , ECF-2 or ECF-3 .
ECF-1 Zero and Span Calibration
1. Press the key to enter, display will show cALZ .
2. Press the key to calibrate zero point.
3. The display will show the calibration weight 00.6.000 .
4. Use the keys and to select the digit,press key to input the
weight value.
5. Put the calibration weight on the platter and press the key to calibrate.
The scale will return back to weighing mode automatically.
ECF-2 Zero Calibration
1. Press the key to enter, display will show cALZ .
2. Press the key to calibrate zero point.
3. The scale will return back to weighing mode automatically.
ECF-3 Span Calibration
1. Press the key to enter, display will show the calibration weight 00.6.000 .
2. Use the keys and to select the digit,press key to input the
weight value.
3. Put the calibration weight on the platter and press the key to calibrate.
The scale will return back to weighing mode automatically.
GUARANTEE
This scale is guaranteed for one year from the delivery date. The guarantee covers any
fabrication defect of the material.

@TI-02 USER MANUAL
13
During this period Gravity covers the labour cost and the spare parts necessary for the
reparation of the scale.
This guarantee does not cover the failures caused by an inappropriate use or
overcharge.
The guarantee does not cover the freight cost (transport) necessary to repair the
scale.
Officially Distributed By
