TIGERCUB
GROOVY
GARAGE
GENERAL ASSEMBLY
INSTRUCTIONS
TIG/INS63

BEFORE YOU GET STARTED
PLEASE READ INSTRUCTIONS CAREFULLY
• Check the pack and make sure you have all the parts listed.
• When you are ready to start, make sure you have the right tools at hand (not supplied).
• Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, mber can be aected during various weather condions. For the duraon of
heavy or extended periods of rain, swelling of the wooden panels may occur. Warping of the wood may also
occur during excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be
avoided but can be migated. It is suggested that the outdoor building is sprayed with water during extended
periods of warm sunshine and sheltered as much as possible during rain or snow.
To validate your guarantee and ensure longevity of the product, it is ESSENTIAL that your building is treated
with an appropriate high-quality oil or solvent based preservave AFTER assembly, both internally and
externally, and annually thereaer. All glazing units must be sealed (internally and externally) with silicone or
other waterght sealant.
BUILDING A BASE
Care must be taken to ensure the product is placed on a suitable base. When thinking about where the building
and base is going to be constructed, ensure that there will be access to all sides for maintenance work and
annual treatment.
Ensure the base is rm and level and is built on rm ground, to prevent distoron.
The constructed base must be at least the size of product as referenced in supplied construct diagram. It is also
recommended that the oor be at least 25mm above the surrounding ground level to avoid ooding.
TYPES OF BASE
• Durable plasc grid*.
• Concrete 75mm laid on top of 75mm hard-core.
• Slabs laid on 50mm of sharp sand.
• Timber Base - Self constructed/Buy pre-made.
*We recommend a Fastt EcoBase for your building. It is durable, lightweight, exible and easy to put in place.
Please see gersheds.com for details.
WOOD WARPING
MAY OCCUR
WINTER
EXPANSION
SUMMER
CONTRACTION
PLASTIC BASE SLAB BASE TIMBER BASE BROKEN SLABS BARE SOIL LOOSE GRAVEL
02 gersheds.com 0113 205 4189 sales@gersheds.com
CONCRETE BASE

Please retain instrucons for future reference
CAUTION:
All buildings should be erected
by two competent adults.
CAUTION:
It is advisable to wear gloves
during building installaon.
Whilst all products manufactured are made to the highest standards of safety, we cannot accept responsibility for your safety whilst erecng or
using this product.
*TigerSkin®Water Based Treatment:
The unique formula of our TigerSkin® pre-treatment provides a reassuring layer of protecon for your shed or summer
house. Each panel is carefully dipped and dried to provide maximum coverage and ensure that your building will have
protecon from the moment it arrives and is assembled. A water repellent formula which is harmless to plants, not only
does it help to shield the mber, it also gives it a warm tone that looks great on your property. Once erected, your building
should be treated annually, both internally and externally with an appropriate high-quality oil or solvent based preservave.
03
MADE IN THE UK SINCE 1913.
We have been making our high quality,
great value garden buildings here in
Britain for decades.

04 gersheds.com 0113 205 4189 sales@gersheds.com
BEFORE YOU GET STARTED - PRE ASSEMBLY
TOOLS REQUIRED:
We recommend using the following tools (not supplied):
HAMMER LADDER TAPE MEASURE SHARP KNIFE SPIRIT LEVEL SCREWDRIVER +
SPANNER
RUBBER MALLET
WOOD SAW
FIXING KIT GUIDES:
CN13
FX02 - NAIL KITS SMALL
For Shed Products Up To 6 Sides:
Clout Nails (13mm Galvanised - QTY 200)
PP25
Panel Pins (25mm - QTY 100)
N40
Nail (40mm Galvanised - QTY 50)
N65
Nail (65mm Bright - QTY 30)
CB80
Coach Bolts (80mm - QTY 8)
CN13
FX03 - NAIL KITS MEDIUM
For Shed Products With 7 to 9 Sides:
Clout Nails (13mm Galvanised - QTY 230)
PP25
Panel Pins (25mm - QTY 140)
N40
Nail (40mm Galvanised - QTY 50)
N65
Nail (65mm Bright - QTY 40)
CB80
Coach Bolts (80mm - QTY 8)
BUILDING PACK CONTENTS:
For full details of what should be included please see the itemised packing list that is supplied with the delivery.
They are also available on request in pdf form from our helpful Customer Support team – please call:
0113 205 4189 or use the “Items Delivered Query” form at gersheds.com/contact.

05
Please retain instrucons for future reference
• Assembly is straighorward if you follow these step-by-step instrucons.
• We recommend geng everything aligned properly before screwing together and that
screw holes should be pre-drilled to avoid spling the mber. (Do not come pre-drilled).
IMPORTANT
• Before assembly, please make sure you have a suitable base ready to erect your building on.
• Your base MUST be rm and level to ensure that the building is assembled properly and is square.
• DO NOT start your build unl you have checked that all the parts of your building are present, correct and in a
suitable condion.
• Panels may have become twisted during loading/unloading and/or transportaon. Please check that all framing and cladding
are square before beginning assembly.
• If you are organising a third party to install your building, it is best pracce not to schedule this immediately on receipt of your
order, to give you me to check your delivery

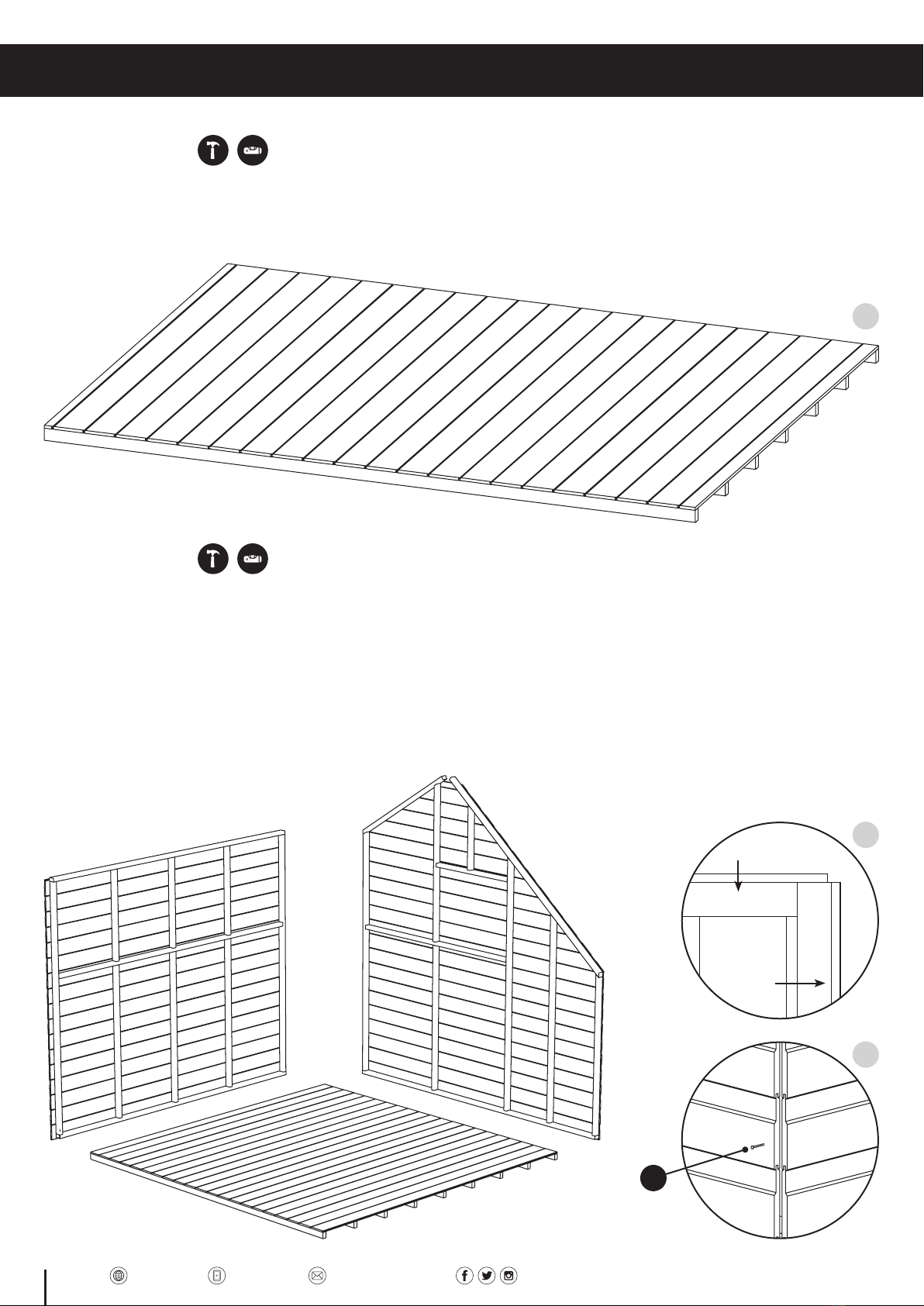

Step 1:
LAYING THE FLOOR
• SINGLE FLOOR - Lay oor down in the desired posion. (Detail A1)
A1
B1
SIDE
GABLE
B2
N40
TIGERCUB GROOVY GARAGE - GENERAL ASSEMBLY INSTRUCTIONS
06 gersheds.com 0113 205 4189 sales@gersheds.com
Step 2:
INSTALLING SIDE AND GABLE PANELS
• Posion one end gable and side panel as shown. (Detail B1)
NOTE: CHECK THAT ALL PANELS ARE AT RIGHT ANGLES TO EACH OTHER AND THE FLOOR.
• Secure together with 10x N40 evenly spaced. (Detail B2)
• Repeat process for door gable and low side panel. Use 5x N40 for low side panel joins.
DO NOT FIX TO FLOOR.

Please retain instrucons for future reference
07
Step 3:
SECURING SIDE AND GABLE PANELS
• Locate pre-drilled holes in gable panels. (Detail C1)
NOTE: THESE MAY HAVE COVERED OVER DURING PANEL COATING PROCESS. THEY MAY RESEMBLE
NAILS HEADS.
• Use 4x CB80 per gable, through the pre-drilled holes in each gable, from the outside. (Detail C2)
NOTE: DO NOT FULLY TIGHTEN.
• Use 4x CB80 per gable, through the pre-drilled
holes in each gable, from the outside. (Detail C2)
NOTE: DO NOT FULLY TIGHTEN. C1
C2
21
12
• Check panels are square by
measuring between points shown.
(Detail C3)
If measurements are equal, your
panels are square. If not, manually
adjust to suit.
NOTE: DO NOT TRIM.
C3

Step 3b:
SECURING SIDE AND GABLE PANELS
• Secure panels to the oor using 2x N65 per panel. Ensure the N65 are driven through the panels and into the
oor bearers. (Detail C4)
NOTE: PANELS HAVE BEEN REMOVED FOR CLARITY.
• Tighten 8x CB80. (Detail C5)
NOTE: CHECK THAT ALL PANELS ARE AT RIGHT ANGLES TO EACH OTHER AND THE FLOOR.
C4 C5
N65
TOP TIP
Use the line of nails securing the
oorboards to the bearers as a
guide to make sure you correctly secure
panels to the oor.
TIGERCUB GROOVY GARAGE - GENERAL ASSEMBLY INSTRUCTIONS
08 gersheds.com 0113 205 4189 sales@gersheds.com

Please retain instrucons for future reference
09

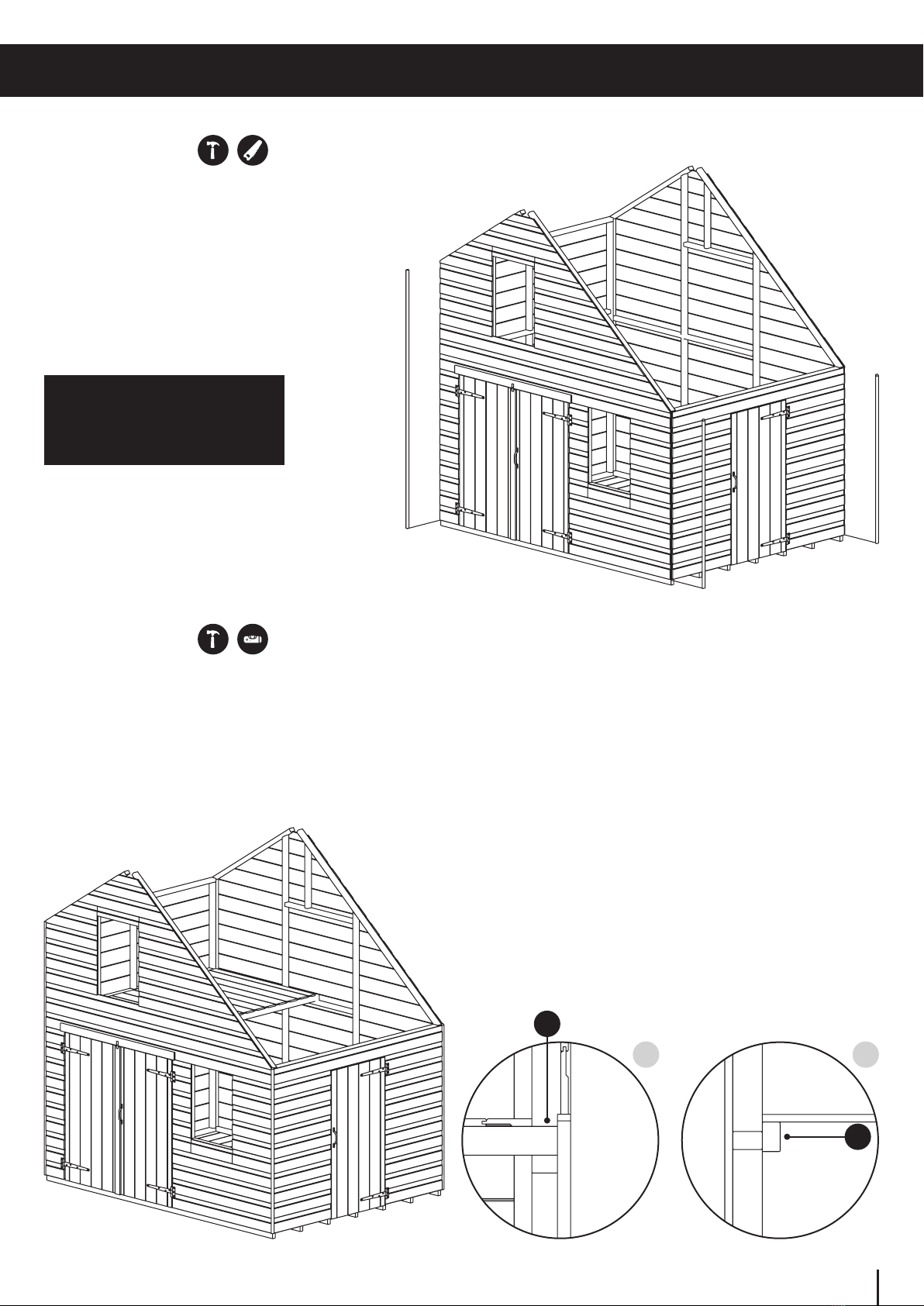

Step 4:
FIT CORNER STRIPS AND COVER STRIP
• Secure the corner strips at each corner of the shed
with 4x N40 per corner strip.
NOTE: THESE CORNER STRIPS MAY
NEED CUTTING TO SIZE.
NOTE: NOT TO BE CONFUSED WITH
WINDOW BEADING.
Step 5:
INSTALL INTERNAL FLOOR
• Posion internal oor as shown.
• Secure through oor framing into gable panel framing using 3x N65 per panel. (Detail D1)
• Secure through oor framing into high side panel using 5x N65. (Detail D2)
D1 D2
N65
N65
TOP TIP
Fix glazing and window frets (oponal)
to window gable at this point.
See step 11 for full details.

• Secure roof panels to the side panels using at least 3x N65 through upright framing in panels. (Detail E3)
• Secure roof panels to the gables using 3x N40 through the angled framing. (Detail E3)
Step 6:
SINGLE PIECE ROOF INSTALLATION
• Aach roof panels as shown. There will be a slight
gap between the roof panels at the apex of shed. (Detail E1)
• Secure apex purlins by pushing panels together and
xing with 6x N65 evenly spaced along length
per pane. (Detail E2)
TOP TIP
You may need someone to hold roof
panels together while you secure
roof panels at the apex.
TOP TIP
If your roof panels do not sit correctly, it suggests the building is not
sing square. Check that the building isn’t twisted by liing two
opposite corners of the building to straighten it out. This should bring
the roof panels into alignment for you to nail into posion.
APEX PURLIN
N65 N65
E1 E2
E3
LOW SIDE PURLIN APEX PURLIN
N40 N65 N40
TIGERCUB GROOVY GARAGE - GENERAL ASSEMBLY INSTRUCTIONS
10 gersheds.com 0113 205 4189 sales@gersheds.com

Please retain instrucons for future reference
11

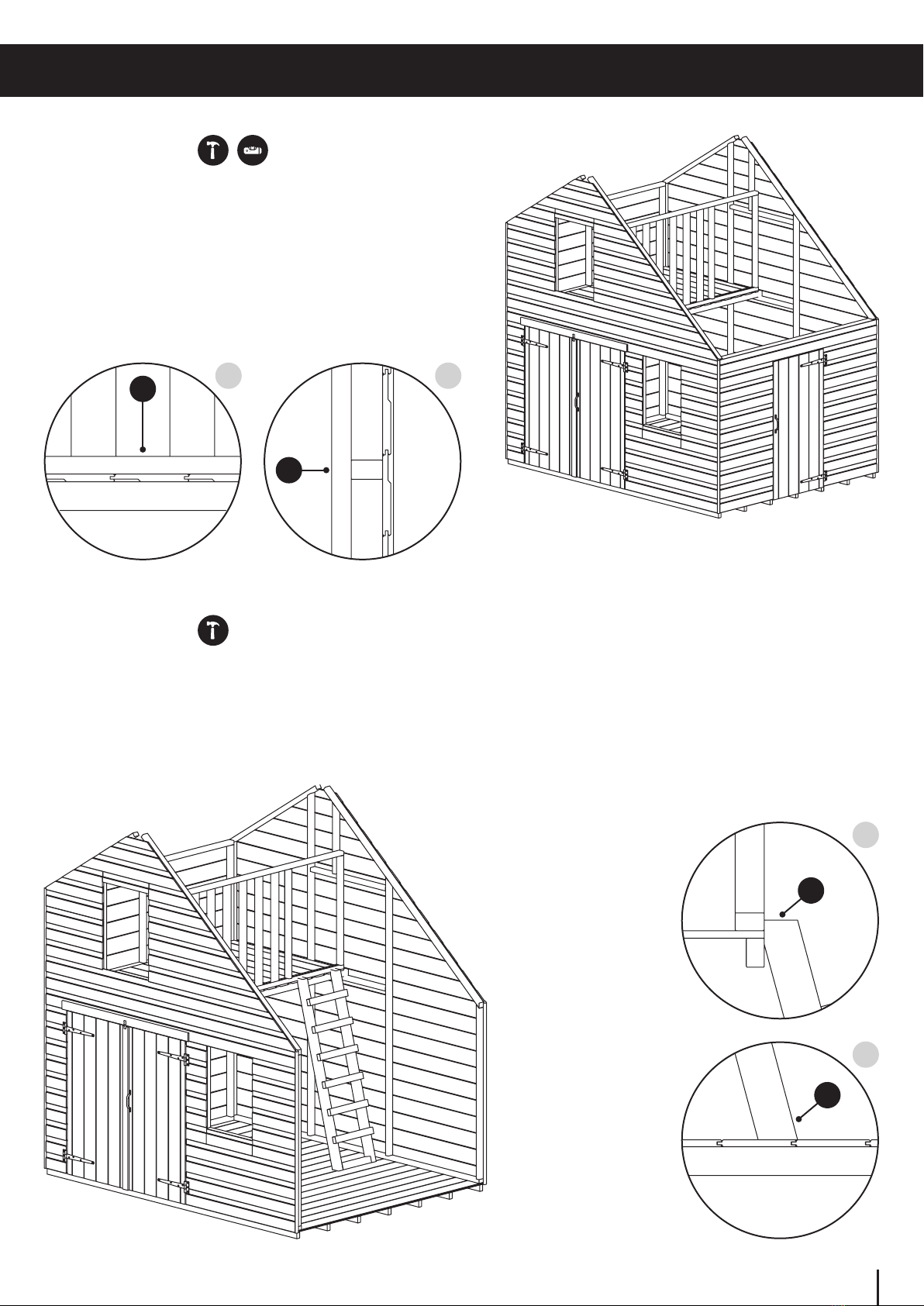

Step 7:
INSTALL INTERNAL VERANDA RAIL
• Secure through veranda framing into gable panel
framing using 2x N65 per panel. (Detail F1)
• Secure through veranda framing into internal
oor using 5x N65. (Detail F2)
NOTE: ROOF PANELS REMOVED FOR CLARITY.
F1 F2
Step 8:
INSTALL PLAYHOUSE LADDER
• Secure through ladder into internal veranda rail framing using 2x N65. See Detail G1.
• Secure through ladder into oor panel using 2x N65. See Detail G2.
NOTE: ROOF PANELS AND LOW SIDE REMOVED FOR CLARITY.
G1
G2
N65
N65
N65
N65

Step 9:
FELTING THE ROOF - MEASURE AND CUT BEFORE FITTING
• Roll felt out onto a clean at surface 30 minutes before you need it so it has a chance to aen out.
• Measure length of roof and allow 35mm overhang at each end. Cut each strip of felt to size.
Use a straight edge to guide cung.
• Roll cut felt piece along low side of roof, Secon 1, leaving sucient overhang to fold down onto roof edge.
• Do not fold underneath roof. (Detail H1 & H2)
• Once felt is rolled out, x felt to roof boards using CN13 at each end, making sure the felt is straight. Fix to
roof skirng at approx. 100mm intervals. (Detail H3)
• Ensure the felt is ght, then secure the top side of felt using CN13 at approx. 100mm intervals.
• Repeat for remaining felt, working from the low side of roof to the high side, overlapping the felt by 75mm
unl the roof is fully covered.
• Fold the overhanging felt at ends under roof panel and tack in place.
CORRECT FELT
H1 H2
H3
INCORRECT FELT
CN13
SECTION 1
FELT REQUIREMENTS
LENGTHS OF 0.5m
WIDE FELT
LENGTHS OF 1m
WIDE FELT
WIDTH OF SHED
GABLE (FT)
113
24
25
126
37
138
49
410
Each length of felt used is enough to cover the length of
the roof plus overhang. Example: 6x8 Groovy Garage will
be supplied with roll of felt to cover 12 plus overhangs at
each end. This is to be cut into two lengths by the customer
to provide the correct coverage. (see table above)
TIGERCUB GROOVY GARAGE - GENERAL ASSEMBLY INSTRUCTIONS
12 gersheds.com 0113 205 4189 sales@gersheds.com

Please retain instrucons for future reference
13

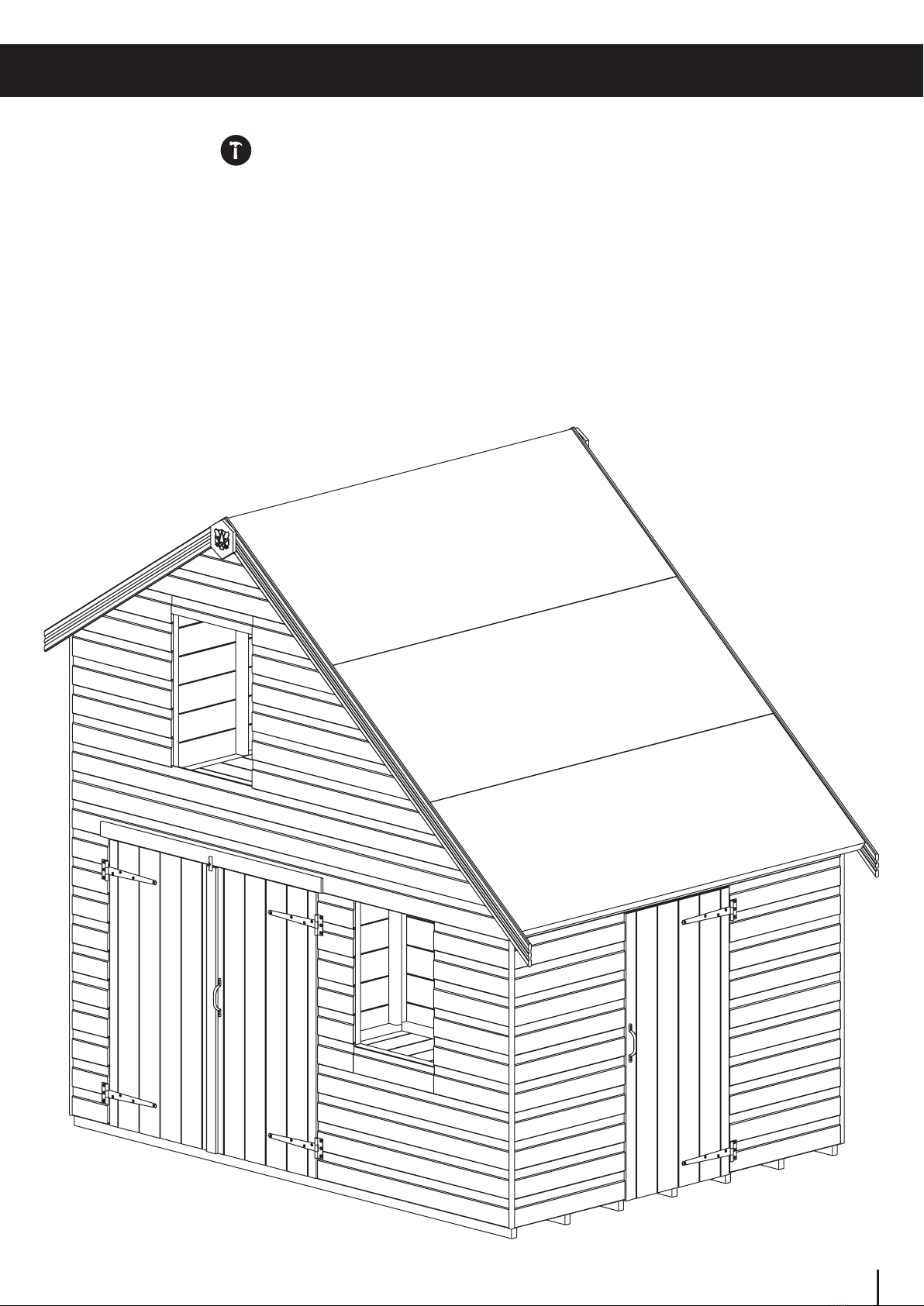

Step 10:
FITTING FASCIA BOARDS (BARGEBOARDS) & FINIAL
• Fit bargeboards to the roof panels, trapping overhanging end of the felt in between the roof panel and
bargeboard.
• Secure using 2x N40 per bargeboard through apex and low side purlins.
NOTE: THERE ARE NO BARGEBOARDS SUPPLIED FOR LOW SIDE OF ROOF AS THIS WILL PREVENT
EFFECTIVE WATER DRAINAGE.
• Secure nial over the top of the bargeboards using 2x N40 per nial. (Oponal)

TIGERCUB GROOVY GARAGE - GENERAL ASSEMBLY INSTRUCTIONS
14 gersheds.com 0113 205 4189 sales@gersheds.com
Step 11:
INSTALL PLAYHOUSE FRETS AND GLAZING
• Insert styrene from inside of playhouse.
• Oponal: Insert playhouse frets and bu up to styrene.
• Secure frets to panel with 2x N40 nails on boom, le and right sides. (Detail I1)
• Glaze windows by securing styrene with PP25 supplied, from the inside. (Detail I2)
NOTE: ALL WINDOWS MUST BE SEALED INSIDE AND OUT WITH SILICONE, PUTTY, OR ANY OTHER
WATER-TIGHT SOLUTION. (NOT SUPPLIED).
NOTE: PLEASE DO NOT CONFUSE YOUR CORNER STRIPS WITH WINDOW BEADING. WE DO NOT
SUPPLY WINDOW BEADING AS STANDARD WITH OUR BUILDINGS UNLESS ORDERED.
• Contact our friendly customer support team to order a standard window glazing kit, complete with beading
and sealant.
H1
H3
N40
PP25

Please retain instrucons for future reference
15

Display Agent
Woodlands DIY Store
Staon Yard,
Horsforth,
Leeds,
LS18 5NZ
Telephone: [phone]
Website: gersheds.com
Email: customersupport@gersheds.com
TIG/INS63
