INSTRUCTIONS FOR USE
EN
TC 100 - 120 ZW(R)
TCM 200 ZE6GW

2

3
EN
WARNINGS
This device can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the device in a safe way and understand the hazards
involved.
Children should not play with the device.
Cleaning and user maintenance shall not be performed by children without supervision.
Always transport the heat pump in an upright position; exceptionally, it may be tilted by 35° in all
directions. Be careful not to damage the housing or the vital component parts of the heat pump during
transport.
The heat pump is not intended for industrial use and use in premises where corrosive and explosive
substances are present.
The connection of the heat pump to the mains should be performed in accordance with standards for
electrical appliances.
An all-poles disconnect switch should be installed between the heat pump and the mains in
accordance with the national installation standards.
The heat pump should not be in operation without water in the hot water tank, because of danger of
destruction of the compressor!
The installation should be performed in accordance with the valid regulations and the instructions of
the manufacturer. It should be performed by a professionally trained installation expert.
It is necessary to install a safety valve with the rated pressure (info on the data plate) to the inlet pipe
of the heat pump, to prevent the pressure in the water tank from rising by more than 0.1 MPa (1 bar).
Water may drip from the outlet opening of the safety valve, so the outlet opening should be set to
atmospheric pressure.
The outlet of the safety valve should be installed facing downwards and in a non-freezing area.
To ensure proper functioning of the safety valve, the user should perform regular controls to remove
limescale and make sure the safety valve is not blocked.
Do not install a stop valve between the heat pump and the safety valve, because it will impair the
functioning of the safety valve!
The elements in the electronic control unit are live even after pressing the off field (9) on the heat
pump.
If you disconnect the heat pump from the power supply, please drain any water from the pump to
prevent freezing.
Water is drained from the heat pump through the water tank inlet pipe. For this purpose it is
recommendable to install a special element or an outlet valve between the safety valve and the inlet
pipe.
Water can be drained from the pump through the boiler inlet pipe. For this purpose it is advisable to
install a special element or outlet valve between the inlet pipe and safety valve.
This product contains fluorinated greenhouse gases. Hermetically sealed.
Our products incorporate components that are both environmentally safe and harmless to health, so they can be
disassembled as easily as possible and recycled once they reach their final life stage.
Recycling of materials reduces the quantity of waste and the need for production of raw materials (e.g. metals) which requires
a substantial amount of energy and causes release of harmful substances. Recycling procedures reduce the consumption of
natural resources, as the waste parts made of plastic and metal can be returned to various production processes.
For more information on waste disposal, please visit your waste collection centre or the store where the product was purchased.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

4
EN
Dear Customer,
Thank you for purchasing the domestic water heat pump. You have put trust in one of the most perfected appliances of this kind. Its
material, design and testing were made in compliance with related applicable standards.
Power, capacity and safety systems were thoroughly tested. Tests were made individually for each component part, as well as for the
finished product, according to international quality standards.
Please read these Instructions for Installation and Use carefully before use in order to prevent eventual problems that may cause
damage to the product.
Keep this Manual for future reference, as a source of information on the details of the heat pump operation or its maintenance.
Instructions for Installation and Use can also be found on our website http://www.tiki.si.
Of course, you can always contact any of our experienced authorised servicing technicians for occasional maintenance.
FIELD OF USE
This appliance is intended for the preparation of domestic hot water in households and other consumers where the daily consumption
of hot water (40 °C) does not exceed 110 l to 250 l (depending on the model). The appliance must be connected to the domestic hot
water pipeline and the heating circuit of the building’s central heating. To operate it needs electric energy.
If you are planning to install the appliance in a room with a bathtub or a shower, it is obligatory to observe the provisions of the IEC
60364-7-701 (VDE 0100, Teil 701) standard.
Do not use the appliance in a manner not compliant with the instructions. The appliance is not intended for industrial use and use in
premises with corrosive and explosive substances.
The manufacturer shall not be responsible for injuries resulting from inappropriate installation and inappropriate use that is not in
accordance with the instructions for assembly and use.
The instructions for use are a component and important part of this product and must be delivered to the customer. Read the
warnings carefully, as they contain important directions related to safety during operation, use and maintenance.
Keep these Instructions for later use.
Your heat pump’s marking is indicated on the data plate, which is located on the bottom side of the appliance between the inlet pipes
for domestic water (wall-mounted version) or on the back of the cover (floor-standing version).
Once the packaging is removed, check the contents. When in doubt, contact your dealer. Never let children play with the packaging
parts (clamping, plastic bags, expanded polystyrol, etc.) – potential risk. Make sure to remove and dispose of the packaging safely
and in an environmentally friendly way.
STORAGE AND TRANSPORT
The heat pump must be stored and transported in an upright position. Store in a dry and clean place.
THE PRINCIPLE OF OPERATION
The heat pump is a thermodynamic heat generator which increases the temperature of heat from the lower level (e.g. temperature of
heating water source water) to a higher level (e.g. Domestic Hot Water - DHW).
The removed heat together with electrical energy generates thermal energy available for sanitary water heating.
Fig. 1: Chart of energy flow through the heat pump unit

5
EN
DIMENSIONS
WALL-MOUNTED VERSION
Fig. 2a: Connection and installation dimensions of the heat pump [mm]
FLOOR-STANDING VERSION
Fig. 2b: Connection and installation dimensions of the heat pump [mm]
ABCDEF
TC100ZW 1342 490 100 100 G 1/2 /
TC120ZW 1497 645 100 100 G 1/2 /
TC120ZWR 1497 645 100 100 G 1/2 G 3/4
ABEFGHV CV TV
TCM200ZE6GW 25 130 880 1240 1835 G3/4 G3/4 G3/4

6
EN
INSTALLATION OF THE HEAT PUMP
The heat pump must be placed in a room free from freezing. The appliance must be connected to the heating circuit of the building’s
central heating.
During operation, domestic water is heated using the energy from the central heating system. For optimal operation of the heat pump,
water temperature must be between 12 °C and 40 °C in the heating circuit. The user must ensure a sufficient flow rate of the heating
water – the source. Minimum flow rate of the source that is needed for the heat pump to operate is 120 l/h. A deaerator must be
placed on the highest point of the source inlets. Heat losses are greater in a room with cold air. To prevent condensation it is
recommended to insulate the pipes connected to the source.
If the temperature of the source is lower than 12 °C or higher than 40 °C, the electric heater will activate to heat the domestic water.
The electric heater will also activate if the flow rate of the source is lower than 120 l/h. The heat pump will operate in reserve mode.
To reduce the transfer of noise and vibrations through walls or the floor to rooms where this would be disturbing (bedrooms, rooms
intended for resting) please make sure to take the following measures:
- install flexible joints for hydraulic connections
- plan vibration insulation for wall openings
- use positioning feet (for floor-standing version)
Fig. 3: Possible installation of a heat pump

7
EN
WALL-MOUNTED VERSION
When selecting the place of installation, pay attention to the solidity of the wall – can it take the weight of the heat pump together with
the weight of the water inside the water tank? Mount the heat pump in an upright position only, using wall screws with a nominal
diameter of min. 8 mm. A wall with poor bearing capacity must be properly reinforced at the place of installation. For easier inspection
and replacement of the magnesium anode, it is recommended to leave enough space between the appliance and the ground (Fig.
4a). Otherwise the appliance will have to be dismounted from the wall for service interventions.
Make sure to take measures to prevent the transfer of noise and vibrations through walls where this would be disturbing (bedrooms,
rooms intended for resting).
A radiator can be connected only to the TC…ZWR model.
Fig. 4a: Minimum requirements for the installation of HP
FLOOR-STANDING VERSION
Before setting up the appliance, screw in the enclosed adjustable feet. Level the heat pump longitudinally and laterally by rotating the
adjustable feet. Take into account the minimum permissible distance from the wall and the ceiling.
Make sure to take measures to prevent the transfer of noise and vibrations through walls where this would be disturbing (bedrooms,
rooms intended for resting).
Fig. 4b: Minimum requirements for the installation of HP

8
EN
CONNECTION TO WATER SUPPLY MAINS
Inlet and outlet of sanitary water are color-coded on the heat pump pipes. The cold sanitary water inlet is marked blue and the hot
sanitary water inlet is marked red. You can connect the heat pump to the house water pipeline without a reducing valve if the pressure
in the network is lower than the nominal pressure (indicated on the data plate). If the pressure is higher, a relief valve needs to be
installed so as to provide that the pressure at the inlet to the hot water tank does not exceed the nominal pressure.
Installing a safety valve is mandatory in order to assure safe operation. The valve prevents an increase of the pressure in the boiler by
any more than 0.1 MPa (1 bar) above the rated pressure. The outflow nozzle on the safety valve must have an outlet into the
atmosphere. To assure correct operation of the safety valve, the valve must be regularly checked.
When checking the valve, push the lever or unscrew the nut of the valve (depending on the type of the valve) and open the drain from
the safety valve. Water must flow from the valve nozzle, showing that the valve operation is faultless. During the heating of water, the
water pressure in the hot water tank is increased up to the level preset in the safety valve. Since the system prevents backflow of
water into the water supply mains, water may be dripping from the outlet opening on the safety valve. The dripping water may be
drained via trap into the drains; the trap is mounted under the safety valve. The outlet pipe, which is mounted under the safety valve,
must be directed downwards, in a place with a temperature above freezing.
If the installation does not allow draining of the water from the safety valve into the drains, dripping can be avoided by installing an
expansion vessel onto the heat pump inlet pipe. The volume of the expansion vessel must be ca. 3% of the hot water tank volume.
After connecting the heat pump to the water mains, the water tank must be filled with water.
Fig. 5: Closed (pressure) system
CONNECTION TO THE CENTRAL HEATING SYSTEM
Connection to the heating system is on the back side of the heat pump (wall-mounted version) or on the left side of the heat pump
(floor-standing version). The heating source water inlet is marked with IN and the heating source water outlet is marked with OUT.
You may only connect the heat pump to the central heating system if the minimum flow rate of heating source water of 120 l/h is
provided. The heating source water temperature must be kept in the range between 12 °C and 40 °C, otherwise the heat pump will
operate in reserve mode.
To the top point of heating source water connections, the air valve must be installed (Fig. 4a, Fig. 4b). The heating system to which
the sanitary heat pump is connected must have a built-in expansion vessel and a safety valve! The system must not contain glycol!
Fig. 6: Connection to the central heating system
Before filling the system, it must be cleaned of all impurities and an impurity filter must be installed.
LEGEND
1Pressure mixer taps 5Checking fitting
2Expansion tank 6Pressure reduction valve
3Safety valve 7Closing valve
aTest valve
bNon-return valve HCold water
4Funnel with outlet connection THot water
!

9
EN
CONNECTING A RADIATOR (applicable for TC…ZWR models)
Inlet and outlet of pipes for connecting to a radiator are on the back side of the heat pump
marked with IN and OUT. The return pipe is marked with IN, and the flow pipe with OUT.
The heat pump can be connected to a radiator with a max power of 700 W as per EN 442 (inlet
temp. 65 °C), which is around 300 W at the operating inlet. Maximum distance between the
radiator and the heat pump is 8 m.
It is obligatory to place a deaerator on the highest point of the connection to the radiator (Fig.
4a). The connection must include an inlet valve and a safety valve (6 bar). The pipe connection
must be deaerated and filled to 1.7 bar.
The radiator is not intended for heating a room.
Figure 7: Connecting to a radiator
CONNECTING THE HEAT PUMP TO THE POWER
SUPPLY NETWORK
Connecting the heat pump to the power supply network must take place in accordance with the standards for electric appliances. To comply
with the national installation regulations, an all poles disconnect switch must be installed between the heat pump and the power supply
network.
Fig. 8: Electrical circuit diagram
WALL-MOUNTED VERSION
Before connecting to the power supply network, install a power supply cord in the heat pump, with a min. diameter of 1.5 mm2 (H05VV-F3G
1.5 mm2) (applies to models without a connecting cable). To do this, remove the protective cover from the heat pump. The cover is attached
using two screws (Fig. 9).
Connection must be carried out by a trained professional.
Figure 9a: Installing a power cord
LEGEND
1Thermal cut-out
2Electric heating element (2 x 1000 W)
3Control unit
4Compressor
5Circulation pump (in TC...ZWR models)
6Flow switch
7Magnesium anode
8Assembly of sensors
T4 Inlet heating source water temperature sensor
T5 Outlet heating source water temperature sensor

10
EN
FLOOR-STANDING VERSION
Before connecting to the power supply network, install a power supply cord with a min. diameter of at least 1.5 mm2 (H05VV-F 3G 1.5 mm2)
(applies to models without a connecting cable).
Connection must be carried out by a trained professional.
Figure 9b: Installing a power cord
CONNECTING AN EXTERNAL CIRCULATION PUMP, ELECTROMAGNETIC VALVE ETC.
The control unit automatically reports the requirement for flow rate in a branch of a heating circuit. The external element for enabling flow rate
is connected to a clamp (Fig. 10).
Maximum allowed power of elements for direct connection is 100 W (230 V). If the power of the element is higher, connection must
be made through a relay.
Connection should only be carried out by a trained person. Before connecting the element it is obligatory to disconnect the
appliance from power supply!
Figure 10: Connecting an external element
HEAT PUMP OPERATION

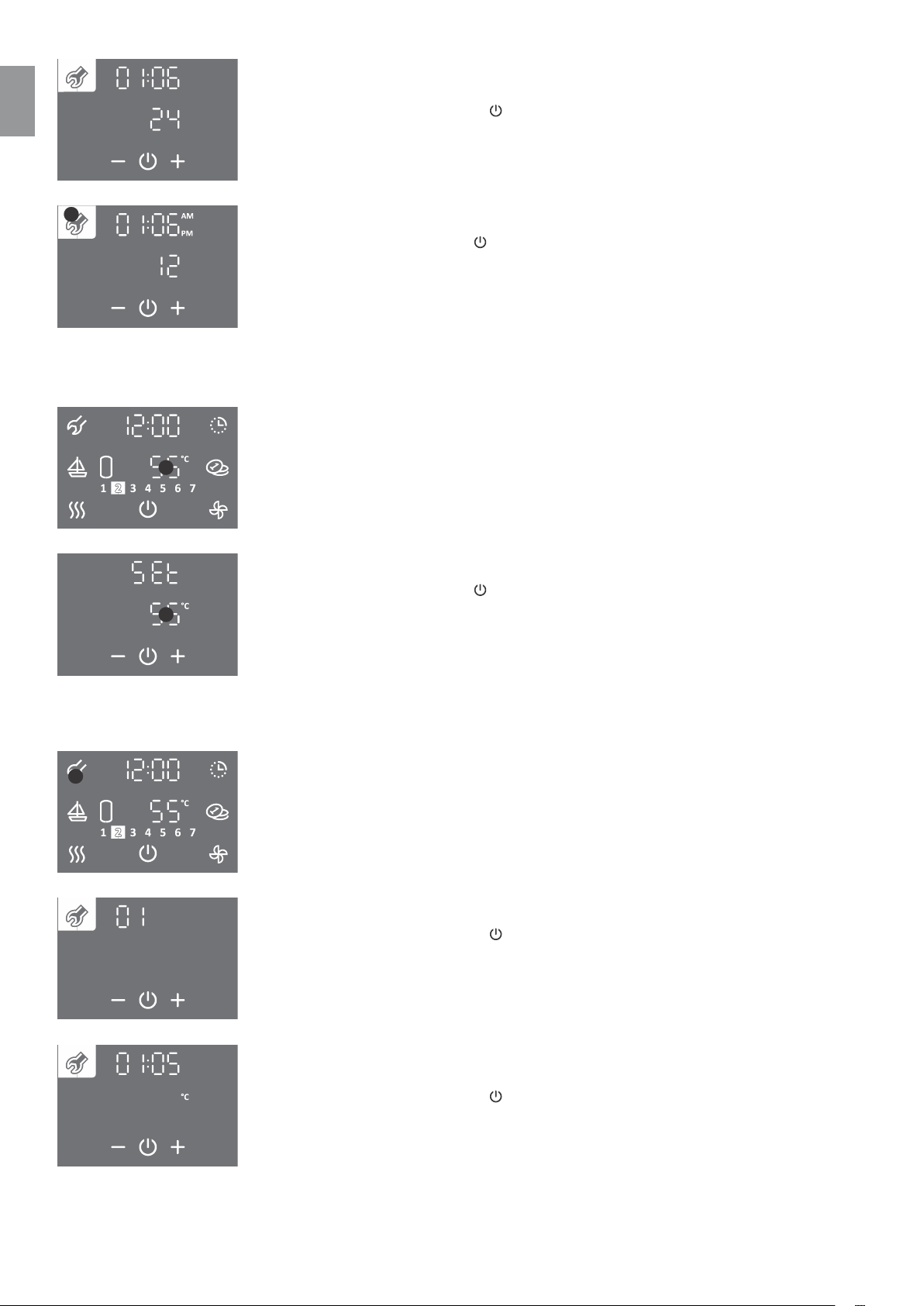

The heat pump can be operated using an LCD touch screen (Figure 11). Features and displays depend on the models.
Fig. 11: Control display
4
3
2
1
5
678910 11
12
13
14
15
1617
181920
LEGEND
1Indication, overview of errors, access to the user
menu
2Signalisation of the operation of the heater,
Signalisation of the reserve mode
3Signalisation of the operation of the compressor
4Activation and setting of the "VACATION"
programme
5Display of quantity of hot water
6Activation of accelerated heating "TURBO",
activation of the "HOT" feature
7Display of day of the week
(1.. Monday, …, 7.. Sunday)
8Reducing the value
9Heat pump ON/OFF switch
10 Increasing the value
11
Manual activation of the “radiator heating” feature,
activation of the “automatic radiator heating”
feature, activation of the “radiator heating in timer
mode” feature
12 Display and setting of temperature (°C/°F)
13 On/off "SMART" feature *
14 Signalisation of defrosting *
15 Signalisation of the operation of the anti-legionella
programme
16 Activation and setting of the timer
17 Display and setting of time
18 Indicator of operation in the Low tariff (LT) mode
19 Indicator of device’s connection to the WiFi
network *
20 Signalisation of the operation of the PV feature
* depending on the model

11
EN
STARTING/STOPPING THE HEAT PUMP
USER MENU
List of parameters and features in the user menu
* depending on the model
SETTING UP DISPLAY ILLUMINATION
Main display
•To start the heat pump, press the symbol.
•By holding (3 s) the symbol the heat pump is switched off.
After the heat pump is switched on, the heat pump compressor always operates for at least 5
minutes (minimum operating time of compressor).
After the heat pump is switched off, the heat pump compressor does not operate for at least 20
minutes (minimum compressor standby time). If a request is made for the compressor to switch
on during this time, the compressor remains still and the symbol flashes on the display.
After the standby time has elapsed, the compressor switches on automatically. The symbol
lights up on the display.
Saving mode
•After 1 minute of inactivity (no pressing on the display) the display always reverts to saving
mode. The saving mode shows the current water temperature and, depending on the model, the
symbols of features currently in progress (see Figure 11).
•Pressing anywhere on the saving mode display shows the main display.
Setup of features of the heat pump is only possible on the main display!
1
Some parameters and features are set up in the user menu.
•You can enter the user menu by holding (for 3 s) the field no. 1 (for setting the parameters and
features see next chapters).
Group of
parameters Parameter Description
01 Anti legionella programme
01
02 Automatic ventilation feature *
03 Setting the speed of the fan *
04 Setting the hysteresis of start-up
05 Setting the display of temperature in °C or °F
06 Setting up the time display 12/24
07 Setting display illumination
08 Manual switch to reserve mode of operation (heating with the electric heater)
09 Electric heater (yes/no)
10 Setting the radiator heating time *
11 Setting the speed of the circulation pump for radiator heating *
02
01 PV feature (operation using photovoltaics)
02 LT feature (operation with regard to the electric energy tariff)
03 ECF feature (external control of fan) *
04 ECHP feature (external control of heat pump)
05 ECH feature (external control of radiator heating) *
1
•To enter the user menu hold (3 s) field no. 1.
•By pressing field no. 1 again, you can move by one step back on each step, thus exiting the
user menu.

12
EN
RESERVE MODE OF OPERATION OF THE HEAT PUMP
When the appliance is switched on, system check starts first. If the temperature and flow rate of the incoming water are inappropriate,
the electric heater turns on. The heat pump works in the reserve mode (the word SAFE and the symbol are shown on the display).
The possibility of switching to the normal mode of operation is checked cyclically. Once the conditions are met, the electric heater
turns off and the heat pump switches to the normal mode of operation.
Display and setting of time in the reserve mode of operation
You can enable or disable the heater in the user menu.
Before changing the parameter, the features "TURBO" and "HOT" must be deactivated (see chapters "TURBO"
FEATURE and "HOT" FEATURE).
In case the heater is disabled (parameter 01:09) minimum temperature is maintained only by the heat pump operation. In case
the source temperature is outside the range of operation of the heat pump, freeze protection will not work!
If the electric heater is disabled and the source temperature is outside the range of operation of the heat pump, water in the
water tank will not be heated.
•Parameter group starts to flash.
•By pressing field + or – select the number of the group of parameters 01.
•Confirm the setting by pressing the symbol.
•Parameter number starts to flash. The current parameter value is displayed.
•By pressing field + or – select the number of the parameter 07.
•Confirm the setting by pressing the symbol.
1
•Parameter value starts to flash.
•By pressing field + or – choose between the three levels of display illumination.
•Store the setting by pressing the symbol.
•You can exit the user menu by pressing field no. 1 (moves you one step back) or wait for the
unit to exit the menu automatically after a while.
•If you press on the field with the word SAFE (on the main display) the clock is displayed.
•If you if you hold (for 3 seconds) the field with the word SAFE (on the main display) the clock
can be set.
!
!
!
1
•To enter the user menu hold (3 s) field no. 1.
•By pressing field no. 1 again, you can move by one step back on each step, thus exiting the
user menu.
•Parameter group starts to flash.
•By pressing + or – select parameter group number 01.
•Confirm the setting by pressing the symbol.

13
EN
SETTING THE HOUR AND DAY OF THE WEEK
SETTING TIME DISPLAY 12/24
•Parameter number starts to flash.
•By pressing + or – select parameter number 09.
•Confirm the setting by pressing the symbol.
1
•Parameter value starts to flash.
•By pressing + or – select if the heater is connected (YES - NO).
•Store the setting by pressing the symbol.
•You can exit the user menu by pressing field no. 1 (moves you one step back) or wait for the
unit to exit the menu automatically after a while.
17
•Hold (for 3 s) field no. 17.
7
•The hour segment starts to flash.
•By pressing + or – set the hour.
•Confirm the setting by pressing the symbol.
•The minutes segment starts to flash.
•By pressing + or – set the minutes.
•Confirm the setting by pressing the symbol.
•The day of the week starts to flash (field no. 7).
•By pressing + or – set the day of the week (1… Monday, …, 7… Sunday).
•Confirm the setting by pressing the symbol.
7
•The illuminated number in field no. 7 shows the number of the day of the week (1.. Monday, …,
7.. Sunday).
•The change of time display 12/24 can be set in the user menu.
1
•To enter the user menu, hold (for 3 s) field no. 1.
•By pressing field no. 1 you can move one step back, thus exiting the user menu.
•The parameter group starts to flash.
•By pressing + or – select the number of the parameter group 01.
•Confirm the setting by pressing the symbol.

14
EN
SETTING THE TEMPERATURE
SETTING THE DISPLAY OF TEMPERATURE IN °C OR °F
•The parameter number starts to flash. At the same time the current value of the parameter is
shown.
•By pressing + or – select the number of the parameter 06.
•Confirm the setting by pressing the symbol.
1
•Parameter value starts to flash.
•By pressing + or – select between 12 or 24-hour time display.
•Store the setting by pressing the symbol.
•Exit the user menu by pressing field no. 1 (moves you one step back) or wait for the unit to exit
the menu automatically after a while.
12
•Press field no. 12.
12
•Field 12 starts to flash.
•By pressing + or – set the desired temperature. Factory setting of the temperature is 55 °C.
•Store the setting by pressing the symbol.
The set temperature should meet the actual needs. Recommended temperature settings
are between 45 and 55 °C. Higher temperatures are not recommended as they reduce the
efficiency (COP) and extend the time of heating, thereby increasing the number of
operating hours.
1
•To enter the user menu hold (for 3 s) field no. 1.
•By pressing field no. 1 again, you can move one step back, thus exiting the user menu.
•The parameter group starts to flash.
•By pressing + or – select the number of the parameter group 01.
•Confirm the setting by pressing the symbol.
•The parameter number starts to flash. At the same time the current value of the parameter is
shown.
•By pressing + or – select the number of the parameter 05.
•Confirm the setting by pressing the symbol.

15
EN
SETTING THE HYSTERESIS OF START-UP
As a default setting, the hysteresis of start-up automatically adjusts to the set temperature and is adjusted so that the device functions
as efficiently as possible. The start-up hysteresis can be set in the user menu.
By modifying the hysteresis of start-up, you will modify the settings that may impair the energy efficiency of heating of
water, change the frequency of start-ups and time of heating!
ANTI-LEGIONELLA PROGRAMME
If the water in the tank does not reach 65 °C for 14 consecutive days, the anti-legionella programme switches on and heats the water
to 70 °C (if the electric heater is activated, parameter 01:09) or up to 65 °C (if the electric heater is deactivated, parameter 01:09) and
maintains it for 60 minutes.
The frequency of the start of anti-legionella programme (1 to 999 days) or shutdown of the anti-legionella programme can be set in
the user menu.
1
•Parameter value starts to flash.
•By pressing + or – select the display of temperature either in °C or °F.
•Store the setting by pressing the symbol.
•Exit the user menu by pressing field no. 1 (moves you one step back) or wait for the unit to exit
the menu automatically after a while.
!
1
•To enter the user menu hold (for 3 s) field no. 1.
•By pressing field no. 1 again, you can move one step back, thus exiting the user menu.
•The parameter group starts to flash.
•By pressing + or – select the number of the parameter group 01.
•Confirm the setting by pressing the symbol.
•The parameter number starts to flash. At the same time the current value of the parameter is
shown.
•By pressing + or – select the number of the parameter 04.
•Confirm the setting by pressing the symbol.
1
•Parameter value starts to flash.
•By pressing + or – select the automatic adjustment of hysteresis (auto) or hysteresis range
between 5 and 10 °C (40 to 50 °F).
•Store the setting by pressing the symbol.
•Exit the user menu by pressing field no. 1 (moves you one step back) or wait for the unit to exit
the menu automatically after a while.
•During the operation of the anti-legionella programme the symbol is displayed.
Warning: after heating in the anti-legionella programme, the temperature of the water in
the hot water storage tank is 65 °C or more, regardless of the temperature set on the
device.
!

16
EN
DISPLAY OF QUANTITY OF HOT WATER IN THE STORAGE TANK
"TURBO" FEATURE
The "TURBO" feature can be turned on if you need more hot water than the heat pump can heat in a very short amount of time. In the
TURBO mode, the heat pump and electric heater work together. If the symbol in field no. 6 is not visible, the "TURBO" feature is
not available.
1
•To enter the user menu hold (for 3 s) field no. 1.
•By pressing field no. 1 again, you can move one step back, thus exiting the user menu.
•The parameter group starts to flash.
•By pressing + or – select the number of the parameter group 01.
•Confirm the setting by pressing the symbol.
•The parameter number starts to flash.
•By pressing + or – select the number of the parameter 01.
•Confirm the setting by pressing the symbol.
1
•Parameter value starts to flash.
•By pressing + or – you can set the frequency (number of days) of start-up of the anti-legionella
programme or turn off the anti-legionella programme (OFF).
•Store the setting by pressing the symbol.
•Exit the user menu by pressing field no. 1 (moves you one step back) or wait for the unit to exit
the menu automatically after a while.
5
Field no. 5 shows the symbol:
- no hot water
- small quantity of hot water
...
- large quantity of hot water
6
•Hold (for 3 s) field no. 6.
12
•Field no. 12 starts to flash.
•By pressing + or – set the temperature of the "TURBO" feature.
•Store the setting by pressing the symbol.

17
EN
"HOT" FEATURE
The "HOT" feature can be used if you want to heat the water to a temperature higher than the currently set temperature. If the
symbol in field no. 6 is not visible, the "HOT" feature is not available.
"VACATION" MODE
In the “VACATION” mode you can set the number of days when the heat pump should maintain the minimum temperature of water
approx. 10 °C).
6
•While the feature is on, field no. 6 is illuminated.
•When the set temperature is achieved, the device resumes the operation before the activation of
the "TURBO" feature.
•The "TURBO" feature can be switched off manually by pressing field no. 6 briefly (main display).
In case the heater is disabled (parameter 01:09) the "TURBO" feature is not enabled.
6
•Briefly press field no. 6.
12
•Field no. 12 starts to flash.
•By pressing + or – set the temperature of the "HOT" feature.
•Store the setting by pressing the symbol.
6
•While the feature is on, field no. 6 is illuminated.
•When the set temperature is achieved, the device resumes the operation before the activation of
the "HOT" feature.
•The "HOT" feature can be switched off manually by pressing field no. 6 briefly (main display).
4
•Press field no. 4.
12
•Field no. 12 starts to flash.
•By pressing + or – set the number of days of your vacation.
•Store the setting by pressing the symbol.

18
EN
TIMER FEATURE
In the TIMER feature you can set the timer points for operation of heat pump at various temperatures. The feature enables four time
points daily for different settings of the water temperature or heat pump shut-down. The next timer point cannot be set one hour after
the previous setting. The time setting step is 10 min. If the symbol in field no. 16 is not visible, the TIMER feature is not available.
When setting the timer you must know the habits and take into account the duration of heating times. Senseless settings to which the
system cannot respond will not achieve the set temperature points and will have a negative impact on the heat pump’s efficiency.
SELECTING THE TIMER MODE OF OPERATION
TIMER MODE FOR THE ENTIRE WEEK
4
17
•While the feature is on, field no. 4 is illuminated.
•Field no. 17 shows the number of days remaining until the end of the VACATION mode. If the
display is in the saving mode, touch the display to see the number of remaining days.
•After the set number of days has elapsed, the heat pump resumes the previously set mode of
operation, and illumination of field no. 4 stops.
•The "VACATION" feature can be switched off manually by pressing field no. 4 briefly (main
display).
In case the heater is disabled (parameter 01:09) minimum temperature is maintained only
by the heat pump operation. In case the source temperature is outside the range of
operation of the heat pump, freeze protection will not work!
16
1.Hold (for 3 s) field no. 16.
7
7
7
2.Field no. 7 starts to flash.
3.By pressing + or – select from among three timer options:
- timer mode for the entire week (in field no. 7 the numbers from 1 to 7 flash),
- timer mode of operation for the period between Monday and Friday and from Saturday to
Sunday (in field no. 7 the numbers 1 to 5 flash ),
- timer mode of operation for each individual day (in field no. 7 number 1 flashes).
4.Confirm the setting by pressing the symbol.
17
5.Field 17 starts to flash.
6.By pressing + or – set the time of the first time point t1.
7.Confirm the setting by pressing the symbol.

19
EN
TIMER MODE OF OPERATION FOR THE PERIOD BETWEEN MONDAY AND FRIDAY AND FROM SATURDAY TO SUNDAY
To set the time points for the period from Monday to Friday, use steps from 5 to 13.
TIMER MODE OF OPERATION FOR EACH INDIVIDUAL DAY
To set the time points for each individual day, use steps from 5 to 13.
Example:
time point t1: time 06:00, set temperature 40 °C,
time point t2: time 09:00, heating OFF (10 °C),
time point t3: time 18:00, set temperature 40 °C,
time point t4: time 21:00, set temperature 55 °C.
Fig. 12: Example of setting the timer
12
8. Field 12 starts to flash.
9. By pressing + or – set the temperature of the first time point t1. If you set the temperature
below 10 °C, field no. 12 displays the word OFF, and the device does not heat water (freeze
protection still works).
10. Confirm the setting by pressing the symbol.
12
11. Field 12 starts to flash.
12. By pressing + or – select whether you want to complete the setting or set the next time point t2
(t3, t4) (YES - NO). If you select NO the setting of the selected segment will be finished. If you
select YES, set the other time points as per the above procedure (from step 5 to 13) – max. 4.
13. Confirm the setting by pressing the symbol.
14. To set the next time interval (Saturday, Sunday) repeat the steps 5 to 13.
14. By pressing + or – select whether you want to copy the settings from the previous day (YES -
NO). If you select "no" set the time points as per instructions (from step 5 to 13). If you select
"YES" step no. 14 will repeat.
15. Confirm the setting by pressing the symbol.
16
•During the operation of the feature, field no. 16 is illuminated.
•Timer mode of operation can be switched off by pressing field no. 16 (main display). The
settings remain stored. If you press no. 16 you can switch it back on.
•If you want to change the settings of the feature, hold (for 3 s) field no. 16 and set it again as per
the above procedure.
t2 t3
OFF (10°C)
t4 t1
00:00 24:00
40 °C 40 °C
55 °C
t1
06:00 09:00 18:00 21:00

20
EN
"RADIATOR HEATING" FEATURE (APPLIES TO TC...ZWR MODELS)
The feature controls the heating of a radiator connected to the heat pump. You can choose between manual activation, automatic
operation, timer operation or external control of the “radiator heating” feature. If the symbol in field 11 is not visible, the “RADIATOR
HEATING” feature is not available.
a) MANUAL ACTIVATION OF THE “RADIATOR HEATING” FEATURE
In this feature you can set the time of radiator heating.
The set features of heating domestic water always have priority before the “radiator heating” feature. If domestic water is
being heated at the moment of activation of the feature, radiator heating will start once the domestic water heating switches
off.
b) AUTOMATIC FUNCTIONING OF THE “RADIATOR HEATING” FEATURE
The feature automatically activates radiator heating after a major consumption of hot water from the water tank (e.g. after someone
has taken a shower) for 3 hours (factory default, parameter 01:10).
The set features of heating domestic water always have priority before the “radiator heating” feature.
11
•Briefly press field no. 11.
•Field no. 12 starts to flash.
•By pressing + or – set the time of operation of the “radiator heating” feature. Up to 30 minutes
you can set the time in 5 min increments and above 30 minutes you can set the time in 10
minute increments. After maximum time setting, the word ON appears on the display, indicating
constant heating of the radiator until manual switch off.
•Confirm the setting by pressing the symbol.
11
•During the operation of the feature, field 11 flashes.
•The feature can be deactivated by shortly pressing field 11 (main display).
11
•Hold (for 3 s) field 11.
•Field 12 starts to flash.
•By pressing field + or – set to "Auto".
•Confirm the setting by pressing the symbol.
11
•During the functioning of the feature field 11 is illuminated.
