Time Electronics 1067 User manual
© 2022 Time Electronics Ltd.
All rights reserved.
Nothing from this manual may be multiplied, or made public in any form or manner, either
electronically or hard copy, without prior written consent from Time Electronics Ltd.
This also applies to any schematics, drawings and diagrams contained herein.
This manual provides operating and safety instructions for the Time Electronics product.
To ensure correct operation and safety, please follow the instructions in this manual.
Time Electronics reserves the right to change the contents, specifications and other
information contained in this manual without notice.
Time Electronics
1067 Resistance Decade Box User Manual
1
Contents
1Introduction....................................................................................................................................2
2Specifications ................................................................................................................................3
3Operation........................................................................................................................................4
3.1 Safety Precautions ................................................................................................................................ 4
3.2 Front Panel Controls and Connections..................................................................................................4
3.3 Operating Instructions ...........................................................................................................................5
3.4 Resistance Setting Table.......................................................................................................................7
4Applications ...................................................................................................................................8
5Warranty and Servicing................................................................................................................. 9
Time Electronics
1067 Resistance Decade Box User Manual
2
1Introduction
A precision resistance decade box suitable for a wide range of simulation work. High
accuracy, long term stability, and low temperature coefficient make the 1067 ideal for
simulating and calibrating precision Pt100 sensors and temperature indicators/meters that
use resistive sensors.
Special care has been taken in the construction of this precision decade box to ensure that
the residual end resistance is as low and as stable as possible. Multiple self-cleaning silver
alloy contacts are used for each position to ensure outstanding performance and long life.
Housed in a robust metal case the 1067 is fully screened and low thermal EMF terminals are
used. The slimline design means it takes up minimum bench space and is easily transportable.
Resistance is selected by dialling the value required using the rotary switches. This enables
precise setting with a clear indication. Each decade is scaled from 0 to 11 and therefore allows
convenient overlap of the set values. The maximum value settable is 12,222.21 ohms.
Features
•10 mΩ to 12 kΩ
•0.01 % accuracy
•Precision Pt100 simulation
•6-digit resolution
•Better than 20 ppm/year stability
•Residual resistance < 10 mΩ
•Fully screened
Time Electronics
1067 Resistance Decade Box User Manual
3
2Specifications
Range / Resolution ......................0 to 12 kΩ / 10 mΩ steps.
Number of decades......................6. Each settable from 1 to 11.
Accuracy.......................................± 0.01 % of setting ± 2 mΩ, after deduction of residual end
(At calibration temperature of 22°C) .................resistance ± 1 mΩfor residual variation.
Current rating ...............................10 mΩrange: 3 A.
100 mΩrange: 2 A.
1 Ωrange: 600 mA.
10 Ωrange: 200 mA.
100 Ωrange: 60 mA.
1 kΩrange: 20 mA.
Residual resistance .....................Less than 10 mΩ.
Residual resistance stability.......Less than 1 mΩ.
Voltage rating ...............................200 V DC at maximum resistance setting.
Temperature coefficient ..............Less than 10 ppm per °C (> 1 Ω).
.......................................................Less than 20 ppm per °C (< 1 Ω).
Stability .........................................Better than 20 ppm per year (> 1 Ω).
Better than 100 ppm per year (< 1 Ω).
Insulation ......................................Case to resistance terminals 2 kV DC maximum.
Connections .................................2 x 4 mm active safety terminals. A third safety terminal is to
enable the case to be earthed or connected to either output.
Contacts........................................Make before break - silver alloy.
Operating torque..........................Less than 0.1 Nm.
Dimensions...................................W 355 x H 63 x D 82 mm.
Weight ...........................................1.1 kg.
Options .........................................Calibration certificates:
Traceable (factory) and accredited (ISO 17025).
Country of origin..........................United Kingdom.
Time Electronics
1067 Resistance Decade Box User Manual
4
3Operation
3.1 Safety Precautions
Observe proper safety operational guidelines when working with high voltages.
To minimize shock hazard connect the case terminal to an electrical ground.
Always take precautions to avoid and prevent contact with live components.
Handle the unit with care and use as per the instructions in this manual.

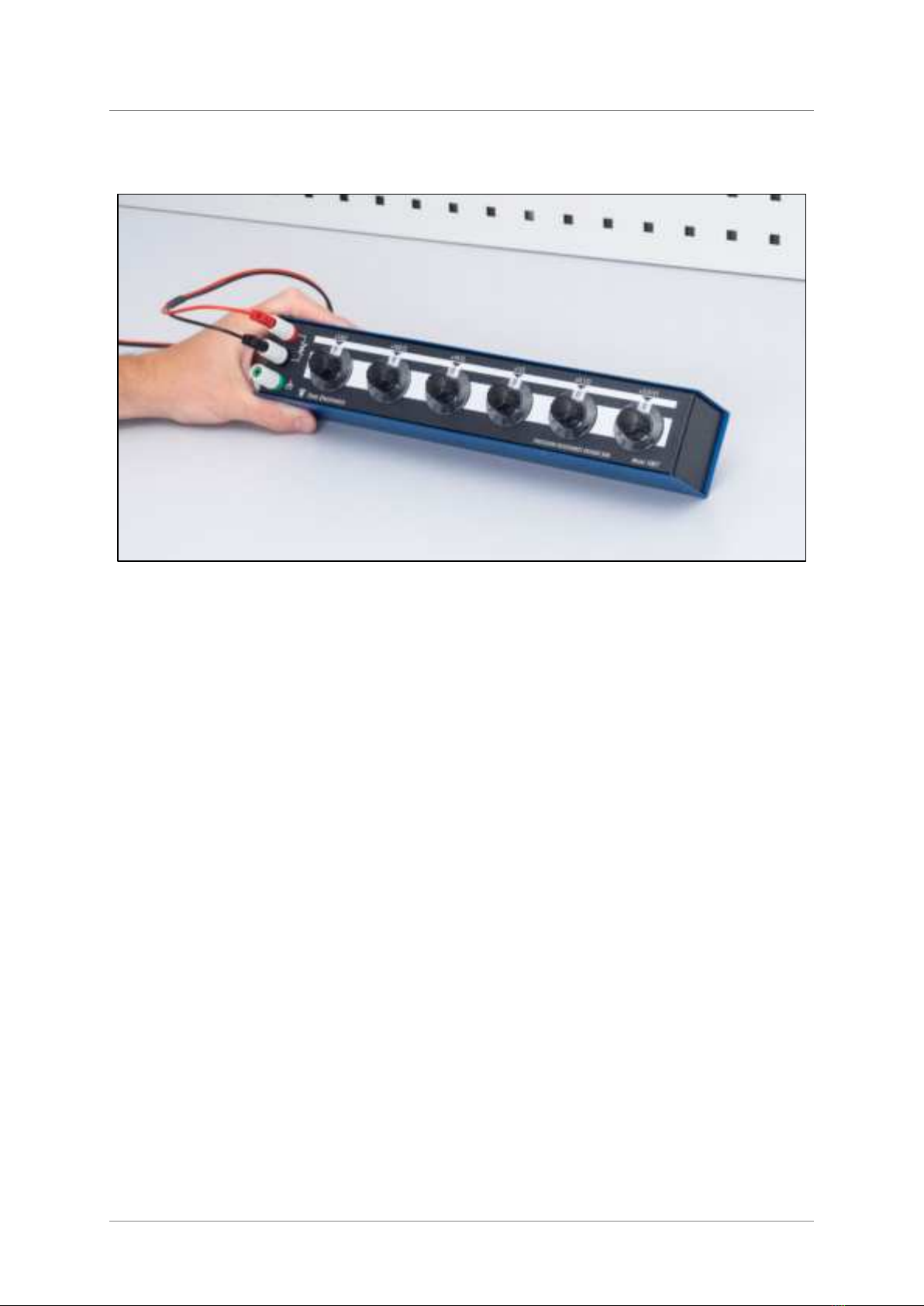

3.2 Front Panel Controls and Connections
•Resistance Terminals: Resistance is connected via the safety terminal binding
posts that are suitable for twisted stripped wire compression connection, spade
terminals, or by 4 mm shrouded or normal plug insertion.
•Case Terminal: The case terminal is isolated from the two active resistance
terminals. When connected to ground/earth, it may be used as a guard or shield
connection, this can help to reduce unwanted electrical noise pickup, and help
maintain the case at a safe voltage in certain modes of use.
•Resistance Setting Dials: Used for selecting the required resistance by setting the
dial to the value of the decade range. Each dial can be set from 0 to 11.
The value is clearly displayed in the white setting window below the decade range.
Case
Terminal
Resistance
Terminals
Resistance Setting Dials
(6 decades)
Time Electronics
1067 Resistance Decade Box User Manual
5
3.3 Operating Instructions

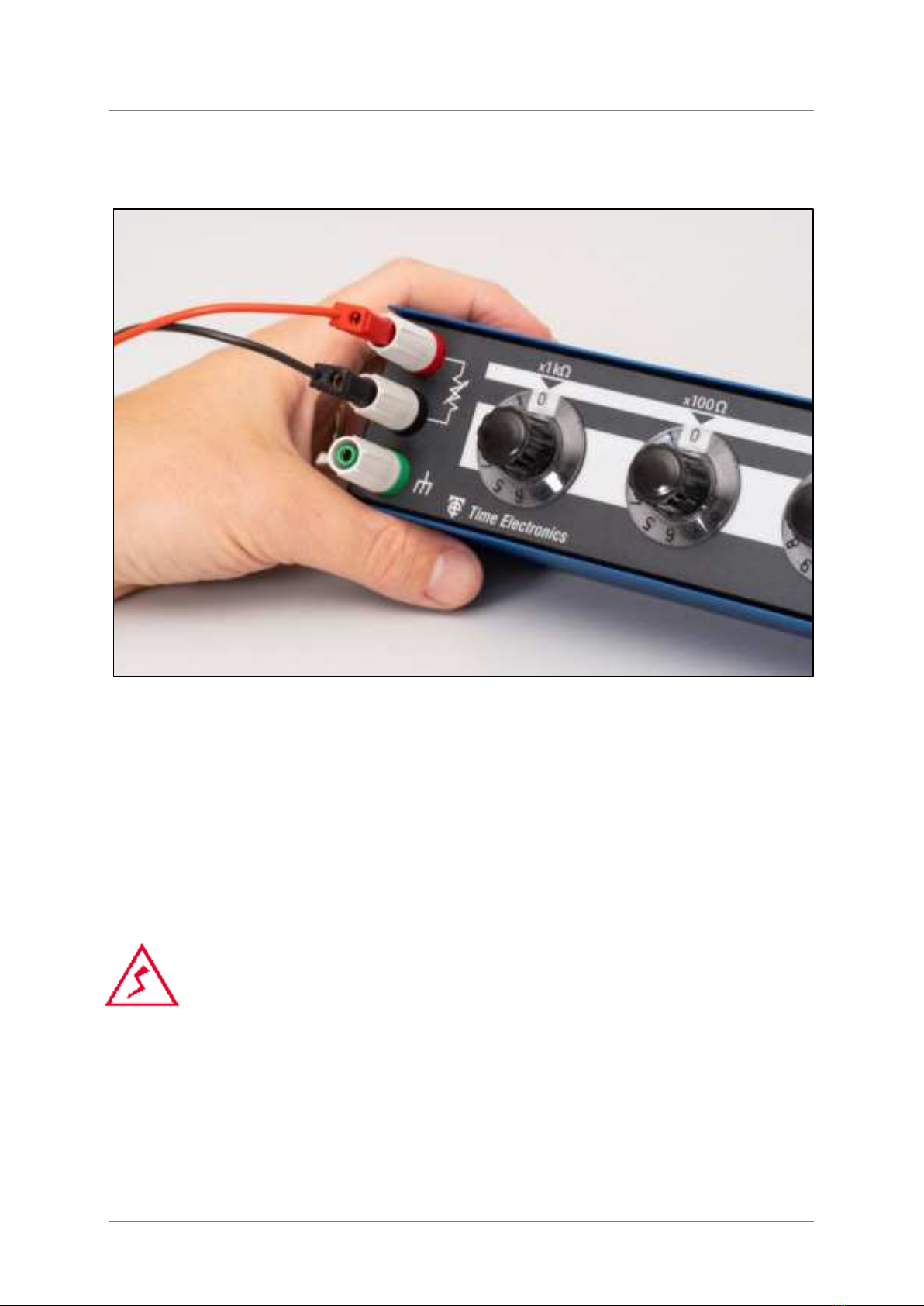

3.3.1 Connections
Connection to the decade box is via 4 mm safety terminal posts, using 4 mm shrouded or
standard plugs. Alternatively, crocodile clips or stripped wire connections can be used.
Whatever method is used, the connection must be tight to the terminal posts to avoid
introducing unwanted additional resistance.
The red and black active terminals connect to the resistance elements, and the green
terminal is connected to the case for screening purposes.
For certain applications, the user may want to connect the case terminal to either
of the active terminals. This can be done, but the case would then be at the same
potential as the active terminals. The user should be aware that this could be
hazardous and safety precautions must be taken to prevent electric shock.
Time Electronics
1067 Resistance Decade Box User Manual
6

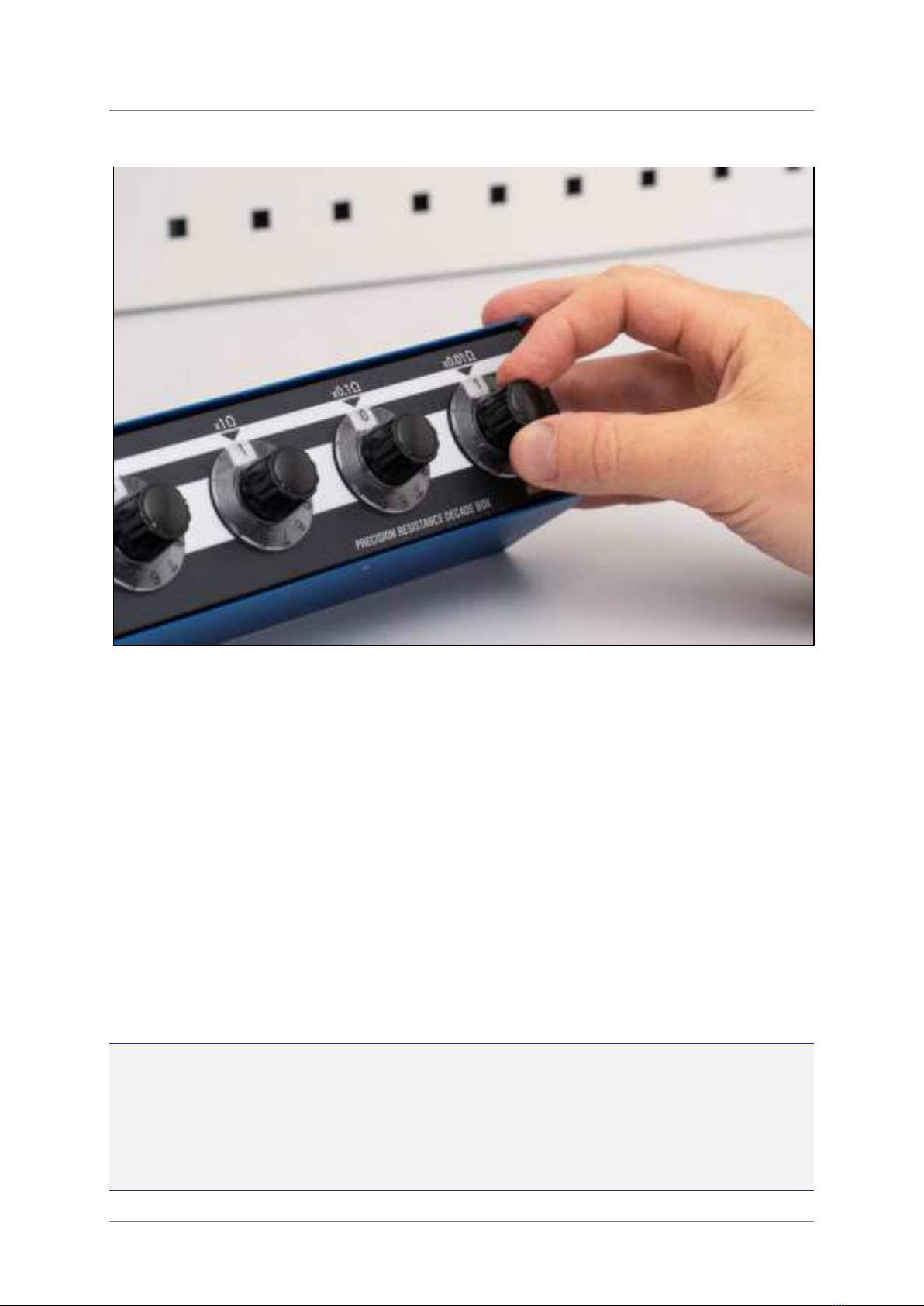

3.3.2 Setting Resistance
Use the front panel dials to set the required values according to the decade ranges. The
selected value shown in the white setting window under the range arrow. This enables
precise setting with a clear unambiguous indication.
For example, to set 138.51 Ω equivalent to 100 °C Pt100 (ITS-90):
•Set the 1 kΩ dial to 0.
•Set the 100 Ω dial to 1.
•Set the 10 Ω dial to 3.
•Set the 1 Ω dial to 8.
•Set the 0.1 Ω dial to 5.
•Set the 0.01 Ω dial to 1.
For a quick reference to the setting values of the 1067, please see the Resistance Setting
Table on the following page.
Note: All resistance boxes have a residual resistance, meaning that when the dials are set to zero a
small resistance remains. If you are making precision measurements or recalibrating the instrument,
this residual value must be subtracted from all measurements.
Typical values of residual resistance are shown in the specifications.
For precise values relating to your specific unit, refer to calibration certificate (if ordered).
Time Electronics
1067 Resistance Decade Box User Manual
7

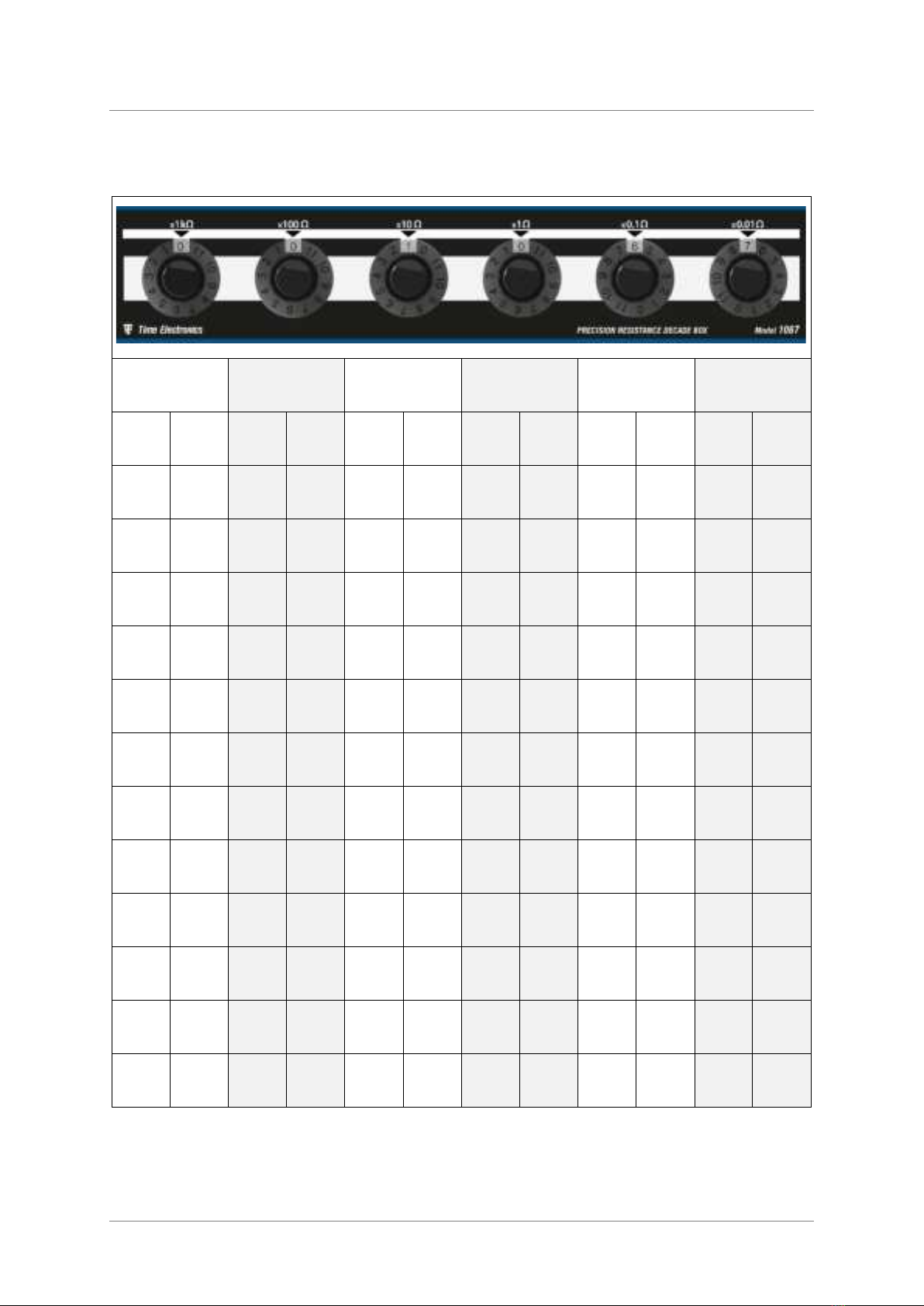

3.4 Resistance Setting Table
The below table shows the settings of each resistance decade using the dials.
1 kΩ Decade 100 Ω Decade 10 Ω Decade 1 Ω Decade 0.1 Ω Decade 0.01 Ω Decade
Dial ΩDial ΩDial ΩDial ΩDial ΩDial Ω
0 0 Ω0 0 Ω0 0 Ω0 0 Ω0 0 Ω0 0 Ω
1 1 kΩ 1 100 Ω1 10 Ω1 1 Ω 1 0.1 Ω1 0.01 Ω
2 2 kΩ 2 200 Ω2 20 Ω2 2 Ω2 0.2 Ω2 0.02 Ω
3 3 kΩ 3 300 Ω3 30 Ω3 3 Ω3 0.3 Ω3 0.03 Ω
4 4 kΩ 4 400 Ω4 40 Ω4 4 Ω4 0.4 Ω4 0.04 Ω
5 5 kΩ 5 500 Ω5 50 Ω5 5 Ω5 0.5 Ω5 0.05 Ω
6 6 kΩ 6 600 Ω6 60 Ω6 6 Ω6 0.6 Ω6 0.06 Ω
7 7 kΩ 7 700 Ω7 70 Ω7 7 Ω7 0.7 Ω7 0.07 Ω
8 8 kΩ 8 800 Ω8 80 Ω8 8 Ω8 0.8 Ω8 0.08 Ω
9 9 kΩ 9 900 Ω9 90 Ω9 9 Ω9 0.9 Ω9 0.09 Ω
10 10 kΩ10 1 kΩ10 100 Ω10 10 Ω10 1.0 Ω10 0.10 Ω
11 11 kΩ11 1.1 kΩ11 110 Ω11 11 Ω11 1.1 Ω11 0.11 Ω
Time Electronics
1067 Resistance Decade Box User Manual
8
4Applications
Pt100 Resistance Simulation
Accurate simulation of low ohm values, such as PRT, can be performed by using the 1067.
Resistance vs Temperature Relationship for Platinum Resistance Thermometer Detector Element (ITS-90)
°C
Ω
°C
Ω
°C
Ω
°C
Ω
-200
18.52
60
123.24
320
219.15
580
307.25
-180
27.10
80
130.90
340
226.21
600
313.71
-160
35.54
100
138.51
360
233.21
620
320.12
-140
43.88
120
146.07
380
240.18
640
326.48
-120
52.11
140
153.58
400
247.09
660
332.79
-100
60.26
160
161.05
420
253.96
680
339.06
-80
68.33
180
168.48
440
260.78
700
345.28
-60
76.33
200
175.86
460
267.56
720
351.46
-40
84.27
220
183.19
480
274.29
740
357.59
-20
92.16
240
190.47
500
280.98
760
363.67
0
100.00
260
197.71
520
287.62
780
369.71
20
107.79
280
204.90
540
294.21
800
375.70
40
115.54
300
212.05
560
300.75
820
381.65
Typical connections for 2, 3 and 4 wire resistance thermometers
Connection Diagram
Notes
2-wire Pt100 Connection
The connecting lead/wire resistance must be factored.
Residual resistance is factored to calculate best setting
accuracy, if required.
3-wire Pt100 Connection
Leads/wires must be of the same length, gauge, and
resistance, meaning the connection is compensated.
Residual resistance is factored to calculate best setting
accuracy, if required.
4-wire Pt100 Connection
Provides the most accurate measurement, not being
affected by any differences in the wires/leads used.
Residual resistance is factored to calculate best setting
accuracy, if required.
Time Electronics
1067 Resistance Decade Box User Manual
9
5Warranty and Servicing
Warranty
Time Electronics products carry a one-year manufacturer’s warranty as standard.
Time Electronics products are designed and manufactured to the highest standards and
specifications to assure the quality and performance required by all sectors of industry.
Time Electronics products are fully guaranteed against faulty materials and workmanship.
Should this product be found to be defective, please contact us using the below details.
Inform us of the product type, serial number, and details of any fault and/or the service
required. Please retain the supplier invoice as proof of purchase.
This warranty does not apply to defects resulting from action of the user such as misuse,
operation outside of specification, improper maintenance or repair, or unauthorized
modification. Time Electronics’ total liability is limited to repair or replacement of the product.
Note that if Time Electronics determine that the fault on a returned product has been caused
by the user, we will contact the customer before proceeding with any repair.
Product Registration
You can register your product at: www.timeelectronics.com/contact/product-registration.
Registering your product will enable us to maintain a record of purchase for your warranty.
You can also use the web form to provide feedback about our products and services.
Calibration and Repair Services
Time Electronics offers repair and calibration services for all the products we make and sell.
Routine maintenance by the manufacturer ensures optimal performance and condition of the
product. Periodic traceable or accredited calibration is available.
Contacting Time Electronics
Online:
Please visit www.timeelectronics.com and select Technical Support from the Contact links.
From this page you will be able to send information to the Time Electronics service team
who will help and support you.
By phone:
+44 (0) 1732 355993
By email:
Time Electronics
1067 Resistance Decade Box User Manual
10
Returning Instruments
Prior to returning your product please contact Time Electronics. We will issue a return
merchandise authorization (RMA) number that is to accompany the goods returning.
Further instructions will also be issued prior to shipment. When returning instruments, please
ensure that they have been adequately packed, preferably in the original packing supplied.
Time Electronics Ltd will not accept responsibility for units returned damaged.
Please ensure that all units have details of the service required and all relevant paperwork.
Send the instrument, shipping charges paid to:
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA.
United Kingdom.
Tel: +44(0)1732 355993
Fax: +44(0)1732 350198
Email: mail@timeelectronics.co.uk
Web Site: www.timeelectronics.com
Disposal of your old equipment
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences
for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city
office, waste disposal service or return to Time Electronics.
Table of contents
Other Time Electronics Industrial Equipment manuals
