Time Electronics 7088D User manual

User Manual
7088D
Adjustable AC Power Supply Module
Version 1.1
May 2021
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA, United Kingdom.
T: [phone] | F: [phone]
[e-mail] | www.timeelectronics.com

© 2021 Time Electronics Ltd.
All rights reserved.
Nothing from this manual may be multiplied, or made public in any form or manner, either
electronically or hard copy, without prior written consent from Time Electronics Ltd.
This also applies to any schematics, drawings and diagrams contained herein.
This manual provides operating and safety instructions for the Time Electronics product.
To ensure correct operation and safety, please follow the instructions in this manual.
Time Electronics reserves the right to change the contents, specifications and other
information contained in this manual without notice.

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 3 of 10
Contents
1Introduction .........................................................................................................................................4
1.1 Description .................................................................................................................................................. 4
1.2 Specifications .............................................................................................................................................. 5
2Operation .............................................................................................................................................6
2.1 7088D Front Panel ...................................................................................................................................... 6
2.2 Operating Precautions................................................................................................................................. 6
2.3 Typical Operating Procedure....................................................................................................................... 7
3Warranty and Servicing ......................................................................................................................9

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 4 of 10
1Introduction
1.1 Description
The 7088D provides variable 50Hz AC power up to 10A. The output voltage and current is
monitored on two digital meters with 4 digit resolution and bar graph display. Output connection
is via a front panel mains socket (type selectable when placing order), or via 4mm safety
terminals. The output is protected by a 10A circuit breaker. Further protection is provided a front
panel fuse. The output voltage is adjustable by turning the front panel control knob. An
independent incoming power switch is also provided. The 7088D is not isolated from the mains
supply so the highest output voltage is dependent upon the mains line voltage (ie 265V at 240V
input, 121V at 110V input).
The 7088D’s method of achieving a variable AC supply is by means of using a variable voltage
auto-transformer.
This provides a trouble free and an efficient way of varying/controlling AC voltages. Variation of
the output voltage is achieved by a brush arm with a carbon tip, which rotates around a silver
plated commutator.
The mains socket type on the 7088D is selected by the user. These include UK 13A, Euro
Schuko 16A, US 15A, and Indian Round Pin 15A. The type must be specified on ordering.
Additionally the module has 4mm shrouded sockets for use.

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 5 of 10
1.2 Specifications
Power.......................................Dependant on the mains supply to the bench (not isolated)
Output Voltage.........................Variable 0 to 110% above line input.
Example Voltage Inputs/Outputs: 0 to 265V 50Hz, 10A at 240V input.
0 to 121V 50Hz, 10A at 110V input.
Output Current.........................0 to10A maximum
Input Fuse................................10A slow blow
Output Circuit Breaker..............10A (medium response time)
Accuracy...................................1%
Displays.....................................2 digital displays for V & I, W57 x H53mm each, high contrast
anti-glare LCD screen, 4 digit reading and bar graph display,
green backlight colour.
Display Resolution.....................Display: 4 digits for V & I
Voltage Resolution: 0.1V
Current Resolution: 0.01A
Switches....................................Mains power on/off and an independent incoming power switch
Output Socket...........................Specified on ordering, UK, Euro, US, other types available
Additional Output Sockets.........4mm shrouded sockets (safety terminals)
Earthing......................................A PE socket is provided for wrist bands, mats, etc
Output Voltage Control...............Front panel analogue deviation control
Module Width..............................350mm (typically fitted in the left corner of the primary console)

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 6 of 10
2Operation

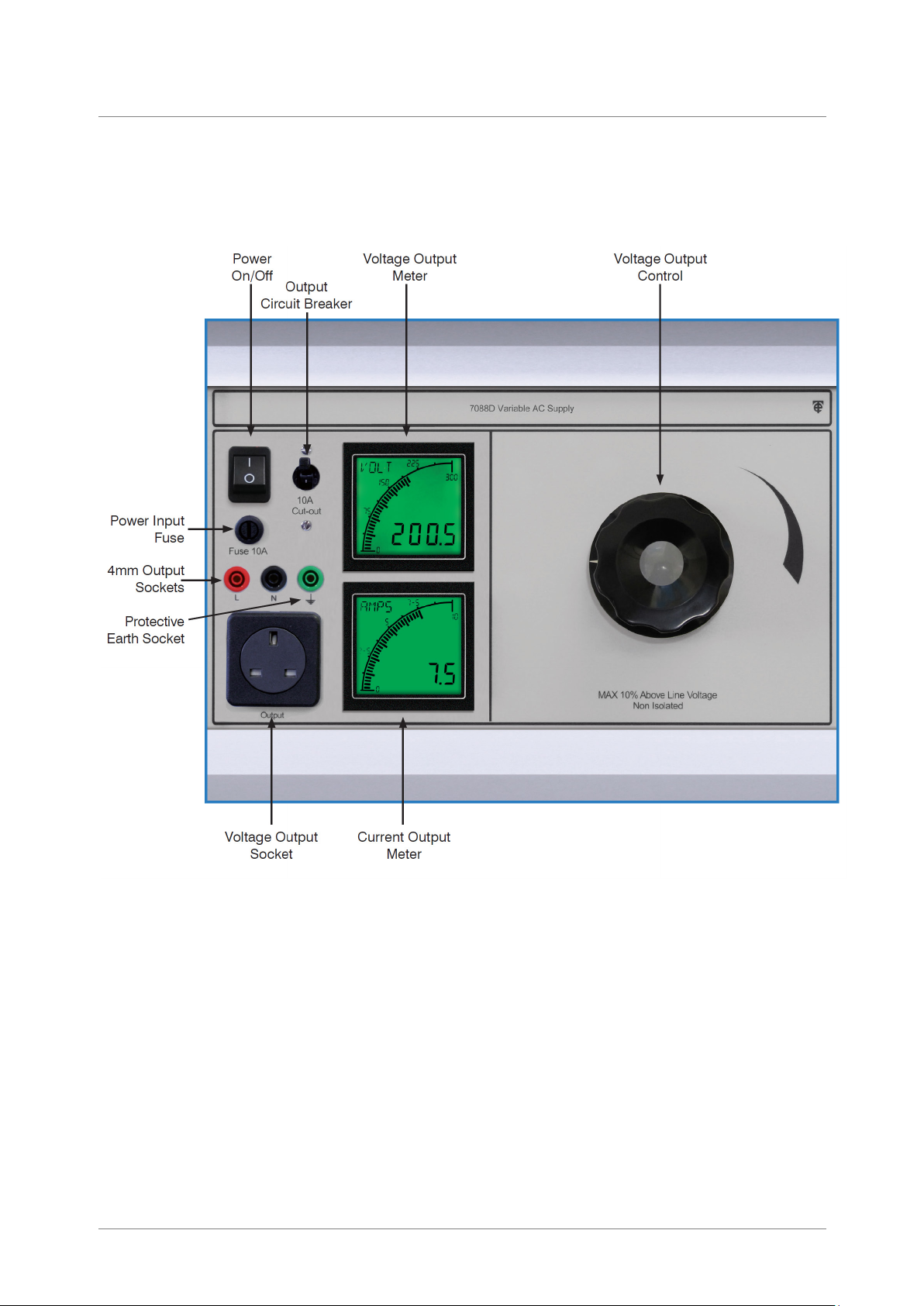

2.1 7088D Front Panel
2.2 Operating Precautions
Safety
AC power supplies are sources of high voltage. Improper or careless use could result in fatal
electrical shock. Observe common sense safety precautions when using this and other
electronic devices.
Maximum Output Voltage
The output voltage of the AC power supply is adjustable. The voltage setting of this module
should not exceed the device (UUT) manufacturer ratings as potential damage could occur.

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 7 of 10
2.3 Typical Operating Procedure
Step 1: Ensure the CalBench is powered on, using the 7082 mains controller module.
Note that the 7088D module is not isolated from the mains supply.
Step 2: Turn on the 7088D via the on/off switch.
Step 3: Wind the output voltage control knob counter clockwise to zero the output.

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 8 of 10
Step 4: Connect the device under test via the voltage output socket or 4mm shrouded
sockets.
Step 5: Adjust the output voltage control knob clockwise to increase the AC voltage to the
device.

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 9 of 10
3Warranty and Servicing
Warranty
Time Electronics products carry a one-year manufacturer’s warranty as standard.
Time Electronics products are designed and manufactured to the highest standards and
specifications to assure the quality and performance required by all sectors of industry.
Time Electronics products are fully guaranteed against faulty materials and workmanship.
Should this product be found to be defective, please contact us using the below details.
Inform us of the product type, serial number, and details of any fault and/or the service
required. Please retain the supplier invoice as proof of purchase.
This warranty does not apply to defects resulting from action of the user such as misuse,
operation outside of specification, improper maintenance or repair, or unauthorized
modification. Time Electronics’ total liability is limited to repair or replacement of the product.
Note that if Time Electronics determine that the fault on a returned product has been caused
by the user, we will contact the customer before proceeding with any repair.
Calibration and Repair Services
Time Electronics offers repair and calibration services for all the products we make and sell.
Routine maintenance by the manufacturer ensures optimal performance and condition of the
product. Periodic traceable or accredited calibration is available.
Contacting Time Electronics
Online:
Please visit www.timeelectronics.com and select Technical Support from the Contact links.
From this page you will be able to send information to the Time Electronics service team
who will help and support you.
By phone:
[phone]
By email:
[email protected]

Time Electronics User Manual
7088D Adjustable AC Power Supply Module v1.1
7088D Adjustable AC Power Supply Module Page 10 of 10
Returning Instruments
Prior to returning your product please contact Time Electronics. We will issue a return
merchandise authorization (RMA) number that is to accompany the goods returning.
Further instructions will also be issued prior to shipment. When returning instruments, please
ensure that they have been adequately packed, preferably in the original packing supplied.
Time Electronics Ltd will not accept responsibility for units returned damaged.
Please ensure that all units have details of the service required and all relevant paperwork.
Send the instrument, shipping charges paid to:
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA.
United Kingdom.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.timeelectronics.com
Disposal of your old equipment
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences
for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city
office, waste disposal service or return to Time Electronics.
