1Introduction

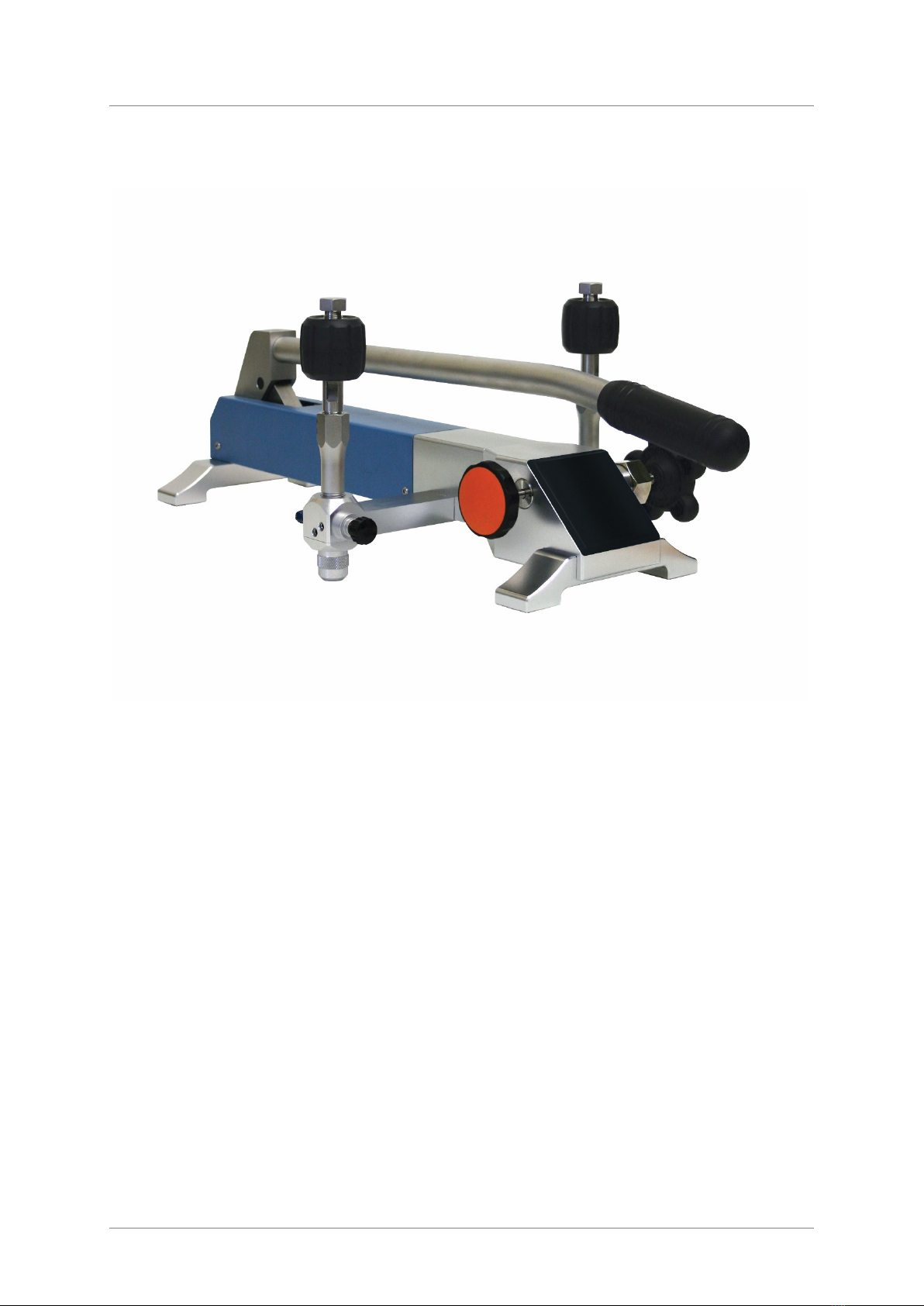

1.1 Description
The 7194A benchtop pneumatic pressure pump is a dual pressure source which can be
adjusted and stabilized quickly and easily. With a long pump lever, high output pressures
can be reached and a high-quality screw press is incorporated to allow fine pressure
adjustment settings within 0.1 mbar (10 Pa). A pump isolation valve shuts-off the pump from
the system under pressure to keep the output stable under calibration.
A built-in gas-liquid trap protects the pump from moisture and dirt. Any residual liquid in the
pump will be vented out via the vent port which incorporates a hose connection to allow
collection of liquids. Two finger-tight connectors installed on the pump allow the user to
connect and disconnect devices’ under test, as well as reference gauges quickly and easily.
The 7194A is simple to operate, with features that make it ideal for calibrating pressure
transducers, precision pressure gauges, gauge comparison as well as many other pressure
instruments. It is particularly suitable for applications where high pressure is required without
the use of hydraulic pumps or nitrogen cylinders.

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 5 of 11
1.2 Specifications
Media:Air
Generated Pressure Range:0.95 bar vacuum to 200 bar pressure
(14 psi vacuum to 3000 psi pressure)
Over Pressure Range:To 235 bar (3500 psi)
Pressure Setting Resolution:0.1 mbar / 10 Pa
Material: Ram/adapters: 316 SS. Body: Steel/aluminum. Seals: Buna-N
Pressure Connections: 1/4” BSP (1/4” NPT, M20 or other if specified)
Weight:6.8 kg (15 lbs)

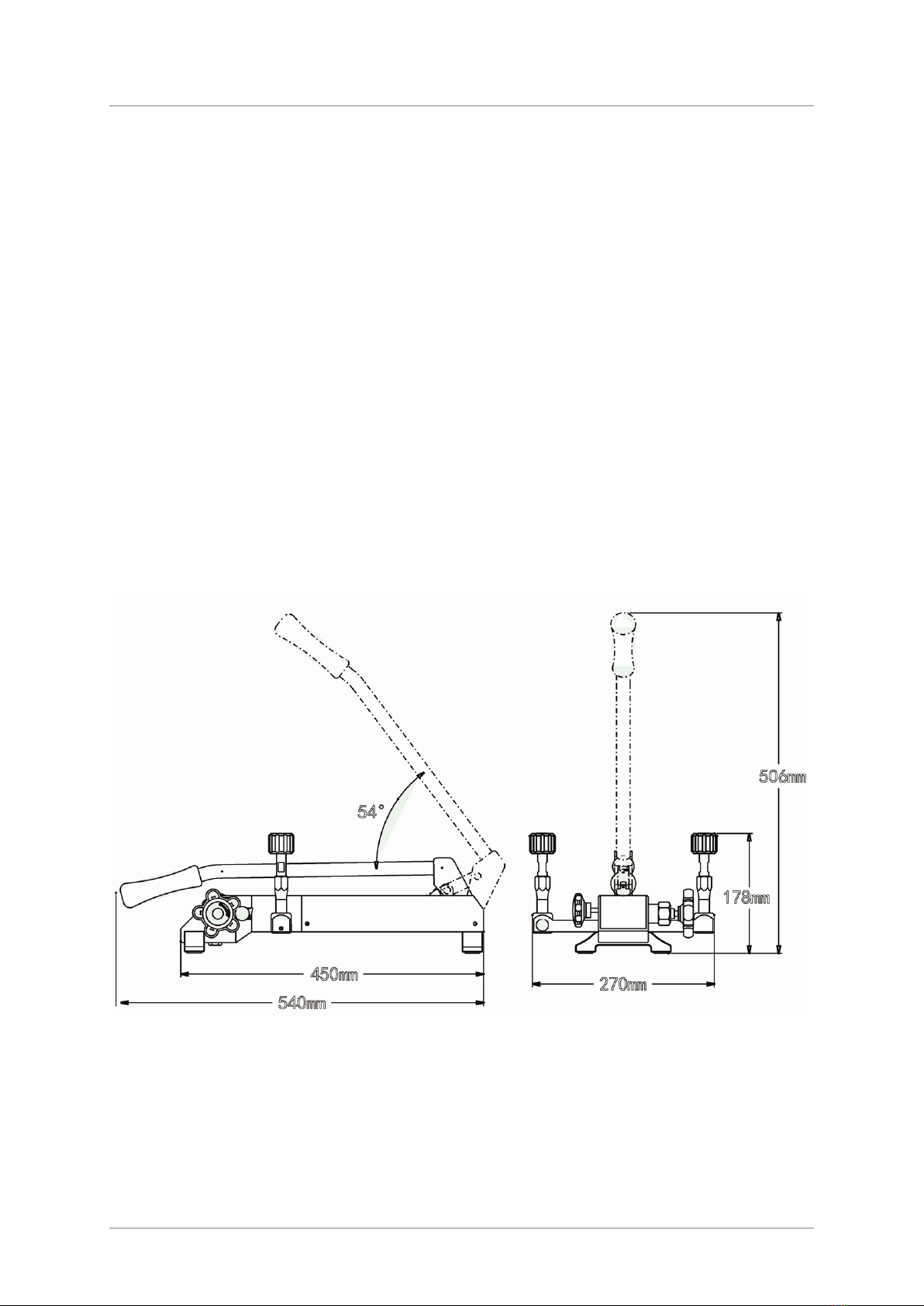

Dimensions:540 x 270 x 130 mm

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 6 of 11
1.3 Options
TEG Digital Pressure Gauges
7194A-CC Carry Case (with 2 gauge slots)
MK-7194A Pump Maintenance Kit
• 2 x Valve pads
• 2 x Valve cores
• 2 x Single valve
• 1 x Torsional spring
• 1 x Guarded switch
• 1 x O-ring (1.5X2) used for high pressure cylinder
• 3 x O-ring (4X2) used for high pressure cylinder
• 2 x O-ring (6.75X1.78) used for reversing rod
• 1 x O-ring (22X2) used for low pressure piston
• 1 x X-ring (13.94X2.62) used for high pressure piston
• 1 x X-ring (34.52X3.53) used for low pressure piston

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 7 of 11
2Controls
1. Pressure Ports (specified on order: 1/4” BSP, 1/4” NPT, M20)
2. Pressure Lever
3. Pressure/Vacuum Selector (pull out for pressure, push in for vacuum)
4. Selector - Safety Switch
5. Fine Adjust Handles (turn clockwise to increase pressure)
6. Clean-out port
7. Isolating Valve (isolate the DUT from pressurizing system)
8. Release Valve (turn clockwise to close, anti-clockwise to open)
9. Vent port
2.1 Air Routine

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 8 of 11
3Operation

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 9 of 11
4Operating Precautions & Troubleshooting
4.1 Operating Precautions
•Do not exceed the safety pressure limit
•Compressed air may cause problems in explosive or hazardous environments
•Do not shift the selector to vacuum mode whilst under pressure
•Do not over tighten connectors
•Store the pump in a dry and clean environment
4.2 Troubleshooting
Problem Causes Solution
Cannot pressurise
device under test
Hard to pump pressure lever Check isolating valve is open
Check airline for blockages
Pressure lever pumps but pressure
is not increasing
Check release valve is closed
Check pressure/vacuum selector is pulled out
(for pressure).
Check for leaks on device under test
Check for leaks on output connection
Check sealing ring on clean-out port
Difficult to use fine
adjust
Output pressure is unstable when
using fine adjust
Check the isolating valve is closed
Slow leak, output pressure
dropping.
Check reference gauge and device under test is
tightly screwed on and connection seal washer.
Check release valve is closed
Check pressure/vacuum selector is engaged
correctly.

Time Electronics User Manual
7194A Pneumatic Calibration Pump v1.5
7194A Pneumatic Calibration Pump Page 10 of 11
5Warranty and Servicing
Warranty
Time Electronics products carry a one-year manufacturer’s warranty as standard.
Time Electronics products are designed and manufactured to the highest standards and
specifications to assure the quality and performance required by all sectors of industry.
Time Electronics products are fully guaranteed against faulty materials and workmanship.
Should this product be found to be defective, please contact us using the below details.
Inform us of the product type, serial number, and details of any fault and/or the service
required. Please retain the supplier invoice as proof of purchase.
This warranty does not apply to defects resulting from action of the user such as misuse,
operation outside of specification, improper maintenance or repair, or unauthorized
modification. Time Electronics’ total liability is limited to repair or replacement of the product.
Note that if Time Electronics determine that the fault on a returned product has been caused
by the user, we will contact the customer before proceeding with any repair.
Calibration and Repair Services
Time Electronics offers repair and calibration services for all the products we make and sell.
Routine maintenance by the manufacturer ensures optimal performance and condition of the
product. Periodic traceable or accredited calibration is available.
Contacting Time Electronics
Online:
Please visit www.timeelectronics.com and select Technical Support from the Contact links.
From this page you will be able to send information to the Time Electronics service team
who will help and support you.
By phone:
[phone]
By email:
[email protected]
