Piazza Range: GU10 Fixed Spotlight (12cm)
This fitting is suitable to be installed in restricted accessible areas, (E.G pedestrians and pedal cycles only).
Safety:
• Before installation or maintenance, isolate the main electrical supply for the appropriate circuit at the fuse board.
• Check that the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker.
• This luminaire is not suitable for bathroom areas of high steam or heat.
• The light should be mounted onto a secure surface.
• The entire unit may get hot whilst on for a period of time.
• This product is IP54 rated and suitable for external applications.
781487 781494 781500

Full Technical specification available upon request. Contact [e-mail] for PDF.
Instructions for new installations:

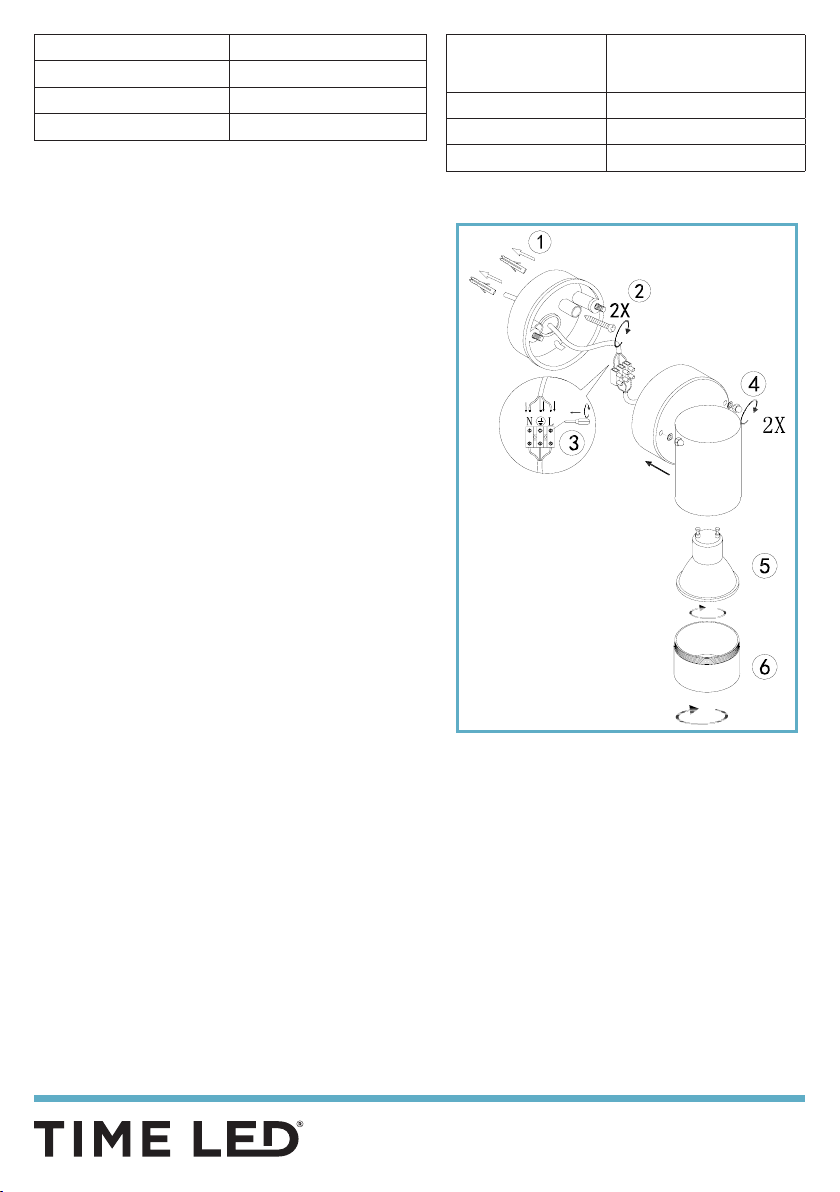

1) Remove mounting box from the product and attach
safely to a wall using the screws provided (1,2).
2) Correctly identify the wires and connect to the block
inside the product (3), ensuring the connections are tight
and no loose strands have been left out of the connection
block.
3) Fit the product back onto the mounting box and refit
washers and dome nuts (4), tighten to secure.
4) Insert a GU10 lamp into the fitting (5).
5) Screw the unit back over the GU10 lamp (6), ensure all
fixings are tight to maintain IP protection.
Piazza Range: GU10 Fixed Spotlight (12cm)
Cleaning:
• Do not use any chemical or abrasive cleaners.
• Clean product with only a soft dry cloth.
• Do not use high pressure washers to clean.
Warning:
• This product is not a toy and contains small parts.
• This product is unsuitable for installation in or near coastal and marine environments.
Warranty:
• This product is warranted to be free of defects in materials, design and workmanship for 2 years from the date of
purchase (conditions apply, please see TIME LED website for further details). If a suspected fault should develop in this
time, please contact us via the address on the front.
Recycling Advice:
Waste Electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice.
Product Code 781487 | 781494 | 781500
Size (mm) 93x85x118
Lamp GU10
IP Rating IP54
Material 201 Stainless Steel (781487-
781494)
Aluminium (781500)
Dimmable No
Voltage/Hertz 220-240V 50/60Hz
Warranty 2 Years
