Time2 Bella User manual

Bella
Wireless Video Doorbell
User Manual
Protect and monitor the things you
love and value

What you’ll need
Let’s get started
Installation
Wiring an existing doorbell
Live view
Motion alerts
Recording
Cloud storage
2
3
4
6
7
8
9
10
Cloud storage recordings
Managing your Clan home
Add a family member
Share Bella
Multi camera view
Web view
Adding the indoor chime
Safety Information
12
13
14
15
17
18
21
22
This user manual has all the information you need to make the most out of your
Bella Wireless Video Doorbell. Please keep this manual for future referencve and
ensure you have read all safety instructions carefully before use. The manual is sub-
ject to change without notice. The updates will be added into the new version of
the manual.
Version 1.1

This is what you will need to set up your Bella Video Doorbell
2
WiFi Broadband
A working internet connection on
a 2.4Ghz frequency channel
Clan at Home accont
Download the CLan at Home
app and register
Drill Bit
To install on surfaces such as
brick or concrete
Wall Plugs (provided)
Required to isntall on to
surfaces such as brick
or concrete
Compatible Device
An Apple or Android
Smartphone
Phillips Bit
A power drill with Phillips driver bit
Screws (provided)
To mount the doorbell on to
the wall

What do the flashing lights mean?
3
Add Bella to the Clan at Home App
If you need help with this, please refer to the
Quick Start Guide included with Bella or found on
our online support section.
Micro USB Port
Charging Indicator
Please complete set up before mounting the doorbell.
Turn on the power switch located at the back of the
doorbell.
Then connect to the mains using the USB
cable provided.
Allow at least 10 hours to fully charge
the doorbell.
The red LED will come on
once plugged in and Bella
will chime before it is ready
to connect.
If you’re setting Bella up for the first time, you will
need to:
1. Download the Clan at Home app from the Google
Play Store or Apple App Store
2. Open the app and “register” to create an account
3. Create a Home
4. Add Bella
If you already have a Clan at Home account, simply press
the “+” icon on the top right corner and follow the on-screen
steps.
You will be asked to enter your Wi-Fi router password and
use Bella to scan the QR code created on your smartphone,
then Bella will connect to your Wi-Fi network.
Solid Red
Starting up
Flashing Red
Ready to connect
Solid Blue
Connected

4
Installation
We recommend that you install Bella around 4 feet from the
ground.
This is the ideal height for Bella’s field of view and motion
detection range.
Before mounting Bella, we suggest that you test the Wi-Fi
strength in the area that you’d like to place it.
Hold Bella in the position that you would like to mount it
and check that the live stream is working well in the app.
Working well? Great, continue to the next page.
Can’t see the live stream?
You Wi-Fi may not be strong enough in that area, you may
need to find another spot or move your Wi-Fi router closer.

5
Installation
Step 1
Mark screw holes where
you would like to install
the mounting bracket
Step 2
Drill pilot holes.
Use the included wall
plugs if you’re drilling
into stone or hard material
Step 3
Install the mounting
bracket on to the wall
using the provided screws.
To attach Bella, simply slot
it in to the bracket and
click into place
Step 4
Finally, use the provided
security screw to secure
Bella on to the mounting
bracket

6
Wiring an existing doorbell
Step 1
Mark screw holes where you would like
to install the mounting bracket
Step 2
Drill pilot holes.
Use the included wall plugs if you’re
drilling into stone or hard material
Step 4
Install the mounting bracket on to the wall
using the provided screws.
Step 5
Then attach the doorbell by simply
slotting it into the bracket and clicking
into place
Step 3
Connect the wires coming out of your
wall to the screws on the back of the
mounting bracket.
Either wire can connect to either screw
Step 5
Finally, use the provided security
screw to secure the doorbell on to
the mounting bracket
12~24V AC

7
Select the video quality
See battery level
See full screen
Save screenshot to phone
See recorded footage on SD
Card
See screenshots of live view
Change theme from light to
dark
Turn the speaker on or off
Zoom function
Speak into the doorbell
Record footage on to phone
Turn the infrared night
vision on or off
Turn on to get instant alerts
to your phone when there
is movement
See recorded footage on
the cloud
Bella
Settings
More features

8
Motion Alerts
Step 1
Click the Settings icon
to bring up the doorbell
settings
Step 2
Select PIR
on/off switch
Step 3
Choose the sensitivity.
Selecting a sensitivity level
minimises false alerts.
For even more accurate
alerts, click Detection Alert
Setting to turn on Human
Body Filtering
When movement is
detected, Bella will send you
alerts straight to your
Smartphone or Tablet.
If your device is locked when
Bella detects something, you
will receive notifications on
your home screen as long as
you are signed in to the Clan
at Home app

9
Bella automatically records for you when the doorbell is pressed or when movement has been detected, so you don’t
need to remember to press record. You can access the recordings from the Clan at Home app.
Full screen
Hear sound recorded on footage
Choose the date
Slide to select the time you want
to view. Pinch & zoom the timeline for a more
accurate navigation
Save a screenshot on to
your phone
Record footage on to your phone

10
Cloud Storage for a single camera
Step 1
Click on Cloud storage Press Purchase Service
Step 2
Bella can record directly on to the cloud when the doorbel is pressed or when movement has been detected.
You can choose to store the recorded footage for 7 days, 14 days or even 30 days.
Baby Monitor
Step 4
Choose which service would
best suit your needs.
Click Purchase.
You will be directed to the payment page.
Click on Subscribe
Step 3
Bella

11
Cloud Storage for multiple cameras
Clan also offers cloud storage packages for customers who own multiple cameras. This feature allows all the cameras to
record to the cloud whenever movement has been detected without having to pay for each camera individually.
Step 1
Click “Me”
Step 2
Click “More Services”
Step 3
Click “Cloud Storage
for cameras”
Hannah’s Home
Step 4
Click “Subscribe”
Step 5
Choose which service would
best suit your needs.
Click Purchase.
Bella

12
Cloud Storage Recordings
You can view cloud recordings directly from the app at any time.
Step 1
Click Cloud
Full screen
Hear sound recorded on footage
Choose the date
Slide to select teh time you want
to view
Save a screenshot on to
your phone
Record footage on to your phone
Bella

13

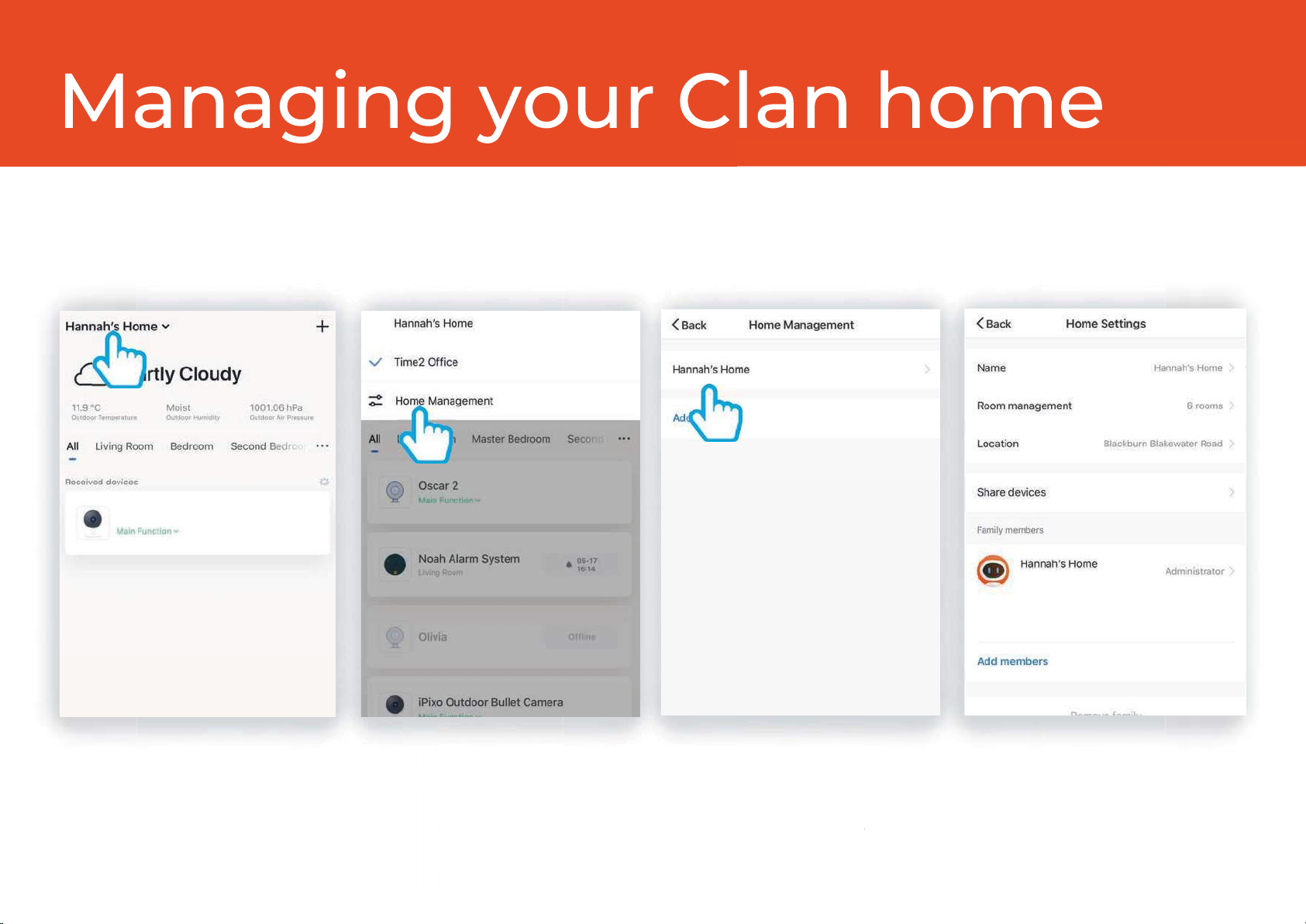

To create a home or manage your home settings, see steps below:
Bella
Step 1
Click on your Home name in
the top left corner
Select Home Management
Step 2 Step 4
Change settings, change
location or add a
family member
Click on your “Home”
You can also add a new Home
from this page
Step 3

14
Step 1
Click Add members Fill in the members name and Clan at
Home account details. Setting the
member as an administrator
gives them full access to device settings.
Step 2
The new family member will appear
under the list of Family members
Step 3

15
Mia
Bella
Share Bella
You are able to share Bella with family or friends so they can also have access to the doorbell - they must also have a
registered Clan Acount.
Sharing Bella will only give them access to the live-view, to give full access to Bella’s settings, please see
“Add a fmaily member” on previous page.
Bella
Bella
Step 1
Click on Bella Click on the settings icon to
bring up the camera
settings
Step 2 Step 4
Click AddClick share devices
Step 3

16
Bella
p
Bella

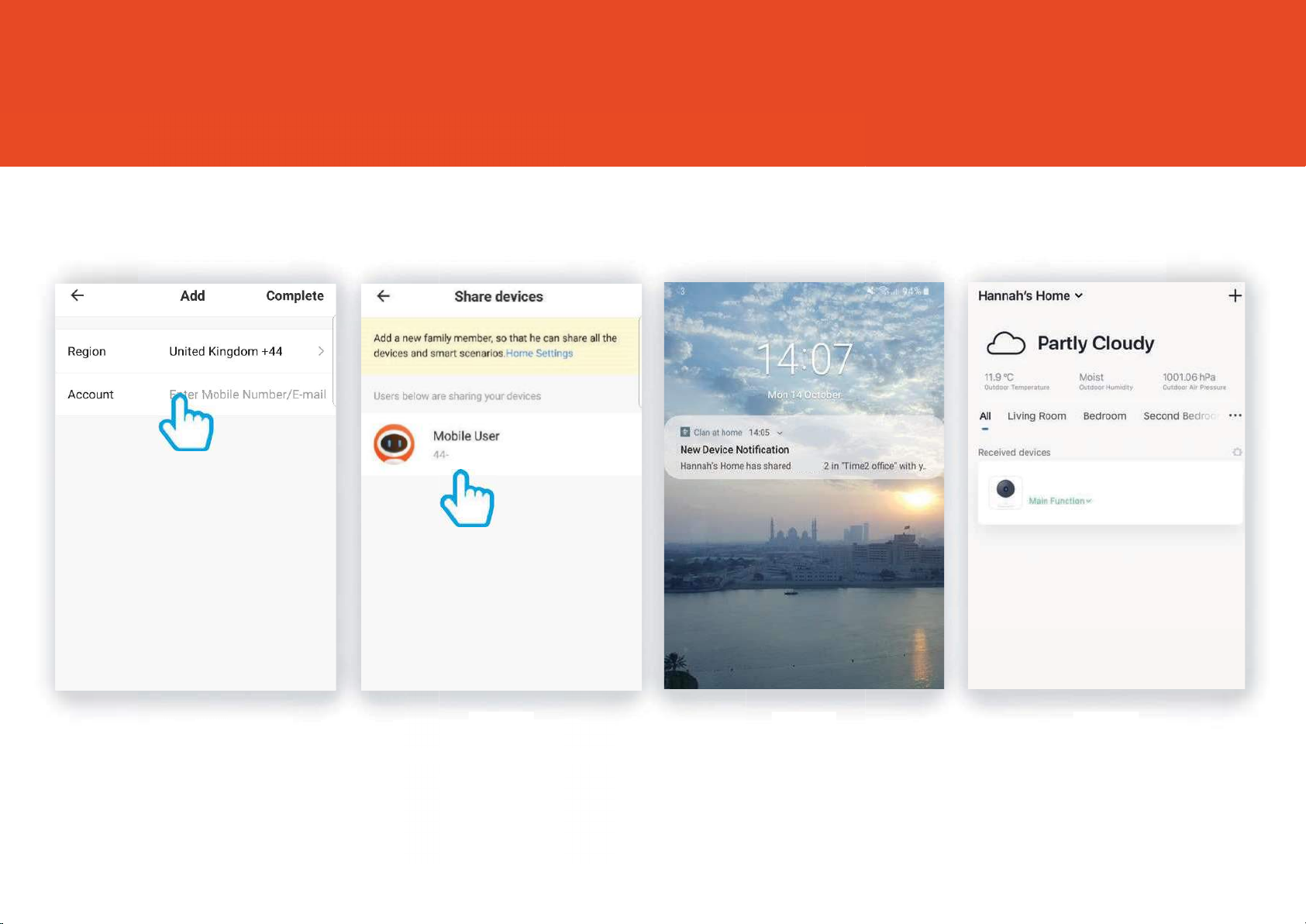

Step 5
Enter email address
used to create an account
Click complete to share Bella
It will now appear as a
Shared device
Step 6 Step 8
Bella will now appear under
received devices
A notification will be received
on the phone that Bella
has been shared to
Step 7

17
Multi Camera View
The multi-view feature allows you to view up to four Clan cameras at the same time.
Step 1
Click on the camera in the
top right hand corner.
Hear whats happening
around your camera.
Save a screenshot on
your smartphone memory.
Select to speak into your camera.
Record live footage onto
your smartphone memory.
Full screen
Click on a screen to be
able to control it
Hannah Home
Bella
Bella

18

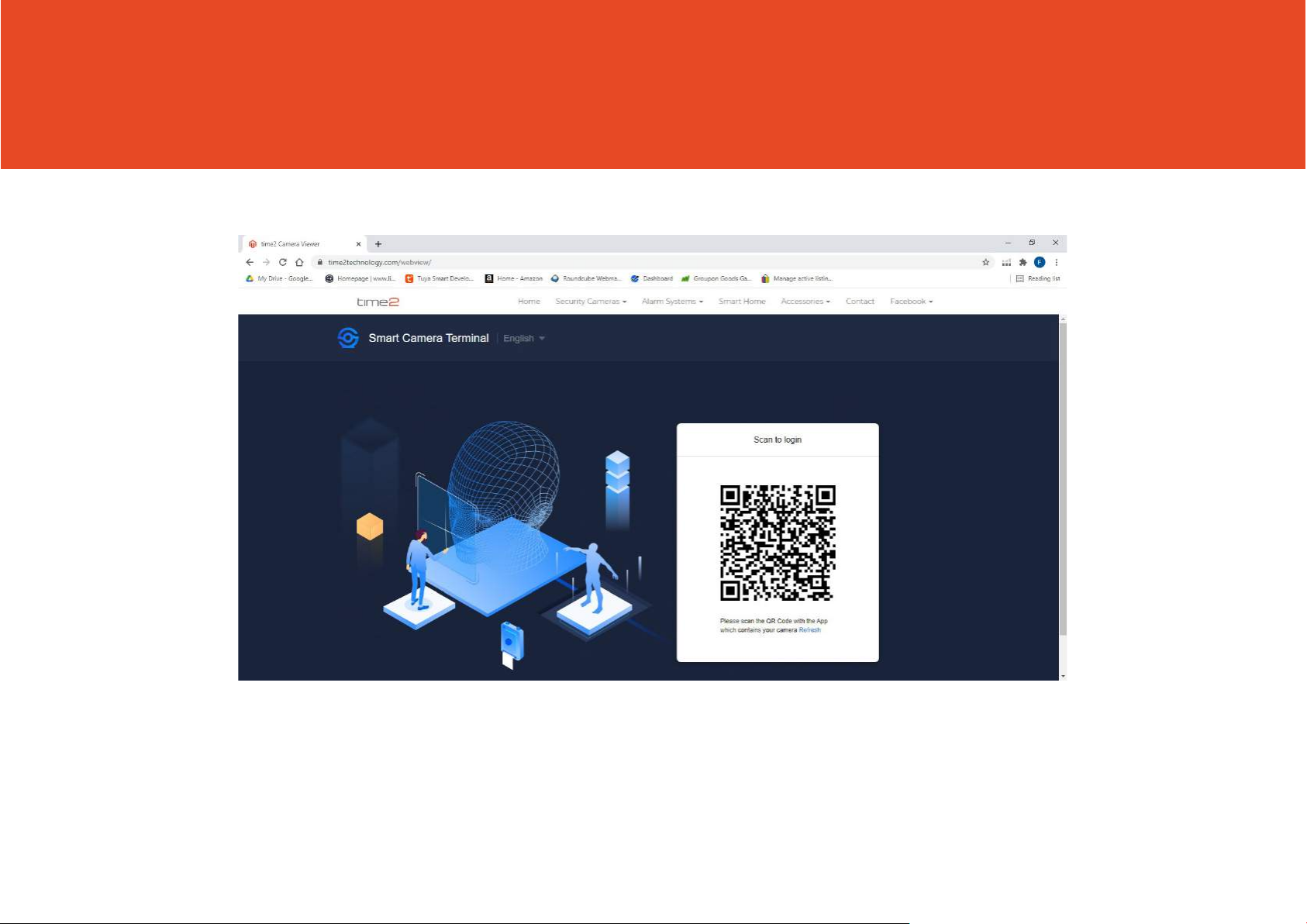

Web View
Once Bella is set up, you are able to view it on your PC or laptop.
Step 1
Go to https://www.time2technology.com/webview/
on your computer.
Please note: the web view is only supported on Google Chrome

19
Web View
Step 2
Click “Me” on the bottom right
hand corner
Step 3
Click on the square on the
top right hand corner.
Step 4
Using your phone
scan the QR code.
Ensure the QR code is
within the green square.
Hannah Home
Step 5
Click Confirm Login
Bella
