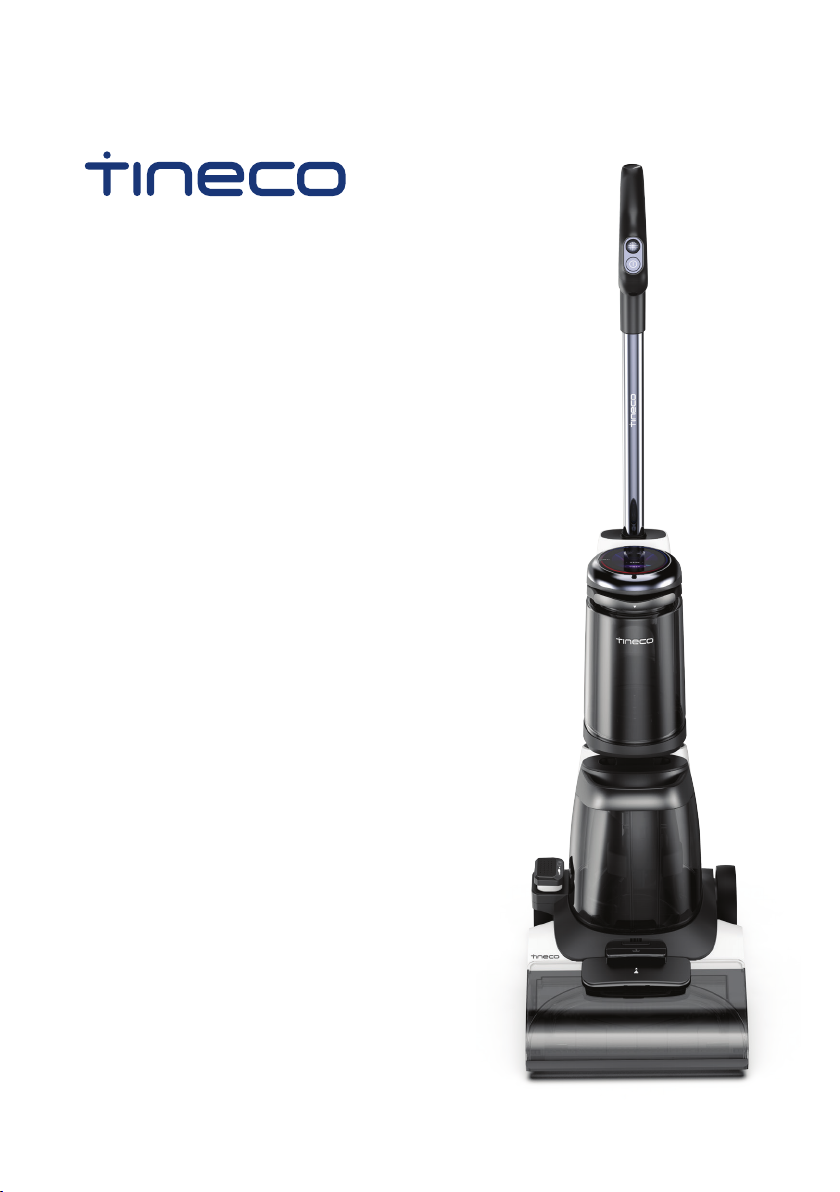

CARPET ONE PRO SERIES
Smart Carpet Cleaner
Instruction Manual
*Actual product may differ from illustration.

1
CONTENTS
Important Safety Instructions...............................................................2
Specications ........................................................................................5
Overview................................................................................................6
Accessories............................................................................................7
Assembly ...............................................................................................8
Operation............................................................................................11
Maintenance .......................................................................................16
Troubleshooting..................................................................................20
Warranty ..............................................................................................21

2
Important Safety Instructions
SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
WARNING – To reduce the risk of re, electric shock, or injury:
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
4. Use only indoors, do not immerse in liquid. To reduce risk of electric shock – Use only
on carpet. Do not use on hard oors.
5. To reduce the risk of re and electric shock – Use only Tineco cleaning products
intended for use with this machine.
6. Use only as described in this manual. Use only manufacturer’s recommended attachments.
7. CAUTION – Risk of injury. Brush may start unexpectedly. Unplug before cleaning or
servicing.
8. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Do not handle plug or appliance with wet hands.
11. Do not use with a damaged cord or plug. If appliance has been dropped, damaged,
left outdoors, dropped into water, or is not working as it should, return it to a service
center.
12. Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce air ow.
13. Keep hair, loose clothing, ngers, and all parts of your body away from openings and
moving parts.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
16. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
17. Do not use without lter.
18. To reduce the risk of electric shock, always install oat before operation.

3
19. Prevent unintentional activation. Ensure the switch is in the off-position and unplugged
from wall outlet before picking up or carrying the appliance.
20. Always switch off and unplug the appliance before making any adjustments, changing
accessories, or storing the appliance. Such preventive safety measures reduce the risk
of starting the appliance accidentally.
21. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR
SERVICING.
22. Turn off all controls before unplugging.
23. Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
24. Do not use to pick up ultrane particles, such as lime, cement, sawdust, gypsum
powder, or ashes.
25. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper
clips, or pins.
26. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner,
strong acids, or strong alkali.
27. Stop using immediately if the appliance is overheating, making unusual noises,
producing unusual odors, performing low suction.
28. Turn cleaner OFF and disconnect from electrical outlet for storage.
29. Always clean the Dirty Water Tank after each use to avoid ordour and potential
blockage, which may lead to low suction power, motor overheating, or reduce the
service life of the appliance.
30. Do not expose to rain.
31. Store appropriately indoors in a dry place after use.
32. Do not place or submerge appliance in standing water or try to clean ooded areas.
33. The plug must be removed from the socket-outlet before cleaning or maintaining the
appliance.
34. To avoid hazard, do not run over power cord.
35. To reduce the risk of re and electric shock due to internal component damage, use
only Tineco cleaning uid/solution: Carpet Deodorizing & Cleaning Solution intended
for use with this appliance. See the Cleaning Fluid/Solution section of this manual.

4
Range of Usage
1. The Carpet washer is to be used on carpets, such as level loop, etc do not use on hard
oors.
2. Keep your appliance away from heat sources, such as replace or heater, to avoid
casing deformation.
3. Do not use to pick up ammable or combustible liquids, ultrane particles, sharp
objects, hazardous material, chemicals or anything that is burning or smoking, as
described above.
About Cleaning Fluid/Solution
1. Do not shake the machine violently. Large amount of cleaning solution entering into
the motor may cause damage to the appliance.
2. Add solution as instructed in the Operation section. We recommend using the
provided cleaning solution.
3. Keep out of reach of children. If any solution gets into the eyes, immediately ush
them with clean water. If any solution is swallowed by accident, seek medical care
immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.
About the Appliance
1. Do not modify or attempt to repair the appliance except as indicated in the instructions
for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position and unplug before picking up or
carrying the appliance. Do not lay at or lean the appliance so as to prevent dirty water
from entering into the motor.
4. Always install the Dirty Water Tank and Clean Water Tank properly before use.
5. Do not allow the appliance to get wet to avoid risk of re or injury caused by a short
circuit.

5
Symbols:
Read the instruction manual
For indoor use only
Alternating current
Power On/Off
AUTO/MAX/DRY Mode
Specications
Product TINECO / CARPET ONE PRO SERIES
Voltage 220-240V~ 50Hz
Rated Power ~1300W
CWT Capacity ~2L
DWT Capacity ~1.5L
Waterproof IPX4
WiFi Frequency Bands 2.4G
WiFi Maximum Output Power 19dBm
• All data and technical instructions of this manual are based on results from lab tests of Tineco or
designated third parties. The company reserves all rights for nal explanations.

6
A. WiFi/Mute/Language Switch Button
B. Back Carry Handle
C. Cord Wrap
D. Dirty Water Tank Release Pedal
E. Recline Pedal
F. AUTO/MAX/DRY Mode
G. Power On/Off
H. Tube
I. Digital Display
J. Clean Water Tank Handle
K. Clean Water Tank (CWT)
L. Dirty Water Tank Handle
M.Dirty Water Tank (DWT)
N. Brush Roller Cover Release Button
O. Hose Connection Port Cover
P. Brush Roller Cover
Q. Humidity Sensor
R. Carpet Deodorizing & Cleaning Solution
S. Cleaning Tool
T. 2 in 1 Nozzle
U. Sponge Filter
V. Brush Cover Scraper
W. Accessory Hose
O
Q
P
A
S
R
J
M
C
B
T
K
ND
U
L
E
V
W
F
G
H
I
Overview

7
Accessories
Note:
Accessories may vary between markets. If you would like to purchase accessories or consumables,
please contact Customer Service on AUS: 1800 815 270, NZ: 0800 282 288.
Carpet Deodorizing & Cleaning Solution
Removes dirt, grime, grease and tough stains from most types of
carpets.
Always use Tineco solution in your appliance.
Add two bottle caps of solution to each full tank of clean water.
Cleaning Tool
A full brush to clean the DWT, brush chamber and opening.
The tool also has a bristled end to remove dirt and mud on the
roller and DWT.
2 in 1 Nozzel
Remove tough stains on the carpet.
Sponge Filter
Sponge lter can block large particles and debris, ensure the
appliance’s durability.
* Please install the Sponge lter before use, or it may lead to
weak suction.
Brush Cover Scraper
A scraper to clean the brush cover gap.
Accessory Hose
A 2.5-meter hose to connect the appliance and accessory
brushes.

8
Assembly

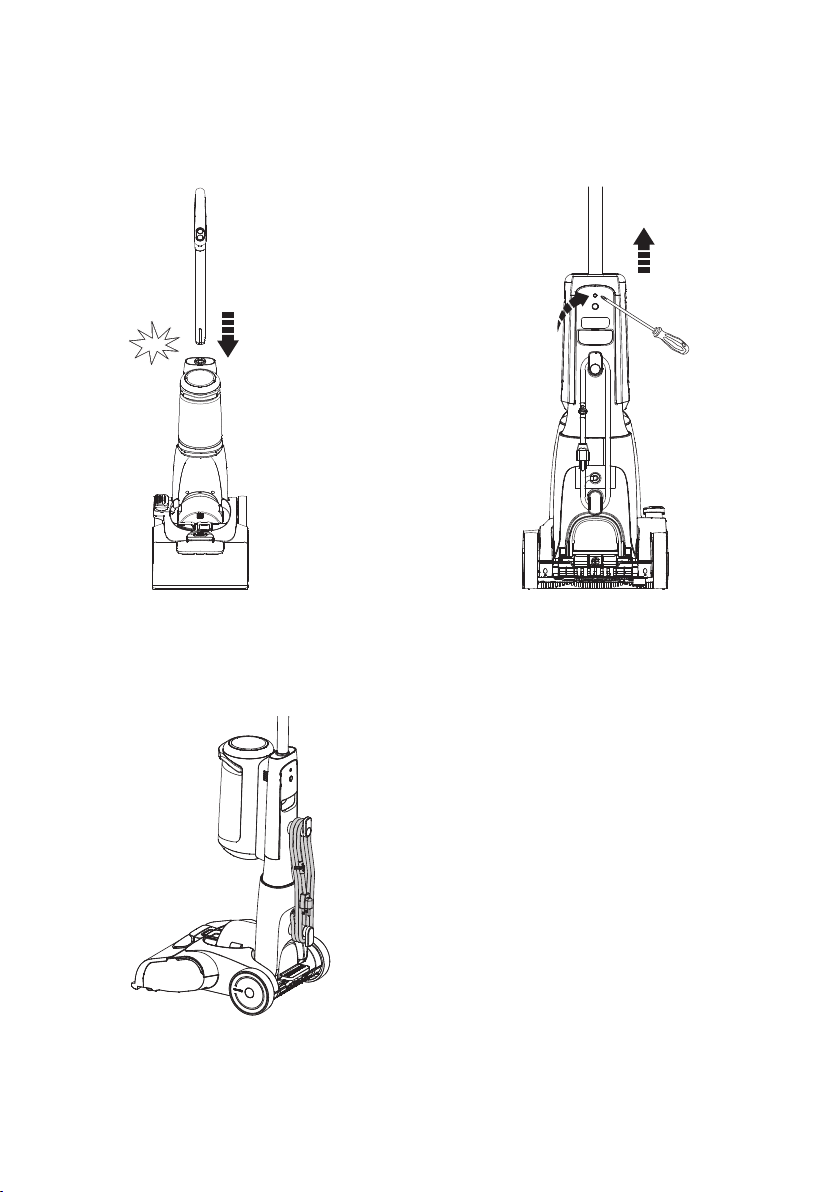

How to Assemble/Disassemble
To assemble the handle, insert it into the
appliance until you hear a click.
In the event that the handle need to be
disassembled, press the spring to release the
handle with a tool (like a screwdriver) and lift the
released handle from the appliance.
Wrap the power cord around the cord hooks for
convenient storage.
click

9
Clean Water Tank
MAX
Press the CWT handle to remove it. Open the tank cap, add two bottle caps of
solution to the CWT then ll with tap water to
the Max line and tightly close the cap.
②
①
click
Note:
Only use water under 140°F/60°C.
DO NOT USE HOT WATER.
Install the Clean Water Tank into the appliance.
You should hear a “Click” if done correctly.
Dirty Water Tank
②
①
Install the Dirty Water Tank into the appliance.
You should hear a “Click” if done correctly.
click

10

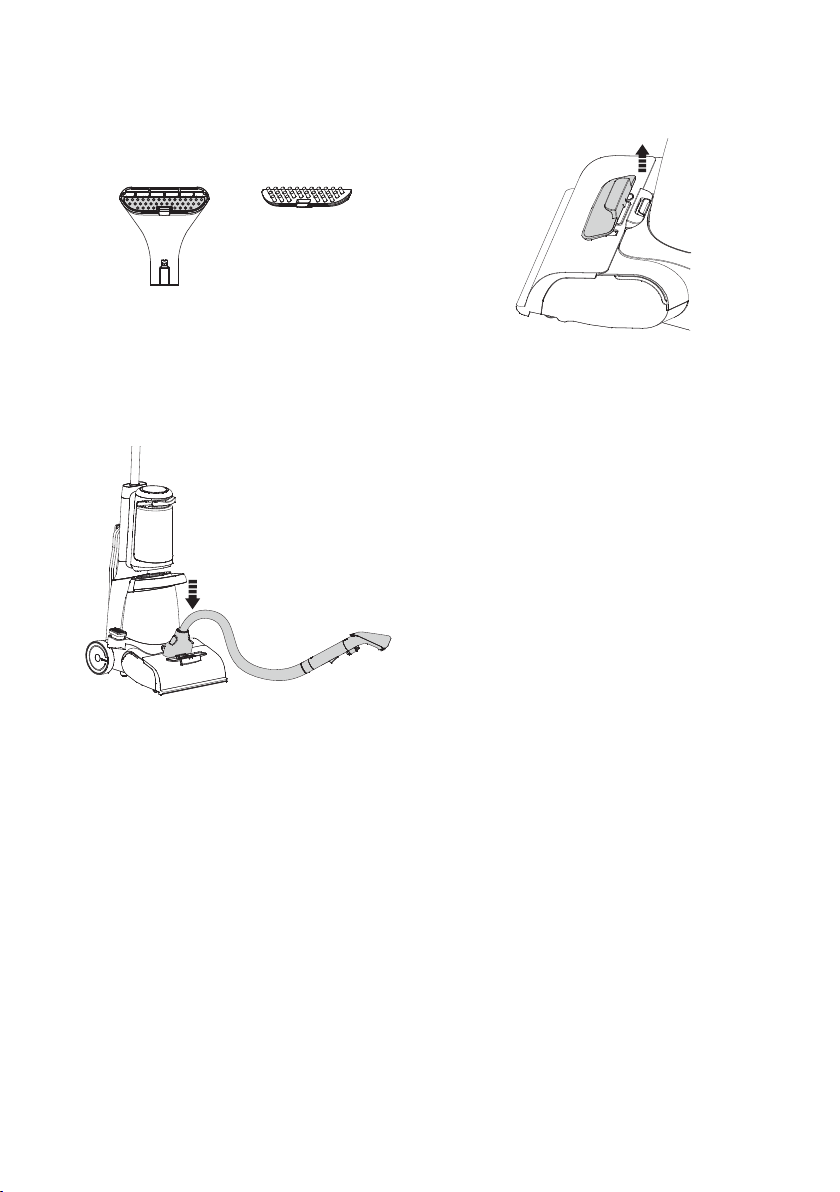

Accessory Hose & 2 in 1 Nozzle
or
Choose suitable brush head according to the
usage scenario.
Pull it up to uncover the accessory connection
port.
Insert the hose end into the port.
You should hear two “Clicks” if done correctly.

11
Operation
Preparing for Use (Appliance)
Unwrap the power cord and plug into an
electrical outlet.
Step on the recline pedal to recline the unit for
cleaning position.
Tips:
• Press the button to turn on/off the voice
prompt.
• Press the button twice to switch languages.
(More voice languages will be added, please
refer to the actual product for now.)
Press the button and the appliance will start in
AUTO mode by default. Press it again to turn off
the appliance. Switch between AUTO, MAX and
DRY mode by pressing the button.

12
<160°
In AUTO/MAX/DRY mode, the appliance will
stop working when put uprightly and start
running again when you recline.
Grip the back carry handle to lift or move
appliance. Empty CWT and DWT after each
use.
Note:
• The carpet cleaner differs from the traditional vacuum cleaner.
• In all modes, it blows hot air, whose temperature is 158-176°F (70-80°C).
* Appropriate temperature is conducive to dissolve the dirt and helps surfactant in the solution to decompose the dirt.
• In AUTO/MAX mode, it sprays water when moving forward and stops spraying when moving backward.
• Take a spot test on a small and marginal area of the carpet for colorfastness. Gently rub surface
with a damp white cloth. Then wait ten minutes and check for color removal or bleed with a white
paper towel.
• During use, don’t keep the appliance at a resting position for a long time.
Preparing for Use (Accessory Hose & 2 in 1 Nozzle)
Attach the accessory hose, stand the appliance
upright and ensure that it is power on (if not,
press the button), the appliance will enter
in ACCESSORY mode, the appliance will stop
working when you recline.
Store the accessories in the bag after use.
Note:
Do not vacuum foamed liquid.
Stop Working
Do not grip DWT handle to
lift or move the appliance.

13
Cleaning Mode Selection
AUTO Mode
• In AUTO mode, the iLoop sensor automatically detects
how dirty the carpet is and applies the appropriate
volume of water spray.
• A red dirt monitoring loop indicates more dirt is
detected, and a blue loop indicates less dirt is detected.
This mode automatically provides the best cleaning
solution.
MAX Mode
• In AUTO mode, press the button to enter MAX
mode.
• The iLoop only displays the dirty amount, and the spray
volume keeps at the maximum of “100”.
DRY Mode
• In MAX mode, press the button to enter DRY mode.
• Press the button to switch to AUTO mode.

14
Keep appliance upright
ACCESSORY Mode
• Ensure the appliance is power on (if not, press the button), the appliance will enter into
ACCESSORY mode. Press and hold the button on the 2 in 1 Nozzle to spray water, and release the
button to stop.
• In ACCESSORY mode, the spray volume keeps at the maximum of “100”.
• Stand the appliance upright, remove the accessory hose, the appliance will enter in AUTO mode.
Note:
Keep sharp objects away from the digital display screen to avoid scratches and scrapes.
App
All the functions can be performed using the Tineco app. Download the Tineco app from the App
Store, Google Play and Tineco Ofcial Site.
TinecoTineco
www.tineco.com
Support
App Downloads
GET IT ON
Google Play
Download on the
App Store
App
Downloads
Note:
The default setting for voice prompt is English, you can set other languages via App.

15
Voice Prompt (Contents may vary, pleaseinkindprevail.)
Status Reminder
Guide for Carpet One Pro
Quick start guide
Maintenance tips
Network connection guide
Handle dismantling guide
Accessory use guide
Connect to the appliance Scan the QR code to download the app and
connect the appliance
WiFi network connected Network connected.
WiFi network disconnected Connection canceled
Unable to connect WiFi Stand the appliance upright before connecting
Voice prompts on Voice prompts on
Voice prompts disabled Voice prompts disabled
Restore factory settings Factory settings restored
AUTO mode by default AUTO mode
Switch to MAX mode MAX mode
Switch to DRY mode DRY mode
Switch to ACCESSORY mode ACCESSORY mode
Clean Water Tank is empty Clean water tank empty, please rell water and
cleaning solution
Clean the channel Clean the channel under the dirty water tank
Dirty Water Tank is full Dirty water tank full, please empty
Dirty Water Tank not installed correctly Check the dirty water tank
Brush roller is tangled Please clean the brush roller
Brush roller cover not installed Please install the brush roller cover
Switch to other modes Remove accessory before using other modes
Unable to use DRY mode Remove accessory before using DRY mode
Unable to use ACCESSORY mode Stand the appliance upright to operate
ACCESSORY mode
Appliance is not upright Stand the appliance upright
Accessory installed Accessory installed
Accessory removed Accessory removed
Shutting down Shutting down
Power is off Power off, please clean the dirty water tank
Update rmware Firmware updated

16
Maintenance
IMPORTANT! Always switch off the cleaner and remove the power plug from
the electricity power supply before cleaning your appliance, when not in use
or attempting any maintenance task.
Note:
• For optimal performance and to prevent odors, always clean and dry DWT, lters, brush roller, brush
roller cover, 2 in 1 nozzle completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance vertically. Do not expose the appliance to direct sunlight,
and store it indoors in a dry place.

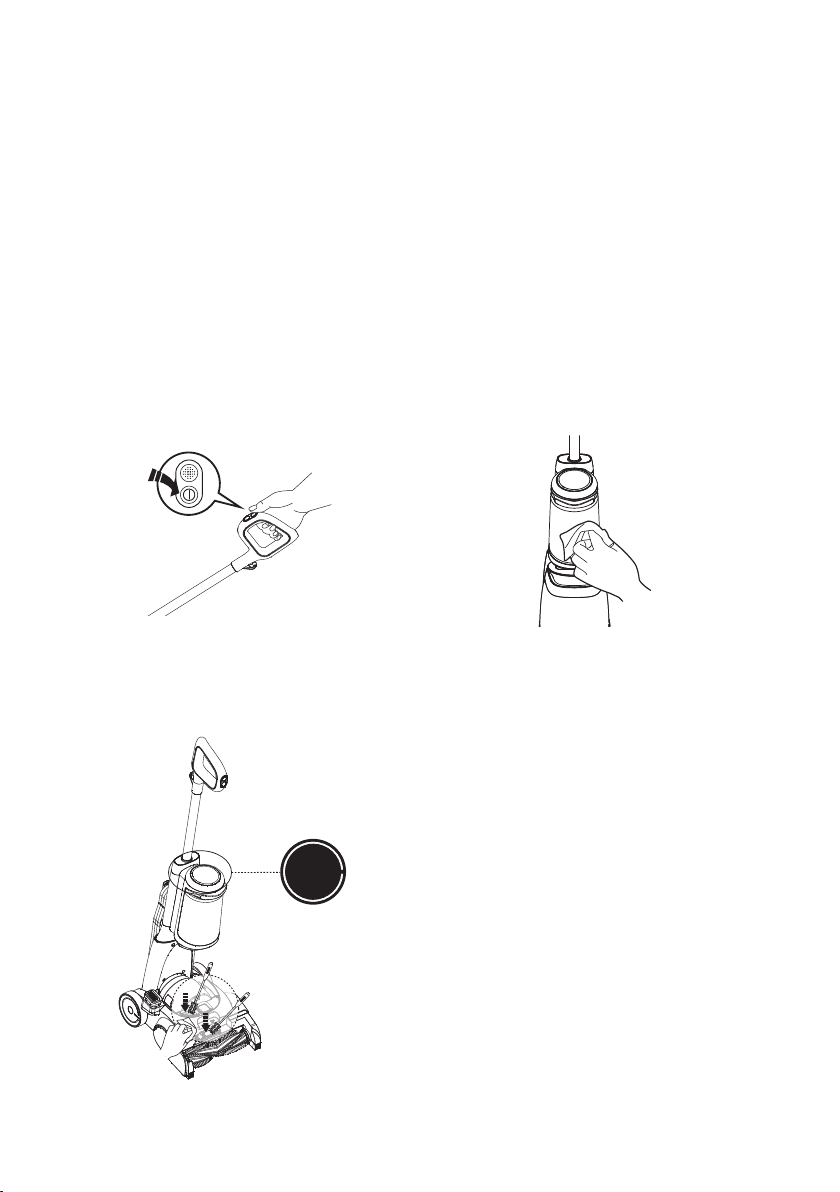

Main Body
To reduce the risk of injury, switch off before
performing maintenance.
Use a cloth to clean the surface with a neutral
detergent. The cloth should be dry to prevent
water from entering the appliance.
Solid red light
When LED loop illuminates red, remove Dirty
Water Tank, clean the dirt sensor with a damp
cloth or the cleaning tool.

17
Dirty Water Tank
②
①
• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the
display and play a voice prompt.
• Step on the recline pedal and press the DWT handle to remove it.
• Pull up the tank lid and mesh lter to empty the DWT. Use the cleaning tool to remove remaining
debris. Rinse the inside of the DWT & tank lid & oater & mesh lter and place back into the
appliance.
Note:
Check if the oater is in good condition and press it to the bottom.
Sponge Filter
Remove the DWT, take the lter out and wash it
after each use.
Reinstall.
Floater
Mesh Filter
click

18
Brush Roller Cover
Press brush roller cover release button on the
cover and pull upward to remove.
Rinse with water. Use the provided cover scraper
to clean the gap in the front side.
When replacing, always latch the brush cover into place to avoid leakage.
Brush Roller
Remove the brush roller by squeeze the brush
roller tab and pulling out.
Using the cleaning tool, remove the hair and
debris wrapped around the roller and rinse
with water. Allow it to dry completely before
reinstalling.
Remove hair and debris from the brush roller
chamber and the opening with a tissue or a
damp cloth.
Replace the brush roller by inserting the brush
roller end into the right side of the holder, then
attach the roller tab to the left side to lock into
place.
On carpetOn oor
