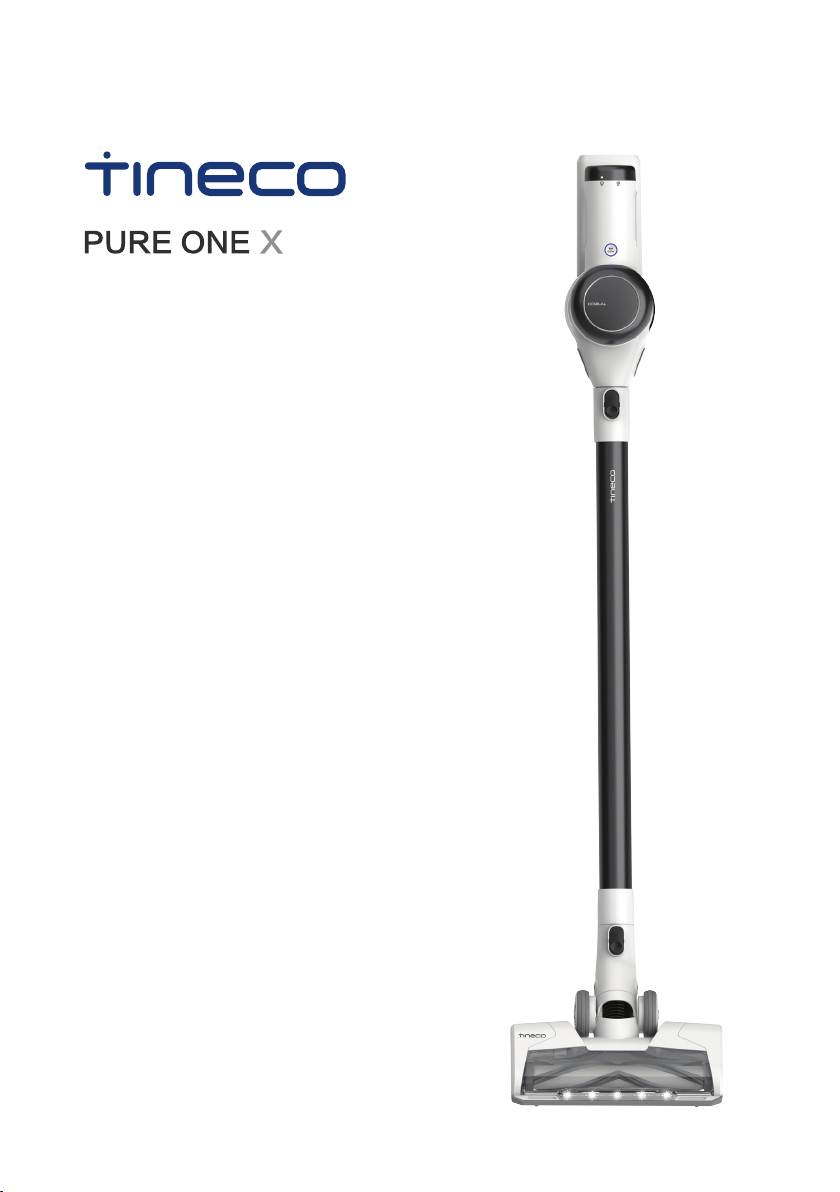

Tineco PURE ONE X Series User manual

SERIES
Smart Vacuum Cleaner
Instruction Manual
*Actual product may differ from illustration.

1
CONTENTS
Important Safety Instructions...............................................................3
Overview................................................................................................6
Product Components...........................................................................7
Accessories............................................................................................8
Assembly ...............................................................................................9
Operation............................................................................................11
Maintenance .......................................................................................16
Specications ......................................................................................20
Troubleshooting..................................................................................21
Warranty ..............................................................................................22

2
1. Do not operate the vacuum cleaner too close to heaters,
radiators or other hot surfaces.
2. Before inserting the plug into the wall, make sure your
hands are dry.
3. Before turning on the vacuum cleaner, safely remove any
large objects from the oor or cleaning surface in order to
prevent damage to the lter.
4. When you want to remove the plug from the power socket,
do not use the power cable, gently pull the plug from the
power socket.
5. Do not use this vacuum cleaner to pick-up water or liquids.
Do not use this vacuum cleaner if the battery pack housing and/or
the charger housing is damaged.
Precautionary measures:

3
IMPORTANT! Always switch off the cleaner before cleaning, when
not in use or attempting any maintenance task. The charger must
only be connected to an AC power supply at the voltage shown on
the rating label. This cleaner should only be used for its intended
purpose as described in this instruction manual. Never operate the
cleaner without lters.
When using your vacuum cleaner, basic
precautions should always be observed,
including the following;
1. This appliance is not intended for use
by persons (including children) with
reduced physical, sensory, mental
capabilities or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
2. Children should be supervised to
ensure that they do not play with the
appliance.
3. To prevent electrical shock, do not
immerse the appliance, battery or
power plug into water or other liquids.
4. To prevent electrical shock, do not use
the vacuum cleaner outdoors or on wet
surfaces.
5. Always check the power cord before
use, the power cord and the power
adapter should be in a good condition
and must not be damaged. If the
power cord or the charger adaptor
is damaged or defective, it must be
replaced.
6. The appliance and charger are intended
for domestic indoors use only.
7. Do not unplug the charger by pulling
on the power cord. To unplug, grasp
the power adapter, not the power cord
and gently pull the power adapter from
the power socket.
8. Do not handle or operate the appliance
with wet hands. Follow electrical safety
precautions at all times.
9. Do not attempt to change the
attachments while the appliance is
switched on. Use only manufacturer’s
recommended accessories.
10. Do not operate the vacuum cleaner too
close to heaters, radiators and other
hot surfaces.
11. Do not use the appliance to pick up
ammable items or combustible liquids
(i.e. gasoline, hot ashes, cigarettes,
matches, explosive materials or
anything burning) or use in areas where
such substances and items may be
present.
12. Do not use the appliance to pick up
toxic materials (i.e. chlorine, bleach,
ammonia).
13. Never operate or use the appliance
without the lters in place.
Important Safety Instructions

4
14. Before vacuuming, remove any large or
sharp objects from the oor or cleaning
surface in order to prevent damage to
the lter.
15. If the air inlet or oor head is blocked,
switch off the cleaner straight away.
Clear the blocked object before
attempting to start the vacuum cleaner
again.
16. Before carrying out any maintenance or
cleaning the lters, always switch off the
vacuum cleaner.
17. Keep openings away from your face
and body.
18. Do not use the vacuum cleaner if it
is damaged or broken. If connection
cables are damaged, have them
replaced immediately.
19. Never clean the vacuum cleaner or
any of the electrical parts, especially
the electrical connections with water or
liquid cleaners.
20. Never attempt to make any
modications to the vacuum cleaner
and charger.
21. Always store the appliance, battery and
charger indoors in a cool and dry place.
22. Do not use the vacuum to pick up
water or liquids. This cleaner is for dry
household use only.
23. Use the electric power head only for
vacuuming dust and dry substances in
the home.
24. Never run over the power cable with
the power head, as this may cause
damage to the power cable.
25. Keep your hands away from the roller
brush while the vacuum cleaner is
switched on.
26. To prevent unnecessary wear on the
power head, keep it moving while in
operation.
27. Damage caused by improper use or by
not observing the instructions in this
manual will void the warranty.

5
1. The appliance is only to be used with the charger provided with the appliance.
2. Only charge the battery inside the cleaner or the charging dock. Only use the
specically designated charger to charge the product.
3. When the appliance is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects that can make a connection
from one terminal to another. Shorting the appliance terminals together may cause
burns or a re.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact occurs, ush with water immediately. If liquid comes into contact with your eyes,
seek medical help immediately.
5. Do not charge or store the appliance outdoors or inside the car. Only charge or store
the battery in a dry indoor area where the temperature is more than 4 deg C but less
than 40 deg C. The charger is for indoor use only.
6. Never attempt to open the battery pack for any reason. If the plastic housing of the
battery casing breaks or cracks, immediately discontinue use and do not recharge.
7. The charger is not a serviceable part.
8. Before disposal of your battery, fully discharge your battery by running the product until
it stops.
9. The cleaner contains a Lithium ion battery. Do not dispose the appliance with your
local garbage. Contact your local council for instructions on how to safely dispose of
the battery.
10. Do not use the charger to charge a non-chargeable battery.
Battery use and care

6
A B C D E F G H
A. Dust sensor
B. Dust empty release button
C. Dustbin
D. AUTO/MAX button
E. Trigger lock
F. Dustbin release button
G.Trigger
H. HEPA Filter
Overview

7
Product Components
Item PURE ONE X
Main body
Tube
Full-size LED multi-tasker power brush
Mini power brush
2-in-1 dusting brush
Crevice tool
Pre-lter cleaning tool + Spare pre-lter
Wall-mounted dock
Adaptor
Hair cleaning tool
• Actual accessories may vary from shown or change without notice.
Available accessories may vary by market.

8
Note:
• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• The “Product Components” page shows which accessories are included with your purchase.
• As shown below, there are many components compatible with this model. If you would like to
purchase accessories or consumables, please contact Customer Service on AUS: 1800 815 270,
NZ: 0800 282 288.
Accessories
Full-size LED multi-tasker power brush
Ideal for both hard oors and carpets.
Very effective for dislodging dirt embedded in the carpet.
Mini power brush
For vacuuming upholstered furniture, mattresses, etc.
Vacuums pet hair and removes ingrained dirt.
2-in-1 dusting brush
Switches between a wide and a soft brush by pressing the release
button. The soft brush is most effective on hard-surface furniture
while the wide brush is effective for upholstered furniture, curtains,
etc.
Crevice tool
For corners, nooks, and other hard-to-reach places such as around
car seats, picture frames, and cupboards.
Pre-lter cleaning tool
A dirty lter is a leading cause of suction loss, and this tool is
designed to make your lter last much longer. Place the dirty
lter inside the pre-lter cleaning tool and close the lid. Run the
appliance in MAX mode, and rotate the side cover.
Hair cleaning tool
Use the end with the small blade to remove hair and debris
wrapped around the roller.
Use the end with the brush to clean the brush window, and the
dustbin, as required.

9
Assembly
Tube Installation
Insert tube. Press the release button to remove the tube.
Brush Installation
Insert the power brush. Press the release button to remove the power
brush.
Dustbin Installation
①
②
To clean the dustbin more thoroughly, press
the dustbin release button to detach from the
appliance.
When re-attaching the dustbin, hold on an angle
and slot the top of the dustbin into the hook on
the main body. Push upwards until the hook is
xed into the slot on the dustbin and then it clicks
back into place.

10
Wall-mounted Dock Installation
120 cm
click
Determine the best wall location for mounting
the dock. We recommend placing it 120cm
from the lower screw hole to the oor (may
need to be adjusted based on the actual
situation).
Assemble the two bracket components, with a
“click” to signify correct assembly. Once this is
complete, use the screws provided by Tineco to
afx the dock to the wall.
Warning:
• Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires.
• To avoid the dock falling, ensure it is rmly installed.

11
Operation
Preparing for Use
Note:
• Before the rst use, please charge the appliance (see “Charging the Battery”) for 3-4 hours in an
area where the ambient temperature is between 4°C (39.2°F) and 40°C (104°F).
• Select an accessory and attach it to the appliance before use (see “Accessories”).
Pull the trigger to activate the suction. Pull the trigger lock to hold the trigger for
continuous power mode.
• Place the appliance on the wall-mounted dock for convenient storage and recharging after
use.
①
②
Place the main body on the dock. To avoid bristle damage, always place
attachments on the dock after use.
click

12
Cleaning Mode Selection
AUTO Mode
• In AUTO mode, the indicator color changes according to the amount of dust detected. When
blinking red indicates dust is detected, the brighter red light indicates more dust, whereas blinking
blue indicates no dust is detected. This mode automatically provides the best cleaning solution.
To enter AUTO mode:
①②
The default setting on startup is AUTO.
The appliance then takes 3 seconds to
initially detect blockages or dust. If no dust
is detected, power is reduced to conserve
energy.
When in MAX mode, press the AUTO/MAX
button to enter AUTO mode.
MAX Mode
In AUTO mode, press the AUTO/MAX button
to enter MAX mode.

13
App Function Introduction
Battery
Battery level in real time.
Total dust: 0 dust/0 min
Cleaning Performance
00
dust min
/Cleaning report
Displays the dust amount, working hours and working status.
Suction adjustment
When in manual mode, swipe the phone screen to adjust suction power.
Reminder of lter status
Records the severity of the dirty lter and provides a cleaning reminder as required.
Contact us
You can contact the Customer Service about any problems during the working hours.
Feedback
If you have any comments, please send us your feedback.
APP
• All the functions can be performed using the Tineco app. Download the Tineco app from the App
Store, Google Play and Tineco Ofcial Site.
②
①1. Pull the trigger to ensure the appliance battery has
sufcient charge.
2. Long press to activate WiFi connection (blinking blue
light), follow the guide in App for more details.
Tineco
Download on the
App Store
GET IT ON
Google Play
iOS 9.0 or later (iPhone 5s and above)
Android 5.0 or later
www.tineco.com
Support
App Downloads
App
Downloads

14
Emptying the Dustbin
Press the release button on the side of the
dustbin to empty the contents.
Close and click the dustbin ap back into place.
Charging the Battery
Place the main body on the dock, plug in the adaptor and charging port. The main body indicator
blinking blue indicates that it is charging correctly.
Warning:
• Only use the Tineco-provided adapter to charge the appliance.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is
fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range:
4°C (39.2°F)~40°C (104°F).

15
Runtime
• When in AUTO mode, the runtime is approximately 70 minutes. When MAX power is used, the
runtime is approximately 12 minutes.
• Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized
accessories.
Charging Time
• A full charge takes approximately 3-4 hours.
• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between
4°C (39.2°F) to 40°C (104°F).
Indicator
When in Use
Slowly blinking red light:
• First blinking for 3 times: low power reminding
• Second blinking: no power, please charge
Rapidly blinking red light: see troubleshooting.
Connect to Network
Blinking blue light: Connecting to the network.
Solid blue light: Successfully connected.
During Charging
Breathing blue light: charging.
Fully Charged
In 5 minutes: solid blue light.
After 5 minutes: light off.

16
Maintenance
Note:
• Clean the dustbin and lters after each use.
• Use the cleaning tool to thoroughly clean the pre-lter when the indicator blinking red rapidly. To
maintain high performance, wash and dry the pre-lter monthly, replacing it every 6 months.
Wash and dry the HEPA lter every 3 months, replacing it every 12 months.
Dustbin and Mesh Filter
Press the dustbin release button to remove
the dustbin.
Clean with a damp cloth, taking care to prevent
water entering the appliance main body and battery.
Turn counter-clockwise to remove the lters. Clean the dustbin and mesh lter with a damp cloth.
Air dry completely before reinstalling.
①
②
③
④
After cleaning, insert the clean pre-lter into
the mesh lter properly and it clicks into
place. Install the clean lter and dustbin
back into the main body, then close the
dustbin ap.
Warning:
• Do not wash the dustbin as it contains a dust
sensor. If it comes into contact with water, please
dry it with a hair dryer.
5
1 2
3 4
Mesh lter Pre-lter

17
Pre-lter
Ensure the appliance is switched off before
cleaning, and remove the dirty pre-lter from
the mesh lter-holder.
Do not turn the appliance upside down when
removing or installing the lter to prevent dust
from entering the motor.
Replace a clean lter to the main body. Put
the dirty pre-lter into the cleaning tool and
connect the cleaning tool to the main body.
Run the appliance in MAX mode, and rotate the
side cover to clean the dirty pre-lter.
HEPA Filter
Turn the HEPA to the left and gently pull out
for cleaning. Do not use the appliance without
rst installing the HEPA lter.
Do not place the appliance as above when
removing or installing the HEPA lter, to prevent
dust from entering the motor.

18
The HEPA lter can be washed under running
water and must be completely dry before
reinstalling.
* The HEPA is detachable. Simply rotate to
remove and replace.
Dust Sensor
To avoid dust accumulation which can affect
cleaning performance, wipe the suction mouth
with a damp cloth.
Mini Power Brush
Press against the roller end cover downward. Pull out the brush roller.
