Samsung SR8825 User manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
Robotic Vacuum Cleaner
User Manual
✻ Before operating this unit, please read the instructions carefully.
✻ For indoor use only. English
This manual is made with 100% recycled paper.
SR8825
2_ Safety information
Safety information
CAUTION/WARNING SYMBOLS USED
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
NOTE
Explains terms to help users understand how use the product properly.
SAFETY INFORMATION
it for your reference.
characteristics of your vacuum cleaner may differ slightly from those described
in this manual.
WARNING
WARNING
Safety information _3
Safety information
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be observed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER.
Unplug from outlet when not in use and before conducting maintenance.
WARNING: to reduce the risk of fire, electric shock, or injury:
GENERAL
Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.
or dropped in water, return it to a customer care center.
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
BATTERY CHARGER
or pull the cord around sharp edges or corners. Keep the cord away from heated
surfaces.
customer care centre.
kind to come into contact with the charger.
4_ Safety information
Safety information
ROBOTIC VACUUM CLEANER
objects into the fan chamber in case the unit accidentally turns on.
openings free of dust, lint, hair, and anything that may reduce air flow.
hot ashes.
areas where they may be present.
explosive or toxic vapours.
flush them immediately with clean water for a minimum of 10 minutes. Seek medical
attention.
SAVE THESE INSTRUCTIONS!
This vacuum cleaner is intended for household use only.
FOR RESIDENTS OF THE UNITED KINGDOM ONLY
Contents _5
Contents
SAFETY INFORMATION
02
07 Before use
10 In use
11 Cleaning and maintenance
PRODUCT FEATURES
13
TROUBLESHOOTING
36
ASSEMBLING THE CLEANER
15
15 Components
OPERATING THE CLEANER
19
19 Installing robotic vacuum cleaner
19 Installation order
19 Turning the power switch on or off
MAINTAIN TOOLS AND FILTER
30
PRODUCT SPECIFICATION
38
6_ Safety information
Safety information
POWER RELATED
Do not bend the power cord forcefully or place a
heavy object on it that could break it.
Do not use a damaged power cord, plug, or a loose
power outlet.
Do not use multiple plugs in a single socket.
(Do not leave the cord lying exposed on the floor.)
Do not pull the power plug by the cord or touch the
plug with wet hands.
Make sure to remove any dust or water from the
power plug.
shock.
WARNING
WARNING
WARNING
WARNING
WARNING
Safety information _7
Safety information
01 SAFETY INFORMATION
CAUTION
BEFORE USE
Before activating the robotic vacuum cleaner, make sure
that the dust bin is assembled.
operate.
CAUTION
Never use robotic vacuum cleaner in locations with
combustible material such as:
with burning cigarettes, etc.
CAUTION
Robotic vacuum cleaner is for domestic use only. Do not use it in the following
locations.
main building, locations exposed to wet or damp conditions such as bathrooms or
wash rooms, and narrow and highly situated locations such as tables or shelves. Critical
CAUTION
Open all doors to clean all rooms.
However, make sure to close the doors to the main entrance, the veranda and the
bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower floor.
CAUTION
For carpets with long tassels, fold the tassels under the
carpet.
and the machine itself, as they get caught in the driving wheel
or the power brush.

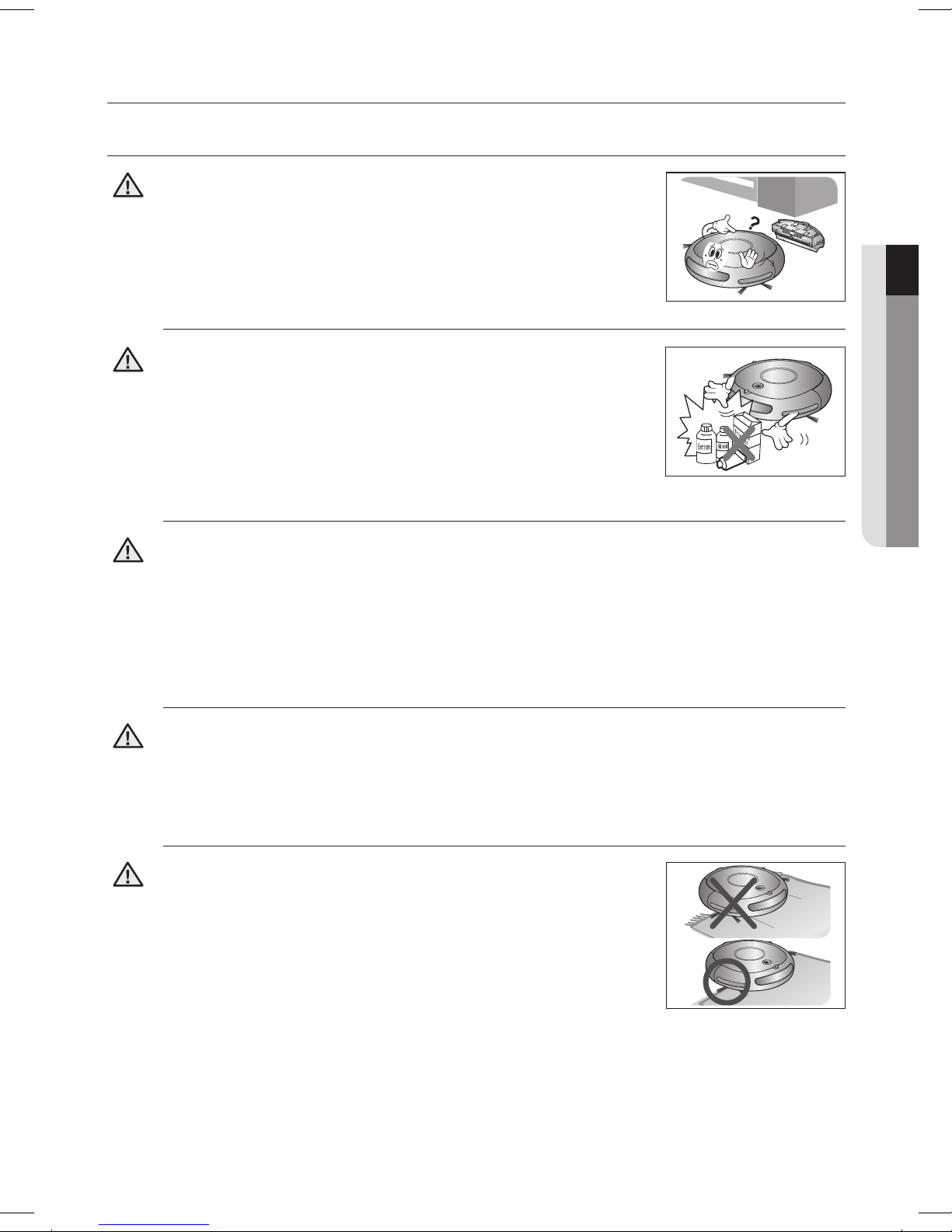

8_ Safety information
Safety information
BEFORE USE
When a child or pet is left alone, make sure to turn off the
Power Switch of the robotic vacuum cleaner.
this may result in injury.
deactivate all functions.
CAUTION
Remove objects scattered on the floor before cleaning.
from it.
rooms, power cords, table cloths or belts can become entangled in
the driving wheel or power brush. This can cause objects to fall from
the table.
CAUTION
Remove small objects or brittle items from the area to be
cleaned in advance.
flowerpots, etc.
valuable items such as jewelry.
CAUTION
Ensure that children do not step or sit on the robotic vacuum.
to the product.
CAUTION
Inform all family members (or relevant parties) to be cautious
before cleaning or when using the Scheduled Cleaning Mode.
CAUTION
When installing the charger station, do not leave the power
cord exposed on the floor.
by the charger station, it may drag the power cord around with it.
CAUTION
Safety information _9
Safety information
01 SAFETY INFORMATION
BEFORE USE
Always keep the power cord of the charger plugged into the
outlet.
the power cord of the charger station is unplugged, it cannot charge
its battery automatically.
CAUTION
Do not use the charger for other purposes.
WARNING
Make sure the robotic vacuum cleaner does not vacuum or
move over liquids such as water, oil or pet litter.
This may result in critical damage to the product.
WARNING
CAUTION

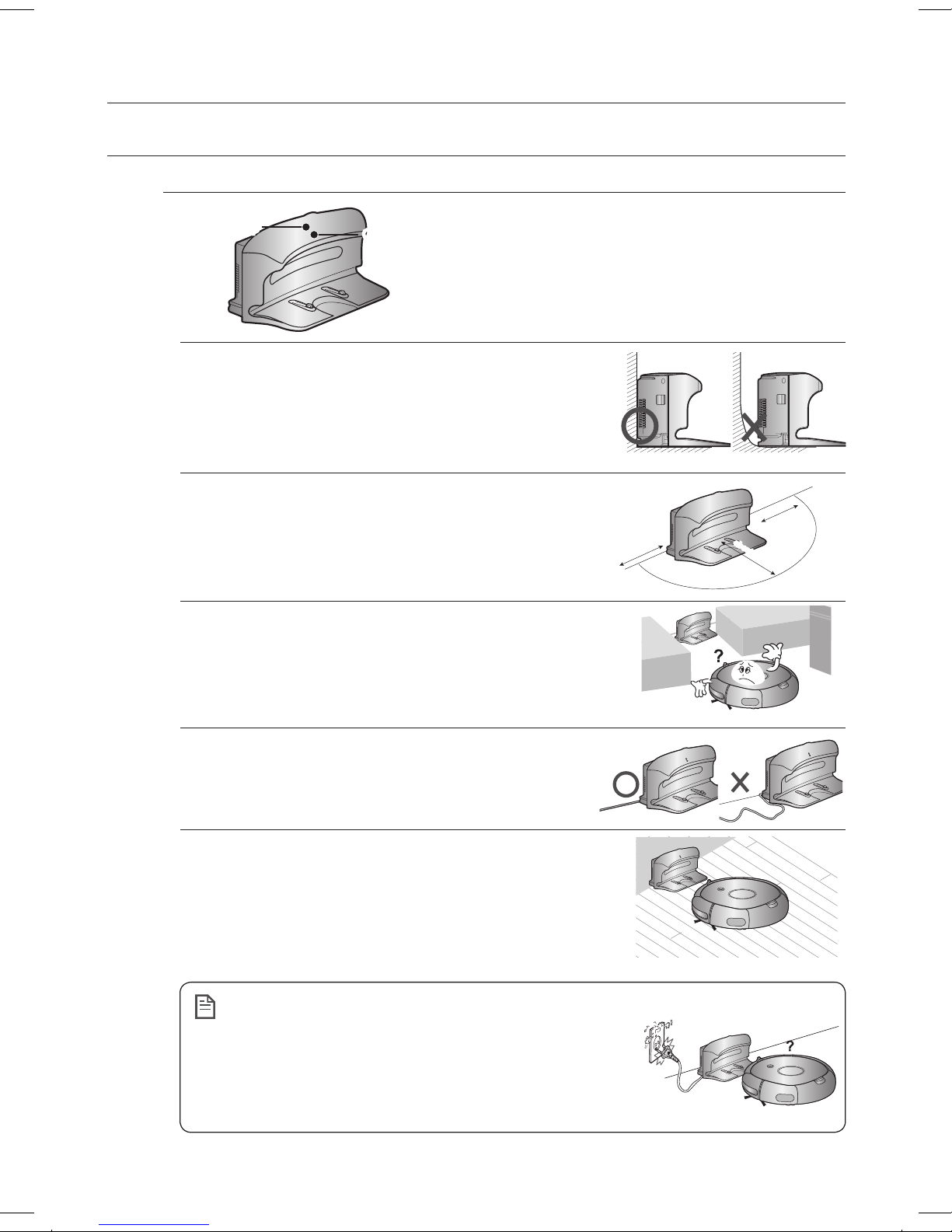

Install the charger in a location that can be easily accessed
by the robotic vacuum cleaner.
movements and may disturb the automatic recharging process.
Make sure that there is no trace of liquids on the charger
station.
WARNING
Do not short-circuit the charge pins with metal objects such
as chopsticks, screwdrivers, and etc.
WARNING
There should be no obstacles 0.5 m to the left and right and
within 1 m of the front.
WARNING
about 1m
about 0.5m
about 0.5m
Objects in front of the charger will prevent the robotic
vacuum cleaner from auto-charging itself.
CAUTION
about 0.5m
about 0.5m
about 1m
10_ Safety information
Safety information
NOTE
IN USE
You cannot use the robotic vacuum cleaner on thick carpets.
Robotic vacuum cleaner may not be able to continue its
operation if it is stuck at the entrance or veranda doorsill.
cannot move for more than 5 minutes.
after moving it to a location where it can continue cleaning.
If an unusual sound, smell or smoke is emitted from the robotic
vacuum cleaner, immediately turn off the Power Switch and call
the customer care center.
WARNING
Do not use the robotic vacuum cleaner on a table or other high
locations.
CAUTION
Robotic vacuum cleaner may bump into furniture such as chair
legs, table legs, thin and long furniture, etc. while operating.
the table.
Immediately remove any large pieces of
paper or plastic bags from the machine while cleaning.
obstructed may result in critical damage to the product.
Do not place any objects on top of the robotic vacuum cleaner.
CAUTION
CAUTION
CAUTION
CAUTION
Safety information _11
Safety information
01 SAFETY INFORMATION
NOTE
NOTE
IN USE
Robotic vacuum cleaner cannot completely clean
locations that it cannot reach, such as corners, and
spaces between sofas and walls.
Dust clusters may remain after cleaning, when the robotic vacuum cleaner fails to
pick up dust clusters that were formed while cleaning.
CLEANING AND MAINTENANCE
When cleaning the product, do not spray water directly onto the
exterior or wipe it with a volatile material such as benzene,
thinner or alcohol.
CAUTION
The unit must not be disassembled or reconstructed by anyone
other than a qualified service engineer.
CAUTION
Do not forcefully press the bumper on the robotic vacuum
cleaner.
bump into walls or furniture.
CAUTION
Remove any foreign substances accumulated on the Obstacle
and Cliff sensors on a regular basis.
of the sensors.
WARNING
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
추락방지 센서
Cliff sensor
Obstacle
sensor
12_ Safety information
Safety information
CLEANING AND MAINTENANCE
Contact the Samsung Electronics customer care center to
replace the battery.
WARNING
If the power cord is damaged, have it replaced by a qualified
service engineer from the customer care center.
WARNING
Before cleaning the charger, make sure to disconnect the
power cord for safety.
WARNING
When removing foreign substances, always use the cleaning
brush after turning the Power Switch off.
cause an injury or critical damage to the product.
WARNING
cleaning
side brush
_13
Product Features
• What is ceiling shape recognition
(Visionary mappingTM)?
the ceiling using the camera on top
to identify the area to be cleaned and
determines the best way to pass over
and clean every section of the floor.
VARIOUS CLEANING MODES
Various cleaning modes are provided to meet all your needs.
DELICATE CLEANING OF EVERY CORNER
determined by the ceiling shape recognition function, it cleans every corner of the floor.
1. Auto Mode
Cleans all rooms automatically.
2. Spot Mode
used to clean bread or cookie crumbs.
3. Max Mode
Runs until the battery is nearly depleted.
4. Edge Mode
When the Obstacle Sensor detects an
obstacle during the cleaning, the Robot
bumping impact and the Bumper Sensor
also helps it lower the bumping impact.
And, it cleans the corners by reaching to
them as close as possible.
5. Scheduled Cleaning Mode
cleaner cleans the floor.
1
3
2
4
5
About 1.5m
About 1.5m

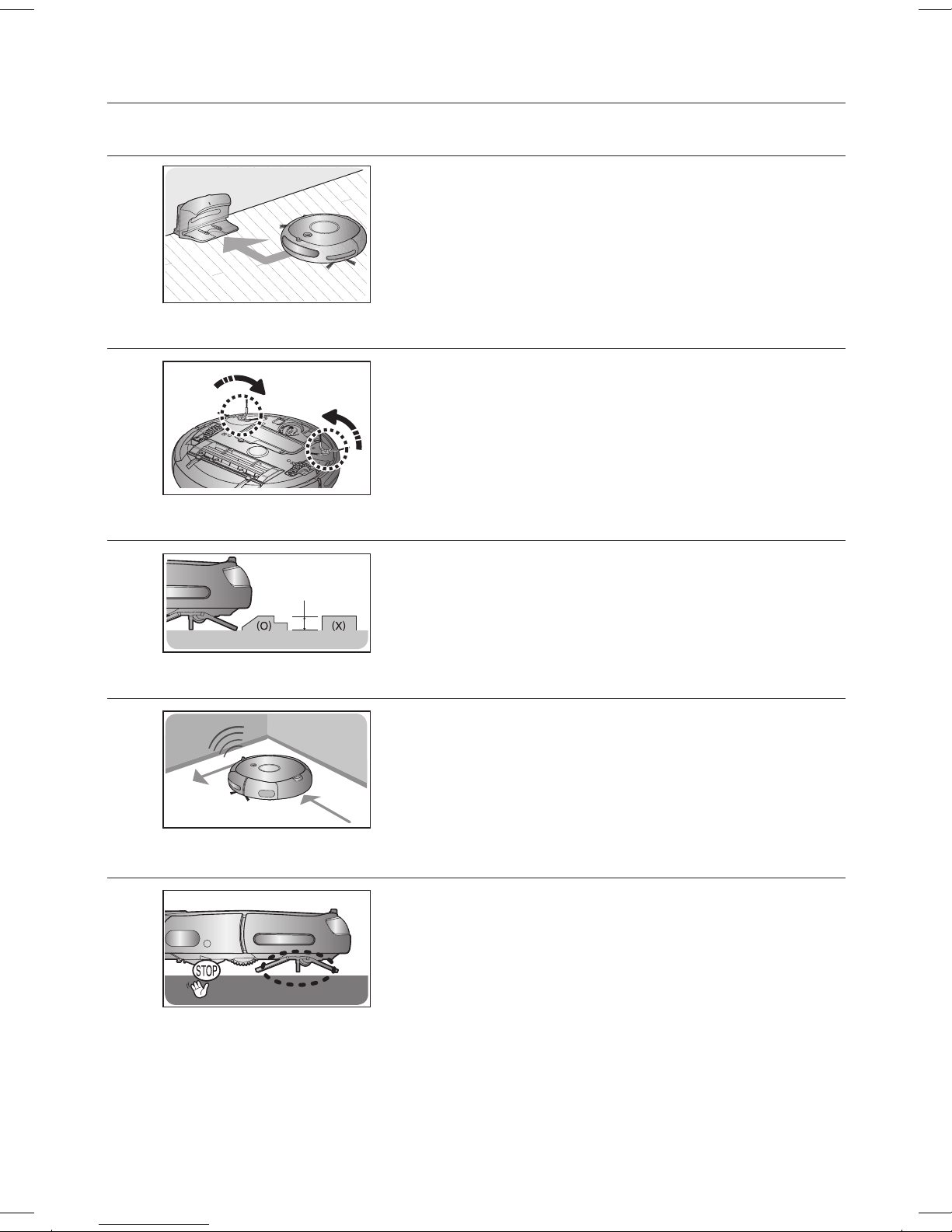

14_
Product Features
DOORSILL CROSSING
The robotic vacuum cleaner’s innovative driving system
makes it possible for it to cross over doorsills with a height
of about 1.5 cm and clean all rooms. The robotic vacuum
cleaner may not be able to pass a 1.5 cm doorsill depending
on the shape of the doorsill.
ANTI-CRASH
The robotic vacuum cleaner detects and avoids obstacles
stage 1 and if the robotic vacuum cleaner does crash into an
EDGE-CLEANING SIDE ROTATING BRUSH
edges.
AUTO CHARGING
When the battery is low, the robotic vacuum cleaner is
automatically guided to the charger to enable it to perform a
SAFETY DEVICE
When the robotic vacuum cleaner is lifted up while cleaning,
the driving wheels, power brush, suction motor, and side
About 1.5 cm
Stair type
Vertical type
Assembling the cleaner _15
Assembling the cleaner
02 ASSEMBLING THE CLEANER

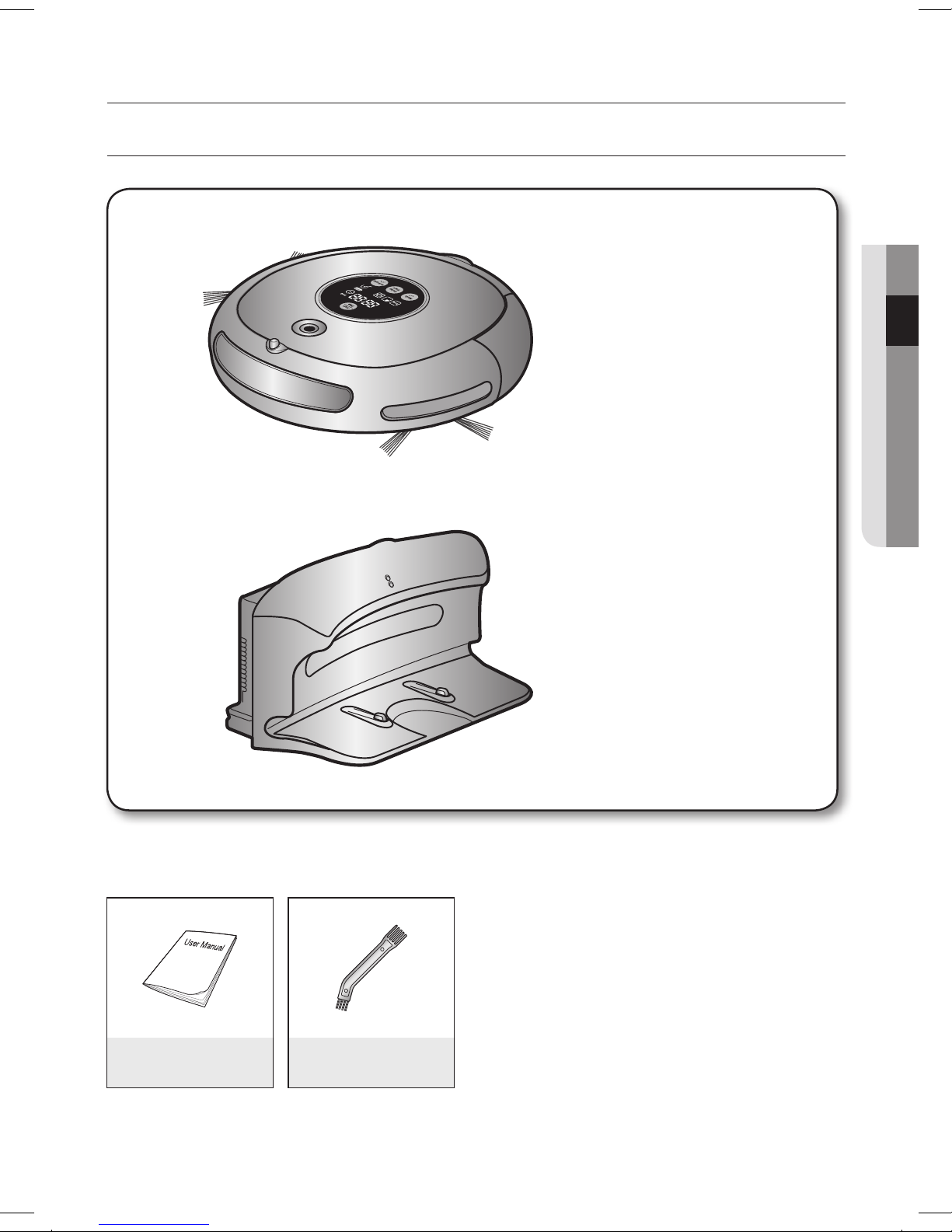

COMPONENTS
■
■Main Body
■Others Components
User Manual Cleaning Brush
16_ Assembling the cleaner
Assembling the cleaner
NAME OF EACH PART
[ Main unit ]
Side
Bottom
Front
Dust Bin
Dust Bin Eject
Button
Driving Wheel
Battery Cover
Cover
Driving Wheel
Cliff Sensor
Side Brush
Cliff Sensor
Cliff Sensor
Roller
Operating
Button
Obstacle
Sensor
Obstacle Sensor
Bumper Sensor
Assembling the cleaner _17
Assembling the cleaner
02 ASSEMBLING THE CLEANER
NAME OF EACH PART

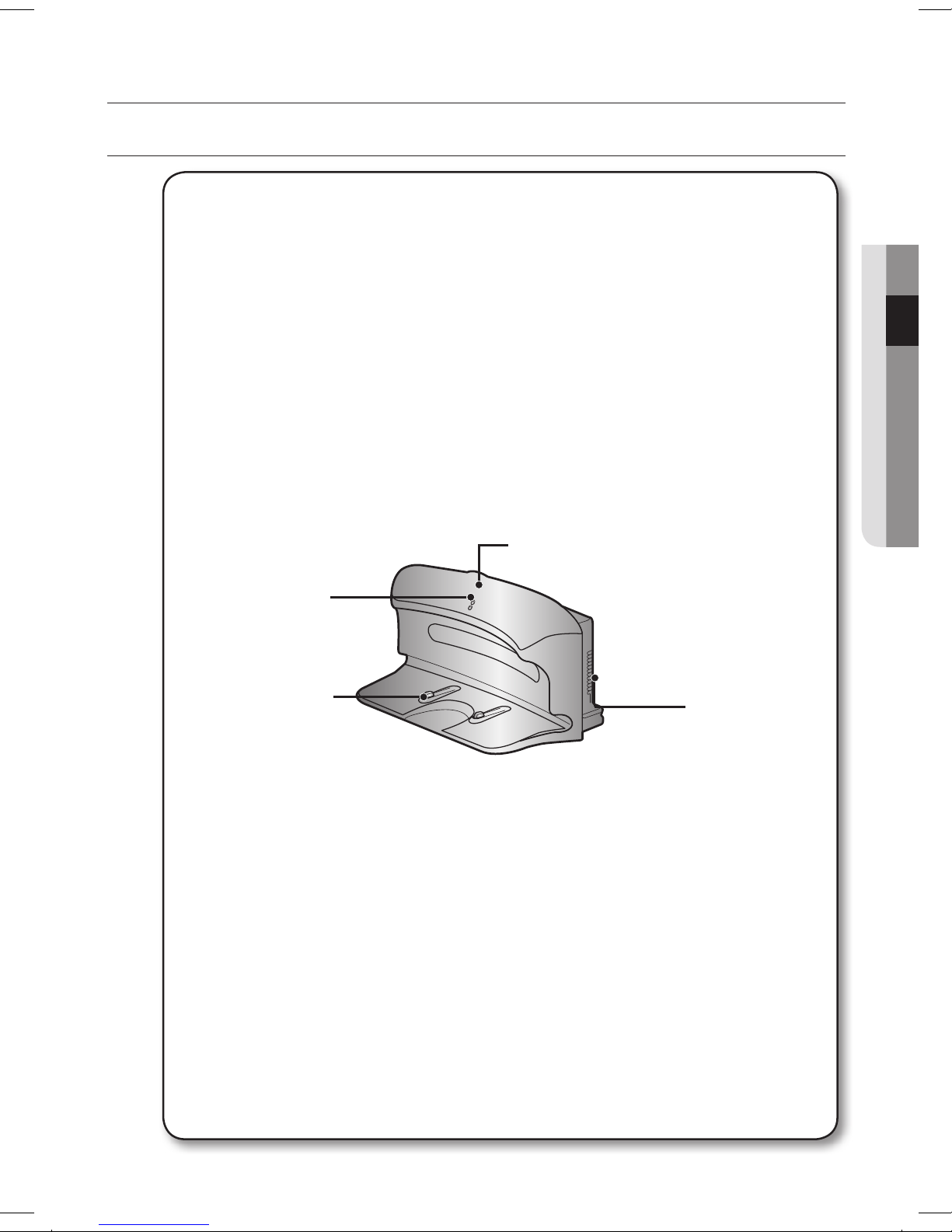

[ Charger (Station) ]
Vents
Charging Lamp
18_ Assembling the cleaner
Assembling the cleaner
NAME OF EACH PART
[ Display panel ]
DISPLAY PART
1. Number Display
2. Battery Level Indicator
3. Scheduled Cleaning
4. Recharging
5. Cleaning Mode Display
BUTTON PART
6. Start/Stop
7. Cleaning Mode
8. Delay Start
9. Recharging
the charger station to charge its battery.
1
2
4
8 97
6
3
5
ⓐ ⓑ ⓒ
Operating the cleaner _19
Operating the cleaner
03 OPERATING THE CLEANER
INSTALLATION ORDER

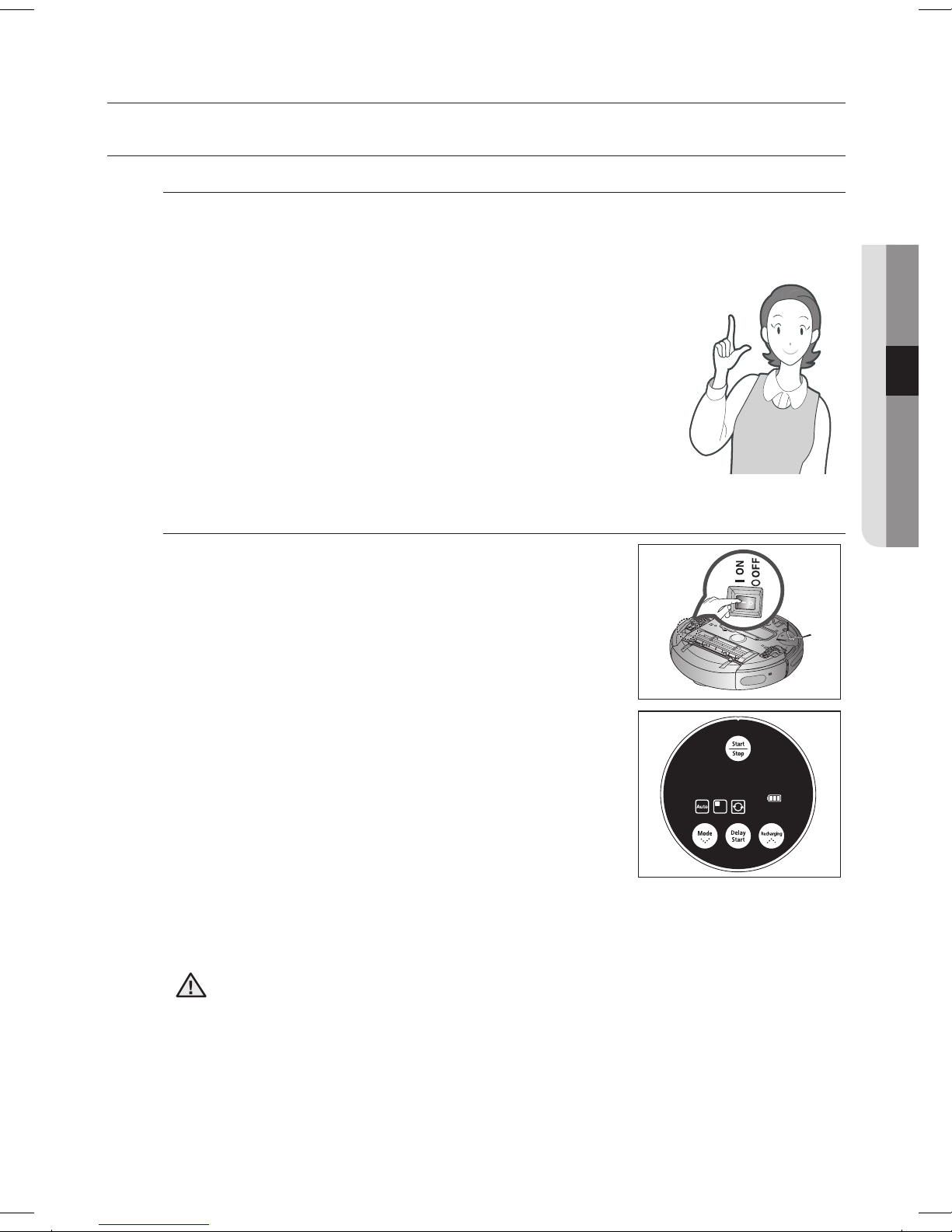

1. Turning the Power Switch on or off
bottom of the main unit.
2. Installing the Charger
the charger.
Since the battery is discharged when the product is
purchased, you must fully charge the battery before use.
3. Charging the Battery
You should charge the battery completely before using the
robotic vacuum cleaner.
INSTALLING THE ROBOTIC VACUUM CLEANER
CAUTION
even if it is docked with the charger station.
To use the robotic vacuum cleaner, you must turn the
1. Turn over the main unit and turn the Power Switch
on.
charge is depleted. In this case, dock the robotic vacuum
Switch on.
settings.
when the power is on, the power is automatically turned off to save battery power. In
20_ Operating the cleaner
Operating the cleaner
INSTALLING THE ROBOTIC VACUUM CLEANER
INSTALLING THE CHARGER
Always keep the power cord of the charger
plugged into the power outlet.
not be able to charge automatically.
charger, the battery is automatically discharged.
2. There should be no obstacles 0.5 m to the left and
right and within 1 m of the front.
1. Install the charger on a flat surface.
3. Install the charger in a location where it can be easily
accessed by the robotic vacuum cleaner.
4. Arrange the power cord along the wall.
5. When the floor is made of wood, install the charger
in the same direction as the grain of the wood.
Charging Lamp
NOTE
about 1m
about 0.5m
about 0.5m
Other manuals for SR8825
2
Table of contents
Other Samsung Vacuum Cleaner manuals
Samsung
Samsung SS60K60 Series User manual
Samsung
Samsung SR8875 User manual
Samsung
Samsung Vacuum cleaner User manual
Samsung
Samsung SC45 Series User manual
Samsung
Samsung POWERbot SR1 M70 Series User manual
Samsung
Samsung SC07K51 Series User manual
Samsung
Samsung SC4770 User Manual (Windows 7) User manual
Samsung
Samsung SC52 Series User manual
Samsung
Samsung SC07M25 Series User manual
Samsung
Samsung SC07F50 series User manual
Samsung
Samsung VC-5914V User manual
Samsung
Samsung Vacuum cleaner User manual
Samsung
Samsung SC07F80 series User manual
Samsung
Samsung POWERbot SR10M70 Series User manual
Samsung
Samsung SC6200 SERIES User manual
Samsung
Samsung SC45 Series User manual
Samsung
Samsung Vacuum cleaner User manual
Samsung
Samsung VAC-7049B User manual
Samsung
Samsung VC-77 Series User manual
Samsung
Samsung SC05M31 Series User manual
Popular Vacuum Cleaner manuals by other brands
Kärcher
Kärcher IVM 40/24-2 M Lp manual
Bosch
Bosch relaxx bgs5.. operating instructions
Imetec
Imetec ECO EXTREME ANIMAL CARE operating instructions
Aura
Aura Roboclean Splus 114K user manual
Shark
Shark STRATOS Cordless Pet Pro Vacuum with Clean Sense... instructions
Bestron
Bestron ABL830WB instruction manual
Sanitaire
Sanitaire SP6900 owner's guide
Clarke
Clarke S12 Operating instructions and repair parts list
Makita
Makita DRC300PG2 instruction manual
Dirt Devil
Dirt Devil CENTRINO XL operating manual
Silvercrest
Silvercrest 373895 2104 Operating instructions and safety instructions
Brandt
Brandt ASB11B instruction manual
