Tisira AGITBG Series User manual

1
AGITBG
RANGEHOOD INSTALLATION INSTRUCTIONS
AGITBG 520 EAN #9351116000134
AGITBG 850 EAN #9351116000141
www.tisira.com

2
BEFORE YOU INSTALL
LINE DRAWINGS
DUCTING AND CLEARANCES
INSTALLING THE RANGEHOODS
USING THE RANGEHOOD / MAINTENANCE
REPLACING THE LED LIGHT
WIRING DIAGRAM
WARRANTY INFORMATION
3
4
5
6
8
9
10
11

3
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
Ducting available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size may void warranty.
If you are in doubt about the ducting, please contact Arisit on 1300 762 219 prior to installation
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
BEFORE YOU INSTALL - DUCTING INFORMATION

4
LINE DRAWINGS
SM 927

5
Min. 600mm - Max. 700mm for induction cooktops.
Min. 650mm - Max. 750mm gas cooktops.
If the rangehood is positioned above the max height
recommended, warranty may be compromised
as performance of the rangehood will be affected.
Measurement is taken from the top of the trivets to
the underside of the hood. (Fig.1)
• The air being drawn can’t be conveyed through
or into a duct used to let out fumes from
appliances fed by energy other than electric
power (eg. centralized heating, radiators, water
heaters, etc.).
• Attention: remove any possible PVC film from the
stainless steel, including the filters.
• To externally vent, please comply with the
pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation
when a rangehood and appliances fed by energy
other than electric power (gas, oil, or coal stoves,
etc.) are used simultaneously. The rangehood,
when evacuating the air, could generate a
negative pressure in the room which can’t exceed
the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat source.
Therefore the room should be provided with air
intakes to allow a constant flow of fresh air.
If the rating label in the rangehood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.
If the rating label in the rangehood does not show
the symbol , the appliance is built in class I° and it
needs the earth connection.
When performing the electrical connections on the
appliance, please make sure that the current-tap
is provided with earth connection and that voltage
values correspond to those indicated on the label
placed inside the appliance itself.
Before carrying out any cleaning or maintaining
When ducting rangehood, options are as follows:
Roof vent - EASYROOF 150T/M
*Kit includes roof flashing
Download installation guide
Eave vent - EASYEAVE 150
Download installation guide
Wall vent - EASYWALL 150
Download installation guide
operations, the appliance needs to be switched off.
If the appliance is not provided with a non-separable
flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid,
with an opening distance between the contacts of at
least 3mm, then such disconnecting devices must be
supplied within the fixed installation.
If the fixed appliance is endowed with a supply cord
and a plug, the appliance has to be put in a place
where the plug can be reached easily.
The use of materials which can burst into flames
should be avoided in close proximity of the appliance.
When frying, please pay particular attention to fire
risk due to oil grease. Being highly flammable, fried
oil is especially dangerous. Do not use uncovered
electric grills. In order to avoid possible fire risk, all
instructions for grease-filter cleaning and for removing
eventual grease deposits should be strictly followed.
WARNING
600 - 700mm (induction)
600 - 750mm (gas)
600 - 700mm (induction)
600 - 750mm (gas)
(Fig. 1)
(Fig. 2a)
(Fig. 2b)
(Fig. 2c)
SIDE VIEW FRONT VIEW
DUCTING AND CLEARANCES

6
To install the appliance please respect the follow
instructions:
• The appliance must be installed by qualified
technicians.
In order to avoid damage to the electronic parts
of the appliance, please do not use additional
screws.
• Essential precautions to respect before installing
the appliance are the following:
To have made a cutout on the bottom of the
cabinet which is suitable to hold the appliance in
position (fig. 2):
AGITBG 520 - (W) 502 x (D) 265mm
AGITBG 850 - (W) 835 x (D) 265mm
AGITBG INSTALLATION
Before installing the appliance, make sure that
none of the parts are damaged in any way. In
case of damaged parts, contact your retailer
and do not proceed with installation. Read all
of the following instructions with care before
installing the appliance.
• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter
(recommended constant diameter: Ø 150 mm
or equal surface area).

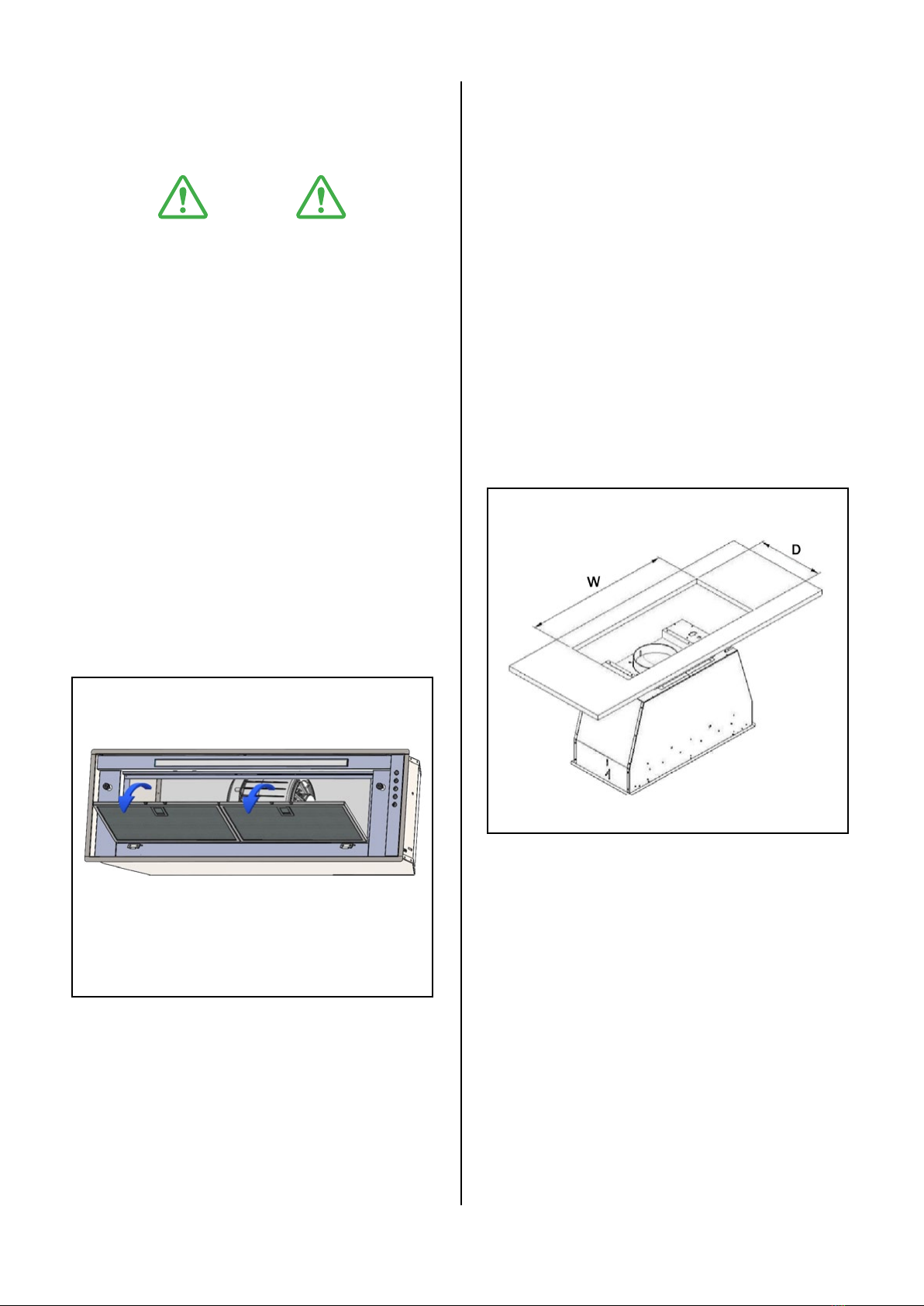

Before installing the appliance - in order not to
damage the appliance itself - the metal grease filter
should be removed. These filters could be removed
by pushing the handles towards the back side of the
rangehood and pulling it downwards to unfasten it
from its slot. (Fig.1).
NOTE
(Fig.1)
(Fig.2)
1. Prepare the power supply - 240 volts.
2. Prepare a hole for the exhaust - 160mm diameter.
• Do not use screws to fix the ducting to the
rangehoods as they will prevent the movement of
non-return valves.
• Limit the number of elbows in the ducting, since
each elbow reduces the duct efficiency by 1
metre. (i.e. if you use two 90° elbows, the length
of ducting must not exceed 5 metres.)
• Avoid abrupt direction changes.
• Use 150mm constant diameter ducting for the
whole length.
WARNING: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.

7
(Fig.3)
NOTE
WARNING
The rangehood is quite heavy, so two people
will be needed for installation.

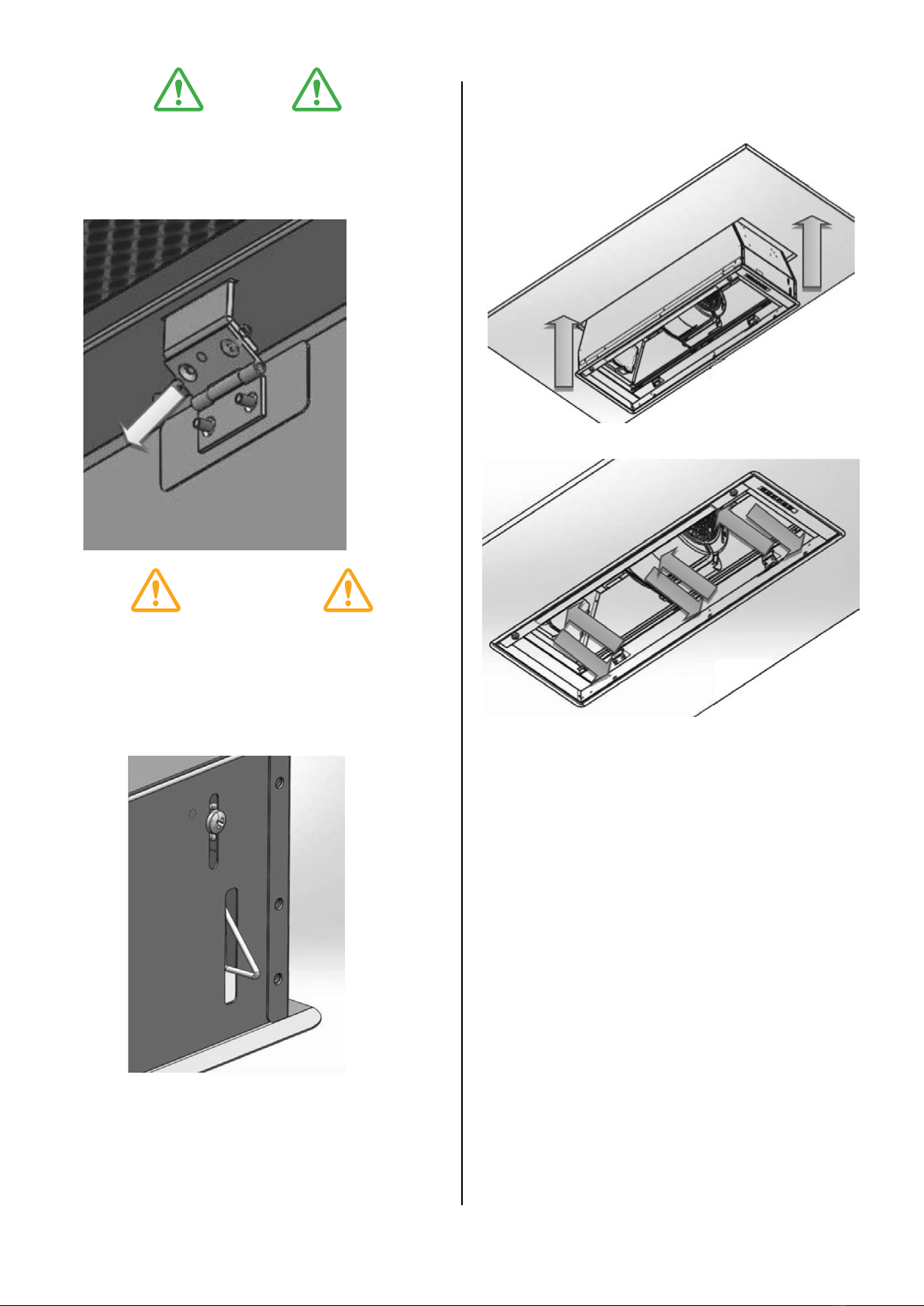

1. To install the appliance, adjust the position of the
adjustable side-springs using the supplied screws
(fig.4), according to the thickness of the board, in
which the appliance will be fixed.
2. Insert the rangehood into the cutout in the
cabinet until the stop click of the side-springs is
heard and the rangehood is supported (Fig 5).
3. Insert the 25mm screws provided into the front
and rear holes inside the rangehood (Fig.5A) to fix
it to cabinetry.
4. Insert the grease filter (Fig.1)
(Fig.4)
• To make it easier to install the rangehood inside
the cabinet, it is recommended to remove the
glass. Unscrewing the four M3x10 screws as
shown in Fig. 3.
(Fig.5)
(Fig.5A)

8
• Accurate maintenance guarantees good
functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It
can be removed by pushing its handle toward the
back side of the rangehood and pulling the filter
downwards so to unfasten it from its slot (Fig.1).
To insert the filter just perform the opposite
operation.
• The grease filter needs cleaning by regular
handwashing or in dishwashers every two
months or 30 continuous hours, depending on its
use. Button lights will flash when filter needs to
be cleaned. To reset, press and hold the the 01
button for 2 seconds when the motor is off.
Filters may require cleaning sooner if
frequent heavy frying is done.
• To clean the appliance itself, water and detergent
are recommended, while abrasive products
should be avoided. For steel appliances
specialized detergents are recommended (please
follow the instructions indicated on the product
itself to obtain the desired results).
To remove the rangehood from the cabinet,
remove the fixing screws (fig. 5A) using a
screwdriver, and remove the grease filters
(fig.1).
• Push down on the small handle of the springs,
which are inside the rangehood, with the
necessary strength to unhook the hood from the
cabinet.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid a hazard.
MAINTENANCE
WARNING
NOTE

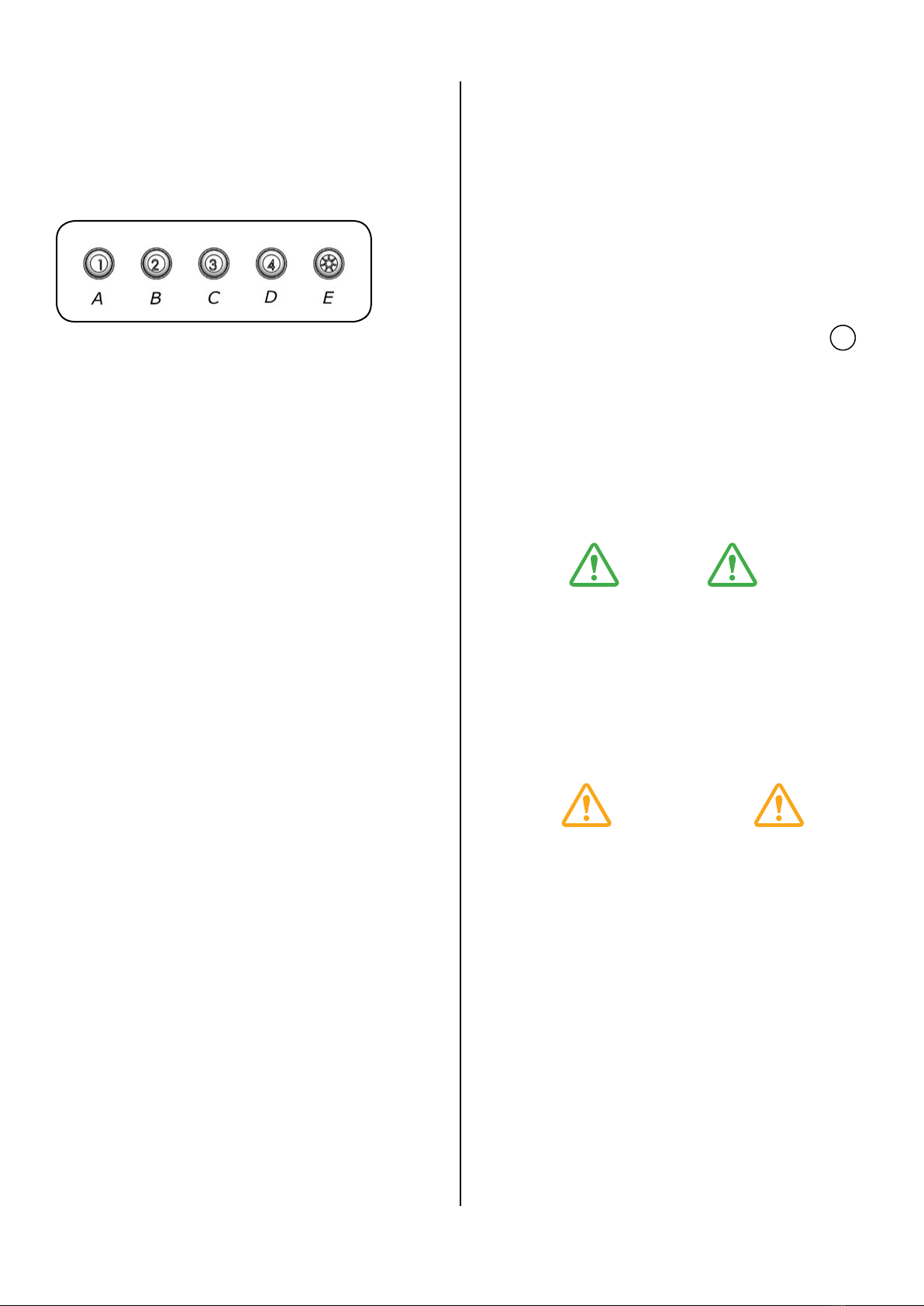

AGITBG (fig. 6)
A: Motor switch on speed 1/off - (low/simmer)
B: Motor switch on speed 2 - (general cooking)
C: Motor switch on speed 3 - (high power)
D: Motor switch on speed 4 - (booster)
E: Light on/off switch
USING THE RANGEHOOD
(Fig.6)

9

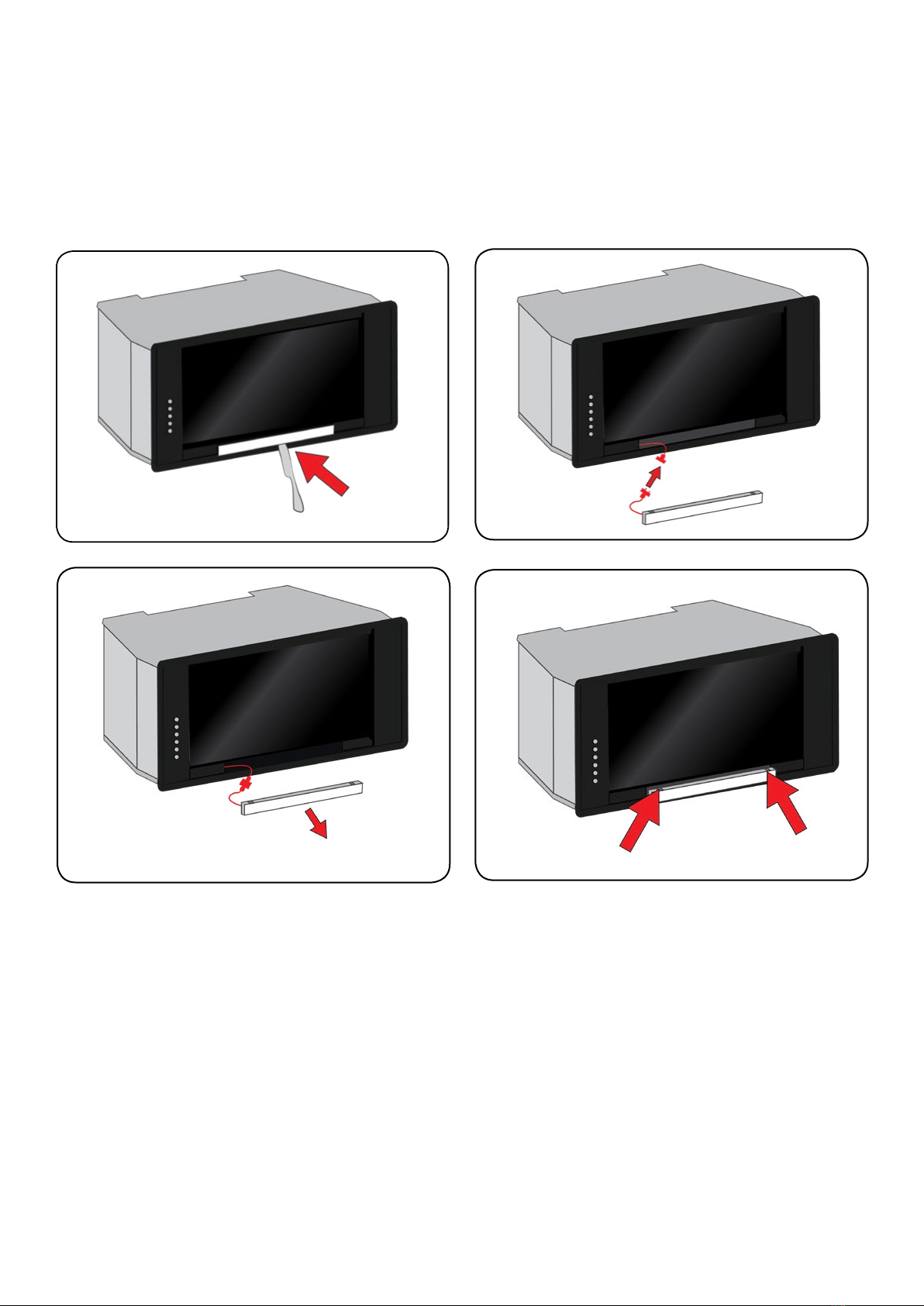

REPLACING THE LED STRIP ON THE
AGITBG
1. Before replacing the LED light, switch off the
rangehood, then - by using appropriate tools -
remove the LED light from its slot. (Fig 7a - b)
• Note: light is easier to remove from the centre
of LED strip. Use a small, flathead screwdriver,
pallette knife or blunt butter knife.
(Fig.7a) (Fig.7c)
(Fig.7b) (Fig.7d)
2. Take out the LED light from its connector and
replace. (Fig 7c - d)
• To find the correct LED light, please contact
Ariston directly on our toll-free number:
1300 762 216.

10

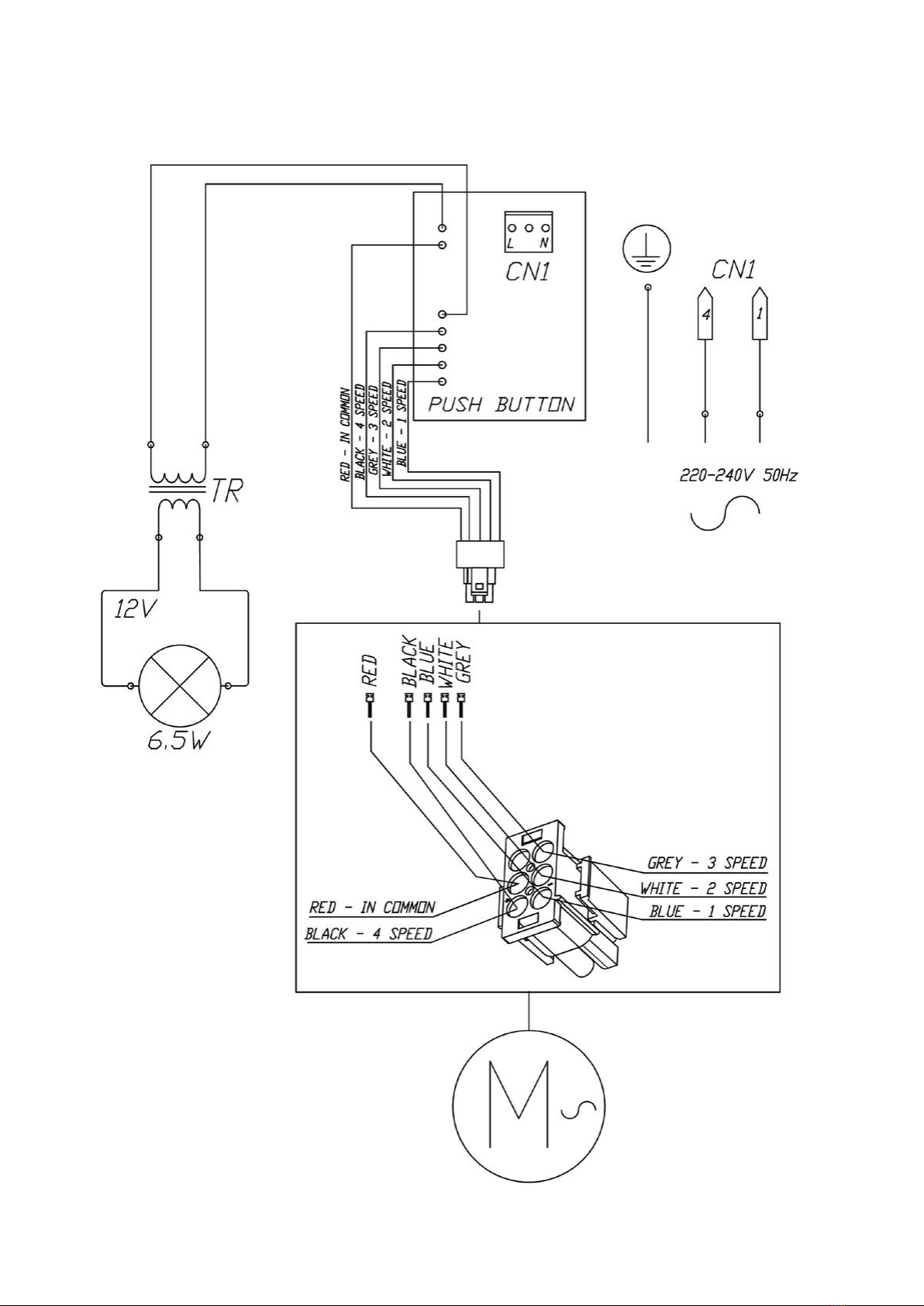

WIRING DIAGRAM

11
Your Warranty
Register now to qualify for your Warranty
These Terms and Conditions apply only to Ariston
products distributed in Australia and New Zealand
by Arisit Pty Limited.
1. This warranty applies for period of 5 years
warranty on AGITBG rangehoods.
Warranty applies for parts and labour in
Australia, commencing from date of purchase.
2. Evidence of the date of purchase must be
shown to the technician when they call, to
obtain benefit under this warranty.
3. This warranty applies only to the original
purchaser/hire purchaser of this appliance
and cannot be assigned or transferred. Failure
to produce documentary proof of the date of
original acquisition by the original purchaser
will result in a charge being levied for work
done, labour and parts supplied.
4. This warranty does not apply to:
a) Serviceable items such as filters, fuses,
light bulbs, door seals, drive belts,
external hoses, etc.
b) Damage to body work, paint work, glass,
trivets and plastic items (such as, but
not limited to windows, covers, baskets,
trays, worktops, door handles, control
and kick panels.)
c) Corrosion & rust damage.
d) Damages/blockages caused by laundry
or foreign objects.
A fee for service will be charged following
warranty claims where no fault is found with
the appliance.
5. This warranty will not apply where:
a) The fault is caused by accident, misuse,
oversuds, an infestation of vermin, fire,
flood or the use of products not
approved by Arisit Pty. Limited.
b) There has been a failure to comply with
the manufacturer’s operating and
installation instructions.
c) Service, modification or repair has been
carried out by anybody other than an
approved Arisit Service Technician.
d) The appliance has been used/installed
anywhere other than a private dwelling,
or where it has been used other than for
domestic use.
e) The appliance is subject to a rental
agreement.
6. Any defective part that has been replaced
becomes the property of Arisit Pty. Limited.
7. This warranty applies only to Ariston
appliances purchased and installed in Australia
and New Zealand.
8. Loss of use of the appliance or consequential
loss of any nature is not covered.
9. A charge may be levied at the discretion
of Arisit Pty Limited if the call is deemed
unnecessary or if the cause of failure is traced
to external sourced such as, but not limited to:
blown fused, power failure, faulty installation,
etc.
10. Where the appliance, the subject of a warranty
claim or repair, is used or installed more than
TWENTY (20) kilometres from the Arisit Service
Division or Authorised Service Agent, the cost
of delivery to the nearest Service Division or
travel costs for a technician or Authorised
Service agent shall be for the account of
Purchaser. Where a built-in appliance is located
or installed outside the Arisit Authorised
Service Agent’s normal service area, additional
travel and labour costs shall be the account of
the Purchaser.
11. Arisit Pty. Limited shall not under any
circumstances be responsible in terms of this
warranty for the replacement or repair of any
part of the equipment which may have been
damaged in transit, during and after installation
or imperfections after installation.
12. Losses caused by act of God, failure to
obtain spare parts, strikes or lockouts are not
covered.
13. Service is offered during normal working hours
only, also appliances to have a clear access in
a serviceable area.
14. This warranty does not affect your statutory
rights.
15. Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law. You are entitled to a replacement or
refund for a major failure and for compensation
for any other reasonably foreseeable loss or
damage. You are also entitled to have the
goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does
not amount to a major failure.
We reserve the right to amend any of the above without prior notice.
To register for your warranty please complete and return this form to
Arisit Pty Limited within 30 days of purchase.
Where did you first hear about Ariston?
Please print in block letters
Date of Purchase / /
Name of Retailer
Address Email
State
Telephone (AH) (BH)
Initials Surname
PostcodeModel Number
Serial Number
Would you like any further information on other
appliances? Please specify
Advertising
Cooking Laundry
Tradesman’s Recommendation
Recommendation by Friend/Relative
In Store Display
Dishwashers All
Mr Mrs Ms
Other (please specify)
Warranty Terms & Conditions
Registration Form
400010842921 - 195 036989 02 - 02 - 10/18 - Postel s.p.A

12
ARISIT PTY LIMITED (Australia)
ABN 23 091 515 294
40-50 Mark Anthony Drive
Dandenong South VIC 3175
P: Sales & Service: 1300 762 219
F: Sales & Service: [phone]
E: [email protected]
ARISIT PTY LIMITED (New Zealand)
1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145
P: [phone] - Fax: [phone]
E: [email protected]
All efforts have been made to ensure that the
information provided in this brochure is correct at
the time of printing. Due to continuous product
improvement and ongoing development, Sirius
reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may
be for illustrative purposes only. Diagrams are
indicative measures only. Prior to commencing
cabinetry cutouts the operating/installation
instructions accompanying the product must
be referred to at www.arisit.com
www.arisit.com
Dear Customer,
Warranty
Australian and New Zealand Protection Plan
Thank you for choosing this appliance.
We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring
that our customers receive the best possible after-sales care.
The Arisit ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your
appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.
By registering your ownership now you automatically qualify for
Arisit’s Total Peace of Mind Protection Plan.
This guarantees your appliances for a full 5 years on AGITBG rangehoods, subject to the Terms and Conditions
overleaf.
AUSTRALIA
ARISIT PTY LIMITED
40-44 Mark Anthony Drive, Dandenong South, VIC 3175, Australia
Fax: Service & Sales [phone]
Email: consumer.car[email protected]
PRIORITY SERVICE
If you are not completely
satisfied with you
appliance or require
service call:
GENUINE
ACCESSORIES &
SPARE PARTS
A wide range of genuine
accessories are available
for your appliance:
Australia
Phone: [phone]
New Zealand
Phone: [phone]
Australia
Phone: [phone]
New Zealand
Phone: [phone]
NEW ZEALAND
ARISIT PTY LIMITED
PO Box 68-140 Newton, Auckland 1145, New Zealand
Fax: [phone] - Email:[email protected]
Please mail to country of purchase.
