Titan Lifts MRL-6000 Instruction manual

1
®
INSTALLATION, OPERATION,
& MAINTENANCE MANUAL
MRL-6000
SCISSOR LIFT
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE MACHINE WILL
FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. KEEP THIS MANUAL IN
A SAFE DRY PLACE FOR FUTURE REFERENCE.

To Our Valued Customers:
Thank you for purchasing a Titan Lifts® product. We hope this high quality equipment provides you with years of
dependable service.
It is unfortunate that rare situations may occur with the products you purchase from Titan Lifts®. We value your
business as well as the trust you have and need to maintain your relationship with us. Titan Lifts® carries liability
coverage that may protect our customers if a situation does occur. However, as in all accidents there must be
proof of liability for a claim to be made. Our insurance company requires the following procedures be observed in
order to consider a claim:
A. The claimant must contact the Titan Lifts® distributor immediately with the facts of the situation.
B. If any equipment is damaged, including vehicles or shop equipment, Titan Lifts® must be given the
opportunity to send and impartial representative to the site for proper assessment of the situation.
C. The Vehicle cannot be moved until either an impartial representative has reviewed the accident or clear
and precise pictures are taken that reect all the pertinent information for an impartial representative to be able
to access the information from a distance. Titan Lifts® or its representatives must approve the pictures before
anything can be moved.
D. If any potential liability is determined on behalf of Titan Lifts®, two estimates must be submitted for
damages to be reimbursed.
It is imperative that the claimant complies with these procedures, because without proper assessment of the situ-
ation a claim will be denied.
ARBITRATION NOTICE
The installation or use of this equipment shall constitute an acknowledgement that the user agrees to resolve any
and all disputes or claims of any kind whatsoever, which relate in any way to the equipment, by way of binding
arbitration, not litigation. No suit or legal action may be led in any state or federal court. Any arbitration shall be
governed by the Federal Arbitration Act, and administered by the American Mediation Association, Indianapolis
Indiana. The maximum amount that an arbitrator may award and all damages shall not exceed the retail value of
this equipment.
WARRANTY NOTICE
This equipment must be installed by a “Professional Installer” assembled and used in the manner according to
the documentation provided to be covered by warranty.
Damaged or missing components must be reported within 72 hours of receipt to your freight carrier and to the
distributor. Claims must be led to cover cost.
If you have any questions or if we can be of any further assistance, please don’t hesitate to contact a Titan Lifts®
representative at 1-888-908-4826. Thank you for the opportunity to continue to serve your lift equipment needs.
®
PO Box 7069 Greenwood, IN 46142
1.888.908-4826 FAX [phone]
www.titanlifts.com
TITAN MARKETING, LLC

3
CONTENTS
1.Safety ....................................................................................1
1.1 Introduction ......................................................................................... 1
1.2 Safety Instructions for Commissioning................................................ 1
1.3 Safety Instructions for Operation......................................................... 1
1.4 Safety Instructions for Maintenance.................................................... 3
1.5 Risks ................................................................................................... 3
2. Unpacking & Set-up .............................................................4
2.1 Delivery & check of packages ............................................................. 4
2.2 Lifting & handling................................................................................. 4
3 Specications .......................................................................5
4 Floor requirement .................................................................6
4.1 Select the site area ............................................................................. 6
4.2 Floor Requirements............................................................................. 6
5 Installation Instructions .......................................................7
5.1 Mounting the hydraulic power unit/connect hose assembly................ 7
5.2 Lift the unit to attach the lifting plates and saddles ............................. 7
5.3 Lifting plates, adapters & rubber saddle attachment........................... 7
5.4 Electrical Connections......................................................................... 8
6 Operation Instructions..........................................................8
6.1 Defects / Malfunctions......................................................................... 8
6.2 Controls............................................................................................... 8
6.2.1 Up Control ........................................................................................ 8
6.2.2 Safety Lock Control.......................................................................... 9
6.2.3 Lowering Control .............................................................................. 9
6.3 Operation ............................................................................................ 9
7 Maintenance........................................................................11
7.1 Maintenance Schedule.......................................................................11
7.1.1 DAILY ...........................................................................................11
7.1.2 MONTHLY....................................................................................11
7.1.3 BI MONTHLY................................................................................11
7.1.4 YEARLY .......................................................................................11
7.1.5 EVERY OTHER YEAR................................................................ 12
7.2 Maintenance by the Operator............................................................ 12
7.2.1 Hydraulic System ........................................................................ 12
7.2.2 Greasing Points........................................................................... 13
7.2.3 Operational and Wear Checks .................................................... 13
7.2.4 Lift Stability.................................................................................. 13
7.3 Cleaning ............................................................................................ 13
8 Troubleshooting .................................................................. 14
Explosive Drawing................................................................................... 15
Parts List ............................................................................................ 15-16

1
1.SAFETY
INSTRUCTIONS
1.1 INTRODUCTION
WARNING: READ ENTIRE MANUAL AND COMPLY WITH ALL SAFETY AND
SERVICE PRECAUTIONS. DEATH, PERSONAL INJURY AND / OR PROPERTY DAMAGE
MAY OCCUR IF INSTRUCTIONS ARE NOT FOLLOWED CAREFULLY.
Personal injury and property damage incurred due to non-compliance with these safety
instructions are not covered by the product liability regulations.
1.2 SAFETY INSTRUCTIONS FOR COMMISSIONING
• The lift may be installed and commissioned by authorized service personnel only.
• The lift may not be installed and commissioned in the vicinity of
explosives or ammable liquids, outdoors or in moist rooms (e.g. car wash).
1.3 SAFETY INSTRUCTIONS FOR OPERATION
• Read this entire manual.
• Load should not exceed rated capacity for this lift – 6000lbs
• Indoor use recommended.
• Protect all parts of the electrical equipment from humidity and moisture.
• Only trained authorized personnel over the age of 18 years should operate the lift.
• If an extension cord is necessary, a cord with a current rating equal to or more than that
of the equipment should be used. Cords rated for less current than the equipment may
overheat.
SYMBOLS
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN
PERSONAL INJURY.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE.
IMPORTANT INFORMATION.

2
• Do not operate equipment with a damaged cord or if the equipment has been dropped or
damaged - until it has been examined by a qualied service person.
• Maintain a safe working environment. The work area should be clean, dry, clutter free,
and sufciently lit.
• Vehicle doors should be closed during the raising and lowering cycles.
• Closely watch the vehicle and lift during the raising and lowering cycles.
• Do not operate the lift in explosive atmospheres, such as in the presence of ammable
liquids, gases, or dust. Power equipment can create sparks which may ignite ammables.
• Keep hands, tools, and other extremities from under carriage and moving parts.
• Never operate this lift with someone on it.
• Do not allow anyone on the lift or inside a raised vehicle.
• Keep children and bystanders away from work area. Do not let children operate or play
on lift.
• Wear proper safety attire. Do not wear loose tting clothing while operating lift. Long hair,
jewelry and sleeves should be secured.
• Move the lift only when it is lowered.
• Do not move the lift while loaded. Never leave the lift unattended while under a load.
• Do not operate this lift if under the inuence of drugs, alcohol, or medication. Operator
must be alert at all times when using heavy lift equipment.
• Comply with all applicable accident prevention regulations.
• Only use the vehicle manufacturer’s recommended lifting points.
• After positioning the vehicle, apply the parking brake.
• Use caution when removing or installing heavy vehicle components which may result in
center-of-gravity displacement.
• Use this lift only for the work it is intended and only use Titan Lifts® recommended
attachments. Do not use this product for an application for which it was not designed.
Misuse can lead to personal injury and/or property damage.
WARNING: Prior to completely raising the vehicle, raise the vehicle 6” off the ground
and check the adapter pads for solid contact by performing the “BUMPER TEST”. Walk
around the back of the vehicle and push up and down on the bumper. The vehicle will rock,
but should not at any time lose contact with the pads. If the vehicle is bouncing off the pads
or feels at all unstable, you should lower it back to the ground and reposition the pads to
balance the load. Repeat this process until the vehicle is completely stable.
WARNING: Use this lift only in well ventilated areas. Carbon monoxide exhausted
from running vehicle engines is a colorless, odorless fume that, if inhaled, can cause serious
personal injury or death.
WARNING: People with pacemakers should consult their physician(s) before using
this product. Operation of electrical equipment in close proximity to a heart pacemaker could
cause interference or failure of the pacemaker.
WARNING: This product contains or produces a chemical known to the State of
California to cause cancer and birth defects (or other reproductive harm). (California Health
& Safety Code 25249.5 et seq.)

3
1.4 SAFETY INSTRUCTIONS FOR MAINTENANCE
• Maintenance or repair work should be done by authorized service personnel only.
• Work on the electrical equipment by certied licensed electricians only.
• Ensure that ecologically harmful substances are disposed of only in accordance with the
appropriate regulations.
• To prevent the risk of damage, do not use high pressure / steam jet cleaners or caustic
cleaning agents.
• Do not replace or override the safety devices.

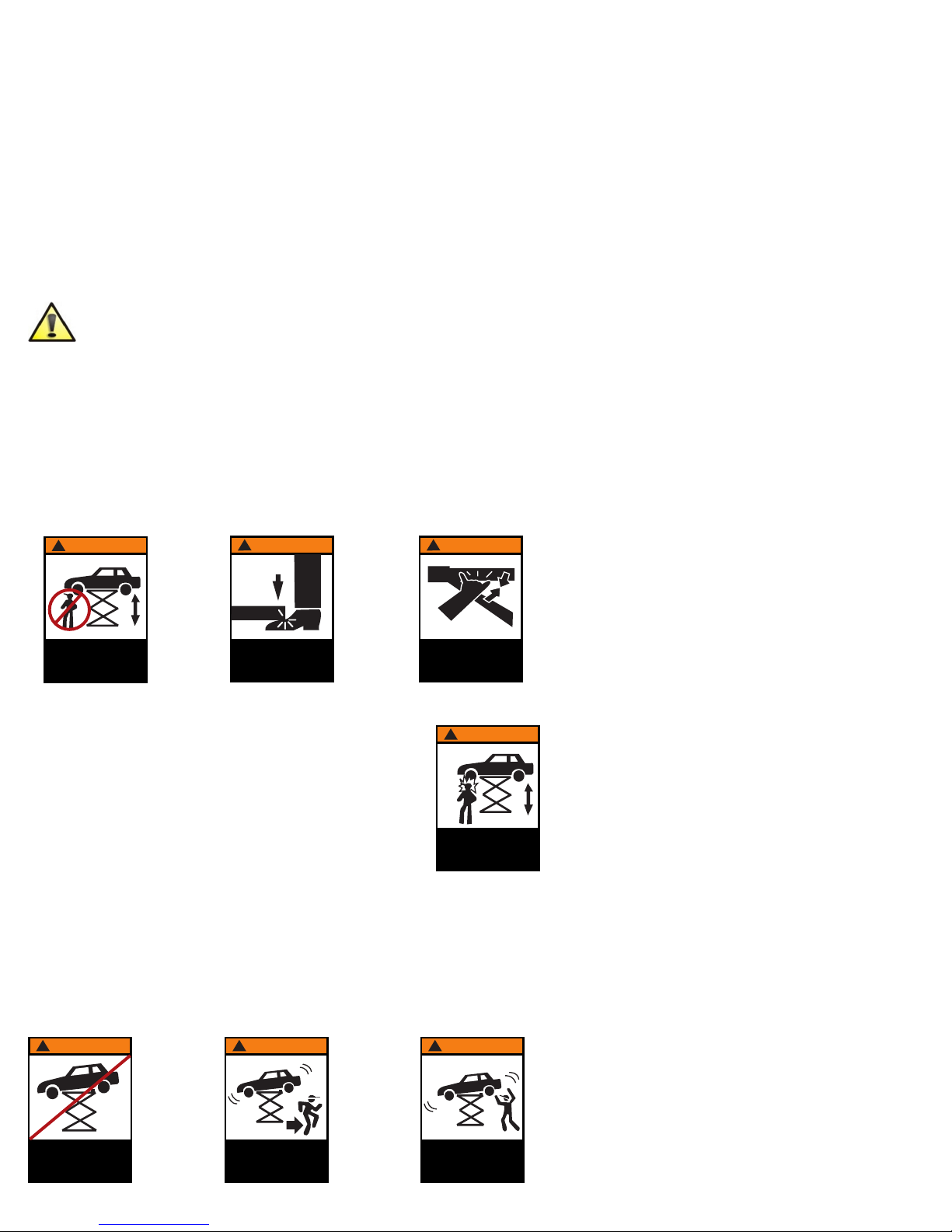

1.5 RISKS
WARNING: Risks the personnel could encounter, due to an improper use of the lift,
are described in this section.
CRUSHING RISKS
During lowering of runways and vehicles, personnel must not be within the area
covered by the lowering trajectory. The operator must be sure no one is in danger before
operating the lift.
RISK OF THE VEHICLE FALLING FROM THE LIFT
Vehicle falling from the lift can be caused when the vehicle is improperly placed on platforms,
and when its dimensions are incompatible with the lift or by excessive movement of the
vehicle. To avoid injury in this situation, immediately exit the work area.
BUMPING RISK
When the lift is stopped at relatively
low height for working, the risk of
bumping against projecting parts
occurs.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.
WARNING
!
Keep feet clear of
lift while lowereing.
WARNING
!
Avoid excessive
rocking of vehicle
while on lift.
WARNING
!
Remain clear of lift
when raising or
lowering vehicle.
WARNING
!
Position vehicle
with center of
gravity midway
between adapters.
WARNING
!
Clear area if vehicle
is in danger of
falling.
WARNING
!
Avoid pinch points
on moving parts
during operation.
WARNING
!
Avoid bumping your
head on lift or
vehicle.

4
2. UNPACKING, & SET-UP
Only skilled personnel who are familiar with the lift and this manual shall be allowed to carry
out, lifting, handling, transport and unpacking operations.
2.2 LIFTING AND HANDLING
When loading/unloading or transporting the equipment to the site, be sure to use suitable
loading (e.g. cranes, trucks) and hoisting means. Be sure to hoist and transport the
components securely so that they cannot drop, taking into consideration the package’s size,
weight and center of gravity and it’s fragile parts.
2.1 DELIVERY AND CHECK OF PACKAGES
When the lift is delivered, carefully unpack the lift making sure all the parts have been
included. Check for possible damages due to transport and storage; verify that what is
specied in the conrmation of order is included. In case of damage in transit, the customer
must immediately inform the carrier of the problem.
Remove the lift and all parts from delivery pallet and place on a clean, solid, at surface.
Packages must be opened paying attention not to cause damage to people (keep a safe
distance when opening straps) and parts of the lift (be careful the objects do not drop
from the package when opening).
WARNING: LIFT AND HANDLE ONLY ONE PACKAGE AT A TIME

5
3. SPECIFICATIONS
IMPORTANT: The properties indicated apply to lifts running at operating
temperature.
IMPORTANT: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT
NOTICE.
SPECIFICATIONS MRL-6000
Load capacity 6000 lbs. (2700kg)
Raising / Lowering time Approx. 40sec.
Minimum height 4-3/4” (12.1mm)
Maximum lifting height 48-1/2” (123.2mm) / 54” (137.2mm)
Operating temperature 41-131°F (5-55°C)
Net weight 1,052 lbs. (477kg)
Motor power 2.2KW
Length 100” (2530mm)
Width Min/Max 39.5” (100.3mm) / 57” (1457mm)
Power supply 110V-120V,60Hz,
3HP/ Single Phase, 3 prong power plug, 30 AMP

6
4. FLOOR REQUIREMENT
These notes are for your guidance prior to installation
4.1 SELECTING THE SITE AREA
Make sure that adequate space and height is available.
4.2 FLOOR REQUIREMENTS
Do not use the lift on any asphalt surface. Make sure the lift is used on a dry, oil/grease
free, at level CONCRETE surface capable of supporting the weight of the lift, the vehicle
being lifted, and any additional tools and equipment. The concrete oor surface should
have a minimum thickness of 4”. The concrete must have a minimum strength of 3,000 PSI,
and should be aged at least 30 days prior to use. Do not use the lift on concrete expansion
seams or on cracked, defective concrete.
WARNING: SPECIFICATIONS OF CONCRETE MUST BE ADHERED TO.
FAILURE TO DO SO COULD CAUSE LIFT FAILURE RESULTING IN PERSONAL
INJURY OR DEATH. THE FLOOR SHOULD BE A REINFORCED CONCRETE SLAB
NOT LESS THAN 4” (101.6MM) THICK, COMPRESSIVE STRENGTH OF CONCRETE
NO LESS THAN 3,000 PSI (20.68MPA).
DANGER: FOR CORRECT INSTALLATION OF THE LIFT, THE FLOOR MUST
BE FLAT AND LEVEL. CHECK WITH STRAIGHT EDGE AND LEVEL. IF A FLOOR
IS OF QUESTIONABLE SLOPE, CONSIDER A SURVEY OF THE SITE AND/OR THE
POSSIBILITY OF POURING A NEW LEVEL CONCRETE SLAB.
IMPORTANT: NEW CONCRETE MUST BE ADEQUATELY CURED AT LEAST
30 DAYS MINIMUM. NO LIABILITY FOR ANY DAMAGES WILL BE ACCEPTED
SHOULD YOU INSTALL THE LIFT ON AN UNSUITABLE FLOOR.

7

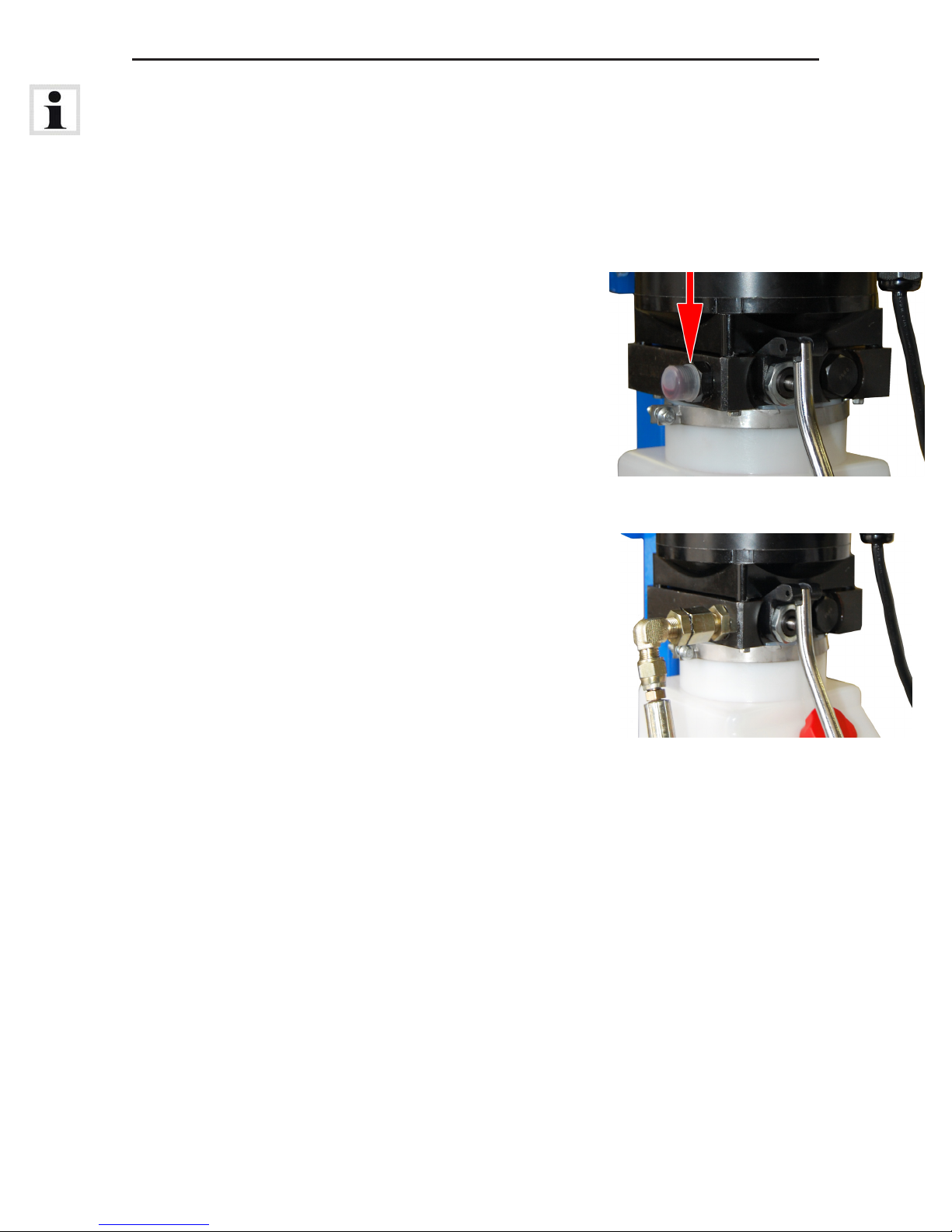

Fig. 2
Fig. 1
5. INSTALLATION INSTRUCTIONS
5.1 MOUNTING THE HYDRAULIC POWER UNIT/CONNECT HOSE ASSEMBLY
1. Attach the tow handle(1) to the pedestal(6) using the
four(4) supplied attached bolts, washers, and nuts.
2. Attach the hydraulic unit to the pedestal using the four(4)
supplied attached bolts, washers, and nuts.
3. Remove the ting with the plastic cap (Fig. 1) from the
port on the power unit and connect the hydraulic supply
hose to the power unit using the supplied coupling
(Fig. 2) (Teon not required). Do not overtighten,
backing nut & o-ring will complete the seal. NOTE: It
maybe neccessary to remove the hydraulic hose from
the 90° tting and re-install in order to remove any twists
in the hose.
4. Attach the lock release handle (Fig. 4) to the lower lock
release post on the tow handle and tighten.
5. Route hydraulic hose through the clamp on the lift frame.
6. Fill the oil tank reservoir with hydraulic oil. To ll the oil
tank reservoir, the lift must be completely lowered. Fill the
oil tank with a premium quality ISO-32, AW-32, or AW-46
hydraulic oil, or premium quality ATF
DEXRON-III/MERCON.
7. Insure all hydraulic ttings are tight and not leaking.
5.2 LIFTING THE UNIT TO ATTACH THE LIFTING PLATES AND SADDLES
1. Clear the area of all bystanders, tools, equipment, and debris.
2. Plug the hydraulic unit into a standard 110V-120V/60Hz AC outlet.
3. Prior to raising the unit in order to proceed to section 5.3, please read section 6.
5.3 LIFTING PLATES, ADAPTERS & RUBBER SADDLE ATTACHMENT
1. Raise the unit to a comfortable working height by following all guidelines in section 6 and
making sure the safety lock is engaged into the safety lock bar.
2. Attach the four(4) lifting plates to the lift by sliding the threaded pins through the sleeve
brackets and attach using the four self locking nuts & washers.
3. Slide the plate adapter pedestals onto the lifting plates and secure with the four (4) hex
bolts(62). NOTE: The adapters can be interchanged by sliding them on and off the lifting
plates from the inside of the lift.
IMPORTANT: THE HYDRAULIC HOSES HAVE BEEN PRE-INSTALLED FOR
YOUR CONVENIENCE. BE CAREFUL NOT TO CUT THE HYDRAULIC HOSES
DURING THE INSTALLATION PROCESS.

8
6. OPERATION INSTRUCTIONS
WARNING: LIFT OPERATION BY TRAINED AUTHORIZED PERSONNEL
OVER 18 YEARS ONLY. APPLY THE PARKING BRAKE AFTER POSITIONING THE
VEHICLE ON THE LIFT. DO NOT ALLOW ANYONE TO STAY IN LIFT AREA DURING
RAISING AND LOWERING CYCLES. CLOSELY WATCH THE VEHICLE AND THE
LIFT DURING RAISING AND LOWERING CYCLES. OBSERVE THE RATED LOAD
CAPACITY AND LOAD DISTRIBUTION. DO NOT ALLOW ANYONE TO CLIMB ON
LIFT OR STAY INSIDE VEHICLE. AFTER RAISING THE VEHICLE FRAME 6”, STOP
AND CHECK ADAPTERS FOR SECURE CONTACT. PERFORM BUMPER TEST(PG.2).
MAKE SURE THE VEHICLE DOORS ARE CLOSED DURING RAISING AND
LOWERING CYCLES.
WARNING: IN CASE OF DEFECTS OR MALFUNCTIONS SUCH AS JERKY
LIFT MOVEMENT OR DEFORMATION OF THE SUPERSTRUCTURE, SUPPORT OR
LOWER THE LIFT IMMEDIATELY. CONTACT QUALIFIED SERVICE PERSONNEL.
6.1 DEFECTS / MALFUNCTIONS
6.2 CONTROLS
Once the up button is pressed, the lift moves up until the button is released or the limit stop
is reached.
6.2.1 UP CONTROL
WARNING: DO NOT PERFORM ANY MAINTENANCE OR INSTALLATION
OF ANY COMPONENTS WITHOUT FIRST ENSURING THAT ELECTRICAL POWER
HAS BEEN DISCONNECTED AT THE SOURCE OR PANEL AND CANNOT BE RE-
ENERGIZED UNTIL ALL MAINTENANCE AND/OR INSTALLATION PROCEDURES
ARE COMPLETED.
DANGER: DO NOT RUN POWER UNIT WITHOUT FLUID. DAMAGE TO PUMP
CAN OCCUR. THE POWER UNIT MUST BE KEPT DRY. DAMAGE TO POWER UNIT
CAUSED BY WATER OR OTHER LIQUIDS SUCH AS DETERGENTS, ACID ETC., IS
NOT COVERED UNDER WARRANTY.
5.4 ELECTRICAL CONNECTIONS
WARNING: ALL WIRING CHANGES MUST BE PERFORMED BY A CERTIFIED
LICENSED ELECTRICIAN. THE STANDARD ELECTRIC MOTOR USED ON YOUR
LIFT REQUIRES A 110-120 VOLT, 60HZ, SINGLE PHASE HOOK-UP.

9
6.3 OPERATION
WARNING: FAILURE TO OPERATE THE LIFT ACCORDING TO THIS MANUAL
MAY CAUSE DAMAGE TO THE LIFT, PROPERTY DAMAGE AND/OR PERSONAL
INJURY.
1. Before driving a vehicle over and onto the scissor lift make sure the lift is fully lowered,
and position the plates and rubber saddles inward. Do not hit or run over the plates and
rubber saddles, as this could damage the vehicle and/or lift.
2. Drive the vehicle over the lift while keeping the vehicle parallel with the lift and aligning
the center of gravity of the vehicle with the center of the lift. NOTE: The “Center of Gravity”
(COG) of the vehicle is the balance point at which there is equal weight in front of and behind
the COG, and equal weight on both sides of the COG. The COG is not necessarily the
dimensional center of the vehicle, but is often slightly toward the engine from the dimensional
center of the vehicle.
3. Turn off the vehicle’s engine and engage the parking brake of the vehicle.
4. Read the vehicles owner’s manual to identify the recommended vehicle lifting points.
5. Prepare the work area according to this manual. Move the plates outward, and position
the rubber saddles to contact with the vehicle manufacture’s recommended lifting points.
IMPORTANT: PLACE THE FOUR RUBBER PADS UNDER EDGE OF VEHICLE
AT THE FOUR JACK POINTS.
IMPORTANT: FOR LOWER VEHICLES, IT MAY BE NECESSARY TO REMOVE
THE HEX BOLTS(62) AND ALL ADAPTERS PRIOR TO DRIVING THE VEHICLE
OVER THE LIFT AND SLIDE THEM ON AFTER THE VEHICLE IS OVER THE LIFT.
BE SURE TO RE-INSTALL THE SAFETY HEX BOLTS PRIOR TO LIFTING THE
VEHICLE.
6.2.2 SAFETY LOCK CONTROL
Press and hold the lowering handle (Fig.3) until the safety lock (30)
is engaged the safety lock bar (33).
6.2.3 LOWERING CONTROL
Press the Up button enough to make the safety lock disengage the
safety lock bar, squeeze the lock-release handle (Fig. 4), and then
press the lowering handle (Fig.3) until the lift is completely lowered.
Fig. 3
Fig. 4

10
6. Once the rubber saddles have been positioned under the vehicle lifting points, operate
the power switch to make contact and lift the vehicle slightly. Test to make sure the vehicle
is well balanced and the contact between the rubber saddles and vehicle lifting points are
secure by performing the “BUMPER TEST.” (pg. 2) Then, proceed to lift the vehicle to the
desired height.
7. WARNING: Do not lift the vehicle if you cannot establish secure and level
lifting points. Do not use sub-standard shims or other devices in place of approved and
recommended rubber saddle adapters. Never use the lift without the rubber saddles in place
on each plate and in contact with the lifting points of a vehicle.
8. Press up button and raise vehicle to desired height. Do not go under vehicle until load
rests on level safety locks.
10. While lifting the vehicle a clicking sound should be noticeable which indicates the safety
mechanism is operating. If this sound is not heard, immediately cease using the lift and call
an authorized service agent.
9. When lift reaches maximum height, a limit switch will come into operation and stop the lift.
When lift has stopped, press and hold the lowering handle (Fig. 3) until load rests on safety locks.
11. Once the repair work to the vehicle is complete, make sure to remove all tools, safety
jack stands, and materials from under the vehicle and lift. Also, make sure the work area is
clear and it is safe to lower the vehicle.
12. Lower vehicle by pressing the Up button to disengage the safety locks. Squeeze the
lock-release handle (Fig. 4), and then press the lowering handle (Fig. 3) until the lift is
completely lowered.
13. Move the rubber saddles and plates inward, out of the path of the vehicle. Clear all
bystanders, and any objects from work area and direction of vehicle.
14. Disengage the vehicle parking brake. Start the vehicle’s engine, and drive the vehicle off
the lift slowly and carefully.
WARNING: THE OPERATOR MUST BE TRAINED AND AUTHORIZED TO
OPERATE THE LIFT.
WARNING: DO NOT GO UNDER VEHICLE UNDER ANY CIRCUMSTANCES
WHILE VEHICLE IS BEING LIFTED OR LOWERED.
WARNING: LOAD MUST BE EVENLY DISTRIBUTED BETWEEN BOTH
LIFTING PLATFORMS. IF LOAD IS UNBALANCED, REPOSITION VEHICLE.

11
7. MAINTENANCE
WARNING: DISCONNECT THE POWER BEFORE SERVICING THE LIFT.
IMPORTANT: THE MAINTENANCE INTERVALS INDICATED BELOW APPLY
TO AVERAGE WORKSHOP USE. THE LIFT SHOULD BE INSPECTED MORE
FREQUENTLY FOR SEVERE USE APPLICATIONS.
7.1 MAINTENANCE SCHEDULE
It is important to keep the lift clean, dry, and well maintained by establishing a periodic
preventive maintenance program to ensure trouble-free operation and long service life.
7.1.1 DAILY
1. Check safety mechanism is functioning correctly.
2. Inspect the condition of rubber lifting pads and replace as necessary if worn or torn.
7.1.2 MONTHLY
1. Check safety mechanism operation.
2. Check condition of shafts, shaft locks and bushings.
3. Check overall cleanliness.
4. Clean and lubricate roller slide tracks, rollers, and safety Lock toggle shafts.
7.1.3 BIMONTHLY
1. Check condition of extensions and lubricate.
2. Check oil leaks from cylinders.
3. Check oil leaks at pipe joints.
7.1.4 YEARLY
Service and safety inspection on the lift must be performed by a competent person. This
inspection must be recorded. If the yearly service and safety inspection is not performed, the
warranty is null and void.
IMPORTANT: YEARLY SERVICE MUST INCLUDE REMOVAL OF ROLLERS
TO INSPECT, CLEAN AND LUBRICATE BUSHINGS AND PINS.

12
7.2 MAINTENANCE BY OPERATOR
1. All moving parts have been lubricated at the factory and should be re-lubricated before
the rst use and at least once every six months to prevent damage.
7.1.5 EVERY OTHER YEAR
Hydraulic oil should be replaced.
7.2.1 HYDRAULIC SYSTEM (FIG. 5)
1. Check the uid level with the lift fully lowered and add uid as required. Use premium
quality ISO-32, AW-32, or AW-46 hydraulic oil, or premium quality ATF DEXRON-III/
MERCON.
2. Check all hydraulic hoses and connections for tightness before each use to
ensure proper working condition.
3. Lightly oil the cylinder rods at least once every six months or when they become dry.
IMPORTANT: AFTER CLEANING WORKSHOP FLOOR OR LIFT, TO
MAINTAIN LIFT EFFICIENCY WE ADVISE TO LUBRICATE ROLLER BEARINGS
AND SAFETY LOCK TOGGLE SHAFTS, AS PER MONTHLY MAINTENANCE
INSTRUCTIONS POINT 4 (IN 7.1.2).
Fig. 5

13
7.2.2 GREASING POINTS
Slide Tracks:
The slide tracks should be greased every six months (or more frequently in case of
noise generation).
Lightly grease the slide tracks over their entire length using a brush.
7.2.3 OPERATION AND WEAR CHECKS.
1. Examine lift for structural cracks, bends, or other signs of damage prior to each use. Do
not use this product if worn or damaged.
7.2.4 LIFT STABILITY
1. Every six months check the nuts of all bolts for tightness.
2. Retighten them as required.
7.3 CLEANING
DANGER: DO NOT USE HIGH PRESSURE / STEAM JET CLEANERS OR
CAUSTIC CLEANING AGENTS.
RISK OF DAMAGE!
1. PERIODICALLY WASH OFF AGGRESSIVE SUBSTANCES AND TREAT THE LIFT
WITH OIL OR WAX SPRAY.
2. REPAIR THE DAMAGE TO THE PAINTWORK IMMEDIATELY TO PREVENT
CORROSION. THE RAL NUMBER IS AVAILABLE THROUGH THE
MANUFACTURER.

14
8. TROUBLESHOOTING
# PROBLEM CAUSES REMEDY
1 Lift will not raise
The motor
direction of
rotation is not
correct.
Interchange the two phases on the main switch
The oil in the
hydraulic unit is
not sufcient.
Add some hydraulic oil
The UP button is
faulty. Check UP button and connection for proper operation. Replace, if needed
The maximum
height limit switch
is faulty.
Check the switch and relevant connection for proper operation. Replace, if
needed.
The lowering
solenoid valve
does not close.
Check and clean, if dirty, or replace, if faulty
The suction pump
lter is dirty. Check and clean if needed.
2 Lift raise slowly
Not enough
hydraulic oil Supply oil
The pressure of
oil not sufcient Adjust the pressure adjust screw
Throttle valve not
open Open it
Leakage in the oil
circuit Replace
3 Lift will not lower
No power Power on
Release valve
dirty or clogged Wash release valve in solvent and blow out with air
Up/down valve
damaged Replace
Air
electromagnetic
valve damage
Replace

15
NO. DESCRIPTION QTY
1 Tow handle 1
2 Hex bolt 8
3 Flat washer 8
4 Spring washer 10
5 Hex nut 8
6 Power unit pedestal 1
6.1 Lifting Pad 4
7 Flat washer 2
7.1 Cotter Pin 2
8 Hydraulic unit 1
9 Locking Release handle 1
10 Heavy-duty iron PU wheel 2
11 Spindle 3 1
12 Spindle retainer ring 2
14 Hydraulic tting 1
15 Washer 2
1
2/3/4/5
6
10
7/7.1
8
9
2/3/4/5
14/15/16/17
18 19 2021
22
23
24/10
11/12
26
27
29
30/30.1
31
32
33
34
35
36
37
38 39 40
41 42 43 44 45
46
47/48
49
50/51
52
53
54
55/56
57
58
59
60
61
62
6.1

16
NO. DESCRIPTION QTY
16 90°elbow tting 1
17 Nut 2
18 Hydraulic supply hose 1
19 Locking release cable 1
20 Hydraulic hose 2
21 Valve 2
22 Straight connector 3
23 Tee oil-plate 1
24 Inner hex-head screw 2
26 Inner hex-head screw 1
27 Hex nut 1
29 Safety wheel 1
30 Safety lock 1
30.1 Tension spring 1
31 Spring column pin 1
32 Safety tube 1
33 Safety lock bar 1
34 Cylinder 2
35 Spindle retainer ring 4
36 Spindle 9 2
37 Spindle 5 2
38 Cotter pin 2
39 Self-lock nut 1
40 Spindle 4 1
41 Spindle 2 2
42 Spindle retainer ring 2
43 Inner arm assembly 1
44 Roller 2 2
45 Punch bearing 2
46 Retainer ring 2
47 Spindle 1 2
48 Spindle retainer ring 2
49 Outer arm assembly 1
50 Spindle retainer ring 2
51 Spindle 6 2
52 Roller 1 2
53 Top cover plate 1
54 Lifting plate 4
55 Washer 4
56 Self-lock nut 4
57 Rubber pad 4
58 Flat Adapter 4
59 Inner hex-head screw 4
60 Short adapter 4
61 Long adapter 4
62 Hex bolt 4

17
®
PO Box 7069 Greenwood, IN 46142
1.888.908-4826 FAX [phone]
www.titanlifts.com
TITAN MARKETING, LLC
WARNING
The warnings, precautions and instructions in this manual cannot
cover all possible conditions and situations that may occur. The
operator must understand that the operator must supply common
sense and examine caution factors when using this product to
determine safety in all circumstances being used.
Copyright © 2010 by Titan Marketing, LLC. All rights reserved. No portion of this manual or any artwork contained herein may be
reproduced in any shape or form without the express consent of Titan Marketing, LLC. Diagrams within this manual may not be
drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and service may not be included.
Revision 1
