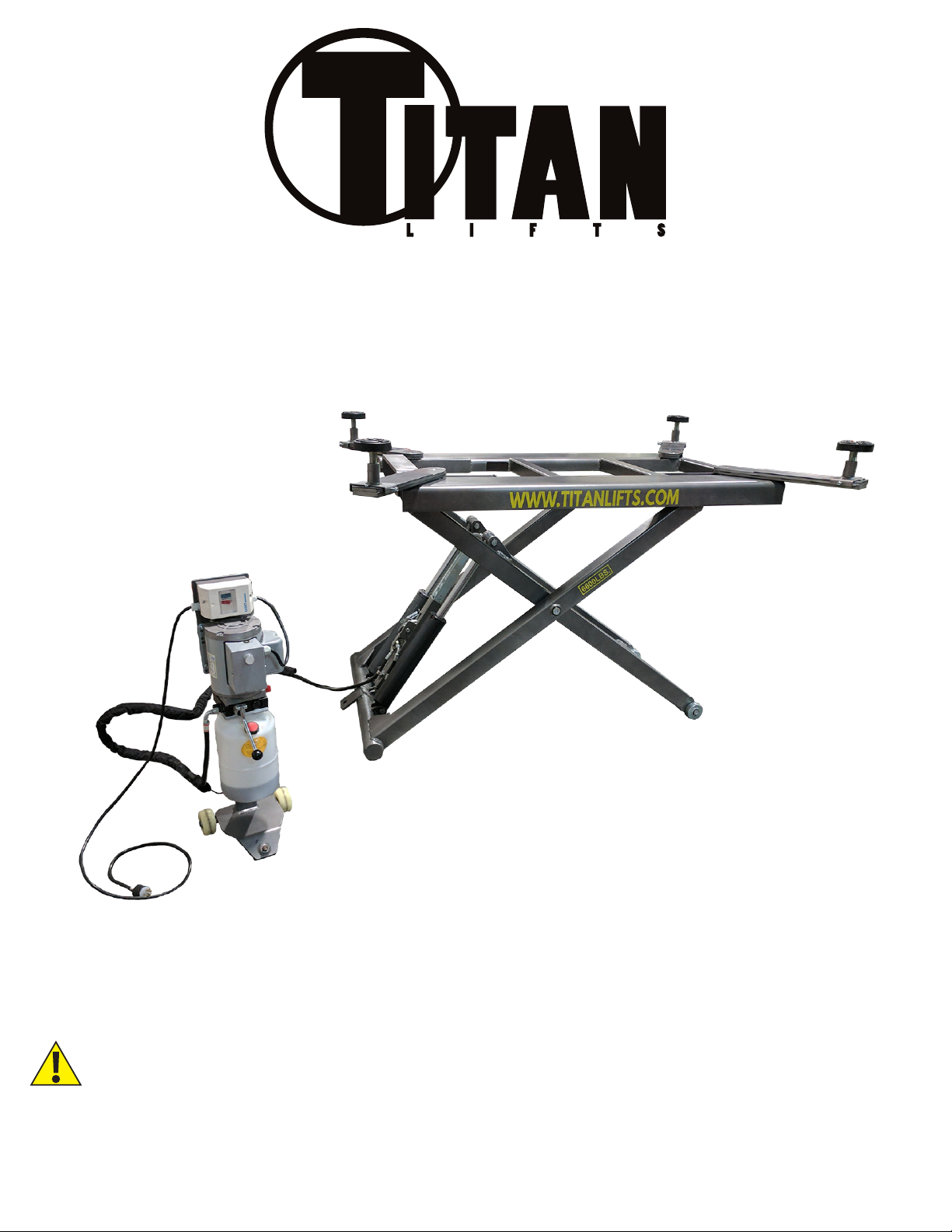

Titan Lifts SL-6600 Instruction manual

INSTALLATION, OPERATION
& MAINTENANCE MANUAL
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE EQUIPMENT WILL
FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. KEEP THIS MANUAL IN A
SAFE DRY PLACE FOR FUTURE REFERENCE.
®
MODEL:
SL-6600

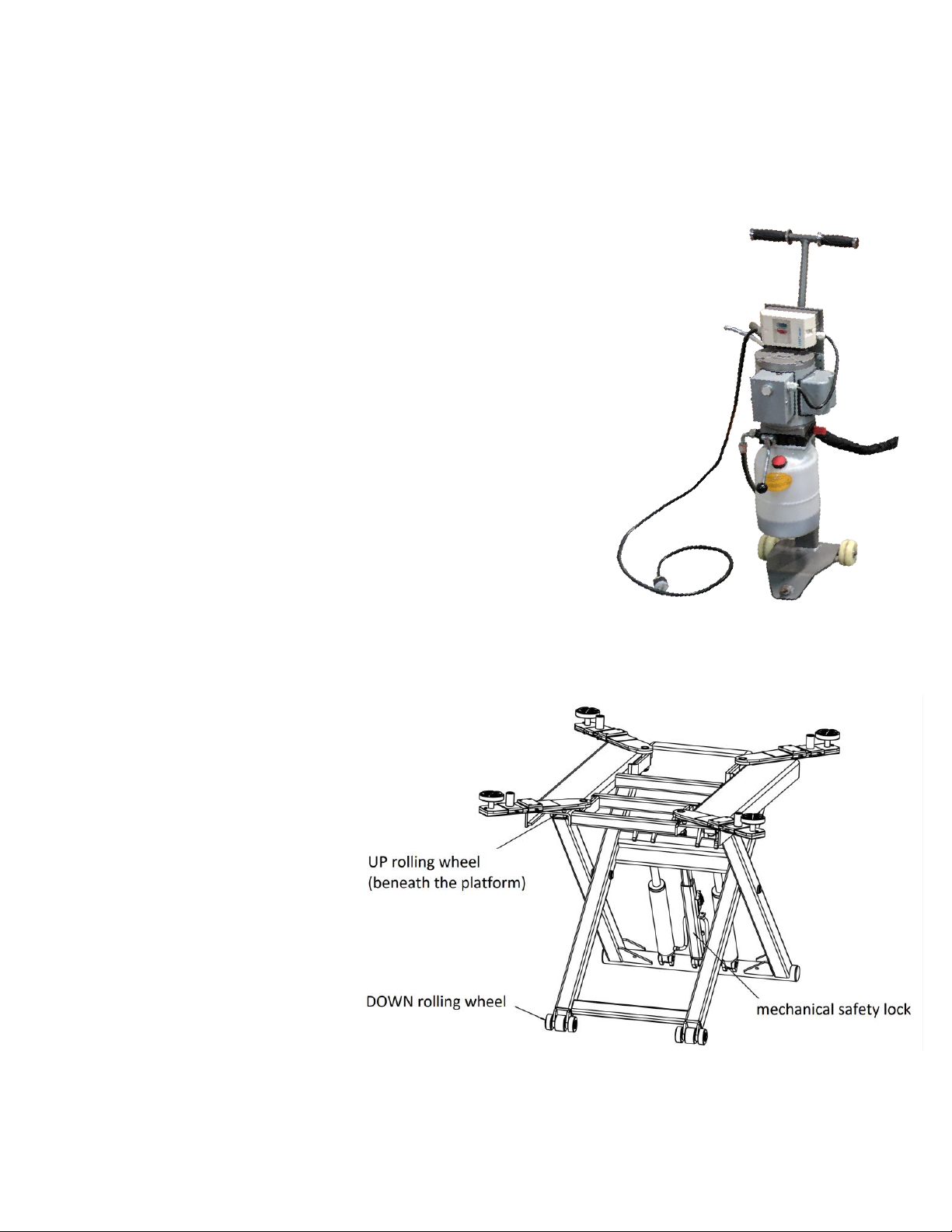

6,600 LB CAPACITY SCISSOR LIFT

PO Box 7069 Greenwood, IN 46142
1.888.908-4826 FAX [phone]
www.titanlifts.com
TITAN MARKETING, LLC
®
To Our Valued Customers:
Thank you for purchasing a Titan Lifts®product. We hope this high quality equipment provides you with years of
dependable service.
It is unfortunate that rare situations may occur with the products you purchase from Titan Lifts®. We value your
business as well as the trust you have and need to maintain your relationship with us. Titan Lifts®carries liability
coverage that may protect our customers if a situation does occur. However, as in all accidents there must be
proof of liability for a claim to be made. Our insurance company requires the following procedures be observed in
order to consider a claim:
A. The claimant must contact the Titan Lifts®distributor immediately with the facts of the situation.
B. If any equipment is damaged, including vehicles or shop equipment, Titan Lifts®must be given the
opportunity to send an impartial representative to the site for proper assessment of the situation.
C. The Vehicle cannot be moved until either an impartial representative has reviewed the accident or clear

to access the information from a distance. Titan Lifts®or its representatives must approve the pictures before
anything can be moved.
D. If any potential liability is determined on behalf of Titan Lifts®, two estimates must be submitted for
damages to be reimbursed.
It is imperative that the claimant complies with these procedures, because without proper assessment of the
situation a claim will be denied.
ARBITRATION NOTICE
The installation or use of this equipment shall constitute an acknowledgement that the user agrees to resolve any
and all disputes or claims of any kind whatsoever, which relate in any way to the equipment, by way of binding

governed by the Federal Arbitration Act, and administered by the American Mediation Association, Indianapolis
Indiana. The maximum amount that an arbitrator may award and all damages shall not exceed the retail value of
this equipment.
WARRANTY NOTICE
This equipment must be assembled and used in the manner according to the documentation provided to be
covered by warranty.
Damaged or missing components must be reported within 72 hours of receipt to your freight carrier and to the

If you have any questions or if we can be of any further assistance, please don’t hesitate to contact a Titan Lifts®
representative at 1-888-908-4826. Thank you for the opportunity to continue to serve your lift equipment needs.

CONTENTS
1-SAFETY .....................................................................................................................1
1.1 INTRODUCTION........................................................................................................................ 1
1.2 SAFETY INSTRUCTIONS FOR COMMISSIONING...................................................................... 1
1.3 SAFETY INSTRUCTIONS FOR OPERATION............................................................................... 1
1.4 SAFETY INSTRUCTIONS FOR MAINTENANCE ......................................................................... 3
1.5 RISKS....................................................................................................................................... 3
2-UNPACKING & SETUP................................................................................................4
2.1 DELIVERY AND CHECK OF PACKAGES ..................................................................................... 4

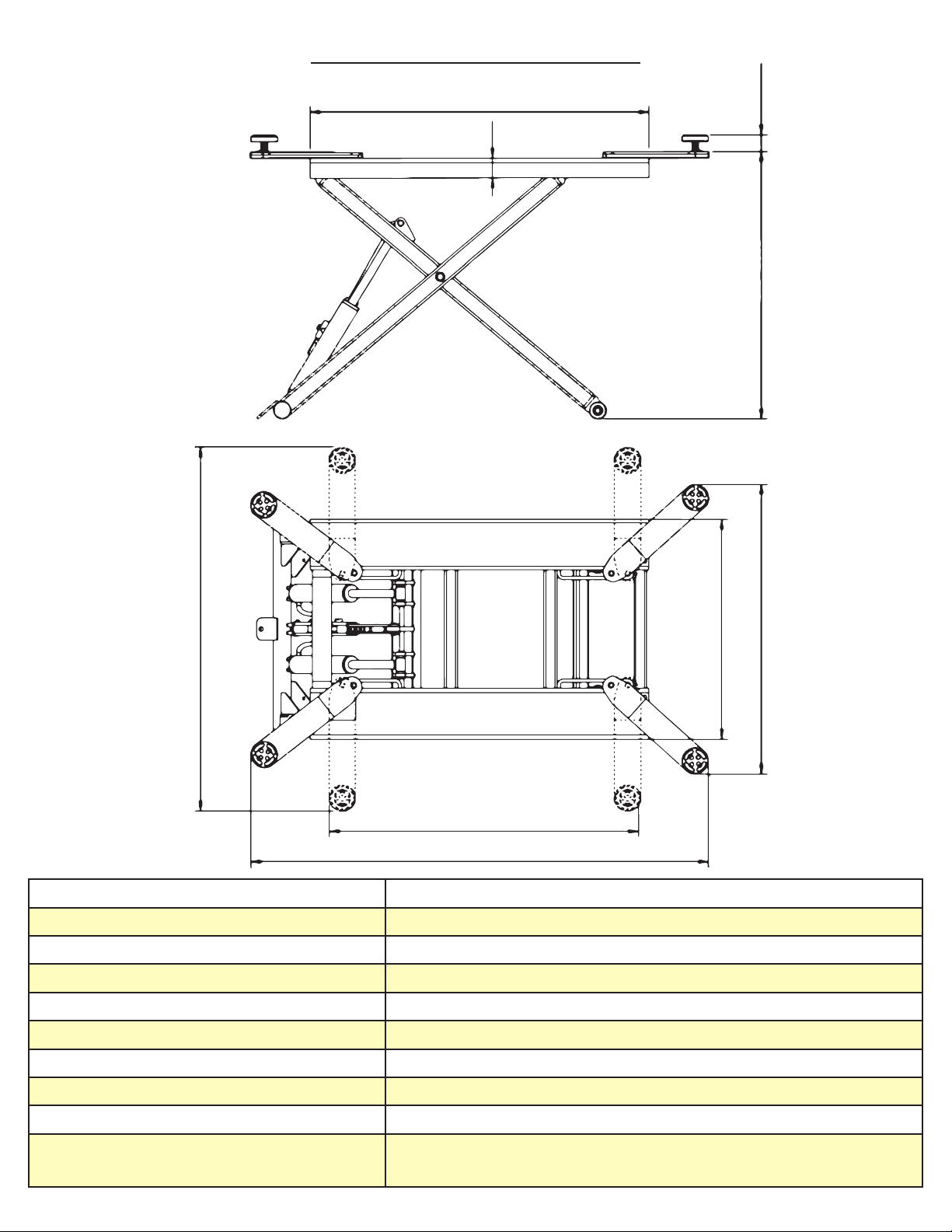

3-SPECIFICATIONS ......................................................................................................5
4-FLOOR REQUIREMENTS ............................................................................................6
4.1 SELECTING THE SITE AREA ..................................................................................................... 6
4.2 FLOOR REQUIREMENTS ........................................................................................................... 6
5-INSTALLATION INSTRUCTIONS................................................................................7

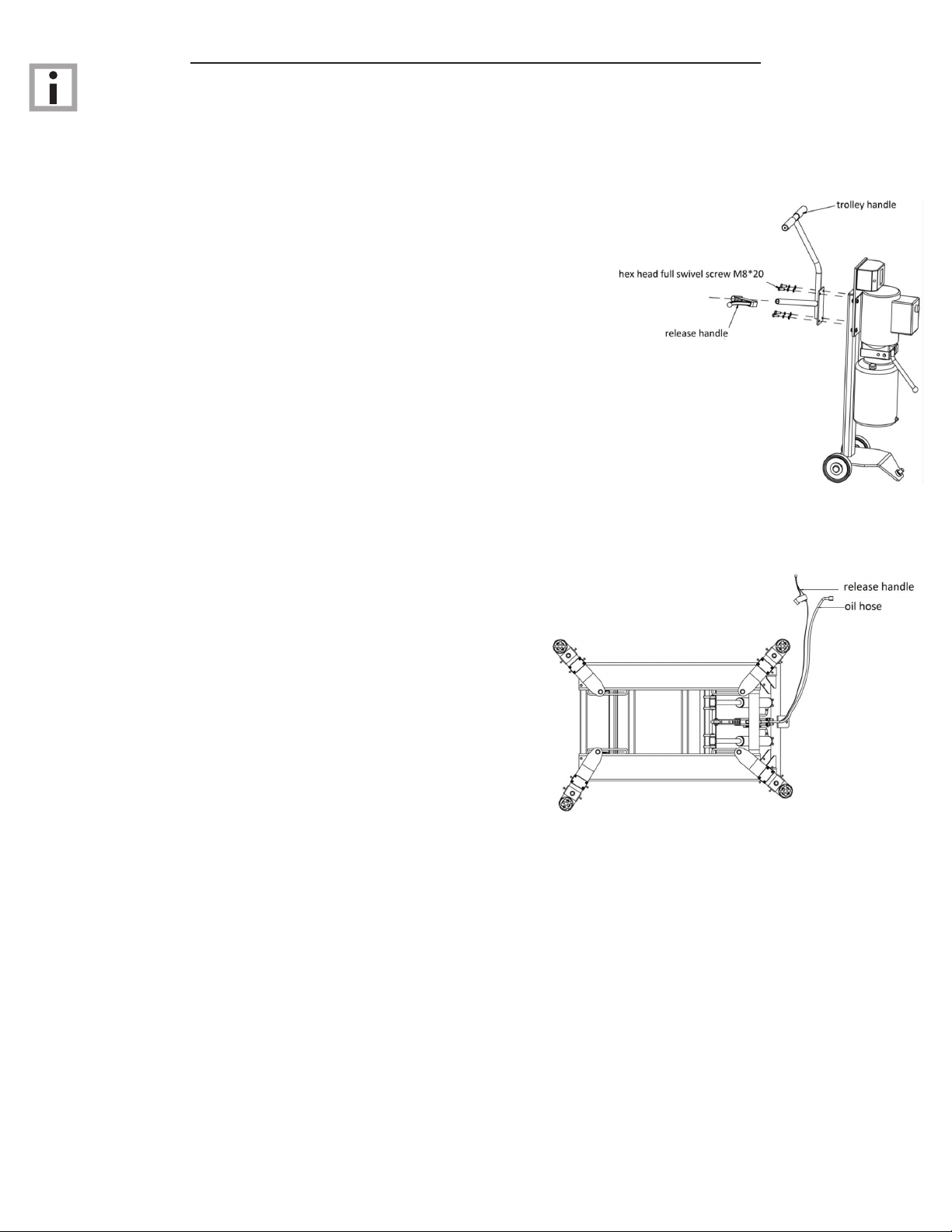

5.1 MOUNT HYDRAULIC POWER UNIT/CONNECT HOSE ASSEMBLY.............................................. 7
5.2 LIFTING THE UNIT TO ATTACH THE LIFTING PLATES AND SADDLES ..................................... 7
5.3 LIFTING PLATES, ADAPTERS & RUBBER SADDLE ATTACHMENT............................................ 7
5.4 ELECTRICAL CONNECTIONS.................................................................................................... 8
6-OPERATION INSTRUCTIONS.....................................................................................8
6.1 DEFECTS / MALFUNCTIONS..................................................................................................... 8

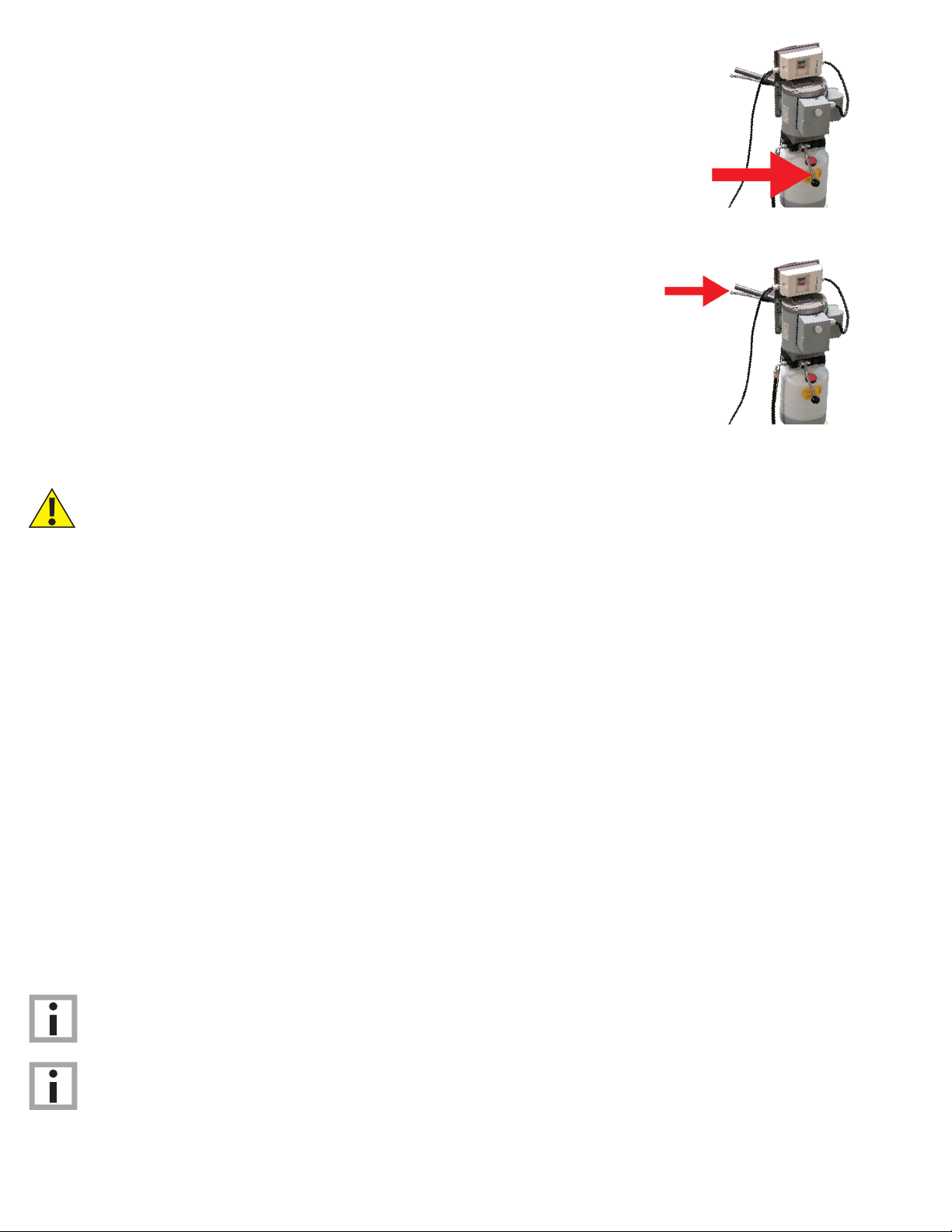

6.2 CONTROLS............................................................................................................................... 8
6.2.1 UP CONTROL............................................................................................................................................................................ 8
6.2.2 SAFETY LOCK CONTROL........................................................................................................................................................ 9
6.2.3 LOWERING CONTROL ............................................................................................................................................................. 9
7.3 OPERATION.............................................................................................................................. 9
7-MAINTENANCE........................................................................................................11
7.1 MAINTENANCE SCHEDULE .....................................................................................................11
7.1.1 DAILY ....................................................................................................................................................................................... 11
7.1.2 MONTHLY................................................................................................................................................................................ 11
7.1.3 BIMONTHLY............................................................................................................................................................................ 11
7.1.4 YEARLY .................................................................................................................................................................................... 11
7.1.5 EVERY OTHER YEAR.............................................................................................................................................................. 11
7.2 MAINTENANCE BY OPERATOR .............................................................................................................................................. 12
7.2.1 HYDRAULIC SYSTEM (FIG. 5) .............................................................................................................................................. 12
7.2.2 GREASING POINTS................................................................................................................................................................ 12
7.2.3 OPERATION AND WEAR CHECKS ....................................................................................................................................... 13
7.2.4 LIFT STABILITY...................................................................................................................................................................... 13
7.3 CLEANING ...............................................................................................................................13
8-TROUBLESHOOTING ............................................................................................... 14
9-DIAGRAMS .............................................................................................................. 15
FIG. 1 - ELECTRICAL DIAGRAM ....................................................................................................15

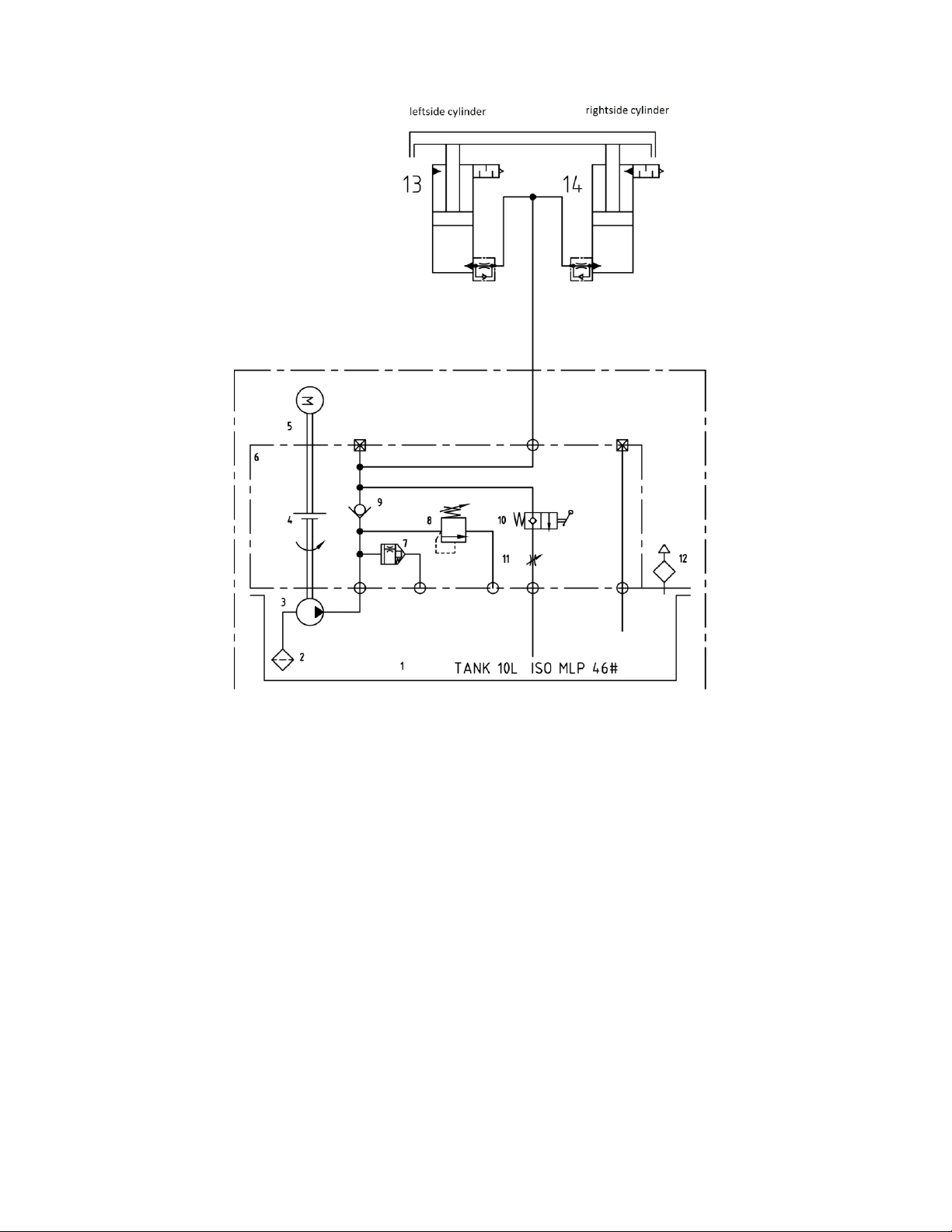

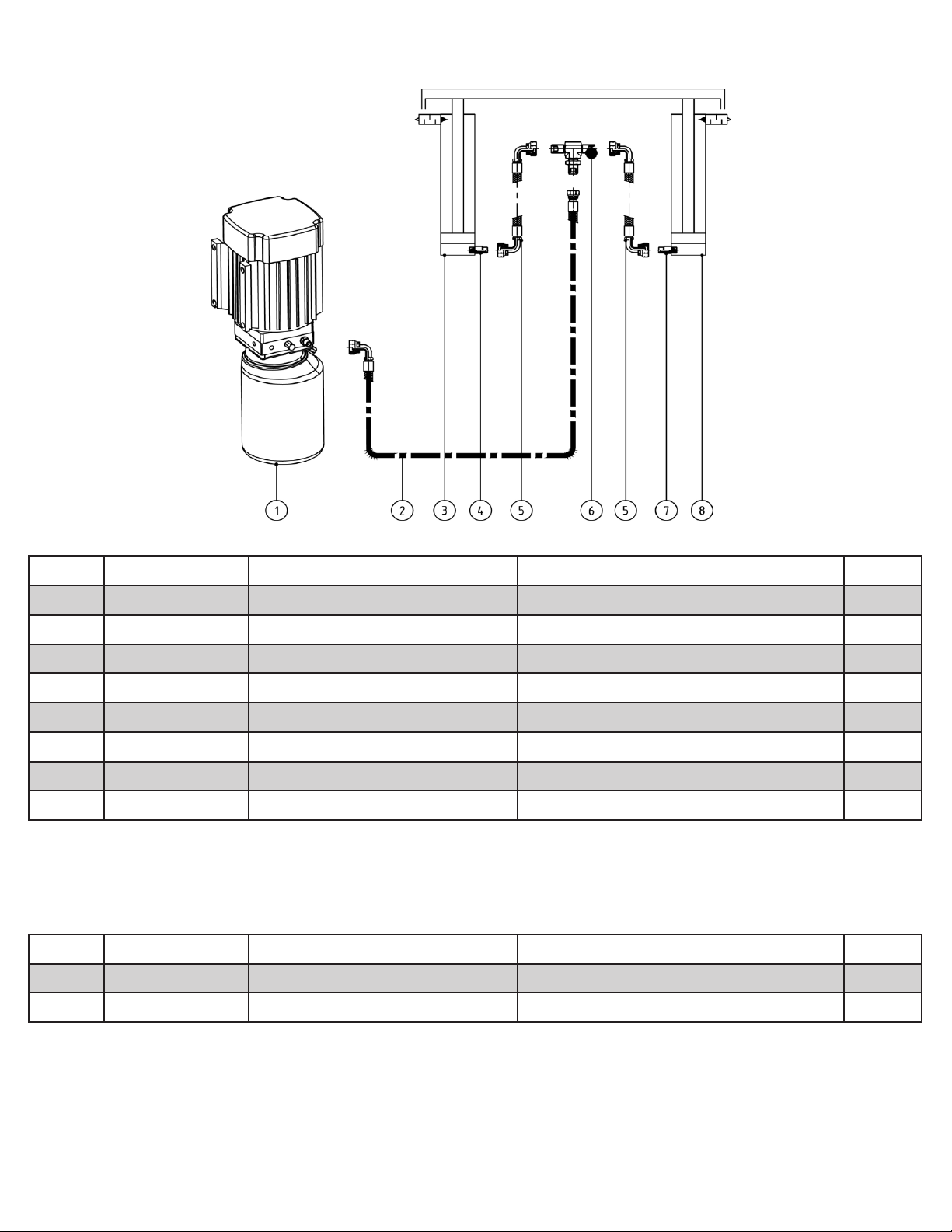

FIG. 2 - HYDAULIC DIAGRAM 1 .....................................................................................................16
FIG. 3 - HYDRAULIC DIAGRAM 2...................................................................................................17
FIG. 4 - POWER UNIT DIAGRAM ....................................................................................................18
FIG. 5 - EXPLODED DIAGRAM........................................................................................................19
FIG. 6 - POWER UNIT DIAGRAM ....................................................................................................21

1
1-SAFETY
INSTRUCTIONS
1.1 INTRODUCTION
• The lift may be installed and commissioned by authorized service personnel only.
• The standard lift version may not be installed and commissioned in the vicinity of
explosives or ammable liquids, outdoors or in moist rooms (e.g. car wash).
• Read this entire manual.
• Load should not exceed rated capacity for this lift –6,600 lbs.
• Only trained authorized personnel over the age of 18 years should operate the lift.
• Indoor use recommended.
• Never use the lift to raise one end or one side of vehicle.
• If an extension cord is necessary, a cord with a current rating equal to or more than that
of the equipment should be used. Cords rated for less current than the equipment may
overheat.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE.
WARNING: READ ENTIRE MANUAL AND COMPLY WITH ALL SAFETY AND SERVICE
PRECAUTIONS. DEATH, PERSONAL INJURY AND / OR PROPERTY DAMAGE MAY OCCUR IF
INSTRUCTIONS ARE NOT FOLLOWED CAREFULLY.
Personal injury and property damage incurred due to non-compliance with these safety
instructions are not covered by the product liability regulations.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL
INJURY.
SYMBOLS
IMPORTANT INFORMATION
1.2 SAFETY INSTRUCTIONS FOR COMMISSIONING
1.3 SAFETY INSTRUCTIONS FOR OPERATION

2
WARNING: Prior to completely raising the vehicle, raise the vehicle 6” off the ground
and check the adapter pads for solid contact by performing the “BUMPER TEST”. Walk
around the back of the vehicle and push up and down on the bumper. The vehicle will rock,
but should not at any time lose contact with the pads. If the vehicle is bouncing off the pads
or feels at all unstable, you should lower it back to the ground and reposition the pads to
balance the load. Repeat this process until the vehicle is completely stable.
WARNING: Use this lift only in well ventilated areas. Carbon monoxide exhausted
from running vehicle engines is a colorless, odorless fume that, if inhaled, can cause serious
personal injury or death.
WARNING: People with pacemakers should consult their physician(s) before using this
product. Operation of electrical equipment in close proximity to a heart pacemaker could
cause interference or failure of the pacemaker.
WARNING: This product contains or produces a chemical known to the State of
California to cause cancer and birth defects (or other reproductive harm). (California Health
& Safety Code 25249.5 et seq.)
• Maintain a safe working environment. The work area should be clean, dry, clutter free, and
sufciently lit.
• Vehicle doors should be closed during the raising and lowering cycles.
• Closely watch the vehicle and lift during the raising and lowering cycles.
• Do not operate the lift in explosive atmospheres, such as in the presence of ammable
liquids, gases, or dust. Power equipment can create sparks which may ignite ammables.
• Keep hands, tools, and other extremities from under carriage and moving parts.
• Never operate this lift with someone on it.
• Do not allow anyone on the lift or inside a raised vehicle.
• Keep children and bystanders away from work area. Do not let children operate or play on
lift.
• Wear proper safety attire. Do not wear loose tting clothing while operating lift. Long hair,
jewelry and sleeves should be secured.
• Never leave the lift unattended while under a load.
• Do not operate this lift if under the inuence of drugs, alcohol, or medication. Operator
must be alert at all times when using heavy lift equipment.
• Comply with all applicable accident prevention regulations.
• Only use the vehicle manufacturer’s recommended lifting points.
• After positioning the vehicle, apply the parking brake.
• Use caution when removing or installing heavy vehicle components which may result in
center-of-gravity displacement.
• Use this lift only for the work it is intended. Do not use this product for an application for
which it was not designed. Misuse can lead to personal injury and/or property damage.
