Titan TTB872SDS User manual

Original Instructions - MNL_TTB872SDS_V1_220517
750W Rotary
Hammer
TTB872SDS
EAN: 5059340253275
WARNING: Read the instructions before using the product!

2
GB
IE
Let’s
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started... 02
Safety information 03
Your product 11
Before you start 13
In more detail... 17
Product functions 18
Operation 22
Care and maintenance 24
Trouble shooting 27
Recycling and disposal 28
Guarantee 29
Declaration of conformity 31

3
Getting
started...
TTB872SDS by TITAN
Safety information GB
IE
Safety warnings
General power tool safety warnings
Work area safety
>Keep work area clean and well lit. Cluttered or dark areas invite accidents.
>Do not operate power tools inexplosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
>Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
>Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
>Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
>Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
>Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
>When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
>If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
WARNING ! Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
injury.

4
Getting
started...
GB Safety information
IE
TTB872SDS by TITAN
Safety warnings
Personal safety
>Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
>Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal
injuries.
>Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
>Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
>Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
>Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
>
>
If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of dust collection can reduce dust-related hazards.
Power tool use and care
>Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
>Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must be
repaired.
>Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
>Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless action
can cause severe injury within a fraction of a second.

Safety warnings
5
Getting
started...
TTB872SDS by TITAN Safety information GB
IE
>Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
>Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
>
>
Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
Service
>Have your power tools serviced by a qualified repair person using only
identical replacement parts. This will ensure that safety of the power tool is
maintained.
Hammer safety warnings
>Wear ear protectors. Exposure to noise can cause hearing loss.
>
>
Use auxiliary handle supplied with the tool. Loss of control can cause
personal injury.
>
>
Hold power tool by insulated gripping surfaces, when performing an
ope
ration where the cutting accessory may contact hidden wiring or its
own cord. Cutting accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the operator an electric
shock.
>When using this product it is essential that the following rules for use are
followed:
•When dri
lling it is common that the core / drill bit jams in the material being
drilled. This will result in the product trying to rotate around the drill bit and
potentially come out of your grip. This product has a safety clutch
mechanism. This safety clutch mechanism will be activated and stop the
drive to the drill bit BUT only if you resist the initial forces caused by the
jamming by securely holding the product with both hands.
Keep handles and grasping surfaces dry, clean and free from oil and
grease.Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Always start drilling at low speed and with the bit tip in contact with the work -
piece. At higher speeds, the bit is likely to bend if allowed to rotate freely
without contacting the workpiece, resulting in personal injury.
Apply pressure only in direct line with the bit and do not apply excessive pres -
sure. Bits can bend, causing breakage or loss of control, resulting in personal
injury
the power tool. Power tools are dangerous in the hands of untrained users.
Brace the tool properly before use. This tool produces a high output torque
and without properly bracing the tool during operation, loss of control may
occur resulting in personal injury”

6
Getting
started...
GB Safety information
IE
TTB872SDS by TITAN
Safety warnings
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of
operation, use low-vibration and low-noise operating modes as well as
wear personal protective equipment.
Take the following points into account to minimise the vibration and noise expo-
sure risks:
> Only use the product as intended by its design and these instructions.
> Ensure that the product is in good condition and well maintained.
> Use correct cutting attachments for the product and ensure they are in good
condition.
> Keep tight grip on the handles/grip surface.
> Maintain this product in accordance with these instructions and keep it well
lubricated (where appropriate).
> Plan your work schedule to spread any high vibration tool use across a longer
period of time.
Emergency
Familiarise yourself with the use of this product by means of this
instruction manual. Memorise the safety directions and follow them to the
letter. This will help to prevent risks and hazards.
> Always be alert when using this product, so that you can recognise and
handle risks early. Fast intervention can prevent serious injury and damage
to property.
> Switch off and disconnect from the power supply if there are
malfunctions. Have the product checked by a qualified professional and
repaired, if necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance with all the safety
requirements, potential risks of injury and damage remain. The following
dangers can arise in connection with the structure and design of this
product:
•ALWAYS ensure that the auxiliary handle is firmly affixed and secured.
•The auxiliary and main handle must be firmly held to resist any movement
of the product when the core drill or drill bit becomes jammed.
•ALWAYS use this product when standing on a firm and secure platform or
the ground. (DO NOT USE ON LADDERS OR STEPS.)
•NEVER start the product with the core or drill bit jammed in position.
•DO NOT stretch to hold the product. Do not work above shoulder height or
below knee height, as the product cannot be securely held.

Safety warnings
7
Getting
started...
TTB872SDS by TITAN Safety information GB
IE
Residual risks
Even if you are operating this product in accordance with all the safety
requirements, potential risks of injury and damage remain. The following
dangers can arise in connection with the structure and design of this
product:
> Health defects resulting from vibration emission if the product is being used
over long periods of time or not adequately managed and properly
maintained.
> Injuries and damage to property due to broken cutting attachments or the
sudden impact of hidden objects during use.
> Danger of injury and property damage caused by flying objects.
WARNING! This product produces an electromagnetic field
during operation! This field may under some circumstances
interfere with active or passive medical implants! To reduce the
risk of serious or fatal injury, we recommend persons with
medical implants to consult their doctor and the medical
implant manufacturer before operating this product!
The following information applies to professional users only but is good practice
for all users:
ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST
> The updated Control of Substances Hazardous to Health Regulations 1st
October 2012 now also targets to reduce the risks associated with silica, wood
and gypsum dusts.
> Construction workers are one of the at-risk groups within this because of the
dust that they breathe: silica dust is not just a nuisance; it is a real risk to your
lungs!
> Silica is a natural mineral present in large amounts in things like sand, sand-
stone and granite. It is also commonly found in many construction materials
such as concrete and mortar. The silica is broken into very fine dust (also
known as Respirable Crystalline Silica or RCS) during many common tasks
such as cutting, drilling and grinding Breathing in very fine particles of crystal-
line silica can lead to the development of:
> Lung cancer Silicosis Chronic Obstructive Pulmonary Disorder (Chronic
obstructive pulmonary disease (COPD) And breathing in fine particles of wood
dust can lead to the development of Asthma The risk of lung disease is linked
to people who regularly breathe construction dust over a period of time, not on
the odd occasion.

8
Getting
started...
GB Safety information
IE
TTB872SDS by TITAN
Safety warnings
> To protect the lung, the COSHH Regulations sets a limit on the amount of
these dusts that you can breathe (called a Workplace Exposure Limit or WEL)
when averaged over a normal working day. These limits are not a large
amount of dust: when compared to a penny it is tiny – like a small pinch of salt:
This limit is the legal maximum; the most you can breathe after the right
controls have been used.
How to reduce the amount of dust?
1. Reduce the amount of cutting by using the best sizes of building products.
2. Use a less powerful tool e.g. a block cutter instead of angle grinder.
3. Using a different method of work altogether – e.g. using a nail gun to direct
fasten cable trays instead of drilling holes first.
Please always work with approved safety equipment, such as those dust
masks that specially designed to filter out microscopic particles and use the
dust extraction facility at all time.
For more information please see the HSE website:
http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf
Warning: Some dust particles created by power sanding, sawing,
grinding, drill and other construction jobs contain chemicals known to
cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks and cement and other masonry products.
•Arsenic and chromium from chemically treated timber.
Your risk from these exposures varies, depending upon how often you do this
type of work. To reduce your exposure to these chemicals:
•Work in a well-ventilated area.
•Work with approved safety equipment, such as those dust masks that are
specially designed to filter microscopic particles.
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to
help reduce hand arm vibration syndrome injuries to power tool users. The
directive requires power tool manufacturers and suppliers to provide indicative
vibration test results to enable users to make informed decisions as to the
period of time a power tool can be used safely on a daily basis and the choice
of tool.

Safety warnings
9
Getting
started...
TTB872SDS by TITAN Safety information GB
IE
The declared vibration emission value should be used as a minimum level and
should be used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difficult and
the HSE website has further information.
The declared vibration emission been measured in accordance with a
standardised test stated above and may be used to compare one tool with
another tool.
The declared vibration emission value may also be used in a preliminary
assessment of exposure.
Warning: The vibration emission value during actual use of the power
tool can differ from the declared value depending on the ways in which the tool
is used dependant on the following examples and other variations on how the
tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
While working with this power tool, hand/arm vibrations occur. Adopt the
correct working practices in order to reduce the exposure to vibration.
This tool may cause hand-arm vibration syndrome if its use is not
adequately managed.
Warning: Identify safety measures to protect the operator that are based
on an estimation of exposure in the actual conditions of use (taking account of
all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time). Note The use of
other tools will reduce the users’ total working period on this tool.
Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels,
drills and blades.
Maintain this tool in accordance with these instructions and keep well
lubricated (where appropriate).
Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to
spread any high vibration tool use across a number of days.
Health surveillance
All employees should be part of an employer’s health surveillance scheme to
help identity any vibration related diseases at an early stage, prevent disease
progression and help employees stay in work.

10
Getting
started...
Safety information TTB872SDS by TITAN
Symbols
others the following symbols and abbreviations. Familiarize yourself with them
to reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) mm Millimetre
Hz Hertz kg Kilogram
W Watt dB(A) Decibel (A-rated)
/min or min-1 Per minute m/s² Metres per seconds squared
Lock / to tighten or
secure.
Unlock / to loosen.
Note / Remark. Caution / Warning.
Read the instruction
manual.
Wear hearing protection.
Wear eye protection. Wear a dust mask.
Wear protective gloves. Wear protective, slip-
resistant footwear.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week
of manufacturing (Wxx)
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
UK conformity Assessed
WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
Getting
started...
GB
IE

11
Getting
started...
TTB872SDS by TITAN Your product GB
IE

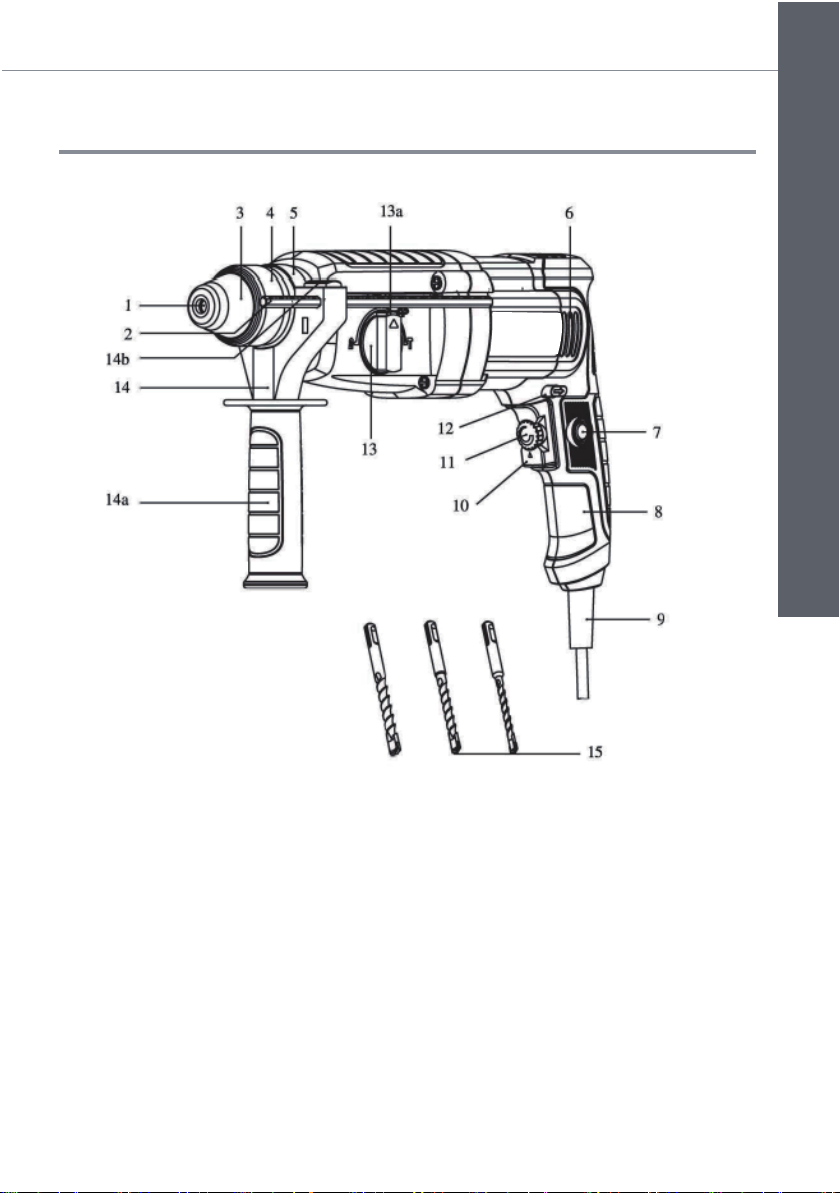

Your product
1. SDS PLUS drill chuck
2. Depth stop
3. Dust protection cap
4. Chuck sleeve
5. Collar
6. Air vents
7. Lock-on button
8. Main handle
9. Power cord with plug
10. On/off switch
11. Speed dial
12. Forward/reverse rotation control
13. Mode selector
a. Lock button
14. Auxiliary handle
a. Hand grip
b. Quick clamp
15. SDS drill bits 8/10/12 X 150mm

12
Getting
started...
GB Your product
IE
TTB872SDS by TITAN
General
>Rated voltage, frequency : 220 – 240 V~, 50 Hz
>Rated power input : 750 W
>Rated no load speed n0:0 - 1200 min-1
>Impact rate : 0 - 5300 min-1
>Chuck type : SDS PLUS
>Protection class : II
>Weight : approx.3.2 kg
Drilling capacity
>in wood : 40 mm
>in metal : 13 mm
>into concrete : 24 mm
Sound values
>Sound pressure level LpA :92.2 dB (A)
>Sound power level LWA :103.2 dB (A)
>Uncertainty KpA , KWA :3 dB (A)
Hand arm vibration values
>Hammer drilling into concrete ah,HD :12.353 m/s²
>Chiselling ah,Cheq :12.375 m/s²
>Uncertainty K : 1.5 m/s2
The sound values have been determined according to noise test code given in
EN 62841-1, using the basic standards EN ISO 3744 and EN ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 62841-2-6) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
WARNING! The vibration and noise emissions during actual use of
the power tool can differ from the declared values depending on the
ways in which the tool is used especially what kind of workpiece is
processed; and need to identify safety measures to protect the
operator that are based on an estimation of exposure in the actual
conditions of use (taking account of all parts of the operating cycle
such as the times when the tool is switched off and when it is running
idle in addition to the trigger time).

13
TTB872SDS by TITAN Before you start GB
IE
RATING LABEL EXPLANATION
TTB872SDS = MODEL NUMBER
TT = TITAN
B = 240V AC
872 = Version Number
SDS
=Rotary Hammer
Unpacking
>
> Remove all packing materials and shipping devices, if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
You will need
(items not supplied)
(items supplied)
suitable personal protective equipment depth stop (2)
suitable drill bits / chisels
grease
cooling lubricant
(for drilling into metal)
auxiliary handle (14)
SDS drill bits 8/10/12 X 150mm (15)
keyed drill chuck with SDS adaptor
Setup
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
Getting
started...

14
GB Before you start
IE
TTB872SDS by TITAN
Drill bits + chisels
> Different drill bits can be used with this product depending on the workpiece
material and application required.
WARNING! Always use drill bits according to the intended use! For
example, never use a drill bit intended for working on wood for working
on stone or vice versa!
Observe the technical requirements of this product (see section
Some drill bits are very sharp and become hot during use! Handle
them carefully! Wear protective gloves when handling drill bits in
order to avoid injuries like burns and cuts!
SDS drill bits and chisels
Inserting
> Clean and lightly grease the shank end of the SDS drill bit / chisel.
> Insert the SDS drill bit / chisel with a twist motion all the way to the stop into
the chuck (1) (Fig. 1).
NOTE: When inserting the drill bit / chisel, take care that the dust
protection cap is not damaged. Have a damaged dust protection cap
1 4
Fig. 1
Getting
started...

> Ensure that the SDS drill bit / chisel is securely fastened in the chuck (1).
> Pull the SDS drill bit / chisel to verify it sits securely in the drill chuck.
Removing/Replacing
> Pull the chuck sleeve (4) backward and remove the SDS drill bit / chisel.
> Insert a new one as described above, if desired.
Wood and metal drill bits
15
Getting
started...
TTB872SDS by TITAN Before you start GB
IE
WARNING! Do not use the keyed drill chuck for hammer drilling or
chiselling applications! It is intended exclusively for drilling with drill
bits for wood and metal.
Depth stop
> You can set the drilling depth with the depth stop (2). Depress the quick clamp
(14b) and hold it in position (Fig. 4)
> Insert the depth stop (2) through the hole as indicated. (Fig. 5).
> Align the tip of the depth stop (2) with the drill tip. Now pull the depth stop (2)
back by the required drilling depth.
>Release the quick clamp (14b) to lock the depth stop in position.
Fig. 4 Fig. 5
EXAMPLE: The required drilling depth is 3 cm. Align the tips of the depth stop
and drill bit/ chisel. Read the value indicated on the scale of the depth stop and
subtract 3 cm. Then adjust the depth stop according to the calculated result.
A keyed drill chuck (not supplied) should be used for non-SDS+ type drill bits.
These would normally be used for drilling into wood or metal.

16
Getting
started...
GB Before you start
IE
TTB872SDS by TITAN
Connection to power supply
> Make sure the on/off switch (10) is in its off position.
> Connect the plug with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
> Your product is now ready to be us

17
In
more
detail...
TTB872SDS by TITAN GB
IE
In more
detail...
Product functions 18
Operation 22
Care and maintenance 24
Trouble shooting 27
Recycling and disposal 28
Guarantee 29
Declaration of conformity 31

more
detail...
GB
IE
18
Product functions
TTB872SDS by TITAN
In
Intended use
> This product is intended for hammer drilling and light chiselling work into
concrete, brick and stone when equipped with bits with an SDS PLUS shaft.
A keyed drill chuck allows normal bits (non SDS type) to be used for drilling
into wood or metal.
>
for working on materials that are dangerous for health.
> For safety reasons it is essential to read the entire instruction manual before
Auxiliary handle
WARNING! Always switch the product off and disconnect it from
power supply before making any adjustments!
Adjust the auxiliary handle (14)
according to the desired application.
It improves the control when using the
product.
> Turn the hand grip (14a) anticlockwise
to loosen the clamp.
> Adjust the auxiliary handle (14) to the
desired working position so that you
can hold the product safely during
operation.
> Turn the hand grip (14a) clockwise to
tighten the clamp (Fig. 6).
Fig. 6
WARNING! Never operate the product without the auxiliary handle to
avoid accidents and injury! Always ensure that the auxiliary handle is
attached and secured correctly before operation! The auxiliary handle
provides better control of the product in case of sudden jams during
use when considerable forces are released!

GB
IE
TTB872SDS by TITAN
Product functions
In
more
detail...
19
Mode selector
Select the mode before operation. This product can be operated either in
hammer drilling, chiselling or drilling mode.
WARNING! Only change the mode settings when the product is
switched off and has come to a complete stop! Always ensure that
the mode selector is adjusted to the correct position depending on
the intended operation! Do not use the product with the switch in any
intermediate position!
WARNING! Always set the mode selector according to the required
operation! Do not attempt to use the keyed chuck for SDS hammer
drilling or vice versa!
>Pressthelock button(13a)andturn the modeselector(13) to the desired
position.
> Make sure the lock button (13a) clicks into place. Do not use the product if
the mode selector (13) is in any intermediate position.
Function Mode
selector
Symbol
indicator
Drill
chuck Application
Chiselling Chiselling action
(bricks, concrete
and masonry)
Hammer drilling
hammer and drill
action (brick,
concrete and
masonry)
Drilling
Drill action
(wood, metal
and plastic)
Chisel rotation
Chisel rotation
(bricks,concret
e and
masonry)
WARNING! Chisel rotation mode is only for changing the angle of the
chisel head. Do not operate the drill when this mode is selected.
Damage may be caused to the tool.

In
more
detail...
GB
IE
Product functions
TTB872SDS by TITAN
20
Forward/reverse rotation control
Change the rotational direction from forward to reverse by pressing the forward
/ reverse control (12).
WARNING! Only change the rotational direction when the product is
switched off and has come to a complete stop! Always ensure that the
forward / reverse rotation control is adjusted to the correct position
depending on the intended operation!
Always push the forward / reverse rotation control in as far as it will
go! Do not use the product with the control switch in any intermediate
position!
> Move the forward / reverse rotation control (12) to the left (as seen from the
operators position) in order to use the product in a clockwise rotational mode.
Use this function for drilling (Fig. 7).
> Move the forward / reverse rotation control switch (12) to the right (as seen
from the operators position) in order to use the product in anticlockwise
rotational mode. Use this function to loosen jammed drill bits (Fig. 8).
Position
Rotational
direction
Application
12
drilling into material
Fig. 7
Fig. 8
loosen jammed drill bits
NOTE:
rotational direction, a locking sound may be heard. This is normal and
does not represent a defect.
