Titus AmpliVox Quickfit-Expando-6 User manual

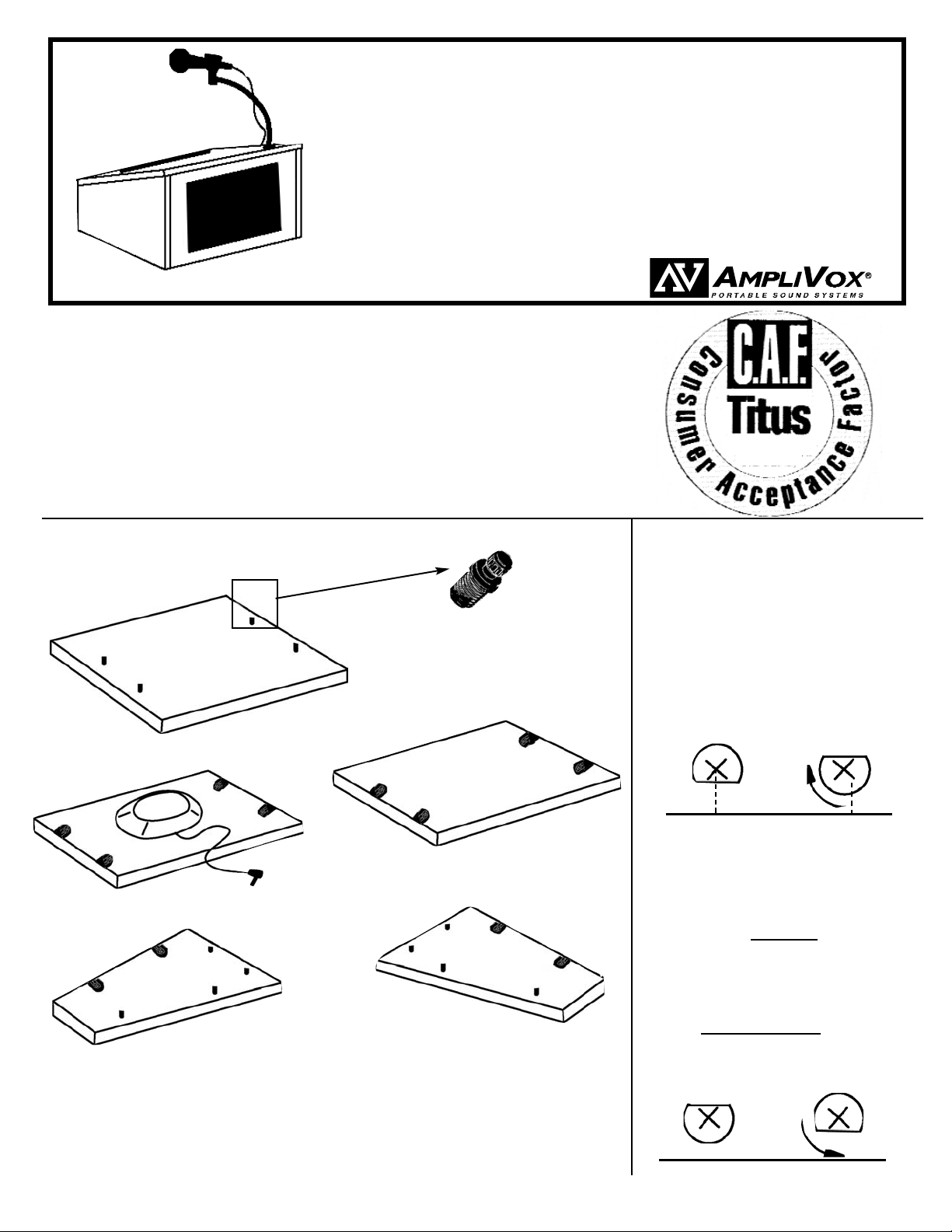

Packing List:
• Reading table top
• Bottom panel
• 2 Side panels, left and right
• Front/speaker panel
• Black speaker grille(S-250)
• Hand-held mic (S-250)
• Mic cable (S-250)
• Gooseneck w/mic holder (S-250)
• Amplifier (S-250)
Easy Step-By-Step Instructions
Featuring Quickfit-Expando-6 Connectors
for W/S-250 Tabletop Lectern Assembly
The Tabletop Lectern is designed
for easy assembly. If you have any
questions about assembling or using
your new sound system, or if you
want more information about acces-
sories, call AmpliVox’s customer
service line.
The lectern is carefully packed
to minimize shipping damage. If
your unit was damaged in shipping
call our toll-free customer service
line or visit our web site at
http://www.ampli.com
1-800-267-5486
Reading
Table Top Panel
Bottom
Left Side
Right Side
How the Quickfit-Expando-6
Connectors work.
Do not over tighten the connectors.
They will break if turned too far. Turn
only 1/2 turn clockwise to lock. The
steel Quickfit-6 expanding dowels and
the Quickfit-Expando-6-Connectors lock
together for easy assembly.
3. Inspect the Pre-installed
Quickfit Expando-6 Connectors.
Check the Top, Speaker/Front, Left and
Right Side Panels to insure that the flat
edge on the connector is facing the
outer edge of the board. Use a phillips
screwdriver to rotate them, if needed.
Untightened
(unlocked) To tighten
(to lock)
Edge of board
Edge of board
To untighten
(to unlock)
Tightened
(locked)
1. Unpack all the pieces. Be
sure to save the packing and the box
in case you need to return the lectern
for any reason. Check that you have
all the pieces and that they are not
damaged.
2. Insert the dowel pins. With your
thumb(or use phillips screwdriver to
ease insertion), push the dowel pins
into the holes in the 2 sides and the
top. Make sure the plastic collar is
flush with the wood surface.
Speaker/
Front
Panel
F:\docs\productinstructions\r-250assembly.qxd
Quickfit-6 Expanding Dowel Pin
Hardware:
•12 Quickfit-Expando-6 Connectors
pre-installed
•12 Push-in Quickfit-6 Expanding dowels
Tools Needed:
•Phillips Screwdriver - for 1/2 turn of pre-
inserted Quickfit-Expando-6 Connectors
The Titus fittings supplied with this
kit have been specially designed
for ease of assembly
Turn counterclockwise to unlock

Optional Accessories
Batteries
S-1430 Alkaline D-Cell Batteries; set of 10 ......................................$26.00
S-1465 NiCad battery pack; 4.3 amp hours....................................$165.00
Power Supply
S-1460 International AC Adapter/Recharger;110/220 volts;50/60 Hz.$109.00
Wireless Kits
S-1600 Wireless Lapel Mic Kit ........................................................$308.00
S-1610 Wireless Headset Mic Kit ....................................................$374.00
S-1612 Wireless Lapel/Headset Mic Kit ..........................................$374.00
S-1620 Wireless Hand-Held Mic Kit ................................................$374.00
Microphones
S-2030 Lapel Mic; with 12 ft. extension ............................................$55.00
S-2040 Headset Mic; with 12 ft. extension......................................$121.00
S-2030A Hand-Held Mic and Cable....................................................$99.00
S-1720 Mic Extension Cord; 25-ft. ....................................................$65.00
Extra Speaker & Tripod
S-1201 Compact Companion Speaker; black high pressure laminate ..$209.00
S-1090 Tripod for speaker ..............................................................$188.00
Light
S-1100 AC Reading Light; clip-on ....................................................$55.00
Media Cart Base
S-260 Combines with Tabletop Lectern to form a full-size lectern
or use separately for slide projector, etc. ............................$197.00
Prices are subject to change without notice
10. Attach the gooseneck. Screw
the gooseneck with mic holder onto the
gooseneck flange. Insert the mic cord
into the mic base. Place the mic into
the mic holder; insert the mic plug into
the “dynamic” microphone jack.
11. Plug-in the speaker. Plug the
speaker cord into either the right or left
amp jack. If you have a second exter-
nal speaker, connect its 1/4” plug into
the Speaker- R jack Set the amplifier
inside the lectern.
12. Attach the speaker grille by
pressing its posts into the holes on the
front of the lectern.
Refer to the S-805A amplifier operating
instructions for information about the
amp controls.
If you purchased any optional acces-
sories such as a wireless kit, lapel mic,
International AC Adapter/Recharger,
extra speakers, tripods, etc. refer to the
instructions packed with them for instal-
lation and usage information.
Your Tabletop Lectern is now complete.
Thousands of AmpliVox sound products
have been in use since we first began
shipping in 1961. We hope you enjoy
many years of use from your new
Tabletop Lectern.
If you have any questions or com-
ments, call customer service line.
1-800-267-5486
6. Attach the front/speaker panel.
Make sure the finished edge of the
speaker/front panel is facing up towards
you. Slide speaker/front panel until the
dowel pins of the right and left side pan-
els are completely inserted into the
Quick-fit connectors of the speaker/front
panel. Tighten the 4 Quickfit Connectors
in speaker/front panel 1/2 turn.
7. Attach the bottom. Carefully pick
up and place the Top, Right and Left side
panel assembly on its side with the Top
panel facing opposite of you. Insert the
Bottom Panel under the pins on the Right
and Left side panels by sliding the bot-
tom panel under pins of the sides. Now
slide the bottom panel until the dowel
pins of the side panels are completely
inserted into the Quick-fit connectors of
the bottom panel. Tighten the 4 Quickfit
Connectors on the bottom panel 1/2
turn.
8. Carefully turn over lectern After
tightening Expando Connectors on the
bottom of the lectern, Carefully pick up
and turn over lectern so that the Paper
Stop is facing up.(see illustration above)
S-250 ONLY
9. Install the batteries in the amp.
Refer to the amp instruction sheet for
battery installation information.

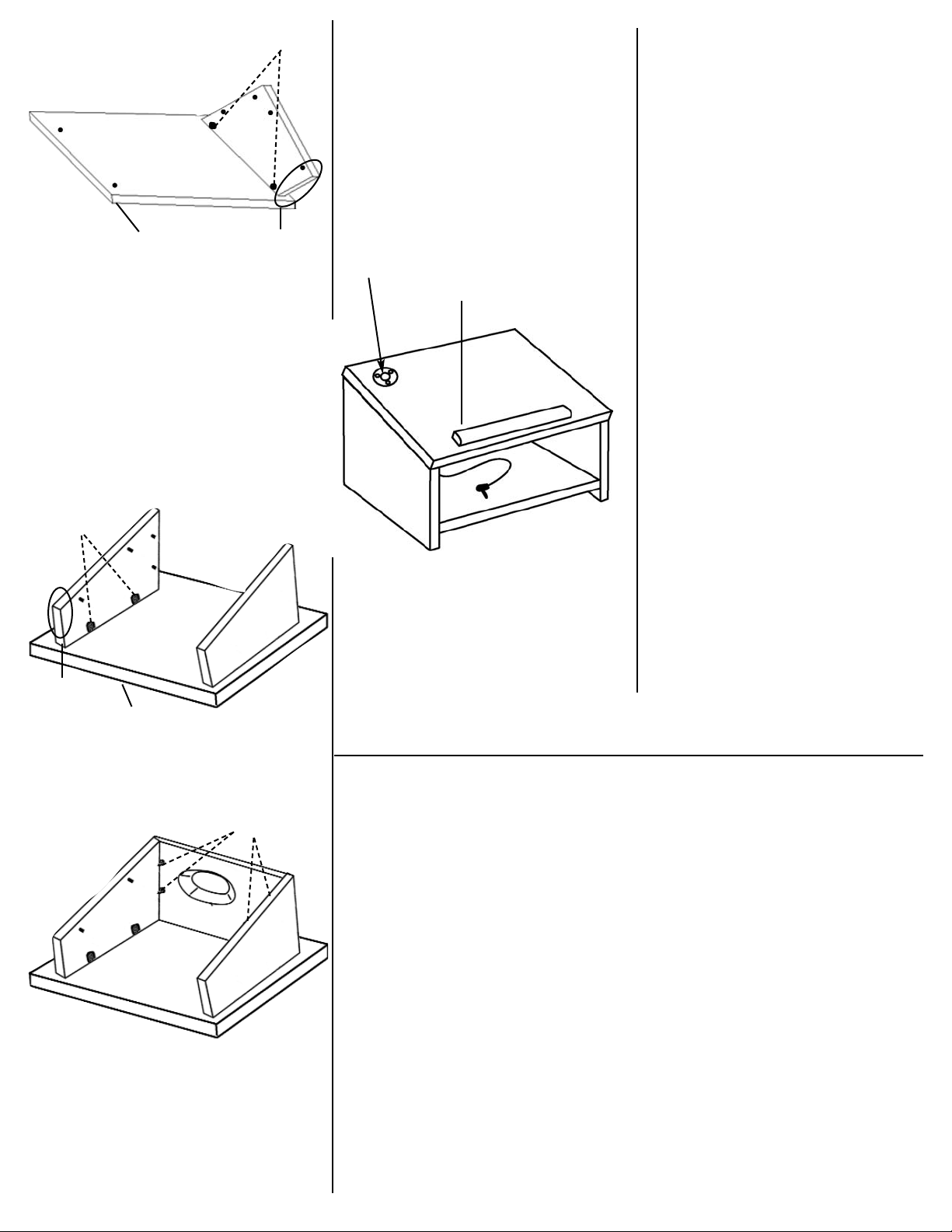

4. Attach the left side. Place Top panel
on protected flat surface with dowel pins
facing up. Place the left side panel with
the finished edge facing up onto the top
panel and slide side panel until its dowel
pins are completely inserted into the
Quick-fit connectors as far as they can go.
The short edge of the side panel should
be towards the edge of the Top panel that
has the paper stop. Use a phillips
screwdriver to tighten the 2 Quick-fit
Connectors. Turn only 1/2 turn clockwise.
Over tightening will break the con-
nectors!!
F:\docs\productinstructions\r-250assembly.qxd
5. Attach the right side panel.
Attach the right side panel using the same
instructions as the left side panel to the
top panel and tighten the 2 Quick-fit
Connectors.
Short edge
Top
Left Side Panel
Tighten
Short edge
Top
Angled
Side
Left Side Panel
Tighten
Paper Stop
Paper Stop
Right Side Panel
Left Side Panel Tighten
Left Side Panel
Gooseneck flange
Paper Stop
Angled
Side
