Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.
SAFTYANDNOTICE
1) The transmission distances of HDMI over UTP cables are measured
using TE CONNECTIVITY 1427071-6
2) EIA/TIA-568-B termination for CAT cables is recommended for better
performance.
3) DO NOT use 568A/568B standard mixed CAT cable (cross-over cable)
because there are 2 pairs swapped, this will make POH
OVER-CURRENT and damage POH components. Please use
straight-through CAT cable (both RJ45 headers are 568A or 568B
standard).
4) It is recommended that power up the device after connections of
source, sink and CAT cable.
5) To reduce the interference among the unshielded twisted pairs of
wires in CAT cable, do not run HDBaseT / Zone Cat5e/6/6a cabling
with or in close parallel proximity to mains power cables. Shielded
CAT cables can be used to improve EMI problems, which is worsen in
long transmission.

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 3
6) Because the quality of the CAT cables has the major effect on how
long the transmission limit can achieve and how good is the received
picture quality, the actual transmission range is subject to one’s
choice of CAT cables.
7) Do not substitute or use any other Power Supply other than the
enclosed unit, or a TLS approved Replacement Part. Doing so will
void the warranty and potentially expose the user to dangerous
voltages resulting in an electrical shock.
8) Do not disassemble the device for any reason. Doing so will void the
manufacturer’s warranty. Also, our unique case is an integral part of
the design of this unit and is responsible for cooling and circuitry
shielding. Any modifications to this case will potentially cause
malfunction and product failure.
9) Do not expose the device to water, moisture, or liquids. Possible
electric shock may result as well as failure of the unit to operate.

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 4
Table of Content
SAFTY AND NOTICE..............................................................................2
Introduction..............................................................................................5
What is smart CSC?.............................................................................5
Features ..................................................................................................6
Panel Descriptions ..................................................................................7
Transmitter...........................................................................................7
Front.....................................................................................................7
Back.....................................................................................................8
Receiver...............................................................................................9
Front.....................................................................................................9
Back...................................................................................................10
RS-232 switching codes for VGA and HDMI inputs..............................11
RS-232 Pin Assignment.....................................................................11
RS-232 configuration .........................................................................12
Specifications ........................................................................................13
Package Contents.................................................................................14
Maintenance..........................................................................................14
Warranty Policy..................................................................................14
Limitations of Warranty ......................................................................15
Exclusive Remedies...........................................................................15
RMA Policy.........................................................................................16
Standard Replacement ......................................................................16
Once you have obtained an RMA number.........................................16

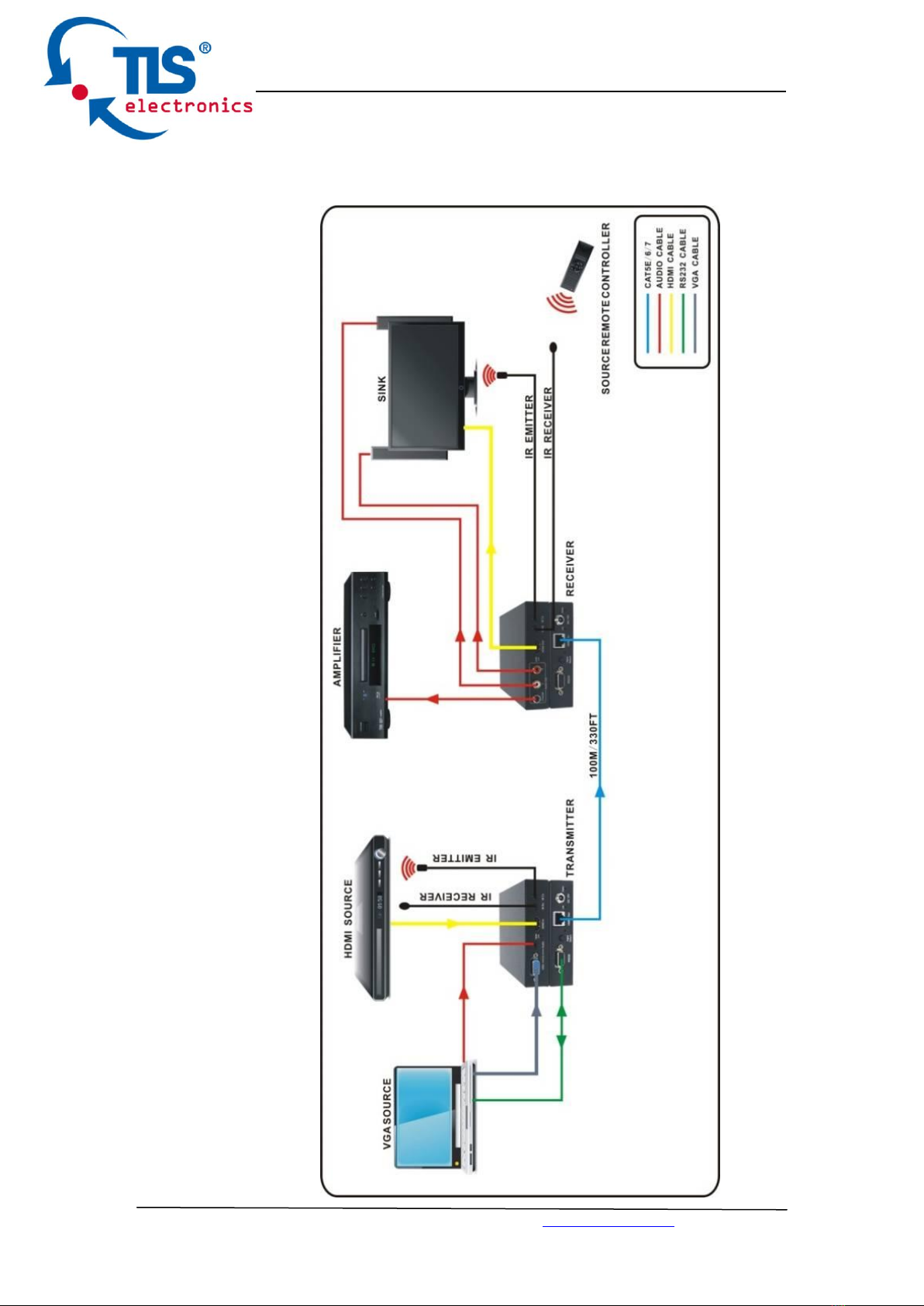

Application Diagram ..............................................................................18

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 5
Introduction
TLS 875700 MF100 Set (Transmitter & Receiver) is an industry leading
4K HDBaseT extender with switchable HDMI and VGA/Audio input. The
extender set uses smart CSC (Color Space Conversion) technology with
no latency, and supports 4K/60Hz with 4:4:4 chroma sampling, as well as
HDMI data rates up to 18 Gbps. It can deliver HDMI/VGA singnal up to
330ft (100m) for 1080p video, and up to 230ft (70m) for 4K HDR over
CAT5e/6a/7 cable. And also transmits bi-directional IR, RS-232 and PoH
up to lengths of 100m over s single CAT cable.
The MF100 Set is ideal for residential applications with the latest
emerging 4K/UHD and HDR sources and displays. It is compatible with
all video resolutions, audio formats, and color space formats supported in
the HDMI 2.0a specification, plus the ability to pass metadata for HDR
content.
Note:
What is smart CSC?
Smart CSC is a technology that can convert 6G video to 3G at TX unit
and recover 3G to 6G at RX unit, and the RX unit can smartly output 6G
or 3G video depends on the sink device capacity.

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 6
Features
Switching between HDMI and VGA with 3.5mm audio input, HDMI
output with L/R Analog audio and Coax Digital audio outputs
HDMI 2.0a
4K@60Hz with 4:4:4 chroma sampling, plus HDR and full 3D formats
HDCP-2.2/HDCP 1.x and DVI compliant
Smart CSC technology supports outputting 6G or 3G video depends
on sink device
1080p up to 100m/330ft, 4K up to 70m/230ft.
Support all popular VGA resolution inputs:
640x480@60/75Hz, 720x400@70Hz, 800x600@60/75Hz,
1024x768@60/75Hz, 1152x864@75Hz, 1280x720@60Hz,
1280x768@60/75Hz, 1280x800@60/75Hz, 1280x960@60Hz,
1280x1024@60/75Hz, 1360x768@60Hz, 1366x768@60Hz,
1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz,
1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
Visually lossless compression
Supports bi-directional POH, only one power supply is needed at TX
or RX side.
Bi-directional IR and RS232 pass through
Digital and analog audio breakouts at RX side.
All PCM, Dolby and DTS multichannel audio formats pass through
With ESD protection
Note:
The POH function is designed for powering compatible transmitter or
receiver units of TLS only.

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 7
Panel Descriptions
Transmitter
Front
VGAIN –Connect to VGAsource device
Audio IN –3.5 mm Stereo Jack, Analog audio input (goes with VGA
input)
HDMI Link –HDMI Input LED indicator
LED off –No HDMI input
LED on –HDMI input stable (Lit blue light)
HDMI IN –Connect to HDMI source device
IR RX/TX port –3,5 mm stereo-phone, connect to IR transmitter
/receiver cable

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 8
Back
MODE DIP Switch –2 pin (Up=0, DOWN=1)
00: RS232 pass through
01: Valens firmware upgrade
10: MCU firmware upgrade
11: Switch between VGA& HDMI by codes & RS232 pass through
HDBaseT (Default)
RS 232 port –DB9 female connector, connect to DTE or DCE
Input Select button –Input select button, switch between HDMI and
VGA/Audio input
Inputs indicator light –Red for VGAinput, yellow for HDMI input
HDBT Out --- RJ45 connector, connect to HDBT In port on the
receiver side via cat5e/6a/7
Link –HDBT Link LED indicator
LED off –No link
LED blinking –linking or unstable
LED on –Link is stable (Lit yellow light)
DC Power Input --- Screw locking connector, use the included
12V/2A DC adaptor to power the unit
Power LED indicator –Lit yellow when getting power

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 9
Receiver
Front
MODE DIP Switch –2 pin (Up=0, DOWN=1)
00: RS232 pass through
01: Valens firmware upgrade
10: MCU firmware upgrade
11: Switch between VGA& HDMI by codes & RS232 pass through
HDBaseT (Default)
RS 232 port –DB9 female connector, connect to DTE or DCE
Input Select button –Input select button, switch between HDMI and
VGA/Audio input,
Inputs indicator light –Red for VGAinput, yellow for HDMI input
HDBT IN --- RJ45 connector, connect to HDBT Out port on the
transmitter side via cat5e/6a/7
Link –HDBT Link LED indicator
LED off –No link
LED blinking –linking or unstable
LED on –Link is stable (Lit yellow light)
DC Power Input --- Screw locking connector, use the included
12V/2A DC adaptor to power the unit
Power LED indicator –Lit yellow when getting power

875700 MF 100 User Manual
TLS electronics GmbH –www.tls-electronics.de contact : [email protected] 10

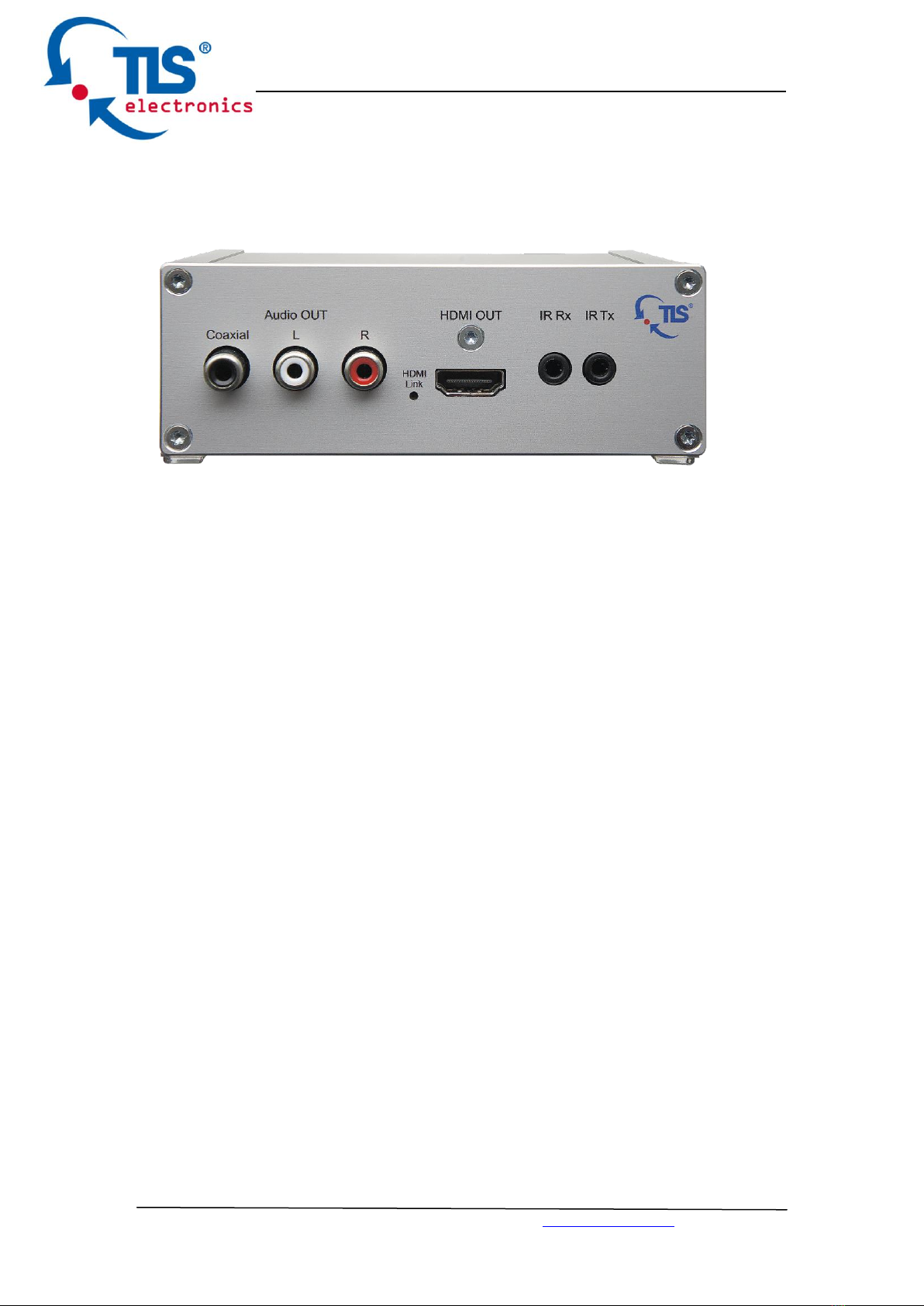

Back
Coaxial Audio Out –RCAconnector, multichannel digital audio output
Left Audio Out –RCA Connector, button/LED –Input select button,
switch between HDMI and VGA/Audio input, indicator LED –Red for
VGA, Blue for HDMI
HDMI Link –Yellow for connection to HDMI sink
HDMI OUT –Connect to HDMI sink device
IR RX/TX port –3,5 mm stereo-phone, connect to IR transmitter
/receiver cable
