TLS TLSS14ALOR User manual

1
Part Number : D - SLSM - 14
Issue 0 1 3 E ective : December 1 5 , 2010
Supersedes Issue 0 1 2 - April 1 5 , 200 9
14,000 lb.
( 6350 kg )
SCISSOR LIFT
Model TLSS14ALOR R1
READ the Manual T horoughly Before Installing,
Operating, Servicing, or Maintaining the Lift
SAVE this MANUAL and ALL INSTRUCTIONS
Total Automotive Lifting Solutions Inc.
2300 Speers Rd. Oakville, Ontario L6L 2X8
Phone: [phone] Fax: [phone]
www.TLSLifts.com
TLS DOUBLE SCISSOR LIFT

2
Your new lift will provide years of dependable service if installed, operated and maintained
properly. Read and be prepared to follow all safety, installation,
operation, and maintenance instructions in this manual before
installing and operating the lift. In addition, read and follow all safety
and other information included on and with the lift be fore operating
the lift. Keep this manual in a secure place for future reference,
training and service part identification.
TABLE of CONTENTS
1. Unloading Procedure and Lift Package Contents page 3
2. Warranty and Safety page 4 - 6
3. General Requirements and Lift Specifications page 7
4. Pre Installation Procedures and Tools Required page 8
5. Installation Procedures page 9 - 11
6. Operating Instructions and Lift Maintenance page 12 - 13
7. Troubleshooting page 14
8. Lift Installation Diagrams and Parts Lists page 15 - 29
IMPORTANT :It is the shop owner's responsibility to provide a satisfactory installation
area for the lift. Lift should only be installed on level concrete floors with a minimum of 4
inches (102mm) and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30
days. Please consult a qualified individual if any doubt exists concerning proper installation
and subsequent safe operation of the lift. Do not install the lift on asphalt or outdoors.
Prior to installation, it is the shop owner's responsibility to provide constant electrical power
in the correct voltage, phase, etc., and all wiring for electrical hook-up of the lift. The shop
owner must insure that the electrical installation conforms to local building and safety codes.
Where required, the shop owner will provide an electrical isolation switch located in close
proximity to the lift. This switch will have an emergency stop capability and isolate electrical
power from the lift for servicing requirements.
Hydraulic oil cannot be shipped with the lift and will be supplied by either the shop owner or
the installer. ISO 32 hydraulic oil (10W non detergent hydraulic oil) must be used to fill the
reservoir tank before operating the lift. Grout for lift leveling must also be purchased locally.
It is the shop owner's responsibility to train all operators in
lift operation and lift safety.

3
UNLOADING PROCEDURE and LIFT PACKAGE CONTENTS
For your information:
All lift components are packaged together in one module held together by steel bands
UNPACKING PROCEDURE:
When the lift arrives on site: - If possible have lift unloaded in the installation area
- Check for freight damage and report immediately to the
trucking company who delivered the lift
- Check for missing parts and report immediately to the factory
1 - 877 - 799 - LIFT (5438) or (905) 847 - 1198
Main Components include:
Runway Assembly - labeled #1
Runway Assembly - labeled #2
Approach Ramps –2pc
Accessory and Hardware Box (see list below)
Optional Accessories: (included only if ordered)
Rolling Air/Hydraulic Jacks - 1 jack per box c/w coiled air line
Turnplates - 1 turnplate per box c/w retainer brackets
Accessory Box includes:
Operator Console (power unit) –1 pc
Hydraulic Hose for Return Oil Line –1 pc
Air Hose for Safety Locks and Optional Rolling Jacks –2 pc
Approach Ramp Bracket and Pin –2 pc
Front Wheel Stops –2 pc
Hydraulic Line Covers - 4 pc
Wheel Chocks –2pc
WL 200 Series Safety Information Label Kit
ALI - " Lifting It Right " Manual
ALI - " Vehicle Manufacturer's Lifting Point Guide" (CD)
Automotive Lift Safety Tips Hang Card
Automotive Lift, Operation, Inspection and Maintenance Manual
Owner’s Manual
Hardware Box includes: fittings, bolts, washers, nuts, anchor bolts, etc.

4
WARRANTY and SAFETY
Warranty: The scissor lift model identified in this manual has the following warranty
from date of purchase:
Structural Components - 5 years Accessory Items - 90 days
Hydraulic and Other Components - 1 year Labor - 1 year
The above items are warranted to be free of defects in material and workmanship to the
original owner of the lift as follows: During the first year (90 days for accessories), those parts
proven after inspection to be defective shall be repaired or replaced at the option of the
manufacturer. Structural components only are warranted for an extended four years and if
proven after inspection to be defective shall be repaired or replaced at the option of the
manufacturer. This warranty does not extend to defects caused by ordinary wear, misuse,
abuse, improper maintenance, shipping damage or where repairs have been attempted or
made by anyone other than the manufacturer or a manufacturer certified technician. This
warranty is exclusive and in lieu of all other warranties express or implied. In no event shall
the manufacturer be liable for special, incidental or consequential damages for any breach or
delay in performance of the warranty. The manufacturer reserves the right to change
specifications, designs or add improvements to its product line without incurring any obligation
to make such changes to products sold previously.
IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety precautions should always be followed,
including the following:
1. Read all instructions
2. Care must be taken as burns can result from touching hot parts
3. Do not operate equipment with a damaged cord or if equipment has been dropped or
damaged –until it has been examined by a qualified service person
4. Do not let a cord hang over the edge of the table, bench, or counter or come in contact
with hot manifolds or moving fan blades
5. Let equipment cool completely before putting away. Loop cord loosely around
equipment when storing
6. To reduce risk of fire, do not operate equipment in the vicinity of open containers of
flammable liquids (gasoline)
7. Adequate ventilation should be provided when working on operating internal
combustion engines
8. Keep hair, loose clothing, fingers, and all parts of body away from moving parts
9. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain
10. Use only as directed in this manual. Use only manufacturer’s recommended
attachments
11. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant
lenses, they are not safety glasses
SAVE THESE INSTRUCTIONS
safety cont’d on page 5

5
Safety Continued
Basic common sense safety precautions should always be followed when installing, operating
and maintaining the lift as a risk of fire, electric shock, or injury may be present.
In addition:
1. Read and follow all safety instructions and decals included with the lift. Read and follow
all safety instructions in this manual. Read and follow the ALI "Lifting It Right" manual
(included with the lift). Always use the "Vehicle Lifting Points" reference guide when lifting a
vehicle (CD is included with the lift). Insure all materials stay up to date »» www.autolift.org/
2. Only trained and authorized personnel should position a vehicle and operate the lift. Do
not allow customers or bystanders to operate the lift or be in the lift area.
3. Inspect the lift daily. Do not operate if potential problems have been identified or lift
malfunctions. Do not operate if lift has damaged or broken components. Never walk or
work under the lift unless all safety locks are completely engaged.
4. Never overload the lift. The rated capacity decal is located on the operator console. The
hydraulic system on this lift is not designed to be a load holding device. Mechanical safety
locks must be engaged before proceeding under the lift for vehicle servicing or lift
maintenance. Never override operating controls. This is unsafe and will void the warranty.
5. Before driving a vehicle onto the lift, insure that both slip plates and turn plates have all
lock mechanisms securely in position. Also insure that the lift and lift area is clear of all
debris and that all oil and grease has been cleaned from runway surfaces.
6. Before raising or lowering the lift, always totally secure the vehicle with wheel chocks.
7. When using a jack(s) to raise a vehicle, position jack lifting pads to contact vehicle
manufacturer's recommended lifting points (see CD included with the lift). Raise jack slowly
until all pads contact the vehicle. Confirm that the vehicle is stable on the jack(s) before
raising to desired working height.
8. Some pickup trucks may require optional truck adapters to clear running boards and other
installed accessories. Special care must be exercised with pick-up trucks to insure safe
lifting. Always use vehicle manufacturers lifting points and insure the contents of the
cargo box will not affect vehicle balance while on the jack(s).
9. Important: Removal or installation of heavier parts can change the vehicle's center of
gravity on the jack(s) resulting in a critical load shift. The vehicle may then be unstable.
Plan ahead for this possibility to insure continued safety and refer to the vehicle
manufacturer’s service manual for recommended procedures.
10. Always keep the lift area free of obstructions and debris. Grease and oil spills should be
cleaned up immediately.
11. Never raise a vehicle on the lift with passengers inside. Before lowering, check the lift
and lift area and remove all obstructions. Before removing vehicle from the lift or lift
area, confirm an unobstructed exit.
Safety continued on page 6 …….

6

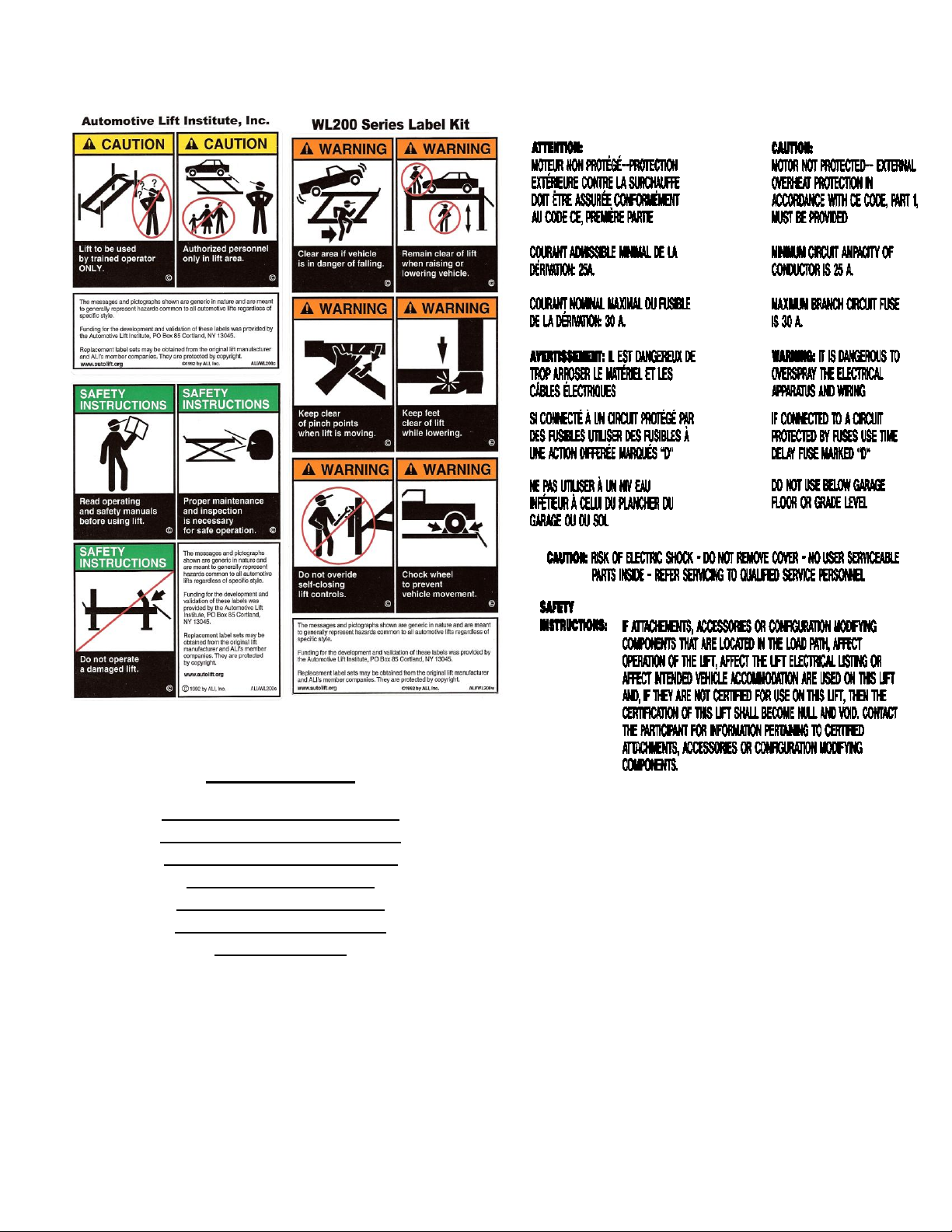

Safety Instruction and Information Decal Kit (included with the lift)
Review all safety
information daily
with all lift
operators
LIFT SAFETY and LIFT MAINTENANCE
MUST BE PART OF YOUR DAILY ROUTINE
IMPORTANT :
Insure Safety Instruction
Decals and Hang Card are
affixed to the lift console
or operator pendant
immediately following
installation and before
the lift is used
ELECTRICAL SAFETY DECAL

7
25"
(639 mm)
48"
(1219 mm)
Console

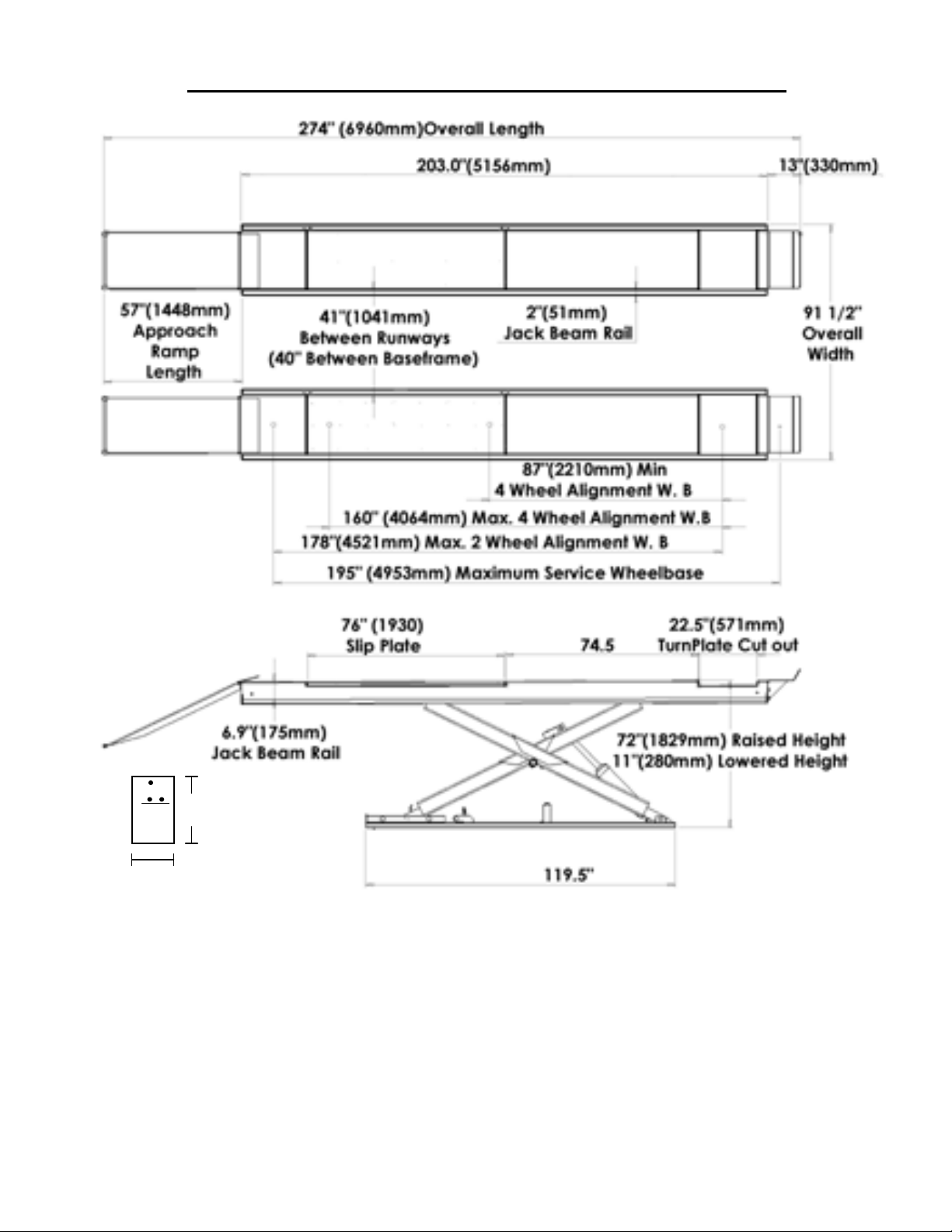

GENERAL REQUIREMENTS and LIFT SPECIFICATIONS
14,000 lb. (6,350 kg) Capacity - 7,000 lbs. (3,175 kg) each Runway
Ongoing design modifications and quality improvements may change specifications listed in this manual without notice
Lift should only be installed on level concrete floors with a minimum of 4 inches (102mm)
and 3000 psi (20.7MPa) concrete that has been aged a minimum of 30 days.
A constant supply of 230 volt –1 phase –60 Hz –30 amp electrical power and a
constant supply of 125 psi dry compressed air is required for this lift.

8
TOOLS REQUIRED and PRE INSTALLATION PROCEDURES
Tools Required:
25ft. Measuring Tape
Chalk Line and Chalk
Side Cutters (tin snips)
Floor Jacks –2 (or engine crane)
Crow Bar
Metric and SAE Wrenches and Ratchet Sets
Metric and SAE Allen Key Sets
Hammer
Screwdrivers
4 ft. Level (and laser level)
Rotary Hammer Drill
¼ inch and ¾ inch diameter Masonry Drill Bits
Grout –1 pail purchased locally (see last page of this manual for reference information)
Trowel, Float and Mixing Pail for hydraulic grout
Pre Installation Procedures
Before proceeding with installation, read the installation manual and insure all instructions
are fully understood and all component parts are accounted for.
IMPORTANT: DO NOT CUT THE SHIPPING STRAPS HOLDING EACH RUNWAY
ASSEMBLY TOGETHER UNTIL INSTRUCTED TO DO SO (step 3 –page 9).

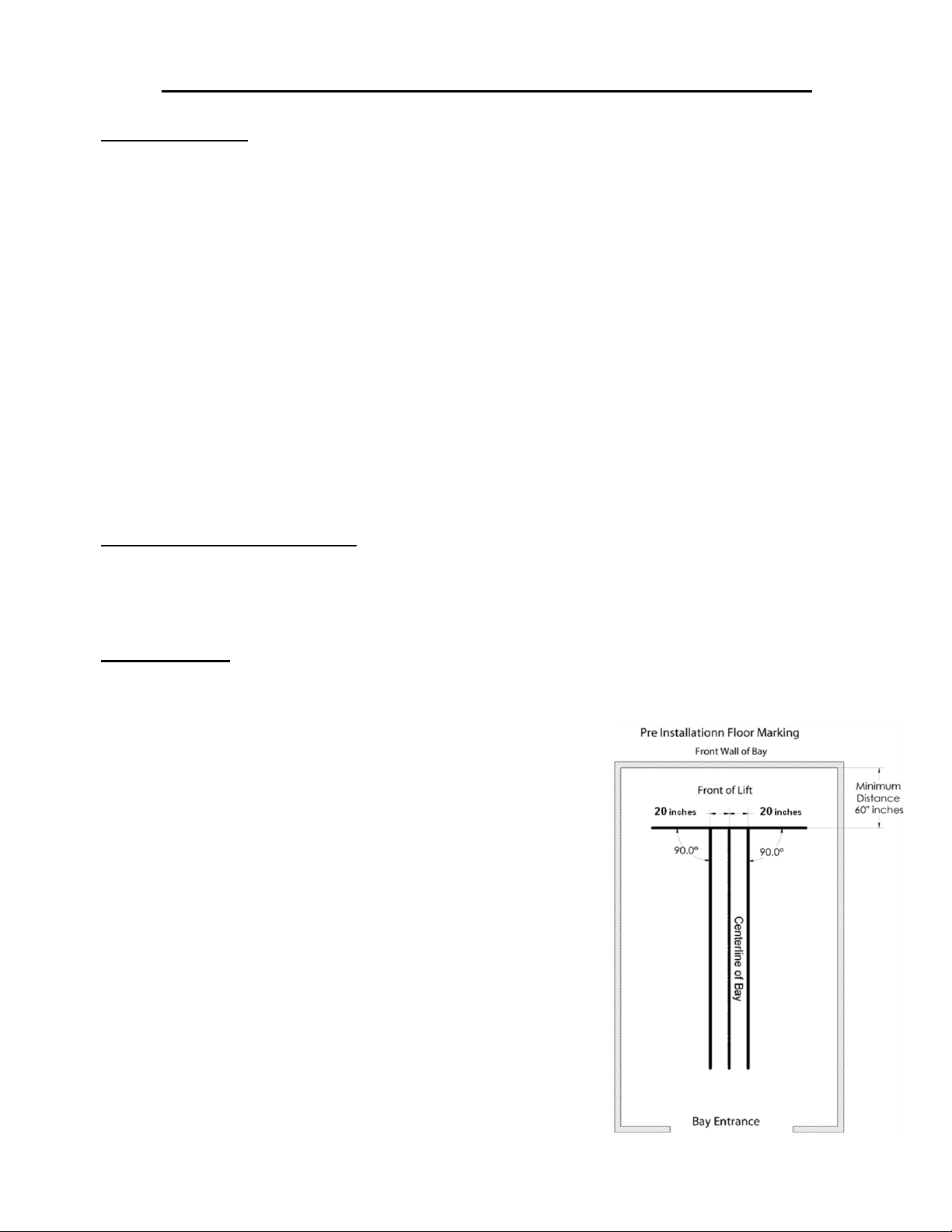

1. Identify bay center line near the front and mark the floor.
Also mark the center of bay entrance door. Connect
these two points with a chalk line. Locate the position
for front of the lift and draw a second chalk line at 90°
to the centerline (this will be used to position the fronts of
both runway assemblies - refer to lift dimensions on page 7).
2. At the front, measure 20 inches out from either side
of the centerline and mark the floor. Near where the
rear of the lift will be, measure 20 inches out from
either side of the centerline and mark the floor. Using
these marks draw two parallel chalk lines the length of
the lift (these will be used to position the inside edge of each
base frame).
Pre Installation Instructions continued on page 9

9
3. Carefully remove accessory box, (rolling air/hydraulic jack(s), and
turnplate boxes if applicable) from on top of runway assemblies.

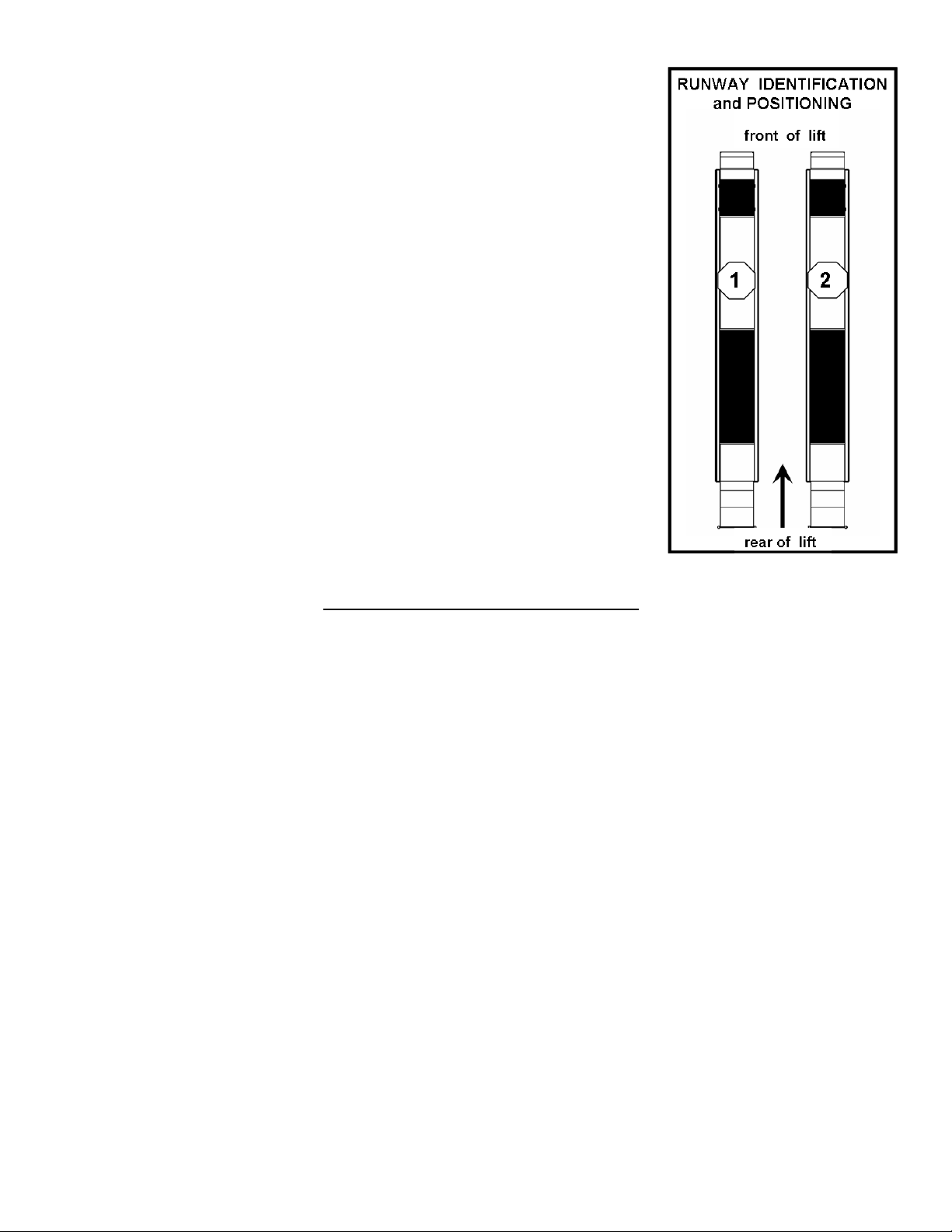

Identify top runway assembly (see diagram to the right > >).
Move it to its proper position on the chalk lines you have marked.
Use extreme care not to damage preinstalled hydraulic, air and
electrical lines stored under the rear of each runway assembly.
Remove approach ramps from lower runway assembly and set
off to one side. Position second runway assembly on the chalk
lines you have marked. Confirm that turnplate pockets are at
the front of the bay and that all base frame edges are a minimum
6 inches from any floor seam. All anchor bolts must also be a
minimum of 6 inches away from any floor seam. Do not install if
floor has cracks or deterioration that could affect lift stability or
safety. The shop owner is responsible for confirming there are
no obstructions in the installation area like floor drains, under floor
piping or electrical conduit that could be damaged or would
prevent safe lift installation and secure lift anchoring. Check
ceiling for beams or heating ducts and walls for protruding
structures, etc.. Insure that the lift can be safely installed in the
position you have marked on the bay floor. Remove all packaging
material from installation area.
INSTALLATION PROCEDURE
See the Installation and Parts Reference section of this manual for diagrams and parts lists
that will assist you during the installation process (pages 14 –28). Use these diagrams and
parts lists together with the following written instructions. Insure the lift installation complies
with ANSI/ALI/ALIS, Safety Requirements for Installation and Service of Automotive Lifts.
1. Remove hydraulic, air and electrical lines from under the rear of each runway assembly.
Use extreme care not to damage any of these preinstalled items. Place on top of runway.
2. Unbolt steel shipping supports and remove from installation area.
3. Confirm that the front of both runways and inside base frame edges are on the chalk lines
you have marked. Also confirm that the runway assemblies are parallel to one another
(inside base frame distance front and rear must be equal - diagonal base frame distances front to
rear must also be equal).After confirming that the two runway assemblies are exactly
where they need to be, remove the shipping straps.
4. Unpack operator console and move to desired location (reference diagram #1).
5. Carefully uncoil hydraulic, air and electrical lines and route them to the operator console
insuring there are no kinks.
6. Connect hydraulic, air and electrical lines as follows: (reference diagrams #3 to #8)
(i) Connect hydraulic line from passenger side of lift to console manifold marked
“passenger side”. Connect hydraulic line from driver side of lift to console manifold
marked “driver side”.
(ii) Connect passenger side return oil line (5/32” black tubing) to “T” fitting from accessory box.
Connect driver side return oil line (5/32” black tubing) to “T” fitting. Connect “T” fitting to
oil reservoir cap in console using 5/32” black tubing from accessory box.
Installation Procedure continued on page 10

10
(iii) Connect passenger side safety lock air line (5/32” blue tubing) to “T” fitting from accessory
box. Connect driver side safety lock air line (5/32” blue tubing) to “T” fitting. Connect “T”
fitting to air solenoid in console using 5/32” blue tubing from accessory box.
(iv) Connect rolling air/hydraulic jacks air line from lift to console (if optional rolling jacks were purchased)
(rolling jacks must be installed with air lines connected to the lift before turning on the air)
NOTE : All electrical wiring other than low voltage (24 volts or less) should be
performed by a certified electrician.
(v) Low Voltage Linear Transducer Connections –1 cable from runway #1 and 1 cable from runway #2
Do not proceed with low voltage electrical connections at this time. The lift
must first be cycled up and down several times (step #11) to remove air pockets before
connecting these cables. Low voltage electrical connection is step #16.
7. Fill oil reservoir with hydraulic oil (ISO 32).
8. Connect operator console or control pendant to electrical service
(should be performed by a certified electrician).
9 . Lift operation controls on the console perform the following functions:
- "RAISE" button raises the lift. "LOWER" button lowers the lift. Note: Pressing the "lower" button
will first raise the lift slightly to clear the safety locks and then proceed down to desired height.
- "ALIGNMENT LEVEL" button lowers the lift into safety locks for alignment purposes. Note: The
"alignment level" button and the "lower" button must be pressed at the same time to lower
and level the lift on the safety locks.
- "EMERGENCY STOP" button stops the lift from being raised or lowered.
Note : Always lock both slip plates and turnplates following alignment adjustments and before
removing vehicle from the lift.
10. Press the "UP" button and raise the lift 18 inches from the floor. Press the "DOWN"
button and lower the lift down to the floor. Check hydraulic oil level in operator console
reservoir and top up if required. Check all hydraulic and air lines to insure no leaks.
11. Press the "UP" button and raise the lift 36 inches from the floor. Press the "DOWN"
button and lower the lift down to the floor. Press the "UP" button and raise the lift
60 inches from the floor. Insure the safety locks under both runway assemblies are
engaging properly when the lift is being raised.
12. Important: Before proceeding, confirm that all safety locks are totally engaged.
Dependable performance and accurate alignment results require a precisely leveled lift.
Take special care to complete the following leveling process: Check both base frames with
a 4 ft. level and identify the highest point. The leveling process will raise lower points on
both base frames to match (or be level with) the high point you identify. Using preinstalled
adjustment bolts located at the front and rear of each base frame, proceed to raise the
low points on each base frame to match (or be level with) the highest point you identified.
(reference diagram #9 for correct level measurement sequence)
Note: adjustment bolts cannot be used to support the lift when in use. They
are only used during the leveling process.
After the base frame has been leveled, confirm that both raised runway surfaces are also
level front to back and side to side.
Grout thickness (measured from the floor to the bottom edge of a base frame) cannot exceed
1½ inches. Confirm this maximum limit is not exceeded by taking measurements at one
foot intervals around both base frames. If you measure a distance greater than 1½ inches
stop the installation and call the manufacturer at 1 - 866 - 799 - LIFT (5438).
The manufacturer will advise you how to proceed (grout installation is step #14).
Installation Instructions continued on page 11

11
13. If both base frames are completely level - - the bottom edges are less than 1½ inches
from the floor - - and are located exactly on the chalk lines you have drawn - - drill and
install all anchor bolts, washers and nuts. DO NOT TIGHTEN (anchor bolt tightening is
step #18). Grout must be installed and allowed to completely cure before tightening
anchor bolts. Wear safety goggles and practice caution when drilling anchor bolt holes.
14. A sufficient quantity of grout must be purchased locally. Refer to grouting instructions on
the container (use last page of this manual as a reference). Evenly distribute grout under the
total base frame area and finish edges with a 45 degree chamfer. Leave a small opening
at the lowest point on the floor under both base frames for adequate drainage of any
liquid. Refer to recommended cure times on the grout package. Do not operate lift or
disturb grout during curing process.
15. While waiting for the grout to cure, fine tune the routing of hydraulic, return oil, air and
electric lines from the lift to the console carefully placing them under line covers provided.
Insure a kink free routing. Reconfirm that the operator console is exactly where you
want it and that all lines are safely enclosed by the line covers. Drill and install anchor
bolts, washers and nuts for line covers and operator console. Coil excess hydraulic, air
and electrical lines and secure with cable ties in lower area of the operator console.
16. Connect Low Voltage Linear Transducer Cables (reference diagram #6 & #7) - one cable
from runway #1 and one cable from runway #2
Connect the three wires in each cable as follows: both Red wires to Pin #19 - the White
Wire from runway #1 to Pin #22 –the White wire from runway #2 to Pin #21 - both
Black wires to Pin #20.
17. Install both front wheel stops and rear approach ramp brackets (reference diagram #10).
(approach ramp installation is step #21).
18. Refer to manufacturer's recommended cure times and confirm that all grout has
completely cured. Back off all leveling adjustment bolts two turns. Torque all anchor
bolts to 75 ft.-lbs. (102Nm). Anchor bolt security is a monthly maintenance check.
19. Runways should be level (front to back and side to side) in the down position. Using the
leveling support bolts located in each corner of both base frames, level both runways
(reference diagram #9). This may involve raising and lowering the lift several times.

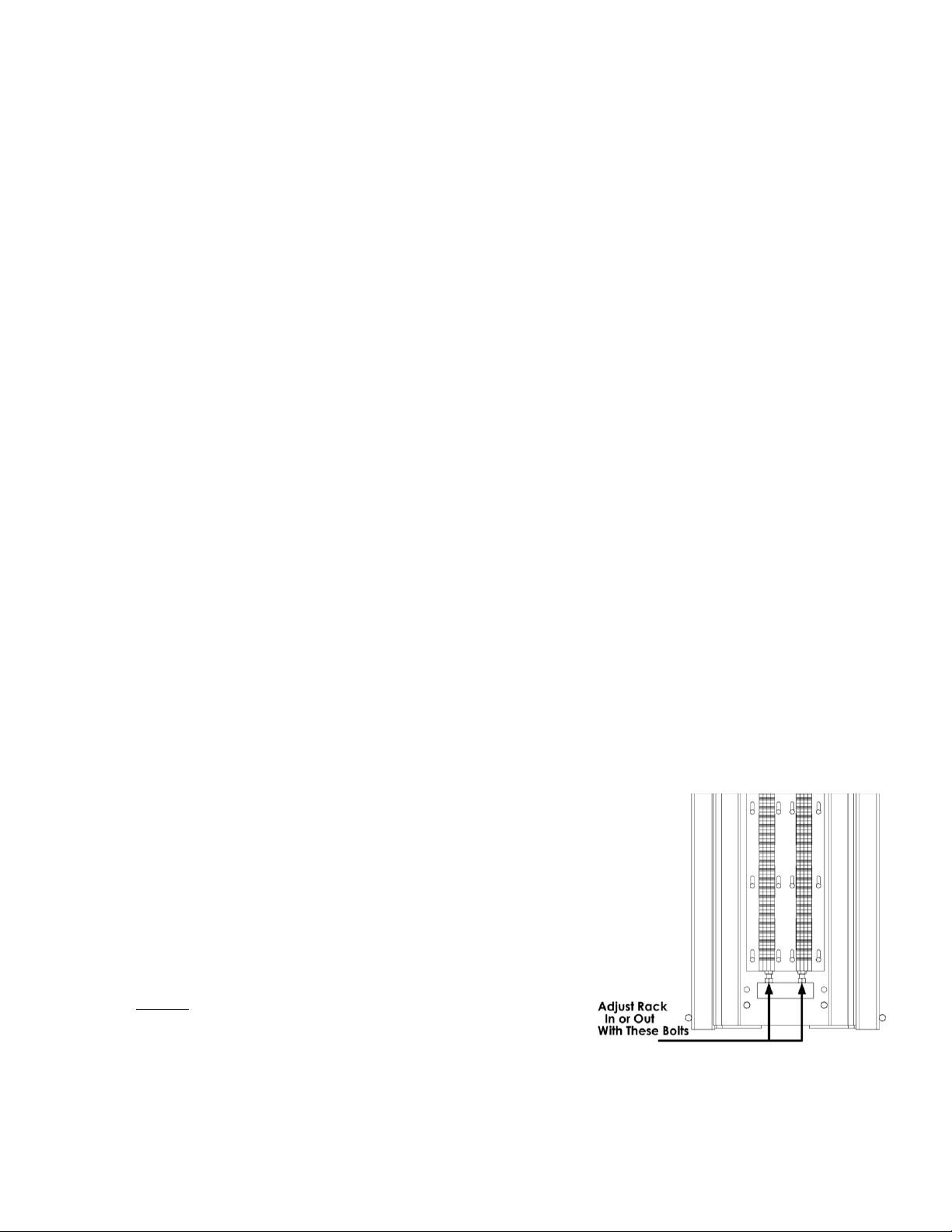

20. Adjust both safety locks to insure simultaneous and uniform engagement when lift is being
raised (reference diagram to the right). This will ensure that both
runways are level with one another while "on the locks" which is
important for correct alignment readings. Insure these safety
locks maintain their adjustment.
21. Install rear approach ramps using pins, washers and cotter pins.
22. Install rolling air/hydraulic jacks (if applicable) and connect air lines.
23. To avoid damage, safety instruction and information decals
are not applied at the factory but shipped with the lift.
The ALI - WL200 Series Label Kit or WL2200 hang card
must be applied to lift console or control pendant
before the lift is used (reference diagram #11).
Insure that all lift operators are trained in all
points covered by this and other safety information.
Insure this manual along with all operation, inspection and
maintenance instructions are delivered to the owner/user/employer

12
Final Checkout Procedure of Assembled Lift
Confirm that all hydraulic and air lines are tight with no leaks
Check hydraulic oil level in reservoir and confirm hydraulic system has been bled of all air
Confirm that all electrical components have been wired properly and are operational
Confirm lift base and runways are level and all anchor bolts torque to 75 ft.-lbs. (102Nm)
Confirm safety locks are functioning properly
Lubricate all lubrication points
OPERATING and MAINTENANCE INSTRUCTIONS
LIFT OPERATION: Before lifting a vehicle, insure all operators are qualified, have
been trained and are following all safety instructions. Read and follow the ALI
"Lifting It Right" manual included with the lift. (see example of SAE J2184 standard below)
Insure that every vehicle will be securely
positioned on the lift (use wheel chocks).
When using air/hydraulic rolling jacks to lift
a vehicle, always use vehicle manufacturer's
recommended lifting points(CD included with the lift).
Insure all materials stay up to date » »
www.autolift.org/
Never allow anyone under the lift when raising or
lowering. Always insure mechanical safety locks
are completely engaged on both sides of the lift
before proceeding under the lift or a vehicle.
Lift operating controls are located on the console or hand held pendant (one "up"
button for raising the lift - one "level" button for lowering the lift into the safety locks for alignment -
and one "down" button for lowering the lift). Note: When pressing the "down" button, the
lift will first raise slightly to clear the safety locks and then proceed to lower.
LIFT MAINTENANCE : Before maintaining, servicing or repairing the lift, insure that an
acceptable "lock out/tag out device is activated.
The following minimum maintenance schedule must be performed by the owner and/or lift
operator:
DAILY: - Raise and lower the lift (with no vehicle) at the beginning of each shift to verify the
runways are level and that the lift is operating properly.
- Check all hydraulic fittings and lines for damage and leaks. Check electrical wiring
for damage. Check all moving parts for uneven or excessive wear. Repair or replace
all damaged, worn, or broken components immediately.
- Clean all debris from the base frame area
- Remove oil/grease on runways and rolling jack lift pads.
lift maintenance continued on page 13 ……

13
WEEKLY: - Check hydraulic fluid in console reservoir and top up if required.
- Check safety lock adjustment.
MONTHLY: - Check that all anchor bolts are torqued to 75 ft-lbs (102Nm).

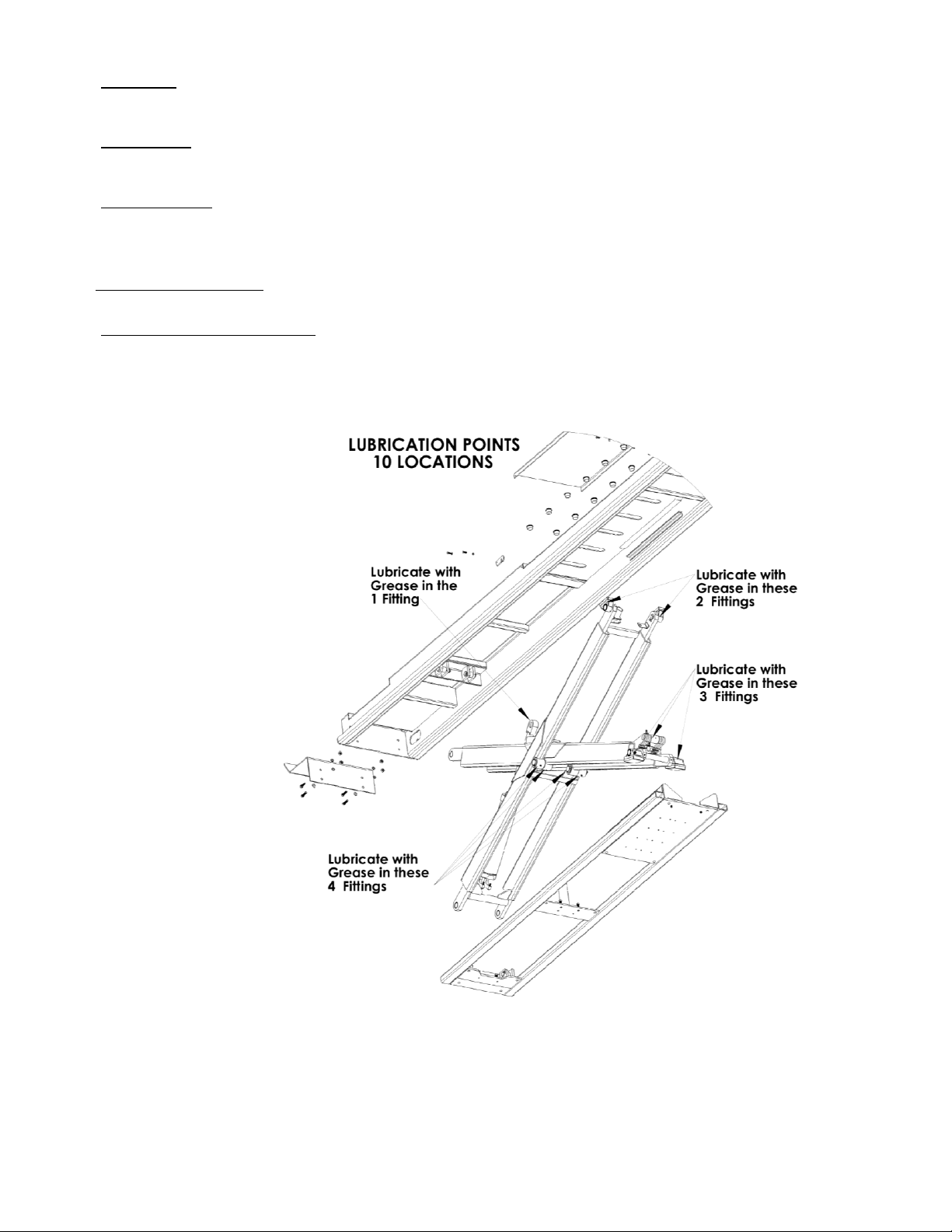

- Clean and lubricate moving parts (see diagram #4 for grease fitting locations)
EVERY YEAR: - Arrange for a Trained Lift Service Person to inspect and certify all aspects of
the lift as per "Automotive Lift Operation, Inspection and Maintenance"
(ALOIM) guidelines.
EVERY TWO YEARS: - Change and replace hydraulic oil in cylinders and console reservoir.
Lubrication Specifications: - where grease is required use a multi-purpose lithium grease
- where lubricating oil is required use a SAE 30 oil
- where hydraulic oil is required use ISO 32 –10W non detergent
hydraulic oil.
Replace all worn or broken parts and components only with
manufacturer approved/supplied parts and components
Replacement parts may be purchased from your local lift supplier or
the manufacturer at 1 - 877 - 799 - LIFT (5438) or (905) 847 - 1198

14
LIFT PROBLEM TROUBLESHOOTING GUIDE
The following are suggestions to consider if you have problems with the lift. Please call a
Trained Lift Service Person and/or qualified electrician for further clarification and information.
Problem
Cause
Solution
Lift Will Not
Raise or
Lower
1. Blown fuse or circuit breaker
2. "Emergency Stop" button engaged
3. Tripped thermal overload
4. Incorrect voltage to motor
5. Bad wiring connections
6. "UP" switch burned out
7. Motor windings burned out
8. Side to side synchronization has
exceeded maximum limits
1. Replace fuse or reset/replace circuit breaker
2. Release button or replace
3. Reset thermal overload
4. Supply correct voltage to motor
5. Repair and insulate all connections
6. Replace switch
7. Replace motor
8. Call a Trained Lift Service Person for assistance
Lift Will Not
Raise
1. Air in oil or low oil level
2. Lowering Valve leaks
3. Motor runs backward
4. Pump damaged
5. Pump will not prime
6. Relief Valve leaks
7. Voltage to motor incorrect
8. Lift overloaded
1. Check fluid level, oil seal, bleed system
2. Clean valve or replace
3. Check for correct wiring
4. Repair of replace pump
5. Check fluid level and pick-up tube - replace pump
6. Clean Relief Valve (replace if necessary)
7. Supply correct voltage to motor
8. Verify that loaded vehicle weight does not
exceed rated lift capacity
Lift Will Not
Lower
1. Faulty lowering solenoid valve
2. Obstruction under lift or in roller
tracks
1. Replace valve
2. Carefully remove obstruction
Lift Will Not
Hold
Pressure
1. Contamination in system
2. Internal Cylinder leaks
3. Lowering Valve leaks
4. Check Valve leaks
5. External leaks
1. Check oil level - bleed cylinders - remove
contamination - replace oil seal
2. Check fitting, replace cylinder
3. Contaminated fluid, handle binds, clean valves
4. Clean check valve (replace if necessary)
5. Check all fittings and repair leaks
Lift Going
Up Out of
Level
1. Lift installed on un-level floor
2. Linear Transducer Cables at the lift
have changed position relative to
one another
1. Reinstall on level surface
2. Adjust (rotate) one cable to match the position of
the opposite cable. Call a Trained Lift Service
Person if problem persists
Anchors Will
Not Stay
Tight
1. Holes drilled oversize
2. Concrete floor thickness or holding
strength not sufficient
1. Relocate lift using the correct bit to drill holes
2. Break out old concrete and re-pour new
foundation per lift installation instruction
Locking
Mechanisms
Do Not
Engage /
Disengage
1. Safeties are binding
2. Faulty air cylinder
3. Damaged air line
4. Safety locks do not latch properly
5. Safety locks do not disengage
1. Lubricate mechanism
2. Replace air cylinder
3. Repair/replace air line
4. Adjust mechanisms per lift installation instructions
5. Check air supply and air cylinder –replace if
required. Reset electronic circuit by pressing
"Emergency Stop Button" for 15 seconds and then
release it. Call a Trained Lift Service Person

15
14,000 lb.
( 6350 kg )
SCISSOR LIFT
Model TLS S14ALOR R1
for installation & service part reference
SAVE this MANUAL and ALL INSTRUCTIONS
Part Number : D - SLSM - 14
Issue 0 13 E ective : December 1 5 , 2010
Supersedes Issue 0 12 - April 1 5 , 200 9
Total Automotive Lifting Solutions Inc.
2300 Speers Rd. Oakville, Ontario L6L 2X8
Phone: [phone] Fax: [phone]
www.TLSLifts.com

16

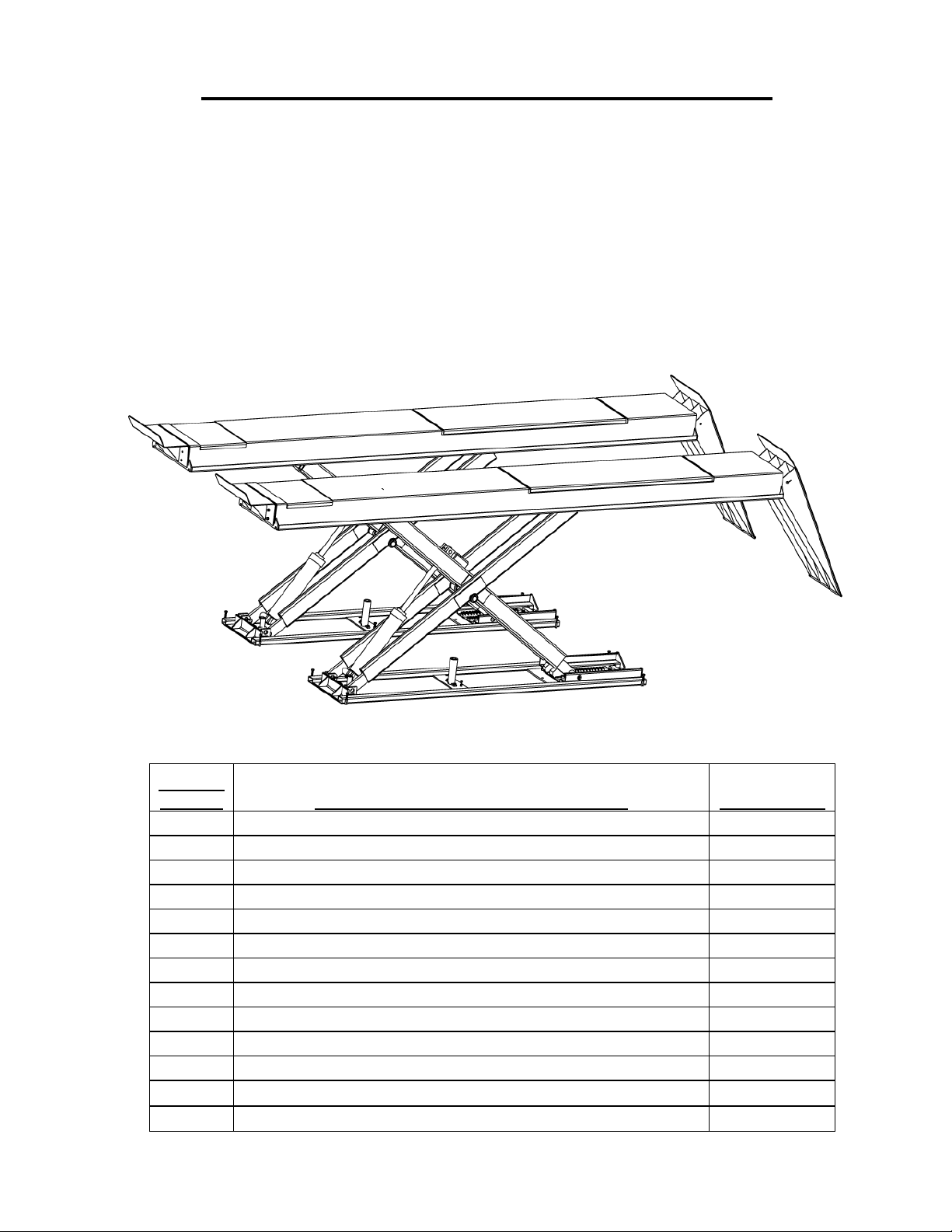

LIFT ILLUSTRATIONS and PARTS LISTS
The diagram below identifies main component parts and the order in which they are to be
installed. Numbers correspond to installation diagrams found in the chart below and on
following pages. Page numbers for each diagram is also found in the chart below. These
diagrams, along with related parts lists, will assist you when installing and servicing this lift.
Please insure these lift diagrams and parts lists are kept in a secure place for quick reference.
Diagram
Number
Diagram Description (includes Part List)
Page Number
1
Operator Console Locations
17
2
Main Component Assemblies
18
3
Scissor Assembly and Components
19
4
Scissor Assembly and Hydraulics
20 - 21
5
Console Hydraulic Connections
21 - 22
6
Air System Connections
23
7
Top View of Low Voltage Console Connections
24
8
Rear View of Low Voltage Console Connections
26
9
Leveling Procedure
27
10
Wheel Stop and Rear Approach Ramp Installation
28
11
Safety Decal Installation
29
12
Information Sheet –Grout Material
30

17
Diagram #1 : OPERATOR CONSOLE LOCATIONS

18
Item
Number
Part Number Description Quantity
141140007 Base Frame Assembly 1
241140012 Scissor Drive Arm Assembly 1
341140013 Scissor Pull Arm Assembly 1
441140031 Bottom Support Slider 1
541140033 Main Hydraulic Cylinder 1
621140006 Main Cylinder Rod Weldment 1
741140021 Safety Locking Claw System 1
841140032 Top Support Slider 1
941140005 Deck Assembly 1
10 41140015 Wheelstop Assembly with Fasteners 1
11 41140014 Pivoting Ramp Assembly 1
12 31140014
Hydraulic/Electric/AirLine Cover
c/w 16 x 1/4" nail-in anchors
1
13 41140002 Console 1
Diagram #2 :
MAIN COMPONENT ASSEMBLIES

19

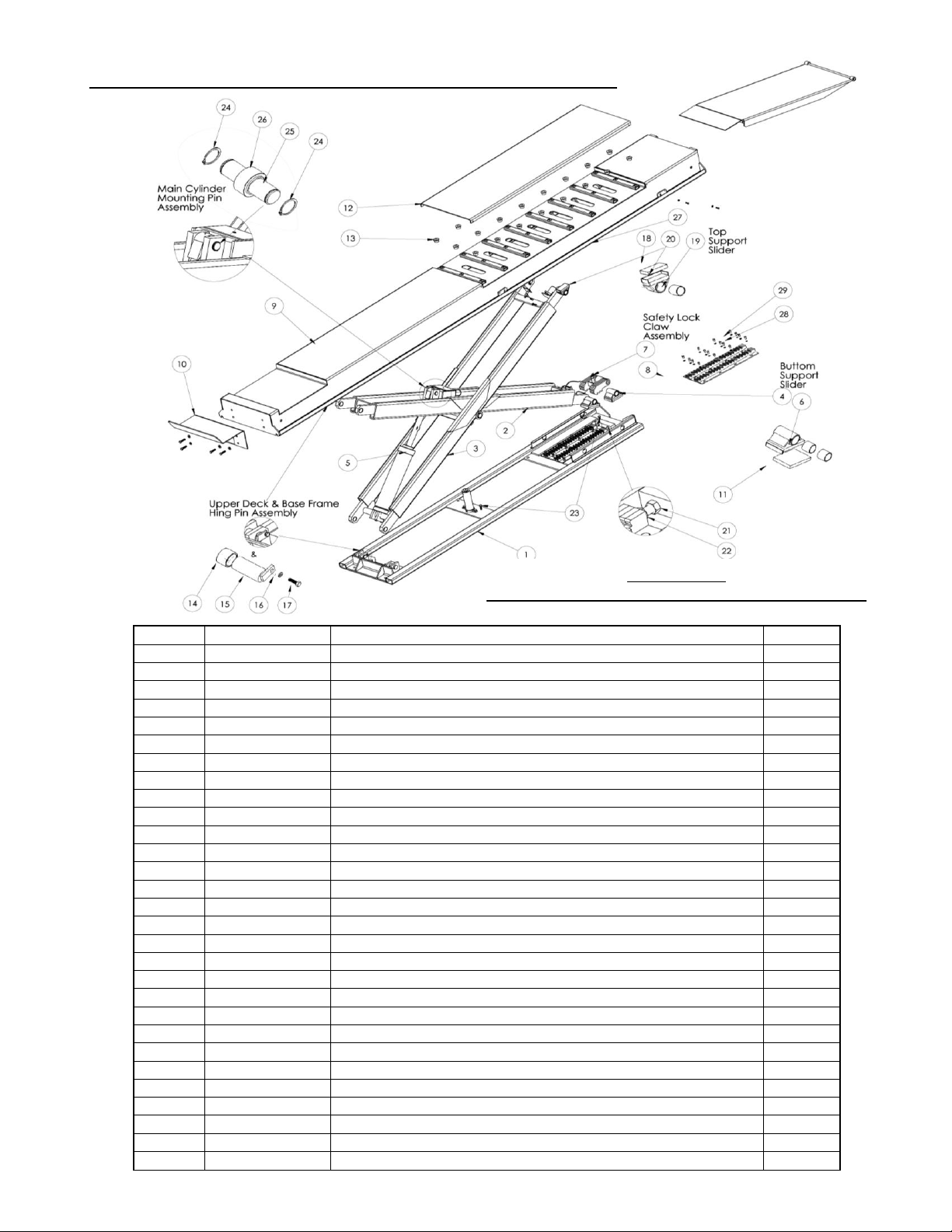

Diagram #3 : SCISSOR ASSEMBLY and COMPONENTS
Item
Part Number
Description
Qty.
1
41140007
BASE FRAME ASSEMBLY
2
41140012
SCISSOR DRIVE ARM ASSEMBLY
2
3
41140013
SCISSOR PULL ARM ASSEMBLY
2
4
41140031
BOTTOM SUPPORT SLIDER
4
5
41140033
MAIN HYDRAULIC CYLINDER
2
6
31140052
1.75"OD x 1.5"ID.1.5"L OIL IMPREGNATED
4
7
41140021
SAFETY LOCKING CLAW SYSTEM
2
8
21140031
RACK WELDMENT W / SAFETY PLATE
2
9
41140005
DECK SUB ASSEMBLY
2
10
41140015
WHEEL STOP ASSEMBLY
2
11
11140051
BOTTOM SLIDER PLATE MAT: UHMW
4
12
11140013
SLIP-PLATE SKIN
2
13
31140005
7/8" BALL TRANSFER ( SKF)
24
14
31140051
ID 1.5" x OD 1.75" x 1 1/8"LG BRONZE BUSHING (OIL)
4
15
21140026
ROLLER 1.5 DIA PIN ASSEMBLY/ (BOTTOM & TOP)
4
16
3C140029
5/16" SPRING WASHER ( LW 0.3125)
4
17
3C140035
5/16-NC x 1 BOLT
4
18
11140052
TOP SLIDER PLATE MAT: UHMW
4
19
31140053
1.5" x 1.75" x 2"L BRONZE BUSHING (Oil Impregnated)
4
20
41140032
TOP SUPPORT SLIDER
4
21
3C140036
5/8-NC x 2 BOLT ( Base Frame Stop)
4
22
3C140059
1/2 HEX NUT GR.5
4
23
3C140040
1/2-NC x 2 BOLT ( Base Frame Leveling)
6
24
3C140049
EXT.CLIP RING FOR 1-1/4" DIA SHAFT
4
25
11140033
MAIN CYLINDER MOUNTING PIN
2
26
31140072
SPHERICAL PLAIN BEARING, #12SF 20
2
27
31140044
STRING POTENTIOMETER S/N: 38021365
2
28
3C140037
3/8-NC x 3/4" L SOC. HD. CAP SCREW
16
29
3C140030
3/8" SPRING WASHER
16
Diagram #3:
SCISSOR ASSEMBLY COMPONENT PARTS LIST

20
Diagram #4 : SCISSOR ASSEMBLY and HYDRAULICS
Diagram #4: SCISSOR ASSEMBLY and HYDRAULICS PARTS LIST
Item
Part Number
Description
Qty.
1
41140010
Main Cylinder
2
2
41140011
Assist Cylinder
2
3
11140033
Main Cylinder Mounting Pin
2
4
31140013
GF-641 Hydraulic Grease Fitting 1/4 - 20 UNC
10
5
3C140039
1" x 3.5 L Hex Bolt
2
6
3C140031
1/2" Spring Lock Washer
4
7
3C140034
1/2-13 x 1" Hex. Bolt
4
8
3C140031
1/2" Spring Lock Washer
4
9
31140033
3/8 S-Fitting Male x 3/8' Male Pipe Conn.
2
Parts List Continued on Page 21
