TMC TM7006E User manual

Compact IP Codec
User's Manual
Version 1.0.6
Techno Mathematical Co., Ltd.

Compact IP Codec User's Manual
1
Techno Mathematical Co., Ltd.
2140P
Prohibitions and Precautions during Use
Prohibitions
Doing something that is prohibited can cause mal unction o this Product.
Do not disassemble or modi y.
Doing so creates the risk o electric shock.
Use only the provided AC adapter.
Using another adapter creates the risk o electric shock and ire.
Do not insert or pull out the power plug while your hands are wet.
Doing so creates the risk o electric shock.
Do not allow equipment to become wet.
Water or other liquid getting into the equipment creates the risk o electric shock
and ire.
Do not allow oreign objects to get into the unit.
Flammable or conductive objects getting into the equipment create the risk o
electric shock and ire.

Compact IP Codec User's Manual
2
Techno Mathematical Co., Ltd.
2140P
Precautions
Use only the method described in this manual to turn power ON or OFF.
(Re er to Power ON/OFF.)
Using another method creates the risk o Product mal unction.
I you do not plan to use the Product or a long period, unplug it rom the
power outlet.
Failure to do so creates the risk o electric shock and ire due to insulation
deterioration, electric leakage, etc.
Plug the power plug into an outlet as ar as it will go.
Incomplete insertion creates the risk o electric shock and ire.
Do not do anything that can cause damage to the electric cord and plug.
(Do not pull on the cord, place heavy objects on it, locate it near a heating device,
etc.)
Continued use o a damaged power cord and/or plug creates the risk o electric
shock and ire.
Do not locate the Product in areas where there are large amounts o moisture
and/or dust, where it is exposed to oil smoke and/or steam, or near a heater.
Doing so creates the risk o electric shock and ire.
Do not locate the Product where it is exposed to direct sunlight.
Doing so creates the risk o Product deterioration and/or mal unction, and ire.
Do not use the Product in a location subject to sudden temperature changes,
which can cause condensation to orm.
Doing so creates the risk o Product mal unction. Should condensation orm on
the product, leave power turned o until it dries.
Do not locate the Product in an unstable location where there is the risk o
dropping due to vibration and/or impact.
Doing so creates the risk o personal injury.
Do not locate the Product in a location where strong magnetism is present.
Doing so creates the risk o Product mal unction.
Should you ever notice smoke, abnormal sound, strange odor, or other
abnormality, immediately stop using the Product.
Continued use o a Product exhibiting such abnormalities creates the risk o
electric shock and ire.
For the rear panel input ports, input only signals that con orm to the
prescribed standards. (Re er to Product Speci ications.)
Doing so creates the risk o Product mal unction.

Compact IP Codec User's Manual
3
Techno Mathematical Co., Ltd.
2140P
Contents
1. Introduction ............................................................................................................. 7
Product Features .............................................................................................. 7
Main Features .................................................................................................. 7
2. Names o Parts and Functions ............................................................................... 8
3. Operation ............................................................................................................... 10
Operation Flow ............................................................................................... 10
Power ON/OFF ............................................................................................... 11
Operation rom a PC ...................................................................................... 11
Controlling the Device with the Preset Switches ......................................... 11
4. Basic Settings ........................................................................................................ 12

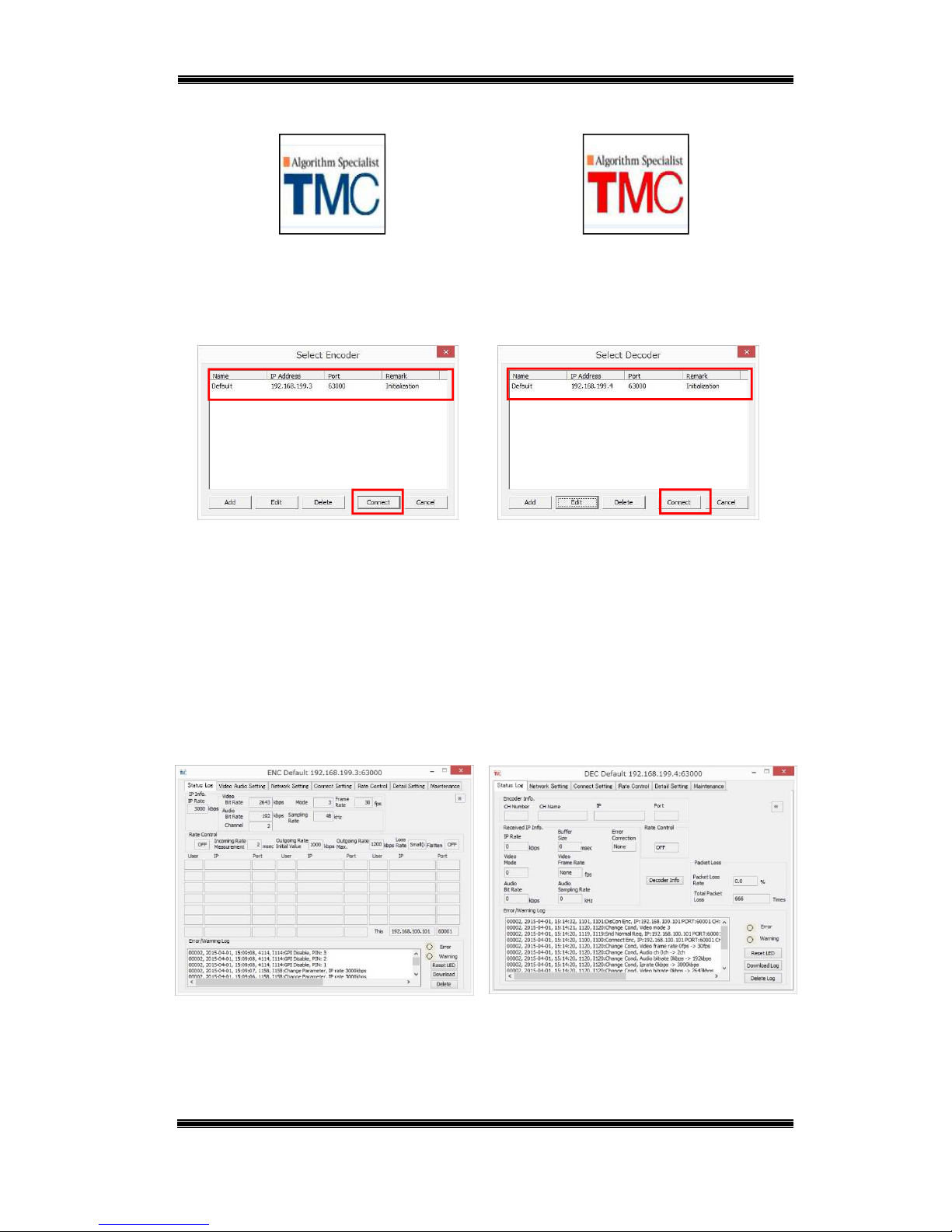

Starting Up the Application So tware ........................................................... 12
Basic Encoder Settings .................................................................................. 14
Basic Decoder Settings................................................................................... 18
5. Connecting an Encoder or Decoder ...................................................................... 20
When the Encoder has a Static IP ................................................................. 21
When the Decoder has a Static IP ................................................................. 28
When Neither the Encoder nor Decoder has a Static IP .............................. 31
5.3.1. Connection Example 1 ............................................................................ 35
5.3.2. Connection Example 2 ............................................................................ 36
6. Functions ............................................................................................................... 37
Repeater Function .......................................................................................... 37
Bidirectional Audio Call ................................................................................. 41
Auto Rate Control .......................................................................................... 44
6.3.1. Encoder Rate Control Operation Settings ............................................. 44
Rate Control Table Settings ........................................................................... 46
6.4.1. Decoder Rate Control Operation Setting ............................................... 48
7. Settings that Suit the Network Environment ..................................................... 49
Packet Length Setting ................................................................................... 49
Bu er Size Setting ......................................................................................... 50
Error Correction Settings .............................................................................. 51
Flatten Setting ............................................................................................... 53
8. Maintenance .......................................................................................................... 54
Setting File Download .................................................................................... 54
Setting File Upload ........................................................................................ 54
Firmware Update ........................................................................................... 55
9. Error and Warning Indicators .............................................................................. 56

Compact IP Codec User's Manual
4
Techno Mathematical Co., Ltd.
2140P
Appendix 1. Errors and Warnings ............................................................................... 57
Appendix 2. Product Speci ications ............................................................................. 61

Compact IP Codec User's Manual
5
Techno Mathematical Co., Ltd.
2140P
Revision History
Version
Number
Date Description
0.8 2015/02/18
0.9 2015/03/03
•Initial de ault settings added or each setting item
•Mobile data communication card compatible wireless LAN
router connection added
•In connection diagrams 5.1. to 6.1., changed "Static IP" to
"Static global IP"
•Changed "static IP server" to "IP server."
•Added precautions or bidirectional audio communication
•Deleted entry about Dummy packet settings
•Changed error and warning list log output items to actually
output notation
1.0.0 2015/03/30
•Modi ied some preset switch setting contents
•Added and deleted error and warning list items
•Replaced remote application images to the latest versions
1.0.1 2015/06/08
•Made all kilo unit symbols lower case (k)
•Deleted "Audio Input" rom encoder basic settings
•Deleted "Mode" entry
•Modi ied bidirectional audio communication connection diagram
•Added new latten mode
1.0.2 2015/07/10
•Changed "Packet Settings" preset switch command to
"Advanced Settings," and added bidirectional audio
communication contents
1.0.3 2015/08/25
•Changed "IP circuit line network" and "IP line network" to
"Internet line network"
•Changed "system" to "device"
•Changed "transmission IP rate" and "IP rate" to "transmission rate"
•Changed "application" to "application so tware"
•Added re erence positions to operation low
•Changed description o operation using an application to
operation using a PC
•Changed "audio communication" to "phone call"
•Except or those in the appendix, added numbers to all tables
and igures
•Added preset switch command example
•Added normal connection explanation

Compact IP Codec User's Manual
6
Techno Mathematical Co., Ltd.
2140P
1.0.4 2015/12/03
•Added 1280 x 720 and 720 x 480 to video input/output ormats.
•Added copyright o OPUS.
1.0.5 2016/3/22 • Changed "preset switch" to "preset switch with LED "
•Deleted preset switch command example
•Added volume control to "Bidirectional Audio Call"
• Added "Pro-MPEG" to "Error Correction Setting "
• Added "program update"
1.0.6 2016/04/06
•Improved the quality o images.
•Modi ied captions.
•Chaneged “8. Preset Swicth Settings” to “8. Maintenance”.

Compact IP Codec User's Manual
7
Techno Mathematical Co., Ltd.
2140P
1. Introduction
This Product uses standard Internet line network to transmit video and audio.
Product Features
High image quality at low bit rates
High-quality video and audio can be transmitted even over a 3G or other mobile
line.
Low latency
Transmission is possible with inter-device latency o approximately 100 ms.
Transmission with the same latency is also possible in a network environment.
(There may be some variation due to the network environment used.)
Practical unctions
Optional unctions are included to meet a variety o di erent needs: auto rate
control unction, bidirectional audio communication unction, repeater unction,
and more.
Easy operation
Four preset switches on the ront panel can be used to trigger preset unctions.
Main Features
Table 1-1 Main Features
Transmission rate 64kbps to 3Mbps
Video input/output ormats HDMI (TM7006E/TM7006D), HD-SDI (TM7007E)
1920 x 1080 60i/59.94i/30p/29.97p
1280 x 720 60p/30p
720 x 480 60i/59.94i/30p/29.97p
Automatically select
Video encoding bit rate 64kbps to 3Mbps
Video encoding rame rate 5 ps/10 ps/15 ps/30 ps (1080, 480)
10 ps/20 ps/30 ps/60 ps (720)
Audio input/output ormats HDMI (TM7006E/TM7006D), HD-SDI (TM7007E)
16bit 48kHz PCM
Audio encoding sampling rate 24kHz/48kHz
Number o audio encoding
channels
None, 1ch., 2ch.
Audio encoding bit rate 32kbps/64kbps/128kbps/192kbps
For details, re er to "Appendix 2. Product Speci ications."

Compact IP Codec User's Manual
8
Techno Mathematical Co., Ltd.
2140P
2. Names o Parts and Functions
TM7006E (encoder, HDMI input)
TM7007E (encoder, HD-SDI input)
TM7006D (decoder, HDMI output)
Table 2-1 Names o Parts and Functions
(1) Power switch Turns power ON/OFF.
(2) Power lamp Lit while power is on.
(3) Preset switches Operations are assigned to each switch be orehand (From le t to
right: A, B, C, D). When switch is pressed, Green LED is lit.
(4) Status indicators
LEDs that indicate the status o the device.
ERR (Lit red LED): Error WRN (Lit orange LED): Warning
RUN (Flashing blue LED):
Running
CON (Flashing green LED):
Transmitting data
(5) 12 VDC power
supply
Connect 12 VDC as power supply.
(6) LAN port This Ethernet port transmits and receives image and audio
Front panel Rear panel
Front panel Rear panel
Front panel Rear panel
(8)
(6)
(5)
(9)
(7)
(12)
(4)
(3)
(1)
(2)
(8)
(6)
(5)
(10)
(7)
(12)
(4)
(3)
(1)
(2)
(8)
(6)
(5)
(11)
(7)
(13)
(4)
(3)
(1)
(2)

Compact IP Codec User's Manual
9
Techno Mathematical Co., Ltd.
2140P
streams.
(7) Remote connection
port
This Ethernet port connects to the setup PC.
(8) Reset button This button resets the Product to restart when an error is
generated, etc.
(9) HDMI input port Inputs HDMI signals. (TM7006E)
(10) HD-SDI input port
Inputs HD-SDI signals. (TM7007E)
(11) HDMI output port Outputs HDMI signals. (TM7006D)
(12) A USB port and HDMI port (disabled) is located under the cover. (TM7006E/7E)
(13) A USB port is located under the cover. (TM7006D)
(1) to (8) are common to all three models, while (9) through (13) are unique to each model.

Compact IP Codec User's Manual
10
Techno Mathematical Co., Ltd.
2140P
3. Operation
Operation Flow
The low o basic operations is shown below.
*The irst time the device is used or whenever network settings (device IP
address, etc.) are changed, con igure 4. Basic Settings a ter (2).
(1) Connect the device and camera, monitor, router, and other peripherals.
(5. Connecting the Encoder or Decoder)
(2) Turn on the device and peripherals.
(3.2 Turning Power ON or OFF)
(3) Connect a PC to the device, and
per orm operations and con igure
settings on the PC using the
application.
(3.3 Controlling the Device rom a PC)
(4) Per orm operations and con igure
settings rom the device preset
switches.
(3.4 Controlling the Device with the
Preset Switches)
(5) Connect the encoder and decoder, and transmit video and audio.
(5. Connecting the Encoder or Decoder)
(6) A ter transmission is complete, turn o the device and peripherals.
(
3.2 Turning Power ON or OFF
)

Compact IP Codec User's Manual
11
Techno Mathematical Co., Ltd.
2140P
Power ON/OFF
Power ON: A ter con irming that the rear panel DC power supply is connected,
press the ront panel power switch. The power lamp will light. A ter about 40
seconds the RUN LED (blue) will lash.
Power OFF: Press the ront panel power switch. This will turn o power and
cause the power lamp and LEDs to go out.
Operation rom a PC
A ter connecting this device to the setup PC, device operation and setting
con iguration can be per ormed rom the setup PC. Download the application
so tware rom the same download site where you downloaded this User's Manual.
Controlling the Device with the Preset Switches
Operations (destination settings, rate control settings, etc.) are assigned to each o
our switches be orehand. TMC can also con igure desired settings or you.
Initial de ault settings are shown in the table below.
Table 3-1 Initial De ault Settings o Preset Switches
Switch A Switch B Switch C Switch D
Encoder
Transmission
rate
3Mbps
Transmission
rate
1Mbps
Transmission
rate
128kbps
Rate Control
ON
Decoder
Connection
request to
encoder
192.168.100.101
Connection
request to
encoder
192.168.100.102
Rate Control
OFF
Rate Control
ON

Compact IP Codec User's Manual
12
Techno Mathematical Co., Ltd.
2140P
4. Basic Settings
Con igure the settings o this device rom the application running under Windows.
Download the application so tware rom the same download site where you
downloaded this User's Manual.
Starting Up the Application So tware
To install the application so tware, execute the RemoteCtrl_nn.msi (nn: version
number) ile you downloaded. A ter installation is complete, there will be two
icons on the PC desktop: ENCODER and DECODER.
Turn on the device.
Use LAN cable to connect the setup PC and the device remote connection port.
A network hub (with at least three ports) and three LAN cables can be used to
con igure encoder and decoder settings simultaneously.
Set the PC IP address to match the remote connection IP address o the device.
The initial de ault settings o the IP addresses or device remote connection are
192.168.199.3 or the encoder and 192.168.199.4 or the decoder, so set the IP
address o the setup PC within the range o 192.168.199.1 to 255 (excluding
192.168.199.3 and 192.168.199.4).
•Open Control Panel.
•Click in the ollowing sequence: Network and Internet → Network and Sharing Center
→ Change adapter settings.
•Right-click the icon o the network whose setting you want to change and then click
[Properties].
•Select Internet Protocol Version 4 (TCP/IPv4) and then click [Properties].
•Click Advanced Settings and then click [Add].
•Enter an IP address (such as: 192.168.199.1) and subnet mask (such as: 255.255.255.0)
and then click [Add].
Con iguring the PC IP Address Setting
Hub
Encoder
Decoder
PC
Figure 4-1 Connect the Setup PC and the Device

Compact IP Codec User's Manual
13
Techno Mathematical Co., Ltd.
2140P
Click ENCODER to con igure encoder settings, or DECODER or decoder settings.
ENCODER DECODER
Figure 4-2 Application So tware Icons
Under initial de ault settings, select De ault and then click [Connect].
Figure 4-3 Select Connection IP and Port
*I you changed the remote connection IP address and port number using the
procedures under "4.2. Basic Encoder Settings" or "4.3. Basic Decoder Settings,"
click [Add] and then add the changed values. Remarks can be le t blank.
*An error message will appear i connection is not possible due to IP address
mismatch.
The screens shown below will appear ollowing startup. From here on,
explanations will be based on these screens.
Figure 4-4 Screen A ter the Connection
To exit the application so tware, click the close button ([x]) in the upper right
corner.

Compact IP Codec User's Manual
14
Techno Mathematical Co., Ltd.
2140P
Basic Encoder Settings
(1) Con igure the settings below in accordance with the network environment being
used.
A. For video and audio stream transmit/receive (LAN port)
Table 4-1 Encoder – LAN Initial De ault Setting
Setting Description Initial De ault
DHCP Set to ON when connected to a router that
supports DHCP, and to OFF to use a static IP
address.
OFF
IP Address When DHCP is OFF, sets the static IP address.
(000.000.000.000 to 255.255.255.255)
192.168.100.101
Subnet Mask
When DHCP is OFF, sets the subnet mask.
(000.000.000.000 to 255.255.255.255)
255.255.255.0
De ault
Gateway
When DHCP is OFF, sets the de ault gateway.
(000.000.000.000 to 255.255.255.255)
192.168.100.1
Port Sets the number o the port that
transmits/receives video and audio streams. (0 to
65535)
60001
B. For remote connection (remote connection port)
Table 4-2 Encoder – REM Initial De ault Setting
Setting Description Initial De ault
IP Address Sets the IP address or remote connection.
(000.000.000.000 to 255.255.255.255)
192.168.199.3
Port Sets the port number or remote connection.
(0 to 65535)
63000

Compact IP Codec User's Manual
15
Techno Mathematical Co., Ltd.
2140P

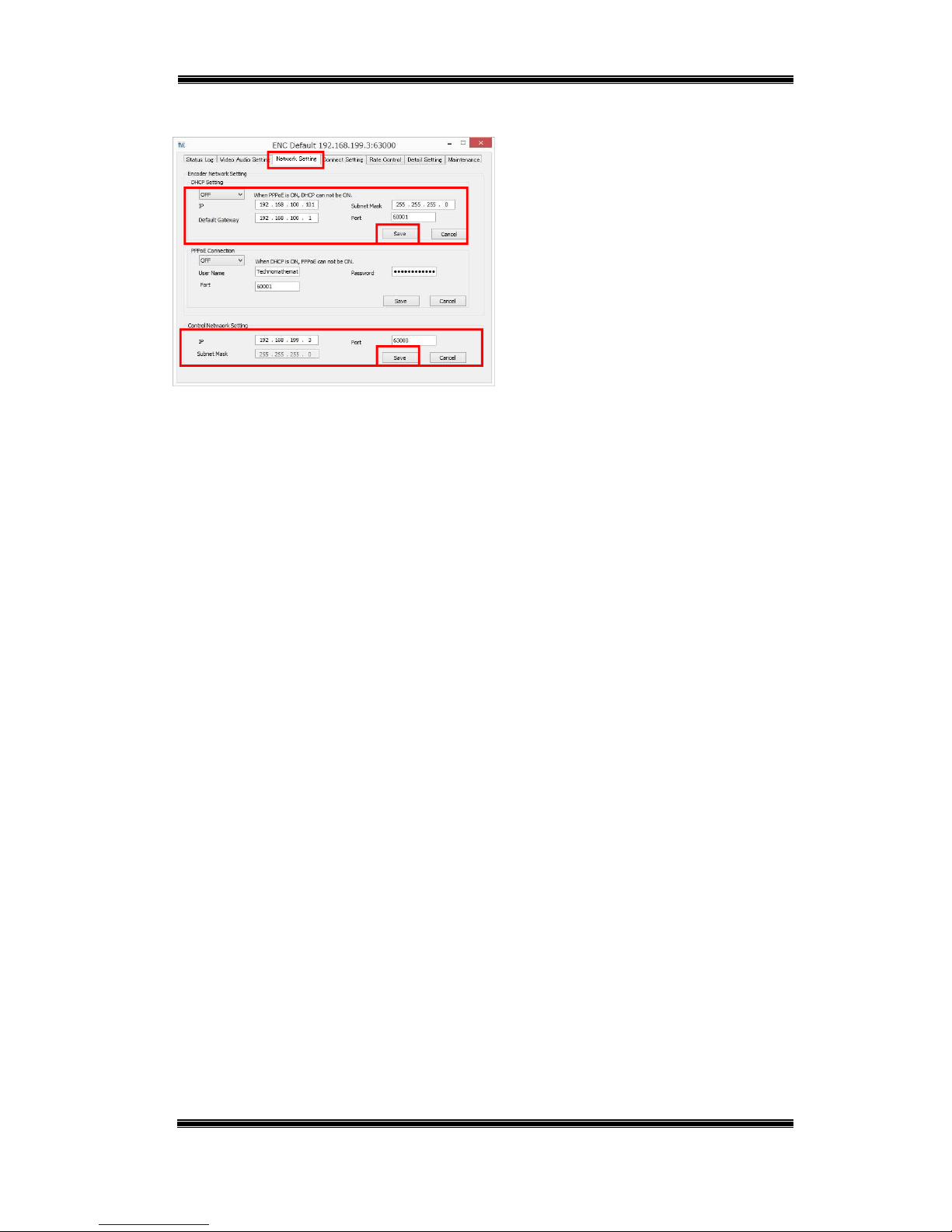

Figure 4-5 Encoder – Network Setting
■ Start up ENCODER.
■ On the Network Setting tab, con igure
the settings below.
A. For video and audio stream
transmit/receive
B. For remote connection
■ Be sure to click [Save] a ter
con iguring settings.
A
B

Compact IP Codec User's Manual
16
Techno Mathematical Co., Ltd.
2140P
(2) Settings or encoding are described in the table below.
Table 4-3 Settings or Encoding
Setting Description
IP Rate Sets the transmission rate*1 within the range o 64 kbps to
3000 kbps.
Frame Rate Video rame rate setting: 5, 10, 15, 30 ps
Flatten Sets the transmission packet lattening*2 mode (OFF,
LowDelay, Quality, Double, 2Frame, 3Frame).
For details, re er to "7.4Flatten Setting."
CH Number
/Bit rate
/Sampling rate
Con igures the settings o a group consisting o the number o
audio channels, bit rate, and sampling rate as a group.
0ch/0kbps/0kHz
1ch/16kbps/24kHz 1ch/32kbps/24kHz
1ch/32kbps/48kHz 1ch/64kbps/24kHz
1ch/64kbps/48kHz 1ch/128kbps/48kHz
2ch/32kbps/24kHz 2ch/64kbps/24kHz
2ch/64kbps/48kHz 2ch/128kbps/24kHz
2ch/128kbps/48kHz 2ch/192kbps/24kHz
2ch/192kbps/48kHz
*1
Transmission bit rate on the Internet line network
*2
Maintains a ixed transmission rate and does not exceed the rate setting.

Compact IP Codec User's Manual
17
Techno Mathematical Co., Ltd.
2140P
Figure 4-6 Encoder – Video Audio Setting
■ On the Video Audio Setting tab,
con igure settings.
■ A ter con iguring the settings o ive
groups, you can switch between the
groups by clicking the radio buttons on
the le t.
Initial de ault settings are shown in the table below.
Table 4-4 Video Audio Setting – Initial De ault Setting
IP Rate
(kbps)
Frame Rate
( ps) Flatten
CH Number
/Bit Rate
/Sampling Rate
No.1 3000 30 OFF 2ch/192kbps/48kHz
No.2 1000 30 OFF 2ch/64kbps/24kHz
No.3 512 15 OFF 2ch/32kbps/24kHz
No.4 128 10 OFF 1ch/16kbps/24kHz
No.5 64 5 OFF 0ch/0kbps/0kHz

Compact IP Codec User's Manual
18
Techno Mathematical Co., Ltd.
2140P
Basic Decoder Settings
Con igure the settings below in accordance with the network environment being
used.
A. For video and audio stream transmit/receive (LAN port)
Table 4-5 Decoder – LAN Initial De ault Setting
Setting Description Initial De ault
DHCP Set to ON when connected to a router that
supports DHCP, and to OFF to use a static IP
address.
OFF
IP Address When DHCP is OFF, sets the static IP address.
(000.000.000.000 to 255.255.255.255)
192.168.100.160
Subnet Mask
When DHCP is OFF, sets the subnet mask.
(000.000.000.000 to 255.255.255.255)
255.255.255.0
De ault
Gateway
When DHCP is OFF, sets the de ault gateway.
(000.000.000.000 to 255.255.255.255)
192.168.100.1
Port Sets the number o the port that
transmits/receives video and audio streams. (0 to
65535)
60010
B. For remote connection (remote connection port)
Table 4-6 Decoder – REM Initial De ault Setting
Setting Description Initial De ault
IP Address Sets the IP address or remote connection.
(000.000.000.000 to 255.255.255.255)
192.168.199.4
Port Sets the port number or remote connection.
(0 to 65535)
63000

Compact IP Codec User's Manual
19
Techno Mathematical Co., Ltd.
2140P
Figure 4-7 Decoder – Network Setting
■ Start up DECODER.
■ On the Network Setting tab,
con igure the settings below.
A. For video and audio stream
transmit/receive
B. For remote connection
■ Be sure to click [Save] a ter
con iguring settings.
A
B
