Toa AS-100A User manual

TOA INSTITUTIONAL COMMUNICATION SYSTEM
CONTROL STATION
AS-100A
DESCRIPTION
The AS-100A control station with handset is constructed of
high impact ABS, and controls all communication to remote
sub-station handsets and/or speakers. The AS-100A also
controls paging and time functions for the entire system,
which are all indicated with the integrated LCD display.
The AS-100A measures 8.5" (216mm)(W) x
2.8" (69.5mm)(H) x 8.2"(208mm)(D) and weighs
2.2lbs. (960g).
FEATURES
1. Full-duplex communication with remote sub-station
handsets and other AS-100A units.
2. Half-duplex communication with remote sub-station
speakers.
3. Full outside (C/O) telephone line functions.
4. 12-digit LCD shows dialing data, displays priorities,
current time, and messages from personal computer.
5. High/Low selectable speaker volume control.
6. Direct connection of external microphone or headset.
7. Membrane keypad.
8. Controls all paging functions.
9. Controls all time signal functions.
10. Jack for 4-pin STD Modular telephone plug connection.
11. Provides 3-party conferencing.
12. Programming from keypad.
13. Desk or wall mountable.
14. Uses 22-24 AWG, two (2) pair twisted wire.
15. Initiates Duress Alarm.

SPECIFICATIONS
Handset Transmitter & Dynamic type, 130 ohms each
Receiver
Internal Speaker Dynamic type, 8 ohms, 2.25”(57mm) dia.
0.6W
Internal Microphone Electret condenser type
Keypad Membrane key switch
Speaker Volume Control H/L selectable
External Input
Display External mic. or headset connectable
LCD, 12-digit
Wiring Twisted 2 pairs, nonpolar (Desk mounting to
4-pin STD Modular telephone connector)
Power Requirements
24 VDC, 30mA
--
Operating Temperature
32° to 104°F (0° to 40°C)
Case Material & Color
ABS resins, pale white
Dimensions (W x H x D) 8.5” x 2.8” x 8.2” (216 x 69.5 x 208mm)
Weight 2.2lbs. (960g)
Accessory included
Wall mounting bracket
*Specifications are subject to change without notice.

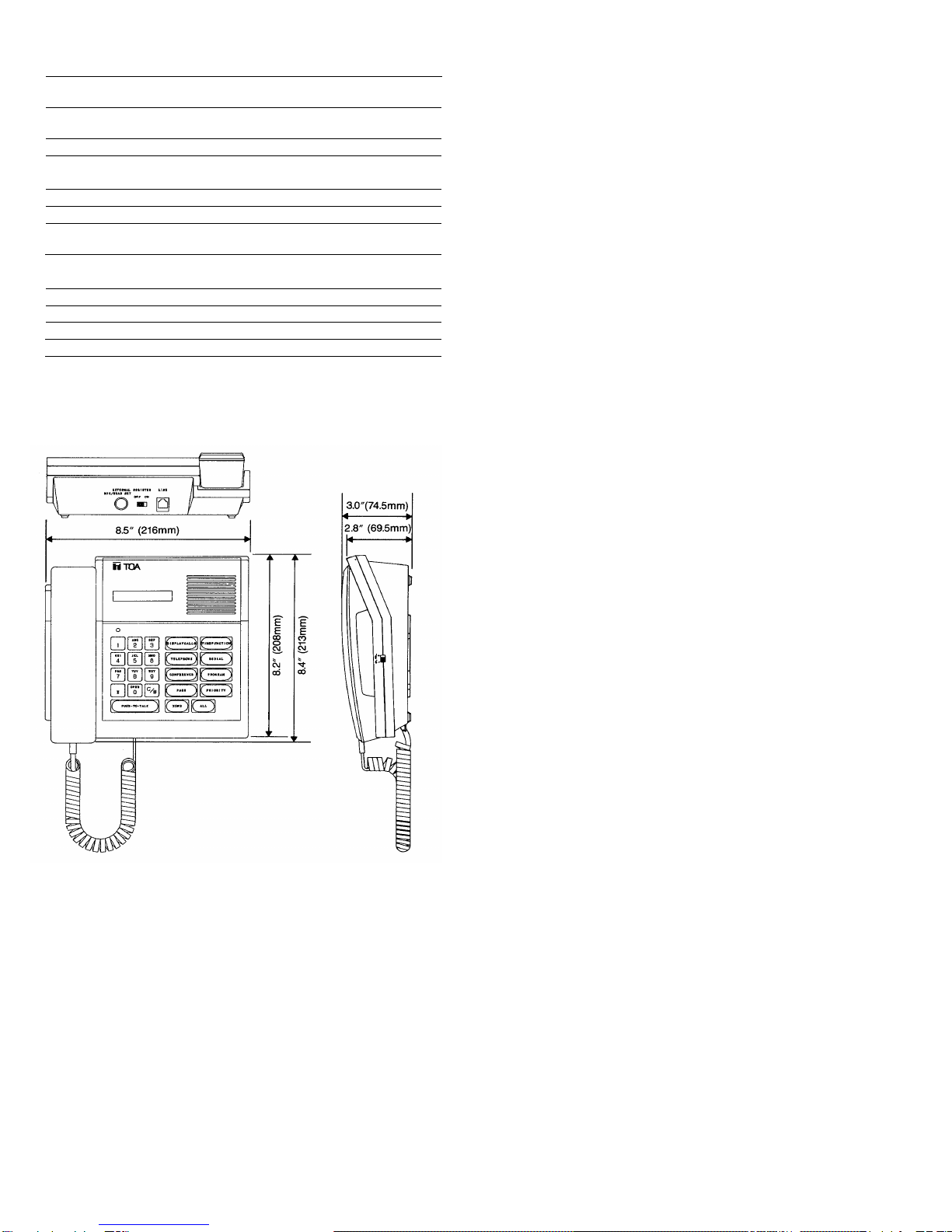

APPEARANCE AND DIMENSIONAL DIAGRAM
ARCHITECT’S AND ENGINEER’S SPEClFlCATlONS
The Master Control Station shall be a TOA AS-100A and
shall be capable of full-duplex communication with other
AS-100A and RS-110 (handset room station) units, via the
AS-100A dynamic handset. The AS-100A shall be
capable of “hands-free” communication with other
AS-100A via an on-board dynamic electret condenser mic
and have the ability to attach an external mic or headset
via a 1/4” jack. The AS-100A shall be configured with a
12-digit LCD display, a modular (TELCO type) jack for
standard four (4) conductors, 22-24 AWG wire, and an
8-ohm, dynamic speaker with volume switch.
The AS-100A shall be capable of DTMF dialing for C/O line
telephone calls. All programming, paging, calling and
program distribution functions shall be user operated from
the AS-100A membrane keypad. The AS-100A shall be
made of high impact ABS resins and shall be desk or wall
mountable.
TOA Corporation Printed by QQ Printing 2/97
