TOCMOC T185 User manual
VACUUM CLEANER
INSTRUCTION MANUAL
For any questions and malfunctions of the appliance during use, please contact our
MODEL: T185
何か不明な問題がございましたら、いつでも弊社にお気軽にご連絡くださいませ。
LINE ID：tocmoc.jp
メールアドレス：[email protected]
English
日本語
CONTENT
01
02
03
03
06
08
09
09
10
バッテリーの処分
表側
保証
仕様
クリーニングとメンテナンス
チャージング
アセンブリ
よく出る問題
安全上のご注意
BATTERY REMOVAL AND DISPOSAL
OVERVIEW
WARRANTY
SPECIFICATION
CLEANING AND MAINTENANCE
CHARGING
ASSEMBLY
TROUBLESHOOTING
IMPORTANT SAFEGUARDS
11
12
13
13
16
18
19
19
20
目次
01
IMPORTANT SAFEGUARDS
1. Read this instruction booklet carefully.
2. This appliance is for domestic use only. Use as described in this instruction booklet.
3. Before using this appliance, check that the mains power voltage corresponds to the voltage
shown on the rating plate.
4. Do not use the appliance to vacuum all the latter things:
● Water and other liquids
● Lighted stub, hot ashes and other combustible things
● Sharp matter
● Wood pieces, gesso, cement, calcimine and other tiny granules
5. Keep the vacuum cleaner away from stoves and heat-emitting appliance. Heat can deform
and discolor the plastic parts of unit.
6. Always remove the plug from the power socket when the appliance is not in charging.
7. Never use spirits or other solvents to clean the appliance.
8. Never leave the appliance unattended when it is switched on. Keep the appliance out of the
reach of children or the infirm.
9. Do not switch the appliance on if it appears to be faulty in any way.
10. The battery must be removed from the appliance before it is scrapped.
11. The battery has to be disposed of safely.
12. The appliance must be disconnected from the supply when removing the battery.
13. Never use spirits or other solvents to clean the appliance.
14. Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair and anything that may reduce air flow.
15. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
16. Only the adapter provided by the manufacturer can be used.
17. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
18. The battery pack of this model vacuum cleaner is Non-removable. If you need to replace
battery pack , please send it to a professional maintenance station.
02
OVERVIEW
1. Cordless vacuum cleaner main unit
2. Battery Indicator light
3. Conductive aluminum tube release button
4. Conductive aluminum tube
5. Floor brush release button
6. Electrical floor brush
7. Crevice Nozzle
8. 2 in 1 brush
9. Stand holder
10. Adapter
11. Dust cup release button
12. Bottom cover release button
13. Removable dust cup
14. Charge port
15. On/Off button
16. Battery pack
17. Sofa brush
18. Hose
19. Water tank
20. HEAP
21. Cleaning brush
10
17
18
19
1
4
6
8
2
3
5
9
7
11
14
16
15
12
13
20
21
03
SPECIFICATION
ASSEMBLY
Model number
Model output
Rated power
Input
Output
Mode: -Standard
-High
Charging time
T185
22.2V
200W
100-240V/50-60Hz
27V/800mA
11Kpa/28 mins
22Kpa/11 mins
2.5h
Fit the accessory on the main body’s air inlet and/or
on the tube until it clicks into the position.
Assembling the brush
Fit the tube onto the main body’s air inlet until it
clicks into the position.
Fit the electrical floor brush on the tube until it
click into the position.
Assembling the electrical floor brush
Assembling the aluminum tube
04

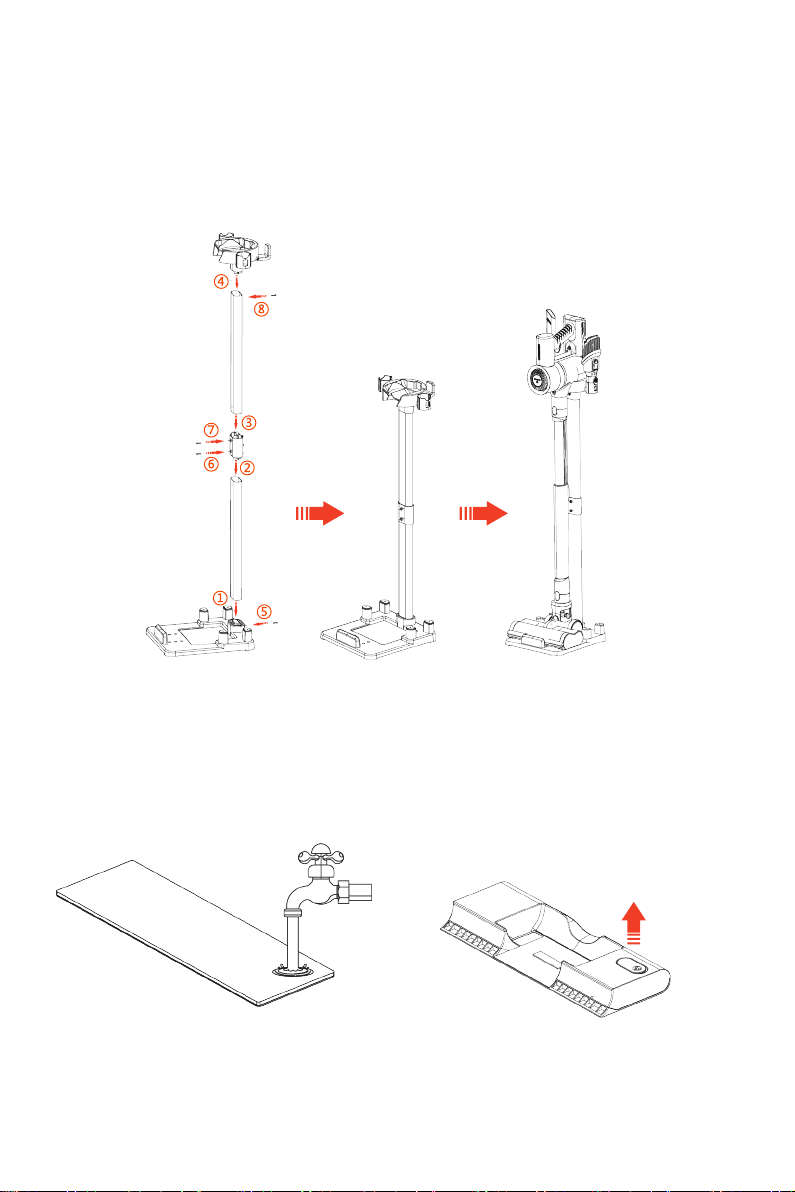

Assembling the stand holder

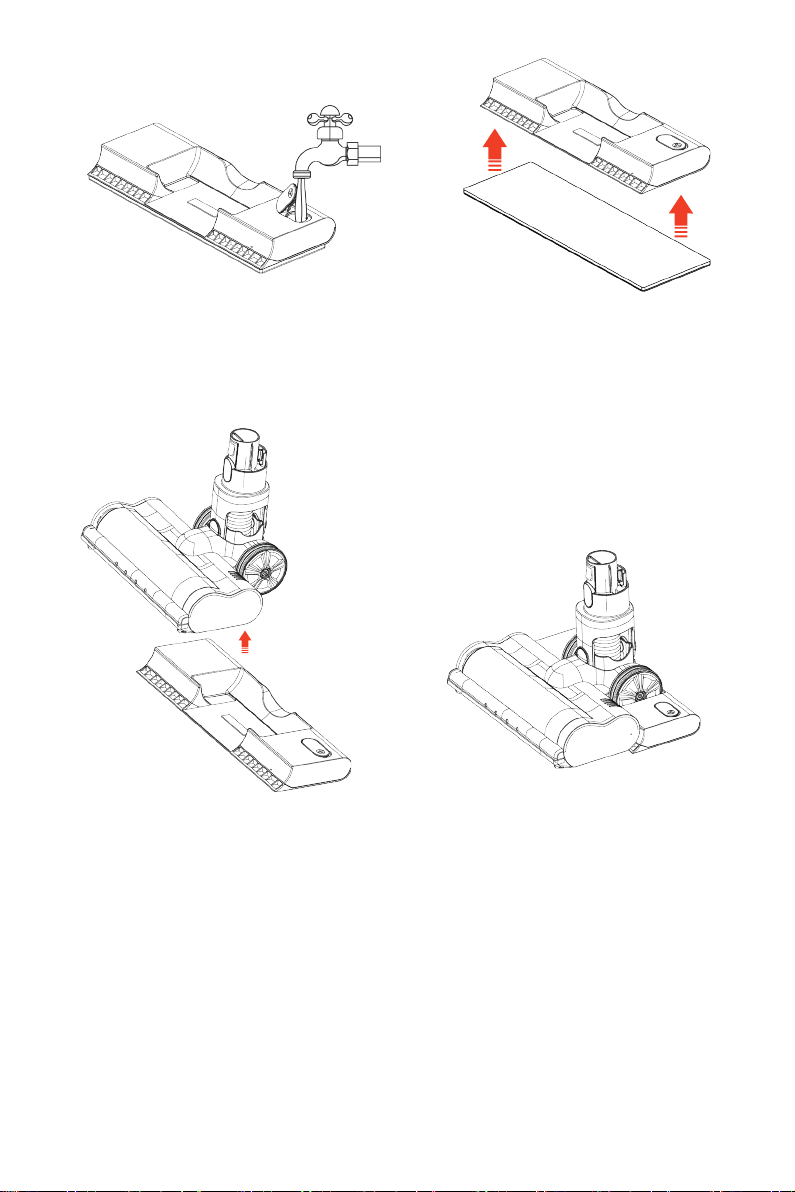

Assembling the water tank
1. ①②③④ Connect the aluminum wand with holder base
2. ⑤⑥⑦⑧ Put the screws onto the holder
3. Installation completed
4. Put the appliance and accessories onto the holder
Damp the mop with water
①Open up the lid of water tank
Open up
②
05
Pour water into the water tank through
the port
③④After closing the lid of water tank, attach
the mop onto the bottom of water tank
⑤Aim the magnetic of water tank onto the
rating plate of floor brush
⑥Installation completed
06

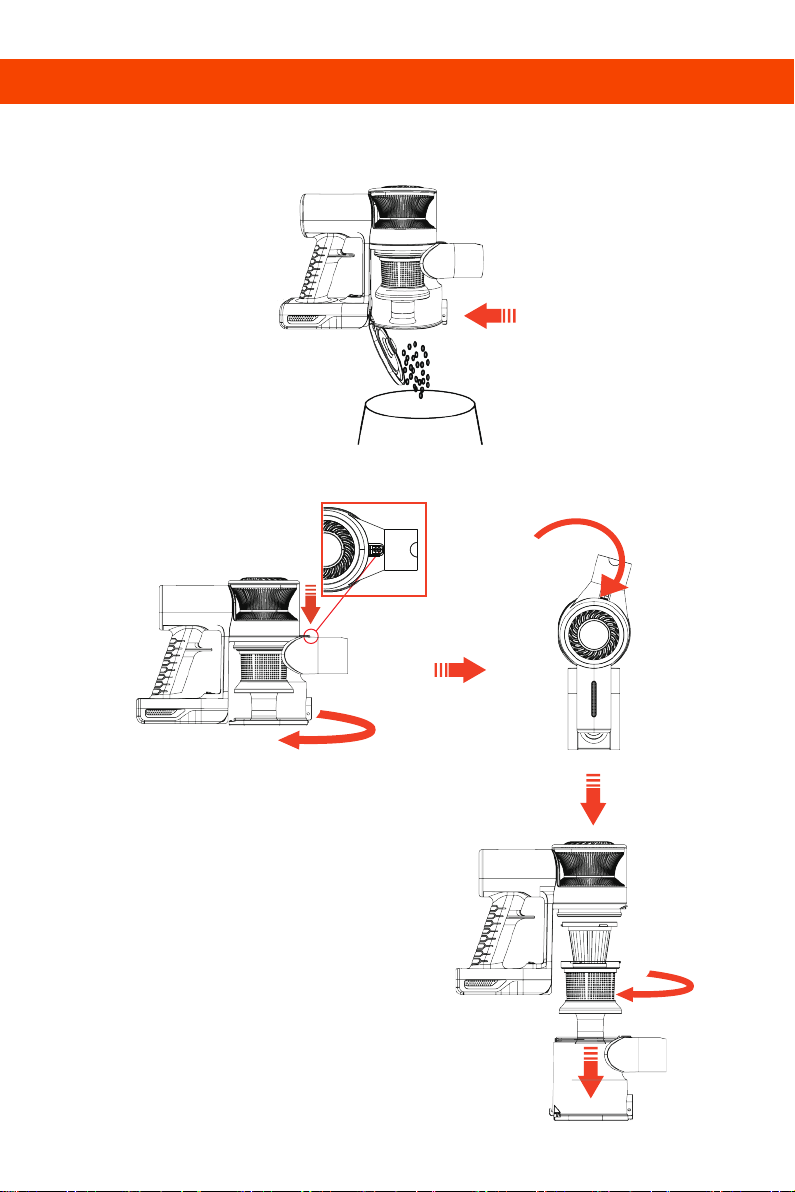

CLEANING AND MAINTENANCE
Maintenance of dust cup
①Clean the dust cup
②Remove dust cup
Press and hold the dust cup release button and
rotate the dust cup at a clockwise angle of 30 °,
then remove the whole dust cup.
07
Maintenance of water tank
Remove the mop attached to the water tank
①Rinse the mop with water and clean it
②
“Click”
Cleaning the filter/HEPA
③
Install the dust cup
④
※ Dry the filter before next use
08
CHARGING
Dry the mop thoroughly before installing
it back
③Open up the water tank
④
Dump out all water inside the water tank
⑤Attach the mop back into the water tank
⑥
1. Turn off the Cordless vacuum cleaner.
2. Connect the adapter to the charge port
on the main unit.
3. Plug the adapter into the main power
supply.
09
BATTERY REMOVAL AND DISPOSAL
TROUBLESHOOTING
There is Li-ion battery in the appliance which requires you disposing it according to the local
regulations or handing in it to the authorized facilities.
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
HAND VACUUM
WILL NOT OPERATE
1. No power in electrical outlet
supplying transformer.
2. Unit needs servicing.
Check fuse or breaker.
replace fuse/reset breaker.
HAND VACUUM WILL NOT
PICK-UP OR SUCTION
POWER IS WEAK
1. Dust cup is full.
2. Dust cup filter needs
cleaning.
1. Empty dust cup.
2. Remove dust cup filter
and check for object(s) in
air duct and remove.
DUST ESCAPING FROM
HAND VACUUM
HAND VACUUM
BRUSHES WILL NOT
PICK-UP
1. Dust cup is full.
2. Dust cup filter is not
installed correctly.
3. Puncture/hole in dust
cup filter.
1. Empty dust cup .
2. Review dust cup filter
instruction.
3. Replace dust cup filter.
Dust cup is full. Empty and clean dust cup
container.
10

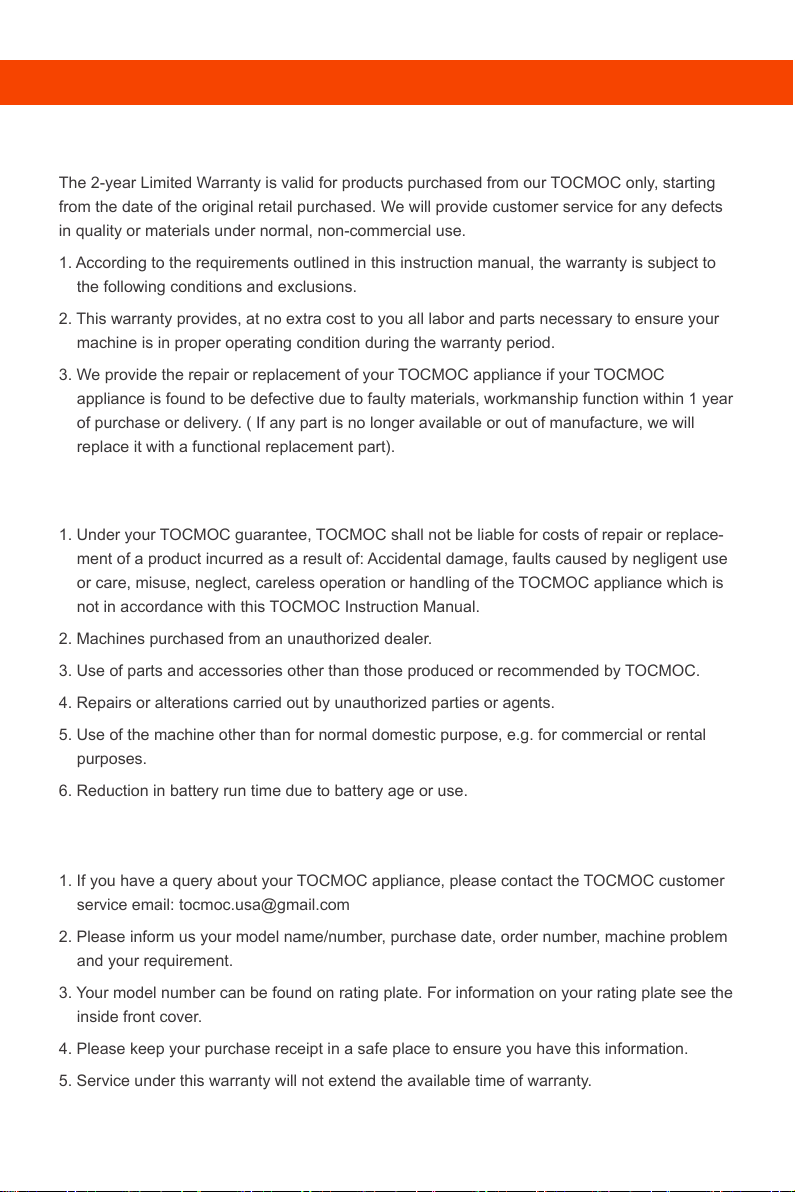

WARRANTY
The 2-year Limited Warranty is valid for products purchased from our TOCMOC only, starting
from the date of the original retail purchased. We will provide customer service for any defects
in quality or materials under normal, non-commercial use.
1. According to the requirements outlined in this instruction manual, the warranty is subject to
the following conditions and exclusions.
2. This warranty provides, at no extra cost to you all labor and parts necessary to ensure your
machine is in proper operating condition during the warranty period.
3. We provide the repair or replacement of your TOCMOC appliance if your TOCMOC
appliance is found to be defective due to faulty materials, workmanship function within 1 year
of purchase or delivery. ( If any part is no longer available or out of manufacture, we will
replace it with a functional replacement part).
1. Under your TOCMOC guarantee, TOCMOC shall not be liable for costs of repair or replace-
ment of a product incurred as a result of: Accidental damage, faults caused by negligent use
or care, misuse, neglect, careless operation or handling of the TOCMOC appliance which is
not in accordance with this TOCMOC Instruction Manual.
2. Machines purchased from an unauthorized dealer.
3. Use of parts and accessories other than those produced or recommended by TOCMOC.
4. Repairs or alterations carried out by unauthorized parties or agents.
5. Use of the machine other than for normal domestic purpose, e.g. for commercial or rental
purposes.
6. Reduction in battery run time due to battery age or use.
CUSTOMER CARE
WHAT IS NOT COVERED
1. If you have a query about your TOCMOC appliance, please contact the TOCMOC customer
2. Please inform us your model name/number, purchase date, order number, machine problem
and your requirement.
3. Your model number can be found on rating plate. For information on your rating plate see the
inside front cover.
4. Please keep your purchase receipt in a safe place to ensure you have this information.
5. Service under this warranty will not extend the available time of warranty.
WARRANTY SERVICE
