Mastervac 054-0339-8 User manual

INSTRUCTION
MANUAL
WET/DRY VACUUM
IMPORTANT:
Read and understand this instruction manual thoroughly
before using the product.

3
NOTE: If any parts are missing or damaged, or if you have any questions, please call our
toll-free helpline at 1-800-689-9928
TABLE OF CONTENTS
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS 4
SAFETY GUIDELINES 5
KEY PARTS DIAGRAM 9
GENERAL ASSEMBLY INSTRUCTIONS 10
DRY VACUUM OPERATION 12
WET VACUUM OPERATION 14
BLOWER OPERATION 16
MAINTENANCE 18
INSTALLING & CLEANING CARTRIDGE FILTER 20
INSTALLING & CLEANING FOAM WET FILTER 21
TROUBLESHOOTING 22
ACCESSORIES 22
EXPLODED VIEW 23
PARTS LIST 24
WARRANTY 25
Read and understand this instruction manual thoroughly before using
the product. It contains important information for your safety as well as
operating and maintenance advice.
Keep this instruction manual for future use. Should this product be passed
on to a third party, then this instruction manual must be included.

4model no. 054-0339-8 | contact us 1-800-689-9928
TECHNICAL SPECIFICATIONS
Tank size: 60 L (16 U.S. gallons / 13 Imperial gallons)
Peak horsepower: 5.0 HP
Power: 120 V, 60 Hz, 10.5 A
Tank: Plastic
Power cord: 12’ (3.65 m)
Hose: 2 1/2'' x 7' (6.4cm x2.1m)
Water lift: 60''(152.4 cm) at end of hose
Airflow: 106 CFM at end of hose
Noise: 80 dBA
Filters: Cartridge filter, foam wet filter
Weight: 21 lb 4 oz (9.7kg)

5
SAFETY GUIDELINES
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the vacuum cleaner
before operating. Safety is a combination of common sense, staying alert and
knowing how your vacuum works. Use this vacuum only as described in this
manual. To reduce the risk of personal injury or damage to your vacuum, use only
manufacturer recommended accessories.
FOR HOUSEHOLD USE ONLY
SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they
may be present.
• Do not vacuum, or use this wet/dry vacuum near flammable liquids, gases, or explosive vapours like
gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive
dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite
flammable vapours or dust.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service centre.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges
or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or filters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
When using a vacuum, basic precautions should always be followed including the
following:

6model no. 054-0339-8 | contact us 1-800-689-9928
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair,
and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts.
See DOUBLE INSULATION INSTRUCTIONS.
When using as blower:
• Direct air discharge only at work area.
• Do not use wet/dry vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
SAVE THESE INSTRUCTIONS
DOUBLE INSULATION INSTRUCTIONS
This wet/dry vacuum is double-insulated, eliminating the need for a separate grounding system. Use only
identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacuums before
servicing. Use this vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your vacuum.
DOUBLE INSULATED - GROUNDING NOT REQUIRED
- WHEN SERVICING USE ONLY IDENTICAL
REPLACEMENT PARTS.
SAFETY GUIDELINES
WARNING!
To reduce the risk of electric shock, do not expose to rain. Store indoors.
WARNING!
To reduce the risk of electric shock, unplug before cleaning or servicing.
CAUTION
To reduce the risk of injury from moving parts, unplug before servicing.

7
WARNING!
For your own safety, read and understand the operator’s manual. Do not run unattended. Do not pick up hot
ashes, coals, toxic, flammable or other hazardous materials. Do not use around explosive liquids or vapours.
CAUTION!
Do not vacuum drywall dust, fireplace soot, or ash with standard wet/dry filter. These are fine dusts
which will not be captured by the filter and may cause damage to the motor. When vacuuming fine dust
use a fine dust filter.
SAFETY GUIDELINES
WARNING!
Servicing of double-insulated wet/dry vacuum.
With a double-insulated wet/dry vacuum, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double-insulated appliance, nor should a means for grounding be
added. Servicing a double insulated wet/dry vacuum requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts for a double-insulated wet/
dry vacuum must be identical to the parts they replace. Your double-insulated wet/dry vac is marked with
the words ‘double insulated’ and the symbol (square within a square) may also be marked on the
appliance.
EXTENSION CORDS
When using an extension cord with your wet/dry vacuum refer to the following table to determine the
required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are
in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use
extension cords that are rated for outdoor use.
Length of Extension Cord
120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere rating A.W.G. Wire Size
More than Not more than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended

8model no. 054-0339-8 | contact us 1-800-689-9928
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
NOTICE (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SAFETY GUIDELINES

9
KEY PARTS DIAGRAM
No. Description No. Description
1 Power Head 11 Handle
2 Blower Port 12 Operator’s Manual
3 Power Cord Storage Hook 13 Extension Wand (x2)
4 Filter Cage 14 On/Off Switch
5 Caster (x4) 15 Accessory Storage
6 utility nozzle 16 Latch (x2)
7 Filter Retainer 17 Vacuum Port
8 Cartridge Filter 18 Collection Tank
9Foam Wet Filter 19 Hose
10 Crevice tool 20 6 Screws (Bag)
11
14
15
16
17
18
201913
9
8
7
6
5
1
2
3
4
10
12
11

10 model no. 054-0339-8 | contact us 1-800-689-9928

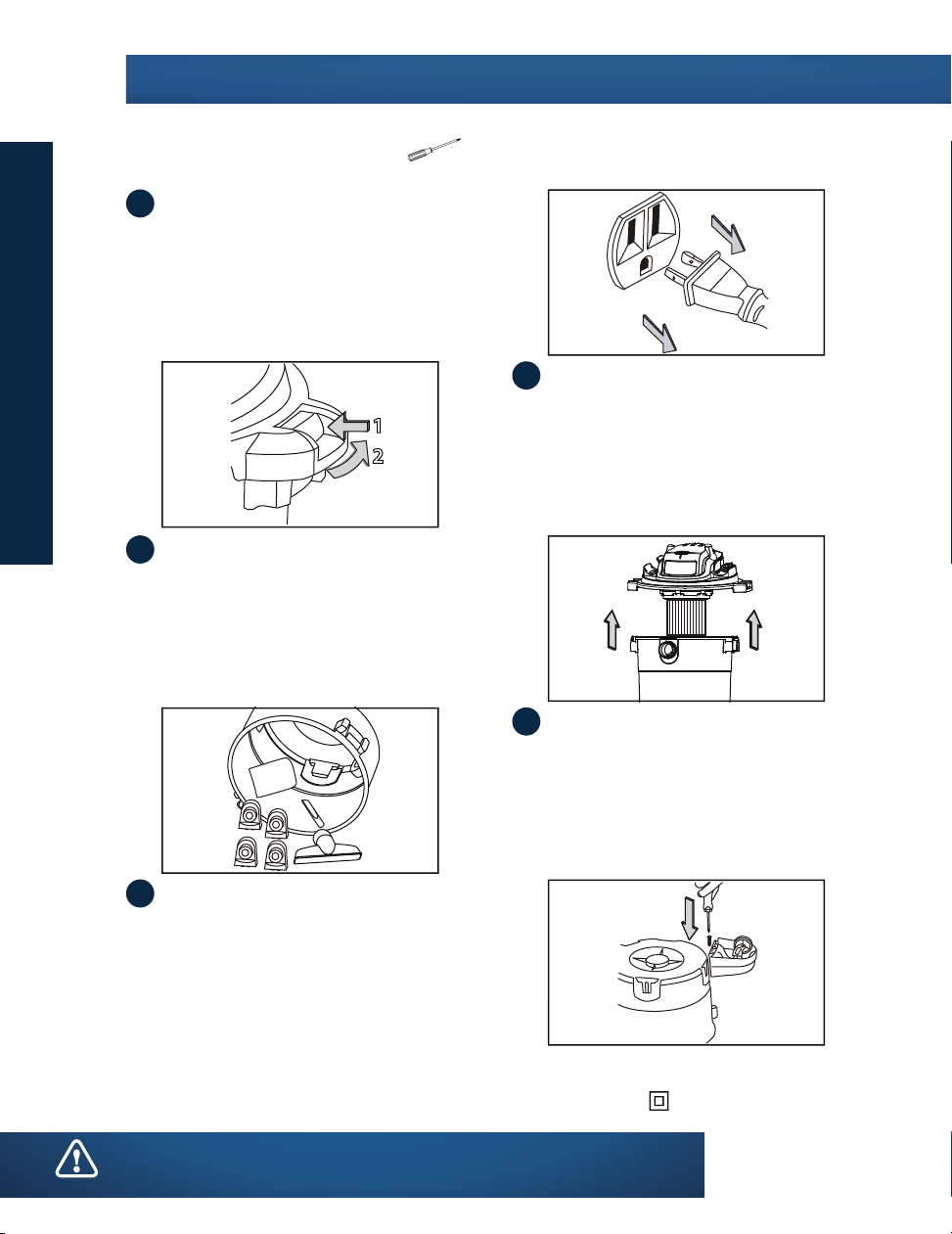

WARNING!
Do not plug the power cord into a power outlet. Make sure the plug is disconnected before assembling the
wet/dry vacuum. To reduce the risk of electric shock, do not expose to rain.

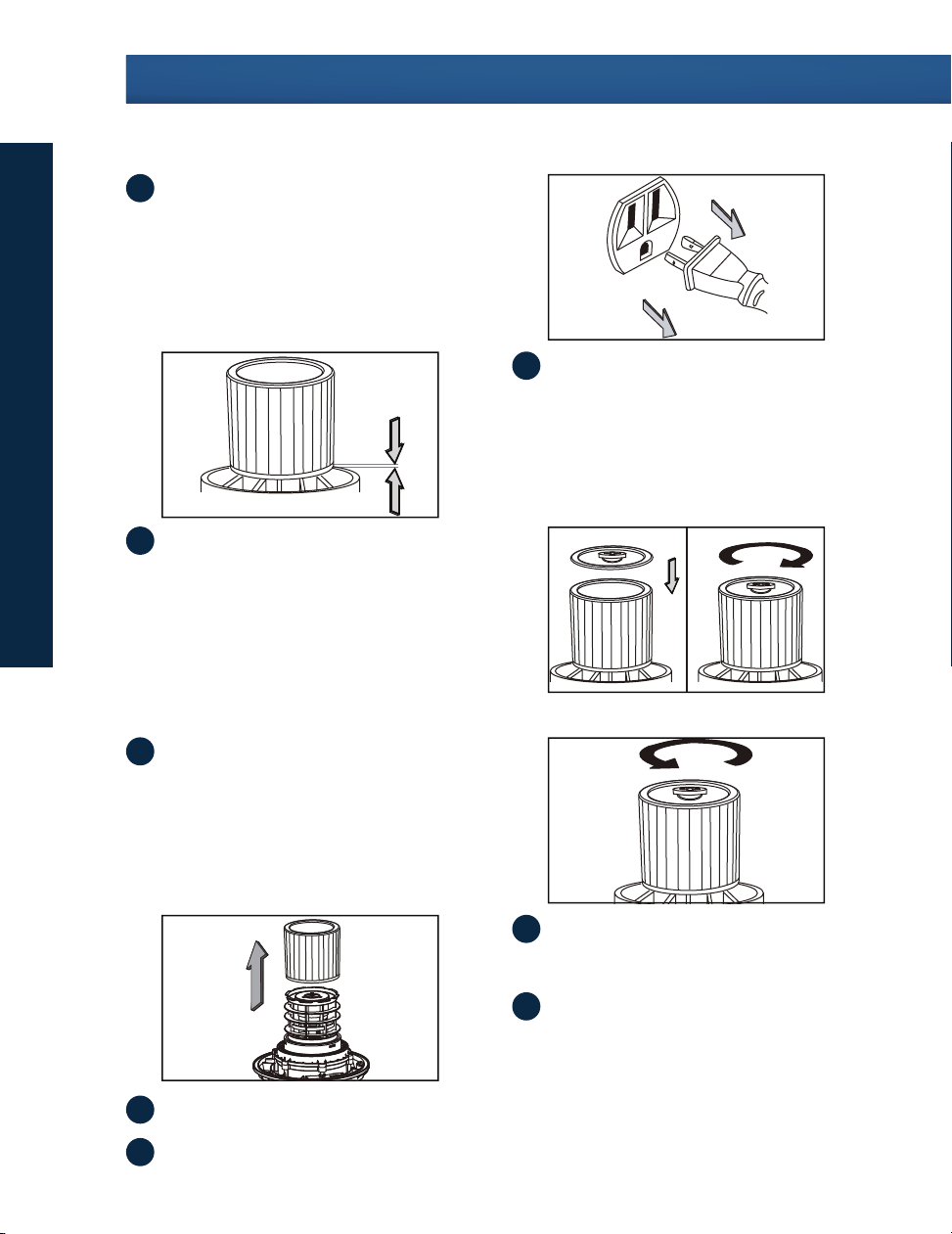

Verify that the power cord is disconnected from
the outlet.
Lift the power head off the collection tank.
Undo the latches.
Remove the contents from inside the collection
tank; make sure you have all contents as listed
on page 9.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not change the plug in any way. Double insulation eliminates the need for the three
wire grounded power cord and grounded power supply system.
A cross-head screwdriver is required.
UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
GENERAL ASSEMBLY INSTRUCTIONS
1
3
2
4
2
1

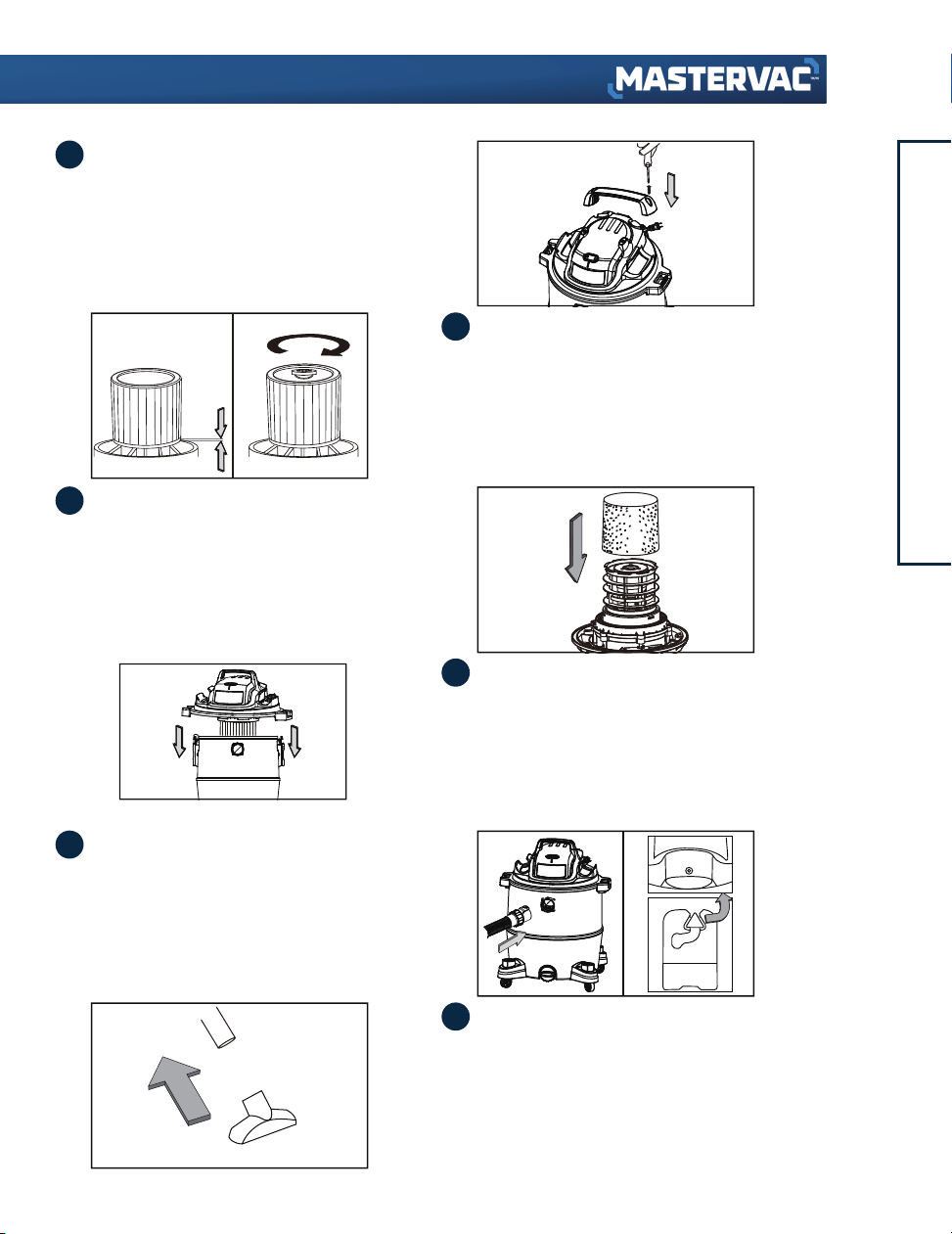

Turn the collection tank upside down and
insert the four caster feet into the slots on
the collection tank. Verify that the casters are
mounted correctly.
5

11
Insert the handle into the slots located on the top
of the power head and secure it with the screws
provided. Do not over-tighten the screws.
For wet vacuum cleaning, remove the cartridge
filter and install the supplied foam wet filter.
See page 21 for the foam wet filter installation
instructions.
Insert the larger end of the hose into the vacuum
port on the power head.
Your vacuum comes ready for dry vacuum
cleaning. If the cartridge filter is not installed,
refer to page 20 for installation instructions.
Place the power head back on the collection
tank aligning the top section with the latches,
and snap into place.
Choose the desired attachment and insert onto
the end of the hose or extension wand.
GENERAL ASSEMBLY INSTRUCTIONS
6
8
10
7
9
11

12 model no. 054-0339-8 | contact us 1-800-689-9928

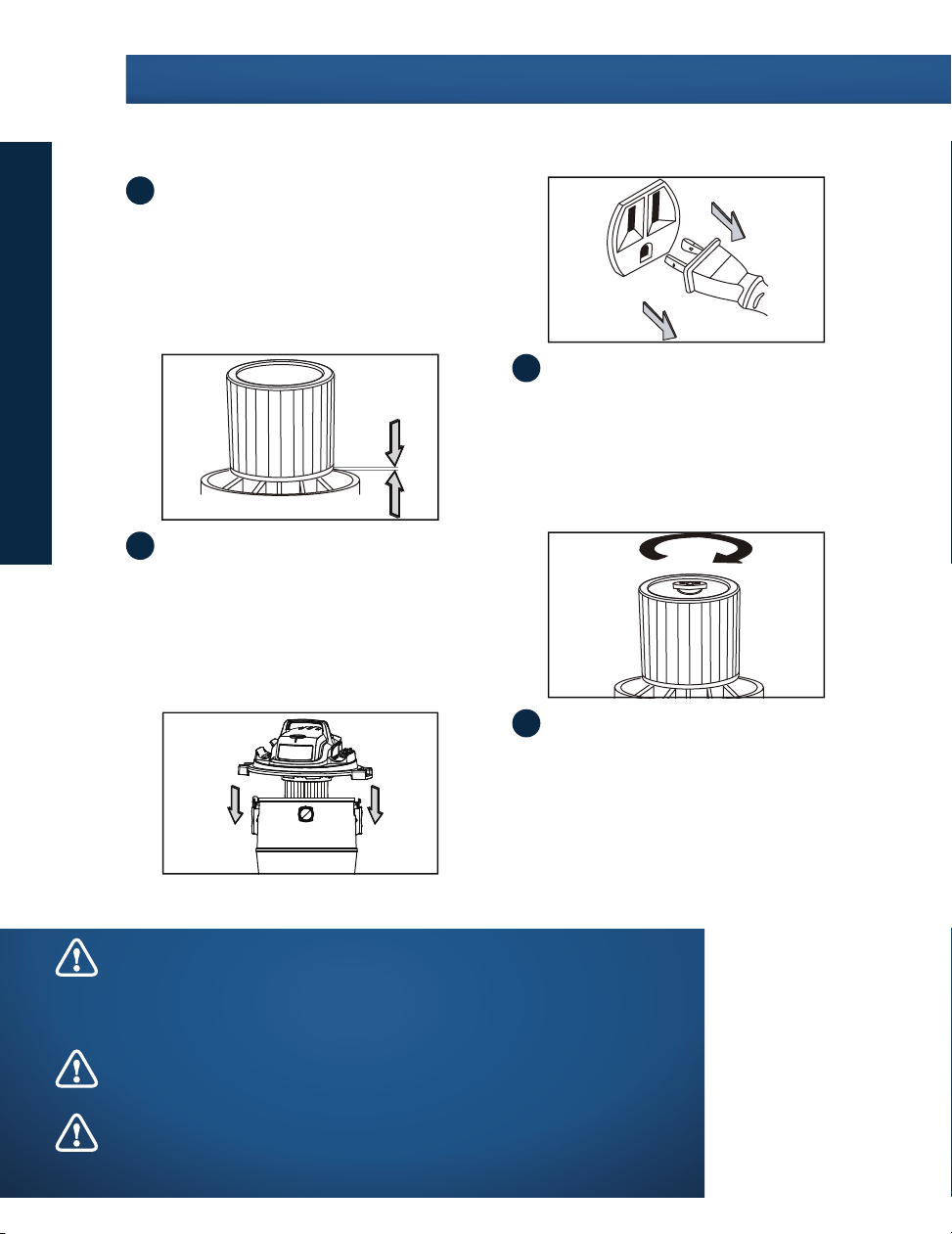

DRY VACUUM OPERATION
WARNING:
Do not plug the power cord into a power outlet. Make sure the plug is disconnected before changing the
filters.
CAUTION:
Do not vacuum drywall dust, fireplace soot, or ash with standard wet/dry filter. These are fine dusts which
will not be captured by the filter and may cause damage to the motor. When vacuuming fine dust use a
fine dust filter (sold separately).
WARNING:
Be sure to read, understand, and apply information entitled “Safety Guidelines”. Do not vacuum in areas
with flammable gases, vapours, or explosive dusts in the air. Flammable gases or vapours include, but are
not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays.
Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk
of health hazards from vapours or dust, do not vacuum toxic materials.
Verify that the power cord is disconnected from
the outlet.
Place the filter retainer on the top of the
cartridge filter and tighten down by turning the
retainer handle clockwise.
In order to prepare your vacuum for dry
vacuuming, make sure the cartridge filter
completely covers the filter cage against the
power head. Your wet/dry vacuum comes with
the cartridge filter pre-installed. For installation
instructions, see page 20.
Place the power head back on the collection
tank and secure it in place using the latches.
1
3
2
4
DRY VACUUMING

13

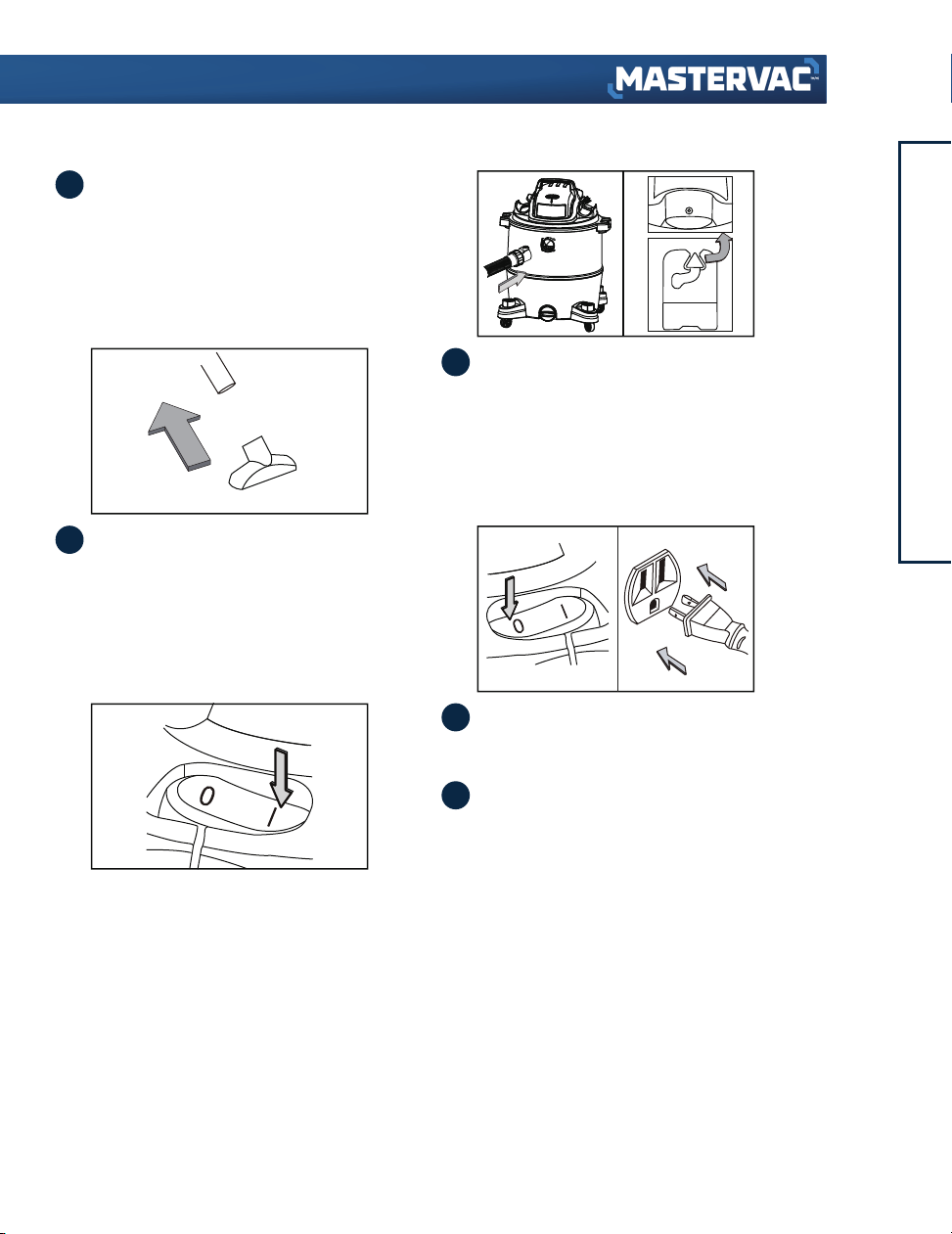

DRY VACUUM OPERATION
Insert the larger end of the hose into the vacuum
port on the power head.

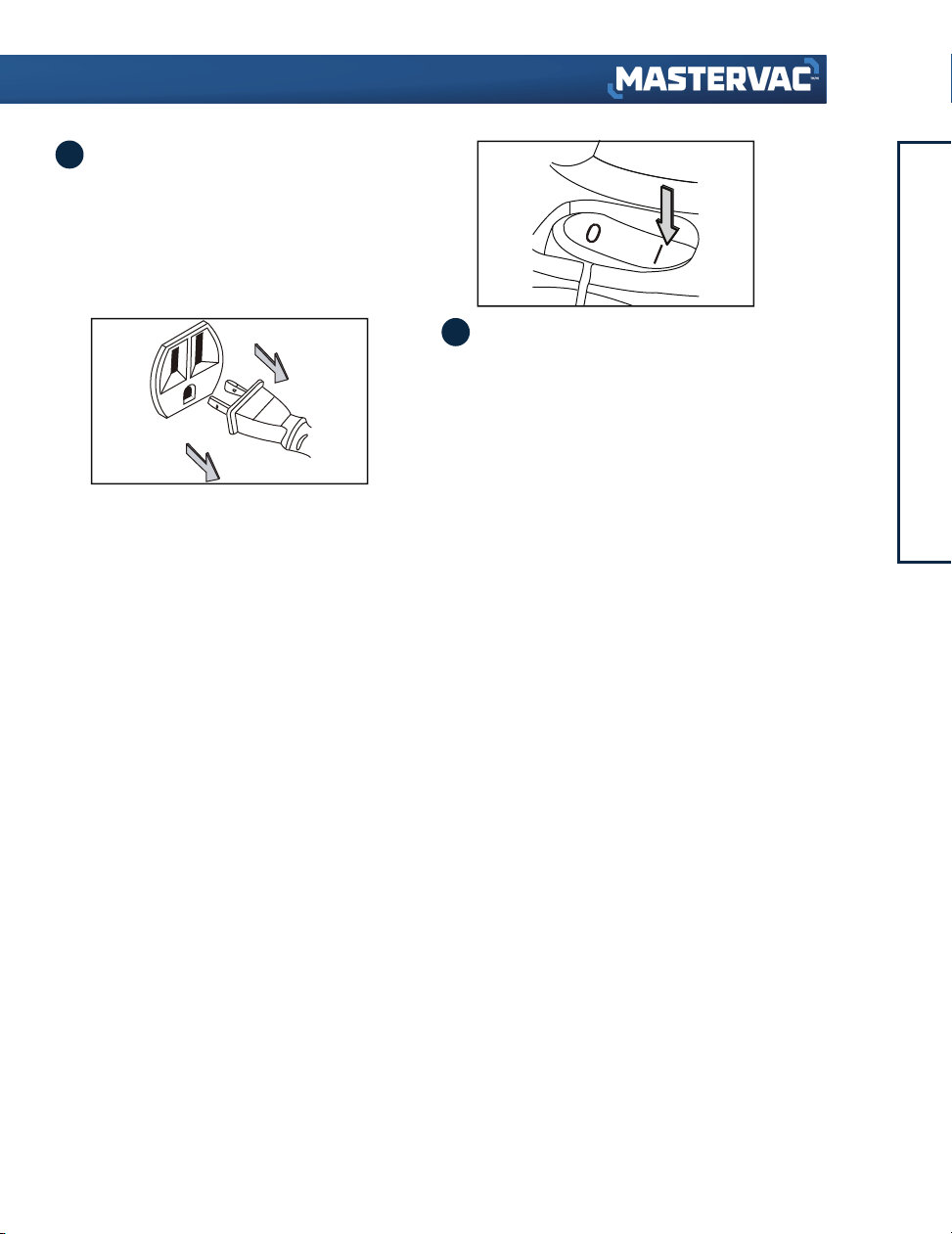

Verify that the switch is in the ‘O’ OFF position
before plugging into the power supply. Plug the
power cord into the outlet.
Push the required attachment onto the free end
of the hose or extension wand.
Turn the motor on by flipping the switch to the ‘I’
ON position and begin vacuuming.
Once you have completed vacuuming, flip the
switch to the ‘O’ OFF position and unplug the
power cord from the outlet.
O = OFF I = ON
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
DO NOT USE A DUST BAG FOR LIQUID VACUUMING.
5
7
6
8
9
OPERATING INSTRUCTIONS: DRY VACUUMING

14 model no. 054-0339-8 | contact us 1-800-689-9928
WET VACUUM OPERATION
WARNING:
Do not plug the power cord into a power outlet. Make sure the plug is disconnected before changing the
filters.
WARNING:
Be sure to read, understand, and apply information entitled “Safety Guidelines”. Do not vacuum in areas
with flammable gases, vapours, or explosive dusts in the air. Flammable gases or vapours include, but are
not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, or aerosol sprays.
Explosive dusts include but are not limited to: coal, magnesium, grain, or gun powder. To reduce the risk
of health hazards from vapours or dust, do not vacuum toxic materials.
Verify that the power cord is disconnected from
the outlet. Make sure that the collection tank is
clean and free of dust and dirt.
Push the required attachment onto the free end
of the hose or extension wand.
Remove the cartridge filter, then carefully install
the foam wet filter over the filter cage and place
the power head back on the collection tank.
For foam wet filter installation instructions, see
page 21 .
Verify that the switch is in the ‘O’ OFF position
before plugging the power cord into the power
outlet. Plug the power cord into the outlet.
1
3
2
4
LIQUID VACUUMING
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
OPERATING INSTRUCTIONS: WET VACUUMING

15

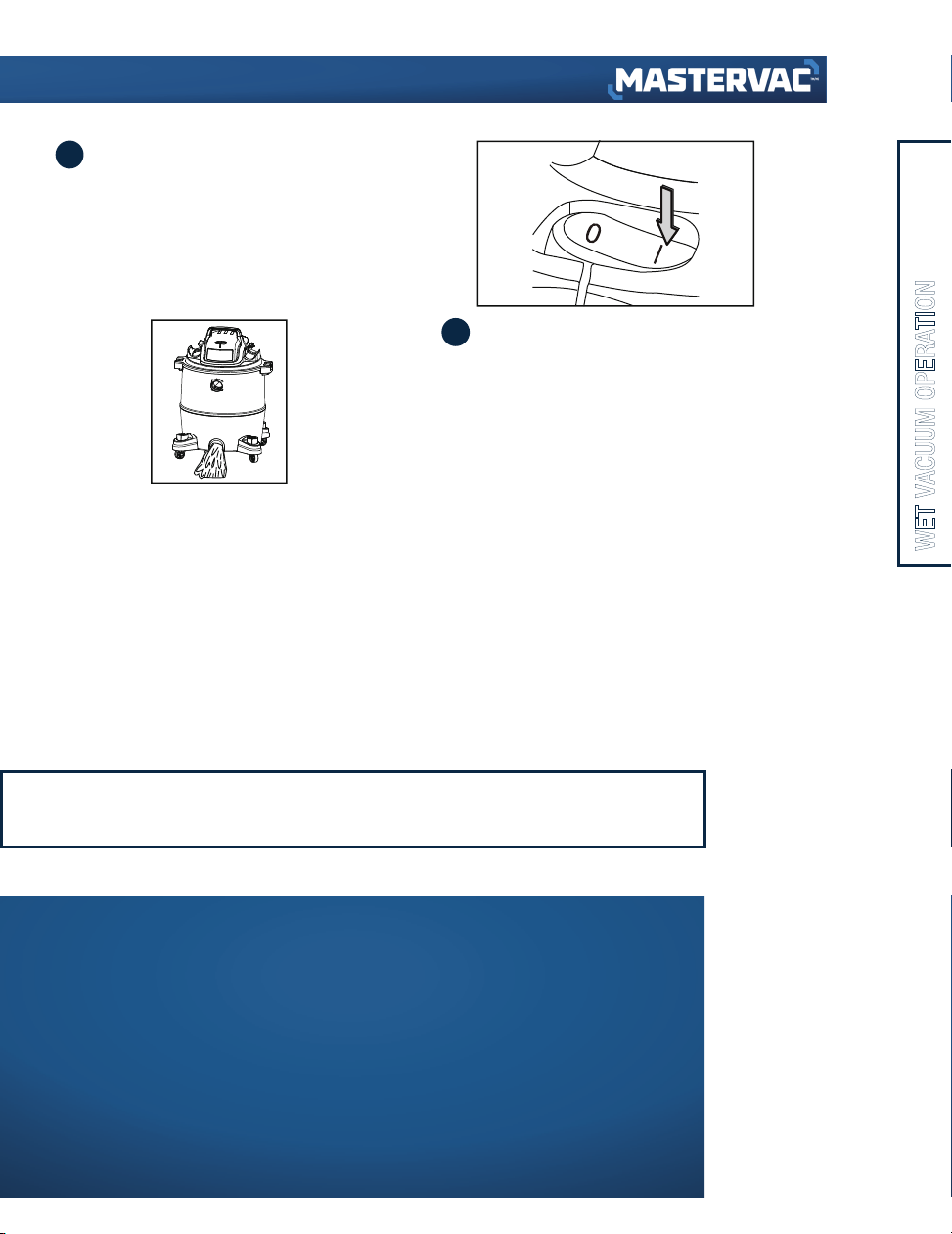

WET VACUUM OPERATION
Turn the motor on by flipping the switch to the ‘I’
ON position.
Once you have completed vacuuming, flip the
switch to the 'O' OFF position and unplug the
power cord from the outlet. After use, empty
the collection tank, clean and dry the inside and
outside of the collection tank.
5
6
REMEMBER! The foam wet filter must be removed after wet vacuuming and
the cartridge filter must be installed before dry vacuuming again.
IMPORTANT:
When vacuuming large quantities of liquids, do not immerse the nozzle
completely in the liquid; leave a gap at the tip of the nozzle opening to allow
air inflow. The machine is fitted with a float valve that stops the suction action
when the collection tank reaches its maximum capacity. You will notice an
increase in motor speed. When this happens, turn off the machine, disconnect
from power supply, and drain the liquid into a suitable receptacle or drain.
To continue vacuuming, refit the power head to the collection tank. After wet
vacuuming, turn the machine off and remove plug from power supply. Empty
the collection tank, clean and dry the inside and outside before storage.

16 model no. 054-0339-8 | contact us 1-800-689-9928
This wet/dry vacuum has blowing capabilities. To use the blower feature follow the instructions listed.
WARNING!
Always wear safety goggles complying with Ansi Z87.1 (or in Canada, CSAZ94.3) before using blower.
WARNING!
Keep bystanders clear from blowing debris.
WARNING!
Wear a dust mask if blowing creates dust that might be inhaled.

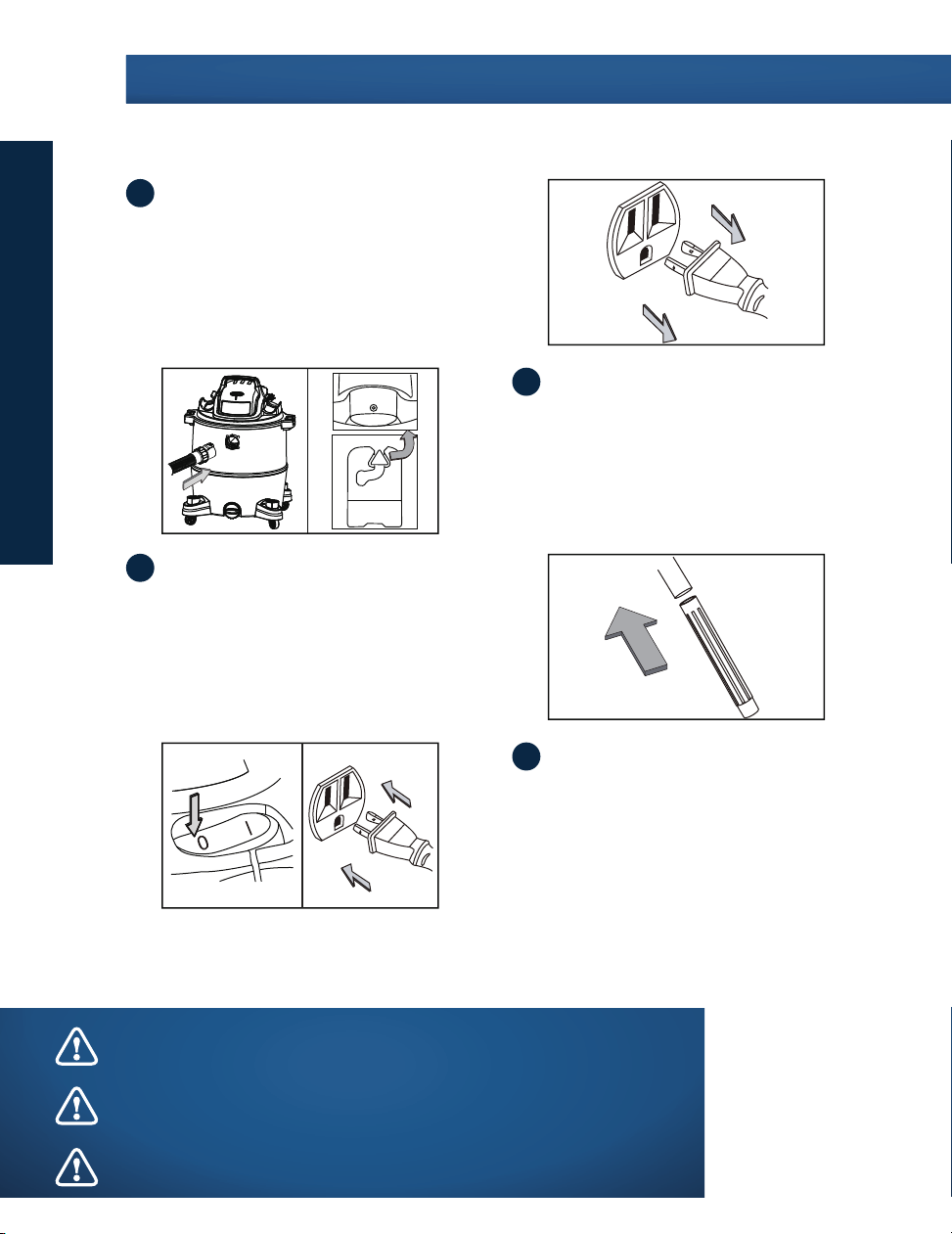

BLOWER OPERATION
Verify that the power cord is disconnected
from the outlet. Make sure the collection tank
is empty before using as a blower. Clear all dirt
and debris from the hose and collection tank.
Fit the desired attachment onto the hose or
extension wand.
Remove the hose from the vacuum port. Secure
the larger end of the hose into the blower port
on the back of the power head.
Verify that the power switch is in the ‘O’ OFF
position before plugging the power cord into the
outlet. Plug the power cord into the outlet.
1
3
2
4

17
BLOWER OPERATION
Before turning on the vacuum, firmly hold onto
the loose end of the hose. Turn the motor on by
flipping the switch to the ‘I’ ON position.
Once you have completed vacuuming, flip the
switch to the ‘O’ OFF position. Unplug the power
cord from the outlet.
5
6

18 model no. 054-0339-8 | contact us 1-800-689-9928
MAINTENANCE

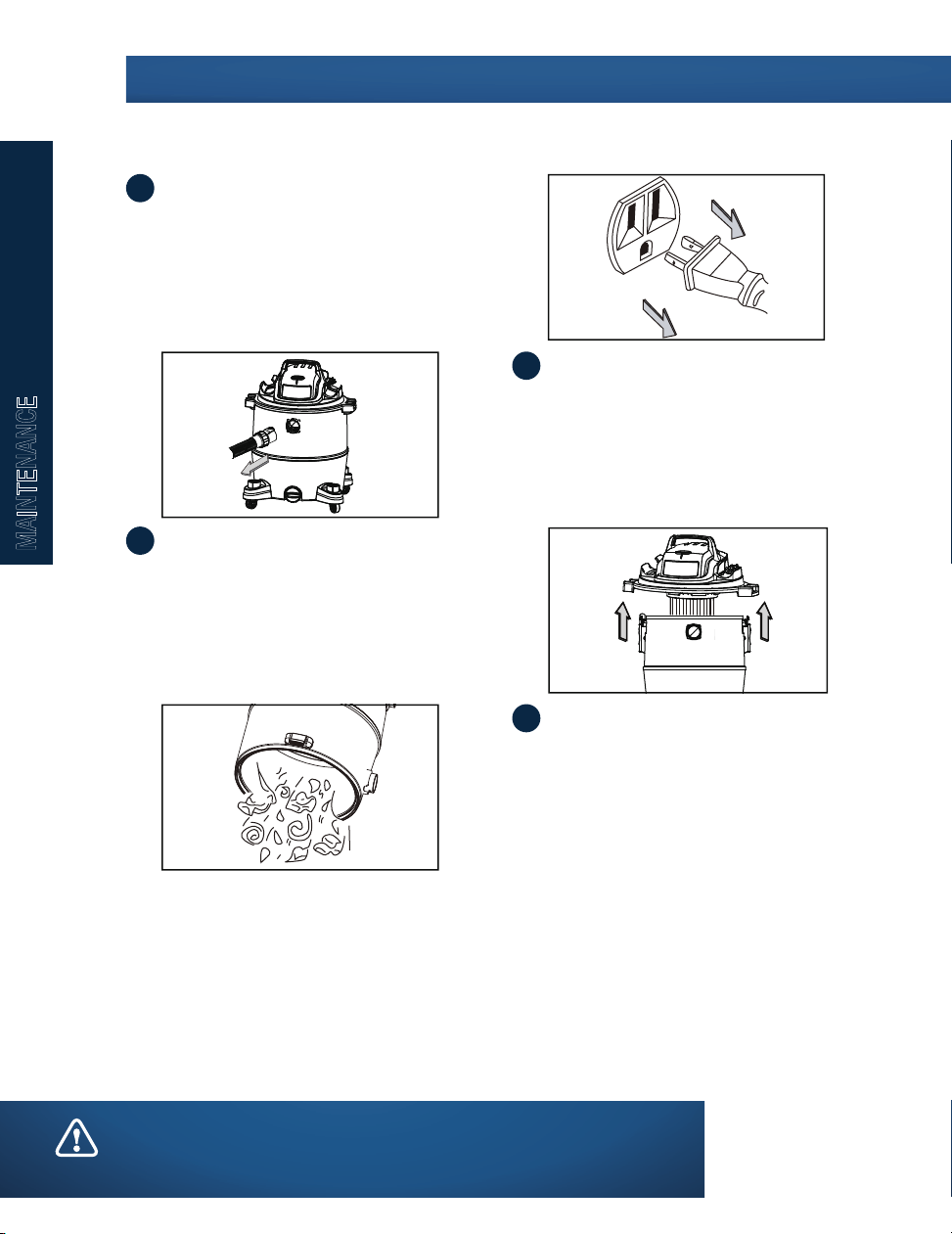

EMPTYING THE COLLECTION TANK
Verify that the power cord is disconnected from
the outlet.
Undo the latches and remove the power head
from the collection tank. Place power head on a
soft, clean surface upside down.
Disconnect the hose from the vacuum.
Clear all dirt or debris from the collection tank
and hose into a proper waste container.
1
3
2
4
WARNING!
Always disconnect the plug from the power outlet before removing the power head from collection
tank.

19
MAINTENANCE
Clean or replace the filters.
Check the hose, attachments, and power cord to ensure that they have not been damaged.
Place the power head back onto the collection tank and secure latches.
5
6
7
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be
cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.
REPAIRS
Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only
identical replacement parts.
IMPORTANT:
Clean or change the filter regularly for best performance. ALWAYS USE THE
CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the
cartridge filter, the motor will burn out and the warranty will be voided. Always
keep spare filters on hand.
NOTICE:
The filters included are made of high quality materials designed to stop small
dust particles. The cartridge filter should be used for dry pick-up only. A dry
cartridge filter is necessary to pick up dust. If the cartridge filter is wet, it will
clog quickly and be very difficult to clean. Handle the filter carefully when
removing it for cleaning and replacing it. Check the filters for tears or small
holes. A small hole can let dust pass through and out of the filter. Do not use a
filter with holes or tears; replace it immediately.

20 model no. 054-0339-8 | contact us 1-800-689-9928
INSTALLING & CLEANING CARTRIDGE FILTER
INSTALLING CARTRIDGE FILTER
REMOVING & CLEANING CARTRIDGE FILTER
Verify that the power cord is disconnected from
the outlet.
Unlock and remove the filter retainer by turning
the retainer handle counter-clockwise.
Install cleaned or new filters as above in steps 2-3 of Installing Cartridge Filter.
Wet filters should be removed and allowed to air dry for 24 hours before installing onto the filter cage.
Place the filter retainer on the top of the
cartridge filter over the raised lip and tighten
down by turning the retainer clockwise; do not
over-tighten. Place the power head back onto
the collection tank.
Remove the power head and place in an upside
down position. Install the cartridge filter over the
filter cage making sure the cage is completely
covered.
With the removed power head in an upside
down position, carefully remove the cartridge
filter from the filter cage.
Clean the cartridge filter by gently tapping or
brushing dirt off. Cleaning should not be done
indoors in living areas. For optimal performance
a new filter is recommended.
1
1
4
5
3
2
2
3
