Token ZENITH VENTOUS User manual

RIM HUB SPOKE / NIPPLE CASSETTE BODY WHEEL MAXIMUM
Shi & SRAM
10-11S Only
Inflation Pressure
115psi (700x25c)
Rider Weight
100kg
SAPIM CX-RAY
Black Spoke
Alloy External
Black Nipple
Z1 Hubset
F-18H
R-21H DSP 2:1
TFT Bearing
VENTOUS
KONAX PRO
KONAX TRI
Profile
Depth
Internal
Width
Brake Track
Width
36mm
52mm
76mm
20mm 27.4mm
Recom’ed
Tyre Size
700x25c
700x28c
SPECIFICATION
WHEEL TECHNICAL MANUAL
2019 Apr.
ROAD RACING WHEELSET
ZENITH
Carbon Clincher
VENTOUS
KONAX PRO
KONAX TRI

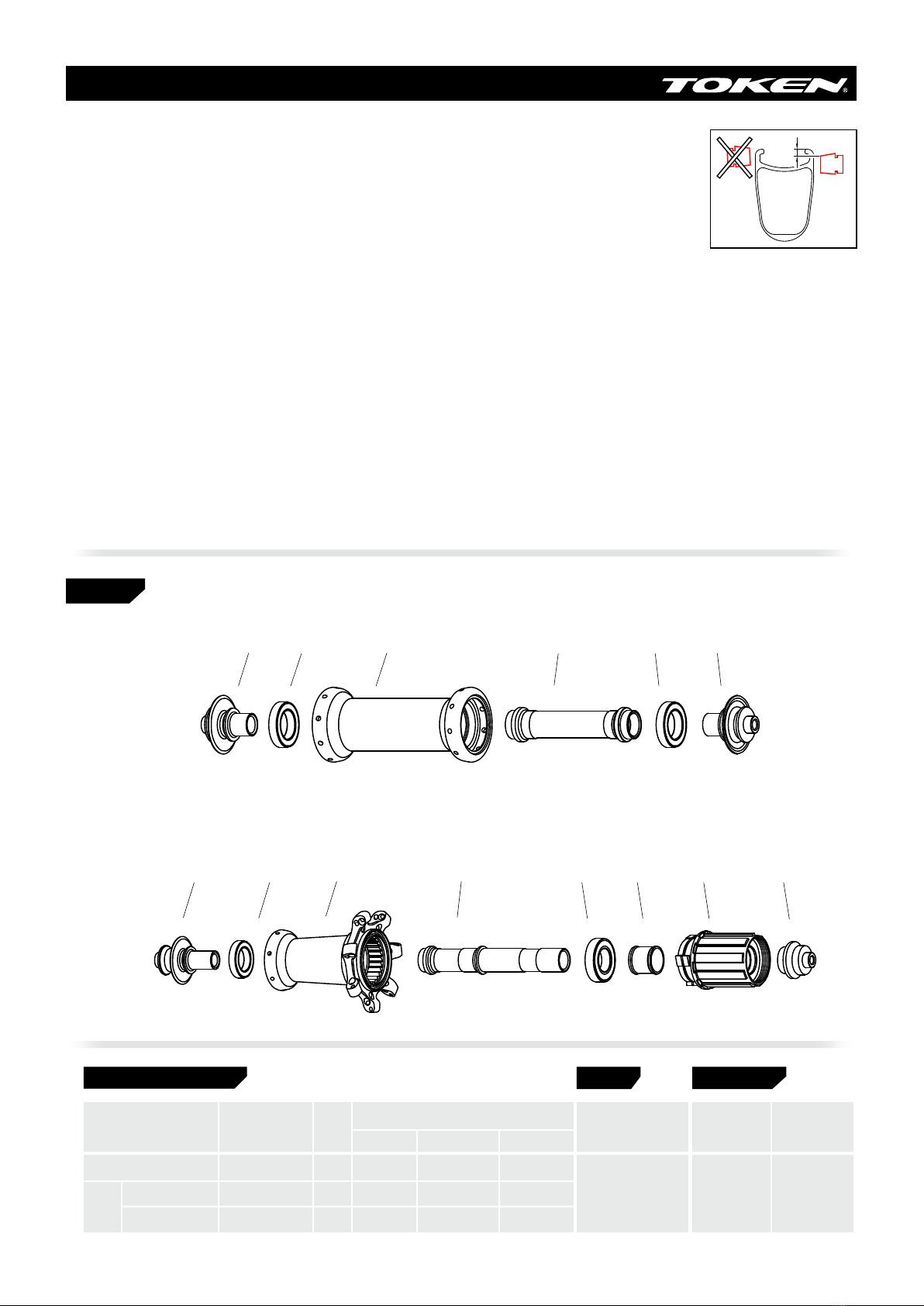

HUBS
Front Hub:
Rear Hub:
WHEEL TECHNICAL MANUAL
2019 Apr.
WARNING
1. Use only TOKEN brand carbon-rim specified brake pads on rims with carbon fiber brake track.
Use other brake pads could degrade braking performance and may lead to unwanted character
such as noise and heat accumulation, and will void the warranty.
2. On carbon rims, brake pad should always be placed 3mm below the outer edge of the rim.
3. Over tensioning spokes and exceeding maximum inflation pressure could cause unseen damage. Note that overly
inflated tyres don’t necessarily have lower rolling resistance, and may have inferior traction!
4. Discontinue use of rim immediately if the brake track is worn, deformed (carbon) or the wear indication dots disappear
(alloy).
5. Mounting clincher tyres on tubeless-ready rims could take more effort than on regular rims. Take great care not to
damage any part of the rim with tyre lever! Applying mild soap water or tyre sealant on rim and tyre bead could make
tyre installation easier.
6. Make sure your tyre-and-wheel combination meets ISO 4210-6 Safety Requirement regulation - there should always
be a clearance no less than 4mm between the tyre and the frame, as well as other components such as brake caliper.
7. Failure to follow the conditions listed above may result in 2-year warranty being voided. Contact your local dealer or see
the TOKEN website for details. –www.tokenproducts.com-
3mm
OK
TK194-F1
End Cap
6802
TFT Bearing
TK194-F2
Hub Body
TK194-F1
End Cap
TK194-R1
End Cap
TK194-R2
Hub Body
6902
TFT Bearing
TK194-R1
End Cap
6802
TFT Bearing
6802
TFT Bearing
TK194-F3
Axle
TK194-R3
Axle
TK194-R4
Alloy Tube
TK194-R5
Casse�e Body
Spoke Informa�on
Front
Drive Side
Non-Drive Side
Tension (kgf) Size Length (mm)
14G100~120
120~140
80~100
Rear 6802TFT * 2 6802TFT * 1
6902TFT * 2
Front Rear
14G
14G
ERD (mm)
VENTOUS KONAX PRO KONAX TRI
VENTOUS 567
KONAX PRO 535
KONAX TRI 487
WHEEL BUILDING BEARINGRIM
272
280
274
232
240
234
256
264
258
