Toogel HS-3350A User manual

Model: HS-3350A
Cordless Hand Blender
User Manual
Read this manual thoroughly for important safety and operating instructions before using this appliance.

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
Read all instructions.
To protect against risk of electrical shock, do not put motor body of
Cordless Hand Blender or cord, or electrical plug or charger in
water or other liquid.
This appliance should not be used by children and care should be
taken when used near children.
Avoid contact with moving parts.
Do not operate any appliance or charger with a damaged cord, or
plug, or after the appliance or charger malfunctions, or is dropped,
or damaged in any manner. Return appliance or charger to the
nearest Authorized Service Facility for examination, repair,or
electrical or mechanical adjustment.
The use of attachments not recommended or sold by us may cause
fire,electric shock, or injury.
Do not let power cord on charger hang over edge of table or
counter. Excess cord may be wrapped on the underside of the
charger.
Do not let power cord on charger contact hot surfaces, including the
stove.
When mixing liquids, especially hot liquids, use a tall container, or
make small quantities at a time to reduce spillage.
Keep hands and utensils out of the container while blending to
prevent the possibility of severe injury to persons, or damage to the
unit. A scraper may be used, but must be used only when the unit is
not running.
Blades are sharp. Handle carefully.
Always remove the battery from the Cordless Hand Blender if it is
left unattended and before assembling, disassembling or cleaning.
This product is designed for household use only.
Do not use an extension cord. Plug charger directly into an
electrical outlet.
1

Electrical requirements & parameters
Battery: Li-ion 7.4V, 2000mAh
Power : 180W
Charging Input: DC 5V, 1A~2A
Note: This product is not equipped with a charger.
Disposing of Li-Ion battery packs
Always dispose of your battery pack according to federal, state,
and local regulations. Contact a recycling agency in your area for
recycling locations. Even discharged battery packs contain some
energy. Before disposing, use electrical tape to cover the terminals
to prevent the battery pack from shorting, which could cause a
fire or explosion.
Use only with the suggested charger.
Do not incinerate this appliance even if it is severely damaged.
The batteries can explode in fire.
CAUTION – Do not disassembly parts or accessories from the
machine until the machine stop working and the blades stop
running.
CAUTION – Read instructions before using.
CAUTION – Handle carefully with sharp blades. Power off the
machine before inserting or removing parts from the machine.
Do not put the machine in water.
2
Save these instructions

Battery indicator
Start button
Power on/off button
(press for 2 seconds)
Blending rod
Blending blades
Twist button USB charge port
Speed controler
(DC 5V,1-2A)
Front view Back view
USB Cord
BeakerImmersion
blender
Whisk/Beater
head
Whisk Beater
Version A, package includes
Parts and Features
3

Check the battery remaining capacity:
press the power on/off button for 2
seconds, the battery indicator will
indicates the remaining capacity.
If only one grid light on and blinking, that
means the battery needs to be charged.
Immersion
blender
Version E, package includes
Immersion
blender
Version B, package includes
Chopper Beaker Whisk/Beater
head
Whisk USB cord
USB cord
Beater
4
Operating the cordless hand blender

Check the battery remaining capacity:
press the power on/off button for 2
seconds, the battery indicator will
indicates the remaining capacity.
If only one grid light on and blinking, that
means the battery needs to be charged.
Remark:
After press the power on/off button for 2 seconds, if no
operation on the machine over 10 seconds, the machine
will be powered off automatically. If need to use, press the
power on/off button for 2 seconds and then press START
button.
If the machine is overloaded, it will stop working as the
overload protection program is automatically activated.
The battery indicator will be blinking for 10seconds. After it
stops blinking, the machine can be used again.
If the machine is seriously overloaded, the machine will
stop working but the battery indicator will not blink. In this
situation the battery protection device is activated. To
recovery the battery you need to charge the product for a
few seconds until the battery indicator is lighted. Then the
machine can be used again.
5
Insert the attachments and accessories into
the main body and twist the unit until it
clicks.
Press the power on/off button for 2 seconds
then the machine is ready to use.

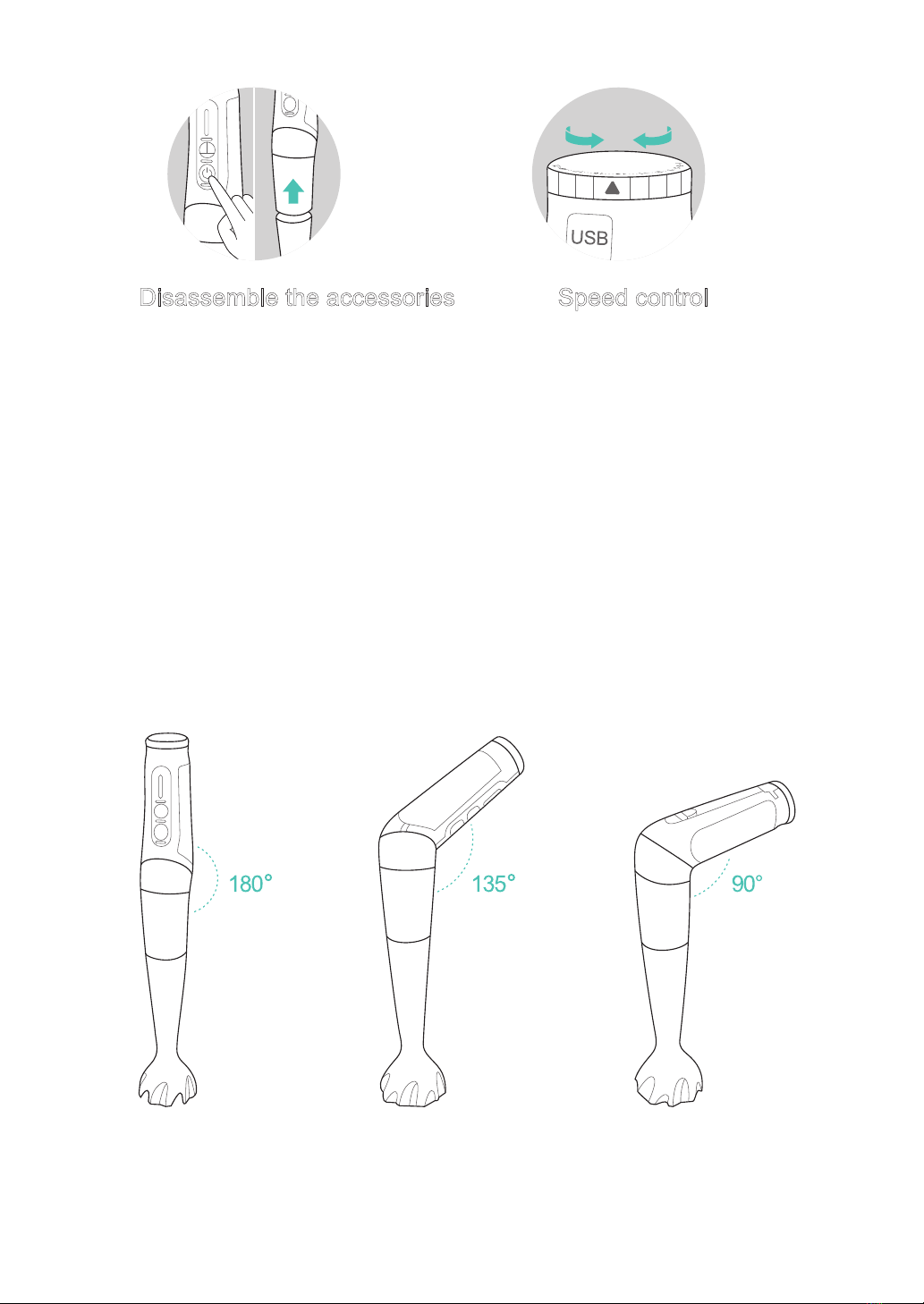

Adjust the using angle
There are 3 positions for the Twistable Head, Press the Twist
Button to adjust the angle to the desired position.
6
Disassemble the accessories Speed control
Make sure the machine is
powered off and the
blades or accessories are
not running, then you can
disassemble the
accessories.
When using the machine,
twist the speed controller to
adjust the RPM speed.
Clockwise to speed up and
anticlockwise to slow down.

7
Recharge
There is a USB charging cord
equipped with this product. It
takes about 4 hours to fully
charge the battery from empty
capacity. During the charging
process, the battery indicator
will be displayed in " Marquee "
Normally the machine can work for about 1 hour under
non-heavy load.
status. When the battery is fully charged, the power indicator
will be lighted on.
If the battery power is very low during use, the power indicator
flashes and it need recharge.
Suggest to charge the machine with a mobile phone charger
or a USB device with output parameters of DC 5V, 1A~2A.
Power
indicator

The beaker is with
a non-slip base.
First, adjust the working Angle of the
machine (180 ° or 90 °), pour the food and
water into the stirring rod, extend the
stirring blades into the beaker, press the
power button for 3 seconds, and press the
start button to start the operation. When
the machine is working, the mixing speed
can be adjusted as needed.
How to use the blending rod
Insert the blender rod into the main
body and twist to lock until it clicks.
WARNING:
8
Not allowed to continuously run the machine more than 60
seconds. After each running you need to cool down the
motor for around 5-10 minutes before next operation.
Continuous long time running could result in short life time
to the machine.

Align the chopper bowl
with the main body and
press together，then the
machine is ready to use.
How to use the chopper
Insert the chopper blades
into the chopper bowl. Add
small food items to be
chopped to the bowl. Attach
the chopper adapter to the
chopper bowl. Place the
adapter straight down. Do
not try to twist the adapter
into place.
Keep pressing the START button, the
machine will start working. (Stop
press, the machine will stop working.)
9
WARNING:
Not allowed to continuously run the machine more than 30
seconds. After each running you need to cool down the
motor for around 5-10 minutes before next operation.
Continuous long time running could result in short life time
to the machine.

How to use the whisk & beater
Insert the whisk/beater
to whisk/beater head.
Insert the whisk/beater head into
the motor body and twist to lock
until it clicks.
The best working Angle of the whisk/beater is 135 degrees.
While whipping the eggs, hold the bowl up slightly with one
hand, The machine works best when it is slant.
WARNING
10
Not allowed to continuously run the machine more than 15
minutes. After each running you need to cool down the
motor for around 5-10 minutes before next operation.
Continuous long time running could result in short life time
to the machine.

Clean and care
Wipe the motor
body with a damp
cloth. Mild dish
soap may be used,
but do not use
abrasive cleansers.
When handling
food with high
pigment content
(such as carrots),
the mixing cup may
be stained and can
be rinsed after
wiping with
vegetable oil.
Wash chopper
adapter and whisk
adapter by hand in
hot, soapy water.
Mild dish soap may
be used, but do not
use abrasive
cleansers.
11

VHS3350-A.1
