Tool Shed TSVC11 User manual

WET AND DRY VACUUM
CLEANER 1200W 35L
www.thetoolshed.co.nz
T S V C11

23
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ
TABLE OF CONTENTS PRODUCT DETAILS
Product Model ToolShed Wet & Dry Vacuum Cleaner
1200W 35L
Product Code TSVC11
DISTRIBUTED BY:
Product Details 3
Specications 4
Product Identication 5
Safety Guidelines 6
Assembly 9
Operation 10
Maintenance 11
Troubleshooting 12
Parts Diagram 13
Note:
This manual is for your reference only. Due to the continuous improvement of
the ToolShed products, changes may be made at any time without obligation or
notice.
Warranty:
This product may be covered under The ToolShed warranty. For more information, see our
Terms & Conditions at www.thetoolshed.co.nz
Thank You
For the purchase of this ToolShed product. We try our hardest to supply customers like you
with the best quality products available, at the best price possible. We cant wait to continue
working together in the future.
Please contact us for any servicing, replacement parts, or questions you might have about
your ToolShed product by visiting our website, or calling: 0800 948 665.

45
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ
SPECIFICATIONS PRODUCT IDENTIFICATION
Voltage 230 Volts
Frequency 50 Hertz
Motor Power 1200 Watts
Maximum Outlet Power 1000 Watts
Vacuity > 18 kPa
Noise < 80 dB
Airow Rate 1.9 M3/Min

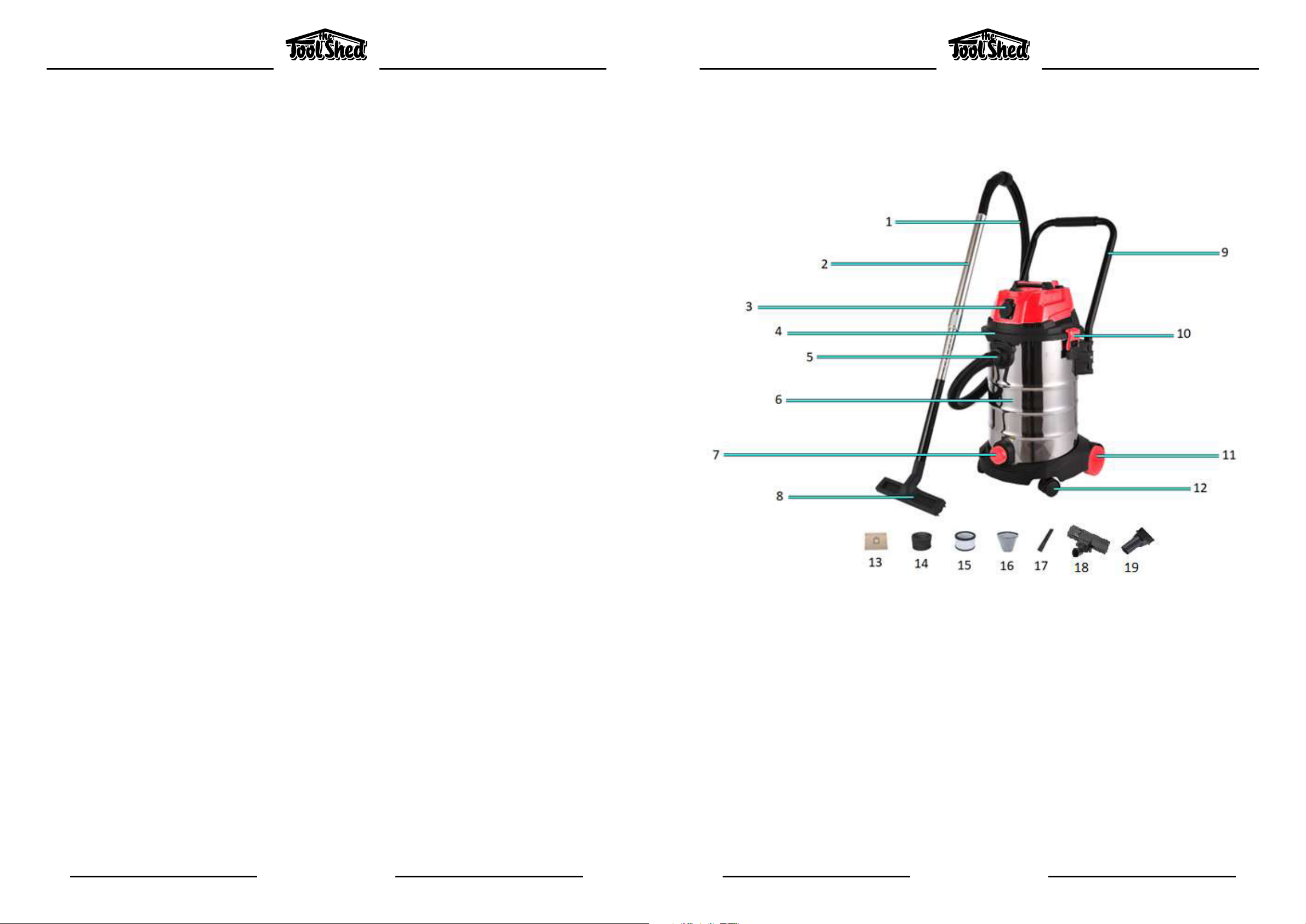

1Plastic Hose
2Metal Telescopic Tube
3Power Socket
4Barrel Cap
5Suction Port
6Stainless Steel Tank
7Drainage Port
8Wet & Dry Brush
9Lifting Handle
10 Plastic Clip
11 Back Wheel
12 Front Wheel
13 Paper Bag
14 Sponge Filter
15 Washable HEPA Filter
16 Non-Woven Cloth Filter
17 Crevice Nozzle
18 Advanced Floor Brush
19 32mm Round Brush

67
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ
SAFETY GUIDELINES SAFETY GUIDELINES
• DO NOT use the power tool or machinery
in raining conditions or wet areas where
the power tool or machinery could get
wet. Water in the power tool or machinery
can lead to electric shock.
• Only use the power tool or machinery
when the plug correctly matches the
power outlet. Modifying plugs greatly
increases the risk of electric shock.
• Keep the power cord away from anything
that could damage it such as sharp edges,
moving parts or heat. A damaged power
cord increases the risk of electric shock.
• Only operate outdoors with the use of an
outdoor extension lead. Not all extension
leads are suited to outdoor use and using one
which is not can greatly increase the risk of
electric shock.
• Avoid body contact with grounded or
earthed surfaces. Surfaces such as radiators,
ranges, pipes, and refrigerators can increase
the risk of electric shock due to your body
being earthed or grounded.
WARNING
Electric shock can cause serious injury
or, in some cases be fatal.
Electrical Safety
• Use the correct tool for the job. Forcing
a tool to do a job it was not designed for
increases the risk of accident or injury.
• Disconnect tools and machinery from
power, or remove batteries before
making any changes or adjustments, or
before storing the tools and machinery.
This reduces or removes the risk of a power
connection that causes the tool or machinery
to accidentally re, which can help prevent
injury or accident.
• Check the general condition of the power
tool for damage or any problems that
could aect the way the tool or machine
works. An unrepaired tool or machine can
lead to accident and injury. Only have your
tool or machine repaired with genuine parts
from The ToolShed.
• Only use the power tool and machinery
with genuine parts or accessories that are
designed to be used with the power tool
and machinery. Failure to do so could result
in accident or injury or damage your tool or
machinery.
• Store your tool or machinery out of reach
of children, and away from untrained
personnel when not in use. Use by some-
body untrained, or a child, could lead to
accident or serious injury.
Power Tool & Machinery Use &
Care
• Always wear personal protective equip-
ment (PPE). Eye protection, ear protection,
dust masks, and other protective equipment
will help to reduce the risk of personal injury
or long-term illnesses.
• Dress appropriately. DO NOT wear loose
clothing that can get caught in moving
parts. Keep hair, loose clothing, jewellery, and
READ ALL SAFETY WARNINGS &
INSTRUCTIONS. Failure to follow
instructions and warnings could lead to
serious injury, electric shock, or re.
anything else that could be of risk, away from
moving parts in the machine, or they could be
caught therein.
• Always remain alert and DO NOT operate
power tools or machinery under the
inuence of any substances like alcohol
or drugs, including prescription medica-
tions. Lack of focus could lead to injury or
accident while operating these power tools
and machinery.
• Always ensure proper footing and
balance. Overreaching can lead to slipping
and falling which can result in injury or acci-
dent.
• Ensure the power switch is in the OFF
position before connecting any battery,
or power source to the power tool or
machinery. This can cause injury as tools
and machinery can suddenly re incidentally
when live, causing accidents.
• Use all provided dust collection and
extraction attachments, if included. This
equipment, along with the use of PPE dust
masks, can help keep you safe from dust, and
keep your work site clear from hazards.
• Ensure loose parts such as wrenches
or adjusting keys are removed before
starting the power tool or machinery.
WARNING
Work Area Safety
Personal Safety
• Ensure that your work area is kept well lit
and clean. Lack of visibility and clutter greatly
increase the risk of accident when using tools.
• Keep bystanders, pets, and children clear
when operating a power tool or machine.
They can cause distraction or risk injury to
themselves.
• Ensure you are not operating the power
tool or machinery in the presence of dust,
liquids, ammable gases, or anything
that creates an explosive atmosphere.
Power tools and machinery can create sparks
which can lead to ignition and re hazards in
working environments.

89
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ
SAFETY GUIDELINES
Vacuum Specic Safety
Service Hose Connection/Removal Filter Cleaning Function
Blowing Function Power Socket
• Have your tools and machinery serviced
at The ToolShed with ToolShed replace-
ment parts. This will ensure that the safety of
the power tool or machine is maintained.

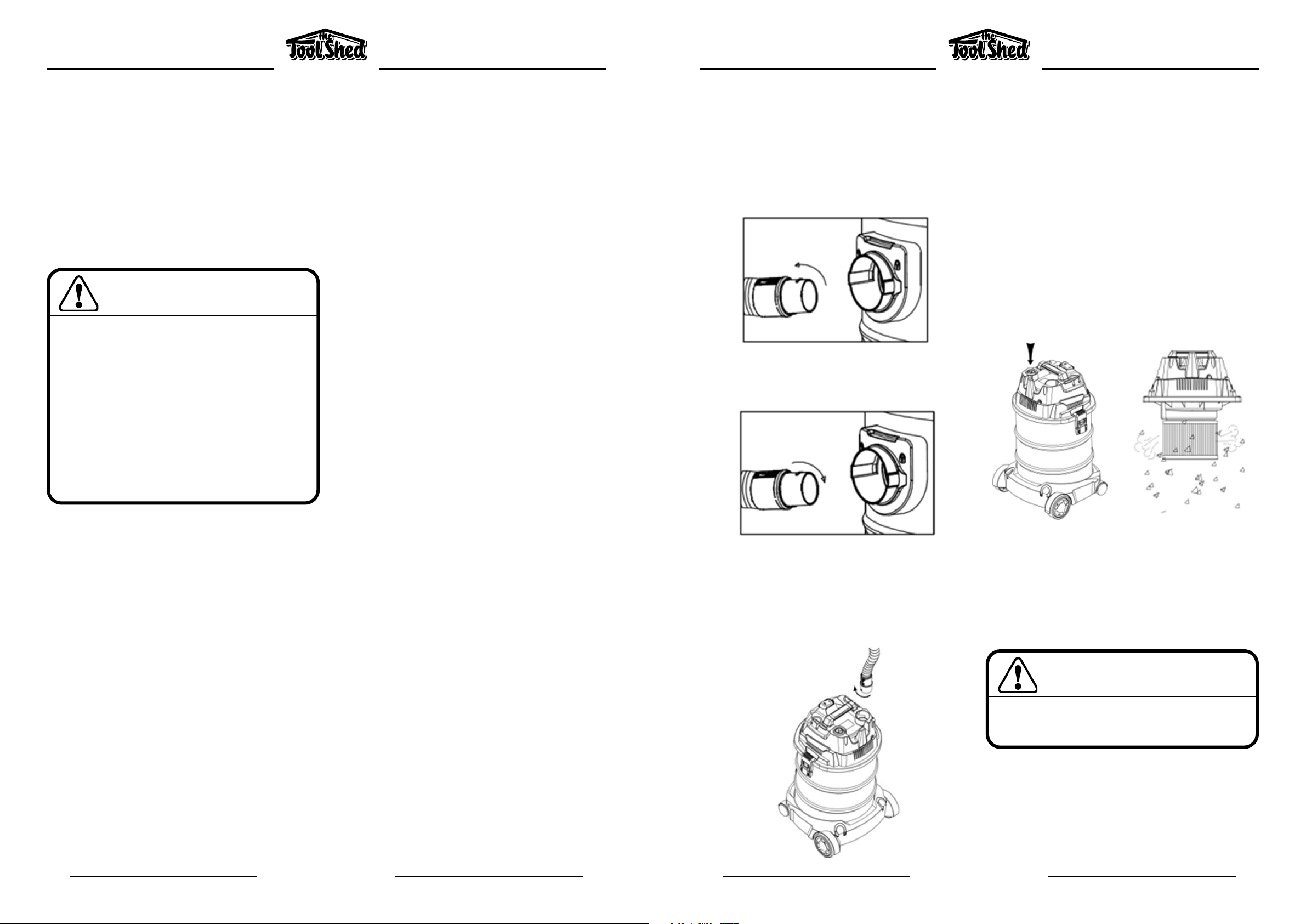

• Insert the hose connector into the air inlet and
turn clockwise to lock it into place.
• Block the suction port with a single hand
while pressing the button located on top. The
airow will come through the lter and shake
the dust o it. This will help avoid blocking,
and to clean the surface of the lter.
• NOTE: This function only works to avoid
the blocking of lters. The lters should
still be cleaned properly after heavy use.
• Insert the hose connector into the blowing
port, as it’s shown in the picture, for when you
want to use the blower.
• When this model is plugged in, the socket
works as a power supply. You can connect an
appliance to it.
• To remove; twist the connector anti-clockwise
and pull out from the inlet.
• Check before operation that the local power
supply is the same as what is specied on the
rating label.
• Do not use the machine in potentially
combustible and explosive areas in case of
sparking from the motor case.
• Do not create a jam at the air inlet mouth.
This can cause case temperatures to rise and
damage the motor.
• Do not pick up combustible and explosive
objects such as burning cigarettes, gasoline,
etc.
• Do not pick up sharp objects.
WARNING
WARNING
The warnings and precautions
discussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under stood
by the operator that common sense
and caution are factors which cannot
be built into this product, but must be
supplied by the operator.
Max outlet power of the appliance
should not exceed 1000W.
• Do not pick up objects which can easily stick
to the lter, such as powders. They will block
the ventilation and damage the motor.
• Keep the vacuum upright or you risk water
going into the casing and motor, and
damaging it.
• Do not use this machine as a pump as you can
damage the motor.
• Always turn o the machine and unplug when
you are nished using or maintaining it.
• Keep this vacuum away from strong sunlight
and high temperatures as the plastic may
become distorted.
• Do not twist, walk on, or drag the vacuum
aroundbythehose, as this couldrisk damaging
it.
A SS E M B LY

10 11
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ
OPERATION
Stages of the Switch
• I – The device is turned on.
• O – The device is turned o.
• II – This stage is only used when a power
tool is plugged into the Vacuum.
Turn on the power tool, the vacuum will start
working automatically after a few seconds.
Turn the power tool o and the vacuum will
shut down automatically after a few seconds.
Handle with Airow Adjustment
Barrel Cleaning
Filter Cleaning
Protective Device
Filters
• You can adjust the airow by pushing the
sliding block up and down.
• After use, or when the barrel is full of dust;
which causes a considerable decrease in
suction, cut o the power and clean the dirt
in the barrel:
• Unfasten the locking knobs and lift up the top
cover.
• Take o the lter bag and clean the dust in the
barrel away.
• The HEPA lter should be washed with clean,
warm water when it is covered in dust.
• When the water in the vacuum is full, the
protective device will activate. The suction
power will stop, and the machine will make
some noise to indicate that the motor is
running at high speed. If this happens, you
should cut o all power to the vacuum and
clean out the water.
• For cleaning liquid, please t the sponge lter
on the bracket under the head.
• For cleaning dust, please t the HEPA lter on
the bracket (after tting the sponge lter).
• For cleaning dust, t the paper bag on the
suction port well, in case of some leakage.
WARNING
Continuing to use the machine once
the protective device is working can
damage the motor and/or cause re.
MAINTENANCE
• Before cleaning or performing any mainte-
nance, you must ensure the tool is switched
o and disconnected from the power supply.
• Compressed air is the most eective way to
clean this tool. Always wear PPE safety goggles
when cleaning tools with compressed air.
• Check the carbon brushes of the machine in
the event of excessive sparking.
• Ventilation openings and switch levers must
be kept clean. DO NOT attempt to clean by
inserting pointed objects through openings.
• Do not use chemicals when cleaning this tool.
• If you discover any damaged or broken parts,
consult your nearest ToolShed for replace-
ments and advise.

12 13
OPERATION MANUAL OPERATION MANUAL
WWW.THETOOLSHED.CO.NZWWW.THETOOLSHED.CO.NZ

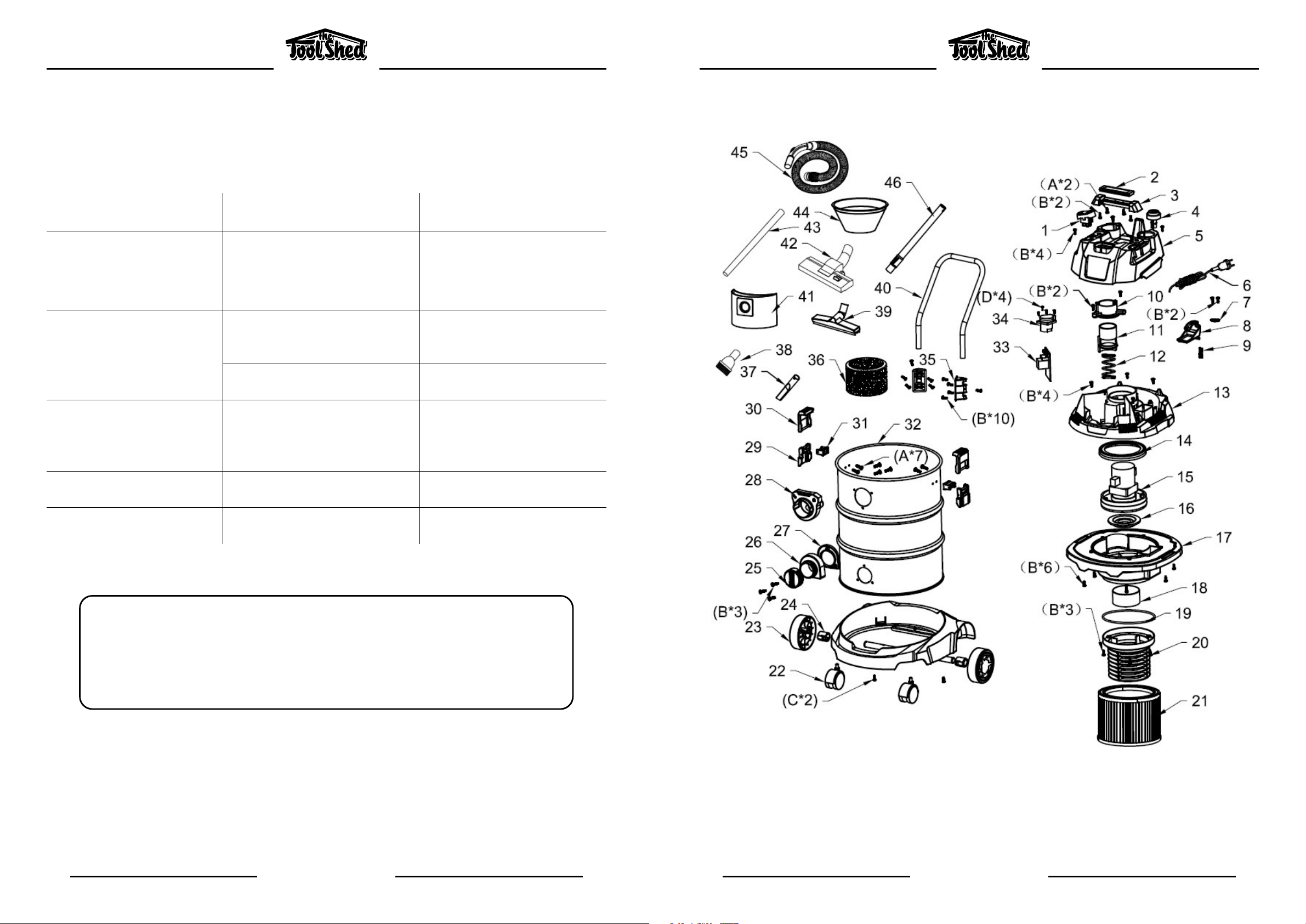

TROUBLESHOOTING PARTS DIAGRAM
FAULT POSSIBLE CAUSE SUGGESTED SOLUTION
Dust/Liquid Leaks From
The Telescopic Tube/
Plastic Hose/Suction Port
Accessories are not connected well
to the vacuum.
Make sure the accessories are
connected tightly and properly.
Weak Suction
Filter/telescopic tube/plastic hose/
suction port is clogged.
Clean the lters and the
accessories, or use the lter
cleaning function on the vacuum.
The barrel is not lidded well, thus
there’s air leakage.
Check the head and the clips are
connected properly.
Abnormal Noise When
Working
Too much water inside.
Vacuum is turned over, so that the
valve blocks the air inlet.
Pour out the water in the tank, or
place the unit upright.
Send it to dealer for check and
maintenance.
Unit Begins To Smoke Overheated, overloaded or
damaged motor.
Turn o the unit and send it for
maintenance.
Poor Filtration Filters are used for too long a time. Contact your nearest ToolShed for
replacement parts.
Note:
For any replacement parts or queries about your new machine, contact your
nearest ToolShed Dealership. This will ensure the safety and longevitiy of your
new item is maintained to the best of its ability.
Symbol Name Quantity
AST4*12 Screw 9
BST4*16 Screw 36
CST4*35 Screw 2
DST4*18 Screw 4

14
OPERATION MANUAL
WWW.THETOOLSHED.CO.NZ
1Switch
2Handle cap
3Handle
4Filter-cleaning button
5Top cover
6Power cable
7Cable block
8Filter-cleaning board
9Spring
10 Blower cover
11 Blower piston
12 Piston spring
13 Middle cover
14 Upper seal ring
15 Motor
16 Lower seal ring
17 Barrel cap
18 Water oater
19 Sealing strip
20 Bracket
21 Sponge lter
22 Ø50 Front wheel X2
23 Rear wheel X2
24 Rear wheel fastener X2
25 Port knob
26 Drainage port
27 Seat of drainage port
28 Suction port
29 Clip supporter X2
30 Plastic clip X2
31 Clip seat X2
32 Metal tank
33 PCB board
34 Power socket
35 Pushrod holder X2
36 Sponge lter
37 Crevice nozzle
38 Round brush
39 Floor brush
40 Pushrod
41 Paper bag
42 Advanced oor brush
43 Plastic tube
44 Cloth lter
45 Plastic hose
46 S/S telescopic tube
PARTS DIAGRAM
