Toomac Juzo JZ705 Assembly instructions

Important:
If there are open wounds in the area, the aected area must be covered with an appropriate wound dressing or bandage
before the adjustable compression system can be applied.
Juzo ACS Light Hand wrap (Product code JZ705)
If you are wearing the Juzo ACS Light hand wrap in combination with the arm wrap, please put on the arm wrap first so
that the hand wrap overlaps with it in the area of the wrist. Juzo hand wraps are not right or left specific.
Instructions for Use and Care of your
Juzo ACS Light Hand and Arm Wrap
Toomac
Solutions
DIVISION OF TOOMAC HOLDINGS LTD
3. The supplied foam pad can be placed on the back of the
hand or in the palm, this is optional.
Freedom in Motion
1. Attach the supplied touch fasteners halfway on the tab
ends so that you can secure the tabs from the outside.
2. Insert your thumb in the dedicated opening so that your
palm initially remains free and the majority of the wrap
covers the back of your hand.
4. First, tighten the small tab around the palm and secu-
re it on the back of the hand using the hook and loop
fastener.
5. Then tighten the wide tab around the wrist and close it
toward the back of the wrist.
6. Check that the product exerts pleasant, clearly noti-
ceable compression. If you feel pain or other problems,
loosen the touch fasteners.
www.juzo.com

Please refer to the detailed instructions in the Juzo Product pamphlet enclosed in the packaging.
There should not be any large folds / creases while wearing. If required, you can increase the wrap’s compression by adjusting
the tabs from the bottom to the top. All Juzo ACS Light products can be used with or without the incorporated lining, or with a
separate liner where the garment is worn.
Washing and care instructions
Juzo ACS Light products should be washed at least once a week or more often as required. Prior to washing remove all
touch fasteners. The products can be machine-washed at 30 °C using a laundry detergent for delicate fabrics. A laundry
net additionally protects the product. Please do not use fabric softener. Never use bleach. Do not tumble dry. You can
reduce drying time by placing the products on a thick towel after washing, tightly rolling the towel up and firmly squee-
zing out excess moisture. Do not leave the product in the towel and do not dry it on a radiator or in the sun. Juzo ACS
Light products must not be ironed. The products are not suitable for dry cleaning. The intervals between washing can be
extended by wearing a Juzo liner. Store in a dry place and protect from sunlight.
Juzo ACS Light Arm Wrap (Product code JZ706)
Juzo ASC Light Arm Wraps are right and left arm specific.
6. Check that the product exerts pleasant, clearly noti-
ceable compression. If you feel pain or other problems,
loosen the touch fasteners.

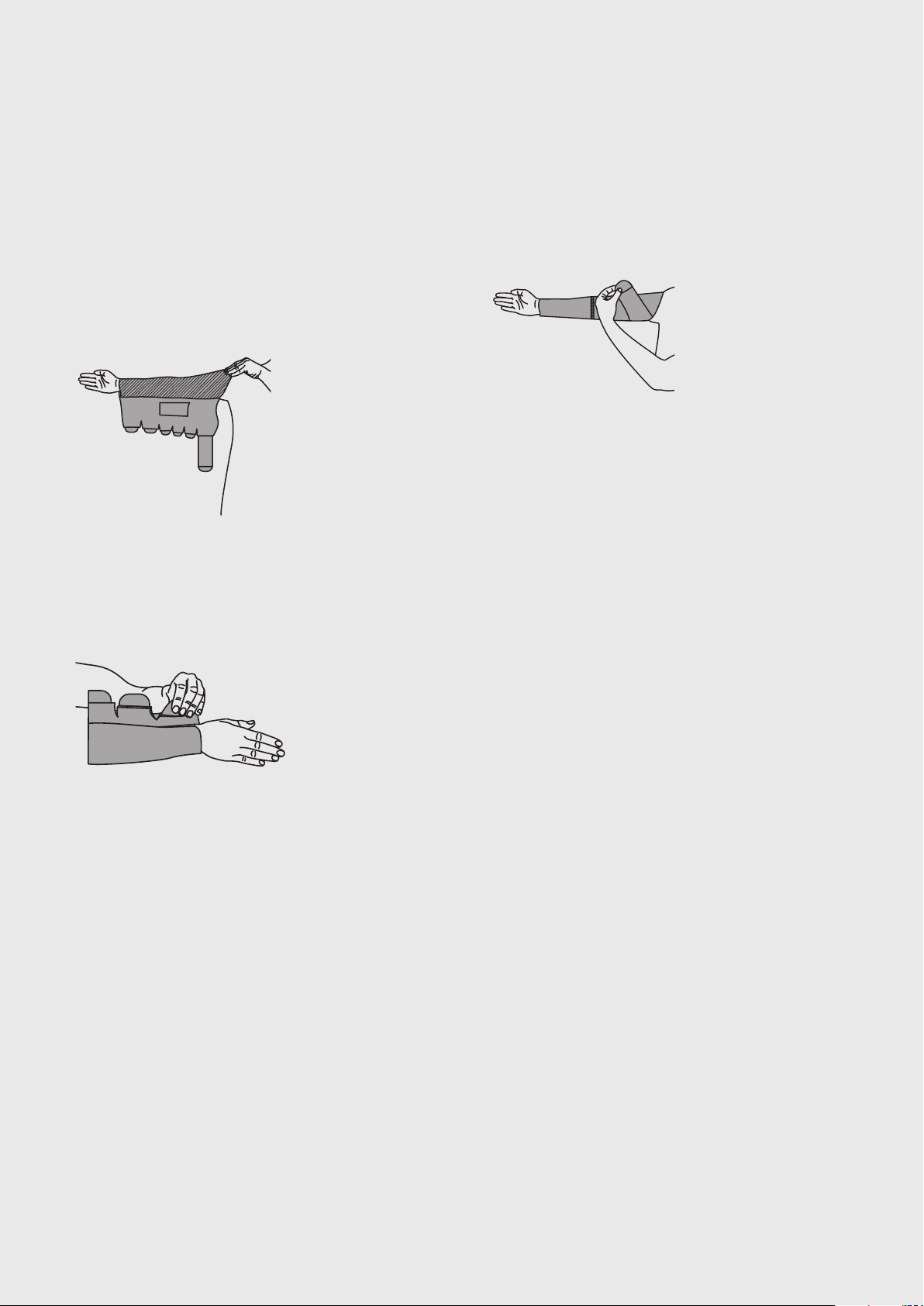

1. If not already attached, attach supplied touch fasteners
half way on each tab. Optional to attach the extender to
the top tab.
3. Put your arm into the integrated lining with your palm fa-
cing upwards. Now position the upper edge of the wrap
2 - 3cm below your armpit. Line up the comfort zone of
the arm wrap so that it will be in the crook of the elbow
when the wrap is closed.
2. The supplied foam pad can be inserted into the dedica-
ted pocket in the elbow area. This is optional.
5. Continue closing the other tabs from the bottom to the
top finishing with the top tab.
4. Bend your arm at a 90 degree angle and start by clo-
sing the tabs from the wrist. Tighten them towards the
outside of the arm using the same tension on each tab.
Julius Zorn GmbH · Juliusplatz 1 · 86551 Aichach · Germany · www.juzo.com
Toomac Solutions · 32D Poland RD · Wairau Valley · Auckland · New Zealand · [email protected] · www.toomacsolutions.co.nz
