Top pro music gear TAP20A User manual

TAP20A/20T/40A/40T
OUTDO O RS
INDO O RS
SPEAKER

OUTDOO RS & INDOORS
SPEAKER

OUTDOORS & INDOORS
SPEAKER

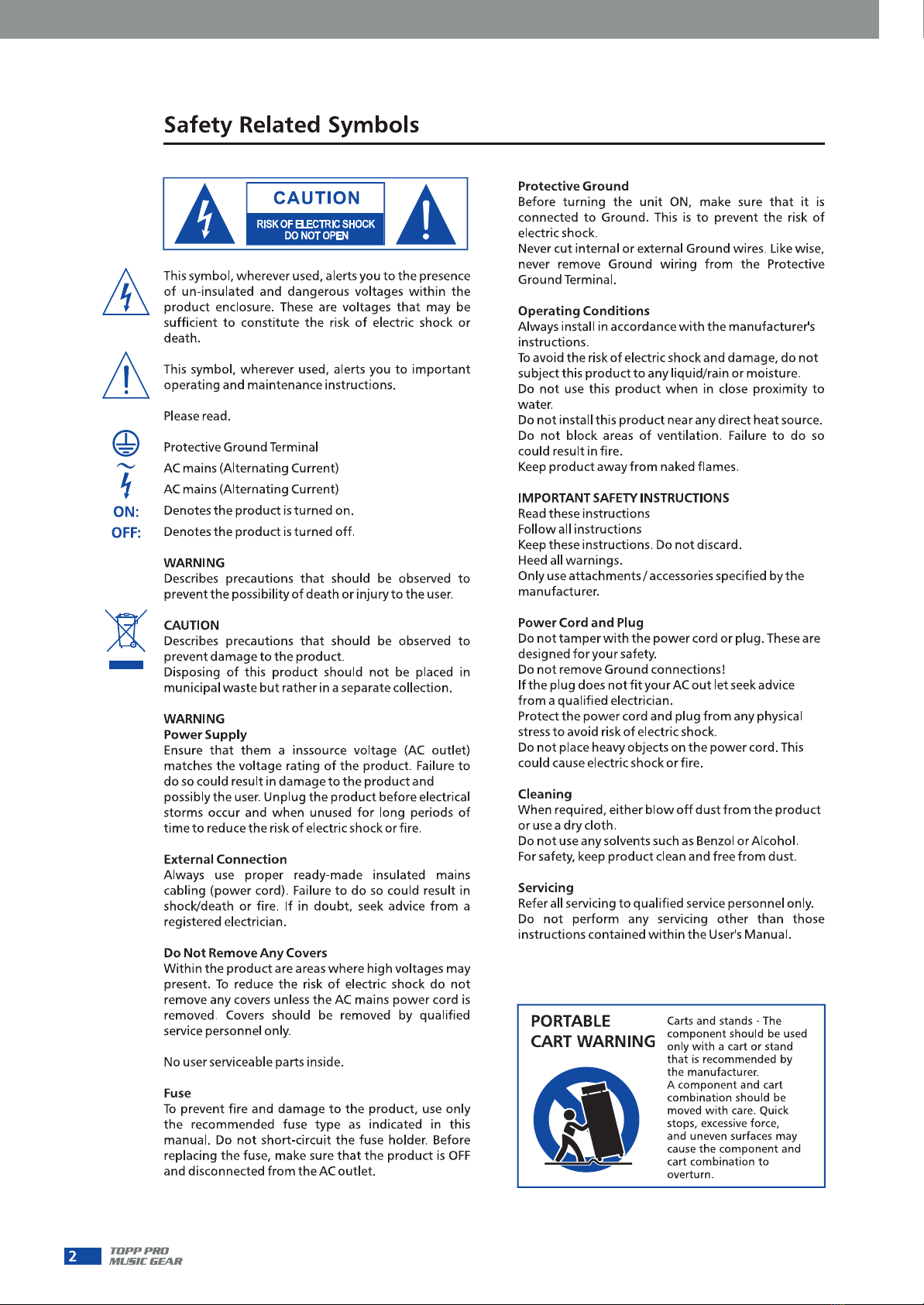

1. INTRODUCTION ................................................................4
2. USEFUL TIPS.....................................................................4
4. CONTROL ELEMENTS.........................................................5
6. INSTALLATION DESCRIPTION.............................................8
3. USEFUL DATA ...................................................................4
5. CONNECTION DIAGRAM....................................................6
7. BLOCK DIAGRAM....................... ......................................10
8. FREQUENCY RESPONSE DIAGRAM.....................................11
9.TECHNICAL SPECIFICATION...............................................12
10. GUARANTEE...... ...........................................................14

OUTDOORS & INDOORS
SPEAKER
TAP20A/20T/40A/40T are designed for indoor and outdoor installation and
public address system. They provide quality performance and alternative
two models, including speaker cabinet with transformer and active speaker
cabinet. Further more, we offer optional metal rotatable mounting bracket,
thus you can install TAP SERIES speakers on wall easily. This new compact
speaker series meet every demand for restaurants super market, shopping
mall, pubs and so on.For TAP40T, it is equipped with IP44, it can be used in
various outdoor applications and situations.
Enjoy your TAP SERIES speaker cabinet and make sure that read this
manual carefully before operation.
Speakers should be placed in a position that allows for unobstructe sound
projection. In many instances is beneficial for speakers to be elevated on
tripod stands to achieve maximum dispersion and reach.
*Use professional advice or service when hanging and installing speakers.
Please take precautions to secure them to prevent them from falling and
hurting someone. Care should be taken as to not damage the cabinet or
its components. Please comply with all pertinent Regulations.
*Use quality cables. Using quality cables will ensure the best possible sound.
*For best results match the speakers to a good amplifier that matches the
wattage & impedance of your speakers. Proper amplification power results
in good quality audio & longer component life. Check out the power
requirement for your cabinet.
*Avoid pointing a microphone directly at an amplified speaker doing so,
could cause feedback possibly damaging speaker components and your
hearing.
Introduction
Useful Tips
Useful Data

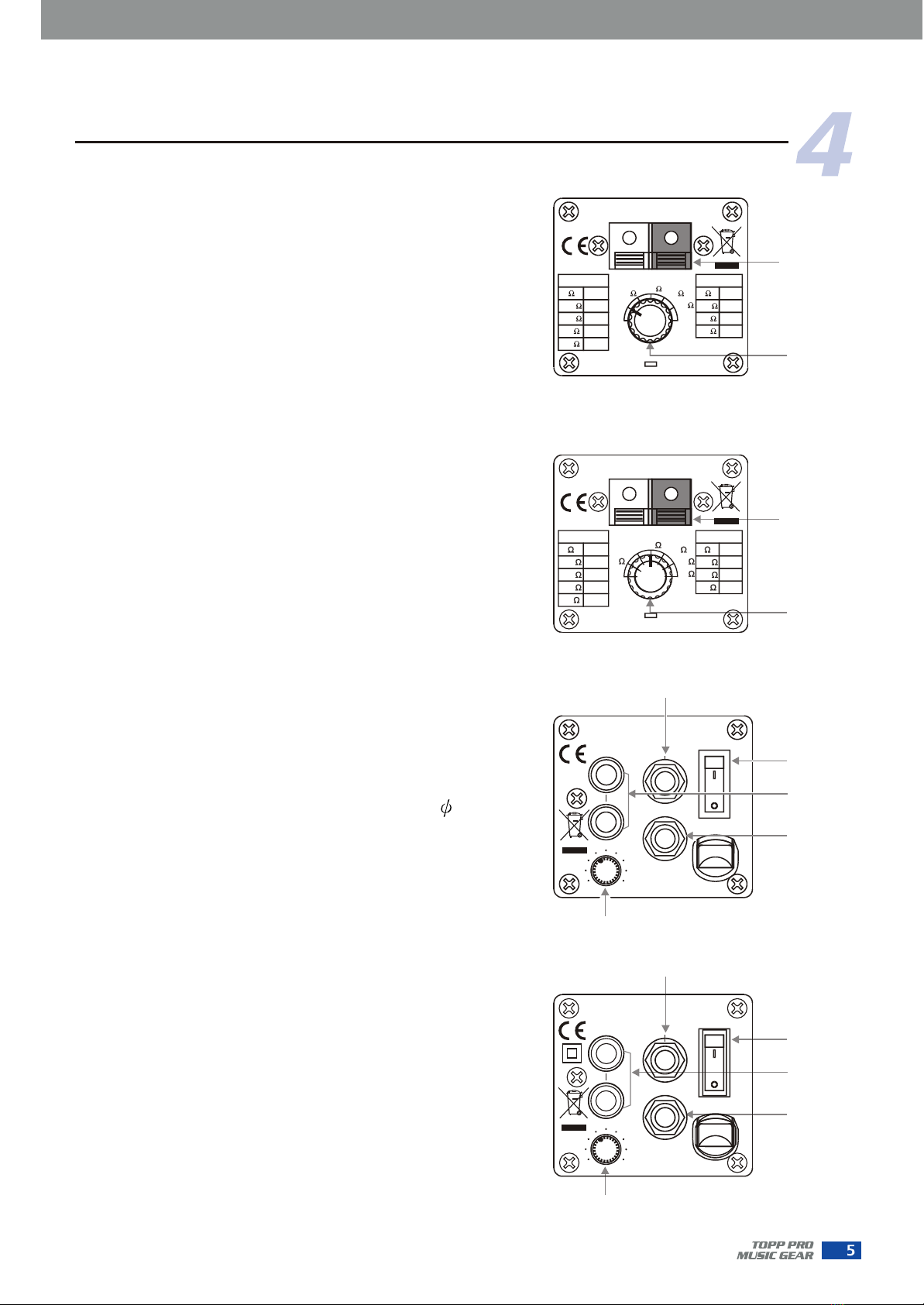

1- Input Connection
Use push-button for fixed installation.
The Positive connection is usually marked
with ( + ), or Red push-button. Use it to
connect the amplifier output ( + ).
The Negative connection is usually marked
with ( - ), or Black push-button. Use it to
connect the amplifier output ( - ).
2- Power Selections
With this rotary switch, it is possible
to select the power level of TAP20T
from 2.5W minimum to 20W maximum,
TAP40T from 5W minimum to 40W
maximum for two different constant
voltages 70V or 100V. In Off position
the speaker system is disconnected
from the Line. For TAP40T, the bypass
is activated in 6 Ohms position.
3- Balanced Input
Use this socket to input signal with a
6.3 cable.
4- ON/OFF switch
Use this switch to switch on/off power
supply.
5- Stereo Input
It is used to input stereo signal.
6- LINK
It is used for outer signal output and be
connected with other active speaker
cabinets.
7- Volume Control
It is used to adjust the main volume.
REAR PANEL
(1)
(2)
TAP40T
1K
OFF
70V
122
500
500
40W
W
10W
20W
5W
10W
100V
W
250
250
20W
40W
122 250
500
6
1K
1K
(5)
(7)
(3)
(6)
(4)
ON
OFF
MAX
MIN
TAP40A
LINK
MAX POWER:50W
220-240V ~ 50Hz
BALANCED
INPUT
STEREO
INPUT
L
R
Control Element
OUTDOO RS & INDOORS
SPEAKER
(1)
(2)
TAP20T
500
2K
OFF
70V
245
500
1K
2K
20W
W
10W
5W
2.5W
100V
500
1K
2K
W
20W
10W
5W
245 1K
(5)
(7)
(3)
(6)
(4)
BALANCED
INPUT
L
R
LINK
ON
OFF
MAX
MIN
TAP20A
STEREO
INPUT
MAX POWER:40W
AC 220-240V/50Hz

OUTDOO RS & INDOORS
SPEAKER
Connection Diagram
5
(A)Figure
COM 4816
COM 70V COM 100V
AC IN 110V~60Hz
POWER CONSUMPTION:80W
DC FUSE
T6.3A/250V
L
AC FUSE
T1A/250V
AC OUTLET
110V/60Hz 10A
MODEL
SERIAL
R
REC OUT CD TAPE TUNER
AUX
OUTPUT
OUTPUT
DC 12V 5A
CAUTION : SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED.
CAUTION

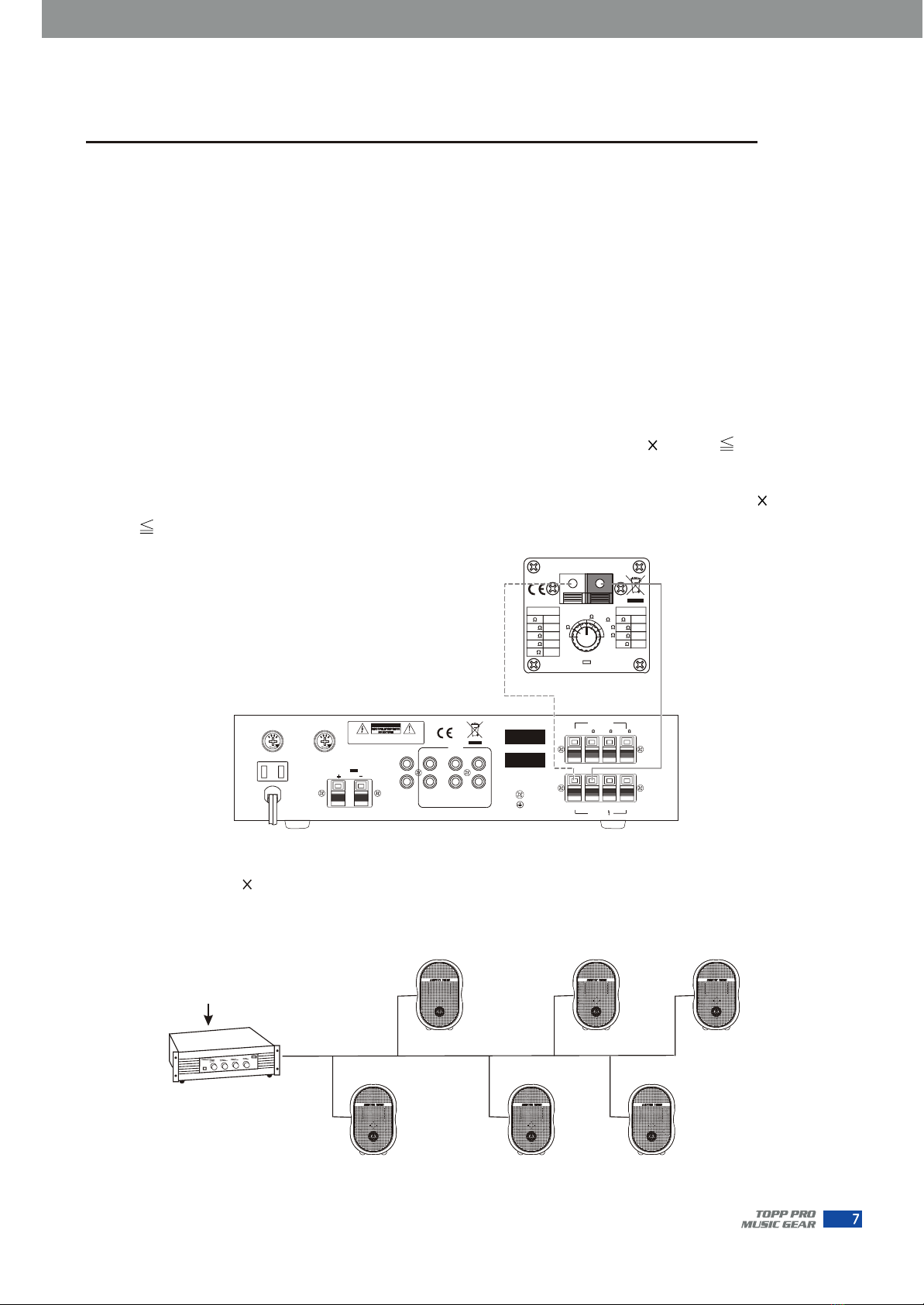

LEVEL DISTRIBUTION SYSTEM FOR TAP20T
Level distribution system only controls "T" model. TAP20T have built-in transformer
of 70/100V , can connect many speakers to one channel, and only need one
amplifier. The amplifier output terminal "com/-''stands for negative polar, terminal
"70V/100V/+" stands For positive. The red speaker terminal stands for positive,
black stands for negative. Please connect amplifier to speaker right, incorrect
connection may cause damage to amplifier and speaker. Finally set your
desired output power ,see picture A to adjust band switch to meet your need,
in this case, the total power of all the speakers can't exceed the nominal power
of amplifier. One 80W amplifier channel can drive 8 speakers of 10W, i.e. 10 8
=80 80W). For safety, the total power of all the speakers should be less than
3/4 nominal power of amplifier. (One 80W amplifier channel can drive 6 speakers
of 10W, i.e. 10 6=60W 80W).
6 10 WATT=60 WATT TOTAL LOAD ON AMPLIFIER
INPUT
AMPLIFIER
TYPICAL 80 WATT
70V OUTPUT
10 WATT TAP
10WATT TAP
10WATT TAP
10WATT TAP
40WATT TAP
10WATT TAP
(B)Figure
TAP20T
500
2K
OFF
70V
245
500
1K
2K
20W
W
10W
5W
2.5W
100V
500
1K
2K
W
20W
10W
5W
245 1K

OUTDOORS & INDOORS
SPEAKER
5
Connection Diagram
()Figure C
TAP40T
1K
OFF
70V
122
500
500
40W
W
10W
20W
5W
10W
100V
W
250
250
20W
40W
122 250
500
6
1K
1K
COM 4816
COM 70V COM 100V
AC IN 110V~60Hz
POWER CONSUMPTION:80W
DC FUSE
T6.3A/250V
L
AC FUSE
T1A/250V
AC OUTLET
110V/60Hz 10A
MODEL
SERIAL
R
REC OUT CD TAPE TUNER
AUX
OUTPUT
OUTPUT
DC 12V 5A
CAUTION : SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED.
CAUTION
LEVEL DISTRIBUTION SYSTEM FOR TAP40T
Level distribution system only controls "T" model. TAP40T have built in transformer of
70/100V , can connect many speakers to one channel , and only need one amplifier.
The amplifier output terminal "com/-'' stands for negative polar, terminal "70V/100V/
+" stands For positive. The red speaker terminal stands for positive, black stands
for negative. Please connect amplifier to speaker right, incorrect connection may
cause damage to amplifier and speaker. Finally set your desired output power, see
picture C to adjust band switch to meet your need, in this case, the total power of
all the speakers can't exceed the nominal power of amplifier.
One 320W amplifier channel can drive 8 speakers of 40W, i.e. 40 8=320 320W).
For safety, the total power of all the speakers should be less than 3/4 nominal power
of amplifier. (One 320W amplifier channel can drive 6 speakers of 40W, i.e. 40 6=
240W 320W).
6 40 WATT=240 WATT TOTAL LOAD ON AMPLIFIER
INPUT
AMPLIFIER
TYPICAL 320 WATT
70V OUTPUT
40 WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
()Figure D

OUTDOORS & INDOORS
SPEAKER
INDOOR INSTALLATION DESCRIPTION:
TAP series speakers are designed specially for fixing and using in different
circumstances. The property of speakers may be different due to different
circumstances. There is an acoustic surface (wall, floor and ceiling) in a closed
room, so the acoustic indoor will turn complex. When acoustic wave hits the
surface, a part of acoustic energy is reflected, others are absorbed.
Reflection and absorption are depending on the frequencies of acoustic wave
and angle of hitting surface. When operate the cabinet, both man& furniture
can absorb the acoustic energy. Please note the position of man and furniture
when installing. Reverberation is the results of the reflected acoustic wave
continue bouncing between the surfaces.
(1)
(3)
(2)
(4)
6
Installation Description
Note: Commercial audio installation system must conform to local building
laws. When install speaker on wall or ceiling, please consult a building designer
with a license or a professional engineer. The corporation won't be responsible
for the improper installation or damage because of not conforming to installation
description.
Installation procedure of the bracket(bracket CS-2 is for TAP20A/20T, CS-3 for
TAP40A/40T) is very simple & convenient, the appearance is pleasing to the
eye.
Step 1: Fasten the bracket on the wall with screws. The wall material must
support the weight of the cabinet.
Step 2: Place the body of cabinet in bracket and lock the screws tightly.
Step 3: Use screw bracket and bracket and use steel rope
to connect two brackets.
(1)
(2)
(3) lock (1) (2) (4)

OUTDOORS & INDOO RS
SPEAKER
(Figure A)
ONE LOUD SPEAKER
(Figure B)
MULTIPLE QUIET SPEAKERS
Speaker coverage range: Direct the center axile of the speaker to the flat surface
of receiving area. The speakers of 90 90 series can spread the speaker tone to all
the directions at the axile of 45 . If you use the speakers in a large room, you can
divide the room to some zones. Then decide the installing location of the speakers .
45
45
45
45
45
45
45
45
VERTICAL
HORIZONTAL
Installation Description
6
Every reflection will loss the energy. When the acoustic hit the reflection surface,
the room will be filled with random reflected acoustic wave. The music and address
will be complex. It is recommended that install more speakers and make the
volume of speakers lower to reduce the reverberation in high reverberating room.

OUTDOORS & INDOORS
SPEAKER
TRANSFORMER
LINK
AC SOCKET
CLASS-D AMP
RCA INPUT
6.3 JACK INPUT
TAP20A/40A BLOCK DIAGRAM
7
Block Diagram

OUTDOORS & INDOO RS
SPEAKER
TAP20A
+60
+110
+65
+70
+75
+80
+85
+90
+95
+100
+105
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
TAP20T
+60
+110
+65
+70
+75
+80
+85
+90
+95
+100
+105
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
8

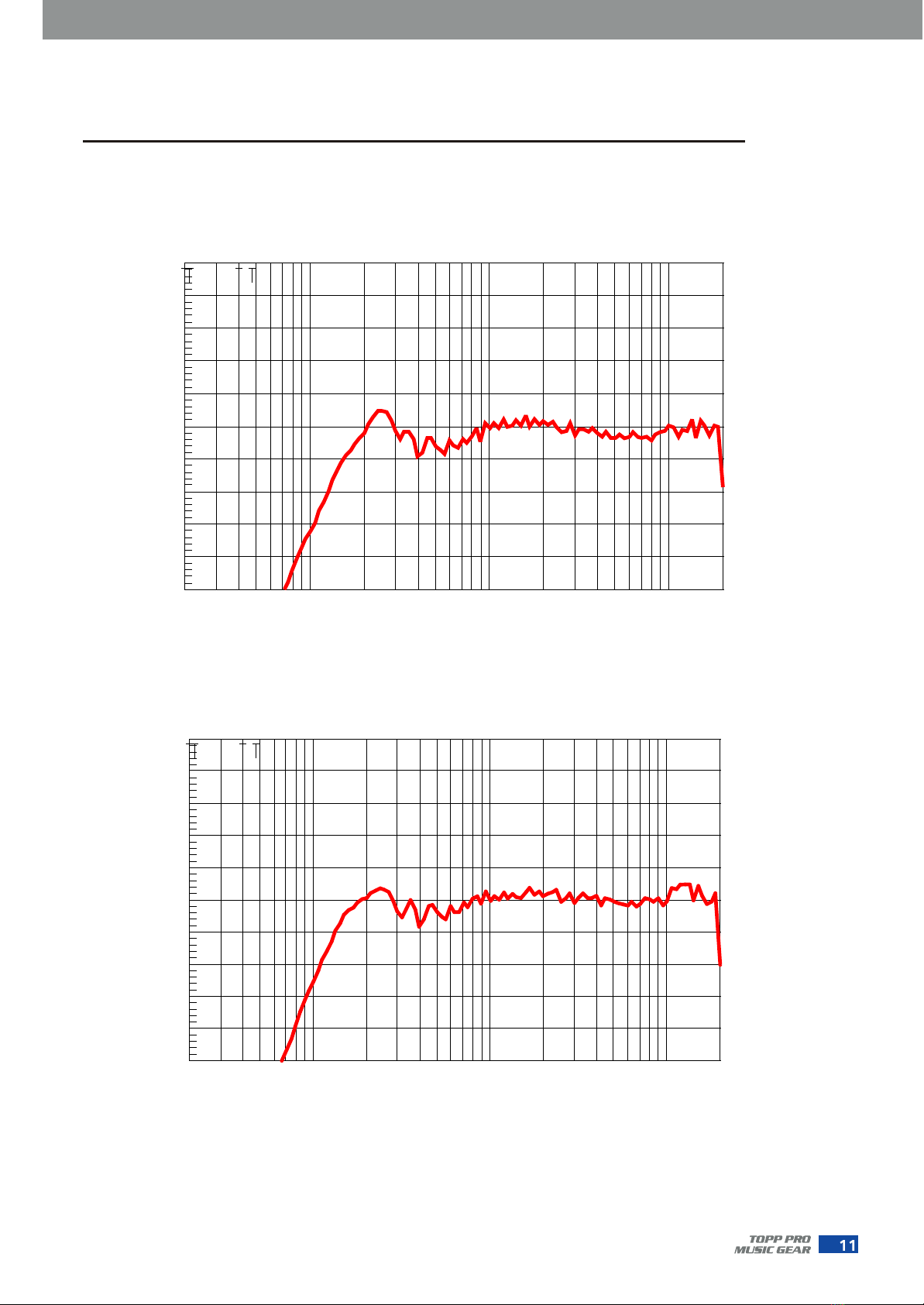

Frequency Response Diagram

OUTDOORS & INDOO RS
SPEAKER
TAP40A
+60
+110
+65
+70
+75
+80
+85
+90
+95
+100
+105
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
TAP40T
+60
+110
+65
+70
+75
+80
+85
+90
+95
+100
+105
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
Frequency Response Diagram
8

OUTDOO RS & INDOORS
SPEAKER
9
Technical Specification
3
System Type
Speaker
TAP20T
Speaker cabinet with transformer
3''(77*77mm)paper cone speaker
115*107*175mm
220V-240V/50Hz
110V-120V/60Hz
1.342kg/2.96lbs
0.8''(20.4mm)voice coil diameter
Model
3''(77*77mm)paper cone speaker
0.8''(20.4mm)voice coil diameter
TAP20A
SPL at 1m/1w 85 dB( 3dB) 85 dB( 3dB)
Frequency Response(-10dB) 132Hz-20KHz
Impedance 70V 245 /500 /1K /2K
100V 500 /1K /2K
4
132Hz-20KHz
Power Rating 70V 20W/10W/5W/2.5W
100V 20W/10W/5W 20W (RMS)
Wiring Terminal Input-RCA and 6.3 Balanced/
Output-link 6.3 Jack
Connector
Power selective switch Volume control/Power switch
External Controls
Dimensions
Weight
115*107*175mm
1.12kg/2.47lbs
Active speaker cabinet
Power Supply
System Type
Speaker
TAP40T
Speaker cabinet with transformer
4''(106mm)paper cone speaker
136*140*206mm
220V-240V/50Hz
110V-120V/60Hz
2.40kg/5.29lbs
1''(25.4mm)voice coil diameter
Model
4''(106mm)paper cone speaker
1''(25.4mm)voice coil diameter
TAP40A
SPL at 1m/1w 90 dB( 3dB) 90 dB( 3dB)
Frequency Response(-10dB) 76Hz-18KHz
Impedance 70V 122 /250 /500 /1K
100V 250 /500 /1K
4
76Hz-18KHz
Power Rating 70V 40W/20W/10W/5W
100V 40W/20W/10W 30W (RMS)
Wiring Terminal Input-RCA and 6.3 Balanced/
Output-link 6.3 Jack
Connector
Power selective switch Volume control/Power switch
External Controls
Dimensions
Weight
136*140*206mm
2.3kg/5.07lbs
Active speaker cabinet
IP Grade IP 44
Power Supply

OUTDOORS & INDOORS
SPEAKER
4
Guarantee
10

OUTDO O RS
INDO O RS
SPEAKER
NF03559-1.0
