Top R/C Hobby 8000MM WARBIRDS Series User manual

8000MM WARBIRDS SERIES AIRPLANES
A1 Sky Raider
Hawker Tempest

CONTENTS
B r i e f i n t r odu c t i o n . . . . . . . . . . . ... . . . . . . . . . . . . . .. . . . . . . . . . . . . . ... . . . . . . . . . . . . ... . . . . . . . . . . . . . .. . . . . . . . . . . . . . ... . . . . . . . 1
Pro ducts c onstitu tion... ....... .... ... .... ... .... ... .... ....... ....... .... ... .... ... .... ... .... ....... ....... .... ... .... ... ..1
Ma i n s p ec if ica ti on s .. . .. .. .. . .. .. ... .. .. ... .. .. ... .. .. ... .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. ... .. .. ... .. .. ... .. 2
M a i n c o n f i g u r a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assemble processes(A1 SKY RAIDER)...................................................................................2
Assemble processes(HAWKER TEMPEST)...................................................................................3
S af ety p re c au t io n s. ... .. . .. . .. . .. . .. . .. ... .. . .. . .. . .. . .. . .. ... .. . .. . .. . .. . .. . .. ... .. . .. . .. . .. . .. . .. ... .. . .. . .. . .. . .. . .. ..4
C har g i ng met h o d a n d c au t i o ns. . . . .. . . . .. . . . . .. . . . .. . . . ... . . . .. . . . .. . . . . .. . . . .. . . . ... . . . .. . . . ... . . . .. . . . .. . . . . .4
Caution and Notice for Li-po battery .....................................................................................................5
Caution and notice for ESC ...................................................................................................6
Spare parts(A1 SKY RAIDER)..............................................................................................................6
Spare parts(HAWKER TEMPEST)..............................................................................................................8

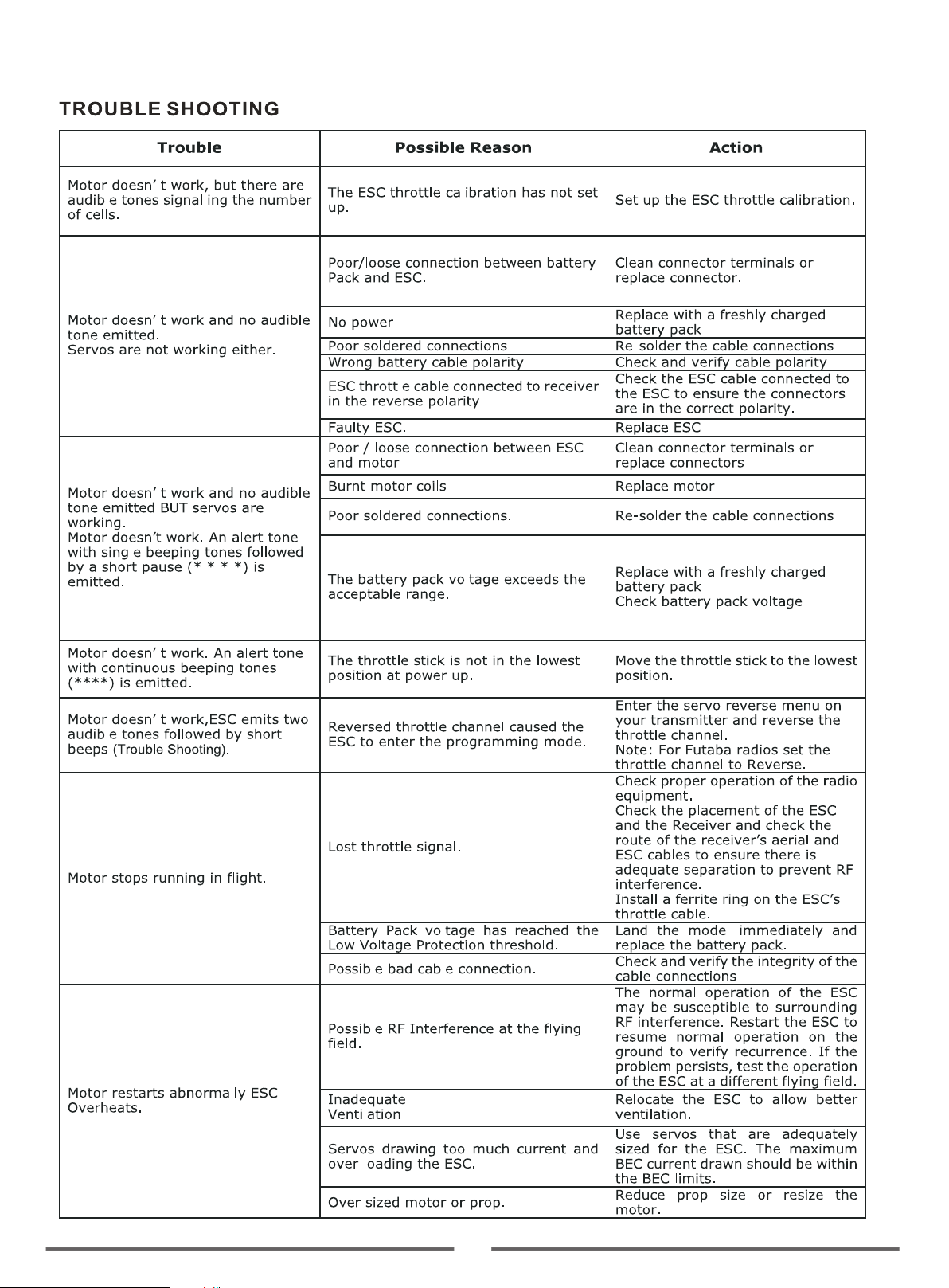

Trouble Shooting..................................................................................................................................9
Thank you for purchasing the remote control model airplanes from Top RC, and we hope this plane will bring endless
joy to you after you choose it.
can finish inside loops, outside loops, axial rolls and other aerobatic actions.
★ With attractive appearance, all parts are in proportion and give people strong visual impact.
★ With the scale rocket bomb, auxiliary oil tank and ventral bomb, it makes this airplane more scaled.
★ With detachable horizontal wings, it is easy to carry and maintain.
★ With modular design power system and detachable propeller, it makes very easy to assemble and
convenient to maintain.
★ With high scaled pilot.
★ Stable flight and easy to control, It can finish the level flight and inverted flight fluently ,and it also
Fuselage, Main Wings, Horizontal Wing, Main Landing Gear, Propellor, Auxiliary Oil Tank,
Battery, Charger, Radio, Accessory Bag.
Bomb,Guided missile,
RTF version
Brief introduction
Product constitution
Kits without radio, charger and battery
PNP version
Without any electronic parts
KIT version
1
A1 SKY RAIDER HAWKER TEMPEST

2
1.Assembly of the main landing gear.
Take of main wings & left and right landing gear &
PWA2*8MM screws from the box. Install the landing
gear to the assembling groove at the bottom of main
wings (Do not invert the left and right landing gear),
then lock the main landing gear by screws (PWA2*8MM).
2.Assembly of the main wings.
Take of the fuselage& KM4*45MM screws.
Connect aileron servo wires, and install the main
wings to the right place of fuselage. Then lock
the main wings by screws (KM4*45MM).
3．Assembly of the tail wings.
Take of the horizontal wings and install it to fuselage,
please make sure that the horizontal wing should be
assembled to right place completely.

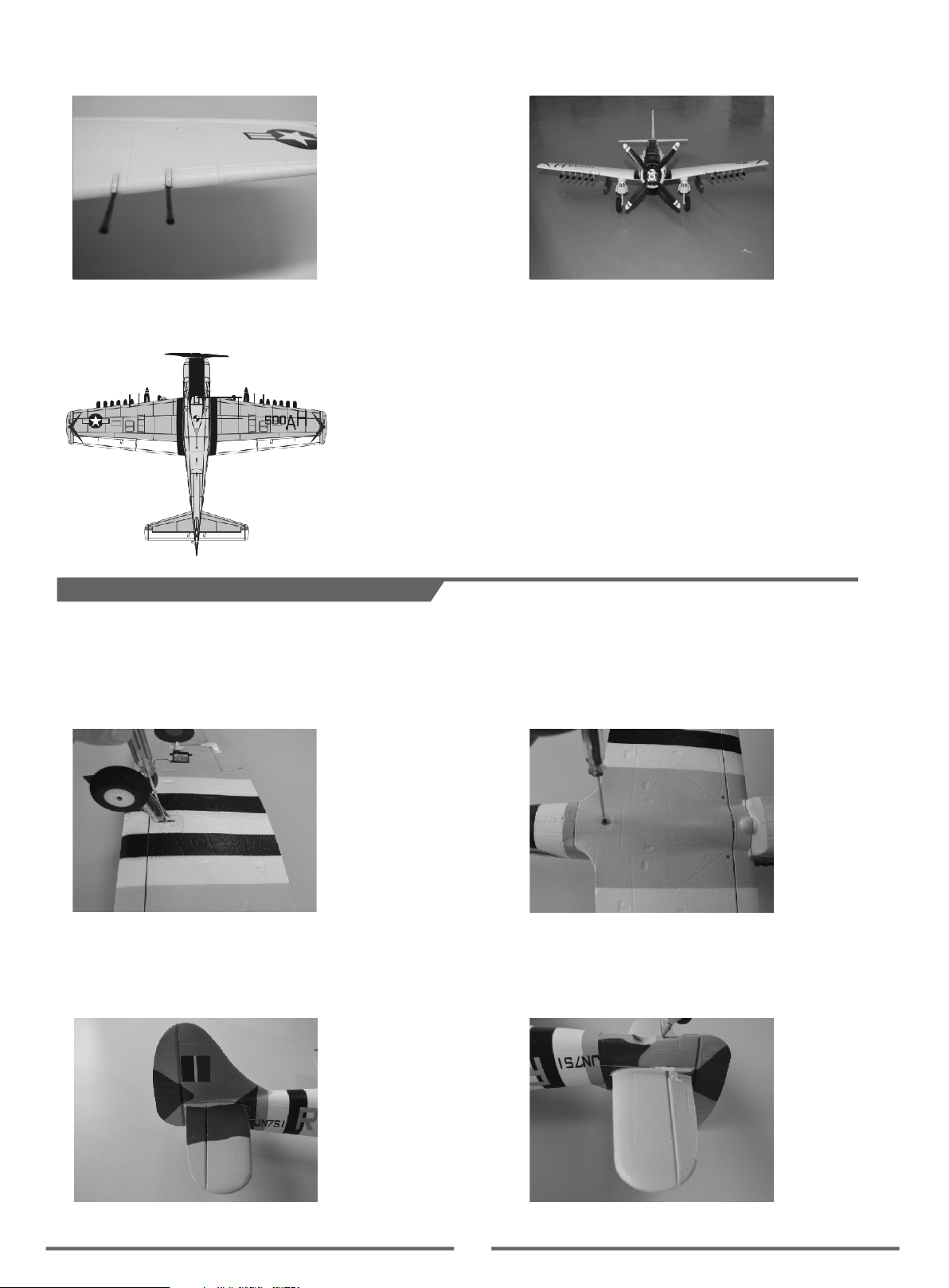

Assemble processes( )A1 SKY RAIDER
Main specifications
Main configuration
★Wingspan 800mm
★Length 625mm
★Weight 435g
★Thrust ≥450g
★Flying time ≥5min
800mm
678mm
455g
≥450g
≥5min
★Radio system 4ch
★Motor
★Battery 800mAh 11.1V 15C
★ESC 20A brushless
★Servo 9gX4
DST-820KV
4ch
800mAh 11.1V 15C
20A brushless
9gX4
DST-820KV
A1 SKY RAIDER HAWKER TEMPEST
A1 SKY RAIDER HAWKER TEMPEST
4．Assembly of the rocker arm.
Connect the rocker of rudder and elevator; make sure
the collet is at the outermost hole on servo arm.
5. Assembly of the scaled parts.
Take of the guide missile & bomb & auxiliary oil tank. Please classify the guide missile and bomb by left
and right(left parts with number“L”). Then install them to the appropriate place of main wings by EPO glue.

3
Assemble processes( )HAWKER TEMPEST
1.Assembly of the main landing gear.
Take of main wings & left and right landing gears &
PWA2*8MM screws from the box. Install the landing
gear to the assemble groove at the bottom of main wings
(Please do not invert left and right landing gear),
then lock the main landing gear by screws (PWA2*8MM).
8.Check the center of gravity and make sure that the CG of the
plane should be within the range as indicated by the arrows.
3．Assembly of the horizontal wings.
Take of the main wings and insert it to the fuselage by the
assemble groove at the right side of tail. Be sure that the
horizontal wing should be assembled to the appropriate
place completely.
7.Finished the assembly of“A1 Sky Raider”.
55 -62 m m
6．Assembly of the gun.
Please install the gun to the appropriate place at
the leading edge of the main wings.
2.Assembly of the main wings.
Take of the main wings & KM4*45MM screws. Connect
aileron servo wires, and install the main wings to the
right place of fuselage. Then lock the main wings by
screws (KM4*45MM).
4．Assembly of the rocker arm.
Connect the rocker arm of rudder and elevator, and make
sure the collet is at the outermost hole on servo arm.

4
7.Check the center of gravity and make sure that the CG of the
plane should be within the range as indicated by the arrows.
6.Finished the assembly of“Tempest”.

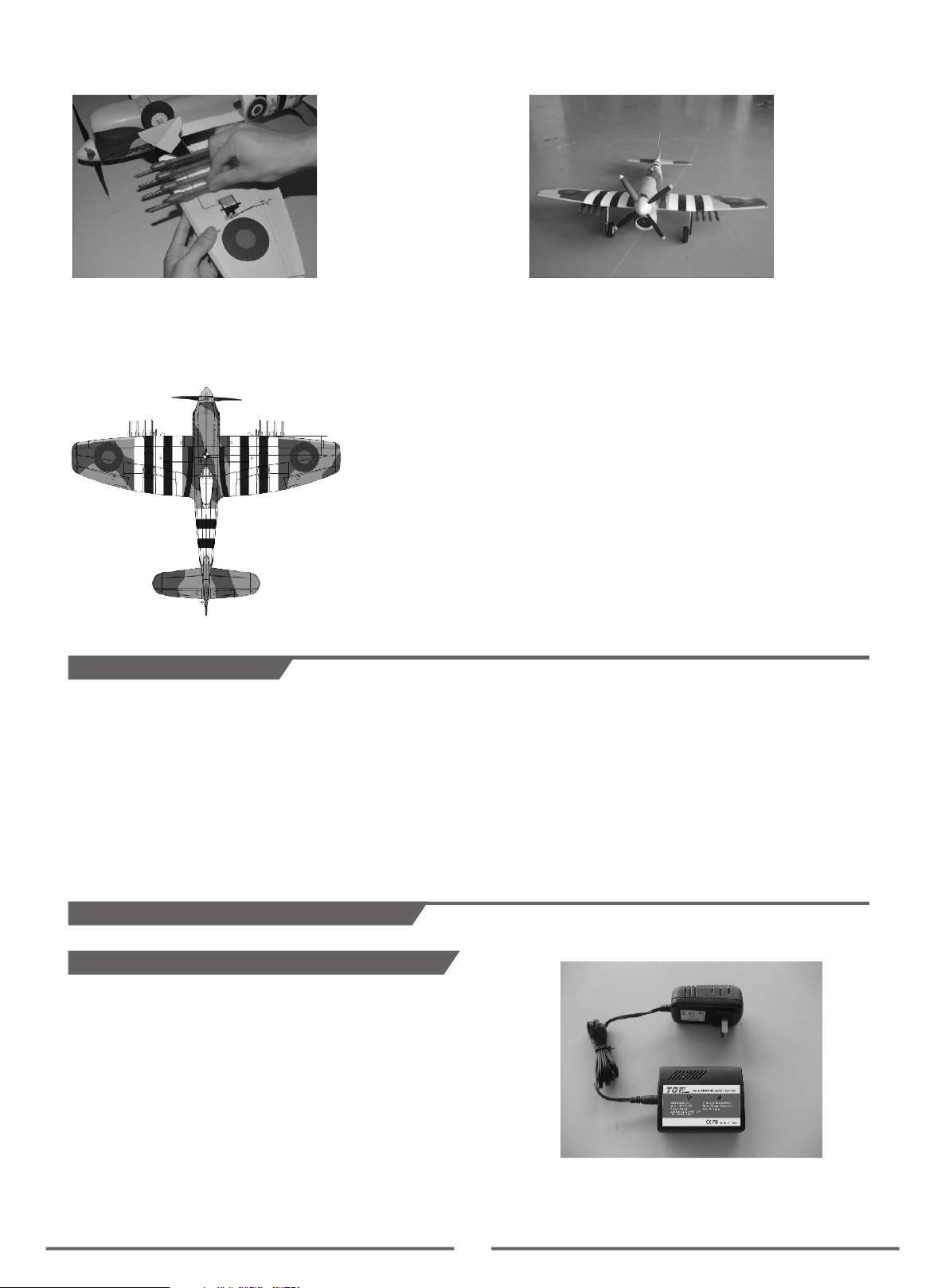

5. Assembly of guide missile.
Take of the guide missile & EPO glue. Please install it to the
appropriate place under the main wings by EPO glue.
55-65mm
1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly
this model, which will bring some help for you.
2.Please climb the plane above the 50 meters with half throttle to fly it when you fly it for your first time,
then you will be familiar with the performance of this plane.
3.You should learn how to control this model blandly, it will reduce the possibility of crash and prolong
the usage life of the plane.
4.The turn radius should not be too little, or it will stall and it will increase the possibility of crash.
5.When taking off or landing the plane, you should against the wind.
6.Do not fly the model over your head or behind you, you should fly the model in front of you.
Safety precautions
Specifications:
Input voltage: DC 10V~15V
Output voltage:2S-3S Li-Po battery
Charging current: 1.0A
Indicator state:
Green: Charge complete & no battery
Red: Charging
The batteries are inspected separately. When the voltage
reaches 4.20V, the charging process stops.
Charging method and cautions
Li-Po battery(balance changer) specifications

5
Operating
Then plug cigarette into its socket in car (Adapter should be
connected if charge at home: connect the adapter to home power
socket, then plug the adapter' DC end to charger). The LED will turn
green indicating it is ready for charging.
2.Connect the battery to charger per its interface mark. The LED becomes
red, which means charging is on the way.
3.When LED flashing, the charger will enter the stage of drip current
charging. The LED turns green when fully charged , and the battery
will be used at any time.
1.
Notice
1. While charging is in process, please do not make it near flammable materials.
2.Expect Li poly battery, this charger is not allowed for other kinds of battery.
3. While charging, please keep it out of the reach of Children.
4. When this charger is in use, please do not go away and leave it unwatched, if any abnormality occurs
(such as the power indicator is off, the temperature of the battery rise rapidly, etc. ) stop charging immediately.
5. Please do not use power with output voltage higher than 15V.
6. Please do not disassemble the charger or its accessories.
7. When the battery is not cool down, please do not urge to charge it.
Notice
1.Be fully charged under no more than 1 A voltage by using the specified charger.
2.Be discharged under 10C voltage but avoiding discharge time too long to harm the battery.
3.Repeat the first and second step one or two times.
4.When the Li-poly battery was stored more than 3 months, it needs to be recharged to maintain its voltage,
and ensure its life time.
Safety Instruction of Li-Po/Ni-MH battery
1. Do not disassemble or reconstruct the battery.
2. Do not short-circuit the battery.
3. Do not use or leave the battery nearby the fire, stove or heated place (more than 80℃).
4. Do not immerse the battery in water or sea water, do not get it wet.
5. Do not charge the battery under the blazing sunlight.
6. Do not drive a nail into the battery, strike it by hammer or tread it.
7. Do not impact or toss the battery.
8. Do not use the battery with conspicuous damage or deformation.
9. Do not charge a warm battery. Allow it to cool completely before attempting to charge.
10. Do not reverse charge or over discharge the battery.
11. Do not connect the battery to the ordinary charger socket or car cigarette jack.
12. Do not use the battery for unspecified equipment.
13. Do not touch the leaking battery directly, please wash your skin or clothes with
water if they are bedewed by liquid leaking from the battery.
14. Do not mix the Li-Poly battery with other un-chargeable battery in using.
15. Do not continue charging the battery over the prescribed time.
16. Do not put the battery into the microwave oven or high-pressure container.
17. Do not use the abnormal battery.
18. Do not use or keep the battery under the sunlight.
19. Do not use the battery nearby the place where generates static electricity (over 64V).
20. Do not charge the battery when the environmental temperature is under 0℃ or over 45℃.
21. If you find the battery leaking, smelling or abnormal, stop using it and return it to the seller.
22. When the battery is charging, please do not make it near the flammable materials!
23. Keep the battery away from the children.
24. Use the specified charger and observe charging requirement (under 1A).
25. When using by minors, parents should show them to the correct instruction.

No:top02612
Auxiliary oil tank(white)
No:top02611
Bomb
No:top02610
Propeller (blue)
No:top02609
Propeller (white)
No:top02606
Horizontal wing(blue)
No:top02604
Main wing(blue)
6
No:top02605
Horizontal wing(white)
No:top02601
Fuselage(white)
No:top02603
Main wing(white)
No:top02607
Hub(white)
Spare parts(A1 SKY RAIDER)
1. The function of this ESC was in the best condition after factory setting; please do not change it by yourself.
2. Before connecting the battery, please make sure the throttle and trim were in the lowest position. If the
throttle and trim were not in the lowest position by mistake after connecting the battery, you can cut off the
battery; move the throttle and push to the lowest position, then connect the battery.
3. The ESC of the airplane was in a good cooling position after factory assembly; please do not move its position.
4. The ESC should be connected to the brushless motor correctly, otherwise the motor will be reversed turning,
and the model airplane can not fly correctly.
Notification for ESC
No:top02602
Fuselage(blue)
No:top02608
Hub(blue)

No:top02616
Main landing gear white( )
No:top02615
Guided missile(blue)
No:top02614
Guided missile(white)
No:top02613
Auxiliary oil tank(blue)
No:top30204
9g Servo（Wire:150mm）
No:top02618
11.1V,800mAh Lipo Battery
No:top40103
Motor（DST-820)
No:top30202
9g Servo（Wire:250mm）
No:top02618
Controlling steel
7
No:top202
20A Brushless ESC
No:top02619
Screw set
No:top02617
Main landing gear(blue)

No:top30206
9g Servo（Wire:350mm）
No:top02618
11.1V,800mAh Lipo Battery
No:top40103
Motor(DST-820)
No:top202
20A Brushless ESC
8
Spare parts(HAWKER TEMPEST)
No:top02802
Main wing
No:top02803
Horizontal wing
No:top02801
Fuselage
No:top02804
Spinner
No:top02807
Main landing gear
No:top02808
Controlling steel
No:top02805
Propeller
No:top02806
Guided missile
No:top02809
Screw set
