Topcom TwinTalker 3300 User manual

TALK
1
14
13
12
11
10
9
8
7
6
5
4
3
2
USER MANUAL
HANDLEIDING
GEBRAUCHSANWEISUNG
MANUEL D’UTILISATEUR
BRUKSANVISNING
BRUGERMANUAL
KÄYTTÖOHJE

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on :
http://www.topcom.net/support/declarations/

Topcom Twintalker 3300 3
ENGLISH
1. DESCRIPTION
(see front cover)
2. INSTALLATION
2.1. Removing/Installing the Belt Clip
•To remove the clip from the unit, push up on the belt clip while pulling
the clip tab. (1)
• When re-installing the belt clip, a click indicates the BeltClip is locked
into position.
2.2. Battery Installation
• Remove the belt clip (2).
• Pull the Battery Cover Tab (4) and remove the Battery Cover (3).
• Install four ‘AAA’ alkaline or rechargeable batteries following the
polarity as shown.
• Re-install the Battery Cover (3) and Belt Clip (2).

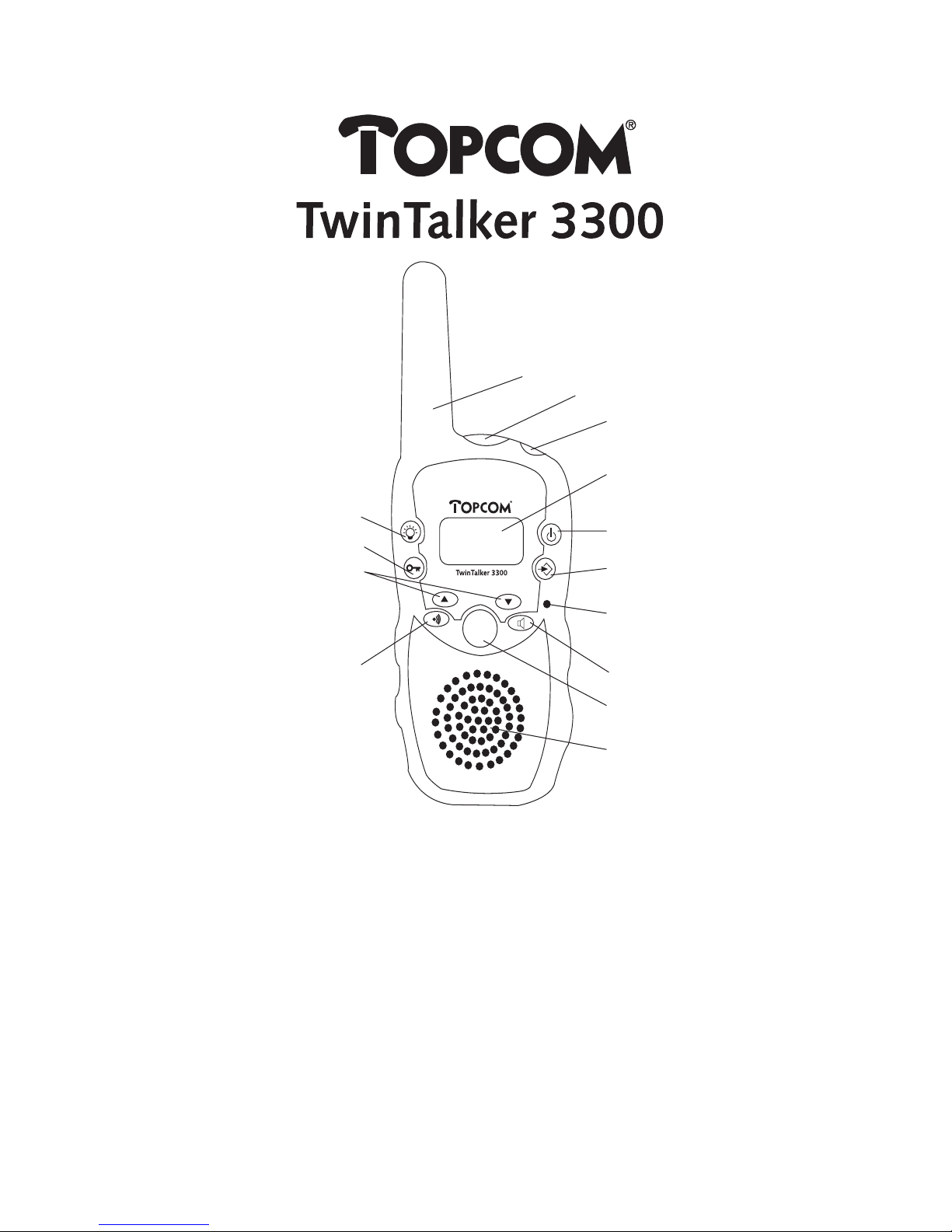

1. Antenna
2. Flashlight button
3. Lock button
4. Up/Down button
5. Call button
6. Speaker
7. Talk button
8. Monitor button
9. Microphone
10. Menu button
11. On/Off button
12. LCD display
13. Flashlight
14. Ear/mic/charger
4
3
1
2

4 Topcom Twintalker 3300
ENGLISH

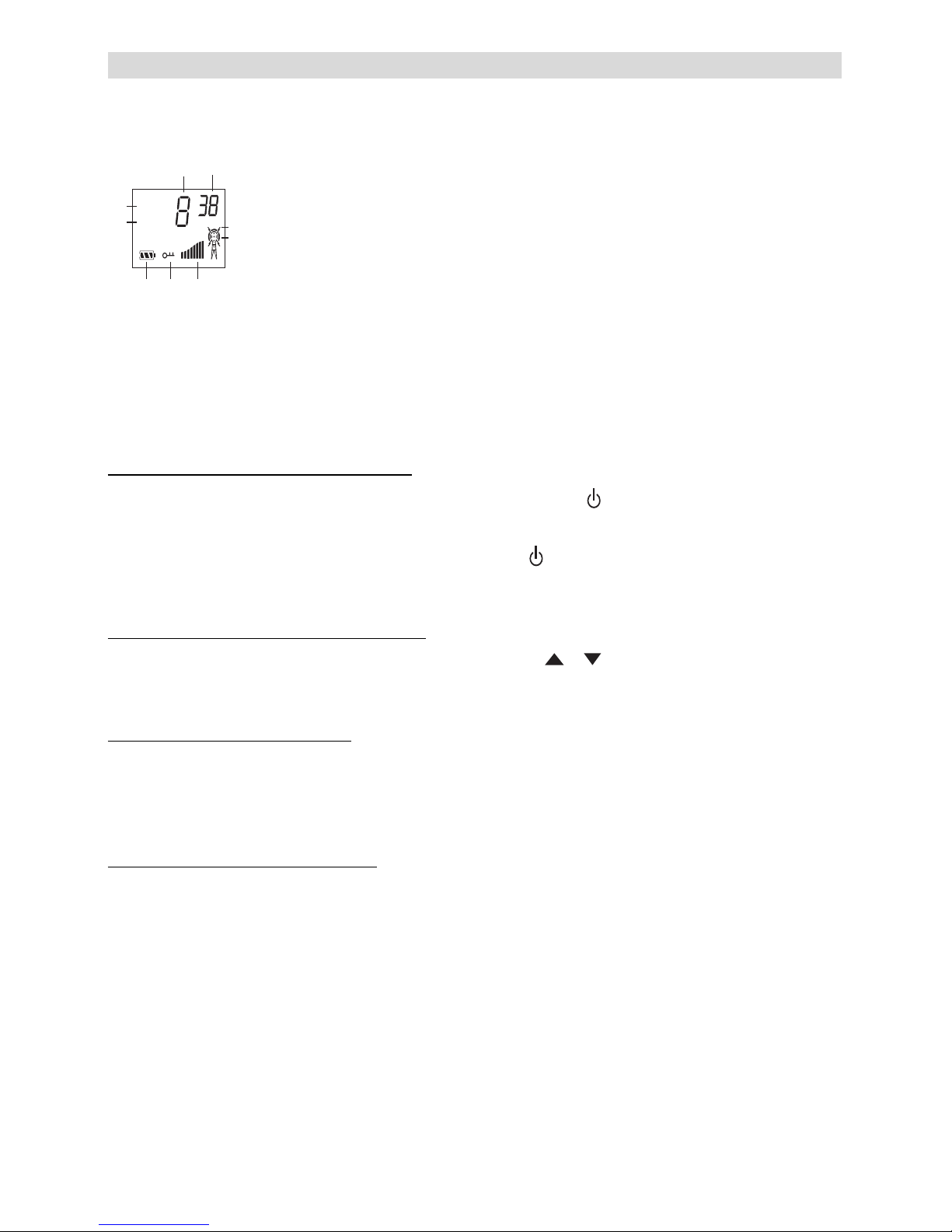

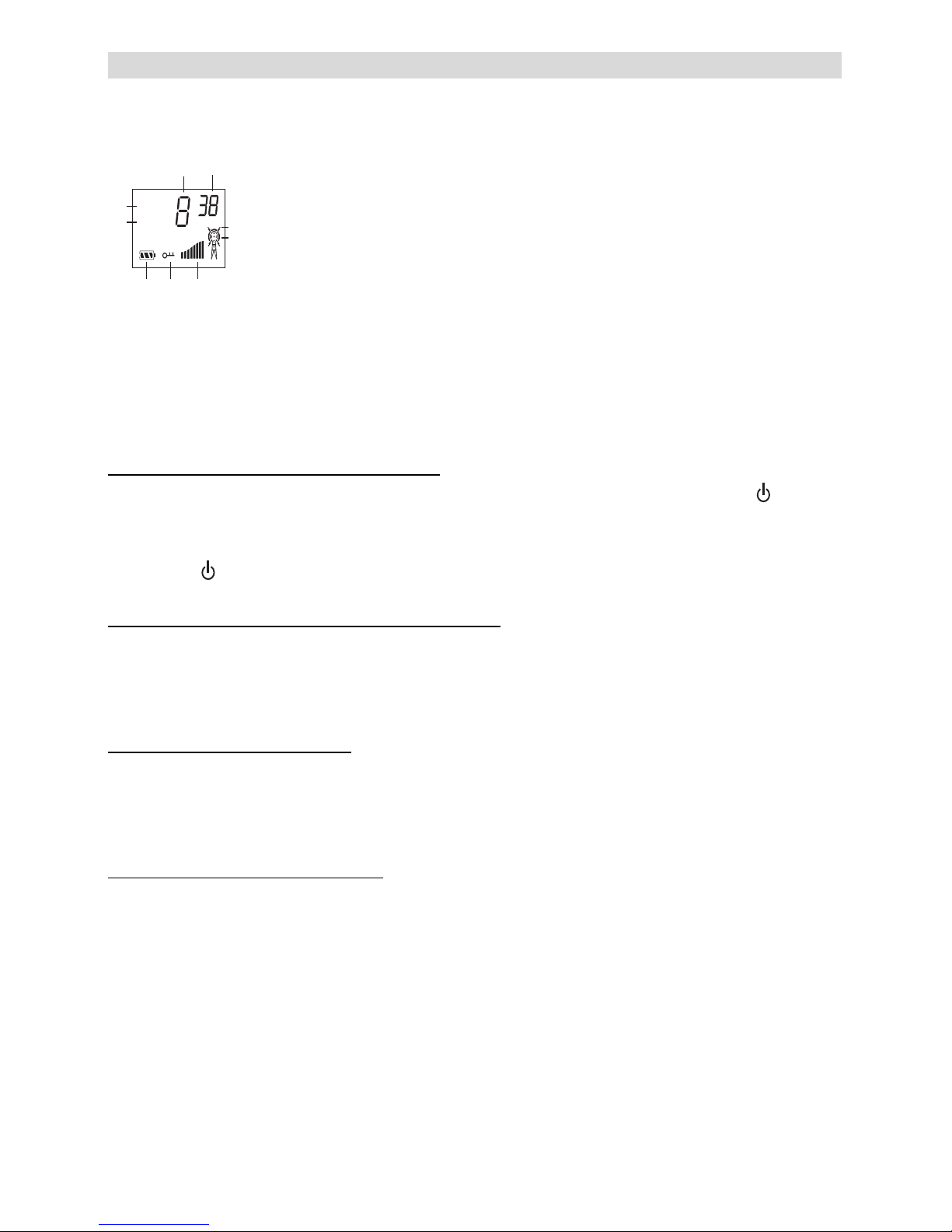

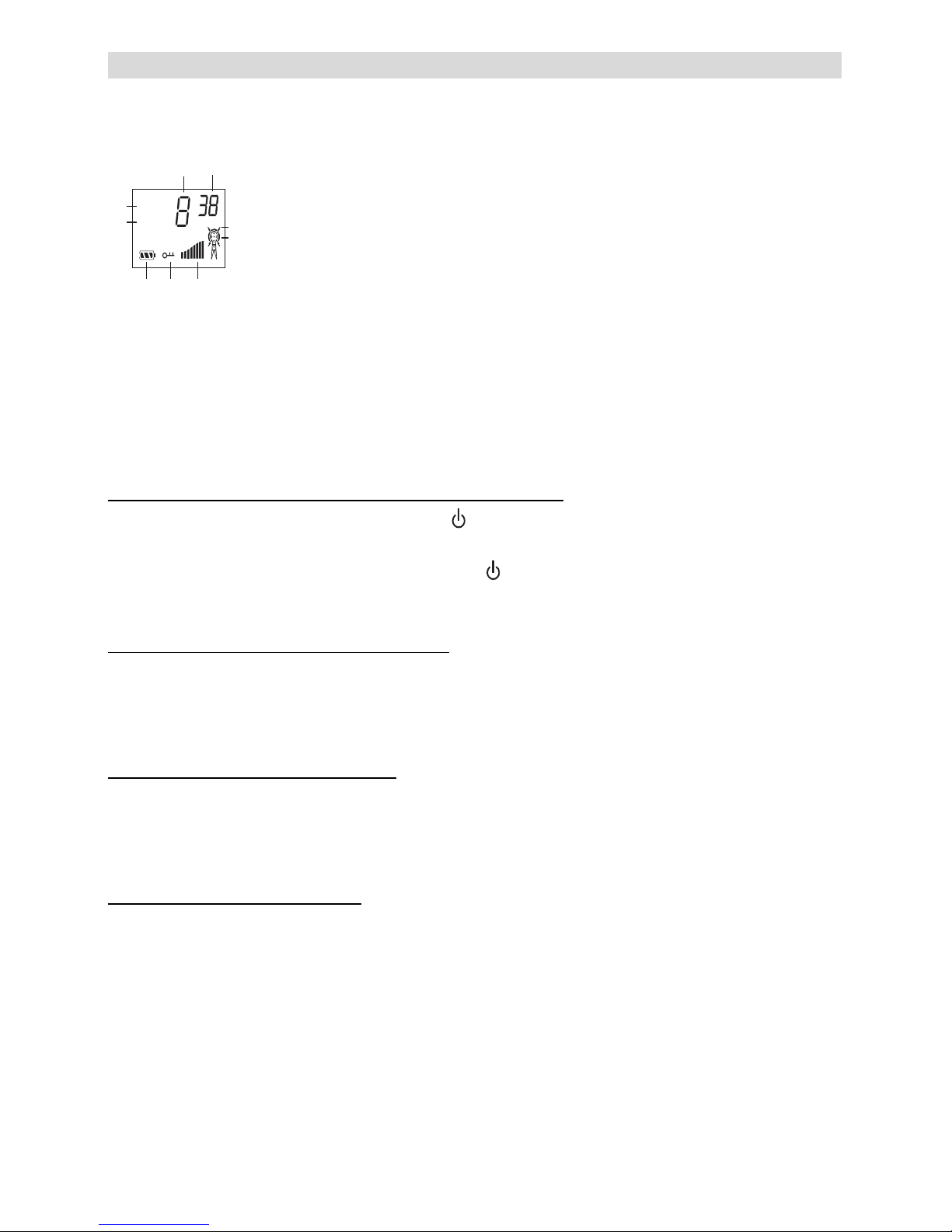

3. LCD SCREEN
A. RX icon. Displayed when receiving a signal.
B. TX icon. Displayed when transmitting a signal.
C. Displays the current VOLUME LEVEL.
D. Button lock symbol
E. The current battery level charge.
F. Displays during the VOX mode.
G. Displayed during the channel scan.
H. Channel number.
I. CTCSS code.
4. GETTING STARTED
4.1.Turning the Unit ON/OFF
To activate; press and hold the POWER button ( ) . The unit will “beep”
and the LCD Screen will display the current channel.
To switch off; press and hold the POWER ( ) button again. The unit will
“beep” and the LCD Screen will turn blank.
4.2. Adjusting Speaker Volume
The Speaker Volume can be adjusted using / . The Speaker Volume
level is displayed on the LCD.
4.3. Receiving a Signal
The unit is continuously in the RECEIVE mode when the unit is ON and not
transmitting.When you receive a signal on the current channel, the RX icon
is displayed.
4.4.Transmitting a Signal
1. Press and hold the TALK button to TRANSMIT.
2. Hold the unit in a vertical position with the MICROPHONE 5 cm from the
mouth and speak into the microphone.
3. Release the TALK button when you have finished transmitting.
IMPORTANT: In order for other people to receive your transmission,
they must also be on the same channel and have set the CTCSS code
you are currently using. Refer to the ‘Changing Channels’
B
C
D
E
FA
G
H
VOX
SCAN
I

Topcom Twintalker 3300 5
ENGLISH
5. OPERATION
5.1. Changing Channels
The PMRS has 8 available channels.
To change channels:
1. Press the MENU button ( ) once, the current channel number flashes
on the LCD Screen.
2. Press the UP ( ) or DOWN button ( ) to change the channel.
3. Press the MENU button ( ) to confirm the channel selection and go to
CTCSS SUB-CHANNEL SELECTION mode, or press the TALK button
to select the desired channel and return to NORMAL mode.
5.2. CTCSS (Continuous Tone Coded Squelch System)
The 2 digit CTCSS code corresponds to a specific tone frequency the radio
emits. Two users, with the same channel and CTCSS set can hear one
another.They will not be able to hear anyone else on the channel unless
the other radios have the same exact CTCSS code enabled.
The Twintalker 3300 has 38 CTCSS codes available.
1. Press the MENU button ( ) twice, the CTCSS code will flash
2. Press the UP ( ) or DOWN button ( ) to move to another code.
3. Press the TALK button to confirm your selection and return to the
NORMAL mode.
4. To confirm and shift to the next option, press the MENU button .
NOTE: Any PMR set on the same channel can receive and listen to the
conversation, also when the other use a CTCSS code.
5.3. Monitor
You can use the MONITOR feature to check for weaker signals in the
current channel.
• Press the MONITOR button for normal monitoring .
• Press and hold the MONITOR button. After 3 seconds you can
release the button.You are now continuous monitoring the channel
until you push the TALK button.

6 Topcom Twintalker 3300
ENGLISH
5.4. Button Lock
Press and hold the LOCK button ( ) for 3 seconds to activate or
deactivate the BUTTON LOCK mode. The BUTTON LOCK icon is
displayed on the LCD Screen.Press and hold the LOCK button ( ) again
to deactivate BUTTON LOCK
5.5. VOX Selection
The PMR is capable of voice activated (VOX) transmission. In VOX mode,
the radio will transmit a signal when it is activated by your voice or other
sound around you. VOX operation is not recommended If you plan to use
your radio in a noisy or windy environment.
1. Press the MENU button 3 times.
2. Press the UP button to turn the VOX feature ON. Press the UP button
to select the VOX sensitivity level which is indicated in the right corner
of the display. Press the DOWN button until OF appears on the
display, to turn VOX OFF.
3. In the VOX mode, the VOX icon will be displayed.
4. To confirm your selection and return to the NORMAL mode, press the
TALK button.
5.6. Channel Scan
CHANNEL SCAN performs searches for active signals in an endless loop
from channel 1 to 8.
1. Press and hold the UP button. Press the MENU button briefly to
start scanning.
2. Release the buttons.
3. When an active signal (one of 8 channels) is detected, CHANNEL
SCAN pauses and you will hear the active signal.
4. Press the TALK button to communicate through the active signal
channel. Press the MENU button to deactivate channel scan.
5. When an active signal (one of 8 channels) is detected, press the UP or
DOWN button to bypass the current channel and continue to search
for another active channel
5.7. Battery Charge Level/Low Battery Indication
• The BATTERY CHARGE LEVEL is indicated by the number of
squares present inside the BATTERY icon on the LCD Screen.
When the BATTERY CHARGE LEVEL is low, the BATTERY icon will flash
to indicate that the batteries need to be replaced or recharged.

Topcom Twintalker 3300 7
ENGLISH
5.8. Using rechargeable batteries
IMPORTANT: Do not charge this unit using an AC/DC ADAPTER with
regular “AAA” alkaline batteries installed. Only use the optional
AC/DC ADAPTER with “AAA” rechargeable batteries (not included).
To use the PMR with an AC/DC ADAPTER and rechargeable batteries do
the following:
1. Insert four (4) “AAA” rechargeable batteries (not included).
2. Plug the 7,5 V DC / 200 mA ADAPTER (not included) into the EAR/MIC/
CHARGER JACK on the top of the unit and turn it ON by pressing the
POWER button.
NOTE:The unit cannot transmit calls while the batteries are being
charged. It takes approximately 8 to 10 hours to fully charge the
batteries.
5.9. Headset use
You can operate the PMR using a headset (not included).Plug the headset
into the EAR/MIC jack (5).
5.10. Sending Call Tones
You can use Call Tones to alert the other user to identify yourself.You can
also use Call Tones to signal the beginning or the end of a transmission.
1. Press and release the CALL button. The CALL TONE continues for 3
seconds.
2. Your CALL TONES will transmit to nearby receivers set to the same
channel.
5.11. Flashlight
Press and hold the Flashlight button to activate the light.
6. SPECIFICATIONS
Channels
CTCSS Sub-channel
Output Power (TX)
Range
8 Channels
38 for each Channel
Output Power :0.5W (Maximum)
Up to 3 Km (open field)

8 Topcom Twintalker 3300
ENGLISH
7. SAFETY INSTRUCTIONS
7.1. Damage antenna
Do not use any communicator that has a damaged Antenna. If a damaged
antenna comes in contact with the skin, a minor burn may result.
7.2. Batteries
As batteries can cause property damage and/or bodily injury such as burns
if conductive material such as jewelry, keys or beaded chains touches
exposed terminals. The material may complete an electrical circuit (short
circuit) and become quite hot. Exercise care in handling any charged
battery, particularly when placing it inside a pocket, purse or other container
with metal objects.Do not replace or charge batteries in a potentially
explosive atmosphere. Contact sparking may occur while installing or
removing batteries and cause an explosion.
7.3. For vehicles with air bag
Do not place your Communicator in the area over an air bag or in the air bad
deployment area. Air bags inflate with great force. If a communicator is
placed in the bag deployment area and the air bag inflates, the
communicator may be propelled with great force and cause serious injury to
the occupants of vehicle.
7.4. Potentially Explosive Atmospheres
Turn your communicator off when in any area with a potentially explosive
atmosphere, unless it is a type specifically qualified for such use. Sparks in
such areas could cause an explosion or fire resulting in bodily injury or even
death.

Topcom Twintalker 3300 9
ENGLISH
7.5. Blasting caps and areas
To avoid possible interference with blasting operation, turn your
communicator off near electrical blasting caps or in a ‘blasting area’ or in
areas
posted: ‘Turn off two way radio’. Obey all signs and instructions.
NOTE : Areas with potentially explosive atmospheres are often, but
not always, clearly marked. They include fueling areas such as below
deck on boats, fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust or
metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
7.6. Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or otherwise
configured for electromagnetic compatibility.
Turn your unit OFF in any facilities where posted notices instruct you to do
so. Hospitals or health care facilities may be using equipment that is
sensitive to external RF energy.
Turn your unit OFF when on board an aircraft when instructed to do so. Any
use of the unit must be accordance with airline regulations or crew
instructions.
8. CARE AND MAINTENANCE
To clean the unit, wipe with a soft cloth dampened with water. Don’t use a
cleaner or solvents on the unit; they can harm the case and leak inside,
causing permanent damage. Battery contacts may be wiped with a dry lint-
free cloth. If the unit gets wet, turn it off and remove the batteries
immediately. Dry the BATTERY COMPARTMENT with a solf cloth to
minimize potential water damage. Leave the cover off the BATTERY
COMPARTMENT overnight or until completely dry. Do not use the unit until
completely dry.

10 Topcom Twintalker 3300
ENGLISH
9. WARRANTY
This equipment comes with a 24-month warranty. The warranty will be
honoured on presentation of the original or a copy bill or receipt, provided
the date of purchase and the unit type are indicated.
During the time of the warranty Topcom will repair free of charge any defects
caused by material or manufacturing faults. Topcom will at its own discretion
fulfil its warranty obligations by either repairing or exchanging the faulty
equipment.
Any warranty claims will be invalidated as a result of intervention by the
buyer or unqualified third parties.
Damage caused by inexpert treatment or operation, and damage resulting
from the use of non-original parts or accessories not recommended by
Topcom is not covered by the warranty.
The warranty does not cover damage caused by outside factors, such as
lightning, water and fire, nor does it apply if the unit numbers on the
equipment have been changed, removed or rendered illegible.
Note: Please do not forget to enclose your receipt if you return the
equipment.
