Topeuav TE-T8 User manual

http://www.topeuav.com
TE-T8
5
Topeuav Technology Co..LTD

目录
1、 简介..............................................................................................................................................2
2、 服务...................................................................................................................................................2
3、 特殊标志................................................................................................................................3
4、 安全指导..................................................................................................................................3-4
5、2.4G系统................................................................................................................................5
6、System characteristic 系统特征...................................................................................................................... .6
7、 AFHDS与AFHDS2A系统模式互换.................................6
、 发射机参数.............................................................................................................7
、 接收机参数.................................................................................................................7
10、Operation instruction 接收机操作说明 ............................................................................................
....................................................................
......................................................................................................
.......................................................................................................................................9
11、Definition of key functions 按键定义..............................................................................................................10
12、Right and left stick can be adjustable 左右手摇杆模式调整..........................................................................11
13、Power on 开机..............................................................................................................................................12
14、Shut down 关机............................................................................................................................................12
15，Function description 功能说明......................................................................................................................13
............................................................................................................13
............................................................................................................13
............................................................................................................14
............................................................................................................14
16、Packaging content 包装内容........................................................................................................................15
17、FCC Statement 声明....................................................................................................................................15
Introduction
Services
Special symbols
Safety guide
2.4GHz System
Switch the system between AFHDS and AFHDS2
8 Transmitter specifications
9 Receiver specifications
receiver 8
.. 8
8
10.01，Receiver and servo connections 接收机与伺服器连接
10.02， 接口说明
10.03，Binding 对码
15.01, 1 Channel control 1通道控制
15.02, 2 Channel control 2通道控制
15.03, 3 Channel control 3通道控制
15.04, 4 Channel control 4通道控制
Receiver specifications
1Http://www.topeuav.com

1. Introduction
2. Services
Thank you for choosing the TopeUAV TE-T8 8 channels 2.4GHz AFHDS2A computerized digital
proportional R/C multicopter and aircraft system. If it’s your first use of a computerized radio
system, this user manual will bring you easily to a new world of fun and sophistication. In all
cases, please read carefully and completely this user manual as it contains all information to
keep you safe.
如果您使用时遇到任何问题，请参照此说明书。如果您的问题仍然未能解决，请直接联系当地经销商
或者我们网站上的客服人员.
If you encounter any problem during use, please refer to this manual. If the problem still
persists, please contact your local dealer or connect to our service and support website:
感谢您选择拓鹰出品的TE-T8八通道2.4G可编程AFHDS2A第二代增强版自动调频数字系统，该系统
可兼容多轴飞行器及飞机两种模式。如果这是您第一次使用可编程遥控系统，该手册将很快地带给您
一个有趣又高端的全新世界。因此，为了确保您安全使用本产品，请仔细地完整阅读这本使用手册。
http://www.topeuav.com
http://www.topeuav.com
简介
服务
2
Http://www.topeuav.com
TE-T8

如果使用者不按照说明方法操作，有可能导致使用者严重受伤，甚至致命的危险。
3
3. Special symbols
4. Safety guide
强制 禁止
当以下标志出现在说明书的时候请注意并且仔细阅读。
如果使用者不按照说明方法操作，有可能导致使用者严重受伤。
如果使用者不按照说明方法操作，有可能导致使用者外伤，甚至严重受伤。
Not following these instructions may expose the user to serious
injuries or death.
Not following these instructions may expose the user to serious
injuries.
Not following these instructions may expose the user to minor
injuries and even to serious injuries.
Prohibited
Please pay attention to the following symbols when they appear in the manual
and read carefully.
特殊标志
安全指导
Don’t fly at night or in bad weather like rain or thunderstorm as this can cause erratic
operation or loss of control.
Make sure moving direction of all motors be same with the operating direction.
If not, please adjust direction first.
请不要在夜晚或者雷雨天使用此产品，因为恶劣的天气环境有可能导致遥控设备失控。
操控时，请先确认模型所有舵机的动作方向与操控方向一致。
如果不一致，请调整好正确的方向。
The shutdown sequence must be to first disconnect the receiver battery then to switch
off the transmitter,if the transmitter is switched off while the receiver is still powered, it
may lead to uncontrolled movement or engine start and may cause an accident.
关闭时，请务必先关闭接收机电源，然后关闭发射机，如果关闭发射机电源时接收机仍然在
工作，将有可能导致遥控设备失控或者引擎继续工作而引发事故。
In particular, the 2.4G R/C system will affect the plane or the car nearby after you turn
on the transmitter.
特别要注意，如果附近有汽车正在运行或飞机正在飞行，开机后2.4 GHz RC系统可能会影
响到他们。
Http://www.topeuav.com

4
不要在户外雨天，有水的地方或当能见度有限的时候使用。
可能水分(水或雪)会进入到系统内部，不稳定的运行和失控可能发生。
Do not operate this R/C system when you are tired, not feeling well or under the influence
of alcohol or drugs.Your judgment is impaired and could result in a dangerous situation
that may cause serious injury to yourself as well as others.
当你感到疲倦，饮酒或吸毒后，不舒服的影响下，不要操作这个R / C系统。
判断力下降，而且可能发生危险的情况下，对自己或他人可能造成严重的伤害。
Do not operate in the following places:
Near other sites where other radio control activity may occur,
Near people or roads,
On any pond when passenger boats are present,
Near high tension power lines or communication broadcasting antennas,
Interference could cause loss of control,
Improper installation of your Radio Control System in your model could result in serious injury.
不要操作在以下的地方：
基站附近或其他无线电活跃的地方，人多的地方或道路附近，
有客船的水域，高压电线或通信广播天线附近，干扰可能导致失控，
安装不正确，无线电控制系统可能导致模型发生严重的伤害。
Do not touch the engine, motor, speed control or any part of the model that will generate
heat while the model is operating or immediately after its use.These parts may be very
hot and can cause serious burns.
当模型操作或使用后，请勿触摸发动机、电机、定速设定或任何可能发热的部分，
这些部分可能非常热，会造成严重的烧伤。
Please have an overall check about the model before any operation.
Any problem in radio control system or improper installation may cause out of control.
Simple distance test methods:
One hold the model, and the other one carry the transmitter to a proper place to check the
servo system condition.
Please stop operation if any exceptional case occurs.
Please check the model memory to make sure the matching is right.
总是在操作模型之前进行全面的检查。
无线电控制系统出现问题以及不正确安装，都有可能导致模型失控，
简单的距离测试方法：一个人把持模型另一个人持发射机走开，检查该伺服系统运转情况。
测试时要注意到若有异常出现，请不要操作模型。
也检查模型的记忆，以确保模型的匹配是适当的。
Do not operate outdoors on rainy days, run through puddles of water or use when
visibility is limited.Should any type of moisture (water or snow) enter any component
of the system, erratic operation and loss of control may occur.
Turn on the power, please check if the throttle neutral position is in its lowest position
while turning on the transmitter every time.When making adjustments to the model, do
so with the engine not running or the motor disconnected, you may unexpectedly lose
control and create a dangerous situation.
开机时，每次都要检查发射器的油门中位是否是最低。
当发射机作出调整时，可能模型的引擎没有运行或电机没有连接，可能会发生失控或意外事
故的情况。
Http://www.topeuav.com
TE-T8

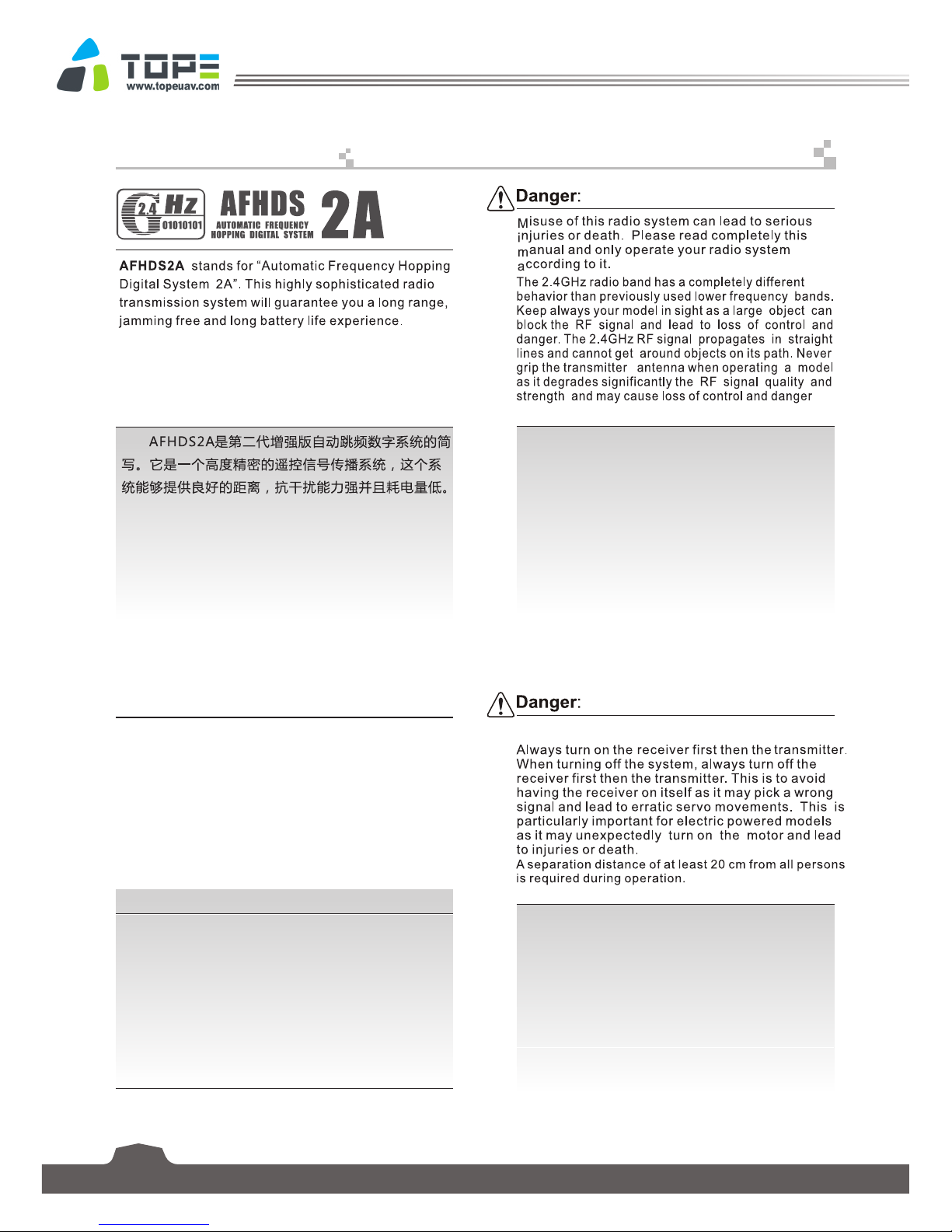

5. 2.4GHz System 2.4G系统
参数说明：
频率范围： 2.405-2.475GHz
波段宽度： 500KHz
波段个数： 141个
发射功率： 不高于20dBm
发射模式： AFHDS2A第二代增强版自动跳频数字系统
（含第一代系统）
编码方式： GFSK
天线长度： 26毫米*2（双天线）
RF specifications:
RF range: 2.405-2.475GHz
Channel bandwidth: 500KHz
Number of channels: 141 RF
power: less than 20dBm
RF mode:
Modulation type: GFSK
Antenna length: 26mm*2(dual antenna)
AFHDS2A. Second generation automatic
frequency hopping digital system.
(Including the first generation system)
警告!
错误使用遥控设备将可能导致严重的伤害甚至死亡。
请在使用前完整阅读这本使用手册，并且在使用过程中
严格按照此手册的说明操作。
该2.4G无线电波段完全不同于之前所使用的低频无
线电波段。使用时要保持您的模型产品飞行在您的视线
范围内，因为大的障碍物将会阻断无线电频率信号从而
导致遥控失控和危险。2.4G无线电频率信号是沿直线传
播的，它不能绕过障碍物进行传播。在使用过程中，严
禁紧握发射机天线，否则将会大大减弱无线电传播信号
的质量和强度， 导致遥控设备失控和危险。
警告!
每次使用时，必须先打开接收机，然后再给发射机
通电。停止使用时，必须先断开接收机电源，然
后再关闭发射机。这样操作可以避免接收机接收到
错误信号而导致的伺服器无规律的抖动。这对于电
动模型来说尤为重要， 因为它有可能导致马达突然
转动而致使人员伤亡。
多人一起操作的时候 间距至少要20CM以上。
5Http://www.topeuav.com

6.System Characteristic 系统特征
此系统采用高质量的增益天线，覆盖整个波段带宽。配合高灵敏度接收机，系统能有效的避免 离传
播信号的干扰。
远距
此系统使用低功率电子元件和高灵敏度接收机芯片。无线电频率模块采用间歇性信号传播，因 大降
低了发射功率。比较而言，此系统功耗仅为FM版本的十分之一。
此大
此系统采用信息回传功能，此功能更好的掌握当前模型的工作状态。从而增添了操控乐趣以及 安全
控制模型。
误码率说明：
表示实时数据无线传输丢包率，比率越大信号越差。当遥控使模型远离遥控器时，遥控器LCD显示误码率会
逐步增大，当此数据持续较大时，有发生失控的可能，请适当减少遥控的距离避免失控
更加
This radio system works in the frequency range of 2.405 to 2.475GHz. This band has been divided into
142 independent channels. Each radio system uses 16 different channels and 160 different types of hopping
algorithm. By using various switch-on times, hopping scheme and channel frequencies, the system can
guarantee a jamming free radio transmission.
此系统工作频率范围是2.405到2.475GHz。整个波段被分为142个独立频点。每套遥控系统 16个
不同频点和160种不同的跳频算法。通过开机时间不同，跳频规律不同和使用不同的频点，遥控系统能避免
干扰传播信号。
使用
This radio system uses a high gain and high quality multi directional antenna. It covers the whole frequency
band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio
transmission.
Each transmitter has a unique ID. When binding with a receiver, the receiver saves that unique ID and can
accepts only data from that unique transmitter. This avoids picking another transmitter signal and dramatically
increases interference immunity and safety.
每台发射机有一个唯一的ID码， 当和接收机对码之后， 接收机保存这个唯一的 码并且只接受从 码
发射机发出的信号。 这样可以避免接收到别的发射机信号，大大增强抗干扰能力和安全性。
ID 这个ID
This radio system uses low power electronic components and a very sensitive receiver chip. The RF
modulation uses intermittent signal transmission thus reducing even more power consumption. Comparatively,
this radio system uses only a tenth of the power of a standard FM system.
This system uses the two-way communication, which could control the working state of current model better
and make the operation more enjoyable and safer than before.
Error rate description:
It shows real-time packet loss rate. The higher the error rate is, the worse the signal becomes. Error rate will
increase gradually when the transmitter is moving away from model. It would cause loss of control if error rate
keeps in a higher level constantly. Please shorten control distance when it happens
6
Http://www.topeuav.com
TE-T8

8. Transmitter specifications 发射机参数
SPECIFICATIONS：
MODEL: TE-T8
9.Receiver specifications 接收机参数
1. 通道个数： 8个通道
2. 适合机种： 固定翼/滑翔机/直升机
3. 接收灵敏度： -105dBm
4. 调制方式: GFSK
5. 系统模式: 第二代增强版自动调频
数字系统
6. 数据分辩率: 1024级
7. 对码接口: 有
8. 电源接口: 有(VCC)
9. 电源标准: 4.0-6.5V DC
10. 整机重量: 13克
11. 天线长度: 26毫米
12. 外型尺寸: 45*23*9毫米
13. 外观颜色: 白 色
14. 安规认证: CE、FCC。
机种参数：
Number of channels: 8
Model type: multicopter / fixed-wing
Channel resolution: 1024 steps
Power supply: 6V (1.5V AA x4)
Low voltage warning: <4.2. Red LED will flash
Buzzer goes off to alarm
4.2-4.5V Red
4.6-5V Orange
5-6V Green
2.4GHz type:AFHDS2A. Second generation automatic
frequency hopping digital system.
(Including the first generation system)
(When it is equipped with two-way receiver,
single and bidirectional mode can be
interchangeable)
Antenna length: 26mm*1（dual antenna)
Color: Black
Size: 180*89*270mm
Weight: 420 g
Certification: CE、FCC
Transmitter specifications:
1. 通道个数：
2. 适合机种：多轴飞行器/ 固定翼
3. 数据分辨率: 1024级
4. 输入电压: 6V (1.5V AA x 4)
5. 低电压报警：低于4.2V 红色LED灯闪蜂鸣器报警，
4.2-4.5V 红色，
4.6-5V 橙色，
5-6V 绿色,
6.2.4G模式：AFHDS2A 第二代增强版自动跳频数字系
统(含第一代系统）
（在配备双向接收机时单双向模式可互换）
7. 天线长度: 26毫米* 1(双天线）
8. 外观颜色: 白色
9. 外形尺寸: 180*89*270毫米
10 . 整机重量: 420克
11. 安规认证: CE、FCC
8
机种参数
7
Number of channels: 8
Model type: fixed-wing/glider/ helicopter
RF receiver sensitivity: -105dBm;
Modulation : GFSK
System type: AFHDS2A
Channel resolution: 1024 steps
Bind port: yes
Power port: yes(VCC)
Power: 4.0-6.5VDC
Weight: 13g
Antenna length: 26mm
Size: 45*23* mm
Color: transparent grey
Certification: CE、FCC.
9
Http://www.topeuav.com
MODELS:TE-T8

ANT
接收机
Receiver
CH1-CH8： 表示接收机的相应通道；
10. peration instruction
10.01.
10.02.
接收机操作说明
接口说明
Receiver and servo connections
接收机与伺服器连接
注意: 为保证良好的遥控距离,请将接收机天线与飞机机身垂直放置并远离金属物体。
8
Connector instruction
CH1-CH8: represents corresponding channels.
Note: To ensure good remote distance, please set the receiver antenna
and the aircraft fuselage vertically and leave away from metal objects.
Http://www.topeuav.com
TE-T8
Switch Harness
开关
Charging Jack
充电接口
To Battery
接电池
接收机
Receiver (CH1)
(CH2)
(CH7)
(CH6)
(CH5)
(CH4)
(CH3)
10.03. Binding 对码
接收机接通电源之后，打开发射机会自动进行对码。对码完成后，其他遥控器不能与此接收机
对码，必须将接收机断电之后才可以再次对码，以确保安全。
The transmitter and receiver will binding automatic when power on . After binding ,
transmitter and receiver is one to one connection. If receiver need to bind with the other
transmitter , please power off at first.

模式指示灯 Mode
云台控制开关(AUX1)
智能航向开关(SWA)
升降(后) Raise Down
升降(前) Raise Up (front)
副翼右
副翼左
油门小
油门大
方向左 方向右
电源开关
Power switch
+
0
--
0
+
SWB
0
1
2
0
1
Antenna
天线
Handle
提手 姿态模式、GPS定高定点模
式、自动返航模式开关
(SWB)
云台控制开关(AUX2)
挂带环
Hanging Ring
SWA
11. Definition of key functions 按键定义
10
9
开启V-MAX功能，此功能包含升降副翼混控，副翼升降混控，输出率都为100%
Open the V-MAX function, this function contains the elevons mixing, aileron
lift mixed control, the output rate is 100%
Http://www.topeuav.com
电池
Battery cover
电池盒
Battery Box
Aileron left Aileron right
accelerator up
right
accelerator down
left

12. 遥控器通道中位校准
10
Channel Neutral Calibration.
Http://www.topeuav.com
功能说明
此功能针对遥控器各通道，如有不同操作习惯用户可通过以下方式进行通道中位校准；
1、 将遥控器左上角开关(SWA)往上拨到 0 位置；
2、 将遥控器右上角开关(S;WA)往下拨到 2 位置;
3、 将遥控器电源开关右边的微调(ELE微调)向上推住不放，再打开电源开关 ；
4、 此时遥控器3个模式切换灯同时亮起，将左、右摇杆向4个方向做最大位置移动，然后回到中位；
5、 将AUX1、AUX2旋转开关向左扭到最小，再向右扭到最大，最后停留在中位；
6、 完成以上动作之后再将遥控器左上角开关(SWA)往下拨到 1 位置，待遥控器提示声完成后，即完成各通道中位校准。
注: 遥控器在出厂已经完成校准，用户也可根据需要按以上方法自行进行校准。
Channel Neutral Calibration
Function Description:
This feature is set for difference operating habits of users to calibrate the neutral of channels.
1. Push the upper left SWB to '0' position.
2. Push the upper right SWB to '2' positon.
3. Push the ELE to upper and keep it , then open the power.
4. Then 3 modes switch light lighting together, move the left/right stick to 4 direction in max , then back to neutral
position .
5. Turn the Aux1, Aux2 to left in min. , then turn them to right in max. , and back to neutral position next.
6. Push back the upper left SWB to '1' positon after the above working finished, neutral position calibration finished
when you hear a tones of the transmitter.
Note: Transmitter already calibrate ex-factory , users can calibrate according the steps as above if needs.

battery
!
1. Connect all components.
2. Connect to receiver power supply.
3. Switch transmitter power on.
4. The receiver light remains on.
5. Use.
1. 将各部件 连 接 好 。
2. 连通接收 机 电 源 。
3. 打开接收 机 电 源 开关。
4. 接收机恒 亮
5. 使用。
13. 开机
14. Shut down
1. Cut off the receiver power supply.
2. Swith the transmitter power off .
1. 切断接收 机 电 源 。
2. 关闭发射 机 电 源 。
关机
10
11
Power on
Http://www.topeuav.com
TE-T8
battery
!

15.02
当您将发射机的通道1操纵杆向左边移动时，
飞机将往左边倾斜，同时飞机向左边移动（图16.1）
当您将发射机的通道1操纵杆向右边移动时，
飞机将往右边倾斜，同时飞机向右边移动（图16.2）
此通道用于飞机向前和向后控制，其功能如图。
当您将发射机的通道2操纵杆向上边移动时，
飞机将往前飞行，同时飞机向前方移动。（图16.5）
当您将发射机的通道2操纵杆向下边移动时，
飞机将往后飞行，同时飞机向后方移动。（图16.6）
15.01. 1通道控制
12
15. 功能说明
2通道控制
2 Channel control
1 Channel control
Function description
when you move chanel one stick of transmitter to the left,
the aircraft will tilt to the left, and the aircraft will move to the
left at the same time(figure 16.1)
When you move the channel one stick of transmitter to the
right, the aircraft will tilt to the right, the aircraft will move
to the right at the same time(figure 16.2)
This channel is used to control the forward and backward of
aircraft, this function as shown in the figure.
When you move the channel 2 stick of the transmitter up ,
the aircraft will fly forward , and the aircraft moves forward.
(Figure 16.5).
When you move the Channel 2 stick of transmitter down ,
the aircraft will fly backward, and the aircraft moves back
(Figure 16.6)
Http://www.topeuav.com
down
up
forward
back
right
left

left
right
up
down
右左
up
down
15.03. 3通道控制
15.04 4通道控制
当您将发射机的通道3操纵杆向上边移动时，
飞机的动力将会减小，同时飞机向下降落。（图16.4）
当您将发射机的通道4操纵杆向左边移动时，
飞机向右边转弯。（图16.8）
当您将发射机的通道4操纵杆向右边移动时，
飞机向左边转弯（图16.7）
此通道用于飞机动力油门控制，其功能如图。
当您将发射机的通道3操纵杆向上边移动时，
飞机的动力将会增加，同时飞机向上升起。（图16.3）
此通道用于飞机向左和向右转弯控制，其功能如图。
13
4 Channel control
3 Channel control
This channel is used to . The function is shown as
shown in the picture.
When you move channel four stick of the transmitter
to the left, the aircraft turns right at the same time.
(figure 16.8).
When you move channel four stick of the transmitter
to the right, the aircraft turns left at the same time.
(figure 16.7)
This channel is used to control the aircraft power , this
function is shown in the figure.
When you move the channel 3 stick of transmitter up,
the power of aircraft will increase, and the aircraft rises
upward at the same time. (Figure 16.3)
When you move channel 3 stick of the transmitter down,
the aircraft's power will reduce, and the aircraft will land
down at the same time. (figure 16.4)
Http://www.topeuav.com
TE-T8

14 Http://www.topeuav.com
此通道用于多轴飞行器飞行时的姿态模式、GPS自稳 模式、自动 返 航等，根据 不 同飞控进行 设 定 。
This channel is used to the GPS self-stabilization mode, pose mode and auto-returning etc , setting according to
the difference controller.
15.05 4通道控制
5 Channel Control (SWA)
15.06 4通道控制
6 Channel Control (SWB)
此通道用于多轴飞行器智能航向控制，根据不同飞控进行设定
This channel is used to the intelligent course control. Setting according to the difference controller.
15.07 4通道控制
7 Channel Control (Aux 1)
此通道用于多轴飞行器云台控制，根据不同飞控进行设定
This channel is used to contorl the gimbal.
15.08 4通道控制
8 Channel Control (Aux 2)
此通道用于多轴飞行器云台控制，根据不同飞控进行设定
This channel is used to contorl the gimbal.
+
0
- -
0
+
AUX1
SWB
AUX2
SWB
0
2
1
0
1
SWB
SWA
AUX 1
AUX 2

16. Packaging content 包装内容
CD
4 channel 2.4G transmitter (TE-T8)
8 通2.4G发射机(TE-T8)
8 channel 2.4G receiver (TR-T8)
8 通2.4G接收机(TR-T8)
说明书
User manual
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
televison reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment. (Example use only shielded interface cables when
connecting to computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user authority to operate the equipment.
17. FCC Statement
3
2
1 1
1
1
15
声明
Http://www.topeuav.com

Edition:20150618
topeuav.com
5 TOPEUAV Co.,LTD
