SRP-2300
User Guide
High Definition
Digital Satellite Receiver
Personal Video Recorder
Red Button (HbbTV) and Web-Portal
Common Interface(CI+)
The “CI Plus” Logo is a trademark of CI Plus LLP.

ii
The lightning flash with arrowhead symbol, in an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to a person.
The exclamation point, in an equilateral triangle, is intended to alert the user to the presence of
important operation and maintenance instructions in the literature accompanying the product.
Precautions
• Read, keep and follow these instructions.
• Heed all warnings.
• Clean with a dry cloth only.
• Do not block any of the ventilation openings.
• Do not install near any heat sources or in direct sunlight as this will impair cooling.
• Do not operate this product near water. Do not place any of the objects filled with liquids, such as
vases on this unit.
• Do not try to change the plug or defeat its safety purpose. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• This product is designed for indoor use only.
• Place the digital receiver on a firm and level surface.
• Do not lay any objects such as magazines on this unit.
• Do not overload power outlets. Doing so may result in a risk of fire or electrical shock.
• Never open this unit’s casing under any circumstances, or the warranty will be void.
• Unplug this unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the unit has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the unit, the unit became wet from rain or moisture, does not operate
normally, or has been dropped.
• Batteries, including those which contain no heavy metals, may not be disposed with other
household wastes. Please dispose of used batteries in an environmentally sound manner. Find
out the legal regulations which apply in your area.

iii
About this user guide
Thank you for purchasing our digital receiver. Please read this user guide carefully before you use the
digital receiver and keep it handy for future reference.
This User Guide covers the model SRP-2300 .
• Illustrations pictured in this manual may not be exactly the same as the actual product.
• The screenshots used in this manual may not be exactly the same as those you see on the actual
on-screen displays.
• Designs and specifications of the digital receiver and other accessories are subject to change with-
out any notice in order to introduce new features or improve the functionality of the product.
• iPhone and App Store are registered trademarks of Apple, Inc.

iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features .............................. 2
1.2 Controlling the digital receiver .................. 3
1.2.1 Front panel ........................ 3
1.2.2 Remote control ...................... 5
1.3 Common Interface ......................... 7
2 Setup 9
2.1 Unpacking ............................. 9
2.2 Safety precautions ......................... 9
2.3 Rear panel connections ...................... 10
2.4 Connecting up your digital receiver ............... 12
2.4.1 Connecting to the antenna ................ 13
2.4.2 Connecting to your television set ............ 14
2.5 Switching on for the first time .................. 16
3 Service Search 18
3.1 Searching for broadcasting services ............... 18
3.1.1 Configuring LNB settings ................ 18
3.1.2 Searching for services .................. 21
3.2 Editing the transponder list ................... 23
3.3 Resetting to factory settings ................... 24
3.4 Clearing the services list ..................... 25

CONTENTS v
4 Preference Settings 26
4.1 Language settings ......................... 26
4.1.1 Menu language ...................... 26
4.1.2 Subtitle language ..................... 26
4.1.3 Hard of Hearing ..................... 27
4.1.4 Audio language ...................... 27
4.2 Video and audio settings ..................... 27
4.2.1 High definition television ................ 28
4.2.2 Television aspect ratio .................. 28
4.2.3 Audio mode ........................ 30
4.3 Local time setting ......................... 30
4.4 Parental control .......................... 32
4.5 Options for recording ....................... 34
4.6 Options for playback ....................... 35
4.7 Options for on-screen display .................. 36
4.8 Options for standby mode .................... 36
5 Every Day Use 37
5.1 Volume control .......................... 37
5.2 Watching television ........................ 37
5.2.1 The services list ...................... 37
5.2.2 The favourite service lists ................ 39
5.2.3 Viewing programme information ............ 40
5.2.4 Selecting audio tracks .................. 41
5.2.5 Selecting subtitle tracks ................. 41
5.2.6 Viewing teletext ...................... 41
5.3 Red Button Service (HbbTV) ................... 42
5.4 Viewing electronic programme guide .............. 43
5.5 Watching multifeed programme ................. 43
5.6 Using time-shift .......................... 44
6 Organising Services 46
6.1 Editing the services list ...................... 46
6.2 Editing the favourite lists ..................... 48
6.3 How to use on-screen keyboard ................. 49

vi CONTENTS
7 Recording and Playback 50
7.1 Recording a programme ..................... 50
7.1.1 Instant recording ..................... 51
7.1.2 Timer recording ...................... 52
7.1.3 Scheduling recordings using the programme guide . . 55
7.1.4 Recording a time-shifted programme .......... 55
7.1.5 Recording a pay service programme .......... 56
7.2 File archive ............................. 56
7.2.1 To delete a recording ................... 57
7.2.2 To sort recordings ..................... 57
7.2.3 To lock a recording .................... 57
7.2.4 To rename a recording .................. 58
7.2.5 To make a new folder ................... 58
7.2.6 To move a recording to another folder ......... 58
7.3 Playing back a recording ..................... 58
7.3.1 To navigate using the progress bar ........... 59
7.3.2 To play in slow motion .................. 60
7.3.3 To play in fast motion ................... 60
7.3.4 To make a bookmark ................... 60
7.3.5 To play back a recording repeatedly .......... 61
7.3.6 To play back a scrambled recording ........... 61
7.4 Copying a recording ....................... 62
7.5 Formatting the hard disk ..................... 62
8 Entertainment portal 63
8.1 Topfield TV Portal ......................... 63
8.2 Copying files ............................ 64
8.3 Playing back a media file on the external hard drive . . . . . . 65
8.4 Playing back MP3 files ...................... 65
8.5 Viewing image files ........................ 66
8.5.1 How to move a file to the photo album ......... 66
8.6 Playing back a video file ..................... 66
9 Accessing via Network 68
9.1 Configuring the router ...................... 68
9.1.1 To access within the local area network ......... 69

CONTENTS vii
9.1.2 To access over the Internet ................ 69
9.2 Configuring the network setting on the digital receiver . . . . 71
10 Firmware Update 72
10.1 From a memory stick ....................... 72
10.2 Over the air(optional) ....................... 73

1 Introduction
1
Chapter 1
Introduction
The SRP-2300 digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard. For its
operation you need an antenna, which must be installed ap-
propriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple televi-
sion broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called trans-
ponder or multiplex. To reduce confusion in this manual,
the word service is preferably used than channel as a term
to indicate one television or radio broadcast.
The SRP-2300 also offers the HbbTV (Hybrid Broadcast Broad-
band TV) platform that combines TV services via broadcast
with services via broadband. With this digital receiver adopt-
ing this integrated platform for broadcast and broadband
services, you can enjoy high quality digital broadcast and
seamless on-line streaming of web contents at the same time.

2 Introduction

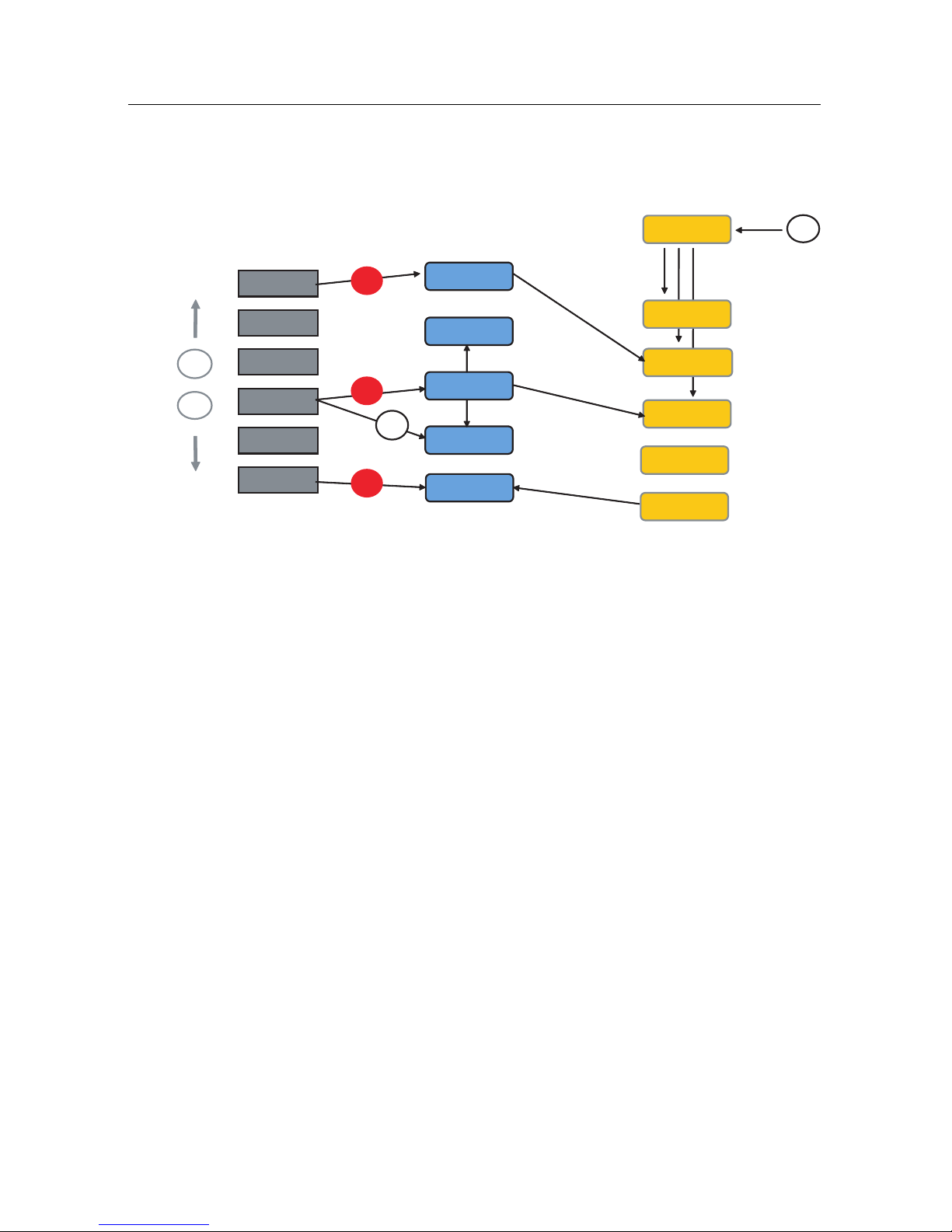

The following figure shows the working flow of the HbbTV-
compliant receiver;
P+
P-
Portal
Portal
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6 Weather
Music
Films
Catch Up
Quiz
Portal
Teletext
TXT
Info
TV Services Broadcast-related applications
(content can be broadcast, broadband or both)
VoD
Widgets
Broadcast-independent
applications
Red Button
1.1 Features
This digital receiver has the following features:
• Supports DiSEqC 1.0 and DiSEqC 1.1 protocols.
• Can store up to 5,000 television and radio services.
• You can edit the services list.
• Can create lists of your favourite services.
• Can view information about the current television or ra-
dio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record up to four services while you are cur-
rently watching another.
• You can record many programmes using a built-in hard
drive with large storage capacity.
• Time-shift is a special technical feature available on this
digital receiver. You can pause a programme you are

1 Introduction
1.2 Controlling the digital receiver 3
watching and resume it again at a later time. Then you
can quickly go to any part of the current programme by
fast forward or rewind search.
• You can enjoy a wide range of web contents includ-
ing broadcast-related contents (e.g. programme info,
catch-up service, and other Red button services) and
broadcast-independant contents (e.g. YouTube, Flickr,
etc in Portal menu).
• You can play back video files of various formats includ-
ing DivX.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall
socket, we say that it is in standby mode; on the other hand,
when it is on, it is in active mode. Even when you are not
using the digital receiver, you should keep it plugged into
a wall socket to be in standby mode so that it can run timer
events at any time.
1.2.1 Front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lights and a display to indicate its
status. The following indicates what they mean.

4 Introduction
button switches the digital receiver between standby mode
and active mode.
Front display shows the current time in standby mode, and
displays the current service in active mode.
MENU button displays the main menu. It is also used to return
to the previous menu from a submenu.
OK button displays the services list. See §5.2.1 for more de-
tails. It is also used to select a menu item.
CHANNEL
c
,
a
buttons switch to the previous or next ser-
vice.
VOLUME
b
,
d
buttons decrease or increase the volume.

1 Introduction
1.2 Controlling the digital receiver 5
1.2.2 Remote control
• button switches the digital receiver between standby
mode and active mode.
• mutes the sound. Press again to switch it back on.
•



TV switches the remote control to television mode to op-
erate your television.
•



PVR switches the remote control to receiver mode to op-
erate the digital receiver.
• switches over between the current service and the
previously viewed one.
• displays the service information box. It is also used
to display more information about a programme.
•



VOLUME−,



VOLUME+buttons decrease or increase the
volume.
•



CHANNEL∨,



CHANNEL∧buttons switch to the previous
or next service.
•



OK is used to select a menu item.
•



MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
•



GUIDE displays the electronic programme guide.
•



EXIT is used to exit a menu or to hide on-screen informa-
tion.
•



LIST is used to display the services list
• is used to access to available Hbb TV contents (Red
Button Service). For details, see §5.3. It also has different
functions per menu.
• is used to make a bookmark on playback or time-shift.
• is used to jump to next bookmark position.
• has different functions per menu.
•



Option has different functions per menu.
• is used to select a subtitle track.

6 Introduction
• is used to select an audio track and a sound mode, or
a video track of multifeed programme.
• displays teletext.
•



VF changes video resolution. See §4.2.1 for more details.
•



AR changes aspect ratio. See §4.2.2 for more details.
• switches over between television services and radio
services.
• is used to set a sleep timer in 10 minute increments.
• switches the output of the HDMI socket over be-
tween the digital receiver and the device connected to
the HDMI IN socket.
•



Portal connects to the web service Portal.
• is used to start recording.
• is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
• is used to start reverse playback. Subsequent presses
increase the rewind speed.
• pauses live television or playback of a recorded pro-
gramme.
• is used to start fast forward playback. Subsequent
presses increase the playback speed.
• resumes normal playback speed, or displays the
progress bar for navigation on playback.
• is used to jump back to the beginning of the recording
on playback.
• is used to start slow motion playback. Subsequent
presses change the playback speed.
• is used to jump to the end of the recording on play-
back.
• has different functions per menu.

1 Introduction
1.3 Common Interface 7
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
The actual images and the number of buttons may be differ-
ent depending on the type of remote control provided by the
manufacturer.
Also, our remote control app is available on the App
Store (currently on the iPhone only). Download ‘TF RCU’ app
into your iPhone to control this unit.
1.3 Common Interface
There are pay TV services available;
these are accessible with the use of a
Conditional Access Module (CAM)
and a subscription card. A Common
Interface (CI) is the slot into which
you can insert a CAM. The front of
the digital receiver has two common
interface slots. To watch a pay ser-
vice, you should take the following
steps:
1. Purchase a CAM and a subscription card for the pay ser-
vice you want to watch.
2. Insert the subscription card into the CAM.
3. Insert the CAM into a common interface on the front of
the digital receiver.

8 Introduction
To view the information about
the module and subscription
card which is inserted into the
digital receiver, select the Set-
ting >Information >Common In-
terface menu.

2 Setup
9
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the fol-
lowing items with the digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One HDMI cable
• A copy of Quick Guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts.
Check it before plugging the digital receiver to the wall
socket. For the power consumption of the digital re-
ceiver, refer to Table 2.1.

10 Setup
• The wall socket should be near the equipment. Do not
run an extension lead to the unit.
• The mains plug shall remain readily operable so that it
can be removed easily to disconnect the power.
• When placed in a cabinet, make sure there is a minimum
space of 10 centimetres around it. For the physical spec-
ification of the digital receiver, refer to Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver and
get the cord replaced.
• Refer all servicing to a qualified service technician.
• To maintain proper ventilation, always leave sufficient
space around the digital receiver.
Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 60 W at maximum in active
Under 1 W in passive standby
LNB power 13 V, 18 V, 500mA Max.
Table 2.2: Physical specifications
Size 380×60×265 mm
Weight(Net) 3.1 kg
Operating temperature 0 to 45 ◦C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The SRP-2300 has a wide range of connections on the back.
LNB 1LNB 2
ON / OFF
YbP
r
P
AUDIO
R L
VIDEO
IN OUTIN OUT
USB
LAN
HDMI IN HDMI OUT S/PDIF

2 Setup
2.3 Rear panel connections 11
Check what connections your television set has in comparison
with the digital receiver.
.
.
.1LNB 1 IN Satellite broadcasting signal input socket
for the first tuner
(Current: Max.500mA with overload pro-
tection)
.
.
.2LNB 1 OUT Satellite broadcasting signal output socket
through the first tuner
.
.
.3LNB 2 IN Satellite broadcasting signal input socket
for the second tuner
.
.
.4LNB 2 OUT Satellite broadcasting signal output socket
through the second tuner
.
.
.5VIDEO Composite video output socket for the tele-
vision set (yellow)
.
.
.6AUDIO L/R Stereo audio output socket for the televi-
sion set or the audio-video receiver (white/red)
.
.
.7Y/Pb/Pr Component video output socket for the tele-
vision set
(green/blue/red)
.
.
.8HDMI OUT Audio and video output socket for the high
definition television set
.
.
.9HDMI IN Audio and video loop-through input socket
for another device with HDMI interface.
.
.
.
10 LAN Local area network port
.
.
.
11 USB USB port for firmware update and data trans-
fer.
.
.
.
12 S/PDIF OPTICAL Optical-type digital audio output socket
for the audio-video receiver
.
.
.
13 ON/OFF Power switch (You have to turn on this switch
first to use this digital receiver.)

12 Setup
Table 2.3: Connectors specifications
HDMI OUT High definition video output
Digital audio output
HDMI IN High definition video input for bypass
Digital audio input for bypass
YPbPr Component video output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S/PDIF Digital audio output
LAN 10/100 Ethernet
USB 2.0 Host (5 V DC, 500 mA)
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices.
If you have any problem with your setup or need help, contact
your dealer.
WARNING
Connect any components before plugging the power cord
into the wall outlet. Always turn off the product, TV and
other components before you connect or disconnect any ca-
bles.
NOTE
If you encounter any problems setting up your product,
please contact your local retailer.
