Topfield TF 6010PVR User manual

TOPFIELD
TF 6010 PVR
User Guide
Digital Satellite Receiver
Personal Video Recorder

Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 7
2 Setup 9
2.1 Unpacking .............................. 9
2.2 Safety precautions ......................... 9
2.3 Rear panel connections ....................... 11
2.4 Connecting up your digital receiver ............... 12
2.4.1 Connecting the antenna .................. 13
2.4.2 Connecting to your television .............. 14
2.4.3 Connecting to your video cassette recorder ....... 16
2.5 Switching on for the first time ................... 17
2.5.1 Inserting batteries in the remote control ......... 17
2.5.2 Powering on and checking picture ............ 17

iv Contents
3 Preference Settings 19
3.1 Language settings .......................... 19
3.2 Video and audio settings ...................... 21
3.2.1 Television standard .................... 21
3.2.2 Colour model ........................ 21
3.2.3 Video cassette recorder .................. 22
3.2.4 Television aspect ratio ................... 22
3.2.5 Sound mode ........................ 23
3.3 Local time setting .......................... 23
3.4 Parental control ........................... 26
3.5 Adjusting the on-screen display .................. 27
3.6 To turn on the time shift feature .................. 27
3.7 To use MediaHighway programme guide ............ 28
4 Service Search 29
4.1 Searching broadcasting services .................. 29
4.1.1 Configuring LNB settings ................. 29
4.1.2 Configuring DiSEqC 1.2 settings ............. 32
4.1.3 Configuring USALS settings ............... 33
4.1.4 Searching services ..................... 35
4.2 Copying services .......................... 37
4.3 Resetting to factory settings .................... 38
5 Daily Usage 39
5.1 Volume control ........................... 39
5.2 Watching television ......................... 39
5.2.1 The services list ....................... 39
5.2.2 The favourite services list ................. 42
5.2.3 Viewing programme information ............ 43
5.2.4 Selecting audio tracks ................... 44

Contents v
5.2.5 Selecting subtitle tracks .................. 44
5.2.6 Viewing teletext ...................... 44
5.3 Viewing electronic programme guide .............. 45
5.4 Watching multifeed programme ................. 45
5.5 Using time shift ........................... 46
5.6 Using picture in picture ...................... 47
6 Listing Services 49
6.1 Editing the services list ....................... 49
6.2 Editing the favourite list ...................... 51
6.3 How to use on-screen keyboard .................. 53
6.4 Transferring receiver data ..................... 53
6.5 Editing channel data on your computer ............. 54
6.5.1 Editing satellite and transponder list .......... 56
6.5.2 Editing television and radio services list ........ 58
6.5.3 Editing favourite list .................... 59
7 Recording and Playing 61
7.1 Recording a programme ...................... 62
7.1.1 Instant recording ...................... 62
7.1.2 Timer recording ...................... 65
7.1.3 Scheduling a recording using the programme guide . 68
7.1.4 Recording a time-shifted programme .......... 69
7.1.5 Recording a pay service programme ........... 70
7.2 File archive ............................. 70
7.2.1 To delete a recording .................... 71
7.2.2 To sort recordings ..................... 72
7.2.3 To lock a recording ..................... 73
7.2.4 To rename a recording ................... 74
7.2.5 To make a new folder ................... 75

vi Contents
7.2.6 To move a recording to another folder .......... 76
7.3 Playing back a recording ...................... 76
7.3.1 To navigate using the progress bar ............ 77
7.3.2 To play in slow motion .................. 78
7.3.3 To play in fast motion ................... 79
7.3.4 To make a bookmark .................... 80
7.3.5 To play back a recording repeatedly ........... 81
7.3.6 To play back recordings in sequence ........... 82
7.3.7 To play back a scrambled recording ........... 83
7.4 Editing a recording ......................... 83
7.5 Copying a recording ........................ 84
7.6 MP3 playback ............................ 84
7.7 Transferring recording files .................... 85
7.8 Formatting the hard disk ...................... 86
8 Accessing to The Digital Receiver via The Internet 88
8.1 Configuring the router ....................... 89
8.1.1 To access from local area network ............ 89
8.1.2 To access from Internet .................. 90
8.2 Configuring the digital receiver .................. 91
8.3 Accessing the web server ..................... 95
8.4 Accessing the FTP server ...................... 97
9 Topfield Application Program 100
10 Firmware Update 102
10.1 Checking the firmware information ...............102
10.2 From your computer via USB port ................104
10.3 From your computer via RS-232 port ...............105
10.4 From another digital receiver via RS-232 port ..........106
10.5 Over the air .............................107

Contents vii
Index 108

1
Chapter 1
Introduction
The TF 6010 PVR digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
can receive digital broadcasts. For its operation you need an
antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 6010 PVR digital receiver has the following features:
• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.

2 Introduction
• Can store up to 5000 television and radio services.
• You can edit the services list.
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
• You can record one broadcasting service while you are
currently watching another.
• The large storage capacity of the built-in hard disk drive
allows you to record up to about 60 hours of television
—in case of 250 gigabytes— in excellent picture and sound
quality.
• Time shift is a special technical feature available on the TF
6010 PVR. You can pause the programme you are watch-
ing and resume it again at a later time. Then you can
quickly go to whatever part of the current programme by
fast foward and rewind search.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
Front display displays the current time in standby mode,
and displays the current service in operation mode.

4 Introduction
1.2.2 The remote control
1
4
6
3
7
10
16
9
12
18
20
13
27
35
32
31
23
28
36
5
8
2
14
11
17
15
12
11
24
19
25
34
33
29
30
21
22
37
26
1

button switches the digital re-
ceiver between standby mode and
operation mode.
2

mutes the sound. Press again to
switch it back on.
3




UHF is not used in this model.
4

switches the output of the TV
SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3
for more details.
5
is used to set a sleep timer.
6

Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
7

switches between the current ser-
vice and the previously viewed one.
8

displays the service information
box. It is also used to display more
information about a programme.
9




GUIDE displays the electronic pro-
gramme guide.
10




MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
11




P− ,




P+ buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.

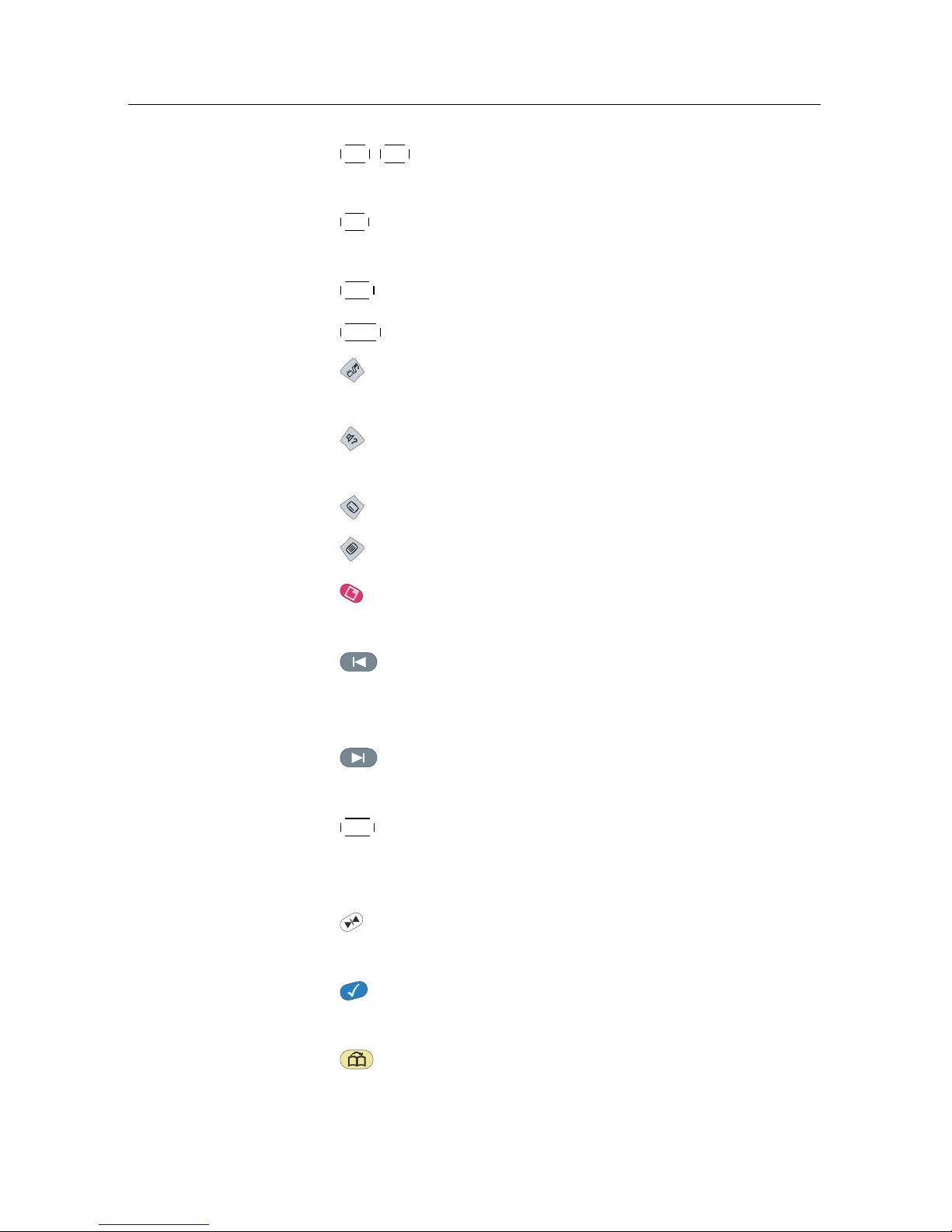

1.2 Controlling the digital receiver 5
12




V− ,




V+ buttons decrease or increase the volume. They
are also used to change values for menu options.
13




OK displays the services list. See § 5.2.1 for more details.
It is also used to select a menu item.
14




FAV displays the favourite lists.
15




EXIT is used to exit the current screen.
16

switches between television services and radio ser-
vices.
17

is used to select an audio track and a sound mode, or
a video track of multifeed programme.
18
is used to select a subtitle track.
19
displays teletext.
20

is used to display, minify or hide the sub-screen. See
§5.6 for information about picture-in-picture.
21

changes the position of sub-screen counterclockwise.
It is also used to jump back to beginnng of recording
during a playback.
22

changes the position of sub-screen clockwise. It is
also used to jump to end of recording during a playback.
23




SAT displays the satellite list with their services list. It is
also used to swap the sub-picture with the main picture.
See § 5.6 for more details.
24

displays the services list for sub-screen. It is also used
to specify a block for editing or for repeated playback.
25

is used to jump back 10 seconds for an instant replay.
It is also used to edit a recording.
26

is used to jump to next bookmark position or to jump
forward by 30 seconds.

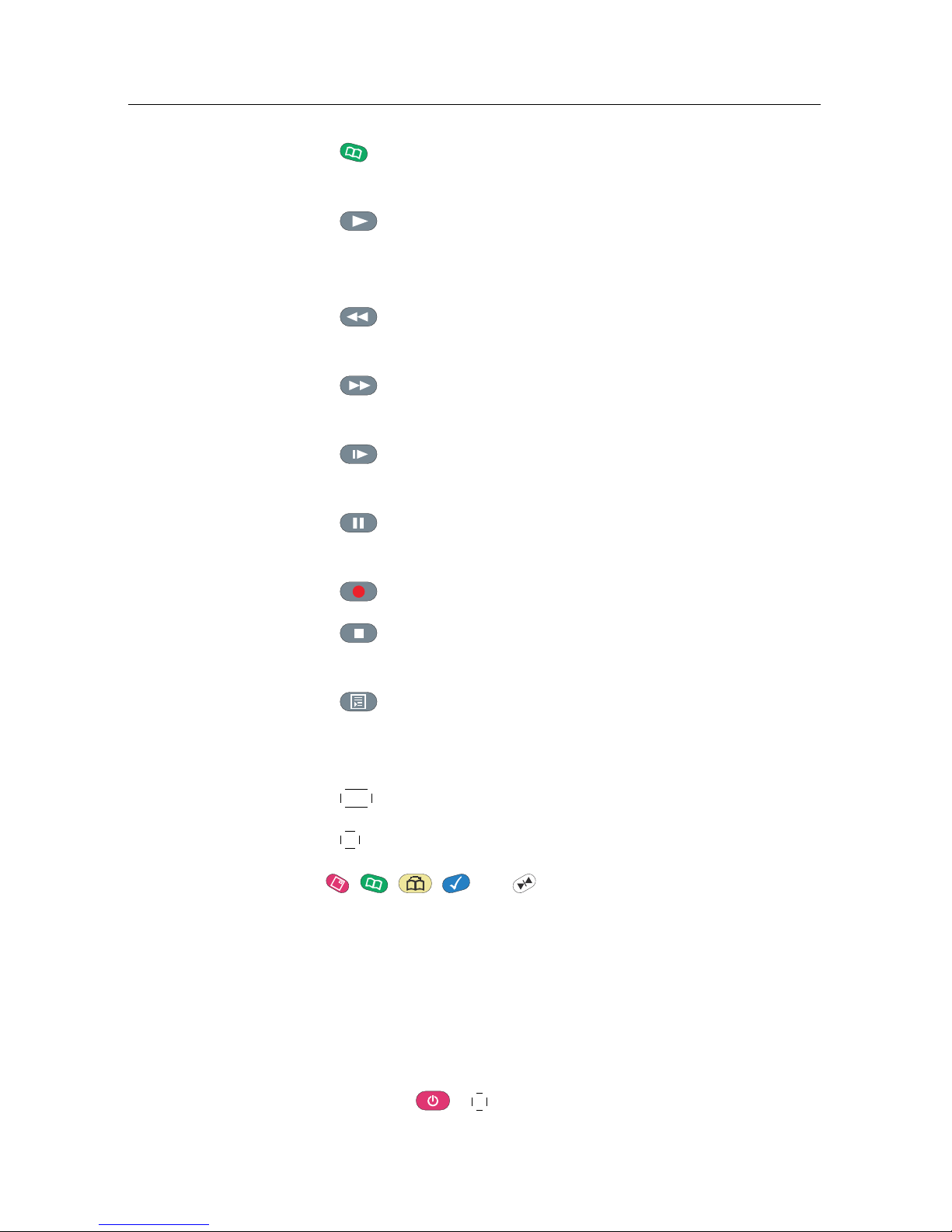

6 Introduction
27

is used to make a bookmark during playback or time
shift.
28

resumes normal playback speed, or displayes the
progress bar for navigation on playback or time shift. To
play a recorded programme, see button 35.
29

is used to start reverse playback. Subsequent presses
increase the rewind speed.
30

is used to start fast motion playback. Subsequent
presses increase the playback speed.
31

is used to start slow motion playback. Subsequent
presses change the playback speed.
32

pauses live television or playback of a recorded
programme.
33
is used to start recording.
34

is used to stop playback, to stop recording, or to
jump back to live television from time-shifted television.
35

is used to display the list of recorded programmes
that are stored on the internal hard disk drive. See § 7.2
for more details.
36




N/P is not used in this model.
37




Mis not used in this model.
The , , , and buttons have additional different
functions per menu besides their own function. They will be
guided by on-screen help.
If the remote control does not work, please check the remote
control mode. There are four modes with this remote control.
You can alter the mode by pressing two buttons simultaneously
as follows:
• Mode 1: + 



1

1.3 What is common interface? 7
• Mode 2: + 



2
• Mode 3: +



3
• Mode 4: + 



4
The mode 1 will work at default.
1.3 What is common interface?
Some broadcasts are scrambled so that only paid
subscribers can enjoy them. Scrambled services
can only be viewed with a Conditional Access
Module (CAM) and a subscription card belong-
ing with the scrambling system.
Common Interface (CI) is the slot on a digitial
receiver into which a conditional access module
may be insterted. The front of the digital receiver
has two common interfaces.
To watch a pay service, you should take the following steps:
1. Purchase a conditional access module and a subscription
card for the pay service you want to watch.
2. Insert the subscription card into the conditional access
module.
3. Insert the conditional access module into a common in-
terface on the front of the digital receiver.

8 Introduction
To view the information about
the module and subscription
card inserted into the digital re-
ceiver, select the Information >
Common Interface menu. You
should see a screen like the left
figure.

9
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One power cord
• One WLAN antenna
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the wall outlet. For

10 Setup
the power consumption of the digital receiver, refer to
Table 2.1.
• The wall outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the wires are exposed or the cord is damaged, do not
use the digital receiver and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances. The warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 45 W at maximum in operation
8 W in standby
Table 2.2: Physical specifications
Size 430×60×265 mm
Weight 4.3 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 95 %

2.3 Rear panel connections 11
2.3 Rear panel connections
The TF 6010 PVR has a wide range of connections on the back
panel.
Y
USB
Pb
Pr
LNB 1 IN
IF 1 OUT IF 2 OUT AUDIO
VIDEO
S-VIDEO
LNB 2 IN L
R
TV
VCR RS-232 S/PDIF
1
2
3
4
5
6
7
8
9
10 1112 13
14
15
WLAN ANT
Check what connections your television set has in comparison
with the digital receiver.
1
LNB 1 IN
Satellite broadcasting signal input socket for
the first tuner.
2
IF 1 OUT
Satellite broadcasting signal output socket
through the first tuner.
3
LNB 2 IN
Satellite broadcasting signal input socket for
the second tuner.
4
IF 2 OUT
Satellite broadcasting signal output socket
through the second tuner.
5
VIDEO
Composite video output socket for the television
set. (yellow)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
7
Y/Pb/Pr
Component video output socket for the televi-
sion set. (green/blue/red)
8
S-VIDEO
Super video output socket for the television
set.

12 Setup
9
TV Audio and video output socket for the television set.
10
VCR
Audio and video input/output socket for the video
cassette recorder or suchlike.
11
S/PDIF
Dolby digital output socket for the audio system.
12
RS-232
Serial port for firmware update and data transfer.
13
USB USB port for firmware update and data transfer.
14
WLAN ANT
Antenna for wireless local area network. See
Chapter 8.
15
AC INPUT Power cord socket.
Table 2.3: Connectors specifications
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S-VIDEO Super video (S-Video) output
YPbPr Component video (YUV) output
TV CVBS/S-Video/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB/YUV video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
USB 2.0
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
