AMG4684BxR
Instruction Manual
8 Channel Video Receive Unit with up to 2 Bi
-
directional
Data and Audio Channels for a Multimode Fibre Link
The
AMG4684BxR
is a rackmount eight channel video receive unit designed to receive 8 video
signals and tra
nsmit and receive up to 2 data or audio signals over two Multimode fibres.
The
AMG4684BxR
is designed to plug into an AMG2005 subrack, which in turn fits into a 19" rack
system.
The
AMG4684BxR
is designed to operate with
AMG4683Bx
or rackmount equivalent
AMG4683BxR
eight channel video transmit unit in a point to point configuration.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
2
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
Contents
Introduction
3
Unit Functional Schematic
................................
................................
................................
..................
3
Optical Connection
................................
................................
................................
.............................
3
Connections
4
Video Output Connections
................................
................................
................................
..................
4
Optical Connections
................................
................................
................................
...........................
4
Power Connection
................................
................................
................................
..............................
4
Data and Audio Channel Connections
................................
................................
...............................
4
Data and Audio Channel Configuration
5
Data and Audio Channel Configuration
................................
................................
..............................
5
Data Interface Connections Channel A
................................
................................
..............................
5
Data Channel A Configuration
................................
................................
................................
............
5
Data / Audio Channel B Configuration
................................
................................
...............................
6
Data Interface Daughter Board Options
................................
................................
.............................
6
Audio / Data Interface Connections RJ45
-
Channel B
................................
................................
......
6
Front Panel Indicators
7
Power LED
................................
................................
................................
................................
..........
7
Video Output LED’s
................................
................................
................................
............................
7
Fibre Optic LED’s
................................
................................
................................
...............................
7
Low Speed Data LEDs
................................
................................
................................
.......................
7
Physic
al Information
9
Dimensions
................................
................................
................................
................................
.........
9
Mounting Details
................................
................................
................................
................................
.
9
Removal / replacement from / to the Case
................................
................................
.........................
9
Safety
9
Maint
enance and Repair
9

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
3
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
Introduction
Unit Functional Schematic
The
AMG4684BxR
drops off up to 8 video
and 2 data and audio signals transmitted
from the
AMG4683BxR
.
It also transmits up to 2 data and audio
channels to the
AMG4
683BxR
.
Optical Connection
The
AMG4684BxR
is connected as illustrated below when used with an
AMG4683BxR
8
-
channel
transmit unit acting as a point to point system.

AMG Systems Ltd. reserves the right to m
ake changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
4
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
Connections
Video Output Connections
No. of channels
................................
....
8
Connectors
................................
..........
75 ohm BNC Sock
et.
Output Impedance
...............................
75 ohm terminated.
Output Level
................................
........
1 Volt p
-
p nominal
Frequency Response
...........................
10Hz to 7MHz.
Optical Connections
PRIMARY OPTO OUT
Connector
................................
............
LC/PC
Primary Optical Launch Power
............
-
5dBm
Wavelength
................................
..........
1310nm
Optical Fibre
................................
........
Multimode 50/125 or 62.5/125*
*
PRIMARY OPTO IN
Connector
................................
............
LC/PC
Primary Optical Sensitivity
...................
-
22dBm
Wavelength
................................
..........
1310nm
Optical Fibre
................................
........
Multimode 50/125 or 62.5/125**
**Note: the transmission distance is limited by the bandwidth of the Multimode optical fibre. The optical
data rate is 1.2
5Gbits/s. The maximum bandwidth specification at this data rate for Multimode fibre is
2km. although in most cases the units will operate successfully over longer fibre lengths. It is
advisable however for distances greater than 2km, to have the optical f
ibre tested.
Power Connection
Power supply
................................
.......
from plug in connection on the AMG2009 / AMG2015 subrack
Power consumption
.............................
10 Watts max.
Data and Audio Channel Connections
Total No. of Data Channels
.................
2 channels
DATA CHANNEL A
Data Channel A
................................
...
1 channel
Data C
onnector
................................
....
RJ45
Channel A Interface
On Board Data Interface
–
RS232, RS422 or RS485. Selected by slide switch
above the RJ45 connector.
RS485
–
switch position
-
high (closest to BNC connections)
RS422
–
switch position
–
middle
RS232
–
switch position
–
low (furthest from BNC connections)
DATA CHANNEL B
Data Channel B
................................
...
1 channel
Data Connector
................................
....
RJ45
Channel B Interface
.............................
Defined by data/audio interface daughter board fitted into Slot 1
on main board and indicated by the 'x' in the AMG partno.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
5
of
12
AMG4684BxR
Instruction
Sheet
D1
6812
-
01.doc
Data and A
udio Channel Configuration
Data and Audio Channel Configuration
The
AMG4684Bx
and rackmount equivalent
AMG4684BxR
sends and receives data to/from Channel
A and Channel B. Channel A is a single data interface selectable by the user with the slide switch on
the rear panel. Channel B carries a second channel of data / audio, the function and physical interface
being determined by the type of daughter board fitted to the B Channel data slot.
Data Interface Connections Channel A
Channel A
RJ45 Pin
No.
RS485
[switch high]
RS422
[switch mid]
RS232
[switch low]
Cat
5/6 Cable
Colour Code T568B
1
IN + (A)
GND
White/orange
2
IN
-
(B)
IN
Orange
3
White/green
4
Blue
5
White/blue
6
Green
7
IN/OUT + (A)
OUT + (A)
N/A
White/brown
8
IN/OUT
-
(B)
OUT
-
(B)
OUT
Brown
Note: (A) or (B) in brackets in above table refers to RS485 / RS422 data specification, not Channel A,
Channel B.
Data Channel A Configuration
Channel A is always present and allows for a RS232, RS4
22 (full duplex, four wire) or RS485 (half
duplex, two wire) interface depending on the position of the switch located above the RJ45 connector.
The switch signifies the presence of the X16004 Low Speed Data/Audio Interface Board. If there are
LED's presen
t on the RJ45 connector then an X16003 Ethernet Interface Board is fitted.
The data input for both the RS485 and the RS422 modes detects a tri
-
state input condition by
monitoring the differential voltage level across the input. A differential level below
600mV positive or
negative will be detected as a tri
-
state condition. A level above 600mV positive or negative will be
detected as a logic 1 or logic zero respectively. It is important therefore to terminate the RS485 bus or
the RS422 input bus using 120Ω
if a pre
-
bias is present on the RS485 or RS422 bus.
A large number of third party equipment manufacturers apply a pre
-
bias on their RS485 bus. This pre
-
bias is applied by pulling one arm of the RS485 bus high (+5 volts) and the other arm low (0 volts)
us
ing high value resistors within the third party equipment. In order to ensure that the AMG equipment
detects a tri
-
state condition, then these resistors should have a value above 5kΩ. If the third party
bias resistors are less the 750Ωthe bus can be doub
le or triple terminated as required to ensure that a
tri
-
state level is detected.
Note: The Data Channel A is shipped from the factory set up for RS485 operation unless otherwise
requested.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
6
of
12
AMG4684BxR
Instruction
Sheet
D1
6812
-
01.doc
Data / Audio Channel B Configuration
Data Channel B is operatio
nal when fitted with the appropriate daughter board.
Data Interface Daughter Board Options
The data interface daughter board options are as follows:
Option Code
'x'
Part No.
Description
0
X12542
4 Wire Audio Interface Daughter Board
1
X04057
RS422/485
Data Interface Daughter Board
2
X04049
RS232 Data Interface Daughter Board
3
X04058
20mA Current Loop Data Interface Daughter Board
4
X12579
TTL Data Interface Daughter Board
5
X12578
Contact Closure Data Interface Daughter Board
6
X13038
FTT10A Eche
lon Lonworks Data Interface Daughter Board
Audio / Data Interface Connections RJ45
-
Channel B
RJ45 Channel B low speed data/audio interface connections:
Channel B
RJ45 Pin
No.
Data / Audio
Daughter Board
Cat 5/6 Cable
Colour Code T568B
1
Whit
e/orange
2
Orange
3
OUT + (A)
White/green
4
IN
-
(B)
Blue
5
IN + (A)
White/blue
6
OUT
-
(B)
Green
7
White/brown
8
Brown
Note: (A) or (B) in brackets in above table refers to RS485 / RS422 data specification, not Channel A,
Channel B.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accura
te. No responsibility is assumed by AMG for its use.
Page
7
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc

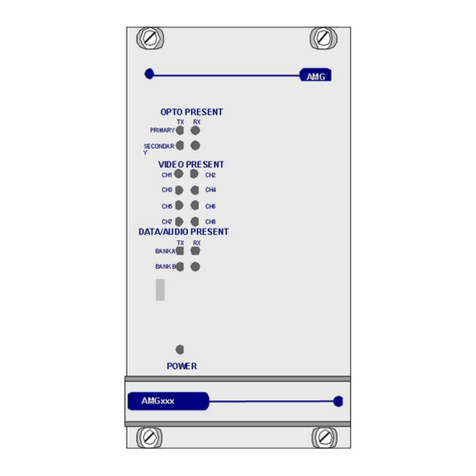

Front P
anel Indicators
Power LED
Power
................................
..................
Green
-
unit powered
Off
-
no power applied to unit
Video Output LED’s
Video Present CH1
-
8
..........................
Green
-
video signal present on output BNC
Org
-
channel present but no video on O/P BNC
Off
-
no video channel present
Fibr
e Optic LED’s
Primary Opto Sync TX
.........................
Green
-
optical channel transmitting
Off
-
optical channel not transmitting
Primary Opto Sync RX
........................
Green
-
optical channel receiving
Org
-
optical channel receiving but not sync.
Off
-
optical channel not transmitti
ng
Low Speed Data LEDs
Channel A
Data Present TX (RS485 or RS422)
...
Green
-
logic zero (+V,
-
V) present on IN+, IN
-
Red
-
logic one (
-
V,V+) present on IN+, IN
-
Off
-
tri
-
state off or no connection on IN+, IN
-
Data Present TX (RS232)
...................
Green
-
logic zero
(+V) present on input IN+
Red
-
logic transitions present on input IN+
Off
-
logic one (
-
V) present on input IN+
This represents the data signals being transmitted on the optical fibre
Data Present RX (RS485 or RS422)
...
Green
-
logic zero (+V,
-
V) presen
t on OUT+, OUT
-
Red
-
logic one (
-
V,+V) present on OUT+, OUT
-
Off
-
tri
-
state off or no connection on OUT+, OUT
-
Data Present RX (RS232)
...................
Green
-
logic zero (+V) present on OUT+
Red
-
logic transitions present on OUT+
Off
-
logic one (
-
V) present on
OUT+
This represents the data signals being received on the optical fibre
Channel B
(When RS232 data daughter board fitted)
Data Present TX
................................
..
Green
-
logic zero (+V) present on IN+
Red
-
logic transitions present on IN+
Off
-
logic one (
-
V) present on
IN+
This represents the data signals being transmitted on the optical fibre
Data Present RX
................................
..
Green
-
logic zero (+V) present on OUT+
Red
-
logic transitions present on OUT+
Off
-
logic one (
-
V) present on OUT+
This represents the data signals being re
ceived on the optical fibre

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accura
te. No responsibility is assumed by AMG for its use.
Page
8
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
Channel B
(When RS485 / RS422 data daughter board fitted)
Data Present TX
................................
..
Green
-
logic zero (+V,
-
V) present on IN+, IN
-
Red
-
logic transitions present on IN+, IN
-
Off
-
logic one (
-
V, +V) present on IN+, IN
-
This represe
nts the data signals being transmitted on the optical fibre
Data Present RX
................................
..
Green
-
logic zero (+V,
-
V) present on OUT+, OUT
-
Red
-
logic transitions present on OUT+, OUT
-
Off
-
logic one (
-
V , +V) present on OUT+, OUT
-
This represents the data signals
being received on the optical fibre
Channel B
(When audio daughter board fitted)
Audio Present TX
................................
.
Green
-
audio present >
-
40dBm
Red
-
audio present > 0dBm (overload at +6dBm)
Off
-
audio not present or <
-
40dBm
This represents the audio signals bein
g transmitted on the optical fibre
Audio Present RX
................................
Green
-
audio present >
-
40dBm
Red
-
audio present > 0dBm (overload at +6dBm)
Off
-
audio not present or <
-
40dBm
This represents the audio signals being received from the optical fibre.

AMG Systems Ltd. reserves the right to make change
s to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
9
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
Physical
Information
Dimensions
Height
................................
..................
3U Plug
-
in
Width
................................
...................
14HP
Depth
................................
...................
170mm excluding connectors
Weight
................................
.................
1000grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Removal / replacement from / to the
Case
Note:
-
The AMG unit PCB's are static sensitive. Handle with proper care and use normal electrostatic
discharge (ESD) procedures. Use properly grounded protection (for example, wrist straps) when
handling the PCB.
To remove units from the case to a
ccess the data expansion boards and the daughter boards, remove
the 2 or 4 fixing screws on the rear panel and slide the PCB's out of the case.
Ensure that the fibres do not snag or get trapped.
To replace the PCB's into the case, slide the PCB's gently
into the case aligning the boards with the
appropriate slots. Ensure that the fibre do not snag or get trapped.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825
-
2:2000.
It is always advisable to follow good pract
ice when working with optical fibre systems. This includes:

Do not stare with unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other people.

Use only approved filtered or attenuating viewing aid
s
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825
-
2:2000 or your local safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet fo
r full specification.
In case of problem or failure, please call your local support centre or contact:
AMG Systems Ltd.
at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone
[phone]
Technical Support
[phone]
Email
[e-mail]

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
10
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
This page is intentionally blank.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No re
sponsibility is assumed by AMG for its use.
Page
11
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
This page is intentionally blank.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
12
of
12
AMG4684BxR
Instruction
Sheet
D16812
-
01.doc
This page is intentionally blank.
