Topfield SRP-2411 User manual

TOPFIELD
SRP-2411
User Guide
High Definition
Digital Satellite Receiver
Personal Video Recorder
Common Interface

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.

iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features .............................. 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ...................... 3
1.2.2 The remote control .................... 4
1.3 What is common interface? .................... 7
2 Setup 9
2.1 Unpacking ............................. 9
2.2 Safety precautions ......................... 9
2.3 Rear panel connections ...................... 10
2.4 Connecting up your digital receiver ............... 12
2.4.1 Connecting to the antenna ................ 13
2.4.2 Connecting to your television set ............ 14
2.4.3 Connecting to your video recorder ........... 17
2.5 Switching on for the first time .................. 17
3 Service Search 19
3.1 Searching broadcasting services ................. 19
3.1.1 Configuring LNB settings ................ 20
3.1.2 Configuring DiSEqC 1.2 settings ............ 22
3.1.3 Configuring USALS settings ............... 24
3.1.4 Searching services .................... 25

CONTENTS v
3.2 Copying services ......................... 28
3.3 Editing the transponder list ................... 29
3.4 Resetting to factory settings ................... 30
3.5 Resetting to user settings ..................... 30
3.6 Clearing the services list ..................... 31
4 Preference Settings 32
4.1 Language settings ......................... 32
4.1.1 Menu language ...................... 32
4.1.2 Subtitle language ..................... 33
4.1.3 Audio language ...................... 33
4.2 Video and audio settings ..................... 34
4.2.1 High definition television ................ 34
4.2.2 Television aspect ratio .................. 35
4.2.3 Colour format ....................... 36
4.2.4 Anothter video device .................. 36
4.2.5 Audio mode ........................ 37
4.3 Local time setting ......................... 38
4.4 Parental control .......................... 39
4.5 To use MediaHighway programme guide ........... 41
4.6 Options for recording ....................... 42
4.7 Options for playback ....................... 43
4.8 Options for the On-Screen Display ............... 44
4.9 Options for the front display ................... 45
4.10 Options for standby mode .................... 46
5 Daily Usage 47
5.1 Volume control ........................... 47
5.2 Watching television ........................ 47
5.2.1 The services list ...................... 47
5.2.2 The favourite service lists ................ 50
5.2.3 Viewing programme information ............ 51
5.2.4 Selecting audio tracks .................. 52
5.2.5 Selecting subtitle tracks ................. 52
5.2.6 Viewing teletext ...................... 52
5.3 Viewing electronic programme guide .............. 53

vi CONTENTS
5.4 Watching multifeed programme ................. 54
5.5 Using time-shift .......................... 54
6 Listing Services 57
6.1 Editing the services list ...................... 57
6.2 Editing the favourite lists ..................... 59
6.3 How to use on-screen keyboard ................. 61
7 Recording and Playback 62
7.1 Recording a programme ..................... 63
7.1.1 Instant recording ..................... 63
7.1.2 Timer recording ...................... 65
7.1.3 Scheduling recordings using the programme guide . . 68
7.1.4 Recording a time-shifted programme .......... 68
7.1.5 Recording a pay service programme .......... 69
7.2 File archive ............................. 70
7.2.1 To delete a recording ................... 70
7.2.2 To sort recordings ..................... 70
7.2.3 To lock a recording .................... 71
7.2.4 To rename a recording .................. 71
7.2.5 To make a new folder ................... 71
7.2.6 To move a recording to another folder ......... 72
7.3 Playing back a recording ..................... 72
7.3.1 To navigate using the progress bar ........... 73
7.3.2 To play in slow motion .................. 73
7.3.3 To play in fast motion .................. 73
7.3.4 To make a bookmark ................... 74
7.3.5 To play back a recording repeatedly .......... 74
7.3.6 To play back recordings in sequence .......... 75
7.3.7 To play back a scrambled recording ........... 75
7.4 Editing a recording ........................ 76
7.5 Copying a recording ....................... 77
7.6 Formatting the hard disk ..................... 77
8 Entertainment 78
8.1 Copying files ............................ 78

CONTENTS vii
8.2 Playing back MP3 files ...................... 79
8.3 Playing back video files ...................... 80
8.4 Network game ........................... 81
8.4.1 Single mode ........................ 81
8.4.2 Network mode ...................... 85
9 Accessing to The Digital Receiver via The Internet 86
9.1 Configuring the router ...................... 87
9.1.1 To access within the local area network ......... 87
9.1.2 To access over the Internet ................ 88
9.2 Configuring the network setting on the digital receiver . . . . 89
9.3 Accessing the web server ..................... 90
9.4 Accessing the FTP server ..................... 92
10 Firmware Update 95
10.1 Checking the firmware information ............... 95
10.2 From a USB memory ....................... 96
10.3 From the firmware server via the Internet ........... 96
10.4 Over the air ............................ 98
A Universal Remote Control 99
A.1 Code list for television sets ....................103
A.2 Code list for DVD players ....................118
A.3 Code list for audio-video receivers ...............120
Index 122

1
1
Chapter 1
Introduction
The SRP-2411 digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple televi-
sion broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called trans-
ponder. To reduce confusion in this manual, the word ser-
vice is preferably used than channel as a term to indicate
one television or radio broadcast.
1.1 Features
This digital receiver has the following features:

2 Introduction
• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
• Can store up to 10000 television and radio services.
• You can edit the services list.
• Can create favourite lists of your favourite services.
• Can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can record one service while you are currently watch-
ing another.
• You can record many programmes using a built-in hard
drive with large storage capacity.
• Time-shift is a special technical feature available on this
digital receiver. You can pause a programme you are
watching and resume it again at a later time. Then you
can quickly go to any part of the current programme by
fast forward or rewind search.
• If you have an external hard drive connected to the dig-
ital receiver via the USB or eSATA port, you can record
television programmes into it.
• You can play back media files of various formats includ-
ing DivX.
• You can play a network game with other users via the
Internet.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.

1
1.2 Controlling the digital receiver 3
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it
is on, it is in operation mode. Even when you are not using
the digital receiver, you should keep it plugged into a wall
outlet to be in standby mode so that it can run timer events
at any time.
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY CH VOL
Front display shows the current time in standby mode, and
displays the current service in operation mode.
button switches the digital receiver between standby
mode and operation mode.
CH
c
,
a
buttons switch to the previous or next service.
VOL
b
,
d
buttons decrease or increase the volume.

4 Introduction

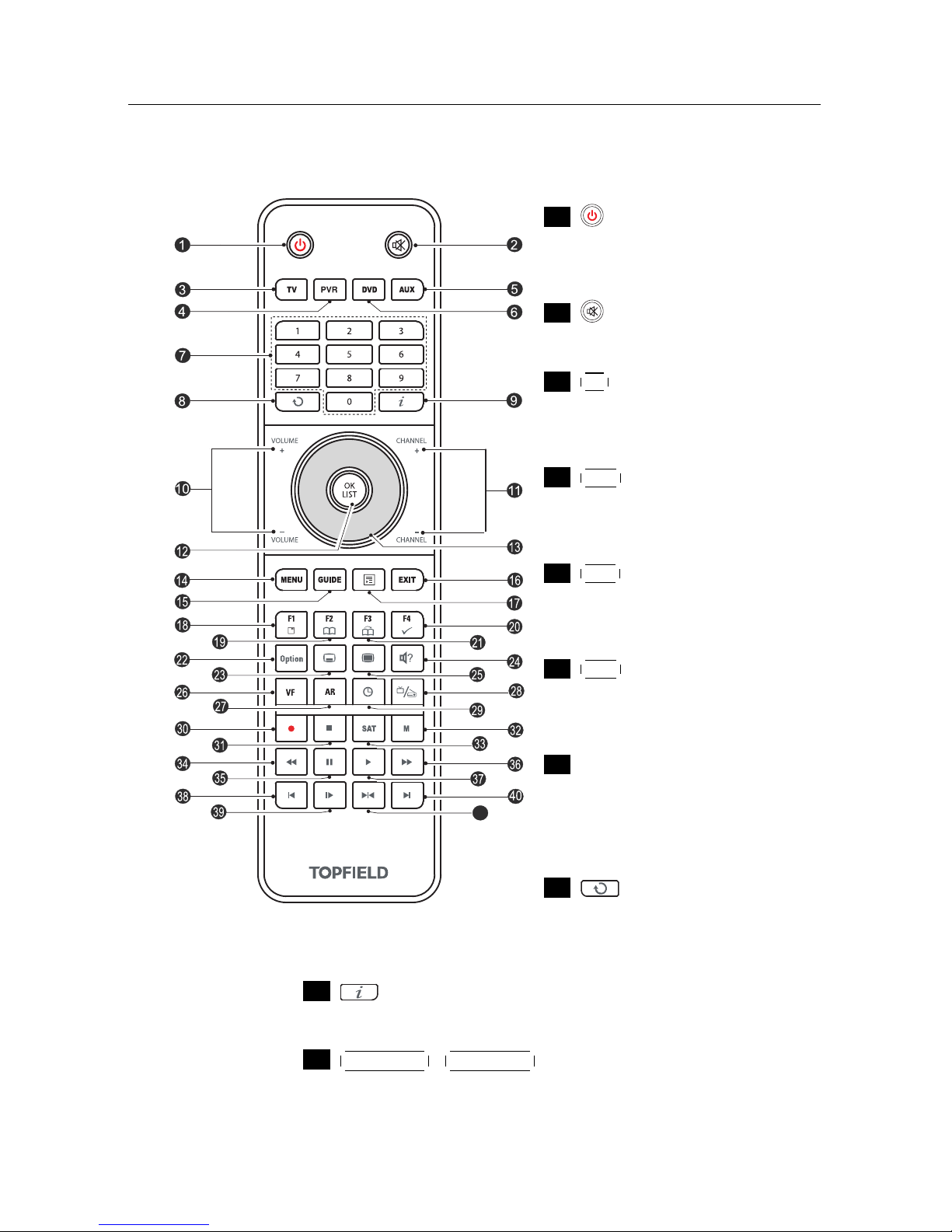

1.2.2 The remote control
41
1 button switches the digi-
tal receiver between standby
mode and operation mode.
2 mutes the sound. Press
again to switch it back on.
3



TV switches the remote con-
trol to television mode to op-
erate your television.
4



PVR switches the remote
control to receiver mode to
operate the digital receiver.
5



AUX switches the remote
control to operate your
audio-video receiver.
6



DVD switches the remote
control to DVD mode to op-
erate your DVD player.
7 Numeric buttons are used to
enter a service number for
service change or to specify
values for menu options.
8 switches between the
current service and the pre-
viously viewed one.
9 displays the service information box. It is also used
to display more information about a programme.
10 



VOLUME− ,




VOLUME+ buttons decrease or increase the
volume.

1
1.2 Controlling the digital receiver 5
11 



CHANNEL− ,




CHANNEL+ buttons switch to the previous
or next service.
12 



OK displays the services list. See § 5.2.1 for more details.
It is also used to select a menu item.
13 Navigation buttons are used to navigate in menus or to
change values for menu options.
14 



MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
15 



GUIDE displays the electronic programme guide.
16 



EXIT is used to exit a menu or to hide on-screen informa-
tion.
17 is used to display the list of recorded programmes
that are stored in the internal hard drive. See § 7.2 for
more details.
18 



F1 has different functions per menu.
19 



F2 is used to make a bookmark during playback or
timeshift.
20 



F4 is used to edit a recording.
21 



F3 is used to jump to next bookmark position.
22 



Option has different functions per menu.
23 is used to select a subtitle track.
24 is used to select an audio track and a sound mode, or
a video track of multifeed programme.
25 displays teletext.
26 



VF changes video resolution. See § 4.2.1 for more details.
27 



AR changes aspect ratio. See §4.2.2 for more details.

6 Introduction
28 switches between television services and radio ser-
vices.
29 is used to set a sleep timer in 10 minute increments.
30 is used to start recording.
31 is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
32 



M switches the output of the TV SCART socket between
the digital receiver and the device connected to the VCR
SCART socket. See §4.2.4 for more details.
33 



SAT displays the satellites list with their services list.
34 is used to start reverse playback. Subsequent presses
increase the rewind speed.
35 pauses live television or playback of a recorded pro-
gramme.
36 is used to start fast motion playback. Subsequent
presses increase the playback speed.
37 resumes normal playback speed, or displays the progress
bar for navigation on playback or time-shift. To play a
recorded programme, see button 17 .
38 is used to jump back to beginnng of recording during
a playback.
39 is used to start slow motion playback. Subsequent
presses change the playback speed.
40 is used to jump to end of recording during a playback.
41 has different functions per menu.
The




F1 ,




F2 ,




F3 ,




F4 and




Option buttons have additional
different functions per menu besides their own function. They
will be guided by on-screen help.

1
1.3 What is common interface? 7
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
1.3 What is common interface?
Some broadcasts are scrambled so
that only paid subscribers can enjoy
them. Scrambled services can only
be viewed with a Conditional Access
Module (CAM) and a subscription
card matching with the scrambling
system.
Common Interface (CI) is the slot on
a digitial receiver into which a condi-
tional access module may be inserted.
The front of the digital receiver has
two common interface slots.
To watch a pay service, you should take the following steps:
1. Purchase a conditional access module and a subscription
card for the pay service you want to watch.
2. Insert the subscription card into the conditional access
module.
3. Insert the conditional access module into a common in-
terface on the front of the digital receiver.

8 Introduction
To view the information about
the module and subscription
card which is inserted into the
digital receiver, select the In-
formation > Common Interface
menu. You should see a screen
like the left figure.

2
9
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with the digital receiver.
• Remote control
• Two batteries for the remote control (AAA 1.5 V)
• One HDMI cable
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the mains socket. For
the power consumption of the digital receiver, refer to
Table 2.1.

10 Setup
• The mains outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances, the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 60 W at maximum in operation
Under 1 W in passive standby
Table 2.2: Physical specifications
Size 430×60×265 mm
Weight 3.1 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The SRP-2411 has a wide range of connections on the back.

2
2.3 Rear panel connections 11
Check what connections your television set has in comparison
with the digital receiver.
1LNB 1 IN Satellite broadcasting signal input socket
for the first tuner
2LNB 1 OUT Satellite broadcasting signal output socket
through the first tuner
3LNB 2 IN Satellite broadcasting signal input socket
for the second tuner
4LNB 2 OUT Satellite broadcasting signal output socket
through the second tuner
5VIDEO Composite video output socket for the tele-
vision set (yellow)
6AUDIO L/R Stereo audio output socket for the television
set or the audio-video receiver (white/red)
7Y/Pb/Pr Component video output socket for the tele-
vision set (green/blue/red)
8TV Audio and video output socket for the tele-
vision set
9VCR Audio and video input/output socket for
another device such as a video recorder
10 HDMI Audio and video output socket for the high
definition television set
11 eSATA eSATA port for connecting to an external
hard drive

12 Setup
12 LAN Local area network port
13 USB USB port for firmware update and data trans-
fer
14 S/PDIF COAXIAL Digital audio output socket of coaxial
type for the audio-video receiver
15 S/PDIF OPTICAL Digital audio output socket of optical
type for the audio-video receiver
16 ON/OFF Power switch
Table 2.3: Connectors specifications
HDMI High definition video output
Digital audio output
YPbPr Component video output
TV CVBS/S-Video/RGB video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB video input for bypass
Left & right audio input for bypass
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S/PDIF Digital audio output
LAN 10/100 Ethernet
USB 2.0 Host (5 V DC, 500 mA)
eSATA External SATA 2.0
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices. If
you have any problem with your setup or need help, contact
your dealer.
