1
Chapter 1
Introduction
The TF 600 PVRt digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
thus is able to receive digital broadcasts of that standard. For
its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word service is preferably
used than channel as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 600 PVRt digital receiver has the following features:
• Can store up to 2000 television and radio services.

2 Introduction
• You can edit the services list.
• You can create favourite lists of your favourite services.
• You can view information about the current television or
radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• You can update the firmware of the digital receiver to the
latest version which would be provided by the manufac-
turer.
• You can record one broadcasting service while you are
currently watching another.
• The large storage capacity of the built-in hard disk drive
allows you to record up to about 60 hours of television
—in case of 250 gigabytes— in excellent picture and sound
quality.
• Time shift is a special technical feature available on the TF
600 PVRt. You can pause the programme you are watch-
ing and resume it again at a later time. Then you can
quickly go to whatever part of the current programme by
fast foward or backward search.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.

1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
CHANNEL VOLUME
OK
MENU
STANDBY button switches the digital receiver between
standby mode and operation mode.
Front display displays the current time in standby mode,
and displays the current service in operation mode.
MENU button displays the main menu. It is also used to
return to the previous menu from a submenu.
OK button displays the services list. See § 5.2.1 for more
details. It is also used to select a menu item.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.

4 Introduction
1.2.2 The remote control
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27 28
29
30 31
32
33
34
35
36
37
1

button switches the digital receiver
between standby mode and operation
mode.
2
is used to set a sleep timer.
3

b
,
d
buttons decrease or increase the
volume. They are also used to change
values for menu options.
4

mutes the sound. Press again to
switch it back on.
5

a
,
c
buttons switch to previous or
next service. They are also used to
navigate in menus and interactive
screens.
6
switches between the current ser-
vice and the previously viewed one.
7

Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
8




OK
displays the services list. See
§ 5.2.1 for more details. It is also used
to select a menu item.
9




FAV displays the favourite lists.
10

displays the service information
box. It is also used to display more
information about a programme.
11

is used to select an audio track and a sound mode, or
a video track of multifeed programme.
12
is used to select a subtitle track.

1.2 Controlling the digital receiver 5
13
displays teletext.
14




V.Format
changes video resolution. See § 3.2.5 for more
details.
15




A/R changes aspect ratio. See § 3.2.4 for more details.
16

switches between television services and radio ser-
vices.
17




GUIDE displays the electronic programme guide.
18




AUX
switches the output of the TV SCART socket be-
tween the digital receiver and the device connected to
the VCR SCART socket. See § 3.2.3 for more details.
19




SAT
swaps the sub-picture with the main picture. See
§5.6 for more details.
20




MENU
displays the main menu. It is also used to return
to the previous menu from a submenu.
21




EXIT is used to exit the current screen.
22
is used to start recording.
23

is used to stop playback, to stop recording, or to jump
back to live television from time-shifted television.
24

is used to display the list of recorded programmes
that are stored on the internal hard disk drive. See § 7.2
for more details.
25

resumes normal playback speed, or displayes the
progress bar for navigation on playback or time shift. To
play a recorded programme, see button 24.
26

pauses live television or playback of a recorded pro-
gramme.
27

is used to start reverse playback. Subsequent presses
increase the rewind speed.

6 Introduction
28

is used to start fast motion playback. Subsequent
presses increase the playback speed.
29

is used to start slow motion playback. Subsequent
presses change the playback speed.
30

changes the position of sub-picture counterclockwise.
It is also used to jump back to beginnng of recording
during a playback.
31

changes the position of sub-picture clockwise. It is
also used to jump to end of recording during a playback.
32




F1
is used to display, minify or hide the sub-picture. See
§5.6 for information about picture-in-picture.
33




F2
is used to make a bookmark during playback or time
shift.
34




F3
is used to jump to next bookmark position or to jump
forward 30 seconds.
35




F4
is used to jump back 20 seconds for an instant replay.
36

displays the services list for sub-picture. It is also used
to specify a block for editing or for repeated playback.
37




Mis not used in this model.
The




F1
,




F2
,




F3
,




F4
and buttons have additional different
functions per menu besides their own function. They will be
guided by on-screen help.

1.3 What is common interface? 7
1.3 What is common interface?
Some broadcasts are scrambled so that only paid
subscribers can enjoy them. Scrambled services
can only be viewed with a Conditional Access
Module (CAM) and a subscription card belong-
ing with the scrambling system.
Common Interface (CI) is the slot on a digitial
receiver into which a conditional access module
may be insterted. The front of the digital receiver
has two common interfaces.
To watch a pay service, you should take the following steps:
1. Purchase a conditional access module and a subscription
card for the pay service you want to watch.
2. Insert the subscription card into the conditional access
module.
3. Insert the conditional access module into a common in-
terface on the front of the digital receiver.

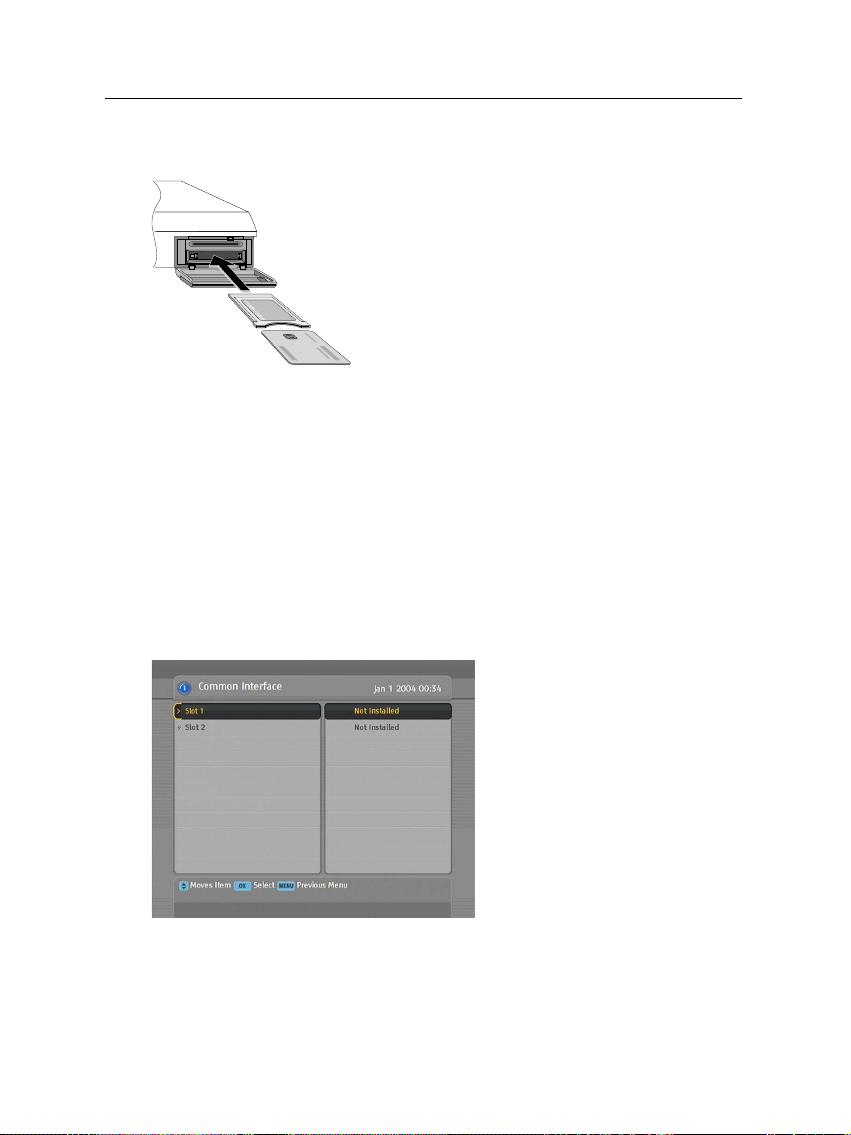

To view the information about
the module and subscription
card which is inserted into the
digital receiver, select the In-
formation > Common Interface
menu. You should see a screen
like the left figure.

8 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the wall outlet. For
the power consumption of the digital receiver, refer to
Table 2.1.

2.2 Safety precautions 9
• The wall outlet should be near the equipment. Do not
run an extension lead to the unit.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digi-
tal receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
• Never open the digital receiver casing under any circum-
stances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 31 W at maximum in operation
9 W in standby
Table 2.2: Physical specifications
Size 380×60×265 mm
Weight 4.3 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %

10 Setup
2.3 Rear panel connections

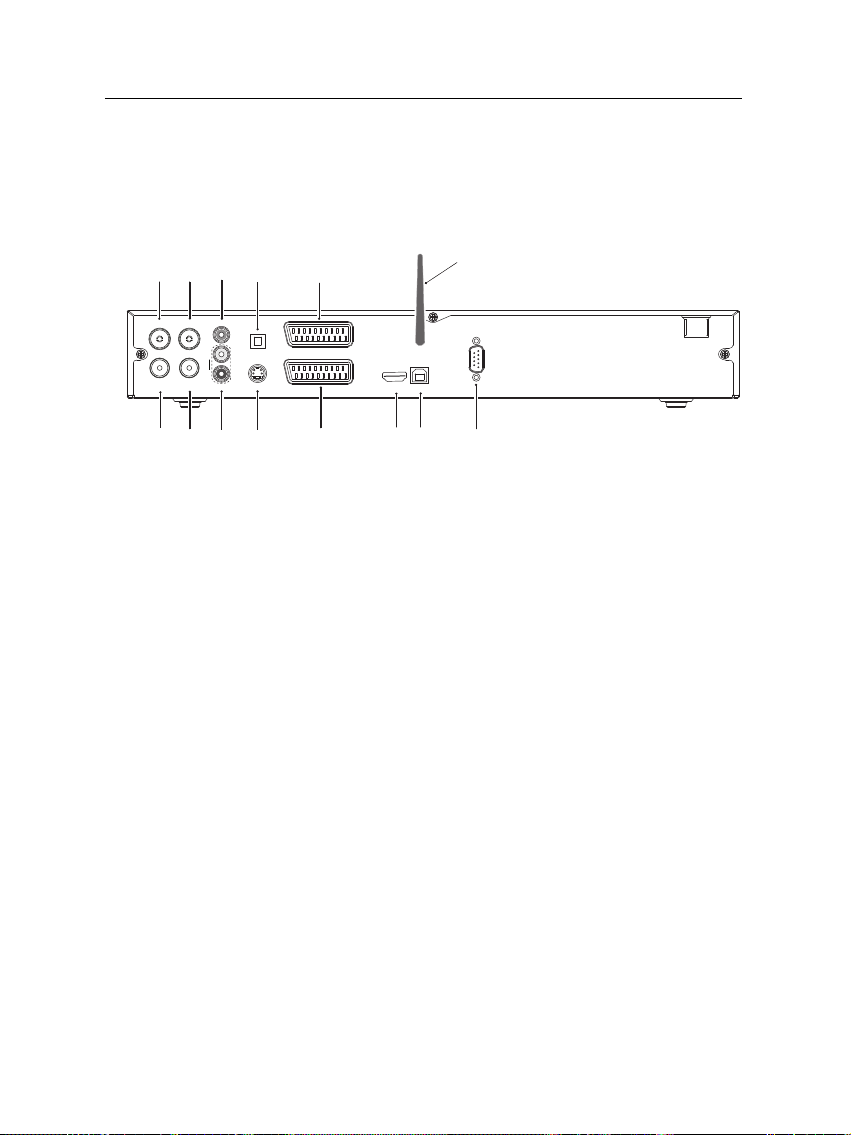

The TF 600 PVRt has a wide range of connections on the back.
USB
ANT 1 IN
RF LOOP
1 OUT
RF LOOP
2 OUT AUDIO
VIDEO
S-VIDEO
ANT 2 IN
L
R
TV
VCR
S/PDIF
1
2
3
4
5
6 8
9
10 11 13
12
WLAN ANT
RS-232
14
HDMI
7
Check what connections your television set has in comparison
with the digital receiver.
1
ANT 1 IN
Terrestrial broadcasting signal input socket
for the first tuner.
2
RF LOOP 1 OUT
Terrestrial broadcasting signal output
socket through the first tuner.
3
ANT 1 IN
Terrestrial broadcasting signal input socket
for the second tuner.
4
RF LOOP 2 OUT
Terrestrial broadcasting signal output
socket through the second tuner.
5
VIDEO
Composite video output socket for the televi-
sion set. (yellow)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
7
S/PDIF
Dolby digital output socket for the audio sys-
tem.
8
S-VIDEO
Super video output socket for the television
set.

2.4 Connecting up your digital receiver 11
9
TV
Audio and video output socket for the televi-
sion set.
10
VCR
Audio and video input/output socket for the
video cassette recorder or suchlike.
11
HDMI
Audio and video output socket for the high
definition television set.
12
WLAN ANT
Antenna for wireless local area network. See
Chapter 8.
13
USB
USB port for firmware update and data trans-
fer.
14
RS-232
Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby digital audio output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S-VIDEO Super video (S-Video) output
TV CVBS/S-Video/RGB/YUV video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS/S-Video/RGB/YUV video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115,2 kbps at maximum
USB 2.0 device
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.

12 Setup
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting the antenna
Whatever sort of connection you have be-
tween the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT 1 IN
connector on the back panel of the digital
receiver.
Also, you must ensure that there is a con-
nection to both the ANT 1 IN and ANT 1 IN
connectors on your digital receiver, so that
both tuners work properly.
Normally you do that by using a loop cable to link from the RF
LOOP 1 OUT connector to the ANT 1 IN connector.
NOTE
However, if you are in a weak signal area, or are using a signal
amplifier with more than one output, you may achieve better
results by connecting a cable from the antenna or amplifier
directly to the ANT 1 IN connector rather than using the loop
cable.
If you have another digital receiver, or you want to still receive
analogue channels on your television, link it from the RF LOOP
2 OUT connector.
2.4.2 Connecting to your television
Between all the following connectors of the digital receiver, we
recommend you to use the first connector to get best picture
quality. If your television does not have the matching connector,

2.4 Connecting up your digital receiver 13
then use the next connector in the following order for better
picture quality.
1. HDMI connector (HDMI)
2. SCART connector (TV)
3. S-Video connector (S-VIDEO)
4. Composite connector (VIDEO)
You should configure audio and video settings after connecting
up the digital receiver. See § 3.2 for detailed description.
To use the HDMI connector
If you have a high definition television set,
you should use a HDMI cable for best re-
sults. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connections because the HDMI
connector can output stereo audio or Dolby
digital audio.
To use the SCART connector
For best results with a standard television set,
you should use a SCART cable. Plug one end
the cable into the TV socket on the digital
receiver, and plug the other end into a free
SCART socket on your television.
Some televisions have inputs via S-Video or
Component connectors rather than SCART.
If you have such a television, use an appropriate conversion ca-
ble to link the TV socket on the digital receiver to the matching
socket on your television.

14 Setup
If you connect with a standard SCART cable, you do not have
to make audio connections because the SCART connector can
output stereo audio. But if you use a conversion cable, such as
SCART-to-Component, you have to make audio connections.
NOTE
You cannot view high definition video with the SCART connec-
tor.

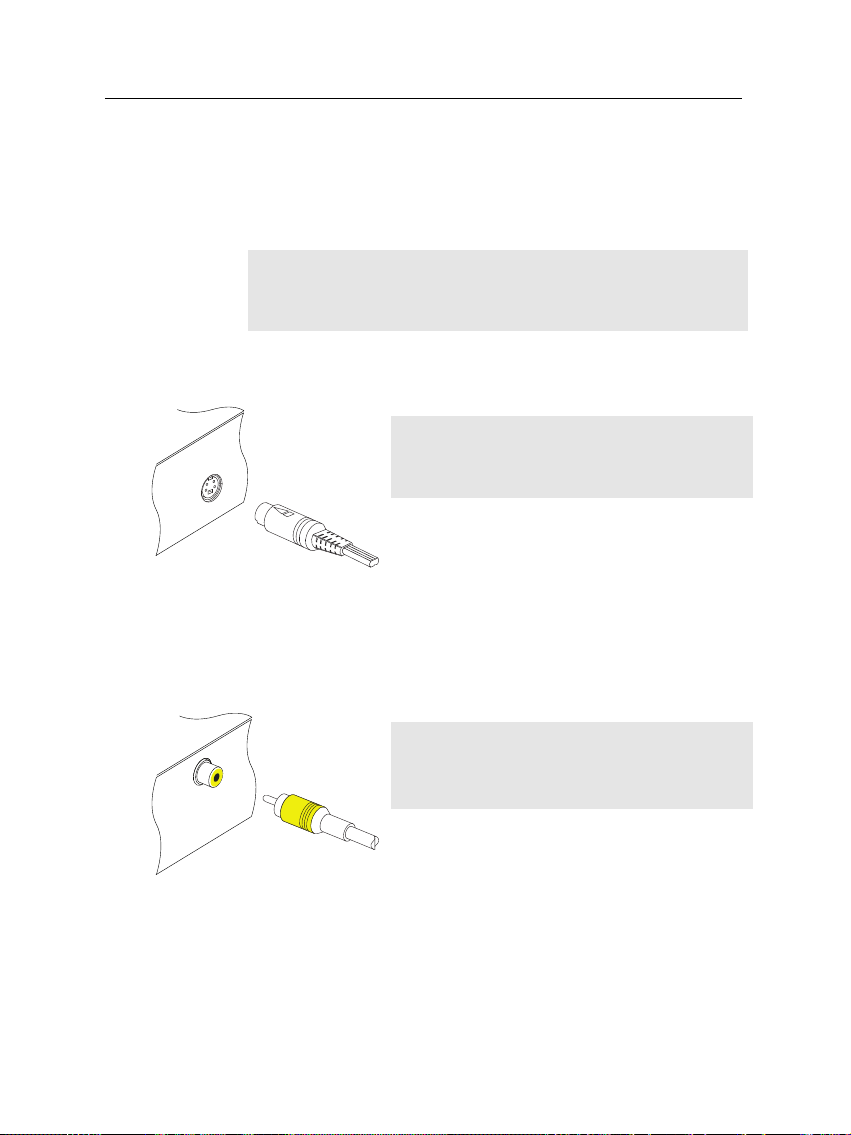

To use the S-Video connector
NOTE
You cannot view high definition video with
the S-Video connector.
You will need to obtain a S-Video cable to use
the S-Video connector. Plug one end of the
cable into the S-VIDEO socket on the digi-
tal receiver, and plug the other end into the
matching socket on your television.
To use the composite video connector
NOTE
You cannot view high definition video with
the composite video connector.
You will need to obtain a composite video
cable (RCA cable) to use the composite video
connector. Plug one end of the cable into the
VIDEO (yellow) socket on the digital receiver,
and plug the other end into the matching
socket on your television.
