Topten TK220 User manual

GPS CAR ALARM SYSTEM
USER MANUAL
(Model: TK220)
GUANGZHOU TOPTEN ELECTRONICS FACTORY
Address: 20/F, Tower B, Gaoke Building, Tianhe North Road, Guangzhou, China.
Tel: [phone] Fax: [phone]
Website:http://www.t10.cn Email: [email protected]
Version 1.0
(Date: Oct., 2012)

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
1
CONTENT
Preface..............................................................................................................................2
I. Features & Functions ....................................................................................................3
II. How to operate it...........................................................................................................4
SMS Command Format.......................................................................................................... 4
Authorize the Alert-received Mobile..................................................................................... 4
Change User Password......................................................................................................... 4
Check the Vehicle’s Status .................................................................................................... 5
Arm/Disarm the System by SMS.......................................................................................... 5
Arm/Disarm by Phone Calling............................................................................................... 5
Check the Location by Google Map’s URL........................................................................ 5
Check the Real Physical Address........................................................................................ 6
Stop the Car.............................................................................................................................. 6
Restore the Stopped Car to Normal Status ....................................................................... 7
Monitor the Voice around the Car........................................................................................ 7
Two-way Talking with the Car ............................................................................................... 7
Set up the Shock Sensor....................................................................................................... 8
Arm the System Mutely. ......................................................................................................... 8
Turn ON/OFF Sleep Mode. ................................................................................................... 8
Check the IMEI No.................................................................................................................. 9
Study the Remote Control...................................................................................................... 9
Odometer function................................................................................................................... 9
SOS Anti-robbery Alert ........................................................................................................... 9
Set up Movement Alert......................................................................................................... 10
Set up Over-speed Alert....................................................................................................... 10
Set up Geo-Fence Alert........................................................................................................ 10
Change the Heart-beating Interval. ....................................................................................11
III. Remote Control..........................................................................................................12
IV. The Setting for GPRS Connection............................................................................12
V. Alarm Type..................................................................................................................14
VI. Installation .................................................................................................................15
VII. Specifications ...........................................................................................................23
VIII. FAQs & Troubleshooting.........................................................................................24
IX.Maintenance...............................................................................................................25

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
2
Preface
TK220 GPS car alarm & tracking device is a multifunctional product. It is an
integration of car alarm system & GPS tracking system.
It can be taken as a car alarm. In arm status, following operations will trigger
alarm: door open, engine on, shake, cut-off power. The system will trigger the
siren to sound on spot, it will also send out alarm message with location by
SMS/GPRS to your mobile phone or tracking center immediately.
What’s more, this device it has more other applied functions. Such as: Stop
the car by SMS/internet, monitoring voice and 2 way talking by phone, start the
engine by SMS, lock/unlock car door remotely, etc.
Read it Firstly:
Please read this manual thoroughly before you use the device; please keep
it for future reference.
Attention:
(1) Please keep the device away from water, humidity, high temperature,
heavy dust or strong magnetism.
(2) Please prepare a valid GSM SIM card in advance.
Warning:
We strongly suggest user let the professional car electrician to install the
system.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
3
I. Features & Functions
1. Arm/disarm by SMS remotely, or by the remote controller
2. Check the car’s real physical address(such as city name, street name..) ;
3. Track by mobile SMS to get the latitude & longitude or the Google map’s
URL;
4. Track by GPRS data network for online tracking;
5. Track on command or by time interval via SMS/GPRS;
6. 2-way talking function(optional) & voice monitoring function;
7. Vibration alert, door open alert, movement alert and ignition on alert;
8. Mileage calculation function (=odometer)
9. Cut-off external power alert;
10. Power saving mode;
11. Geo-fence alert (radius range: 0.1~99KM);
12. Over-speed alert (speed range:1~255km/h);
13. SOS button to call for help in case of emergency;
14. Open/close car door/rear trunk remotely;
15. Start your car remotely;(optional)
16. Cut off engine to stop the car safely by SMS/GPRS;

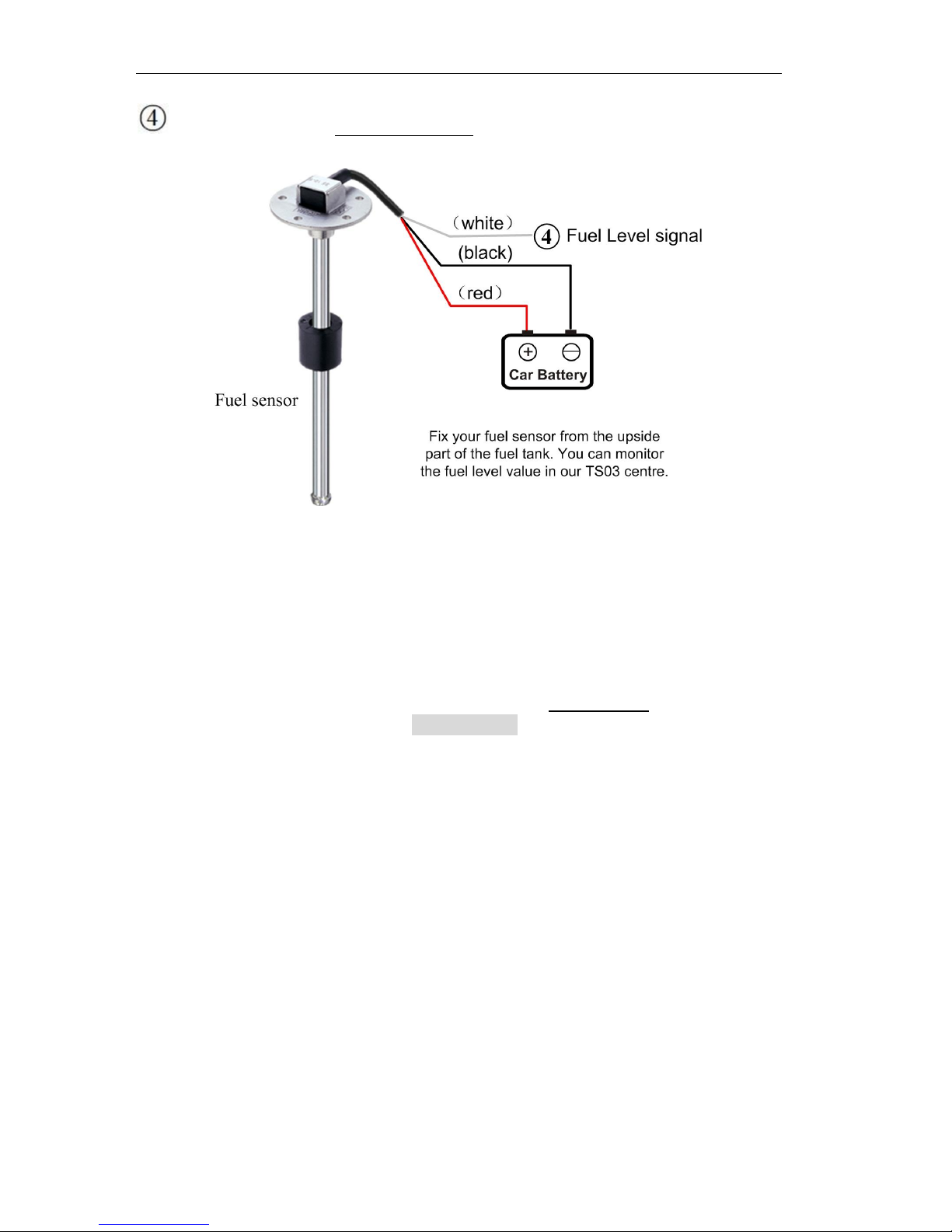

17. Monitor fuel level;
18. Central lock automation, when car speed >30Km/h, car door will be locked
automatically;
19. Inbuilt 4Mb data logger to store the offline GPS waypoints;
20. Built-in rechargeable backup battery; when the car battery is cut off or
damaged, the built-in 600mAH backup battery can work for emergency
check, and the system will send out power failure alert immediately.
21. Two kinds of location information; user can check the GPS latitude,
longitude, speed, direction. If there is no GPS signal, user could also locate
the car by GSM base station code.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
4
II. How to operate it
SMS Command Format
User can send SMS instruction to operate the tracker by any mobile phone,
the format of the instruction is:
User Password (******) + Control Code(XXX)
The default user password is 111111.
If the user password is changed, user should send the SMS instruction with
the new user password instead of 111111.
XXX is the control code, all the letters must be all capital letters or small
letters, any code mixed by two of them will be not available.
There is no space between the user password & the control instruction.
Authorize the Alert-received Mobile
SMS command: 111111*10 Mobile #1*20 Mobile #2*
In case of alarm, if user wants to get the alert SMS from the tracker, he/she
needs send the following SMS to program the system firstly, otherwise, the alert
information can not be received correctly.
Example:
User sends the SMS 111111*1013922713571*2013711189059* to the
tracker’s SIM card number, if there is any alert, system will send alert SMS to
both of these two mobiles. In case of SOS alert, the system will only send alert
to the mobile #2.
Change User Password
SMS command: 111111PSWnnnnnn
This instruction is used to change the user password. The length of the
user’s password is 3~6 digits. Users are suggested to change to the new
password in use.
Example:
User sends the SMS “111111PSW12345” to the system SIM card number,
and gets the confirmed SMS “111111PSW12345” in 3 seconds. It means that
the user password has been changed to 12345.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
5
Remark: Please keep the password deep in mind if it is changed.
Check the Vehicle’s Status
SMS command: 111111CHK
This instruction is used to inquiry the vehicle’s location & system’s status.
The system will send back the SMS, includes the similar information, such
as “Car is Armed……”
Arm/Disarm the System by SMS
SMS command: 111111ARM
This SMS instruction is used to arm the system
SMS command: 111111DSM
This SMS instruction is used to disarm the system
Arm/Disarm by Phone Calling
User could also use the first alarm-received mobile phone to call the
system SIM card number, so as to arm/disarm the system.
Arm: After hearing several ring tones, if the systems hang up the call
automatically, and call back you, it means that the system is armed.
Disarm: After hearing several ring tones, if the system hangs up the call
automatically, and don’t call back you, it means that the system is disarmed.
Note:
(1) There is no communication fee for this operation, it is a very convenient way to arm
& disarm the system.
(2)The SIM card inside the device must have the function of Caller ID Display.
(3) Only the 1st authorized mobile phone can realize this function.

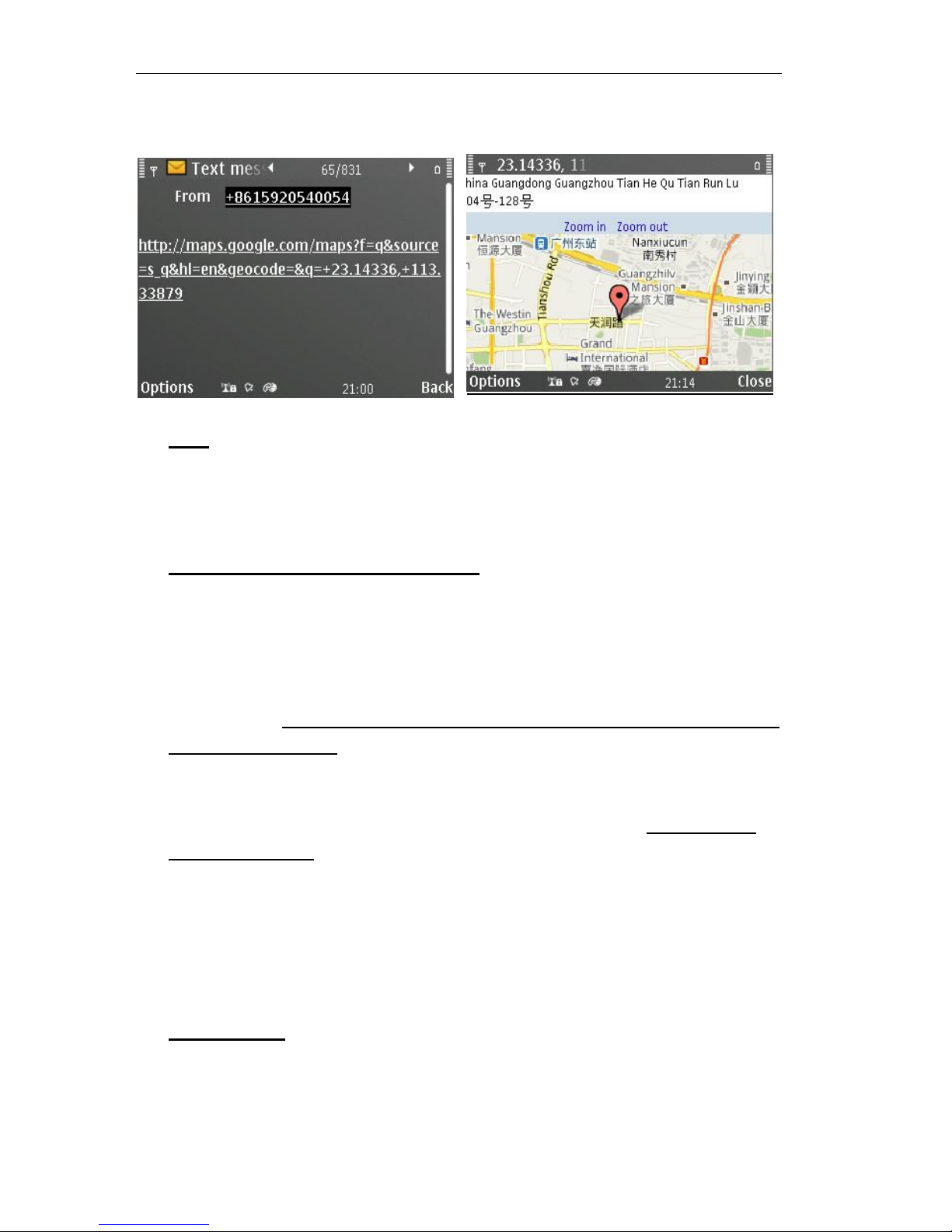

Check the Location by Google Map’s URL
Command: 111111MAP
User can use any mobile phone to send this command to tracker’s SIM
number, the tracker will automatically send back the SMS including the Google
map’s URL, user can use smart phone(be able to visit internet) to open the URL

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
6
link and then the car’s location will be showed on the Google map.
Note:
The SIM card inside the tracker must be activated with the service of caller’s
ID display.
Check the Real Physical Address
SMS command: 111111ADD
When user sends this SMS command to the tracker, the tracker will
automatically send back the car’s real physical address (such as city name,
street name) to your mobile by SMS.
Attentions: If you want this function, you need to link your tracker into our
TS03 tracking centre.
Remark:
(1) The GPRS service of the tracker’s SIM card must be activated, and
the correct GPRS setting is needed (refer to the chapter of the setting of
GPRS connection), user can set up the GPRS upload time interval to 0 so
as to save the GPRS flow;
(2) The physical address depends on the Google map’s address
information. If the place has very detailed information on Google map, then
the physical address by SMS is very detailed.
Stop the Car
You have two methods to stop your car.
(1) SMS command: 111111STP
(2) If your tracker has linked with our TS03 tracking centre. You can

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
7
stop your car by our TS03 tracking center also.
The two instructions are used to cut off the car’s power supply or fuel supply,
so as to stop the car.
Attention:
It is very dangerous to stop the car when the vehicle is running at high
speed. We do not take any responsibility to the consequence caused by this
action.
Restore the Stopped Car to Normal Status
SMS command: 111111RES
This instruction is used to restore the car to normal status after stopping the
car or SOS alert happens.
Monitor the Voice around the Car
SMS command: 111111MON
This instruction is used to monitor the voice around the car.
After sending out this SMS, the tracker will call back immediately, then, user
can monitor the voice around the car upon picking up the call.
Two-way Talking with the Car
SMS command: 111111MON:Tel
This instruction is used to program the phone number which is used for
carrying out direct monitoring or talking.
User uses this phone number to call the tracker, it will be connected
automatically without driver’s permission. By this way, user can monitor the
voice or talk with the driver freely.
Example: 111111MON:13922713571
Note: If the Tel is the same as the first alarm-received phone (111111*10
Mobile #1*20 Mobile #2*), then this telephone can only be used to carry out
direct monitoring, it can not realize the function arm/disarm by calling any more.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
8
Set up the Shock Sensor
Command:111111SHK@
Normal status, when shock sensor is activated, it will trigger the alarm
immediately.
@=0, turn off shake sensor.
@=1, normal working mode(default setting).
Normal status, when sensor is activated, it will trigger the alarm immediately.
It is the default setting
@=2, Time-delay working mode
Time-delay status, if the sensor is activated for 3 seconds continuously, it
will trigger the alarm. This setting can avoid some false vibration alarm.
Arm the System Mutely.
There are two ways to carry out the function.
(1) Command:
111111MUTE:0, to turn off mute alarm.(default setting)
111111MUTE:1, to turn on mute alarm.
when user turn on MUTE alarm function, the vibration sensor will not
trigger the siren & it will not send out alarm SMS, but if the door is open
or ignition is ON, it will trigger alarm normally.
(2) Remote controller
You can press mute button to carry out this function too.
Turn ON/OFF Sleep Mode.
111111SLEEP0 Turn off sleep mode, it is the default setting
111111SLEEP1 Turn ON sleep mode, it is used to save power & GPRS
flow. In this working mode, if the engine is OFF, the system will go into sleep
mode after 3 minutes. In sleep mode, the device only reports the heart-beating
packet by GPRS, GSM & GPS module will go into power save mode also. Once
there is any vibration, or alarm, or incoming call/SMS, the system will wake up
immediately.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
9
Check the IMEI No.
Command: 111111REG
This instruction is used to check the GSM module’s IMEI number. Last 14
bits is tracker’s ID.
Study the Remote Control
Command: 111111STD
This instruction is for study of remote control.
Please send 111111STD to the device, then press ARM/DISARM button on
remote control, the remote is programmed successfully. If you want to study
another remote control, please send this command again, and press
ARM/DISARM button on the other remote control.
Odometer function
111111ODO: It is used to read the present odometer value.
111111ODO:R It will reset the device’s odometer reading to 00000 & start
calculation from the beginning.
111111ODO:0 It will reset the device’s odometer reading to 00000 &
close the calculation of odometer.
111111ODO:1~999999 It will make the device to start calculation of
odometer from the base value. Example: 111111ODO:38980, then the device
will reset the initial odometer reading as 38980KM & start the calculation again.
SOS Anti-robbery Alert
We have two ways for anti-robbery alert.
(1) Press SOS button;
once the SOS switch is pressed down & hold for at least 3 seconds, the
system will send alarm SMS to the second alert-received mobile & the
center number. User can send command 111111RES to release it.
(2) Press mute alarm button on the remote controller for several seconds;

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
10
(The mute alarm button on the remote controller has two functions: One is
for mute alarm, the other is for emergency help)
Set up Movement Alert
Command: 111111MOV@
@ =0, to disable the movement alert;
@=1, to enable the movement alert;
@=?, to check the setting of movement alert.
If user sends 111111MOV1 to enable the movement alert function, the
movement alert centre is your tracker’s current position. Every time when
the system is armed, if the car moves away from the present parking point
for about 90 meters(default setting), the movement alert will be triggered.
User can change the radius of triggering movement alarm by this SMS
command: 111111MOV:R (R=50~999).
Set up Over-speed Alert
111111SPD:X x is the speed in KM/H , maximum value is 255M/H
(For example: 111111SPD:120, if the car speed is over 120KM/H, it will
send SMS to warn you)
111111SPD:0 to disable the over-speed alert. It is the default setting
When the over-speed alert function is activated, if the car is running over the
speed limitation, the tracker will send out alert message.
Remark: this function is just for reference, because there might be some
time delay or error in detecting the running car’s real speed by GPS.
Set up Geo-Fence Alert
111111FEN0 Disable the Geo-fence
111111FEN1 Enable the Geo-fence, using the stored setting
111111FEN？Check the setting of geo-fence

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
11
111111FEN1(YL:a,XL:b,DL:C) Set up the all the parameters
111111FEN1(YL:a) Setup the latitude separately
111111FEN1(XL:b) Setup the longitude separately
111111FEN1(DL:C) Setup the radius separately
YL:a, a is latitude of the reference point
XL:b, b is the longitude of the reference point
DL:c, c is radius of latitude & longitude, the range of the value is (1-990),
the unit is :100 meters. The range is 1~99000 meters.(0.1-99KM)
Remark: (1) FEN, XL, YL,DL must be in capital letter.
(2) The Setting will be stored and used all the time.
Example: If the fence’s center coordinate is: latitude:+23.1400, longitude:+113.4500, the
radius is 5KM, then the SMS instruction is:
111111FEN1(YL: +23.1400,XL: +113.4500,DL:50) .
If the vehicle is running across the boundary of the fence, the system will automatically
send out alert SMS.
· Start the Engine Remotely by SMS
Command: 111111STR
This instruction is used to start the engine by SMS. It is optional function, the
starter must be connected correctly with the device, otherwise, it will not work.
Please send 111111STR to the device, the engine will start running,10
minutes later, it will stop automatically.
Change the Heart-beating Interval.
111111HRT:1~999
This instruction is used to change the time interval of heart-beating GPRS
data package. The default setting is 3 minutes.
If the GSM networks do not detect the tracker’s activities for a certain time, it
will close the GPRS connection and the device will be offline. User can adjust
the value so as to avoid this situation. Example: 111111HRT:5 (set time interval
of hear-beating as 5 minutes)

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
12
III. Remote Control
There is four buttons on the remote control and each of them has different use.
(1) ARM button: Press this button, your tracker will enter arm status.
(2) DSM button: This is used to disarm your system.
(3) Car finder button: If you press this button, your car horn will sound to help
you find your car in the parking lot.
(4) MUTE/SOS button: This button has two functions. If you press it for one
second, your car will be in mute alarm status. Shake alarm will not make car
horn sound. What’s more, if you press it for more than 3 seconds, you will
send out SOS alarm for help.
IV. The Setting for GPRS Connection
The GPRS setting is necessary for using the following 2 functions:
(1) Check the car’s real physical address by send 111111ADD
(2) Online tracking service by web-based tracking platform
(www.track800.com or www.topten-track.com )
SMS format: 111111WWW：Item (separated by ：)
Compositive SMS Command for GPRS Setting
(Please kindly noted that the device GPRS ID is the last 14 digits of the IMEI,
you can check it on the sticker on the device or send 111111REG to get it)
User can use one SMS to do all the GPRS setting. For example, if the APN
name is internet, APN user name web and APN password gprs , GPRS report
time 3 minutes(=180seconds). Server’s IP: 98.143.144.145, Server’s Port:

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
13
8500, then you can do all settings together in one SMS command:
11111WWW:APN:internet,web,gprs;IPN:98.143.144.145;COM:8500;RPT:180;GPRS:1;
IPN:XXX.XXX.XXX.XXX;
This is to set the server’s IP address.
Eg: 111111WWW：IPN：98.143.144.145；
If user wants to use domain name as server, please use DSN instead of IPN
Such as: 111111DSN:www.track800.com;
If user wants to use UDP transmission, please use UDP instead of IPN
Such as: 111111WWW：UDP：98.143.144.145；
COM:XXXX;
This is to set the server’s COM port No.
Eg: 111111WWW：COM：8500；
APN:XXX;
This is to set the APN (access point name). Please use “,”to separate the APN,
APN username & APN password.
Eg: 111111WWW：APN：web.gprs.mtnnigeria.net,web,gprs；
RPT:XXX;
This is to set the upload time interval. The unit is second, the value is between
15-999 seconds.
The default setting is 0, the tracker will not upload data but GPRS is online.
Eg: 111111WWW：RPT：60；(Upload time interval is every 60s)
GPRS:0/1;
GPRS:0; is to close down the GPRS;
GPRS:1; is to open the GPRS.
Eg: 111111WWW：GPRS：1；(Open the GPRS connection)
Check the GPRS Settings
111111WWW:
You can send 111111WWW: to check the parameters if you forgot.
Default GPRS Setting

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
14
The default GPRS setting is:
Server IP: www.track800.com
Server Port:8500
APN: internet
GPRS report interval: 0
GPRS connection: open
V. Alarm Type
SOS Alarm
In any condition, if the SOS button is pressed down for 3 seconds. It will
trigger SOS alarm. The 2nd alarm-received phone No. will get SOS alarm
such as “Emergency help…..” Several seconds later, your 2nd cell phone
will receive call from tracker. However, this alarm will not cause relay to work.
What’s more, car horn will not sound.
.
Vibration Alarm
In arming status, if the car is vibrated, the siren will sound & system will
send out alarm SMS to inform user..
Power Failure Alarm
In arming status, if the external power supply(car battery) is cut off, it will
trigger this alarm.
Engine ON Alarm
In arming status, if the car engine is turned ON, it will trigger this alarm. The
siren will sounds for 20 seconds, and you will get alert SMS firstly & then
two calls from system. the relay will cut off the engine at the same time.
·Door-Open alarm
In arm status, if the car door is open, it will trigger door open alarm. The
siren will sounds for 20 seconds, and you will get alert SMS firstly & then
two calls from system. the relay will cut off the engine at the same time.
Movement Alarm

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
15
In arming status, the movement alert is enabled automatically. Once the car
moves away from the parking point for 90 meters, it will trigger this alarm.
Geo-Fence Alarm
Once the Geo-fence is activated, if the car/motorcycle oversteps the
boundary, it will trigger this alarm.
Over-speed Alarm
If the car/motorcycle runs over the speed limitation, it will trigger this alarm.
(Remark: this function is just for reference, because there might be some
time delay or error in detecting the running car’s real speed by GPS.)
NOTE: the SOS alarm will only be sent to the 2nd phone & the GPRS
tracking center, the other alarms will send to all the preset phone numbers &
TS03 tracking center.
VI. Installation

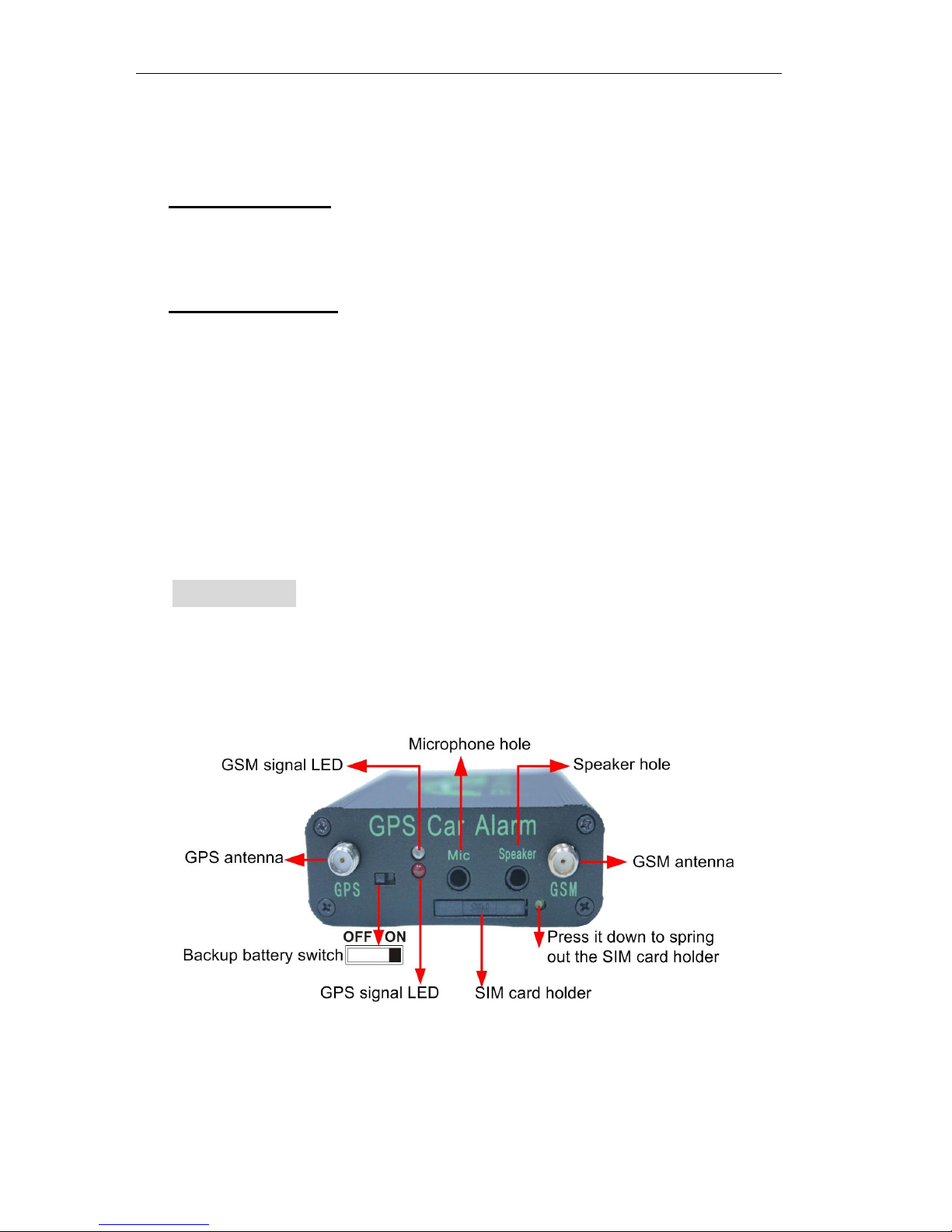

（1）Main Unit Overview

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
16
（2）Wiring Diagram
Notes：
: This line is used to receive the signal from remote control. please draw it
straight and fix it alone at wide place, otherwise, it will affect the working
distance of remote controls..
: This three lines are used to start your car remotely, please refer to the
following wiring diagram of remote starter. The command to start the engine is:
111111STR
: This line is used to open your car’s trunk.
This function is for reference, not all of the cars can work with this function.
when you press the DISARM button and hold it for 2 seconds, the TRUNK
OPEN line (gray color) will generate a ground signal. you can use this signal to
unlock the trunk.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
17
: This line is used to monitor fuel level.
(3) Central Lock Connections:
The connection with central lock is similar to that of normal car alarm.
please do the connection according to the correct type of the central
lock system. The negative/positive triggering is the majority.
For cars with pneumatic lock, please send 111111LCK1 to make it work
in this mode. Command:111111LCKX X=1, pneumatic mode; X=0,
electric mode(default).

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
18

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual
Page
19
