Starline i95 LUX User manual

Thank you for choosing the
StarLine
i95LUX, i95, i95ECO
immobilizer.
We wish you safe
and enjoyable riding!
Revision 1,
uly 2014
StarLine’s Federal Support Service.
Toll free
Russia 8-800-333-80-30
Ukraine 8-800-502-308
Kazakhstan 8-800-070-80-30
Belarus 8-10-8000-333-80-30

i95 LUX, i95, i95 ECO
Table of contents
lease, read carefully!...................................................................4
Table of available indication types...............................................6
ackage contents...........................................................................7
lastic card..................................................................................8
Main advantages............................................................................9
Immobilizer features....................................................................10
Setup recommendations.............................................................12
Specifications...............................................................................14

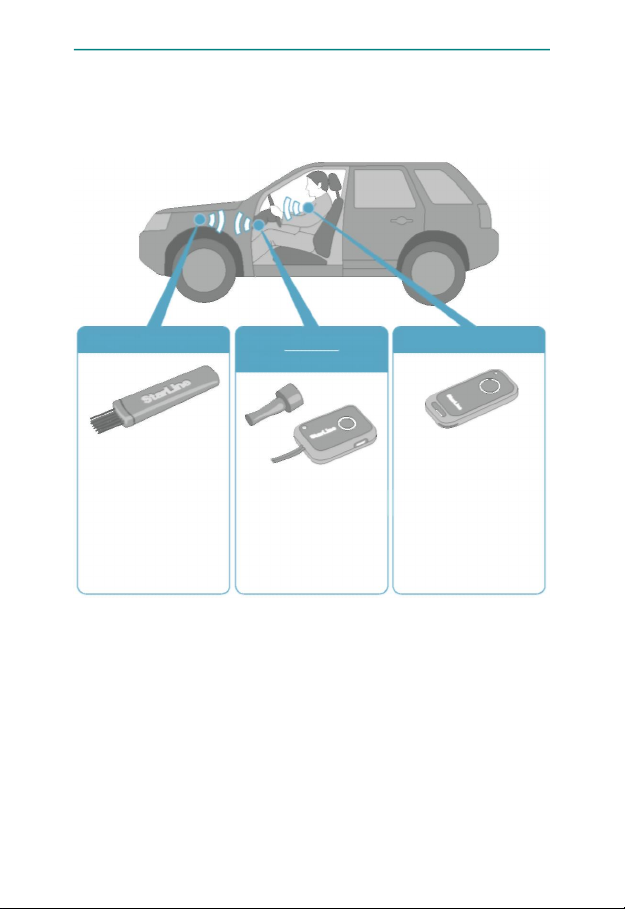

Components description.............................................................15

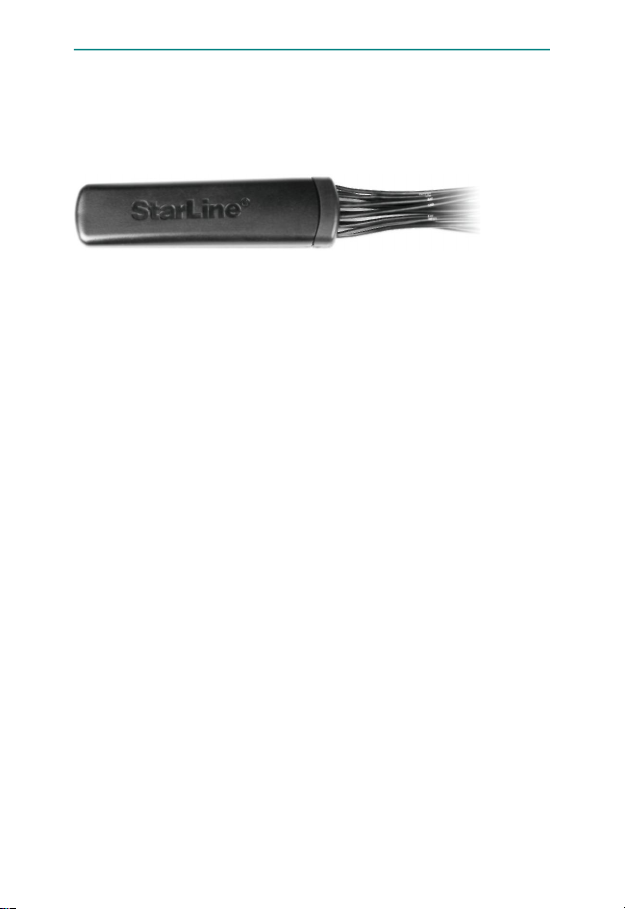

Locking module........................................................................15
Label...........................................................................................16
Audible alarm unit (i95, i95 ECO)............................................18
Indication module (i95 LUX)....................................................18
rinciple of operation..................................................................20
Locking algorithm.....................................................................21
Operation modes......................................................................23
rotection modes.....................................................................25
Additional modes......................................................................26
Door lock control......................................................................28
Hood lock control.....................................................................30
Starting to move...........................................................................32
Engine locking expected alert....................................................32
Label battery low alarm...............................................................33
Connection check and operation mode selection....................34
Operation mode and connection check.................................34
rotection mode selection.......................................................35
Handling in vehicle for maintenance......................................37
Switching to Service Mode......................................................37
Emergency unlock.......................................................................39
Unlocking using indication module for i95 LUX...................40
Unlocking using ignition key for i95 and i95 ECO................41
Unlock code change....................................................................42
To change the unlock code you need to enter the
programing mode.....................................................................42
2

Entering programing mode using unlock code for i95 and
i95 ECO......................................................................................44
Changing the unlock code with a label..................................46
Device registration.......................................................................48
Entering the device registration mode on i95 LUX...............48
Entering the device registration mode on i95 or i95 ECO....50
Label registration......................................................................52
Indication module registration (i95 and i95 ECO).................53
Extra indication............................................................................54
Connection monitoring............................................................54
Checking operation mode.......................................................55
Checking registered label number..........................................55

i95 LUX, i95, i95 ECO

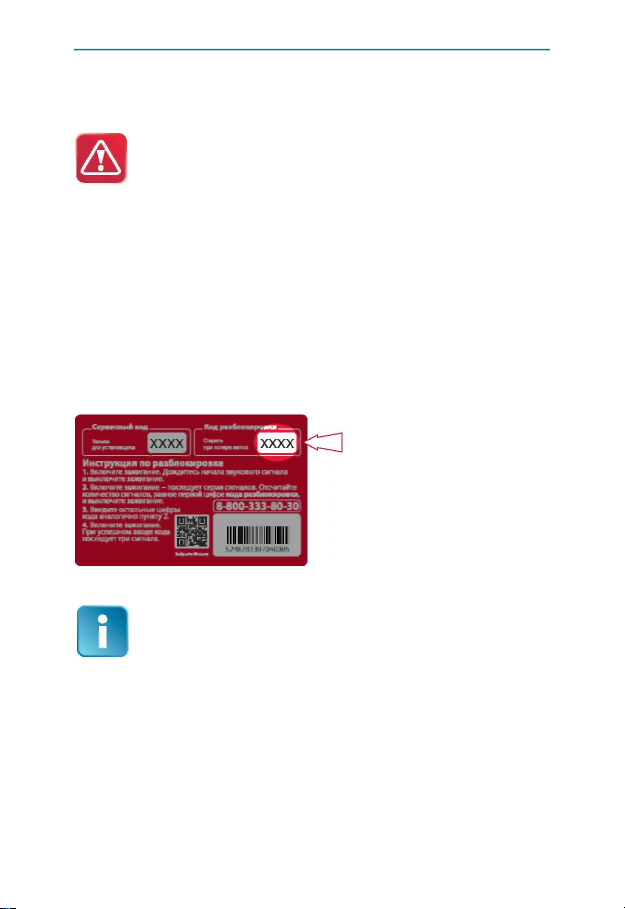

lease, read carefully!
Read these instructions with special attention to sections
marked with the CAUTION! label
There are few requirements to be met in order to ensure safe
operation of the immobilizer.
1) Using a vehicle with an immobilizer installed requires
you to:
Have a label at hand
Know the unlock code
If all labels and the unlock code are not available,
vehicle operation is impossible.
We recommend carrying you plastic card around or
writing down the unlock code so it’s always at hand (i.e.,
on your mobile phone).
4
Unlock
code

Operation Guide
2) If, while driving, you hear the engine locking expected
alert, immediately take necessary action for an accident-
free stop. When the engine becomes locked, the tension
required to turn the steering wheel and press the brake pedal
may increase. This is highly dangerous, especially when
moving at high speeds.

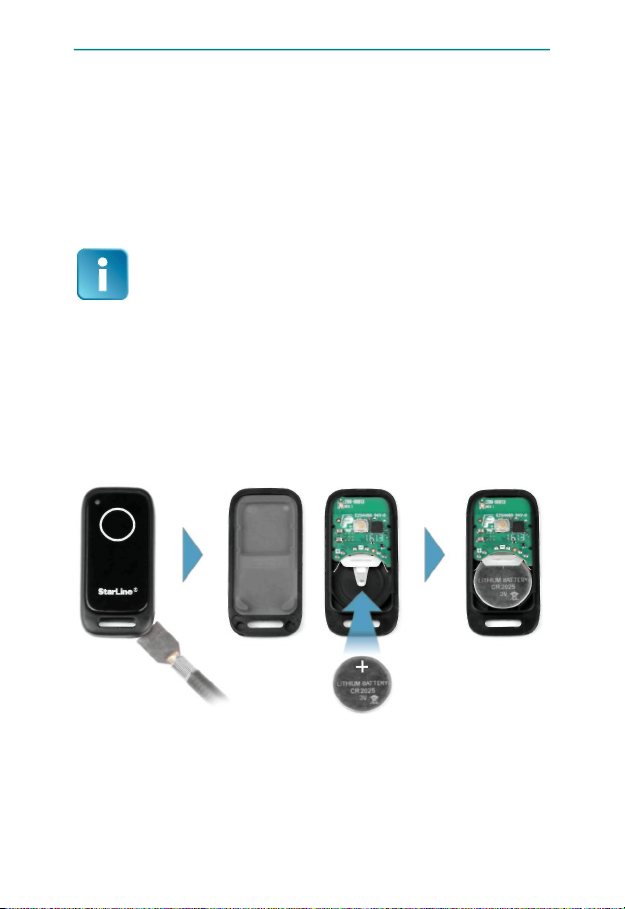

3) If you hear a label battery low alarm, replace the battery
in time. We recommend having a spare battery in the
vehicle stored in its original package.
4) The immobilizer may only be installed by a qualified
expert. The immobilizer is connected to the vehicle’s circuits
related to the engine operation. The system uses a radio link
for data exchange which is why the correct layout of the
immobilizer components critical for stable recognition of a
label.
5

i95 LUX, i95, i95 ECO

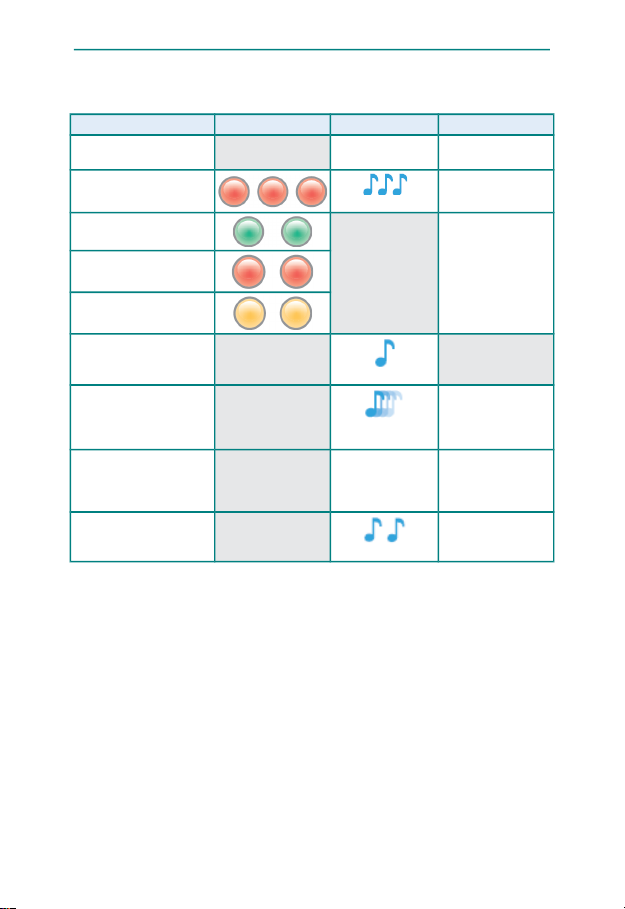

Table of available indication types
Event Label (LED) Sound alarm Note
Engine locking
expected
Intermittent audible
signals Stop the vehicle
Label battery low 3 audible signals Replace the battery
Normal protection mode If after pressing the
button the LED
blinks once, the
label is out of
coverage
Protection functions
are off in the service
mode
Anti-theft mode
Service mode
Label successfully
recognized 1 audible signal
Label not available. Enter
unlock code prompt Long audible
signal
Only for i95, i95
ECO
Normal mode, label
recognition off
1 audible signals
per 2 minutes
If the label is lost
after pulling out
(while in the normal
protection mode)
Lock control circuit failure
2 audible signals
Correct the failure
6

Operation Guide
ackage contents
No. Component i95 LUX i95 i95 ECO
Installation Guide
Operation Guide
Plastic card
Label with battery,
2 pcs
Locking module
Indication module - -
Audible alarm unit -
Function i95 LUX i95 i95 ECO
Central lock control
(Hands-Free mode) -
Label presence
output (status output) -
7

i95 LUX, i95, i95 ECO

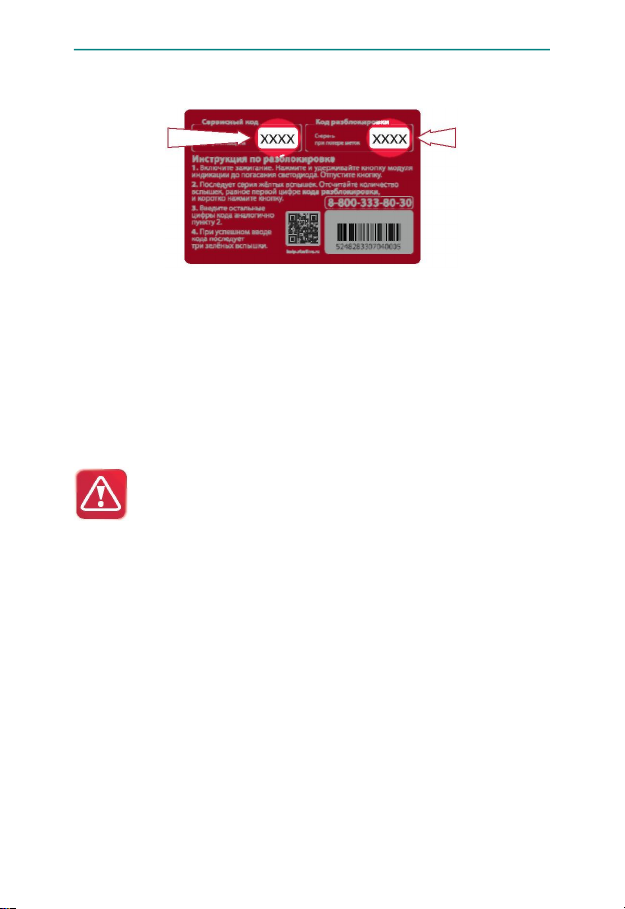

lastic card
Delivery package of the immobilizer includes a plastic card which
provides:
Service code. Dedicated for the immobilizer parameters
setup and programing. The service code is given in an
open format.
Unlock code. Allows using the vehicle in case the battery
discharges or all labels are lost.
The unlock code is hidden under a scratch off strip.
CAUTION! Don’t tell your unlock code to anyone!
Remember, that a thief only needs your personal code to
turn off the immobili er protection functions. If you think
the unlock code may have become known to a third party
– change it as soon as possible (see page 42).
8
Service
code
Unlock
code

Operation Guide
Main advantages
rotection against theft and hijacking
The StarLine immobilizers are dedicated to protect your vehicle
from being stolen or hijacked. The protection system locks the
vehicle’s engine.
Automatic owner recognition
Turning off protection functions doesn’t require any action at your
side – you only need to have a label with you.
rotected radio link
The system components exchange data via a radio link (within the
2.4 GHz range) featuring a smart-hack-resistant encryption.
Built-in motion sensor
The immobilizer’s built-in motion sensor allows for simultaneous
reliable protection of a parked vehicle and a remote start of its
engine.
Door and hood locks control
The immobilizer is provided with an automatic hood/door locks
control function (i95 LUX, i95) and has power outputs for their
activators (i.e., it doesn’t require external power modules).
Waterproof label
The case waterproof design frees you from having to worry about a
label being damaged due to coming in contact with water.
Universal connection channel
An extra universal channel may be used to receive signals coming
from limit switches, the brake pedal, and touch sensor, or as either
a status or a low-current negative output (400 mA).
9

i95 LUX, i95, i95 ECO
C setup
Fast and easy setup and update of the immobilizer software using
the StarLine Master application. Useful for protection systems
setup.
Immobilizer features
Anti-theft features
Two protection modes:
Normal mode – the label presence check performed
once upon starting the ignition;
Anti-theft mode — the label presence check is
continuously performed throughout the ride.
Turning on the engine locking only upon pulling out
allows using the immobilizer in combination with remote
and automatic start systems.
The small size and specific locking module design
allow it to be installed under the hood in the standard wire
bundle.
Anti-detection protection of locking circuit. The locking
switches on for a short time enough to stop the engine. At
all other times, the locking circuit is closed.
Service features
Current operation mode indication on a label and/or the
indication module • Changing the operation mode using a
label
The service mode in which the immobilizer’s protection
features are off (used when handling in the vehicle for
maintenance)
The programing mode used for changing the unlock code
and adjusting the immobilizer parameters
10

Operation Guide
The connection test. On-the-spot check of whether there is
stable connection between the immobilizer components
Registration of the immobilizer components
Automatic control of door/hood locks (i95 LUX, i95)
Data link protection
Original dialog authorization method. The dialog between
the system components utilizes a hardware random
number generator and block encryption of messages.
Protection from message forwarding by applying time
synchronization between data packets.
Unique private encryption key for each set.
11

i95 LUX, i95, i95 ECO
Setup recommendations
When applying for mounting and setup of the immobilizer in the
installation center, we recommend directing the installation
specialist’s attention to the programmed options dedicated to
providing extra comfort and safety while using the device.
The main immobilizer parameters available for adjustment are
listed below:
Hands-Free mode (i95 LUX, i95). Used for automatic
opening/locking of the door locks when the owner carrying a
label gets closer to/further from the parked vehicle
Universal channel connection method. Determines the
operation mode of the universal channel dedicated for
utilizing one of the following options:
Engine locking in case a label is lost and the anti-theft
mode is enabled
Door/hood limit switch status detection
Central lock opening upon a door handle touch sensor
signal in the Hands-Free mode (i95 LUX, i95)
The stop lights turning on to notify of the vehicle’s
expected stop before the locking algorithm is started
Indication of opening/closing of the doors in the mode
using the marker lights
12

Operation Guide
Delay before locking upon pulling out. Sets the duration
of the delay imposed before locking performed after the
vehicle pulls out in case there is no label signal:
No delay
5 sec
10 sec
Intermittent locking algorithm. Allows for imitation of the
engine failure during locking
Audible indication. Allows or restricts audible signals
performed by the indication module in the following cases:
Detection of a label upon turning on the ignition
The label is lost while in the normal mode
Locking expected notification
Label battery low indication
Light indication (i95 LUX). Allows or restricts light signals
performed by the indication module in the following cases:
Detection of a label upon turning on the ignition
Locking expected notification
Current operation mode indication
Label battery low indication
For more information on setting up the immobilizer see appropriate
sections of Installation Guide and Operation Guide.
13

i95 LUX, i95, i95 ECO
Specifications
arameter Locking module Indication module Label
Frequency range of radio
control signals, MHz 2405...2480
Type of control code Dialog
Maximum operating radius
of immobilizer components,
m
10*
Power voltage, V 9...16 2.0...3.3
Current consumption when
ignition is OFF, mA
6.6 (i95 LUX,
i95) 2.4 (i95
ECO)
–
Current consumption when
ignition is ON, mA 6.8** 0.2 –
Permissible switching
current via relay contacts, A 10 –
Permissible switching
current at lock control
outputs, A
20 –
Operating temperature
range, °C -40...+125 -40...+85 -20...+70
Battery type –
CR2025,
CR2032
Battery lifetime, months 12
Dimensions, mm 94 × 24 × 13 | 41 × 28 × 9 53 × 26 × 7
* – depends on the immobilizer components layout
** – when the locking is OFF
Label coverage may be reduced depending on the installation
location of the system components
14

Operation Guide
Components description
Locking module
This module is designed for locking the engine by means of
opening the electrical circuit using the contacts of the built-in
electromechanical relay.
The l ocki ng modu le f eatur es a bu ilt-i n t hree- axis
accelerometer (acceleration sensor) dedicated to determine if
the vehicle has started moving. The sensor has three levels of
sensitivity. The sensitivity threshold is individually set by
user, which allows to eliminate the possibility of false tripping
when using remote and automatic engine start systems.
The locking module is the key component of the system and
is responsible for authorizing other devices during the radio
data exchange. New devices (i.e., a label) may be added to the
system. For that they need to be registered within the locking
module.
New labels are added to the system in the device registration
mode. During the registration, the new device receives a
unique encryption key, that is later used to exchange data
with the locking module.
15

i95 LUX, i95, i95 ECO
The immobili er allows for registration of up to 4 labels
and 1 indication module.
The locking module also performs the door central lock/hood lock
automatic control functions.
Label
A label is an electronic key. Whenever you want to drive a vehicle
fit with an immobilizer, you need to have it at hand. The codes
exchanged via a radio link between a label and the locking module
during the trip prevent locking of the engine. All attempts to drive a
vehicle without a label will result in nothing as the engine remains
locked.
We recommend not attaching a label to your main key
ring, carrying it separately. Do not leave a label inside the
vehicle; this way the protective functions of the
immobili er are off.
16

Operation Guide
Each label has a button and a three-color LED used for the
following:
Current operation mode indication
Monitoring of connection availability between a label and the
locking module
Switching over the protection modes
Switching to the service mode
The immobili er allows registering up to 4 labels, all of
which can be simultaneously located within the
passenger compartment.
Each label uses a single battery of either the CR2025 or CR2032
type. The average lifetime of a battery is 12 months. The actual
lifetime depends on the manufacture quality of the battery. In order
to replace the battery, carefully open the label case with a plain
metal or plastic tool (metal ruler, thin plastic) and place the battery
into the compartment while observing the polarity (see picture).
Before closing the label case, fit a waterproof packing between its
parts. After the battery has been installed, the immobilizer is ready
for operation.
17

i95 LUX, i95, i95 ECO
CAUTION! Labels included in the immobilizer
delivery package were initially set to the transport
mode, which means they are off! If the label button is
pressed while in this mode, green and red flashes of
the built-in LED will appear
To commission a label, press its button several times
so that the flashes color changes to green
Audible alarm unit (i95, i95 ECO)
The audible alarm unit is installed inside the passenger
compartment and is used for notifying of an expected locking,
as well as producing audible signals during the setup of the
immobilizer operating parameters.
Indication module (i95 LUX)
18

Operation Guide
The indication module is installed within the passenger
compartment. The module is primarily dedicated to timely
warn passengers about an expected engine locking, which
may happen in absence of a label or a full discharge of the
battery.
Besides that, the indication module does the following:
Indicates the current operation mode
Shows the number of labels, registered in the locking
module
Indicates the label battery charge
Allows entering the unlock code
Allows entering the programing mode or the device
registration mode
The system allows registration of only one indication
module
A radio link is used to exchange data with the system
components, which is why an installed indication
module doesn’t unmask the locking circuit The
indication module is not a mandatory system device
However, we recommend installing this module in an
easily accessible location of the passenger
compartment in order to increase the driving safety
and comfort
19

i95 LUX, i95, i95 ECO
rinciple of operation
The immobilizer is basically an access system to the engine start
assembly featuring functions of protection and service.
20
Locking module Audible alarm unit
Indication module
Label
Installed in a concealed
location within the
passenger or engine
compartment.
Performs locking of the
engine in case of theft or
hijacking.
A specific audible signal
notifies of an expected
engine locking.
An electronic radio key.
The engine operation is
permitted via dialog
exchange of codes with
the locking module.
