HD Network Decoding Matrix
Doc version：T3000-35-20120306A
- User Manual

Integrated Video Decoder - User Manual
- 1 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Catalogue
一、Product Introduction ...................................................................2
二、Product Features...........................................................................3
三、Product Specification....................................................................4
四、Appearance description................................................................5
五、Typical installation .......................................................................8
六、Default parameter.........................................................................9

Integrated Video Decoder - User Manual
- 2 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Chapter one: Product introduction
Integrated video decoder ( short for VS-DM16 )is well based on
network digital decoding device, embedded Linux operation system, high
stable performance; built-in surface segmentation, each video output can
decode 16-channel 1080P coded data to TV wall; TV wall images Circuit
switching function ( single-channel circuit, multi-channel circuit and
mixed-channel circuit,etc )
VS-DM16’s Application: widely used in Network video transmission
and monitor like schools, traffic, water conservancy, bank, base station,
internet bar, community, chain supermarkets, etc.
Easy to install and operate.

Integrated Video Decoder - User Manual
- 3 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Charpter Two: Product features
◆Adopting high performance, powerful programmable media processor SOC
chipset, built-in (ARM+DSP) and high speed video cop-processor.
◆Support various high sensitivity CCD or CMOS sensor (SONY,SHARP,etc)’s
analog video output.
◆Adopting excellent H.264 video compression algorithm,easily realize HD image
with low network bandwidth transmission.
◆Adjustable decoding images among CIF/ Half- D1/D1/720P/1080P，switchable
in NTSC/PAL；Max frame rate: NTSC 30fps，PAL 25fps. Code stream
32Kbit/s-6Mbit/s adjustable.
◆Support remote system upgrade; built-in hardware watch-dog, guarantee system
work normally.
◆Support multiple networking protocol: TCP/IP、UDP/IP、multicast、HTTP、
Telnet、Onvif,etc
◆Network self-adaption technology, auto adjust video frame rate per network
bandwidth.
◆RS-485 serial port, built-in various Pan-tilt decoding protocol, support
transmission transparently.
◆Built-in real-time clock, guarantee correct time even system power off.
◆Single-channel output max decode 16-channel 1080P video images.
◆Perfect user, logs, the alarm management functions
◆Abnormal auto recovery function, auto-connect once network interrupt.
◆Built-in multi protocol for platform server connection, support seamless
connection between platform servers.
◆Complete SDK support, allow user secondary development with SDK.

Integrated Video Decoder - User Manual
- 4 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Charpter Three: Product specification
Project
Device
parameter
VS-DM16
Video
Imput
None
Output
16-CH VGA/HDMI
Compression
H.264
Resolution
Single decoding capacity: 16-CH 1080P
Audio
Parameter
Sample frequency: 8K HZ ，Sample bit wide ：16 Bit ，
Compress:G711A, code rate: 32Kbps
Networ
k
Interface
16pcs RJ45，10/100M self-adaption
Protocol
TCP/IP、UDP/IP、multicast、HTTP、ICMP、FTP、EMAIL、
TELNET, etc
WEB
Application
Embedded Web Server, allow user visit and control video
server through IE.
Interface
protocol
Decodable code support any brand of IPC with Onvif
protocol.
Storage
Interface
/
Recording
/
Safety
User
management
Providing multi-user multilevel authority management,
allow multi-users visit device simultaneously.
Built-in
watch-dog
Under abnormal situation system will automatically reset to
guarantee system working normally.
Remote reset
Through network control, remote reset system.
Others
Power supply,
Consumption
General supply：AC 220V
Working
temperature,
humidity
-10 ~ 70 ℃、10 ~ 95%
Size, Weight
Size ：432*281*175mm ；Weight ：566g ；Box size ：
268*220*68mm
Structure
Pluggable structure, support hot swap

Integrated Video Decoder - User Manual
- 5 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Charpter Four: Appearance description
4.1、Device Size Diagram (unit：mm）
Device front side diagram（Model: VS-DM16）

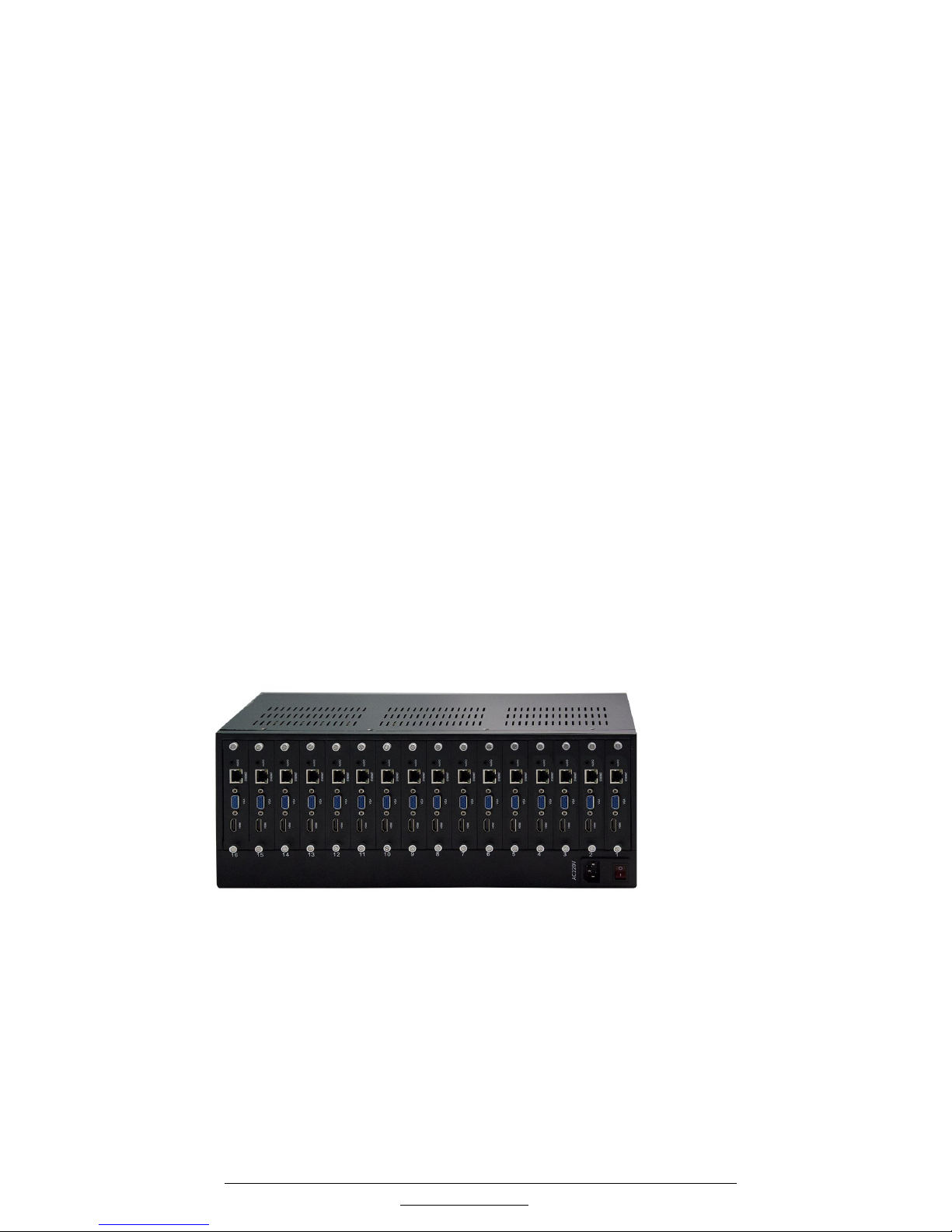

Device back side diagram（Model: VS-DM16）

Integrated Video Decoder - User Manual
- 6 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
VS-DM09 Overlook diagram:

Integrated Video Decoder - User Manual
- 7 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
4.2、Interface definition
4.2.1、Device front side indication light description
1、Power: Power supply indication light
2、Run: Running indication light
3、Ethernet: Network connecting indication light
4.2.2、Device back side interface description
1、AC 220V：220V Power supply input.
2、Ethernet: RJ45 network interface（10M/100M self-adaptive）.
3、HDMI: HDMI HD output interface.
4、VGA: VGA output interface.

Integrated Video Decoder - User Manual
- 8 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Charpter Five: Typical installation
5.1、Basic system diagram
Stand for front end Stand for Central Stand for Client-end
5.2、Matters and Attention when installation
▲ Be far away from high-temperature heat source and places
▲ Avoid direct sunlight;
▲Avoid place with humidity；
▲Avoid installing the place with heavy vibration
▲Do not open the housing to repair by yourself, please contact us if any problems.

Integrated Video Decoder - User Manual
- 9 -
Shenzhen Topvs Technology Co., Ltd —— Surveillance systems expert
www.sztopvs.com
Charpter Six: Default parameter
Device default parameter from factory:
IP Address: 192.168.1.70
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
Communication port : 5000 WEB port: 80
DNS(main): 202.96.134.133 ; (sub): 202.96.128.166
Factory default Admin user name:Admin PW: 111111
