Toro 74274 User manual

FormNo.3358-682RevA
Z595-DZMaster®witha72in
TURBOFORCE®SideDischarge
Mower
ModelNo.74274—SerialNo.270000001andUp
G001093
Registeratwww.Toro.com.OriginalInstructions(EN)

Warning
CALIFORNIA
Proposition65Warning
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Important:Thisengineisnotequippedwitha
sparkarrestermufer.ItisaviolationofCalifornia
PublicResourceCodeSection4442touseoroperate
theengineonanyforest-covered,brush-covered,or
grass-coveredland.Otherstatesorfederalareas
mayhavesimilarlaws.
Theenclosed
Engine Owner’ s Man ual issupplied
forinformationregardingtheUSEnvironmental
ProtectionAgency(EPA)andtheCalifornia
EmissionControlRegulationofemissionsystems,
maintenance,andwarranty.Replacementsmaybe
orderedthroughtheenginemanufacturer.
Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoidinjury
andproductdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,
oradditionalinformation,contactanAuthorized
ServiceDealerorToroCustomerServiceandhave
themodelandserialnumbersofyourproductready.
Figure1identiesthelocationofthemodelandserial
numbersontheproduct.Writethenumbersinthe
spaceprovided.
G000935
1
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycauseserious
injuryordeathifyoudonotfollowtherecommended
precautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2otherwordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Introduction.................................................................2
Safety...........................................................................4
SafeOperatingPractices.......................................4
SlopeChart..........................................................6

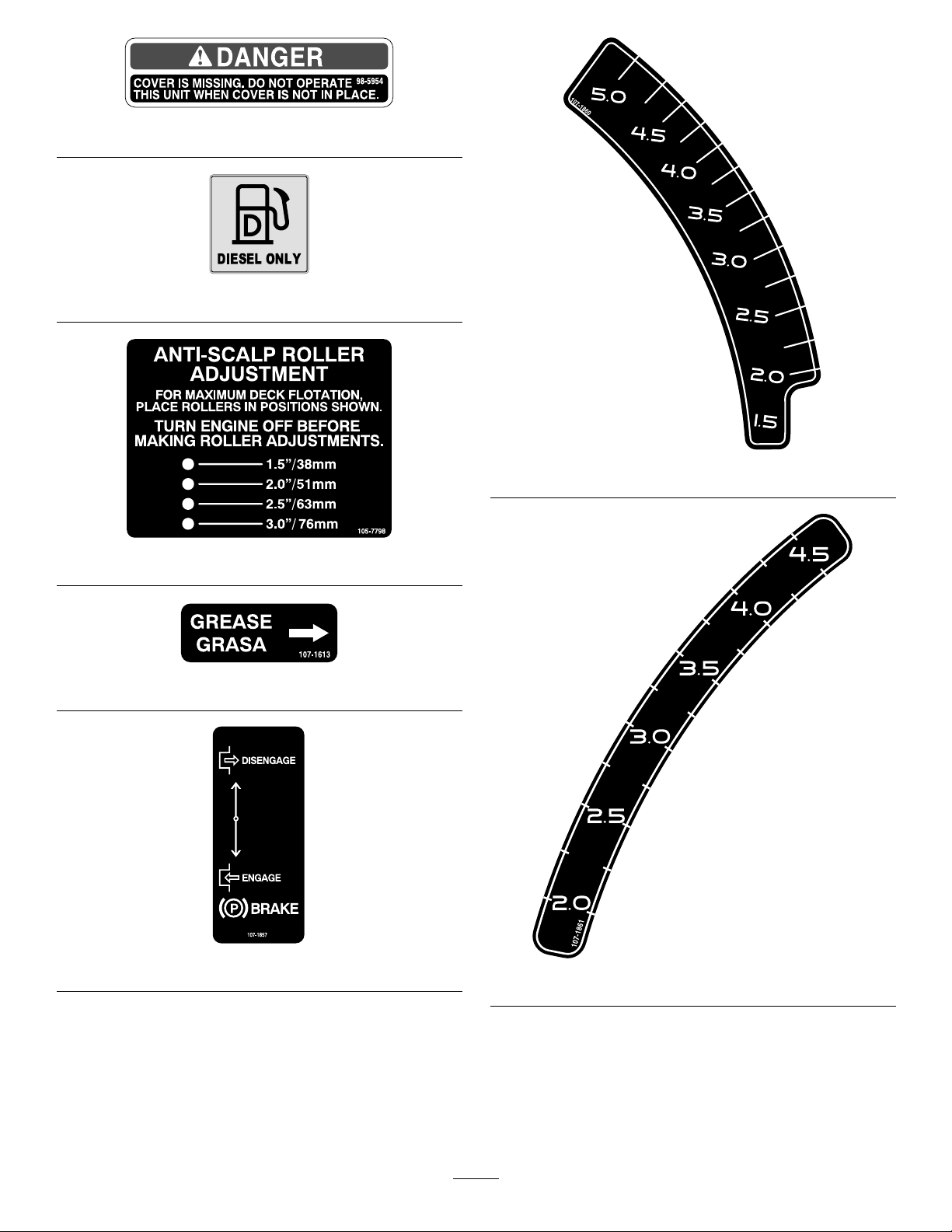

SafetyandInstructionalDecals.............................7
ProductOverview......................................................13
Controls.............................................................13
Operation...................................................................14
AddingFuel.......................................................14
CheckingtheEngineOilLevel............................15
SwitchingtheFuelTanks....................................15
©2007—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

UsingtheRolloverProtectionSystem
(ROPS)..........................................................16
ThinkSafetyFirst...............................................17
OperatingtheParkingBrake...............................18
StartingandStoppingtheEngine........................18
OperatingthePowerTakeOff(PTO).................20
TheSafetyInterlockSystem................................20
DrivingForwardorBackward.............................21
StoppingtheMachine.........................................22
AdjustingtheHeight-of-Cut...............................22
AdjustingtheAnti-ScalpRollers.........................22
AdjustingtheFlowBafe...................................23
PositioningtheFlowBafe.................................24
PositioningtheSeat............................................24
UnlatchingtheSeat.............................................25
PushingtheMachinebyHand.............................25
UsingtheSideDischarge....................................25
TransportingMachines.......................................26
LoadingMachines..............................................26
OperatingTips...................................................27
Maintenance...............................................................29
RecommendedMaintenanceSchedule(s)................29
Lubrication.............................................................30
GreasingandLubrication...................................30
GreasingtheMowerDeckandBelt
Idlers..............................................................30
EngineMaintenance...............................................31
ServicingtheAirCleaner....................................31
ServicingtheEngineOil.....................................32
FuelSystemMaintenance.......................................36
ServicingtheFuelFilters....................................36
ServicingtheFuelTank......................................36
ElectricalSystemMaintenance................................36
ServicingtheBattery...........................................36
ServicingtheFuses.............................................38
DriveSystemMaintenance.....................................39
AdjustingtheTracking........................................39
CheckingtheTirePressure.................................39
CheckingtheWheelHubSlottedNut..................40
AdjustingtheCasterPivotBearing......................40
ServicingtheGearBox.......................................40
CoolingSystemMaintenance..................................41
ServicingtheCoolingSystem..............................41
BrakeMaintenance.................................................43
AdjustingtheParkingBrake................................43
BeltMaintenance....................................................43
InspectingtheBelts............................................43
ReplacingtheMowerBelt...................................43
AdjustingtheMowerBeltTension......................44
ReplacingthePTODriveBelt.............................45
ReplacingthePumpDriveBelt...........................45
ReplacingandTensioningtheAlternator
Belt................................................................46
ControlsSystemMaintenance.................................47
AdjustingtheControlHandleNeutral
Position..........................................................47
HydraulicSystemMaintenance...............................48
ServicingtheHydraulicSystem...........................48
SettingtheHydraulicPumpNeutral
Position..........................................................50
MowerDeckMaintenance......................................52
LevelingtheMoweratThreePositions................52
ServicingtheCuttingBlades...............................54
ReplacingtheGrassDeector.............................56
Cleaning.................................................................57
CleaningUndertheMower.................................57
WasteDisposal...................................................57
Storage.......................................................................57
CleaningandStorage..........................................57
Troubleshooting.........................................................59
Schematics.................................................................61
3

Safety
Improperuseormaintenancebytheoperatororowner
canresultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafetyalertsymbol,whichmeans
CAUTION,WARNING,orDANGER-“personal
safetyinstruction."Failuretocomplywiththe
instructionmayresultinpersonalinjuryordeath.
Thisproductiscapableofamputatinghandsand
feetandthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriousinjuryordeath.
Thisproductisdesignedforcuttingandrecyclinggrass
or,whenequippedwithagrassbagger,forcatching
cutgrass.Anyuseforpurposesotherthanthesecould
provedangeroustouserandbystanders.
SafeOperatingPractices
ThefollowinginstructionsarefromANSIstandard
B71.4-2004.
Training
•ReadtheOperator’sManualandothertraining
material.Iftheoperator(s)ormechanic(s)cannot
readEnglishitistheowner’sresponsibilitytoexplain
thismaterialtothem.
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Alloperatorsandmechanicsshouldbetrained.The
ownerisresponsiblefortrainingtheusers.
•Neverletchildrenoruntrainedpeopleoperateor
servicetheequipment.Localregulationsmayrestrict
theageoftheoperator.
•Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtohimselforherself,
otherpeopleorproperty.
Preparation
•Evaluatetheterraintodeterminewhataccessories
andattachmentsareneededtoproperlyand
safelyperformthejob.Onlyuseaccessoriesand
attachmentsapprovedbythemanufacturer.
•Wearappropriateclothingincludinghardhat,safety
glassesandhearingprotection.Longhair,loose
clothingorjewelrymaygettangledinmovingparts.
•Inspecttheareawheretheequipmentistobeused
andremoveallobjectssuchasrocks,toysandwire
whichcanbethrownbythemachine.
•Useextracarewhenhandlingdieselandotherfuels.
Theyareammableandvaporsareexplosive.
–Useonlyanapprovedcontainer
–Neverrefuelordrainthemachineindoors.
–Neverremovefuelcaporaddfuelwithengine
running.Allowenginetocoolbeforerefueling.
Donotsmoke.
•Checkthatoperator’spresencecontrols,safety
switchesandshieldsareattachedandfunctioning
properly.Donotoperateunlesstheyarefunctioning
properly.
Operation
•Neverrunanengineinanenclosedarea.
•Onlyoperateingoodlight,keepingawayfromholes
andhiddenhazards.
•Besurealldrivesareinneutralandparkingbrakeis
engagedbeforestartingengine.Starttheengineonly
fromtheoperator’sposition.Useseatbelts.
•Neverraisemowerwiththebladesrunning.
•NeveroperatewithoutthePTOshield,orother
guardssecurelyinplace.Besureallinterlocksare
attached,adjustedproperly,andfunctioningproperly.
•Neveroperatewiththedischargedeectorraised,
removedoraltered,unlessusingagrasscatcher.
•Donotchangetheenginegovernorsettingor
overspeedtheengine.
•Stoponlevelground,lowerimplements,disengage
drives,engageparkingbrake,shutoffenginebefore
leavingtheoperator’spositionforanyreason
includingemptyingthecatchersoruncloggingthe
chute.
•Stopequipmentandinspectbladesafterstriking
objectsorifanabnormalvibrationoccurs.Make
necessaryrepairsbeforeresumingoperations.
•Keephandsandfeetawayfromthecuttingunits.
•Nevercarrypassengersandkeeppetsandbystanders
away.
•Bealert,slowdownandusecautionwhenmaking
turns.Lookbehindandtothesidebeforechanging
directions.
•Slowdownandusecautionwhencrossingroadsand
sidewalks.Stopbladesifnotmowing.
•Beawareofthemowerdischargedirectionanddo
notpointitatanyone.
•Donotoperatethemowerundertheinuenceof
alcoholordrugs.
4

•Useextremecarewhenloadingorunloadingthe
machineintoatrailerortruck.
•Usecarewhenapproachingblindcorners,shrubs,
trees,orotherobjectsthatmayobscurevision.
SlopeOperation
•Donotmowslopesgreaterthan15degrees.
•Donotmowneardrop-offs,ditches,steepbanks
orwater.Wheelsdroppingoveredgescancause
rollovers,whichmayresultinseriousinjury,death
ordrowning.
•Donotmowslopeswhengrassiswet.Slippery
conditionsreducetractionandcouldcausesliding
andlossofcontrol.
•Donotmakesuddenturnsorrapidspeedchanges.
•Useawalkbehindmowerand/orahandtrimmer
neardrop-offs,ditches,steepbanksorwater.
•Reducespeedanduseextremecautiononslopes.
•Removeormarkobstaclessuchasrocks,treelimbs,
etc.fromthemowingarea.Tallgrasscanhide
obstacles.
•Watchforditches,holes,rocks,dips,andrisesthat
changetheoperatingangle,asroughterraincould
overturnthemachine.
•Avoidsuddenstartswhenmowinguphillbecause
themowermaytipbackwards.
•Beawarethatlossoftractionmayoccurgoing
downhill.Weighttransfertothefrontwheelsmay
causedrivewheelstoslipandcauselossofbraking
andsteering.
•Alwaysavoidsuddenstartingorstoppingona
slope.Iftireslosetraction,disengagethebladesand
proceedslowlyofftheslope.
•Followthemanufacturer’srecommendationsfor
wheelweightsorcounterweightstoimprovestability.
•Useextremecarewithgrasscatchersorother
attachments.Thesecanchangethestabilityofthe
machineandcauselossofcontrol.
UsingtheRolloverProtectionSystem
(ROPS)
•Keeptherollbarintheraisedandlockedposition
andusetheseatbeltwhenoperatingthemachine.
•Becertainthattheseatbeltcanbereleasedquickly
intheeventofanemergency.
•Beawarethereisnorolloverprotectionwhenthe
rollbarisdown.
•Checktheareatobemowedandneverfoldthe
ROPSinareaswherethereareslopes,dropoffsor
water.
•Lowertherollbaronlywhenabsolutelynecessary.
Donotweartheseatbeltwiththerollbarfolded
down.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)beforedriving
underanyobjectsanddonotcontactthem.
Maintenanceandstorage
•Disengagedrives,lowerimplement,setparking
brake,stopengineandremovekey.Waitforall
movementtostopbeforeadjusting,cleaningor
repairing.
•Cleangrassanddebrisfromcuttingunits,drives,
mufers,andenginetohelppreventres.Cleanup
oilorfuelspillage.
•Letenginecoolbeforestoringanddonotstorenear
ame.
•Shutofffuelwhilestoringortransporting.Donot
storefuelnearamesordrainindoors.
•Parkmachineonlevelground.Neverallowuntrained
personneltoservicemachine.
•Usejackstandstosupportcomponentswhen
required.
•Carefullyreleasepressurefromcomponentswith
storedenergy.
•Disconnectbatterybeforemakinganyrepairs.
Disconnectthenegativeterminalrstandthe
positivelast.Reconnectpositiverstandnegative
last.
•Usecarewhencheckingblades.Wraptheblade(s)or
weargloves,andusecautionwhenservicingthem.
Onlyreplaceblades.Neverstraightenorweldthem.
•Keephandsandfeetawayfrommovingparts.If
possible,donotmakeadjustmentswiththeengine
running.
•Chargebatteriesinanopenwellventilatedarea,
awayfromsparkandames.Unplugchargerbefore
connectingordisconnectingfrombattery.Wear
protectiveclothinganduseinsulatedtools.
•Keepallpartsingoodworkingconditionandall
hardwaretightened.Replaceallwornordamaged
decals.
•UseonlyToroapprovedattachments.Warrantymay
bevoidedifusedwithunapprovedattachments.
5

SlopeChart
Fold along appropriate line
Align this edge with a vertical surface
(Tree, Building, Fence post, pole, etc.)
Example: Compare slope with folded edge.
THIS IS A 5° SLOPE
THIS IS A 15° SLOPE
THIS IS A 10° SLOPE
6

SafetyandInstructional
Decals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
1-403005
1-523552
1-643253
54-9220
58-6520
1.Grease
66-1340
65-2690
68-8340
98-4387
1.Warning—wearhearingprotection.
7

98-5954
103-1636
105-7798
107-1613
107-1857
107-1860
107-1861
8

107-1864
107-2102
107-2112
107-2114
107-2449
108-5955
108-5957
9

108-5981
110-0305
110-2067
110-2068
1.ReadtheOperator’sManual.
110-3851
1.Removetheignitionkeyandreadtheinstructionsbefore
servicingorperformingmaintenance.
110-3852
1.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
2.Continuoustonesignals
theuserthatengineis
overheating.
110-3853
1.Cutting/dismemberment
hazard,fanand
entanglementhazard,
belt.
2.Removetheignitionkey
andreadtheinstructions
beforeservicingor
performingmaintenance.
10

Manufacturer’sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
110–0806
110–3842
112-8319
106-7492
11

106-9989
107-9309
1.Warning—readtheOperator’sManualforinformationonchargingthebattery;containslead;donotdiscard.
2.ReadtheOperator’sManual.
112-2389
1.Pushtoengage6.Engine—start
2.Engine—preheat7.Fast
3.ReadtheOperator’s
Manual.
8.Continuousvariable
setting
4.Engine—stop9.Slow
5.Engine—run10.PTO(Powertakeoff)
12

110-0819
ProductOverview
1
2
3
4
5
6
7
G001047
8
Figure3
1.Motioncontrollever5.Controls
2.Parkingbrakelever6.Seatbelt
3.Height-of-cutlever7.Rollbar
4.Fuelcap(bothsides)8.Enginescreen
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure3andFigure4).
1
2
345
6
7
8
9
G001314
Figure4
1.Hourmeter6.Throttlecontrol
2.Ignitionswitch7.PTOSwitch
3.Glowplugswitch8.Audiblealarm
4.Glowpluglight9.Fuelselectorvalve
5.EngineTemperaturelight
HourMeter
Thehourmeterrecordsthenumberofhourstheengine
hasoperated.Itoperateswhentheengineisrunning.
Usethesetimesforschedulingregularmaintenance
(Figure4).
GlowPlugLight
Theglowplugindicatorlightturnsonwhentheglow
plugbuttonisengaged(Figure4).
GlowPlugSwitch
Thisswitchactivatestheglowplugsandisindicatedby
theglowpluglight.Holddowntheglowplugswitchfor
10secondspriortostarting.
TemperatureLight
Thetemperaturelightcomesonwhentheengineisover
heating(Figure4).
13

AudibleAlarm
Thismachinehasanaudiblealarmthatalertstheuser
toturnofftheengineorenginedamagecanoccurfrom
overheating.RefertoServicingtheCoolingSystemin
CoolingSystemMaintenance,page41.
FuelSelectorValve
Thefuelselectorvalveislocatedbehindtheseat.
Closethefuelselectorvalvewhentransportingor
storingmower.
Movetheselectorvalvetothelefthand(LH)or
righthand(RH)positionforoperation.
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
AddingFuel
Theenginerunsonclean,freshdieselfuelwith
aminimumoctaneratingof40.Purchasefuelin
quantitiesthatcanbeusedwithin30daystoensure
fuelfreshness.
Usesummergradedieselfuel(No.2-D)attemperatures
above20°F(-7°C)andwintergradedieselfuel(No.
1-DorNo.1-D/2-Dblend)below20°F(-7°C).Useof
wintergradedieselfuelatlowertemperaturesprovides
lowerashpointandpourpointcharacteristics,
thereforeeasingstartabilityandlesseningchances
ofchemicalseparationofthefuelduetolower
temperatures(waxappearance,whichmaypluglters).
Useofsummergradedieselfuelabove20°F(-7°C)will
contributetowardlongerlifeofthepumpcomponents.
Important:Donotusekeroseneorgasoline
insteadofdieselfuel.Failuretoobservethis
cautionwilldamagetheengine.
Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandgastankor
conditioneropening.
•Keepgasawayfromeyesandskin.
14

Incertainconditions,fuelisextremely
ammableandhighlyexplosive.Areor
explosionfromfuelcanburnyouandothers
andcandamageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanyfuel
thatspills.
•Neverllthefueltankinsideanenclosed
trailer.
•Donotllthefueltankcompletelyfull.Add
fueltothefueltankuntilthelevelis1/4to
1/2inch(6to13mm)belowthebottomof
thellerneck.Thisemptyspaceinthetank
allowsfueltoexpand.
•Neversmokewhenhandlingfuel,andstay
awayfromanopenameorwherefuel
fumesmaybeignitedbyaspark.
•Storefuelinanapprovedcontainerandkeep
itoutofthereachofchildren.Neverbuy
morethana30-daysupplyoffuel.
•Alwaysplacefuelcontainersontheground
awayfromyourvehiclebeforelling.
•Donotllfuelcontainersinsideavehicle
oronatruckortrailerbedbecauseinterior
carpetsorplastictruckbedlinersmay
insulatethecontainerandslowthelossof
anystaticcharge.
•Whenpractical,removegas-powered
equipmentfromthetruckortrailerand
refueltheequipmentwithitswheelsonthe
ground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfroma
portablecontainer,ratherthanfromafuel
dispensernozzle.
•Ifafueldispensernozzlemustbeused,keep
thenozzleincontactwiththerimofthefuel
tankorcontaineropeningatalltimesuntil
fuelingiscomplete.
FillingtheFuelTank
1.Shuttheengineoffandsettheparkingbrake.
2.Cleanaroundeachfueltankcapandremovethe
cap.Addfueltobothfueltanks,untilthelevelis
1/4to1/2inch(6to13mm)belowthebottomof
thellerneck.Thisspaceinthetankallowsthefuel
toexpand.Donotllthefueltankscompletelyfull.
3.Installfueltankcapssecurely.Wipeupanyfuelthat
mayhavespilled.
4.Ifpossible,llthefueltankaftereachuse.Thiswill
minimizepossiblebuildupofcondensationinside
thefueltank.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoChecking
OilLevelinEngineMaintenance,page31
SwitchingtheFuelTanks
Important:Donotrunthemachineoutoffuel.
Thefuelselectorvalveislocatedbehindtheleftside
oftheseat.
Theunithastwofueltanks.Onetankisontheleft
sideandoneontherightside.Eachtankconnectsto
thefuelselectorvalve.Fromthereacommonfuelline
leadstotheengine(Figure5).
Tousetheleftsidefueltankrotatethefuelselector
valvetotheLH,lefthandlocation.Tousetheright
sidefueltankrotatethefuelselectorvalvetotheRH,
righthandlocation(Figure5)
Closethefuelselectorvalvebeforetransportingor
storingmachine.
15

G000962
1
2
Figure5
1.Leftsidefueltank2.Fuelselectorvalve
UsingtheRolloverProtection
System(ROPS)
Toavoidinjuryordeathfromrollover:keepthe
rollbarintheraisedlockedpositionanduse
theseatbelt.
Ensurethattherearpartoftheseatissecured
withtheseatlatch.
Thereisnorolloverprotectionwhentherollbar
isinthedownposition.
•Lowertherollbaronlywhenabsolutely
necessary.
•Donotweartheseatbeltwhentherollbaris
inthedownposition.
•Driveslowlyandcarefully.
•Raisetherollbarassoonasclearance
permits.
•Checkcarefullyforoverheadclearances(i.e.
branches,doorways,electricalwires)before
drivingunderanyobjectsanddonotcontact
them.
Important:Lowertherollbaronlywhen
absolutelynecessary.
1.Removethehairpincotterpinsandremovethetwo
pins(Figure7).
2.Lowerthetherollbartothedownposition.There
aretwodownpositions.SeeFigure6forthe
positions.
3.Installthetwopinsandsecurethemwiththe
hairpincotterpins(Figure7).
Figure6
1.Fulldownposition2.Downpositionwithbagger
installed
Important:Ensurethattherearpartofthe
seatissecuredwiththeseatlatch.
4.Toraisetherollbar,removethehairpincotterpins
andremovethetwopins(Figure7).
5.Raisetherollbartotheuprightpositionandinstall
thetwopinsandsecurethemwiththehairpincotter
pins(Figure7).
16

Important:Alwaysusetheseatbeltwiththe
rollbarintheraisedposition.
Figure7
1.Rollbar3.Pin
2.Raisedposition4.Hairpincotterpin
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthe
safetysection.Knowingthisinformationcouldhelp
youorbystandersavoidinjury.
Operatingonwetgrassorsteepslopescan
causeslidingandlossofcontrol.
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,deathor
drowning.
Thereisnorolloverprotectionwhentheroll
barisdown.
Alwayskeeptherollbarintheraisedandlocked
positionandusetheseatbelt.
Readandfollowtherolloverprotection
instructionsandwarnings.
Toavoidlossofcontrolandpossibilityof
rollover:
•Donotoperateneardrop-offsornearwater.
•Donotoperateonslopesgreaterthan
15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Avoidsuddenturnsorrapidspeedchanges.
G000963
1
2
3
Figure8
1.SafeZone-usethe
ZMasterhereonslopes
lessthan15degreesor
atareas.
3.Water
2.Usewalkbehindmower
and/orhandtrimmernear
drop-offsandwater.
17

Thismachineproducessoundlevelsinexcess
of85dBAattheoperatorsearandcancause
hearinglossthroughextendedperiodsof
exposure.
Wearhearingprotectionwhenoperatingthis
machine.
Theuseofprotectiveequipmentforeyes,ears,feetand
headisrecommended.
G000504
1
Figure9
1.Warning—wearhearingprotection
OperatingtheParkingBrake
Alwayssettheparkingbrakewhenyoustopthe
machineorleaveitunattended.
SettingtheParkingBrake
1.Movethemotioncontrollevers(Figure15)outto
theneutrallockposition.
2.Pullupandbackontheparkingbrakelevertoset
theparkingbrake(Figure10).Theparkingbrake
levershouldstayrmlyintheengagedposition.
Parkingbrakemaynotholdmachineparked
onaslopeandcouldcausepersonalinjuryor
propertydamage.
Donotparkonslopesunlesswheelsare
chockedorblocked
ReleasingtheParkingBrake
Pushforwardanddownontheparkingbrakelever
toreleasetheparkingbrake(Figure10).Theparking
brakeisdisengagedandtheleverwillrestagainstthe
brakestop.
G000964
1
2
3
Figure10
1.Parkingbrake-ON3.BrakeStop
2.Parkingbrake-OFF
StartingandStoppingthe
Engine
StartingtheEngineinNormalWeather
1.RaisetheROPSupandlockintoplace,sitonthe
seatandfastentheseatbelt.
2.Movethemotioncontrolstotheneutrallocked
position.
3.Settheparkingbrake;refertoSettingtheParking
Brake.
4.MovethePTO(powertakeoff)switchtotheoff
position(Figure11).
5.Movethethrottlelevertothemiddleposition
(Figure13).
6.Turntheignitionkeyclockwisetotherunposition
(Figure12).
7.Pushtheglowplugswitchfor10seconds.Thelight
willturnon.
8.Releasetheswitchafter10seconds.Thelightwill
turnoff.
18

G000961
1
2
34
5
6
7
Figure11
1.Hourmeter5.EngineTemperaturelight
2.Ignitionswitch6.Throttlecontrol
3.Glowplugswitch7.PTOSwitch
4.Glowpluglight
9.Turnthekeytothestartpositionandtheglowplug
indicatorlightwillcomebackon.Whentheengine
starts,releasethekey(Figure12).
Important:Usestartingcyclesofnomorethan
30secondsperminutetoavoidoverheatingthe
startermotor.
10.Iftheenginedoesnotstartimmediately,movethe
throttlecontroltofastandturnthekeytothestart
position.
Note:Additionalstartingcyclesmayberequired
whenstartingtheengineforthersttimeafterthe
fuelsystemhasbeencompletelywithoutfuel.
G001063
2
3
4
1
Figure12
1.Ignitionswitch3.Run
2.Off4.Start
G001062
1
2
Figure13
1.Throttle—fast2.Throttle—slow
StartingtheEngineinColdWeather
(Below23°For-5°C)
Usethecorrectengineoilforthestartingtemperature.
RefertoServicingtheEngineOilinEngine
Maintenance,page31.
1.StarttheenginewiththethrottleintheFast
position.
2.Turntheignitionkeyclockwisetotherunposition
(Figure12).
3.Pushtheglowplugswitchfor10to15seconds.
Thelightwillturnon.
4.Releasetheswitchafter10to15seconds.Thelight
willturnoff.
5.Turnthekeytothestartpositionandtheglowplug
indicatorlightwillcomebackon.Whentheengine
starts,releasethekey.
19

Important:Usestartingcyclesofnomorethan
30secondsperminutetoavoidoverheatingthe
startermotor.
Note:Donotusefuelleftoverfromthesummer.
Useonlyfreshwintergradedieselfuel.
StoppingtheEngine
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake(Figure14).
2.Movethethrottlelevermidwaybetweentheslow
andfastpositions(Figure13).
3.Lettheengineidlefor60seconds.
4.Turntheignitionkeytotheoffposition(Figure12).
Waitforallmovingpartstostopbeforeleavingthe
operatingposition.
5.Removethekeytopreventpossibilityofsomeone
accidentallystartingthemachinebeforetransporting
orstoringmachine.
6.Closethefuelselectorvalvebeforetransportingor
storingthemachine.
Important:Makesurethatthefuelselector
valveisclosedbeforetransportingorstoring
themachine,asfuelleakagemayoccur.Setthe
parkingbrakebeforetransporting.
Important:Makesuretoremovethekeyas
thefuelpumpmayrunandcausethebattery
tolosecharge.
Childrenorbystandersmaybeinjuredifthey
moveorattempttooperatethetractorwhileit
isunattended.
Alwaysremovetheignitionkeyandsetthe
parkingbrakewhenleavingthemachine
unattended,evenifjustforafewminutes.
OperatingthePowerTakeOff
(PTO)
Thepowertakeoff(PTO)switchstartsandstopsthe
mowerbladesandanypoweredattachments.
EngagingthePTO
1.Iftheengineiscold,allowtheenginetowarmup5
to10minutesbeforeengagingthePTO.
2.Whileseatedintheseat,releasethepressureonthe
tractioncontrolleversandplaceinneutral.
3.Placethethrottleinthefastposition.
Note:EngagingthePTOwiththethrottleatthe
halforlesspositionwillcauseexcessiveweartothe
drivebelts.
4.Pulloutonthepowertakeoff(PTO)switchto
engageit(Figure14).
G000937
1
2
Figure14
1.PTO-On2.PTO-Off
DisengagingthePTO
Todisengage,pushthePTOswitchtotheoffposition
(Figure14).
TheSafetyInterlockSystem
Ifsafetyinterlockswitchesaredisconnected
ordamagedthemachinecouldoperate
unexpectedlycausingpersonalinjury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.
UnderstandingtheSafetyInterlock
System
Thesafetyinterlocksystemisdesignedtopreventthe
enginefromstartingunless:
•Youaresittingontheseat.
•Theparkingbrakeisengaged.
20
