FormNo.3400-705RevB
ZMaster®Professional5000
SeriesRidingMower
with60inTURBOFORCE®SideDischarge
Mower
ModelNo.74991—SerialNo.316000001andUp
g029833
Registeratwww.Toro.com.
OriginalInstructions(EN)*3400-705*B

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002
ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineonany
forest-covered,brush-covered,orgrass-coveredlandunless
theengineisequippedwithasparkarrester,asdenedin
Section4442,maintainedineffectiveworkingorderorthe
engineisconstructed,equipped,andmaintainedforthe
preventionofre.
WARNING
Removingstandardoriginalequipmentpartsand
accessoriesmayalterthewarranty,traction,and
safetyofthemachine.FailuretouseoriginalToro
partscouldcauseseriousinjuryordeath.Making
unauthorizedchangestotheengine,fuelorventing
system,mayviolateEPAandCARBregulations.
Replaceallpartsincluding,butnotlimitedto,tires,
belts,blades,andfuelsystemcomponentswith
originalToroparts.
Theenclosed
Engine Owner's Man ual issuppliedfor
informationregardingtheUSEnvironmentalProtection
Agency(EPA)andtheCaliforniaEmissionControl
Regulationofemissionsystems,maintenance,and
warranty.Replacementsmaybeorderedthroughthe
enginemanufacturer.
Introduction
Thisrotary-blade,ridinglawnmowerisintendedtobeused
byresidentialhomeownersorprofessional,hiredoperators.
Itisdesignedprimarilyforcuttinggrassonwell-maintained
lawnsonresidentialorcommercialproperties.Itisnot
designedforcuttingbrushorforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww .Toro.comforproduct
safetyandoperationtrainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety...........................................................................4
SafeOperatingPractices...........................................4
ToroMowerSafety..................................................6
SlopeIndicator.......................................................7

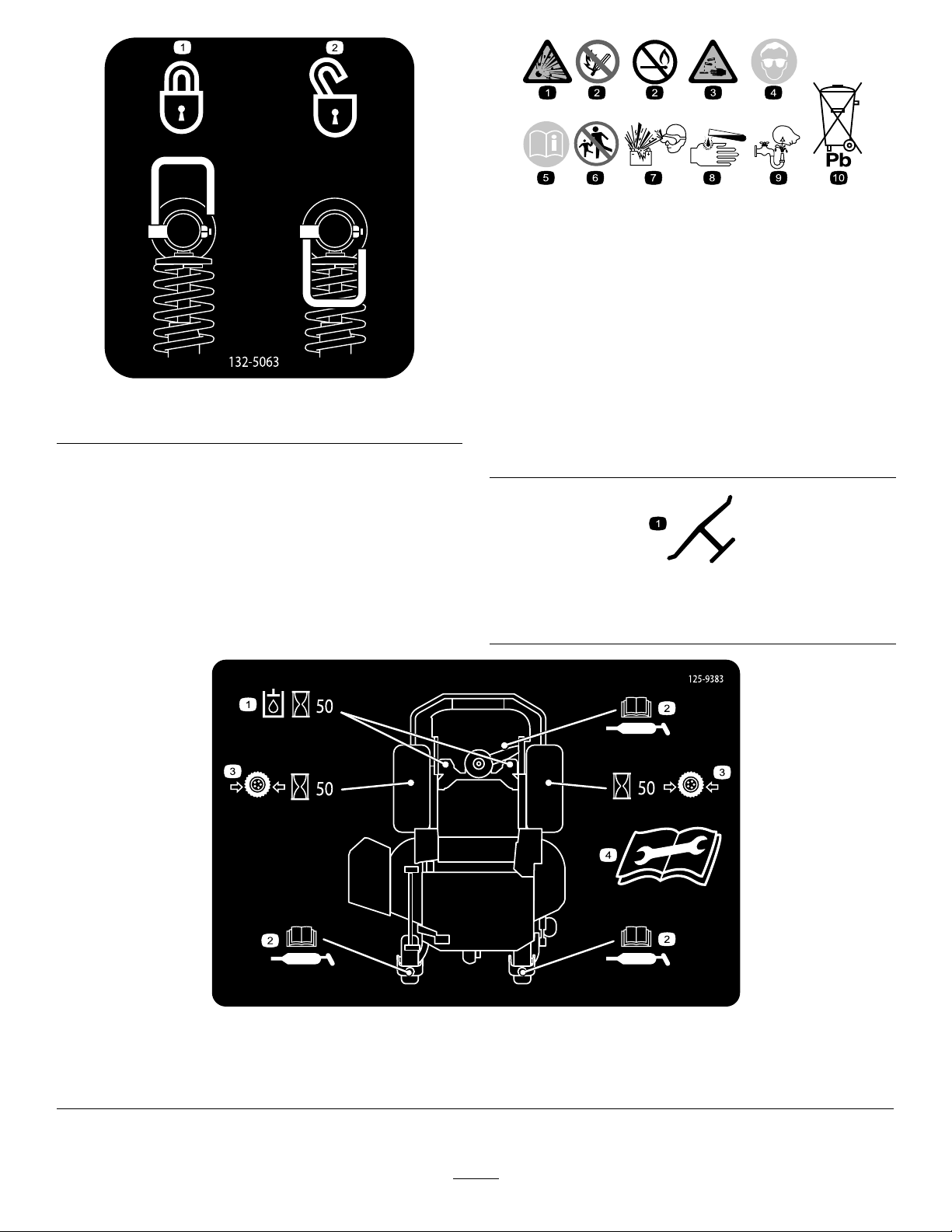

SafetyandInstructionalDecals.................................8
ProductOverview.........................................................14

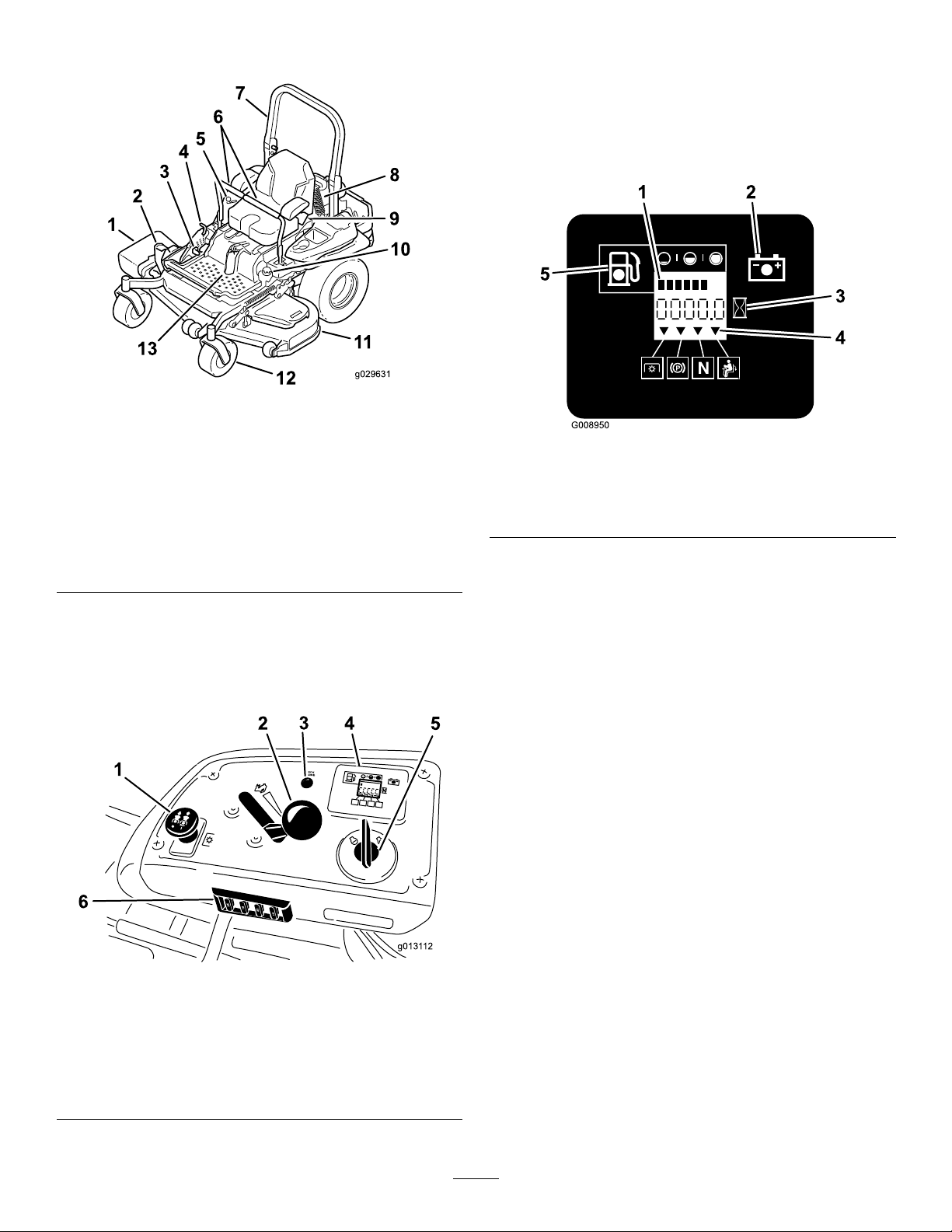

Controls...............................................................14
Specications........................................................15
Operation....................................................................16

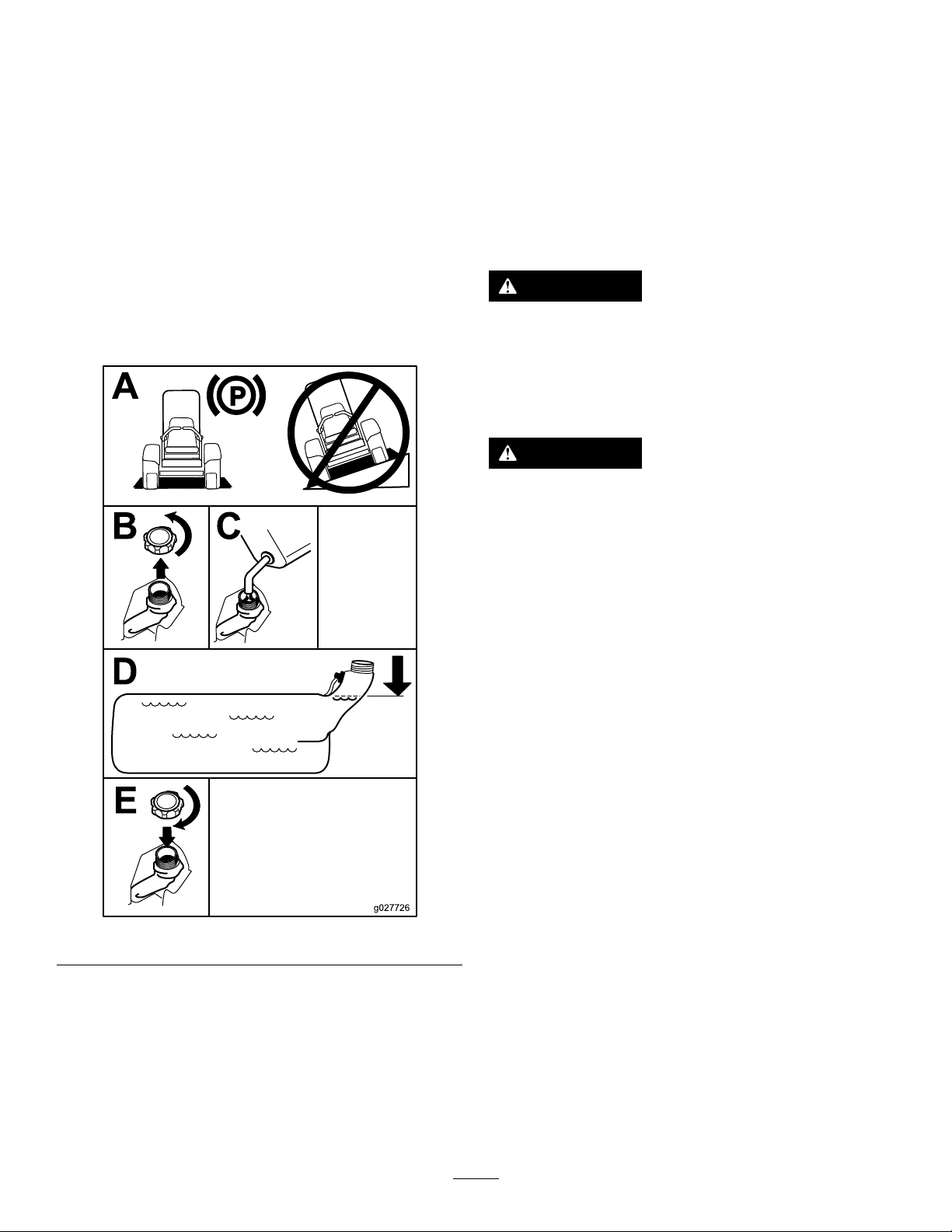

AddingFuel...........................................................16
CheckingtheEngine-OilLevel.................................17
BreakinginaNewMachine......................................17

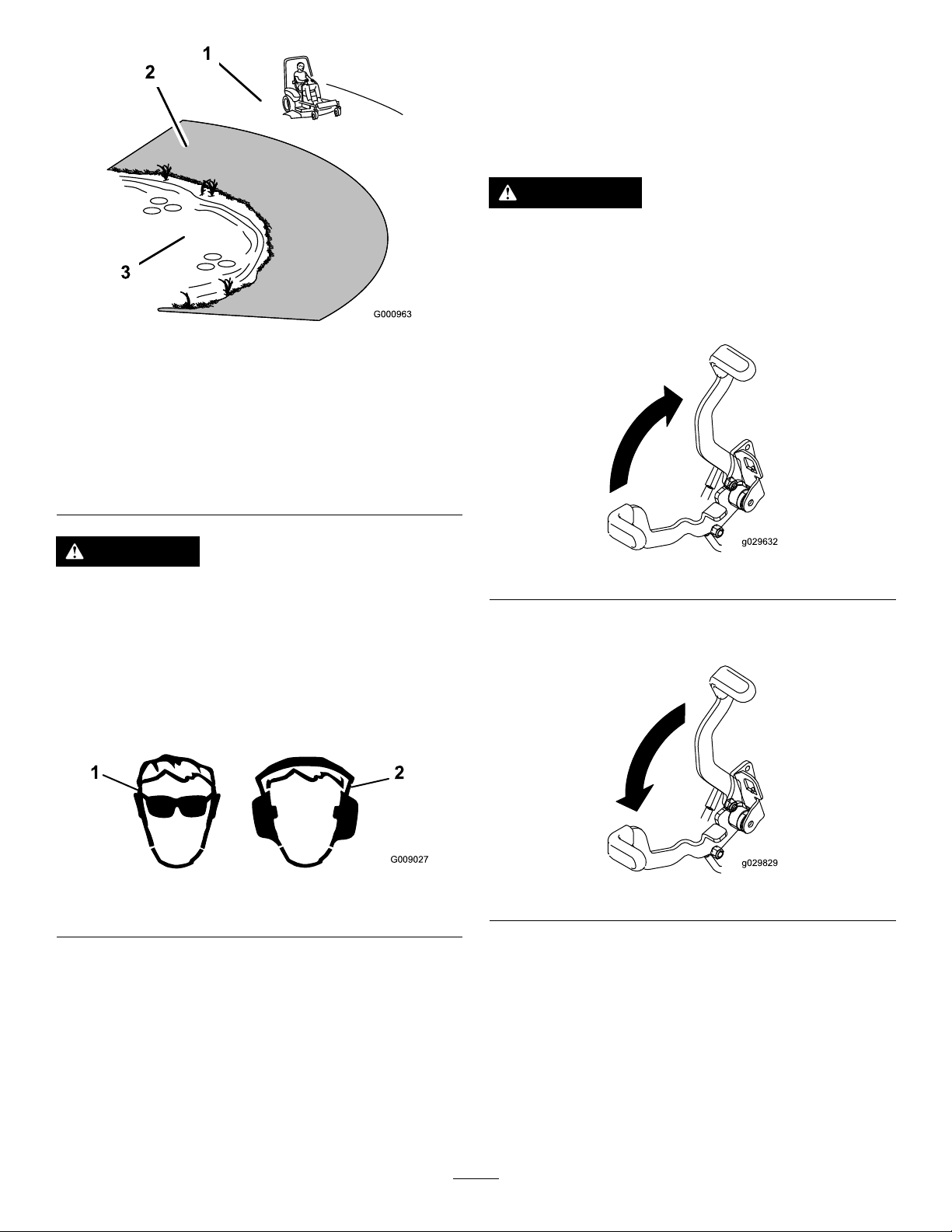

UsingtheRollover-ProtectionSystem(ROPS)............17
EnteringtheOperatingPosition...............................18
ThinkSafetyFirst...................................................18
OperatingtheParkingBrake....................................19
OperatingtheMowerBlade-ControlSwitch
(PTO)...............................................................20
OperatingtheThrottle............................................20
OperatingtheIgnitionSwitch..................................20

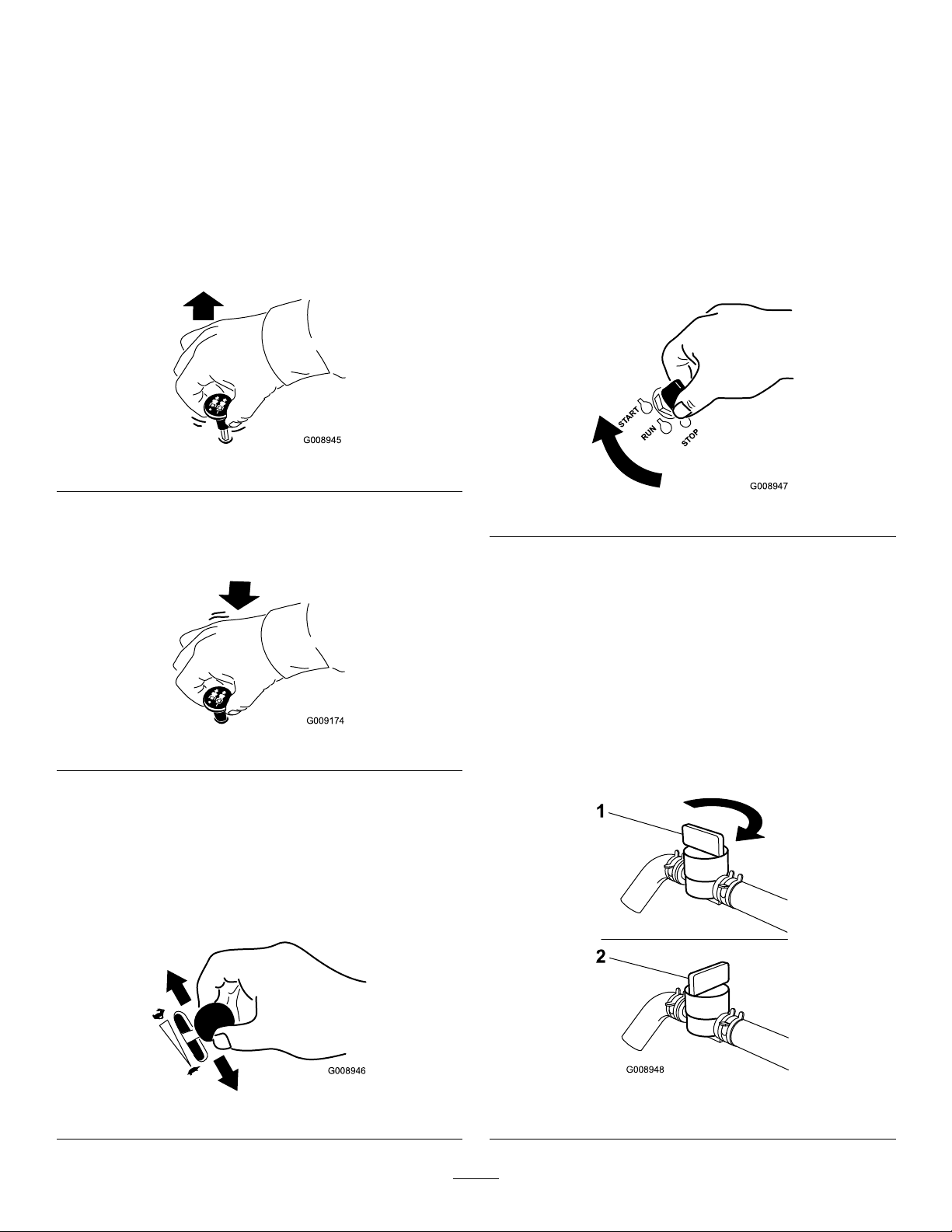

UsingtheFuel-ShutoffValve...................................20
StartingandShuttingOfftheEngine.........................21
UsingtheSafety-InterlockSystem.............................22
DrivingForwardorBackward..................................23
ShuttingOfftheMachine........................................24
AdjustingtheHeightofCut.....................................24
AdjustingtheAnti-ScalpRollers...............................25
AdjustingtheFlow-Bafe-CamLocks.......................26
PositioningtheFlowBafe......................................26
PositioningtheSeat................................................27
UnlatchingtheSeat.................................................27
AdjustingtheMyRide™SuspensionSystem...............28
UsingtheDrive-WheelReleaseValves.......................29
UsingtheSideDischarge.........................................29
TransportingtheMachine........................................30
LoadingtheMachine..............................................30
OperatingTips......................................................32
Maintenance.................................................................33
RecommendedMaintenanceSchedule(s)......................33
Lubrication...............................................................34
AddingLightOilorSprayLubrication.......................34
GreasingtheMower...............................................35
LubricatingtheCaster-WheelHubs...........................36
EngineMaintenance..................................................37
ServicingtheAirCleaner.........................................37
ServicingtheEngineOil..........................................38
ServicingtheSparkPlug..........................................40
CheckingtheSparkArrester(ifEquipped).................42
FuelSystemMaintenance...........................................42
ServicingtheElectronicFuel-Injection
System..............................................................42
ReplacingtheLow-PressureFuelFilter......................42
ServicingtheHigh-PressureFuelFilter......................43
ServicingtheFuelTank...........................................43
ElectricalSystemMaintenance....................................43
ServicingtheBattery...............................................43
ServicingtheFuses.................................................45
Jump-StartingtheMachine......................................45
DriveSystemMaintenance.........................................46
CheckingtheSeatBelt.............................................46
CheckingtheRollover-Protection-System(ROPS)
Knobs...............................................................46
AdjustingtheTracking............................................47
CheckingtheTirePressure......................................48
CheckingtheWheelLugNuts..................................48
CheckingtheWheelHubSlottedNut........................48
AdjustingtheCaster-PivotBearing............................49
UsingtheClutchShim............................................49
CoolingSystemMaintenance......................................51
CleaningtheEngineScreenandEngine-Oil
Cooler...............................................................51
CleaningtheEngineCoolingFinsand
Shrouds.............................................................52
CleaningtheHydraulicUnits....................................52
BrakeMaintenance....................................................53
AdjustingtheParkingBrake.....................................53
BeltMaintenance......................................................54
InspectingtheBelts................................................54
ReplacingtheMowerBelt........................................54
ReplacingtheHydraulic-PumpDriveBelt..................55
ControlsSystemMaintenance.....................................56
AdjustingtheControl-HandlePosition......................56
AdjustingtheMotion-ControlLinkage......................56
AdjustingtheMotion-ControlDamper.....................57
AdjustingtheMotion-ControlNeutral-Lock
Pivot.................................................................58
HydraulicSystemMaintenance....................................58
ServicingtheHydraulicSystem.................................58
MowerDeckMaintenance...........................................60
LevelingtheMowerDeck........................................60
ServicingtheCuttingBlades.....................................62
RemovingtheMowerDeck.....................................65
ReplacingtheGrassDeector..................................66
Cleaning...................................................................67
CleaningundertheMower.......................................67
CleaningtheSuspensionSystem...............................67
DisposingofWaste.................................................67
Storage........................................................................67
CleaningandStorage..............................................67
Troubleshooting...........................................................69
Schematics...................................................................72
3

Safety
Improperuseormaintenancebytheoperatororowner
canresultininjury.Toreducethepotentialforinjury,
complywiththesesafetyinstructions,andpayattentionto
thesafetyalertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theinstructionsmayresultinpersonalinjuryordeath.
Thismachinewasmanufacturedaccordingtotheappropriate
regulatorystandardsineffectatthetimeofmanufacture.
Modifyingthismachineinanywaymaycauseittobeoutof
compliancewiththosestandardsandwiththeinstructionsin
thisOperator’sManual.Modicationstothismachineshould
onlybemadebyeitherthemanufactureroranAuthorized
ToroDealer.
Thisproductiscapableofamputatinghandsandfeet.Follow
allsafetyinstructionstoavoidseriousinjuryordeath.
Theowner/usercanpreventandisresponsibleforaccidents
orinjuriesoccurringtopeople,ordamagetoproperty.
Theadditionofattachmentsmadebyothermanufacturers
thatdonotmeetAmericanNationalStandardsInstitute
certicationwillcausenoncomplianceofthismachine.
SafeOperatingPractices
ThefollowinginstructionsareadaptedfromANSIstandard
B71.4-2012.
Training
•ReadtheOperator'sManualandothertrainingmaterial.
•Iftheoperator(s)ormechanic(s)cannotreadthemanual
language,itistheowner'sresponsibilitytoexplainthis
materialtothem.
•Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
•Alloperatorsandmechanicsshouldbetrained.The
ownerisresponsiblefortrainingtheusers.
•Neverletchildrenoruntrainedpeopleoperateorservice
theequipment.Localregulationsmayrestricttheageof
theoperator.
•Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtopeople,ordamageto
property.
Preparation
•Evaluatetheterraintodeterminewhataccessoriesand
attachmentsareneededtoproperlyandsafelyperform
thejob.Onlyuseaccessoriesandattachmentsapproved
bythemanufacturer.
•Wearappropriateclothingincluding:substantial
slip-resistantfootwear,safetyglasses,andhearing
protection.Tiebacklonghairanddonotwearjewelry.
•Inspecttheareawheretheequipmentisused,andremove
allobjectsthatcanbethrownbythemachine.
•Checkthatoperator'spresencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemachineunlesstheyarefunctioningproperly.
Operation
•Lightningcancausesevereinjuryordeath.Iflightning
isseenorthunderisheardinthearea,donotoperate
themachine;seekshelter.
•Donotrunanengineinanenclosedarea.
•Operateonlyinwell-litareas,keepingawayfromholes
andhiddenhazards.
•Ensurethatalldrivesareinneutralandthattheparking
brakeisengagedbeforestartingengine.Starttheengine
onlyfromtheoperator’sposition.
•Makesurethatyouhavegoodfootingwhileusingthis
machine,especiallywhenbackingup.Reducedfooting
couldcauseslipping.
•Slowdownanduseextracareonhillsides.Besureto
travelsidetosideonhillsides.Turfconditionscanaffect
thestabilityofthemachine.Usecautionwhileoperating
neardrop-offs.
•Slowdownandusecautionwhenmakingturnsandwhen
changingdirectionsonslopes.
•Donotraisethemowerdeckwiththebladesrunning.
•DonotoperatethemachinewithoutthePTOshieldor
otherguardssecurelyinplace.Besurethatallinterlocks
areattached,adjustedproperly,andfunctioningproperly.
•Donotoperatewiththedischargedeectorraised,
removedoraltered,unlessyouareusingagrasscatcher.
•Donotchangetheenginegovernorsettingoroverspeed
theengine.
•Stopthemachineonlevelground,disengagedrives,
engagetheparkingbrake(ifprovided),shutofftheengine
beforeleavingtheoperator'spositionforanyreason,
includingemptyingthecatchersoruncloggingthechute.
•Stopthemachineandinspectthebladesafterstriking
objectsorifanabnormalvibrationoccurs.Makethe
necessaryrepairsbeforeresumingoperation.
•Keepyourhandsandfeetawayfromthecuttingunit.
•Lookbehindanddownbeforebackinguptoensurea
clearpath.
•Keeppetsandbystandersawayfromanoperating
machine.
4

•Slowdownandusecautionwhenmakingturnsand
crossingroadsandsidewalks.Stopthebladesifyouare
notmowing.
•Beawareofthemower-dischargedirectionanddonot
pointitatanyone.
•Donotoperatethemowerwhentired,ill,orunderthe
inuenceofalcoholordrugs.
•Usecarewhenloadingorunloadingthemachineinto
orfromatrailerortruck.
•Usecarewhenapproachingblindcorners,shrubs,trees,
orotherobjectsthatmayobscurevision.
SafeHandlingofFuels
•Toavoidpersonalinjuryorpropertydamage,use
extremecareinhandlinggasoline.Gasolineisextremely
ammableandthevaporsareexplosive.
•Extinguishallcigarettes,cigars,pipes,andothersources
ofignition.
•Useonlyanapprovedfuelcontainer.
•Donotremovethefuelcaporaddfuelwiththeengine
running.
•Allowtheenginetocoolbeforefueling.
•Donotfuelthemachineindoors.
•Donotstorethemachineorfuelcontainerwherethere
isanopename,spark,orpilotlight,suchasonawater
heateroronotherappliances.
•Donotllcontainersinsideavehicle,onatruck,orona
trailerbedwithaplasticliner.Alwaysplacecontainerson
thegroundawayfromyourvehiclebeforelling.
•Removeequipmentfromthetruckortrailerandfuelit
ontheground.Ifthisisnotpossible,thenaddfuelwith
suchequipmentasaportablecontainerratherthanfrom
afuel-dispensernozzle.
•Keepthenozzleincontactwiththerimofthefueltank
orcontaineropeningatalltimesuntilfuelingiscomplete.
•Donotuseanozzlelock-opendevice.
•Ifyouspillfuelonclothing,changeyourclothing
immediately.
•Donotoverllthefueltank.Replacethefuelcapand
tightenitsecurely.
MaintenanceandStorage
•Disengagedrives,settheparkingbrake,shutoffthe
engine,andremovethekeyordisconnectspark-plugwire.
Waitforallmovementtostopbeforeadjusting,cleaning,
orrepairingthemachine.
•Parkthemachineonalevelsurface.
•Cleangrassanddebrisfromthecuttingunit,drives,
mufers,andenginetohelppreventres.
•Cleanupoilorfuelspills.
•Lettheenginecoolbeforestoringthemachine.
•Donotstorefuelnearamesordrainfuelindoors.
•Donotallowuntrainedpersonneltoservicethemachine.
•Usejackstandstosupportcomponentswhenrequired.
•Carefullyreleasepressurefromcomponentswithstored
energy.
•Disconnectthebatteryorremovethespark-plugwire
beforemakinganyrepairs.Disconnectthenegative
terminalrstandthepositiveterminallast.Connectthe
positiveterminalrstandnegativelast.
•Usecarewhencheckingtheblades.Wraptheblade(s)
orwearthicklypaddedgloves,andusecautionwhen
servicingthem.Onlyreplaceblades;donotstraighten
orweldthem.
•Keephandsandfeetawayfrommovingparts.Ifpossible,
donotmakeadjustmentswiththeenginerunning.
•Keepallpartsingoodworkingconditionandallhardware
tightened.Replaceallwornordamageddecals.
Hauling
•Usecarewhenloadingorunloadingthemachineintoa
traileroratruck.
•Useafull-widthrampforloadingmachineintoatrailer
oratruck.
•Tiethemachinedownsecurelyusingstraps,chains,cable,
orropes.Bothfrontandrearstrapsshouldbedirected
downandoutwardfromthemachine.
5

ToroMowerSafety
ThefollowinglistcontainssafetyinformationspecictoToro
productsandothersafetyinformationthatyoumustknow.
Thisproductiscapableofamputatinghandsandfeet,and
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriousinjuryordeath.
Thisproductisdesignedforcuttingandrecyclinggrass,or,
whenequippedwithagrassbagger,forcatchingcutgrass.
Anyuseforpurposesotherthanthesecouldprovedangerous
totheuserandbystanders.
UsingtheRollover-ProtectionSystem
(ROPS)
•TheROPSisanintegralandeffectivesafetydevice.Keep
theROPSintheraisedandlockedpositionandusethe
seatbeltwhenoperatingthemachine.
•LowertheROPStemporarilyonlywhenabsolutely
necessary.DonotweartheseatbeltwhentheROPSis
foldeddown.
•BeawarethereisnorolloverprotectionwhentheROPS
isinthedownposition.
•Becertainthattheseatbeltcanbereleasedquicklyin
theeventofanemergency.
•Checktheareatobemowedandneverfolddownthe
ROPSinareaswherethereareslopes,drop-offs,orwater.
•Checkcarefullyforoverheadclearances(i.e.branches,
doorways,electricalwires)beforedrivingunderany
objectsanddonotcontactthem.
•KeeptheROPSinsafeoperatingconditionby
periodicallythoroughlyinspectingfordamageand
keepingallmountingfastenerstight.
•ReplaceadamagedROPS.Donotrepairorrevise.
•DonotremovetheROPS.
•AnyalterationstoaROPSmustbeapprovedbythe
manufacturer.
•Donotmowslopesgreaterthan15degrees.
Service
•Donotstorethemachineorafuelcontainerinsidewhere
thereisanopename,suchasnearawaterheateror
furnace.
•Keepthenutsandboltstight,especiallythe
blade-attachmentbolts.
•Neverinterferewiththeintendedfunctionofasafety
deviceorreducetheprotectionprovidedbyasafety
device.Checktheirproperoperationregularly.
•Tobestprotectyourinvestmentandmaintainoptimal
performanceofyourToroequipment,countonToro
genuineparts.Whenitcomestoreliability,Torodelivers
replacementpartsdesignedtotheexactengineering
specicationsofourequipment.Forpeaceofmind,insist
onTorogenuineparts.
•Checkbrakeoperationfrequently.Adjustandserviceas
required.
6

SlopeIndicator
G01 1841
Figure3
Thispagemaybecopiedforpersonaluse.
1.Themaximumslopeyoucansafelyoperatethemachineonis15degrees.Usetheslopecharttodeterminethedegreeofslope
ofhillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan15degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
7

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotential
danger.Replaceanydecalthatisdamagedorlost.
58-6520
1.Grease
93-7818
1.Warning—readtheOperator'sManualforinstructionson
torquingthebladebolt/nutto115to149N∙m(85to110
ft-lb).
99-8936
1.Machinespeed4.Neutral
2.Fast5.Reverse
3.Slow
106-2655
1.Warning—donottouchorapproachmovingbelts;remove
theignitionkeyandreadtheinstructionsbeforeservicing
orperformingmaintenance.
106-5517
1.Warning—donottouchthehotsurface.
8

107-3069
1.Warning—thereisnorolloverprotectionwhentherollbaris
down.
2.Toavoidinjuryordeathfromarolloveraccident,keepthe
rollbarinthefullyraisedandlockedpositionandwear
theseatbelt.Lowertherollbaronlywhenabsolutely
necessary;donotwearthetheseatbeltwhentherollbaris
down.
3.ReadtheOperator'sManual;driveslowlyandcarefully.
110-2067
110-2068
1.ReadtheOperator'sManual.
112-9028
1.Warning—stayawayfrommovingparts;keepallguardsin
place.
114-4466
1.Main(25A)3.Charge(25A)
2.PTO(10A)4.Auxiliary(15A)
115-7445
1.Greasepulleysandspindles
2.Maintenanceinterval—50hours
9

115-9625
1.Parking
brake—disengaged
2.Parkingbrake—engaged
116-1716
1.Fuel6.Hourmeter
2.Empty7.PTO
3.Half8.Parkingbrake
4.Full9.Neutral
5.Battery10.Operator-presenceswitch
116-4858
116-8726
1.ReadtheOperator’sManualforrecommendedhydrooil.
117-0346
1.Fuelleakhazard—readtheOperator'sManual;donot
attempttoremovetherollbar;donotweld,drill,ormodify
therollbarinanyway.
117-3848
1.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
2.Thrownobjecthazard,mower—donotoperatethemachine
withoutdeector,dischargecover,orgrasscollection
systeminplace.
3.Cutting/dismembermentofhandorfoot—stayawayfrom
movingparts;keepallguardsandshieldsinplace.
10

117-3864
1.ReadtheOperator’s
Manual.
2.Filltobottomofllerneck;
warning—donotoverll
thetank.
121–7586
1.Fast3.Slow
2.Variablespeedcontrol4.Powertakeoff(PTO)
126-2055
1.Wheellug-nuttorque129N∙m(95ft-lb)(4x)
2.Wheelhub-nuttorque319N∙m(235ft-lb)
3.ReadandunderstandtheOperator’smanualbefore
performinganymaintenance,checktorqueafterrst100
hoursthenevery500hoursthereafter.
126-4398
1.ReadtheOperator’s
manual
3.Unlock
2.Lock
127-0326
1.ReadtheOperator's
Manual.
3.Removethekeyfrom
theignitionandreadthe
Operator'sManualbefore
performingmaintenance
orservicingthemachine.
2.Height-of-cut
11

132-5063
1.Camlock2.Camunlock
BatterySymbols
Someorallofthesesymbolsareonyourbattery.
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries.
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection.9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
125–9383
1.Checkhydraulicuidevery50operatinghours.3.Checkthetirepressureevery50operatinghours.
2.ReadtheOperator’sManualforinformationonlubricating
themachine.
4.ReadtheOperator’sManualbeforeservicingorperforming
maintenance.
12

132-0871
1.Warning—readtheOperator’sManual;donotoperatethe
machineunlessyouaretrained;wearhearingprotection.
4.Ramphazard—whenloadingontoatrailer,donotusedual
ramps;onlyuseasingularrampwideenoughforthemachine
andthathasaninclinelessthan15degrees;backupthe
ramp(inreverse)anddriveforwardofftheramp.
2.Cuttingandpinchinghazard—keephandsandfeetawayfrom
movingparts;keepallguardsandshieldsinplace.
5.Bodilyharmhazard—lookbehindyouwhenmowingin
reverse.
3.Thrownobjecthazard—keepbystandersaway.6.Tippinghazardonslopes—donotuseonslopesnearopen
water;donotuseonslopesgreaterthan15degrees.
132–5067
13

ProductOverview
g029631
4
11
12
13
2
Figure4
1.Side-dischargedeector8.Rear-shockassembly
2.Height-of-cutdeck-lift
pedal
9.Seatbelt
3.Parking-brakelever10.Fuelcap
4.Transportlock11.Mowerdeck
5.Controls12.Casterwheel
6.Motion-controllevers13.Front-shockassembly
7.Rollbar
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
g0131 12
1
2345
6
25
25
10
15
CHECK
ENGINE
Figure5
1.PTOSwitch4.Hour
meter/Safety-interlock
display/Fuelgauge
2.Throttlecontrol5.Ignitionswitch
3.Malfunction-indicatorlight
(MIL)
6.Fuses
FuelGauge
Thefuelgaugeislocatedwiththehourmeter,andthebars
lightupwhentheignitionswitchison(Figure6).
Theindicatorlightappearswhenthefuellevelis
low—approximately3.8L(1USgallon)remaininginthe
fueltank.
Figure6
1.Fuelgauge(bars)4.Safety-interlocksymbols
2.Batterylight5.Low-fuelindicatorlight
3.Hourmeter
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Itoperateswhentheengineisrunning.Usethese
timesforschedulingregularmaintenance(Figure6).
Safety-InterlockIndicators
Therearesymbolsonthehourmeterandtheyindicatewitha
blacktrianglethattheinterlockcomponentisinthecorrect
position(Figure6).
Battery-IndicatorLight
WhenyouinitiallyturntheignitionkeytotheRUNposition
forafewseconds,thebatteryvoltagedisplaysinthearea
wherethehoursarenormallydisplayed.
Thebatterylightturnsonwhentheignitionisturnedonand
whenthechargeisbelowthecorrectoperatinglevel(Figure
5).
ThrottleControl
ThethrottlecontrolisvariablebetweentheFASTandSLOW
positions.
14

Blade-ControlSwitch(PTO)
Usetheblade-controlswitch(PTO)toengagetheelectric
clutchanddrivethemowerblades.Pulltheswitchupto
engagethebladesandrelease.Todisengagetheblades,
pushtheblade-controlswitch(PTO)downormovea
motion-controlleverintotheNEUTRAL-LOCKposition.
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhas3
positions:Start,Run,andOff.
Motion-ControlLevers
Usethemotion-controlleverstodrivethemachineforward
andreverse,andtoturneitherdirection.
Neutral-LockPosition
UsetheNEUTRAL-LOCKpositionwiththesafety-interlock
systemtoengageandtodeterminetheNEUTRALposition.
Fuel-ShutoffValve
Closethefuel-shutoffvalve(undertheseat)when
transportingorstoringthemower.
ElectronicControlUnitMalfunction
IndicatorLight
Theelectroniccontrolunit(ECU)continuouslymonitorsthe
operationoftheEFIsystem.
Ifthesystemdetectsaproblemorfault,themalfunction
indicatorlight(MIL)illuminates.
TheMIListheredlightlocatedintherightconsolepanel.
IftheMILilluminates,performtheinitialtroubleshooting
checks;refertotheMILsectioninTroubleshooting(page69).
Ifthesechecksdonotcorrecttheproblem,furtherdiagnosis
andservicingbyanAuthorizedServiceDealerisnecessary.
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
Specications
Note:Specicationsanddesignaresubjecttochange
withoutnotice.
Width
WithoutDeck135cm(53inches)
DeectorUp157cm(62inches)
DeectorDown192cm(76inches)
Length
RollBarUp211cm(83inches)
RollBarDown215cm(85inches)
Height
RollBarUpRollBarDown
179cm(71inches)127.8cm(50.3inches)
Weight
ModelWeight
74991587kg(1,295lbs)
15

Operation
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
AddingFuel
•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume
isacceptable.EthanolandMTBEarenotthesame.
Gasolinewith15%ethanol(E15)byvolumeisnot
approvedforuse.Neverusegasolinethatcontains
morethan10%ethanolbyvolume,suchasE15
(contains15%ethanol),E20(contains20%ethanol),or
E85(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/orengine
damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
overthewinterunlessafuelstabilizerisused.
•Donotaddoiltogasoline.
DANGER
Incertainconditions,gasolineisextremely
ammableandhighlyexplosive.Areorexplosion
fromgasolinecanburnyouandothersandcan
damageproperty.
•Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanygasoline
thatspills.
•Neverllthefueltankinsideanenclosedtrailer.
•Donotllthefueltankcompletelyfull.Add
gasolinetothefueltankuntilthelevelis6to13
mm(1/4to1/2inch)belowthebottomofthe
llerneck.Thisemptyspaceinthetankallows
gasolinetoexpand.
•Neversmokewhenhandlinggasoline,andstay
awayfromanopenameorwheregasoline
fumesmaybeignitedbyaspark.
•Storegasolineinanapprovedcontainerand
keepitoutofthereachofchildren.Neverbuy
morethana30-daysupplyofgasoline.
•Donotoperatewithoutentireexhaustsystemin
placeandinproperworkingcondition.
DANGER
Incertainconditionsduringfueling,static
electricitycanbereleased,causingasparkthatcan
ignitethegasolinevapors.Areorexplosionfrom
gasolinecanburnyouandothersandcandamage
property.
•Alwaysplacegasolinecontainersontheground
awayfromyourvehiclebeforelling.
•Donotllgasolinecontainersinsideavehicleor
onatruckortrailerbed,becauseinteriorcarpets
orplastictruckbedlinersmayinsulatethe
containerandslowthelossofanystaticcharge.
•Whenpractical,removegas-poweredequipment
fromthetruckortrailerandrefueltheequipment
withitswheelsontheground.
•Ifthisisnotpossible,thenrefuelsuch
equipmentonatruckortrailerfromaportable
containerratherthanfromagasoline-dispenser
nozzle.
•Ifyoumustuseagasoline-dispensernozzle,
keepthenozzleincontactwiththerimofthe
fueltankorcontaineropeningatalltimesuntil
fuelingiscomplete.
WARNING
Gasolineisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.
•Avoidprolongedbreathingofvapors.
•Keepfaceawayfromnozzleandgastankor
conditionerbottleopening.
•Avoidcontactwithskin;washoffspillswith
soapandwater.
UsingStabilizer/Conditioner
Useafuelstabilizer/conditionerinthemachinetoprovide
thefollowingbenets:
•Keepsgasolinefreshduringstorageof90daysorless.
Forlongerstorageitisrecommendedthatthefueltank
bedrained.
•Cleanstheenginewhileitruns
•Eliminatesgum-likevarnishbuildupinthefuelsystem,
whichcauseshardstarting
Important:Donotusefueladditivescontaining
methanolorethanol.
Addthecorrectamountofgasolinestabilizer/conditioner
tothegasoline.
Note:Afuelstabilizer/conditionerismosteffective
whenmixedwithfreshgasoline.Tominimizethechance
16

ofvarnishdepositsinthefuelsystem,usefuelstabilizer
atalltimes.
FillingtheFuelTank
1.Parkthemachineonlevelground.
2.Shuttheengineoffandsettheparkingbrake.
3.Cleanaroundthefuel-tankcap.
4.Fillthefueltanktothebottomofthellerneck(Figure
7).
Note:Ensurethatthereisemptyspaceinthetankto
allowthegasolinetoexpand.
Note:Donotllthefueltankcompletelyfull.Fillthe
fueltanktothebottomofthellerneck.
Figure7
CheckingtheEngine-OilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoCheckingthe
Engine-OilLevel(page38).
BreakinginaNewMachine
Newenginestaketimetodevelopfullpower.Mowerdecks
anddrivesystemshavehigherfrictionwhennew,placing
additionalloadontheengine.Allow40to50hoursof
break-intimefornewmachinestodevelopfullpowerand
bestperformance.
UsingtheRollover-Protection
System(ROPS)
WARNING
Toavoidinjuryordeathfromrollover:keeptheroll
barinthefullyraised,lockedpositionandusethe
seatbelt.
Ensurethattheseatissecuredtothemachine.
WARNING
Thereisnorolloverprotectionwhentherollbaris
inthedownposition.
•Lowertherollbaronlywhenabsolutely
necessary.
•Donotweartheseatbeltwhentherollbaris
inthedownposition.
•Driveslowlyandcarefully.
•Raisetherollbarassoonasclearancepermits.
•Checkcarefullyforoverheadclearances(i.e.,
branches,doorways,electricalwires)before
drivingunderanyobjects,anddonotcontact
them.
Important:Ensurethattheseatissecuredtothe
machine.
1.Tolowertherollbar,applyforwardpressuretothe
upperpartoftherollbar.
2.Pullbothknobsoutandrotatethem90degreessothat
theyarenotengaged(Figure8).
3.Lowertherollbartothedownposition(Figure8).
17

Figure8
1.ROPSknob3.Rollbarintheupright
position
2.PulltheROPSknobout
androtateit90degrees.
4.Rollbarinthefolded
position
4.Toraisetherollbar,raisetherollbartotheoperate
positionandrotatetheknobssothattheymove
partiallyintothegrooves(Figure8).
5.Raisetherollbartothefulluprightpositionwhile
pushingontheupperrollbarsothatthepinssnapinto
positionwhentheholesalignwiththepins(Figure8).
6.Pushontherollbarandensurethatbothpinsare
engaged.
Important:Alwaysusetheseatbeltwiththerollbarin
theraisedposition.
EnteringtheOperating
Position
Usethemowerdeckasasteptogetintotheoperating
position(Figure9).
g029797
1
Figure9
1.Mowerdeck
ThinkSafetyFirst
Pleasereadallsafetyinstructionsandsymbolsinthesafety
section.Knowingthisinformationcouldhelpyouor
bystandersavoidinjury.
DANGER
Operatingthemachineonwetgrassorsteepslopes
cancauseslidingandlossofcontrol.
•Donotoperateonslopesgreaterthan15degrees.
•Reducespeedanduseextremecautionon
slopes.
•Donotoperatethemachinenearwater.
DANGER
Wheelsdroppingoveredgescancauserollovers,
whichmayresultinseriousinjury,death,or
drowning.
Donotoperatethemachineneardrop-offs.
DANGER
Operatingthemachinewhiletherollbarisdown
mayleadtoseriousinjuryordeathintheeventofa
rollover.
Alwayskeeptherollbarinthefullyraisedand
lockedpositionandusetheseatbelt.
18

Figure10
1.SafeZone—usethe
machinehereonslopes
lessthan15degreesor
atareas.
3.Water
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan15degrees,
neardrop-offsandwater.
CAUTION
Thismachineproducessoundlevelsinexcessof
85dBAattheoperator’searandcancausehearing
lossthroughextendedperiodsofexposure.
Wearhearingprotectionwhenoperatingthis
machine.
Useprotectiveequipmentforyoureyes,ears,hands,feet,
andhead.
G009027
12
Figure11
1.Weareyeprotection.2.Wearhearingprotection.
OperatingtheParkingBrake
Alwayssettheparkingbrakewhenyoustopthemachineor
leaveitunattended.
SettingtheParkingBrake
WARNING
Theparkingbrakemaynotholdamachineparked
onaslopeandcouldcausepersonalinjuryor
propertydamage.
Donotparkthemachineonslopesunlessthe
wheelsarechockedorblocked.
g029632
Figure12
ReleasingtheParkingBrake
g029829
Figure13
19

OperatingtheMower
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)startsandstopsthemower
bladesandanypoweredattachments.
EngagingtheBlade-ControlSwitch
(PTO)
Note:Engagingtheblade-controlswitch(PTO)withthe
throttlepositionathalforlesscausesexcessiveweartothe
drivebelts.
G008945
Figure14
DisengagingtheBlade-ControlSwitch
(PTO)
G009174
Figure15
OperatingtheThrottle
YoucanmovethethrottlecontrolbetweenFASTandSLOW
positions(Figure16).
AlwaysusetheFASTpositionwhenturningonthemower
deckwiththeblade-controlswitch(PTO).
G008946
Figure16
OperatingtheIgnitionSwitch
1.TurntheignitionkeytotheSTARTposition(Figure17).
Note:Whentheenginestarts,releasethekey.
Important:Donotengagethestarterformore
than5secondsatatime.Iftheenginefailsto
start,wait15secondsbetweenattempts.Failureto
followtheseinstructionscanburnoutthestarter
motor.
Note:Youmayneedmultipleattemptstostartthe
enginewhenyoustartitthersttimeafterthefuel
systemhasbeenwithoutfuelcompletely.
START
RUN
ST OP
G008947
Figure17
2.TurntheignitionkeytotheSTOPpositiontoshutoff
theengine.
UsingtheFuel-ShutoffValve
Thefuel-shutoffvalveislocatedundertheseat.Movethe
seatforwardtoaccessit.
Closethefuel-shutoffvalvefortransport,maintenance,and
storage.
Ensurethatthefuel-shutoffvalveisopenwhenstartingthe
engine.
G008948
1
2
Figure18
1.On2.Off
20
