Toro eS3200DC 72V User manual

FormNo.3443-802RevB
eS3200DC72VTORO®81cm
ModelNo.75501—SerialNo.321000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3443-802*

Introduction
Thisrotary-blade,ridinglawnmowerisintendedtobe
usedbyhomeownersinresidentialapplications.Itis
designedprimarilyforcuttinggrassonwell-maintained
lawns.Usingthisproductforpurposesotherthan
itsintendedusecouldprovedangeroustoyouand
bystanders.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.T oro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorToroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g378763
Figure1
1.Modelandserialnumberplate
Writetheproductmodelandserialnumbersinthe
spacebelow:
ModelNo.
SerialNo.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Thesafety-alertsymbol(Figure2)appearsbothin
thismanualandonthemachinetoidentifyimportant
safetymessagesthatyoumustfollowtoavoid
accidents.Thissymbolwillappearwiththeword
Danger,Warning,orCaution.
•Dangerindicatesanimminentlyhazardous
situationwhich,ifnotavoided,willresultindeath
orseriousinjury.
•Warningindicatesapotentiallyhazardous
situationwhich,ifnotavoided,couldresultin
deathorseriousinjury.
•Cautionindicatesapotentiallyhazardoussituation
which,ifnotavoided,mayresultinminoror
moderateinjury.
sa-black
Figure2
1.Safety-alertsymbol
©2022—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety.......................................................................3
GeneralPowerToolSafetyWarnings..................3
LawnMowerSafetyWarnings............................5
AdditionalToroSafety.........................................6
SlopeIndicator.................................................10
SafetyandInstructionalDecals.........................11
Setup......................................................................14
1ConnectingtheBatteryCable........................14
2ChargingtheBattery......................................14
ProductOverview...................................................15

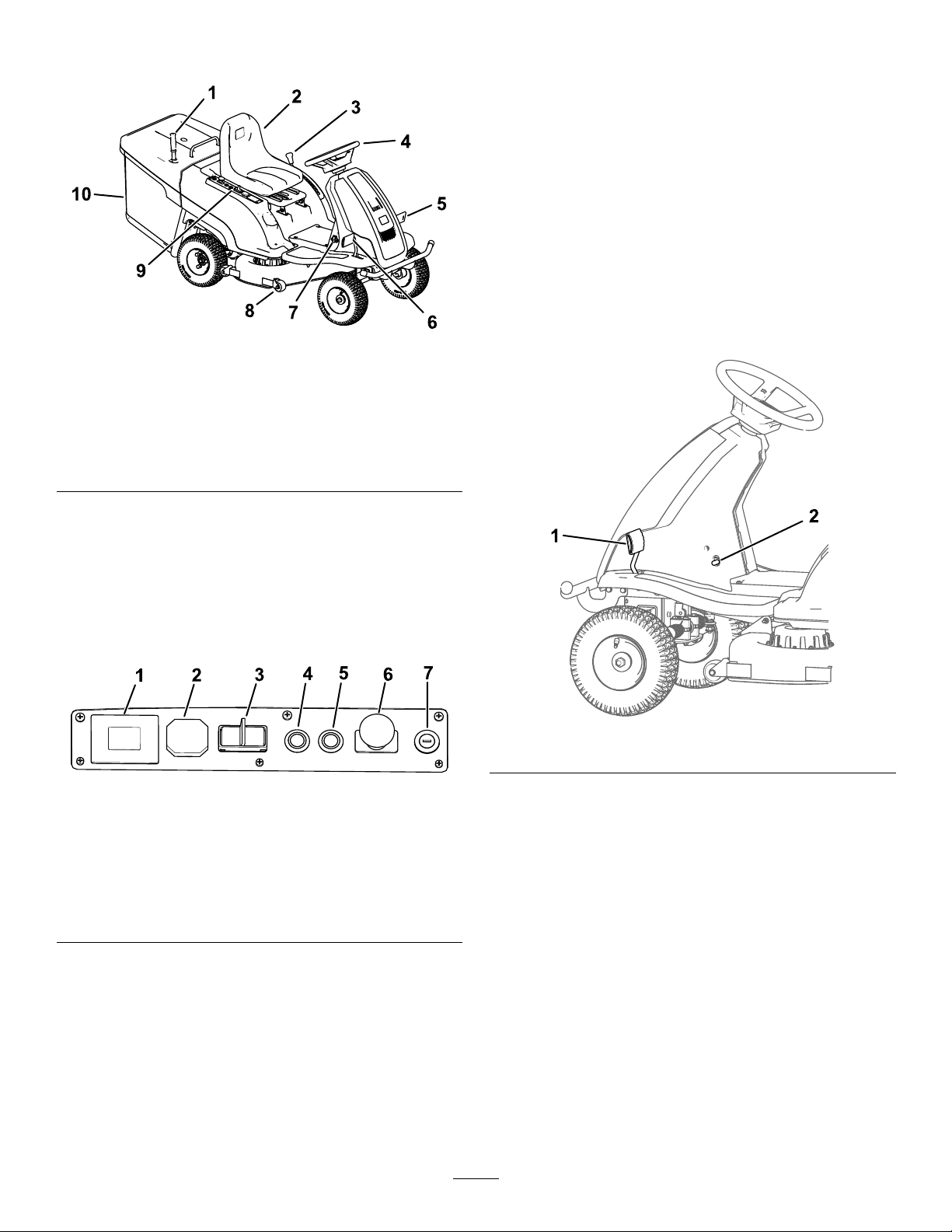

Controls...........................................................15
Specications..................................................17
Attachments/Accessories.................................17
BeforeOperation.................................................17
PerformingDailyMaintenance..........................17
UsingtheSafety-InterlockSystem....................17
PositioningtheSeat..........................................18
RemovingtheGrassCatcher............................18
InstallingtheGrassCatcher..............................19
InstallingtheMulchingPlug..............................19
AdjustingtheFull-BagIndicatorSwitch.............20
DuringOperation.................................................20
StartingtheMachine.........................................20
DrivingtheMachine..........................................20
ShuttingOfftheMachine..................................20
OperatingtheMowerBlade-ControlSwitch
(PTO)............................................................21
AdjustingtheHeightofCut...............................21
EmptyingtheGrassCatcher.............................22
OperatingTips.................................................22
AfterOperation....................................................23
ClearingtheDischargeChute...........................23
TransportingtheMachine.................................24
MovingaNon-FunctioningMachine..................26
Maintenance...........................................................27
RecommendedMaintenanceSchedule(s)...........27
Pre-MaintenanceProcedures..............................28
AccessingtheBattery.......................................28
Lubrication..........................................................29
GreasingtheFrontWheelBearings..................29
ElectricalSystemMaintenance...........................29
MaintainingtheBattery.....................................29
DriveSystemMaintenance..................................31
CheckingtheTirePressure...............................31
MowerMaintenance.............................................31
ServicingtheCuttingBlades.............................31
Cleaning..............................................................34
CleaningtheUndersideoftheMower
Deck..............................................................34
DisposingofWaste...........................................34
Storage...................................................................34
CleaningandStorage.......................................34
Troubleshooting......................................................35
Schematics.............................................................36
Safety
GeneralPowerToolSafety
Warnings
WARNING
Readallsafetywarnings,instructions,
illustrationsandspecicationsprovidedwith
thispowertool.
Failuretofollowthewarningsandinstructions
mayresultinelectricshock,reand/orserious
injury.
Theterm“powertool”inallofthewarningslisted
belowreferstoyourmains-operated(corded)power
toolorbattery-operated(cordless)powertool.
1.Workareasafety
A.Keepworkareacleanandwelllit.
Clutteredordarkareasinviteaccidents.
B.Donotoperatepowertoolsinexplosive
atmospheres,suchasinthepresence
ofammableliquids,gasses,ordust.
Powertoolscreatesparkswhichmayignite
thedustorfumes.
C.Keepchildrenandbystandersaway
whileoperatingapowertool.Distractions
cancauseyoutolosecontrol.
2.Electricalsafety
A.Powertoolplugsmustmatchtheoutlet.
Nevermodifythepluginanyway.Do
notuseanyadapterplugswithearthed
(grounded)powertools.Unmodied
plugsandmatchingoutletswillreducerisk
ofelectricshock.
B.Avoidbodycontactwithearthedor
groundedsurfaces,suchaspipes,
radiators,ranges,andrefrigerators.
Thereisanincreasedriskofelectricshock
ifyourbodyisearthedorgrounded.
C.Donotexposepowertoolstorainorwet
conditions.Waterenteringapowertool
willincreasetheriskofelectricshock.
D.Donotabusethecord.Neverusethe
cordforcarrying,pullingorunplugging
thepowertool.Keepcordawayfrom
heat,oil,sharpedges,ormovingparts.
Damagedorentangledcordsincreasethe
riskofelectricshock.
E.Whenoperatingapowertooloutdoors,
useanextensioncordsuitablefor
outdooruse.Useofacordsuitablefor
3

outdoorusereducestheriskofelectric
shock.
F.Ifoperatingapowertoolinadamp
locationisunavoidable,usearesidual
currentdevice(RCD)protectedsupply.
UseofanRCDreducestheriskofelectric
shock.
3.Personalsafety
A.Stayalert,watchwhatyouaredoing,
andusecommonsensewhenoperating
apowertool.Donotuseapowertool
whileyouaretiredorundertheinuence
ofdrugs,alcohol,ormedication.A
momentofinattentionwhileoperatingpower
toolsmayresultinseriouspersonalinjury.
B.Usepersonalprotectiveequipment.
Alwaysweareyeprotection.Protective
equipmentsuchasadustmask,non-skid
safetyshoes,orhearingprotectionusedfor
appropriateconditionswillreducepersonal
injuries.
C.Preventunintentionalstarting.Ensure
theswitchisintheoff-positionbefore
connectingtopowersourceand/or
batterypack,pickinguporcarryingthe
tool.Carryingpowertoolswithyournger
ontheswitchorenergisingpowertoolsthat
havetheswitchoninvitesaccidents.
D.Removeanyadjustingkeyorwrench
beforeturningthepowertoolon.A
wrenchorakeyleftattachedtoarotating
partofthepowertoolmayresultinpersonal
injury.
E.Donotoverreach.Keepproper
footingandbalanceatalltimes.This
enablesbettercontrolofthepowertoolin
unexpectedsituations.
F.Dressproperly.Donotwearloose
clothingorjewelry.Keepyourhairand
clothingawayfrommovingparts.Loose
clothes,jewelryorlonghaircanbecaught
inmovingparts.
G.Ifdevicesareprovidedforthe
connectionofdustextractionand
collectionfacilities,ensuretheseare
connectedandproperlyused.Useof
dustcollectioncanreducedust-related
hazards.
H.Donotletfamiliaritygainedfrom
frequentuseoftoolsallowyouto
becomecomplacentandignoretool
safetyprinciples.Acarelessactioncan
causesevereinjurywithinafractionofa
second.
4.Powertooluseandcare
A.Donotforcethepowertool.Usethe
correctpowertoolforyourapplication.
Thecorrectpowertoolwilldothejob
betterandsaferattherateforwhichitwas
designed.
B.Donotusethepowertooliftheswitch
doesnotturnitonandoff.Anypowertool
thatcannotbecontrolledwiththeswitchis
dangerousandmustberepaired.
C.Disconnecttheplugfromthepower
sourceand/orremovethebattery
pack,ifdetachable,fromthepower
toolbeforemakinganyadjustments,
changingaccessories,orstoringpower
tools.Suchpreventivesafetymeasures
reducetheriskofstartingthepowertool
accidentally.
D.Storeidlepowertoolsoutofthereach
ofchildrenanddonotallowpersons
unfamiliarwiththepowertoolorthese
instructionstooperatethepowertool.
Powertoolsaredangerousinthehandsof
untrainedusers.
E.Maintainpowertoolsandaccessories.
Checkformisalignmentorbindingof
movingparts,breakageofpartsand
anyotherconditionthatmayaffectthe
operationofthepowertool.Ifdamaged,
havethepowertoolrepairedbefore
use.Manyaccidentsarecausedbypoorly
maintainedpowertools.
F.Keepcuttingtoolssharpandclean.
Properlymaintainedcuttingtoolswithsharp
cuttingedgesarelesslikelytobindandare
easiertocontrol.
G.Usethepowertool,accessories,and
toolbitsetc.,inaccordancewiththese
instructions,takingintoaccountthe
workingconditionsandtheworkto
beperformed.Useofthepowertoolfor
operationsdifferentfromthoseintended
couldresultinahazardoussituation.
H.Keephandlesandgraspingsurfaces
dry,cleanandfreefromoilandgrease.
Slipperyhandlesandgraspingsurfacesdo
notallowforsafehandlingandcontrolof
thetoolinunexpectedsituations.
5.Batterytooluseandcare
A.Rechargeonlywiththechargerspecied
byamanufacturer.Achargerthatis
suitableforonetypeofbatterypackmay
createariskofrewhenusedwithanother
batterypack.
4

B.Usepowertoolsonlywithspecically
designatedbatteries.Useofanyother
batteriesmaycreateariskofinjuryandre.
C.Whenbatterypackisnotinuse,keep
itawayfromothermetalobjects,like
paperclips,coins,keys,nails,screws
orothersmallmetalobjects,thatcan
makeaconnectionfromoneterminal
toanother.Shortingthebatteryterminals
togethermaycauseburnsorare.
D.Underabusiveconditions,liquidmaybe
ejectedfromthebattery;avoidcontact.
Ifcontactaccidentallyoccurs,ushwith
water.Ifliquidcontactseyes,additionally
seekmedicalhelp.Liquidejectedfromthe
batterymaycauseirritationorburns.
E.Donotuseabatterypackortoolthat
isdamagedormodied.Damagedor
modiedbatteriesmayexhibitunpredictable
behaviorresultinginre,explosionorrisk
orinjury.
F.Donotexposeabatterypackortoolto
reorexcessivetemperature.Exposure
toretemperatureabove130°Cmaycause
anexplosion.
G.Followallcharginginstructionsand
donotchargethebatterypackortool
outsidethetemperaturerangespecied
intheinstructions.Changingimproperly
orattemperaturesoutsidethespecied
rangemaydamagethebatteryandincrease
theriskofre.
6.Service
A.Haveyourpowertoolservicedby
aqualiedrepairpersonusingonly
identicalreplacementparts.Thiswill
ensurethatthesafetyofthepowertoolis
maintained.
B.Neverservicedamagedbatterypacks.
Serviceofbatterypacksshouldbe
performedonlybythemanufactureror
authorizedserviceproviders.
LawnMowerSafety
Warnings
A.Donotusethelawnmowerinbadweather
conditions,especiallywhenthereisariskof
lightning.Thisdecreasestheriskofbeingstruck
bylightning.
B.Thoroughlyinspecttheareaforwildlifewhere
youwillusethelawnmower.Wildlifemaybe
injuredbythelawnmowerduringoperation.
C.Thoroughlyinspecttheareawhereyouwilluse
thelawnmowerandremoveallstones,sticks,
wires,bones,andotherforeignobjects.Thrown
objectscancausepersonalinjury.
D.Beforeusingthelawnmower,alwaysvisually
inspecttoseethatthebladeandtheblade
assemblyarenotwornordamaged.Wornor
damagedpartsincreasetheriskofinjury.
E.Keepguardsinplace.Guardsmustbein
workingorderandbeproperlymounted.Aguard
thatisloose,damaged,orisnotfunctioning
correctlymayresultinpersonalinjury.
F.Keepallcoolingairinletsclearofdebris.
Blockedairinletsanddebrismayresultin
overheatingorriskofre.
G.Donotoperatethelawnmoweronsteepslopes.
Thisreducestheriskoflossofcontrol,slipping,
andfalling,whichmayresultinpersonalinjury.
H.Whileoperatingthelawnmower,alwayswear
longtrousers.Exposedskinincreasesthe
likelihoodofinjuryfromthrownobjects.
I.Alwaysworkupordownthefaceofslopes,
neveracross,andexerciseextremecaution
whenchangingdirection.Thisreducestherisk
oflossofcontrol,slippingandfallingwhichmay
resultinpersonalinjury.
J.Donottouchbladesandotherhazardous
movingpartswhiletheyarestillinmotion.This
reducestheriskofinjuryfrommovingparts.
K.Beforeclearingjammedmaterialorcleaning
thelawnmower,turnoffallpowerswitches
andremovethekey.Unexpectedoperationof
thelawnmowermayresultinseriouspersonal
injury.
L.Ifthemachinestrikesanobjectorstartsto
vibrate,immediatelyturnoffthelawnmower,
removethekey(ifequipped),andwaitforall
movingpartstostopbeforeexaminingthe
machinefordamage.Makeallnecessary
repairsbeforeresumingoperation.
M.Beforestoringthelawnmower,cleangrass
anddebrisfromthecuttingunit,drives,grass
catcher,andmotortohelppreventres.
N.Toensureoptimumperformance,use
onlygenuineT ororeplacementpartsand
accessories.Replacementpartsand
accessoriesmadebyothermanufacturerscould
bedangerous,andsuchusecouldvoidthe
productwarranty.
O.Replacewornordamagedbladesandboltsin
setstopreservebalance.
P .Onmulti-bladedmachines,takecareasrotating
onebladecancauseotherbladestorotate.
5

Q.Donotputyourhandsorfeetnearmoving
componentsofthemachine.
R.Shutoffthelawnmower,removethekey,and
waitforallmovingpartstostopbeforeyouleave
theoperator’sposition.Allowthemachineto
coolbeforeadjusting,servicing,cleaning,or
storingit.
S.Avoidmowingonwetgrassorintherain.Doing
somayincreasetheriskofelectricshock.
AdditionalToroSafety
GeneralSafety
Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjury.
•Donotallowchildrenoruntrainedpeopleto
operateorservicethemachine.Allowonlypeople
whoareresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperate
orservicethemachine.Localregulationsmay
restricttheageoftheoperator.
•Donotoperatethemachineneardrop-offs,
ditches,embankments,water,orotherhazards,or
onslopesgreaterthan12°.
BeforeOperationSafety
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Checkthatoperator-presencecontrols,safety
switches,andguardsareattachedandworking
properly.Donotoperatethemachineunlessthey
arefunctioningproperly.
•Beforemowing,inspectthemachinetoensure
thatthecuttingassembliesareworkingproperly.
•Evaluatetheterraintodeterminetheappropriate
equipmentandanyattachmentsoraccessories
requiredtooperatethemachineproperlyand
safely.
•Donotcarrypassengersonthemachine.
DuringOperationSafety
•Theowner/operatorcanpreventandisresponsible
foraccidentsthatmaycausepersonalinjuryor
propertydamage.
•Keepyourhandsandfeetawayfromthecutting
units.Keepclearofthedischargeopening.
•Donotmowwiththedischargedeector
raised,removed,oralteredunlessthereisa
grass-collectionsystemormulchkitinplaceand
workingproperly.
•Alwayslookdownandbehindyoubeforemoving
themachineinreverse.
•Useextremecarewhenapproachingblind
corners,shrubs,trees,orotherobjectsthatmay
blockyourview.
•Stopthebladeswheneveryouarenotmowing.
•Slowdownandusecautionwhenmakingturns
andcrossingroadsandsidewalkswiththe
machine.Alwaysyieldtheright-of-way.
•Beforeyouleavetheoperatingposition,dothe
following:
–Parkthemachineonalevelsurface.
–Disengagethepowertakeoff.
–Engagetheparkingbrake.
–Shutoffthemachineandremovethekey.
–Waitforallmovingpartstostop.
•Neverleavearunningmachineunattended.
•Beawareofthemowerdischargepathanddirect
thedischargeawayfromothers.Avoiddischarging
materialagainstawallorobstructionbecausethe
materialmayricochetbacktowardyou.
•Stoptheblades,slowdownthemachine,anduse
cautionwhencrossingsurfacesotherthangrass
orwhentransportingthemachinetoandfromthe
operatingarea.
•Childrenareoftenattractedtothemachineand
themowingactivity.Neverassumethatchildren
willremainwhereyoulastsawthem.
•Keepchildrenoutoftheoperatingareaandunder
thewatchfulcareofaresponsibleadultotherthan
theoperator.
•Bealertandshutoffthemachineifchildrenenter
theoperatingarea.
•Beforebackinguporturningthemachine,look
downandallaroundforsmallchildren.
•Donotcarrychildrenonthemachine,evenwhen
thebladesarenotmoving.Childrencouldfall
offandbeseriouslyinjuredorpreventyoufrom
safelyoperatingthemachine.Childrenwhohave
beengivenridesinthepastcouldappearinthe
operatingareawithoutwarningandberunoveror
backedoverbythemachine.
•Useextracarewithattachments.Theycan
changethestabilityofthemachine.
•Donotattempttostabilizethemachinebyputting
yourfootontheground.
SlopeSafety
•Slopesareamajorfactorrelatedtolossofcontrol
androlloveraccidents,whichcanresultinsevere
6

injuryordeath.Theoperatorisresponsiblefor
safeslopeoperation.Operatingthemachineon
anysloperequiresextracaution.Beforeusingthe
machineonaslope,dothefollowing:
–Reviewandunderstandtheslopeinstructions
inthemanualandonthemachine.
–Useanangleindicatortodeterminethe
approximateslopeangleofthearea.
–Neveroperatethelawnmoweronslopes
greaterthan12°.
–Evaluatethesiteconditionsofthedayto
determineiftheslopeissafeformachine
operation.Usecommonsenseandgood
judgmentwhenperformingthisevaluation.
Changesintheterrain,suchasmoisture,can
quicklyaffecttheoperationofthemachineon
aslope.
•Identifyhazardsatthebaseoftheslope.Do
notoperatethemachineneardrop-offs,ditches,
embankments,water,orotherhazards.The
machinecouldsuddenlyrolloverifawheelgoes
overtheedgeortheedgecollapses.Keepasafe
distance(twicethewidthofthemachine)between
themachineandanyhazard.Useawalk-behind
machineorahandtrimmertomowthegrassin
theseareas.

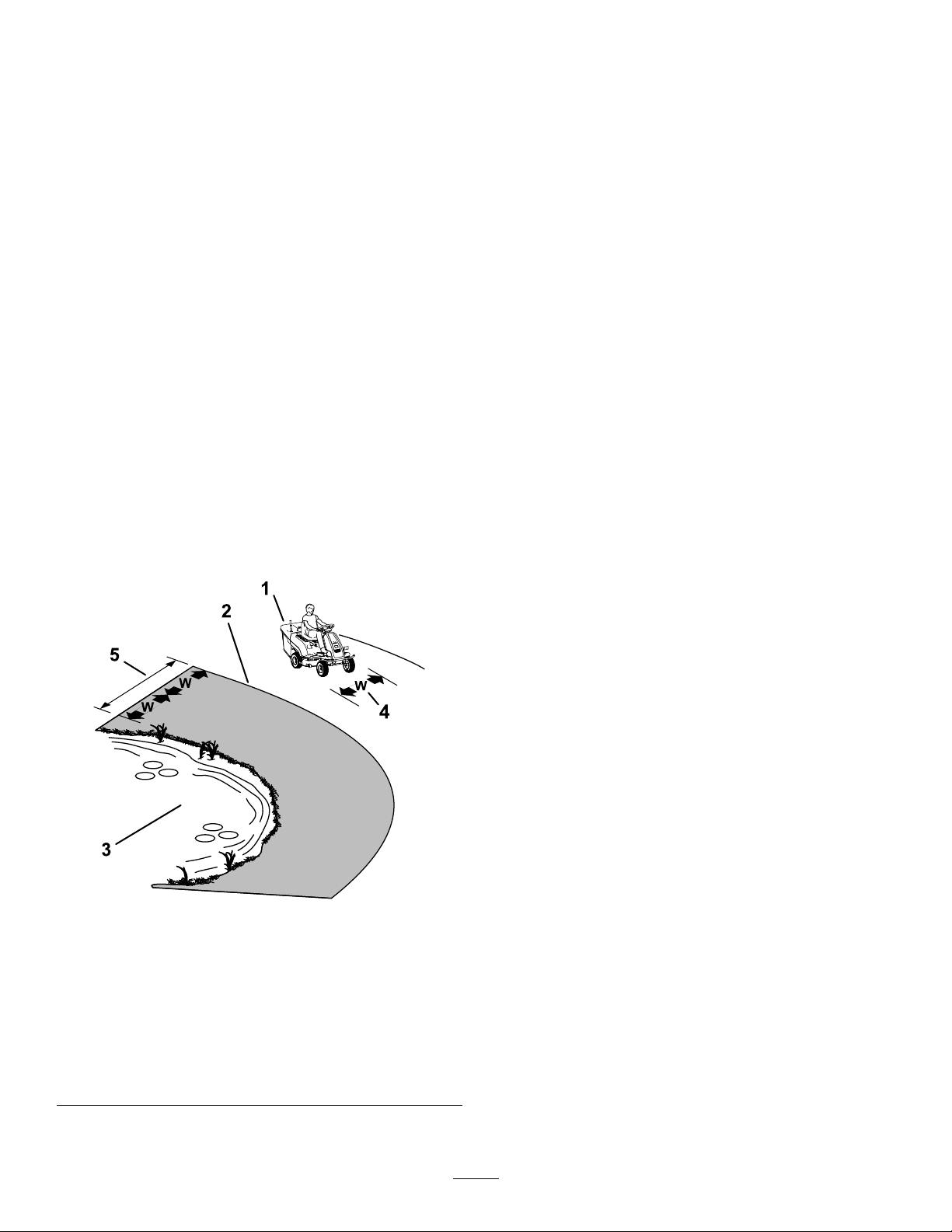

g371007
Figure3
1.SafeZone—usethe
machinehereonslopes
lessthan12°oratareas.
4.W=Widthofthemachine
2.DangerZone—usea
walk-behindmowerand/or
ahandtrimmeronslopes
greaterthan12°andnear
drop-offsorwater.
5.Keepasafedistance
(twicethewidthofthe
machine)betweenthe
machineandanyhazard.
3.Water
•Driveupanddownslopes,notacross.Exercise
extremecautionwhenchangingdirectionon
slopes.
•Avoidstarting,stopping,orturningthemachineon
slopes.Avoidmakingsuddenchangesinspeedor
direction;turnslowlyandgradually.
•Ifthemachinestopsgoinguphill,stoptheblades
andbackdownslowly.
•Donotoperateamachineunderanyconditions
wheretraction,steering,orstabilityisinquestion.
Beawarethatoperatingthemachineonwet
grass,acrossslopes,ordownhillmaycausethe
machinetolosetraction.Lossoftractiontothe
drivewheelsmayresultinslidingandalossof
brakingandsteering.Themachinecanslideeven
ifthedrivewheelsarestopped.
•Removeormarkobstaclessuchasditches,holes,
ruts,bumps,rocks,orotherhiddenhazards.Tall
grasscanhideobstacles.Uneventerraincould
overturnthemachine.
•Ifpossible,keepthedeckloweredtotheground
whileoperatingonslopes.Raisingthedeckwhile
operatingonslopescancausethemachineto
becomeunstable.
AfterOperationSafety
Removethekeybeforestoringortransportingthe
machine.
BatteryandChargerSafety
General
•Improperlyusingormaintainingthebattery
chargercouldresultininjury.T oreducethis
potential,complywiththeallsafetyinstructions.
•Useonlythesuppliedchargerforbatterycharging.
•Conrmthevoltagethatisavailableinyour
countrybeforeusingthecharger.
•ForconnectiontoasupplynotintheUS,
useanattachmentplugadapteroftheproper
congurationforthepoweroutlet,ifneeded.
•Donotgetthechargerwet;keepitprotectedfrom
rainandsnow.
•Ariskofre,electricshock,orinjurymayresult
fromusinganaccessorynotrecommendedor
soldbyToro.
•Toreduceriskofabatteryexplosion,followthese
instructionsandtheinstructionsforanyequipment
thatyouintendtousenearthecharger.
•Batteriescouldemitexplosivegassesiftheyare
signicantlyovercharged.
7

Training
•Neverallowchildrenoruntrainedpeopleto
operateorservicethecharger.Localregulations
mayrestricttheageoftheoperator.Theowner
isresponsiblefortrainingalloperatorsand
mechanics.
•Read,understand,andfollowallinstructionson
thechargerandinthemanualbeforeoperating
thecharger.Befamiliarwiththeproperuseofthe
charger.
Preparation
•Keepbystandersandchildrenawaywhile
charging.
•Wearappropriateclothingwhilecharging,
includingeyeprotection;longpants;and
substantial,slip-resistantfootwear.
•Shutoffthemachineandwaituntilthemachine
hascompletelypowereddownbeforecharging.
Failuretodothismaycausearcing.
•Ensurethattheareaiswellventilatedwhile
charging.
•Readandfollowallprecautionsforcharging.
•UseonlyapowercordapprovedbyT oro.
Operation
•Donotchargeafrozenbattery.
•Donotabusethecord.Donotcarrythecharger
bythecordoryankonthepowersupplycordto
disconnectthechargerfromthereceptacle.Keep
thecordfromheat,oil,andsharpedges.
•Connectthechargerdirectlytoagrounding
receptacle.Donotusethechargeronan
ungroundedoutlet,evenwithanadaptor.
•Donotaltertheprovidedpowercordorplug.
•Avoiddroppingametaltoolnearorontoabattery;
itmightcauseasparkorshort-circuitanelectrical
partthatcouldleadtoanexplosion.
•Removemetalitemssuchasrings,bracelets,
necklaces,andwatcheswhenworkingwitha
lithium-ionbattery.Alithium-ionbatterycan
produceenoughcurrenttocauseasevereburn.
•Neveroperatethechargerwithoutgoodvisibility
orlight.
•Useanappropriateextensioncord.
•Ifthepowersupplycordisdamagedwhileitis
pluggedin,disconnectthecordfromthewall
receptacleandcontactanAuthorizedService
Dealerforareplacement.
•Unplugthechargerfromtheelectricaloutletwhen
notinuse,beforemovingittoanotherlocation,or
priortoservicingit.
MaintenanceandStorage
•Storethechargerindoorsinadry,secureplace
thatisoutofthereachofunauthorizedusers.
•Donotdisassemblethecharger.T akethecharger
toanAuthorizedServiceDealerwhenserviceor
repairisrequired.
•Unplugthepowercordfromtheoutletbefore
startinganymaintenanceorcleaningtoreduce
riskofelectricshock.
•Maintainorreplacesafetyandinstructionlabels
asneeded.
•Donotoperatethechargerwithadamaged
cordorplug.Replaceadamagedcordorplug
immediately.
•Ifthechargerhasreceivedanimpact,been
dropped,orotherwisedamaged,donotuseit;
takeittoanAuthorizedServiceDealer.
MaintenanceSafety
•Ifyouleavethekeyintheswitch,someonecould
accidentlystartthemachineandseriouslyinjure
youorotherbystanders.Removethekeyfromthe
switchbeforeyouperformanymaintenance.
•Beforeyouleavetheoperator’sposition,dothe
following:
–Parkthemachineonalevelsurface.
–Disengagethedrives.
–Engagetheparkingbrake.
–Shutoffthemachineandremovethekey.
–Allowmachinecomponentstocoolbefore
performingmaintenance.
•Donotallowuntrainedpersonneltoservicethe
machine.
•Carefullyreleasepressurefromcomponentswith
storedenergy.
•Checktheparkingbrakeoperationfrequently.
Adjustandserviceitasrequired.
•Nevertamperwithsafetydevices.Checktheir
properoperationregularly.
•Donotrelyonhydraulicormechanicaljacksto
supportthemachine;supportthemachinewith
jackstandswheneveryouraisethemachine.
•Keepallpartsingoodworkingcondition
andallhardwaretightened,especiallythe
blade-attachmenthardware.Replaceallwornor
damageddecals.
•Disconnectthebatterybeforerepairingthe
machine.Disconnectthenegativeterminalrst
andthepositivelast.Connectthepositiveterminal
rstandthenegativelast.
8

•Inspectthebladesperiodicallyforwearordamage.
•Usecarewhencheckingtheblades.Wrapthe
bladesorweargloves,andusecautionwhen
servicingtheblades.Onlyreplaceorsharpenthe
blades;neverstraightenorweldthem.
StorageSafety
•Shutoffthemachine,removethekey,andwait
forallmovingpartstostopbeforeyouleavethe
operator’sposition.Allowthemachinetocool
beforeadjusting,servicing,cleaning,orstoringit.
•Donotstorethemachinewherethereisanopen
ame,spark,orpilotlight,suchasonawater
heateroronotherappliances.
Saveallwarningsandinstructions
forfuturereference.
9

SlopeIndicator
g011841
Figure4
Youmaycopythispageforpersonaluse.
1.Themaximumslopeyoucanoperatethemachineonis12degrees.Usetheslopecharttodeterminethedegreeofslopeof
hillsbeforeoperating.Donotoperatethismachineonaslopegreaterthan12degrees.Foldalongtheappropriateline
tomatchtherecommendedslope.
2.Alignthisedgewithaverticalsurface,atree,building,fencepole,etc.
3.Exampleofhowtocompareslopewithfoldededge
10

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal134-6026
134-6026
1.Batterycharge;readtheOperator’sManual.
decal134-6032
134-6032
1.Brake
decal134-6033
134-6033
1.Propel
decal134-6070
134-6070
1.Batterypowered
decal134-6563
134-6563
1.Thrownobject
hazard—keepbystanders
awayfromthemachine.
3.Attention—donotspray
withwater.
2.Cutting/dismemberment
hazardofhandorfoot,
mowerblade—keepaway
frommovingparts;keep
allguardsandshieldsin
place.
decal134-6565
134-6565
1.Parkingbrake—engage2.Parkingbrake—disengage
11

decal134-6562
134-6562
Note:Thismachinecomplieswiththeindustrystandardstabilitytestinthestaticlateralandlongitudinaltestswiththemaximum
recommendedslopeindicatedonthedecal.ReviewtheinstructionsforoperatingthemachineonslopesintheOperator’sManualas
wellastheconditionsinwhichyouwouldoperatethemachinetodeterminewhetheryoucanoperatethemachineintheconditionson
thatdayandatthatsite.Changesintheterraincanresultinachangeinslopeoperationforthemachine.
1.Warning—readtheOperator'sManual.5.Tippinghazard—donotturnsharplywhiletravelingfast;drive
slowlywhenturning;onlyoperateupslopeslessthan12°;
onlyoperateacrossslopeslessthan12°.
2.Cutting/dismembermenthazardofhandorfoot,mower
blade—keepawayfrommovingparts;keepallguardsand
shieldsinplace.
6.Tippinghazard—donotusedualrampswhenloadingontoa
trailer;use1rampwideenoughforthemachine;usearamp
withaslopelessthan12°;backuptherampwhenloadingthe
machineanddriveforwardofftherampwhenunloading.
3.Runoverhazard—donotcarrypassengers;lookbehindyou
whenmowinginreverse.
7.Warning—wearhearingprotection;weareyeprotection.
4.Thrownobjecthazard—pickupdebrisbeforeoperating;keep
thedeectorinplace;keepbystandersaway.
8.Warning—shutoffthemachineandremovethekeybefore
performingmaintenance.
decal134-6564
134-6564
1.Forward5.Cruisecontrol
2.Reverse6.On
3.Reversewithoutmowing7.Off
4.Reversemowing
12

decal134-6568
134-6568
1.Parkingbrake4.Clippingslevel
2.PTO5.Leftmotorspeed(r/min)
3.Catcherstatus6.Rightmotorspeed(r/min)
13

Setup
1
ConnectingtheBattery
Cable
NoPartsRequired
Procedure
1.Removethesidepanelasdescribedin
AccessingtheBattery(page28).
2.Connectthe2cables.
g343324
Figure5
3.Ensurethatallwiringissecure.
4.Installthesidepanelandsecurethescrews.
2
ChargingtheBattery
NoPartsRequired
Procedure
RefertoChargingtheBattery(page29).
14

ProductOverview
g368368
Figure6
1.Dischargehandle6.Tractionpedal
2.Operatorseat7.Chargerreceptacle
3.Height-of-cutlever8.Anti-scalproller
4.SteeringWheel9.Controlpanel
5.Brakepedal10.Grasscatcher
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
andoperatethemachine.
ControlPanel
g368367
Figure7
1.Informationdisplay5.Cruise-controloperation
button
2.USBport6.Blade-controlswitch
3.Drive-modeswitch7.Keyswitch
4.Reverse-mowing
operationbutton
KeySwitch
Thekeyswitchhas2positions:ONandOFF.Usethe
keyswitchtostartorshutoffthemachine.
Blade-ControlSwitch(Power
Takeoff)
Theblade-controlswitch,representedbya
power-takeoff(PTO)symbol,engagesand
disengagespowertothemowerblades.
BrakePedal
Usethebrakepedaltostoporslowthemachine.
ParkingBrake
Toengagetheparkingbrake,fullypressdownthe
brakepedal,liftthelockinglever,andremoveyour
footfromthepedal.
g368925
Figure8
Fullypressdownthebrakepedaltoreleasethe
parkingbrakeandpedal.
Ifthemachinemoveswhiletheparkingbrakeis
engaged,theparkingbrakeneedstobeadjusted.
ContactyourAuthorizedToroDealerfordetails.
Traction-ControlPedal
Usethetraction-controlpedaltovarytheground
speedofthemachine.Thefartheryoupressthe
pedal,thefasterthemachinemoves.
Drive-ModeSwitch
Thedrive-modeswitchhas3positions:FORWARD,
NEUTRAL,andREVERSE.Thedrive-modeswitchmust
beintheFORWARDpositionbeforeengagingthe
mowerblades.
15

InformationDisplay
Messagesandmachinestatus(i.e.,motorspeed,
batterycharge,operatinghours)appearonthe
informationdisplay.
Note:Theinterlockindicatorsappearwheneach
componentmeetstheappropriateconditiontostart
themachine.
Note:Thedisplaycyclesbetweenbatterycharge
percentageandbatterytemperature.
g385447
Figure9
1.Interlockindicators4.Currentdrivemode
2.Leftmotorspeed5.Workinghours
3.Battery
charge/temperature
6.Rightmotorspeed
ComponentStatus
Parkingbrake
Theparking
brakeis
disengaged.
Theparking
brakeis
engaged.
Blade-control
switch
The
blade-control
switchis
disengaged.
The
blade-control
switchis
engaged.
Catcherstatus
Thegrass
catcheris
closed.
Thegrass
catcherisopen.
Clippingslevel
Thegrass
catcheris
empty.
Thegrass
catcherisfull.
Battery-ChargeIndicator
Thebattery-chargeindicatordisplaystheremaining
chargeinthebatteries.Whenthebatterychargeis
low,themachinealertsyouandthemowerblades
automaticallydisengage;chargethebatterieswhen
thisoccurs.
Reverse-MowingOperation(RMO)
Button
Usethereverse-mowingoperation(RMO)buttonto
operatethemowerbladeswhiledrivingthemachine
inreverse.
Engagethereverse-mowingmodeinthefollowing
ways:
•Beforeengagingtheblades
–Pressthereverse-mowingbutton,engage
themowerblades,thenmovethedrive-mode
switchtotheREVERSEposition.
–Engagethemowerblades,pressthe
reverse-mowingbutton,thenmovethe
drive-modeswitchtotheREVERSEposition.
•Whilemowingintheforwarddirection
–Pressthereverse-mowingbutton,thenmove
thedrive-modeswitchtotheREVERSEposition.
–Movethedrive-modeswitchtotheREVERSE
position,disengagethemowerblades,press
thereverse-mowingbutton,thenengagethe
mowerblades.
Cruise-ControlSystem(CCS)
Button
Usethecruise-controlsystem(CCS)buttonto
maintainthetractionspeedwithoutyourfootonthe
pedal.
Pressthetraction-controlpedaltothedesiredspeed,
holdthecruise-controlbutton,thenreleaseyourfoot
fromthepedal.
Pressthetraction-controlpedalorbrakepedalto
disengagethecruisecontrol.
Height-of-CutLever
Usetheheight-of-cutlevertolowerandraisethedeck
fromtheseatedposition.Movingthelevertowardyou
raisesthedeckfromthegroundandmovingthelever
awayfromyoulowersthedecktowardtheground.
Adjusttheheight-of-cutonlywhilethemachineisnot
moving.
16

Specications
Note:Specicationsanddesignaresubjectto
changewithoutnotice.
Cuttingwidth81cm(32inches)
Width85cm(33.4inches)
Length200cm(78.7inches)
Height104cm(40.9inches)
Weight164kg(362lb)
Chargingtimewith2.5A
charger
10hours
Chargingtimewithoptional
10Acharger
3hours
Attachments/Accessories
AselectionofToroapprovedattachmentsand
accessoriesisavailableforusewiththemachine
toenhanceandexpanditscapabilities.Contact
yourAuthorizedServiceDealerorauthorizedT oro
distributororgotowww.Toro.comforalistofall
approvedattachmentsandaccessories.
Toensureoptimumperformanceandcontinuedsafety
certicationofthemachine,useonlygenuineT oro
replacementpartsandaccessories.Replacement
partsandaccessoriesmadebyothermanufacturers
couldbedangerous,andsuchusecouldvoidthe
productwarranty.
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
BeforeOperation
PerformingDaily
Maintenance
Beforestartingthemachineeachday,performthe
EachUse/DailyprocedureslistedinPerformingDaily
Maintenance(page17).
UsingtheSafety-Interlock
System
WARNING
Ifthesafety-interlockswitchesare
disconnectedordamaged,themachinecould
operateunexpectedly,causingpersonal
injury.
•Donottamperwiththeinterlockswitches.
•Checktheoperationoftheinterlock
switchesdailyandreplaceanydamaged
switchesbeforeoperatingthemachine.
Understandingthe
Safety-InterlockSystem
Thesafety-interlocksystemisdesignedtopreventthe
machinefromstartingunless:
•Theblade-controlswitch(PTO)isdisengaged.
•Theparkingbrakeisdisengaged.
•Youareseatedintheoperator'sseat.
•Thedrive-modeswitchisintheFORWARDor
NEUTRALposition.
Thesafety-interlocksystemalsoisdesignedto
preventthemowerbladesfromengagingunlessthe
drive-modeswitchisintheFORWARDposition.
TestingtheSafety-Interlock
System
Testthesafety-interlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorized
ServiceDealerrepairthesafetysystemimmediately.
1.Sitontheseat,engagetheparkingbrake,move
thedrive-modeswitchtotheFORWARDposition,
17

andmovetheblade-controlswitchtotheOFF
position.Trystartingthemachine;themachine
shouldnotstart.
2.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theONposition.Trystartingthemachine;the
machineshouldnotstart.
3.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheREVERSE
position,andmovetheblade-controlswitchto
theOFFposition.Trystartingthemachine;the
machineshouldnotstart.
4.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,riseslightlyfromtheseat;
themachineshouldshutoff.
5.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,engagetheblade-control
switch,andriseslightlyfromtheseat;themower
bladesandmachineshouldshutoff.
6.Sitontheseat,disengagetheparkingbrake,
movethedrive-modeswitchtotheFORWARD
position,andmovetheblade-controlswitchto
theOFFposition.Startthemachine.Whilethe
machineisrunning,engagetheblade-control
switch,andmovethedrive-modeswitchtothe
REVERSEposition;themowerbladesshould
shutoff.
PositioningtheSeat
Theseatcanmoveforwardandbackward.Position
theseatwhereyouhavethebestcontrolofthe
machineandaremostcomfortable.
g341496
Figure10
RemovingtheGrass
Catcher
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Openthegrasscatcherbypullingoutthe
discharginghandleandpushingitforward.
g369295
Figure11
18

4.Liftthegrasscatcheroffthemachineusingthe
handleandrearframe.
g371008
Figure12
InstallingtheGrassCatcher
1.Installthegrasscatcherframeontothebrackets.
g371021
Figure13
2.Insertthedischarginghandle.
g371020
Figure14
3.Ensurethatthebottomlatchisengaged.
InstallingtheMulchingPlug
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoRemoving
theGrassCatcher(page18).
4.Insertthemulchingplugintothedischarge
openinguntilitstopsonthebottomofthe
dischargechute.
g369383
Figure15
5.Extendthe2springstothehooksontherear
panel.
g369382
Figure16
1.Hook(2)3.Spring(2)
2.Mulchplughandle
19

6.Installthegrasscatcher;refertoInstallingthe
GrassCatcher(page19).
Note:Themowerdoesnotoperateunlessthe
grasscatcherisinstalled.
AdjustingtheFull-Bag
IndicatorSwitch
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutoffthemachineandremovethekey.
3.Removethegrasscatcher;refertoRemoving
theGrassCatcher(page18).
4.Extendthelevertoincreasethesensitivityofthe
switch;shortenittodecreasethesensitivity.
g373733
Figure17
1.Decreaseswitch
sensitivity
2.Increaseswitchsensitivity
5.Installthegrasscatcher;refertoInstallingthe
GrassCatcher(page19).
DuringOperation
StartingtheMachine
1.Sitontheoperator’sseat.
2.Disengagetheparkingbrake.
3.Ensurethattheblade-controlswitch(PTO)is
disengaged.
4.Ensurethatthedrive-modeswitchisinthe
NEUTRALposition.
5.TurnthekeyswitchtotheONposition.
DrivingtheMachine
Note:Alwaysusecautionwhenbackingupand
turning.
1.Movethedrive-modeswitchtotheFORWARDor
REVERSEposition.
2.Placeyourfootonthetraction-controlpedaland
slowlypressittostartdriving.
Note:Thefartheryoupressthepedal,the
fasterthemachinemoves.
3.Releasethetraction-controlpedalandslowly
pressthebrakepedaltostoporslowthe
machine.
Note:Stopthemachinebeforechanging
directiontoforwardorreverse.
ShuttingOfftheMachine
1.Parkthemachineonalevelsurface.
2.Disengagethemowerblades.
3.Engagetheparkingbrake.
4.TurnthekeyswitchtotheOFFpositionand
removethekey.
20
