Toro Super Recycler 20473 User manual

FORM NO. 3318-781 REV A
Super Recycler®
Walk-behind Power Mower
Model No. 20461, 20462, 20463, 20472, 20473-- 6900001 & Up
Model No. 20467, 20468, 20469, 20470, 20478,
20479, 20480 -- 7900001 & Up
Super Recycler®
Tondeuse motoris_e &guidage arriere
Modele No. 20461, 20462, 20463,
20472, 20473 m6900001 et suivants
ModUle No. 20467, 20468, 20469 20470, 20478,
20479, 20480 m7900001 et suivants
Super Recycler ®
Cortadora de c_sped motorizada empujada por
el usuario
Modelos N. 20461, 20462, 20463,
20472, 20473 -- 6900001 y siguientes
Modelos N. 20467, 20468, 20469, 20470, 20478,
20479, 20480 m7900001 y siguientes
Operator's Manual
Manuel de L'Utilisateur
Manual del Operador

The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Les gaz d'echappement du moteur de ce
produit contiennent des produits
chimiques reconnus dans I'_tat de
Californie comme canc_rig_nes,
responsables de malformations
congq_nitales, ou comme nocifs &I'_gard
des fonctions de la reproduction.
El escape del motor de esta herramienta
contiene productos quimicos que segdn
la informaci6n del Estado de California
producen cdncer, defectos congenitos u
otros riesgos reproductivos.

Figures-- Figuras
Self-propelled models
Modble autotract_
Modelo autopropulsado
English
1, Model and serial number decal
Fran_ais
1. D_calcomanie de num6ros de module et de s_rie
Espa_ol
1. Calcomanfa con los n6meros de modelo y serie
1778
\
11064
Hand push models
ModUle non tract_
Modelo de empuje manual
English
1. Model and serial number decal
Fran_ais
1. Decalcomanie de num6ros de module et de s6r_e
EspaSol
1. Calcomania con los n_meros de modelo y serie
©The Toro Company -1996, Rev. 1997
PrintedinUSA All Rights Reserved i

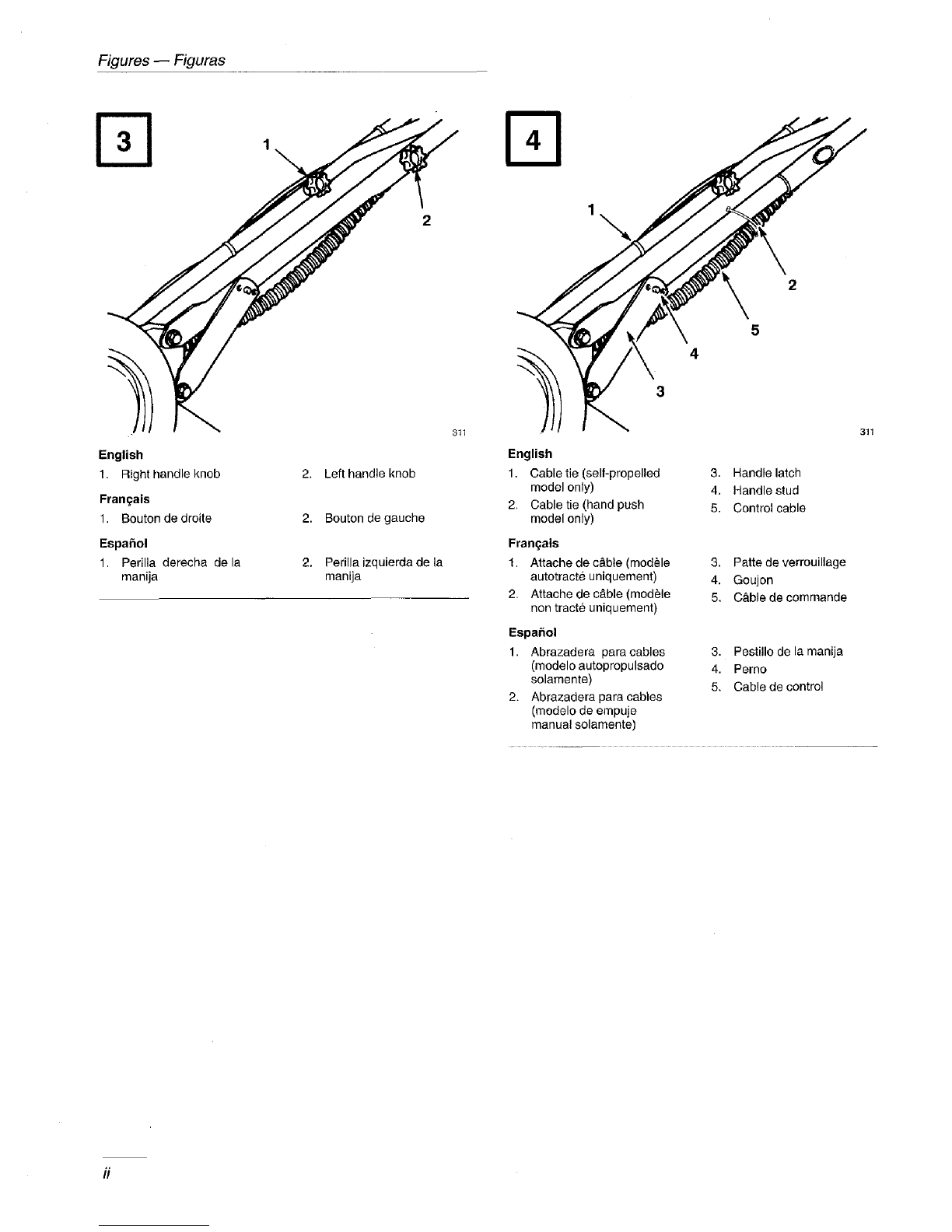

Figures--Figuras
Fq rq
1
English
1. Right handle knob
Fran_ais
1. Bouton de droite
Espafiol
1. Perilla derecha de la
manija
2. Left handle knob
2. Bouton de gauche
2, Perilla izquierda de la
manija
311
4
3
English
1. Cable tie (self-propelled
model only)
2, Cable tie (hand push
model only)
Fran_als
1. Attache de c&ble (modele
autotracte uniquement)
2. Attache de c&ble (modUle
non tract6 uniquement)
Espa_ol
1. Abrazadera paracables
(modelo autopropulsado
solamente)
2. Abrazadera para cables
(medelo de empuje
manual solamente)
3. Handle latch
4. Handle stud
5. Control cable
3. Pattede verrouillage
4. Goujon
5. C&ble decommande
3. Pestiilo de la manija
4. Perno
5. Cable de control
311

Figul'es -- Figurss

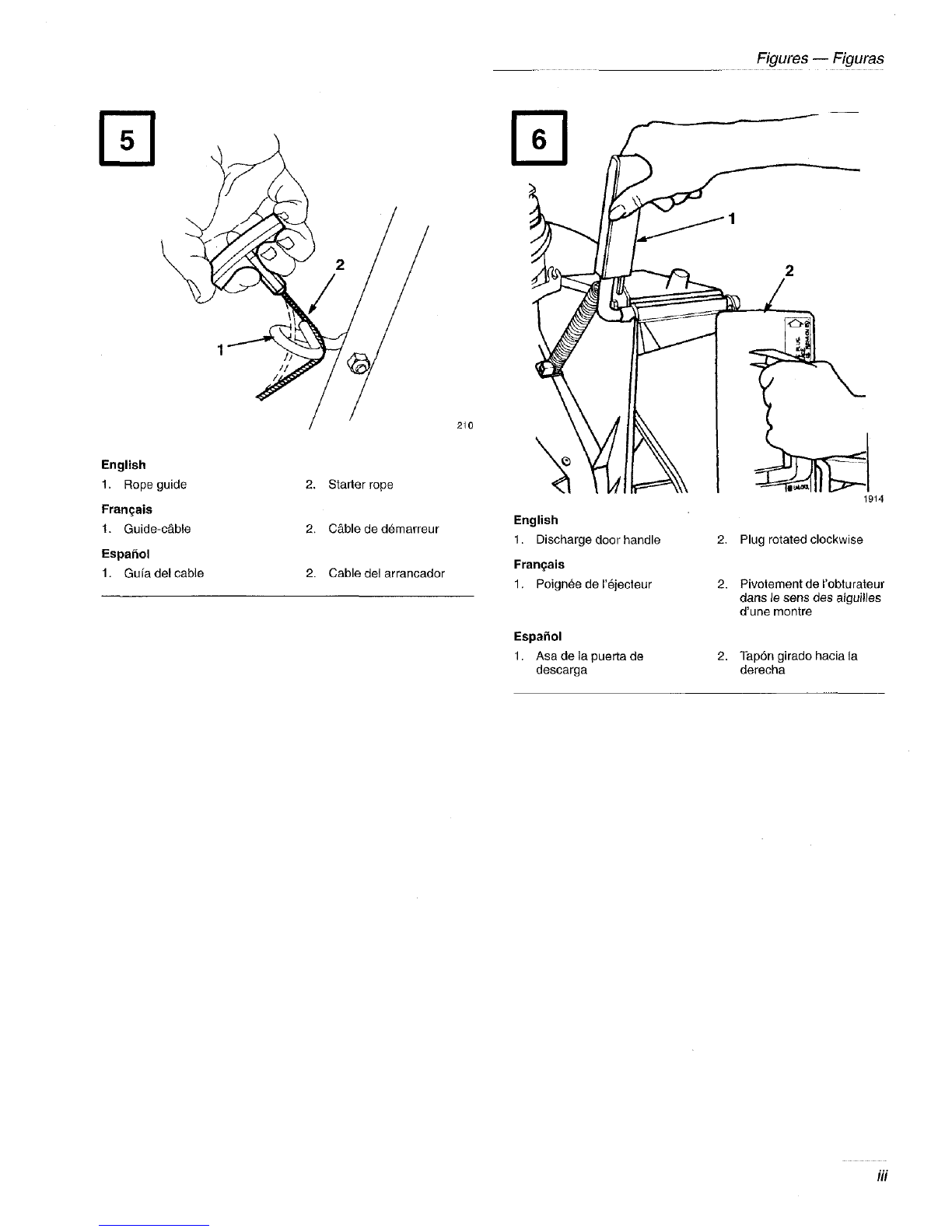

English
1. Rope guide
Fran_ais
1. Guide-c&ble
Espa_ol
1. Gufa del cable
2. Stader rope
2, C&ble ded6marreur
2. Cable del arrancador
210
English
1. Discharge door handle
Fran_ais
1. Poignee de I'_jecteur
EspaSol
1. Asa de la puerta de
descarga
1914
2. Plug rotated clockwise
2. Pivolement del'obturateur
dane le sens des aiguilles
d'une montre
2, Tap6n girado hacia la
derecha

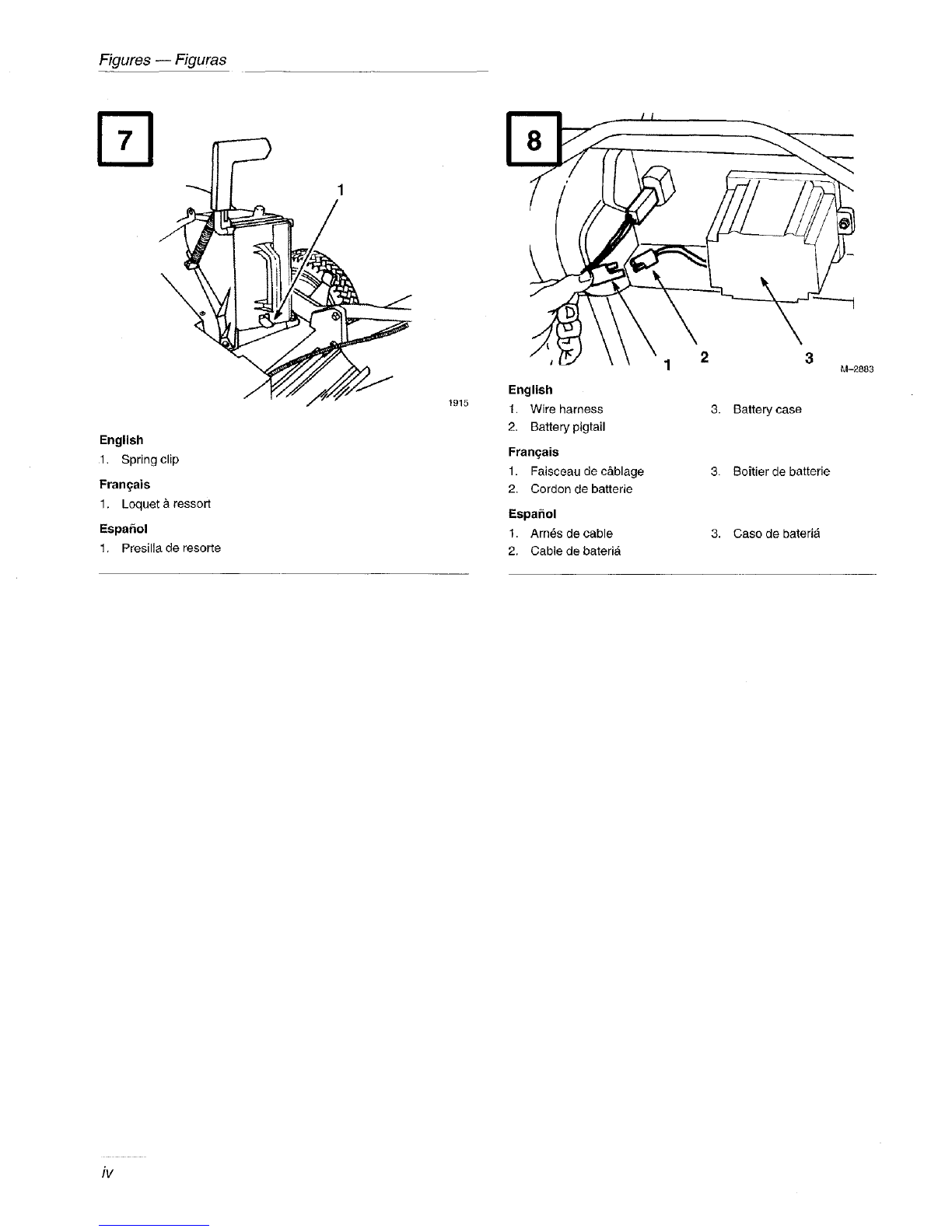

Figures -- Figuras
./_ _--" En0,,.. 2 °-2°°3
1915
English
1. Spring clip
Fran_ais
1. Loquet _ ressort
EspaSol
1. Presilla de resorte
1. Wire harness
2. Batte Wpigtail
Fran_ais
1. Faisceau de c&blage
2. Cordon de batterie
Espahol
1. Arn6s de cable
2. Cable de bated&
3. Battery case
3. Boitier de batterie
3. Caso de bateria
iv

Figures -- Figuras
4\
.J
IL
2
2
English
1. Dipstick
2. ADD mark
3. FULL mark
Fran_ais
1. Jauge d'huile
2. Repere ADD (ajouter)
3. Rep_re FULL (plein)
Espa_ol
1. Varilla de nivel
2. Marca "ADD" (agregar)
3. Marca "FULL" (lleno)
4. Fuel tank cap
5. Spark plug wire
4. Bouchon du r_servoir de
carburant
5. Filde bougie
4. Tapa del dep6sito de
combustible
5. Cable de la buj_a
1626
Hand push models
ModUle non tract6
Modelo de empuje manual
English
1. Throttle control
2. Control bar
Fran_ais
1, Commandedes gaz
2. Barre de commande
Espa£tol
1. Acelerador
2. Barra de control
3. Recoil starter
3. Demarreur de rappel
3. Arrancador recuperador

Figures -- FJgurss
2
Self-propelled models
ModUle autotractd
Modelo autopropulsado
English
1. Throttle control
2. Ground speed control
3. Control bar
Fran£ais
1. Commande des gaz
2. Vitesse au sol
3. Barre de commande
4. Demarreur de rappel
Espafiol
1. Acelerador
2. Delsistemade
autoimpulsi6n
3. Barra de control
5
4. Recoil starter
5. Keyswitch (electric start
model)
5. Commutateur a cl6 de
contact (mod¢les &
d_marreur _lectrique)
4. Arrancador recuperador
5. Interruptor con Ilave
(modelo con arranque
el_trico)
Fq
/
3
English
1. RUN/DRIVE position
2. RUN/SHIFT position
Frangais
1, Position
MARCHE/TRACTION
2. Position
MARCHE/EMBRAYAGE
Espa_ol
1. Posici6n
AVANCE/AUTOMATICO
2. Posici6n
AVANCE/MANUAL
3. STOP position
3. Position ARRET
3. Posici6n PARADA
36O
11344
English
1, Primer
Fran(;ais
1. Amorceur
Espa_ol
1, Cebador
vi

Figures-- Figuras
Fq

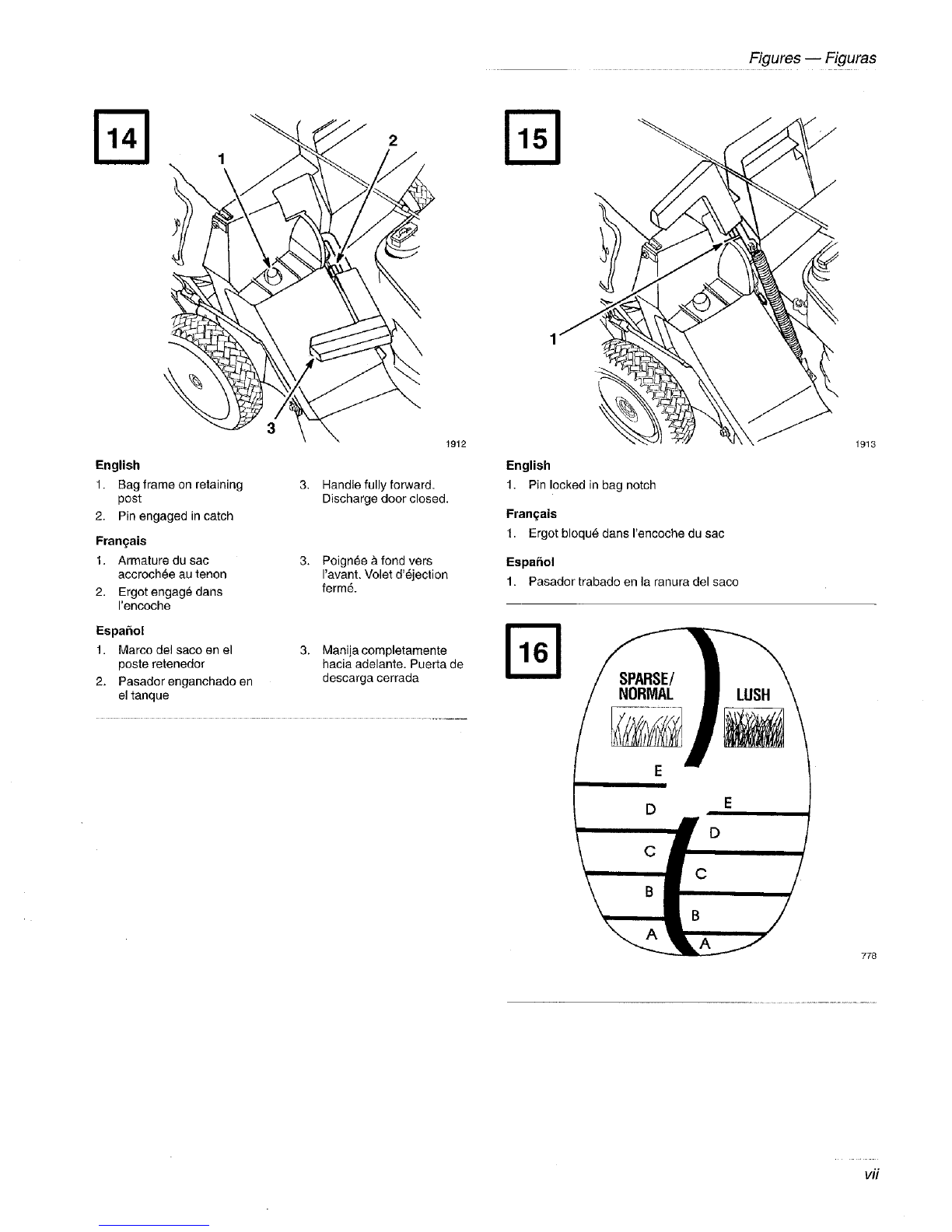

English
1. Bag frame on retaining
post
2. Pin engaged in catch
Fran£ais
1. Armature du sac
accroch6e au tenon
2. Ergot engag_ dans
I'encoche
1912
3. Handle fully forward.
Discharge door closed.
3. Poign6e _ fond vers
I'avant. Volet d'6jeclion
ferm&
Espa_ol
1. Marco del saco en el
poste retenedor
2. Pasador enganchadoen
el tanque
3. Manija completamente
hacia adelante. Puerta de
descarga cerrada
English
1. Pin locked in bag notch
Fran£ais
t. Ergot bloqu_ dans I'encoche du sac
Espa_ol
1. Pasador trabado en la ranura del saco
1913
Fq
778

Figures -- Figuras
@
English
1. Height-of-cut lever
Franqais
1. Levier de hauteur de coupe
EspaSol
1. Palanca de ajuste de altura de corte
788
1
1782
English
1. Oil fill tube
Fran(;ais
1. Tube de remplissage d'huile
EspaSol
1. Tubo de Ilenado del aceite
%]
(
English
1. Air filter
2. Screw
Fran(_ais
1. Filtre _.air
2. Vis
Espafiol
1, Filtro de aire
2. Tornilto
2
3. Cover
3. Couvercle
3. Cubierta
3
1003
English
1. .030 in. (,76 mm)
Franqais
1. 0,076 mm
EspaSol
1. 0,076 mm
986
viii

Figures-- Figuras
p-q 2
English
1. Cover
Fran£ais
1. Capet
Espahol
1, Tapa
2. Screw (2)
2. Vis (2)
2. Tornillo (2)
1709
34
\
English
1. Cable clamp screw
2. Throttle cable
Fran£ais
1. Vis du serre-c&ble
2. C&ble des gaz
EspaRol
1. Tornille de la abrazadera
del cable
21 Cable del acelerador
3. Throttle lever
4. Throttle stop
3. Manette d'accel_rateur
4. Butee d'acc_lerateur
3. Palancadel regulador
4. Topedel regulador
\\
402
English
1. Control knob
Fran£ais
1. Bouton decommande
Espa_ol
1. Bot6n de mando
English
1. Bolt and Iockwasher
2. Accelerator
Fran£ais
1. Boulon et rondelle de
blecage de la lame
Espahol
1. Pemo y arandela de la
cuchilla
3757
3. Blade
2. Acc61erateur
3. Lame
2. Acelerador
3. Cuchilla
ix

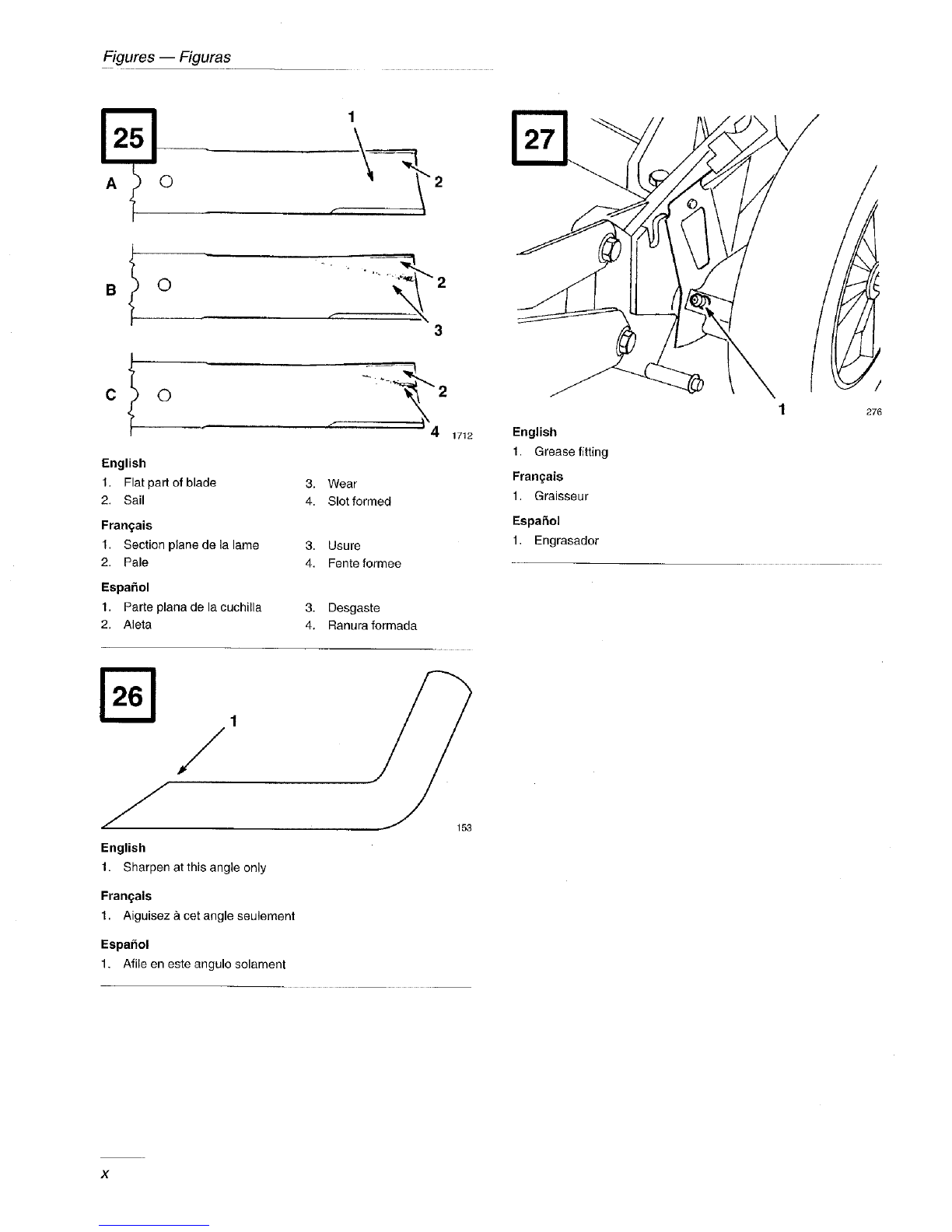

Figures-- Figuras
1
•,,..,4
BO2
F3
C©2
r_ 1712 English
1. Grease fitting
English
1. Flat part of blade 3, Wear Fran£ais
2. Sail 4. Slot formed 1. Graisseur
Fran_ais EspaRol
1. Section plane dela lame 3. Usure 1. Engrasador
2. Pale 4. Fente formee ---
EspaRol
1. Parte plana de la cuchilla 3. Desgaste
2. Aleta 4. Ranura formada
/
1 276
Fq
J 153
English
1. Sharpen at this angle only
Fran£als
1. Aiguisez a cet angle seulement
Espa_ol
1. Afile en este angulo solament

Figures -- Figuras
©Fq 1\
Self-propelled models
ModUle autotract_
Modelo autopropulsado
English
1. Handle
2. Brake lever
3. 1/8"-3/16"
Fran£ais
1. Mancheron
2. Levier de frein
3. 3,2 4,8mm
Espahol
1. Manija
2. Palanca del freno
3. 3,2-4,8 mrn
4. Nut
5. Cable conduit
4. Ecrou
5. Gafne du c&ble
4. Tuerca
5. Conducto del cable
777
4
5
Hand push models
ModUle non tract_
Modelo de empuje manual
English
1. Handle 4. Nut
2. Broke lever 5. Cable conduit
3. 1/8"-3/16"
Fran_ais
1. Mancheron 4. Ecrou
2. Levier de frein 5. Gaine du cable
3. 3,2-4,8 mm
Espafiol
1. Manija 4. Tuerca
2. Palanca del freno 5. Conducto del cable
3. 3,2-4,8 mm
1
English
1. Kickers
Fran£ais
1. Plaques de d_flection
Espa£=ol
1. Placas deflectoras
251
796
xi

Figures -- Figuras
English
1. Right rear wheel
Fran_ais
1. Roue arri_re droite
Espahol
1. Ruedatrasera derecha
1093
English
1. Belt cover
Fran£ais
1. Garde de la courroie
EspaSol
1. Tapa de la correa
281
2. Bolt
2. Boulon
2, Tornillo
/12
English
1. Discharge tunnel
Fran_ais
1. Conduit de rejecteur
Espa_ol
1. Canal de descarga
2. Discharge tunnel plug
2. Obturateur
2. Tap6n del canal de
descarga
1
English
1. Side discharge chute
Fran_ais
1. Ejecteur lat6ral
EspaSol
1. Canaleta de descarga lateral
1915
2047

Contents
Page
Introduction ............................ 1
Safety ................................. 2
Safe Operating Practices .............. 2
Safety and Instruction Decals .......... 4
Assembly .............................. 6
Handle ............................ 6
Starter Rope ........................ 6
Discharge Tunnel Plug ................ 6
Battery ............................ 6
Before Starting .......................... 7
Oil ................................ 7
Gasoline ........................... 7
Recycling Tips .......................... 8
General Tips ........................ 8
Operation .............................. 9
Controls ........................... 9
Starting Engine ...................... 9
Stopping Engine ..................... 9
Self-propelled Drive .................. l0
Pulling Mower Rearward .............. 10
Using Discharge Tunnel Plug .......... 10
Using Optional Grass Bag or Side Discharge
Chute ............................ 11
Adjusting Cutting Height .............. 12
Maintenance ............................ 13
Recommended Maintenance Schedule ... 13
Air Filter ........................... 14
Drain Gasoline ...................... 14
Change Engine Oil ................... 14
Spark Plug ......................... 15
Throttle Cable ...................... 15
Self-propelled Cable ................. 15
Blade ............................. 16
Lubrication ......................... 17
Blade Brake ........................ 17
Charging Battery .................... 17
Disposing of Battery ................. 18
Cleaning ........................... 18
Storage ................................ 19
Fuel ............................... 19
Engine ............................ 20
Cleaning ........................... 20
General ............................ 20
Removing From Storage .............. 20
Accessories ............................ 20
The Toro Starting Guarantee ............... 22
Guaranteed To Start Maintenance Record ..... 24
Warranty ............................... 25
Introduction
Thank you for purchasing a Toro product.
All of us at Toro want you to be completely satisfied
with your new product, so feel free to contact your
local Authorized Service Dealer for help with service,
genuine Toro parts, or other information you may
require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
decal located in a unique place on the product
(Fig. 1 & 2).
For your convenience, write the product model and
serial numbers in the space below.
Model No.
Serial No.
Read this manual carefully to learn how to operate
and maintain your product correctly. Reading this
manual will help you and others avoid personal injury
and damage to the product. Although Toro designs,
produces and markets safe, state-of-the-art products,
EN-I

you are responsible for using the product properly
and safely. You are also responsible for training
persons who you allow to use the product about safe
operation.
The Toro warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard, However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
Safe Operating Practices
This product is capable of amputating hands and feet
and throwing objects. Always follow all safety
instructions to avoid serious injury or death.
POTENTIAL HAZARD
•Engine exhaust contains carbon monoxide,
which is an odorless, deadly poison.
WHAT CAN HAPPEN
•Carbon monoxide can kill you and is 'also
known to the State of California to cause
birth defects.
HOW TO AVOID THE HAZARD
•Do not run engine indoors or in an enclosed
area.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. "Important" calls attention to special
mechanical information and "Note" emphasizes
general information worthy of special attention.
Safety
This machine meets or exceeds CPSC blade safety
requirements for walk-behind rotary mowers and
the B71.1 specifications of the American National
Standards Institute, in effect at time of
production. However, improper use or
maintenance by the operator or owner can result
in injury. To reduce the potential for injury,
comply with these safety instructions and always
pay attention to the safety alert _symbol which
means CAUTION, WARNING or
DANGER--"personal safety instruction." Failure
to comply with the instruction may result in
personal injury.
This mower is designed for cutting and recycling
grass or, when equipped with a grass bag, for
catching cut grass. Any use for purposes other than
these could prove dangerous to user or bystanders.
Note: This engine is NOT_equipped with a
spark arrester muffler. Use or operation
of this mower in the State of California
on any forest-covered, brush-covered
or unimproved grass-covered land,
without an approved spark arrester
muffler, is a violation of the law. Other
states may have similar laws.
General Operation
.Read this manual carefully before operating the
mower. Become familiar with the controls and
proper use of the mower. Never allow children
under 16 years of age to operate the mower.
Never allow adults to operate mower without
proper instructions.
.The operator of the mower is responsible for
keeping everyone, especially children and pets,
away from area of operation. The operator is
responsible for accidents or hazards occurring to
other people or their property.
EN-2

.
t
.
Q
o
.
.
Thoroughly inspect area where mower will be
used and remove sticks, stones, wire, and debris.
Watch for foreign objects while mowing.
Wear long pants and substantial shoes. Do not
operate mower while wearing open-toed shoes,
jewelry, loose clothing or when barefoot.
Check fuel level before starting engine. Because
fuel is highly flammable, handle it carefully.
A. Use an approved container.
B. Fill fuel tank outdoors, not indoors.
NEVER ADD FUEL TO AN ENGINE
THAT IS RUNNING OR HOT.
C. Install gas cap on fnel container and gas
tank, and wipe up any spilled gasoline
before starting engine.
D. Do not smoke while refueling.
Keep all guards, shields, grass catchers and
safety devices in place. Repair or replace
damaged parts, including decals. Check all
safety devices before each use.
Before using, always visually inspect to see that
the blades, blade fasteners and cutter assembly
are not worn or damaged. Replace worn or
damaged blades and fasteners in sets to preserve
balance.
Traction drive (self-propelled model), blade and
engine are designed to stop when control bar is
released. Ensure control mid brake function
properly before each use of mower.
Disengage the self-propelled mechanism or drive
clutch (self-propelled model) before starting the
engine.
While Operating
1. Do not run engine indoors.
2. Start the engine carefully according to
instructions and with feet well away from the
blade.
.
o
6.
f
8.
.
10.
11.
12.
13.
14.
Always maintain secure footing. Keep a finn
grip on the handle and walk; never run. Never
operate mower in wet grass. Mow only in
daylight or in good artificial light.
Mow across the face of slopes; never up and
down. Use extreme caution when changing
direction on slopes. Do not mow excessively
steep slopes. Wear skid resistant shoes on slopes.
Always wear safety glasses or eye shields during
operation to protect eyes from foreign objects
that may be thrown from the machine. Wearing
of hearing protection, protective gloves and a
safety helmet is advisable.
Keep face, hands, and feet away from the mower
housing and cutter blade when the engine is
running. Blade can cause injury to hands and
feet. Stay behind the handle until the engine
stops.
Use extreme caution when reversing or pulling
the mower towards you.
Since the blade rotates for a few seconds after
the control bar is released, stay behind the
handle until the engine stops.
When bagging grass, stop engine and stay
behind handle until all moving parts stop before
removing and emptying bag.
When mowing, ensure grass bag is installed over
discharge opening.
Shut engine off and stay behind handle until all
moving parts stop before unclogging chute.
After striking a foreign object or if mower
vibrates abnormally, stop engine and remove
wire from spark plug. Check mower for damage
and make all repairs before using mower again.
If major repairs are ever needed or if assistance
is desired, contact your local Authorized Toro
Service Dealer.
Stop the engine and wait for all moving parts to
stop before adjusting tile height-of cut.
Stop the blade when pushing the mower outside
the lawn area.
EN-3

15.
16.
17.
18.
Stop engine before leaving the operator's
position -behind the handle. Disconnect wire
from spark plug if mower will be unattended.
Do not touch engine while it is running or
shortly after it is stopped because engine will be
hot enough to cause a burn.
Refuel only when engine is cool.
If mower must be lifted to be transported, turn
off engine and stay behind the handle until all
moving parts stop.
Maintenance
.Perform only those maintenance instructions
described in this manual, ff major repairs are
ever needed or if assistance is desired, contact
your local Authorized Toro Service Dealer.
,Before mower is cleaned, inspected, serviced, or
adjusted, stop engine and disconnect wire from
spark plug. Keep wire away from plug to prevent
accidental starting.
.To ensure the mower is in safe operating
condition, frequently check and keep all nuts,
bolts, and screws tight. Ensure blade bolt is
tightened to 40-50 ft.-lbs. (54-68 N m).
4. When servicing blade, refer to blade
maintenance section for correct installation and
servicing procedures.
5. To reduce fire hazard, keep engine free of
excessive grease, grass, leaves, and
accumulations of dirt.
6. Do not overspeed the engine by changing
governor settings.
7. Check grass catcher bag frequently for wear or
deterioration. Replace with a new bag when
worn or damaged for your protection.
.Allow engine to cool before storing mower in
any enclosure. Do not store mower near any
open flame or where gasoline fumes may be
ignited by a spark.
,At the time of manufacture, the mower
conformed to the safety standards in effect for
rotary mowers. To ensure best performance and
continued safety certification of the mower, use
genuine TORO replacement parts and
accessories. Replacement parts and accessories
made by other manufacturers =nay result in
nonconformance with the safety standards, and
that could be dangerous.

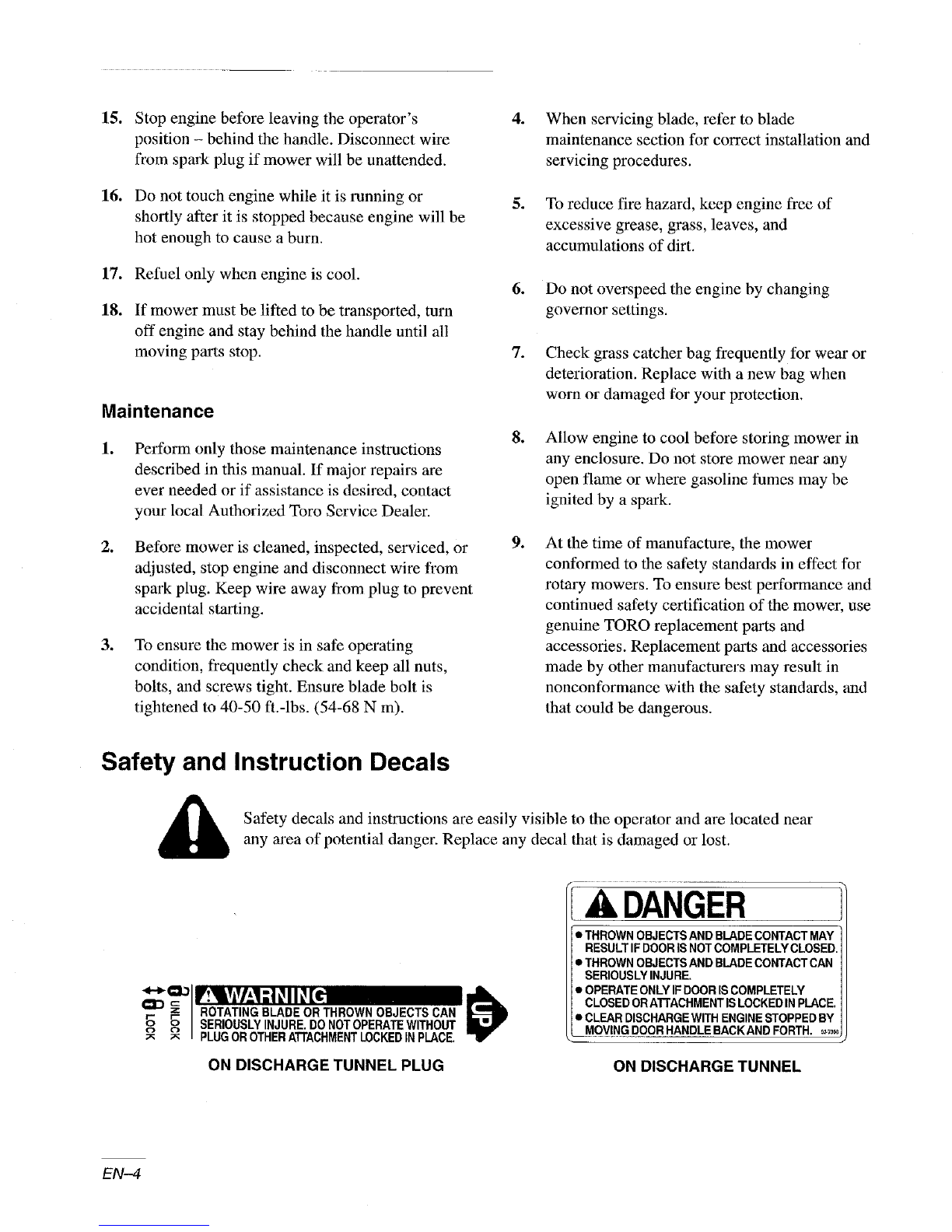

Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
°° °° I SERIOUSLYINJURE. DO NOTOPERATEWITHOUT
_PLUGOR OTHERATTACHMENTLOCKEDINPLACE.
ON DISCHARGE TUNNEL PLUG
ADANGER
• THROWN OBJECTSAND BLADECONTACT MAY
RESULTIFDOORIS NOTCOMPLETELY CLOSED.
•THROWN OBJECTS AND BLADECONTACTCAN
SERIOUSLY INJURE.
•OPEFIATEONLYIF DOORIS COMPLETELY
CLOSED ORATrACHMENT ISLOCKEDINPLACE.
•CLEAR DISCHARGEWrIH ENGINESTOPPED BY
MOVINGDOORHANDLE BACKAND FORTH. _,_
ON DISCHARGETUNNEL
EN-4

ON MOWER HOUSING
(Part No. 39-5770)
|ADANGER
IrROTATING BLADE OR THROWI_
OBJECTS CAN SERIOUSLY
_ll_J/JURE.
"_L DO NOT OPERATE W_TH-
"_kOUT COVER-DEFLECTOR
ASSEMBLY OR OTHER
LOCKED IN
_ACE, _-_.
UNDER COVER-DEFLECTOR
ASSEMBLY ON MOWER DECK
(Part No. 82-8450)
Self-propelled models only:
ON MOWER HOUSING
(Part No. 93-0248)
CONTROL BAR INSTRUCTIONS
TO _TA _: MOVE G ROUND SpEE_ COb_TROL TO "lP.
p_SH P_IER BUTrOf_ OR _GINETHREET_tES.
rIFT CONTROL BAR T_3 RUt_RNE pO6fflON A_D HOLO
P_LL ROPE
TO CHA_E QRQUND SPEED:ALLOWCOkTROL BAR _RUN/ORIVE
$_L_T6_UNO SP_. •RtlNiNtlFT
TO _roP: RE_6E CO_L _R. I
THROTTLE GROUNDSPEED
1
N
ON CONTROL PANEL
(Part No. 93-4191)
THROTTLE
_START
IGNITION
Models 20463, 20473:
ON CONTROL PANEL
(Part No. 93-4192)
Electric start models only:
©
OPERATING INSTRUCTIONS
TO START: MOVE GROUND SPEED CCNTROL TO "N ', MOVE THROTTLE TO FAST.
PUSH PRIME_ BUTT(_N CN EN CiIN ETHREE TIMES. LEFT CONTROL BAR TO HANDLE
TURN KE_ RELEASE KEY WHEN II_JGINE STARTS OR AFTER TRRE_ $E_JDS OF
CRANKING IF THE _ATT_RYS CHARGE IS TOO WF..AK TO START THE ENGINE,
_HE ENGINE CAN BE STARTED WITH THE FINGERTIP STA_TEF_
TO D RIV_: MOVE CONTROL BAR TO R LIN_ HIFT POSITIOhL SELECT GROUI_D
SPEED LIFT CONTROL _TO R_WDRN E POSITION GROUND
POSiT[O_SPEEDVAR_ AS CONTROL BAR I_ LOW_ E_) TO RUWSHIFT @
TO STOP _NGtIN _: RELF.AS_ (_ONTROL BAR, RUN/DRIV E _--_
_RUN/SHIFT
o, 1
"m_ N
CCI_'rAIP_,_SEALED LEADACID BATi'I_RV, MU_T _,
BE RECYCLED OR DISI=O_ O_ PROp_ L'L GROUNDSPEED ,-_
Model 20480:
ON CONTROL PANEL
(Part No. 95-3013)
EN-5

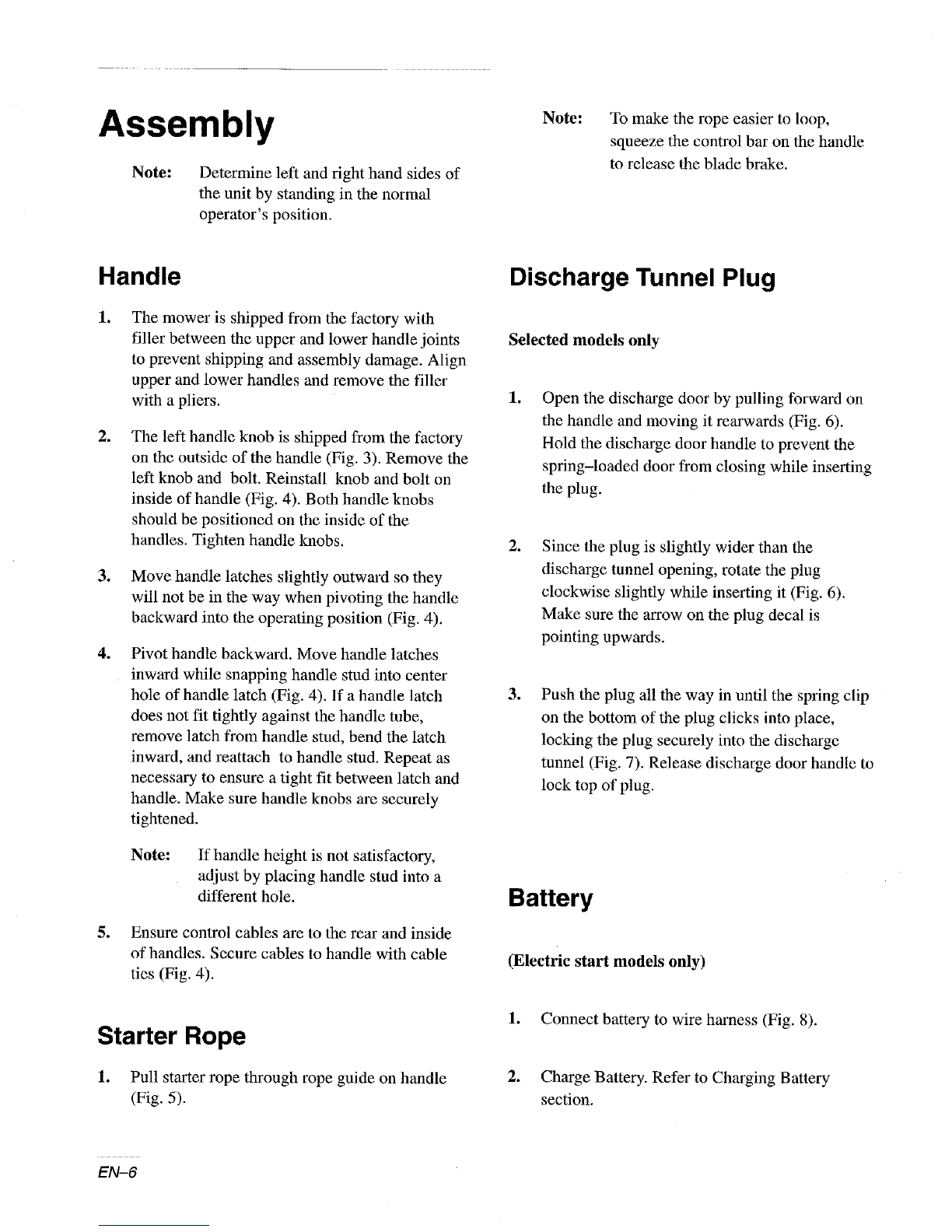

Assembly
Note: Determine left and right hand sides of
the unit by standing in the normal
operator's position.
Note: To make the rope easier to loop,
squeeze the control bar on the handle
to release the blade brake.
Handle
lo
.
.
°
The mower is shipped from the factory with
filler between the upper and lower handle joints
to prevent shipping and assembly damage. Align
upper and lower handles and remove the filler
with a pliers.
The left handle knob is shipped from the factory
on the outside of the handle (Fig. 3). Remove the
left knob and bolt. Reinstall knob and bolt on
inside of handle (Fig. 4). Both handle knobs
should be positioned on the inside of the
handles. Tighten handle knobs.
Move handle latches slightly outward so they
will not be in the way when pivoting the handle
backward into the operating position (Fig. 4).
Pivot handle backward. Move handle latches
inward while snapping handle stud into center
hole of handle latch (Fig. 4). If a handle latch
does not fit tightly against the handle tube,
remove latch from handle stud, bend the latch
inward, and reattach to handle stud. Repeat as
necessary to ensure a tight fit between latch and
handle. Make sure handle knobs are securely
tightened.
Note: If handle height is not satisfactory,
adjust by placing handle stud into a
different hole.
5. Ensure control cables are to the rear and inside
of handles. Secure cables to handle with cable
ties (Fig. 4).
Discharge Tunnel Plug
Selected models only
lo Open the discharge door by pulling forward on
the handle and moving it rearwards (Fig. 6).
Hold the discharge door handle to prevent the
spring-loaded door from closing while inserting
the plug.
.Since the plug is slightly wider than the
discharge tunnel opening, rotate the plug
clockwise slightly while inserting it (Fig. 6).
Make sure the arrow on the plug decal is
pointing upwards.
oPush the plug all the way in until the spring clip
on the bottom of the plug clicks into place,
locking the plug securely into the discharge
tunnel (Fig. 7). Release discharge door handle to
lock top of plug.
Battery
(Electric start models only)
Starter Rope
1. Pull starter rope through rope guide on handle
(Fig. 5).
1. Connect battery to wire harness (Fig. 8).
0Charge Battery. Refer to Charging Battery
section.
EN-6
