Toshiba B-FP802-CR-QM-S User manual

Cradle
Owner’s Manual
B-FP802-CR-QM-S
B-FP802-CR4-QM-S

CONTENTS 1
CONTENTS
1. Precautions....................................................................................................................................... 3
2. Part Names and Accessories (1-slot Cradle).......................................................................................... 5
Part names .................................................................................................................................................................. 5
Accessories .................................................................................................................................................................. 5
3. Part Names and Accessories (4-slot Cradle).......................................................................................... 6
Part names .................................................................................................................................................................. 6
Accessories .................................................................................................................................................................. 6
4. Connecting the AC Adapter (1-slot Cradle) ........................................................................................... 7
5. Connecting the AC Adapter (4-slot Cradle) ........................................................................................... 9
6. Charging ......................................................................................................................................... 11
7. Troubleshooting .............................................................................................................................. 12
8. Specifications.................................................................................................................................. 13
9. When purchasing the power cord ...................................................................................................... 14

2 CONTENTS

1. Precautions 3
1. Precautions
NOTICE FOR THE CUSTOMERS IN THE UNITED KINGDOM
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS 1362, (i.e.,
marked with or mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change
the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest
Toshiba Tec service representative.
CE Compliance (for EU only)
This product complies with the requirements of EMC Directive including their amendments.
NOTES:
1.This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at this own expense.
2.Changes or modification not expressly approved by manufacturer for compliance could void the user’s authority
to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Note:
When you purchase interface cables on the market, shielded cables must be chosen and used.

4 1. Precautions
WARNING
This indicates that there is the risk of death or serious injury if the machines are handled
improperly or contrary to this indication.
If water or any other liquid enters the machine, turn off the power. Continuous use of the machine under such
conditions may cause fire or electric shock.
If the enclosure is damaged when dropped or subject to shock, turn off the power. Continuous use of the
machine under such conditions may cause fire or electric shock.
Avoid continuous exposure to direct sunlight or high temperature as this may cause fire.
Do not remove covers or modify the machine by yourself. Doing so may cause fire or electric shock.
Avoid water, operation with wet hands or cleaning with a moistened cloth. Failure to do this may cause fire or
electric shock.
Do not wipe the machine with a cloth moistened with thinner or other volatile solvent as this may cause fire or
electric shock.
DO NOT USE a spray cleaner containing flammable gas for cleaning this product, as this may cause a fire.
The AC adapter and the power cable co-packed with this device must be used.
CAUTION
This indicates that there is the risk of personal injury or damage to objects if the machines are
improperly handled contrary to this indication.
Keep away from flame or other sources of heat. Failure to do this may cause fire or machine failure.
Do not drop or shock the machine as this may cause machine failure. Doing so may cause machine failure.
During lightning, turn off and keep away from the machine because of danger of electric shock and machine
failure.
Avoid locations subject to rapid change in temperature as this causes condensation, causing electric shock or
machine failure.
Precautions:
The following precautions will help to ensure that this machine will continue to function correctly.
Try to avoid locations that have the following adverse conditions:
- Temperatures out of the specification
-HighHumidity
- Direct sunlight
- Excessive vibration
The cover should be cleaned by wiping with a dry cloth or a cloth slightly dampened with a mild detergent
solution. NEVER USE THINNER OR ANY OTHER VOLATILE SOLVENT on the plastic covers.
CAUTION!
This manual may not be copied in whole or in part without the prior written permission of TOSHIBA TEC.
The contents of this manual may be changed without notification.
Please refer to your local Authorised Service representative with regard to any queries you may have in this
manual.

2. Part Names and Accessories (1-slot Cradle) 5
2. Part Names and Accessories (1-slot Cradle)
Part names
Accessories
Top side Bottom side
No. Name No. Name
1 Charging terminal 2 ACIN terminal
No. Name No. Name
1 AC adapter 3 Owner's Manual
2 Power cable 4 Safety Precaution Sheet
[1]
[1]
[2]
[4][3][1] [2]

6 3. Part Names and Accessories (4-slot Cradle)
3. Part Names and Accessories (4-slot Cradle)
Part names
Accessories
Top side
Bottom side
No. Name No. Name
1 Charging terminal 2 ACIN terminal
No. Name No. Name
1 AC adapter 3 Owner's Manual
2 Power cable 4 Safety Precaution Sheet
[1]
[1]
[2]
[4][3][1] [2]

4. Connecting the AC Adapter (1-slot Cradle) 7
4. Connecting the AC Adapter (1-slot Cradle)
This section describes how to connect the AC adapter to a 1-slot cradle.
1
Connect the plug of the AC adapter to the AC IN terminal of the cradle as shown in the figure.
Orient the side of the plug with an arrow mark to the cradle side.
2
Wire the cable of the AC adapter as shown in the figure.
If the wiring of the cable of the AC adapter is improper, it will be caught by the cradle and this may cause a
damage.

8 4. Connecting the AC Adapter (1-slot Cradle)
3
Connect the power cable to the AC adapter.
No. Name
1ACadapter
2Powercable
3ACoutlet
[3]
[1]
[2]

5. Connecting the AC Adapter (4-slot Cradle) 9
5. Connecting the AC Adapter (4-slot Cradle)
This section describes how to connect the AC adapter to a 4-slot cradle.
1
Connect the plug of the AC adapter to the AC IN terminal of the cradle as shown in the figure.
Orient the side of the plug with an arrow mark to the cradle side.
2
Wire the cable of the AC adapter as shown in the figure.
If the wiring of the cable of the AC adapter is improper, it will be caught by the cradle and this may cause a
damage.

10 5. Connecting the AC Adapter (4-slot Cradle)
3
Connect the power cable to the AC adapter.
No. Name
1ACadapter
2Powercable
3ACoutlet
[3]
[1]
[2]

6. Charging 11

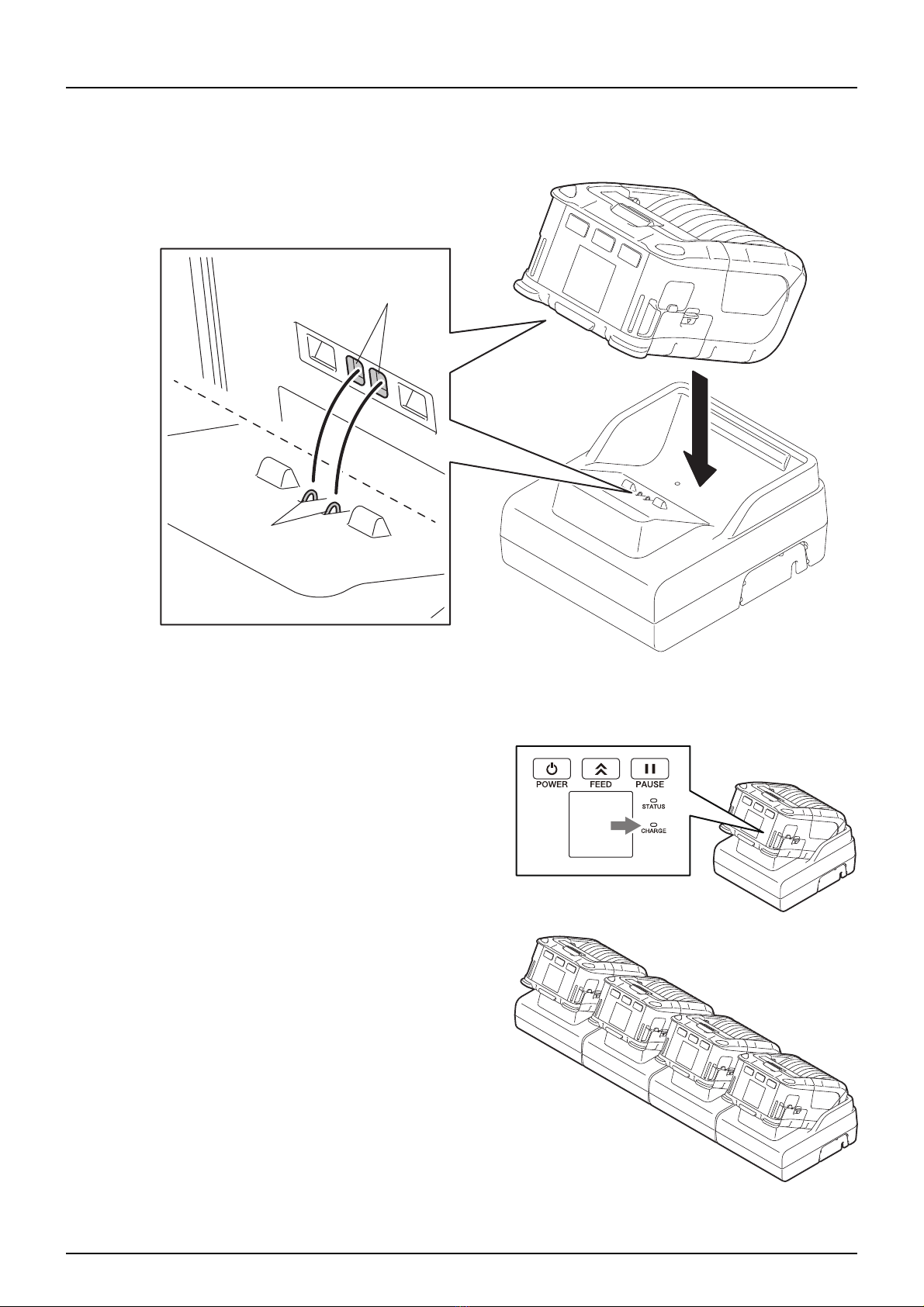

6. Charging
Charging is performed by placing a portable printer on the cradle.
This section describes by taking a 1-slot cradle for the explanation purposes.
1
Place the portable printer by aligning its charging terminal [2] to that for [1] the cradle.
When installing the printer, make sure there are no foreign objects between the charging terminals and the printer.
If there is any water droplet or dust on the charging terminals, wipe it off before using.
Periodically clean the charger terminals with a dry cloth.
When the charging of the battery pack of the portable
printer starts, its CHARGE lamp lights up in orange. When
the charging is completed, the CHARGE lamp goes out.
Do not perform the charging using the DC IN connector of
the portable printer when it is placed on the cradle.
Up to 4 portable printers can be charged at the same time
by using a 4-slot cradle.
[1]
[2]

12 7. Troubleshooting
7. Troubleshooting
When a problem occurs during the operation, check the following troubleshooting guide and take the corrective
action suggested.
When the problem still persists even if the following solutions have been performed, do not attempt to repair it by
yourself.
Disconnect the power cable and then contact a Toshiba Tec service representative for assistance.
In the case of the following symptoms, check the respective points and take corrective action.
Symptom Point to check (Cause) Solution
The CHARGE lamp does not
light even if a portable
printer is placed on the
cradle.
The portable printer is not place on
the cradle properly.
The power cable or the AC adapter is
not connected.
The power cable or the AC adapter is
open circuited.
Properly place the portable printer so
that its charging terminal is aligned to
that for the cradle.
Connect the power cable or the AC
adapter properly.
If it is open circuited, replace the power
cable or the AC adapter with a new one.
For a new power cable and AC adapter,
contact a Toshiba Tec service
representative for assistance.

8. Specifications 13
8. Specifications
1-slot Cradle
4-slot Cradle
Item Cradle AC adapter (Accessory)
Model B-FP802-CR-QM-S FSP065-RBBN3
B-FP802-CR-CN-S
Power requirements DC +19V, 3.42A (Supplied by the AC adapter) 100 to 240V AC, 50/60 Hz
Output voltage - DC+19V, 3.42A
Application for TOSHIBA TEC battery pack TOSHIBA Battery Charger for
B-FP803-BTH-QM-R B-EP800-CHG-QM-R
B-FP802-CR-QM-S
B-FP802-CR-CN-S
Number of slots 1 slot -
Operating temperature 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Operating humidity 20 to 80% (no condensation) 20 to 80% (no condensation)
Storage temperature -20°C to 60°C (-4°F to 140°F) -20°C to 60°C (-4°F to 140°F)
Storage humidity 10 to 85% (no condensation) 10 to 85% (no condensation)
Dimensions 120 x 69.5 x 140 mm (w/h/d)
120 x 137.6 x 145.6 mm (w/h/d): With a printer
installed
46 x 30 x 108 mm (w/h/d)
Weight Approx 201 g (7.1oz) Approx. 250 g (8.8 oz)
Accessories AC adapter x 1
Item Cradle AC adapter (Accessory)
Model B-FP802-CR4-QM-S FSP150-ABAN3
B-FP802-CR4-CN-S
Power requirements DC +19V, 7.89A (Supplied by the AC adapter) 100 to 240V AC, 50/60 Hz
Output voltage - DC +19V, 7.89A
Application TOSHIBA TEC battery pack TOSHIBA Battery Charger for
B-FP803-BTH-QM-R B-EP800-CHG6-QM-R
B-FP802-CR4-QM-S
B-FP802-CR4-CN-S
Number of slots 4 slot -
Operating temperature 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Operating humidity 20 to 80% (no condensation) 20 to 80% (no condensation
Storage temperature -20°C to 60°C (-4°F to 140°F) -20°C to 60°C (-4°F to 140°F)
Storage humidity 10 to 85% (no condensation) 10 to 85% (no condensation)
Dimensions 480 x 69.5 x 140 mm (w/h/d)
480 x 137.6 x 145.6 mm (w/h/d): With a printer
installed
72 x 40 x 171mm (w/h/d)
Weight Approx 1080 g (38.1oz) Approx 800g (28.2 oz)
Accessories AC adapter x 1

14 9. When purchasing the power cord
9. When purchasing the power cord
*1 At least, 125% of the rated current of the product.
Country Agency Certification
mark Country Agency Certification
mark Country Agency Certification
mark
Australia SAA Germany VDE Sweden SEMKKO
Austria OVE Ireland NSAI Switzerla
nd SEV
Belgium CEBEC Italy IMQ UK ASTA
Canada CSA Japan METI UK BSI
Denmark DEMKO Netherla
nds KEMA U.S.A. UL
Finland FEI Norway NEMKO Europe HAR
France UTE Spain AEE China CCC
Power Cord Instruction
1.For use with 100 – 125 Vac mains power supply, please select a power cord rated Min. 125V, 10A.
2.For use with 200 – 240 Vac mains power supply, please select a power cord rated Min. 250V.
3.Please select a power cord with the length of 2m or less.
Country/Region North America Europe United Kingdom Australia China
Power Cord
Rated (Min.)
Type
125V, 10A
SVT
250V
H05VV-F
250V
H05VV-F
250V
AS3191 approved,
Light or Ordinary Duty
type
250V
GB5023
Conductor size
(Min.)
No. 3/18AWG 3 x 0.75 mm23 x 0.75 mm23 x 0.75 mm23 x 0.75 mm2
Plug
Configuration
(locallyapproved
type)
Rated (Min.) 125V, 10A 250V, 10A 250V, *1 250V, *1 250V, *1

1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN
Cradle
Owner’s Manual
B-FP802-CR-QM-S
B-FP802-CR4-QM-S
© 2019 Toshiba Tec Corporation All rights reserved PRINTED IN INDONESIA
Ver01 F EO0133130
