Toshiba USB TV Tuner
Quick Guide
Important Information
This manual contains important instructions for operating your
Toshiba USB TV Tuner for MCE notebook computers. Please read
the manual, follow the instructions, and heed all warnings and
cautions. Keep this manual where it can be used for future
reference.
The Toshiba TV Tuner is a USB 2.0 NTSC analog TV tuner that
enables you to watch live TV on your MCE 2005 notebook
computer and turns it into a Personal Video Recorder which lets
you digitally record and playback TV shows or video.
What is in the TV Tuner Package
The Toshiba USB TV Tuner bundled with your Toshiba notebook
computer includes the following items:
❖Toshiba TV Tuner
❖USB cable for TV Tuner
❖Coaxial adaptor cable (RF to SMB)
❖Toshiba MCE remote control
❖USB IR receiver
❖USB cable for IR receiver
❖Composite video/audio adaptor cable (yellow, red, white)

Toshiba USB TV Tuner Quick Guide
2
❖IR transceiver
❖Toshiba USB TV Tuner Quick Guide (this document)
❖Remote control quick reference sheet
Regulatory Information
General
This product complies with any mandatory product specification
in any country/region where the product is sold. In addition, the
product complies with the following:
❖European Union (EU)
❖United States (FCC)
❖Canada (Industry Canada (IC)).
This equipment complies with the Low Voltage Directive 72/23/
EEC, EMC Directive 89/336/EEC, and has been provided with
the CE mark accordingly.
FCC and Industry Canada Statements
This class B digital apparatus complies with Canadian ICES-003
and part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
The manufacturer is not responsible for ANY interference, for example,
radio or TV interference, caused by unauthorized modification to this
equipment. Such modifications could void the user's authority to operate
the equipment.
L’utilisation de ce dispositif est autorisée seulement aux
conditions suivantes: (1) il ne doit pas produire de brouillage et
(2) l’utilisateur du dispositif doit étre prét à accepter tout
brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.

Toshiba USB TV Tuner Quick Guide 3
Features and Benefits
Watch one TV show while recording it. Listen to, pause and replay
broadcasts on your MCE notebook computer.
❖Your own Personal Video Recorder - Watch, pause, rewind,
fast-forward live TV programs with timeshifting.
❖Simultaneous Watch and Record - View one program and
record it at the same time.
❖High quality record/playback - Record programs in stereo
audio and DVD-quality video.
❖Fast data transfer using a single high-speed USB 2.0 bus port.
❖Electronic Program Guide - you'll be watching and recording
your favorite programs in no time.
❖Built-in Hardware MPEG-2 Encoder - Record a sharp, crisp
TV picture while freeing the CPU for other applications.
❖Multiple Inputs - Accepts TV and audio input from cable,
set-top boxes, and off-the air antennas.
❖Remote control allows you to access the TV Tuner features
with ease.
Getting Started
The Toshiba TV Tuner can be connected to any of these TV or
other video sources:
❖TV antenna (regular TV)
❖Cable TV/satellite TV with or without a set-top box
Types of cables you can connect into the Toshiba TV Tuner
include:
❖Coaxial adaptor cable (included)
For regular TV and cable/satellite TV connections.

Toshiba USB TV Tuner Quick Guide
4
Connecting the Toshiba TV Tuner
Regular TV or Cable TV without set-top box
1 If you are in Microsoft® Windows® XP Media Center Edition
2005 mode, you must exit and switch to Windows®mode.
2 For this setup, you will need the following cables, which are
included in the TV Tuner box:
❖One USB cable
❖One coaxial adaptor cable
3 Connect the cables:
❖Plug the small end of the USB cable into the right side of
the TV Tuner.
❖Plug the large end of the USB cable into the USB port on
the notebook computer.

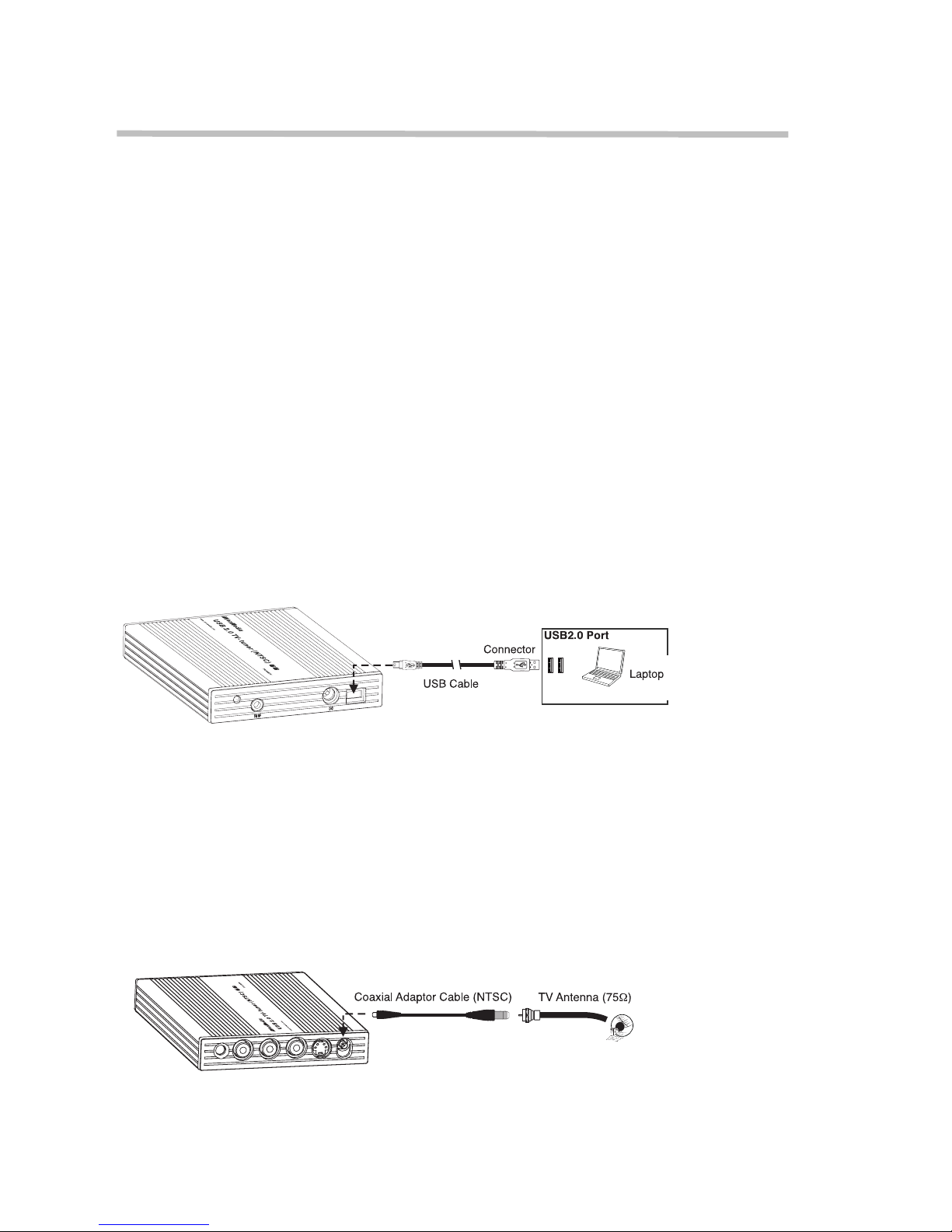

(sample illustration) Plugging the USB cable into the right side panel
❖Connect the RF end (gold) of the coaxial adaptor cable
into the left side of the TV Tuner.
❖Connect the SMB end (threaded) of the coaxial adaptor
cable into the TV antenna lead.
(sample illustration) Connecting the coaxial adaptor cable
( l ill i ) l i h USB bl i h i h id l

Toshiba USB TV Tuner Quick Guide 5
4 Start Microsoft® Windows® XP Media Center Edition 2005.
5GotoSettings, select TV, and then select Setup TV Signal.
6 Follow the instructions on the Setup Wizard screens.
Cable TV or Satellite TV with set-top box
For this setup, you will need the following cables:
❖One USB cable
❖One coaxial adaptor cable
❖Two RF coaxial cables (1 to 3 feet in length)(not included)
❖One splitter (not included)
Call your cable or satellite provider for the recommended splitter.
To add the Toshiba TV Tuner to an existing cable TV or satellite
TV connection:
1 Disconnect the RF coaxial cable from the set-top box OUT.
Replace it with one of the short-length RF coaxial cables and
connect the other end to the splitter IN.
2 Take the original RF coaxial cable removed in step one and
connect it to one of the OUT jacks on the splitter. This should
be connected to your TV.
3 Connect the other short-length RF coaxial cable into the other
splitter OUT jack. Then connect the other end of the
short-length coaxial cable into the SMB end (threaded) of the
coaxial adapter cable.
4 Connect the RF end (small end) of the coaxial adapter cable
into the left side of the TV Tuner.
5 Plug the small end of the USB cable into the right side of the
TV Tuner.
6 Plug the large end of the USB cable into a USB port on the
notebook computer.

Toshiba USB TV Tuner Quick Guide
6
(sample illustration) Plugging the USB cable into the right side panel
7 Start Microsoft® Windows® XP Media Center Edition 2005.
8GotoSettings, select TV, and then select Setup TV Signal.
9 Follow the instructions on the Setup Wizard screens.
Using the Remote Control
Your computer shipped with a remote control designed to work
with Windows®XP Media Center 2005. You can use it to open
and navigate Media Center, change channels, view and record TV
programs and more.
Installing the batteries
To install the batteries into the remote control unit:
1 Remove the battery compartment cover at the back of the
remote control unit.
2 Insert two AA 1.5V batteries (included).
Make sure the battery terminals are oriented properly as
indicated by the marking in the compartment.
3 Replace the battery compartment cover.
4 Press any key on the remote unit. If the transmit indicator
LED lights up, the remote control unit is operating properly.
Do not mix new and old batteries or alkaline with non-alkaline batteries.
Do not use worn or leaking batteries.
( l ill i ) l i h USB bl i h i h id l

Toshiba USB TV Tuner Quick Guide 7
Installing the IR receiver
1 Place the USB IR receiver in a convenient location. Consider
the following:
❖The remote works within a distance of approximately 23
feet (7 meters). There should be an unobstructed
line-of-sight from the remote control to the receiver.
❖Avoid placing the receiver where it will be subject to
intense heat or intense light.
❖The USB cable is approximately 10 feet (3 meters) long.
Be sure the receiver is within this distance from your
MCE notebook computer.
❖The IR transceiver cable is approximately 16 feet (5
meters) long. Be sure your set-top box (if used as the input
to your MCE notebook computer) is within that distance
from the IR receiver unit (which controls the set-top box
via the IR transceiver).
Skip step 2 if you are not using a set-top box (that is IR-controlled) as the
signal source to your MCE notebook computer.
2 If you are connecting a set-top box, follow these directions to
set up the IR transceiver (emitter) cable:
❖Connect the IR transceiver cable to the back of the IR
receiver unit. Use the connector port marked "1" if you
have only one set-top box.
❖Locate the remote control (IR) sensor window on your
set-top box. This window is usually located at the front of
the equipment. Refer to the manual that comes with your
set-top box if needed.
❖Remove the paper sticker from the red plastic emitter
LED of the IR transceiver. Place the sticky side of the
emitter LED directly on the set-top box IR sensor window.
Do not totally block the window, since that may prevent
you from using the IR remote that comes with the set-top
box.

Toshiba USB TV Tuner Quick Guide
8
3 Connect the IR receiver unit's USB cable to your MCE
notebook computer.
❖Make sure the USB cable is plugged into the back of the
IR receiver unit (USB cable connector for IR receiver
unit side to the USB socket on the IR receiver unit).
❖Turn on your MCE notebook computer.
❖Insert the plug of the USB cable into an available USB
port on your notebook computer.
❖Windows®will recognize and configure the device
automatically.
Configuring the MCE remote and receiver with a set-top box
This step is not required if you are not using a set-top box with your MCE
notebook computer.
If you are using your remote control with a set-top box, you need
to run the TV Setup Wizard in Windows®XP Media Center 2005.
To run the Wizard:
1 Select the Windows Start menu and launch the MCE
application.
2 If you do not go directly into the TV Setup Wizard, select
Settings from the MCE main menu.
3 Select TV, and then select Setup TV Signal.
Follow the directions on the Wizard screens. The Wizard will
guide you in configuring the MCE remote receiver and IR
transceiver for your set-top box.
Operating the MCE remote control
Make sure you are standing or sitting within 23 feet of the MCE
IR receiver unit and that an unobstructed line-of-sight with the
MCE IR receiver unit is maintained.
Point the remote unit at the IR receiver unit while pressing the
remote buttons.

Toshiba USB TV Tuner Quick Guide 9
Remote control reference
Use this quick reference to acquaint yourself with the operation of
your Toshiba remote control.
LED - Transmit indicator.
My TV, My Music, My Pictures, My Videos - Open media
folders in Windows.
Power - Put PC into or out of standby mode.
Stop - Stop playback (pressing PLAY afterward will restart from
the beginning).
Pause - Pause (or resume, if paused) playback.
Record - Start instant recording of the current program or the
selected program in EPG (electronic program guide).

Toshiba USB TV Tuner Quick Guide
10
Play - Start playback from the start, or resume playback (if
paused).
Forward - Fast forward, press again to cycle through 3 speeds.
Rewind - Reverse play, press again to cycle through 3 speeds.
Skip - Skip ahead 29 seconds during recorded TV playback, or
skip to the next song, DVD chapter, or picture.
Replay - Skip backwards 5 seconds on live or recorded TV, or
skip to the previous song, DVD chapter, or picture.
More - Display information on the item selected.
Back - Go back to the previous screen.
Arrows - Use the arrow keys to traverse menus.
OK Button - Press OK to confirm selection or perform action
indicated.
Start - Start MCE, or go to MCE main menu.
Channel/Page Control - Scroll up or down through the TV
channel lineup, or advance a page in a list.
Volum e Control - Un-mute the audio, then turn the volume up or
down incrementally.
Mute - Mute the audio. Press again to unmute.
DVD Menu - Jump to the DVD playback menu.
Recorded TV - Jump to the recorded TV menu.
Live TV - Switch the display to live TV (previous channel
watched).
Guide - Display the on-screen electronic program guide (EPG).
Numeric Keypad - Use to enter a TV channel number, or for
general-purpose text entry. Press any of the keys "2" to "9" to
cycle through the numeral or letter.
Enter - Start the action based on the numbers or text typed.
Clear - Backspace and delete the character just typed.

Toshiba USB TV Tuner Quick Guide 11
Product Specifications
Input signal
❖75 Ohm coaxial TV antenna
❖Composite video
❖S-Video (S-Video cable required)
❖Left & right channel audio input
Output signal
❖Hi-speed USB 2.0
Product Information
❖Dimensions: 4.65" x 3.6" x 0.7"
❖Weight: 5.7 ounces
Product Support
For customer assistance, contact the Toshiba Global Support
Centre:
❖Calling within the United States [phone]
❖Calling from outside the United States [phone]
Copyright
This guide is copyrighted by Toshiba America Information
Systems, Inc., with all rights reserved. Under the copyright laws,
this guide cannot be reproduced in any form without the prior
written permission of Toshiba. No patent liability is assumed,
however, with respect to the use of the information contained
herein.
©2006 by Toshiba America Information Systems, Inc. All rights
reserved.
Trademarks
Microsoft and Windows®are registered trademarks of Microsoft
Corporation in the United States and/or other countries.
All other brand and product names are trademarks or registered
trademarks of their respective companies.

PMA500338011
