Updated Information
for the Portégé®
3500/3505
Computer
This information applies to your Toshiba computer and
should be noted when operating the specific functions
described below:
Connecting the AC adapter
CAUTION: Use only the AC adapter supplied with
your computer or an equivalent adapter that is
compatible. Use of any incompatible adapter could
damage your computer. Toshiba assumes no
liability for any damage caused by use of an
incompatible adapter.
When you connect the AC adapter to the computer,
always follow the steps in the exact order as
described in the User's Manual. Connecting the
power cable to a live electrical outlet should be the
last step otherwise the adapter DC output plug
could hold an electrical charge and cause an
electrical shock or minor bodily injury when
touched. As a general safety precaution, avoid
touching any metal parts.

Updated Information for the Portégé® 3500/3505
Computer
2
Security
Toshiba recommends that the customer enable the WEP
(encryption) function. Otherwise, unwanted access to
your computer through a wireless LAN connection can
allow for intrusion of, and/or loss or destruction of data.
Toshiba is not liable for the loss or manipulation of data
due to the use of wireless LAN and the damage thereof.
SD Cards
You can use an SD card memory module; however,
Toshiba does not guarantee that all SD card memory
modules available will properly function with the Portégé
3500/3505.
The slot cannot accommodate MultiMedia cards or other
SD I/O cards.
Do not remove an SD card while read/write is in
progress.
Removing a Compact Flash module
CAUTION: Remove the Compact Flash module
only after confirming that the computer is not
accessing the Compact Flash card. If you remove
the Compact Flash card, or turn off the power while
the computer is accessing the card, you may lose
data or damage the card.

Updated Information for the Portégé® 3500/3505
Computer 3
Tablet mode
When in tablet mode, you may enter your password by
tapping the on-screen keyboard using the tablet pen,
instead of using the computer keyboard.
A beep sounds for each entry on the on-screen keyboard,
and an asterisk is displayed for every character entered.
Press the Enter[Ent] key on the on-screen keyboard after
entering the password.
NOTE: If you enter the password incorrectly three
times in a row, the computer shuts off. In this case,
you must turn the computer back on to retry
password entry.
Real time clock battery
If the RTC battery completely discharges, the system
loses data and the real time clock and calendar no longer
function. The following message appears when you turn
on the computer:
**** RTC battery is low or CMOS checksum is
inconsistent ****
Press [F1] key to set Date/Time.

Updated Information for the Portégé® 3500/3505
Computer
4
Changing the screen orientation
The orientation of desktop screen can be changed to one
of the following four display modes:
You must have your computer in Primary landscape
mode to use or perform the following:
❖3D game software
❖3D screen saver
❖Playback of motion pictures, such as DVD-Video
using an external DVD-ROM Drive.
CAUTION: Do not play 3D game software or play
DVD-Videos on the computer in an orientation
other than Primary landscape. DVD playback
software will run only in Primary landscape view.

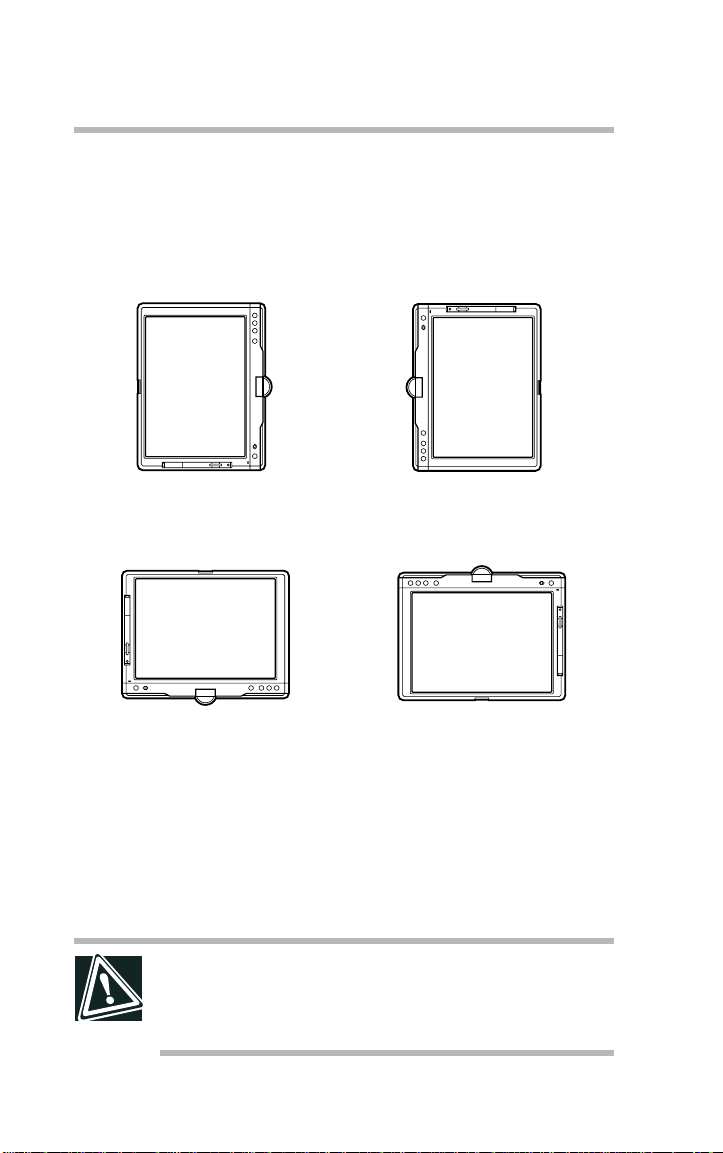

Primary landscape Secondary landscape
Primary portrait Secondary portrait

Updated Information for the Portégé® 3500/3505
Computer 5
Symbol Commander™
When using the Microsoft Paint program with Symbol
Commander enabled, a second color can be selected but
not used, because any Tablet Pen movement while
holding the button is interpreted as an attempt to make a
symbol.
You may experience similar limitations when using
Windows Journal.
If you wish to disable Symbol Commander, right click
the Symbol Commander icon in the taskbar. To re-enable
Symbol Commander, simply right click the icon again.
Important information for the optional
Bluetooth™and Wi-Fi™modules
Your computer may ship with an integrated Bluetooth or
Wi-Fi module. In this case, be sure to note the following
important information about the installation and use of
Bluetooth and/or Wi-Fi with various operating systems
and applications:
Wireless Interoperability
The Toshiba Wireless LAN Mini PCI Card products are
designed to be interoperable with any wireless LAN
product that is based on Direct Sequence Spread
Spectrum (DSSS) radio technology, and is compliant to:
❖The IEEE 802.11 Standard on Wireless LANs
(Revision B), as defined and approved by the
Institute of Electrical and Electronics Engineers.
❖The Wireless Fidelity (WiFi) certification as defined
by the WECA Wireless Ethernet Compatibility
Alliance.

Updated Information for the Portégé® 3500/3505
Computer
6
Caution
Bluetooth and WirelessLAN devices operate within the
same radio frequency range and may interfere with one
another. If you use Bluetooth and WirelessLAN devices
simultaneously, you may occasionally experience a less
than optimal network performance or even lose your
network connection.
If you should experience any such problem, immediately
turn off either one of your Bluetooth or WirelessLAN.
For more information, please visit Toshiba’s support
support site at www.pcsupport.toshiba.com.
Wireless LAN and your Health
Wireless LAN products, like other radio devices, emit
radio frequency electromagnetic energy. The level of
energy emitted by Wireless LAN devices however is far
much less than the electromagnetic energy emitted by
wireless devices, for example mobile phones.
Because Wireless LAN products operate within the
guidelines found in radio frequency safety standards and
recommendations,ToshibabelievesWirelessLANissafe
for use by consumers. These standards and
recommendations reflect the consensus of the scientific
community and result from deliberations of panels and
committees of scientists who continually review and
interpret the extensive research literature.
In some situations or environments, the use of Wireless
LAN may be restricted by the proprietor of the building
or responsible representatives of the organization. These
situations may for example include:
❖Using the Wireless LAN equipment on board of
airplanes, or

Updated Information for the Portégé® 3500/3505
Computer 7
❖In any other environment where the risk of
interference to other devices or services is perceived
or identified as harmful.
If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment
(e.g. airports), you are encouraged to ask for
authorization to use the Wireless LAN device prior to
turning on the equipment.
Regulatory Information
The Toshiba Wireless LAN Mini PCI Card must be
installed and used in strict accordance with the
manufacturer’s instructions as described in the user
documentation that comes with the product. This device
complies with the following radio frequency and safety
standards.
Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device
must accept any interference, including interference that
may cause undesired operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux
conditions suivantes: (1) il ne doit pas produire de
brouillage et (2) l’utilisation du dispositif doit étre prét à
accepter tout brouillage radioélectrique recu, même si ce
brouillage est susceptible de compromettre le
fonctionnement du dispositif.
The term “IC” before the equipment certification number
only signifies that the Industry Canada technical
specifications were met.
IC: 248H-DPA350S

Updated Information for the Portégé® 3500/3505
Computer
8
Europe – EU Declaration of Conformity
This device complies with the essential requirements of
the R&TTE Directive 1999/5/EC with essential test
suites as per standards:
❖EN 60950 Safety of Information Technology
equipment
❖ETS 300 328 Technical requirements for radio
equipment
❖ETS 300 826 General EMC requirements for radio
equipment.
BelgiÎ
Belgique:
For outdoor usage only channel 10 (2457 MHz) and 11 (2462 MHz) is
allowed.
For private usage outside buildings across public grounds over less than
300m no special registration with IBPT/BIPT is required. Registration
to IBPT/BIPT is required for private usage outside buildings across
public grounds over more than 300m. An IBPT/BIPT license is required
for public usage outside building.
For registration and license please contact IBPT/BIPT.
Gebruik buiten gebouw alleen op kanalen 10 (2457 MHz) en 11 (2462
MHz). Voor privÈ-gebruik buiten gebouw overpublieke groud over
afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor
gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT
nodig. Voor publiek gebruik buiten gebouwen is licentie van BIPT/IBPT
verplicht. Voor registratie of licentie kunt u contact opnemen met BIPT.
L’utilisation en extÈrieur est autorisÈ sur le canal 10 (2457 MHz) et 11
(2462 MHz).
Dans le cas d’une utilisation privÈe, ‡ l’extÈrieur d’un b‚timent,
au-dessus d’un espace public, aucun enregistrement n’est nÈcessaire
pour une distance de moins de 300m. Pour une distance supÈrieure ‡
300m un enregistrement auprËs de I’IBPT est requise. Pour une
utilisation publique ‡ I’extÈrieur de b‚timents, une licence de I’IBPT est
requise. Pour les enregistrements et licences, veuillez contacter I’IBPT.
Deutschland: License required for outdoor installations. Check with reseller for
procedure to follow
Anmeldung im Outdoor-Bereich notwendig, aber nicht
genehmigungspflichtig.Bitte mit H‰ndler die Vorgehensweise
abstimmen.

Updated Information for the Portégé® 3500/3505
Computer 9
USA-Federal Communications
Commission (FCC)
This device complies with Part 15 of FCC Rules.
Operation of the devices in a Wireless LAN System is
subject to the following two conditions:
❖This device may not cause harmful interference.
❖This device must accept any interference that may
cause undesired operation.
France: Restricted frequency band: only channels 10 and 11 (2457 MHz and
2462 MHz respectively) may be used in France. License required for
every installation, indoor and outdoor installations. Please contact ART
for procedure to follow.
Bande de frÈquence restreinte : seuls les canaux 10 ‡ 11 (2457 et 2462
MHz respectivement) doivent Ítre utilisÈs en France.
Toute utilisation, qu’elle soit intÈrieure ou extÈrieure, est soumise ‡
autorisation. Vous pouvez contacter I’AutoritÈ de RÈgulation des
TÈlÈcommuniations (http://www.art-telecom.fr) pour la procÈdure ‡
suivre.
Italia: License required for indoor use. Use with outdoor installations not
allowed
E’necessaria la concessione ministeriale anche per l’uso interno.
Verificare con i rivenditori la procedura da seguire. L’uso per
installazione in esterni non e’ permessa.
Nederland License required for outdoor installations. Check with reseller for
procedure to follow
Licentie verplicht voor gebruik met buitenantennes. Neem contact op
met verkoper voor juiste procedure

Updated Information for the Portégé® 3500/3505
Computer
10
Caution: Exposure to Radio Frequency
Radiation
The radiated output power of the Toshiba Wireless LAN
Mini PCI Card is far below the FCC radio frequency
exposure limits.
Nevertheless, the Toshiba Wireless LAN mini PCI Card
shall be used in such a manner that the potential for
human contact during normal operation is minimized.
The antenna(s) used in this device are located at the upper
edge of the LCD screen, and this device has been tested
as portable device as defined in Section 2.1093 of FCC
rules when the LCD screen is rotated 180 degree and
covered the keyboard area. In addition, Wireless LAN
has been tested with Bluetooth transceiver (FCC
ID:CJ6UPA3232BT) for co-location requirements. This
device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter.
NOTE: Changes or modifications made to this
equipment not expressly approved by Toshiba or
parties authorized by Toshiba could void the user’s
authority to operate the equipment.

Updated Information for the Portégé® 3500/3505
Computer 11
Interference Statement
Thisequipmenthasbeentested and found to complywith
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance
with the instructions, it may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmfulinterference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the
following measures:
❖Reorient or relocate the receiving antenna.
❖Increase the distance between the equipment and the
receiver.
❖Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
❖Consult the dealer or an experienced radio/TV
technician for help.
Toshiba is not responsible for any radio or television
interference caused by unauthorized modification of the
devices included with this Toshiba Wireless LAN Mini
PCI Card, or the substitution or attachment of connecting
cables and equipment other than specified by Toshiba.
The correction of interference caused by such
unauthorized modification, substitution or attachment
will be the responsibility of the user.

Updated Information for the Portégé® 3500/3505
Computer
12
Taiwan
Using this equipment in Japan
In Japan, the frequency bandwidth of 2,400/2,483.5 MHz
for second generation low-power data communication
systems such as this equipment overlaps that of mobile
object identification systems (premises radio station and
specified low-power radio station).
Article 14 Unless approved, for any model accredited low
power radio frequency electric machinery, any
company, trader or user shall not change the
frequency, increase the power or change the features
and functions of the original design
Article 17 Any use of low power radio frequency electric
machinery shall not affect the aviation safety and
interfere with legal communications. In event that
any interference is found, the use of such electric
machinery shall be stopped immediately, and
reusing of such products can be resumed until no
interference occurs after improvement.
The legal communications mentioned in the above
item refer to radio communications operated in
accordance with telecommunication laws and
regulations.
Low power radio frequency electric machinery shall
resist against interference from legal
communications or from industrial, scientific and
medical radio emission electric machinery.

Updated Information for the Portégé® 3500/3505
Computer 13
Sticker
Please put the following sticker on devices incorporating
this product.
Indication
The indication shown below appears on this equipment.
1This equipment uses a frequency of 2.4 GHz.
2This equipment uses DS-SS modulation.
3The interference range of this equipment is less than
40m.
4This equipment uses a frequency bandwidth from
2,400 MHz to 2,483.5 MHz.
It is possible to avoid the band of mobile object
identification systems.
In the frequency bandwidth of this equipment, industrial device,
scientific device, medical device like microwave oven, licensed
premises radio station and non-licensed specified low-power radio
station for mobile object identification system (RF-ID) that is used in
product line of factories, (Other Radio Stations) are used.
1 Please make sure before using this equipment that no OtherRadio
Stations are used in the neighborhood.
2 In case that RF interference occurs to Other Radio Stations from
this equipment, please change promptly the frequency for use,
place to use, or stop emitting Radio.
3 Please contact Toshiba Direct PC if you have a problem, such as
interference from this equipment to Other Radio Stations
2.4DS
4
1
3
4
2

Updated Information for the Portégé® 3500/3505
Computer
14
Device Authorization
This device obtains the Technical Regulation Conformity
Certification and the Technical Conditions Compliance
Approval, and it belongs to the device class of radio
equipment of low-power data communication system
radio station stipulated in the Radio Law and the
Telecommunications Business Law of Japan.
The Name of the radio equipment: MPCI3A-20/R
JAPAN APPROVALS INSTITUTE FOR
TELECOMMUNICATIONS EQUIPMENT
Approval Number: D01-1128JP
TELECOM ENGINEERING CENTER
Approval Number: 01NYA1088
The following restrictions apply:
❖Do not disassemble or modify the device.
❖Do not install the embedded wireless module into
other device.

Updated Information for the Portégé® 3500/3505
Computer 15
Approved Countries/Regions for use
(Toshiba Wireless LAN Mini PCI Card)
This equipment is approved to the radio standards by the
countries/regions in Figure 1 below.
CAUTION: Do not use this equipment except in the
regions listed in the table below.:
Figure 1: Countries/Regions that have approved the
Toshiba Wireless LAN Mini PCI Card
Bluetooth wireless technology
Interoperability
Bluetooth™ Cards from Toshiba are designed to be
interoperable with any product with Bluetooth wireless
technology that is based on Frequency Hopping Spread
Spectrum (FHSS) radio technology, and is compliant to:
❖Bluetooth Specification Ver.1.1, as defined and
approved by The Bluetooth Special Interest Group.
Australia Austria Belgium
Canada Denmark Finland
Germany Iceland Ireland
Japan Luxembourg Netherlands
New Zealand Norway Sweden
Switzerland UK USA
Greece Italy France
Portugal Spain

Updated Information for the Portégé® 3500/3505
Computer
16
❖Logo certification with Bluetooth wireless
technology as defined by The Bluetooth Special
interest Group.
CAUTIONS: Bluetooth™ wireless technology is a
new innovative technology, and Toshiba has not
confirmed compatibility of its Bluetooth products
with all PCs and/or equipment using Bluetooth
wireless technology other than Toshiba portable
computers.
Always use Bluetooth cards from Toshiba in order
to enable wireless networks over two or more (up
to a total of seven) Toshiba portable computers
using these cards. Please contact Toshiba PC
product support at www.pcsupport.toshiba.com.
When you use Bluetooth cards from Toshiba close
to 2.4 GHz Wireless LAN devices, Bluetooth trans-
missions might slow down or cause errors. If you
detect certain interference while you use Bluetooth
cards from Toshiba, always change the frequency,
move your PC to the area outside of the interfer-
ence range of 2.4 GHz Wireless LAN devices (40
meters/43.74 yards or more) or stop transmitting
from your PC. Please contact Toshiba PC product
support at www.pcsupport.toshiba.com.
Bluetooth™ and WirelessLAN devices operate
within the same radio frequency range and may
interfere with one another. If you use Bluetooth™
and WirelessLAN devices simultaneously, you may
occasionally experience a less than optimal
network performance or even lose your network
connection. If you should experience any such
problem, immediately turn off either one of your
Bluetooth™ or WirelessLAN.

Updated Information for the Portégé® 3500/3505
Computer 17
Bluetooth wireless technology and your
Health
The products with Bluetooth wireless technology, like
other radio devices, emit radio frequency electromagnetic
energy. The level of energy emitted by devices with
Bluetooth wireless technology however is far much less
than the electromagnetic energy emitted by wireless
devices like for example mobile phones.
Because products with Bluetooth wireless technology
operate within the guidelines found in radio frequency
safety standards and recommendations, Toshiba believes
Bluetooth wireless technology is safe for use by
consumers. These standards and recommendations
reflect the consensus of the scientific community and
result from deliberations of panels and committees of
scientists who continually review and interpret the
extensive research literature.
In some situations or environments, the use of Bluetooth
wireless technology may be restricted by the proprietor of
the building or responsible representatives of the
organization. These situations may for example include:
❖Using the equipment with Bluetooth wireless
technology on board of airplanes, or
❖In any other environment where the risk of
interference to other devices or services is perceived
or identified as harmful.
If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment
(e.g. airports), you are encouraged to ask for
authorization to use the device with Bluetooth wireless
technology prior to turning on the equipment.

Updated Information for the Portégé® 3500/3505
Computer
18
Regulatory statements
General
This product complies with any mandatory product
specification in any country/ region where the product is
sold. In addition, the product complies with the
following.
European Union (EU) and EFTA
This equipment complies with the R&TTE directive
1999/5/EC and has been provided with the CE mark
accordingly.
Canada IC Notice
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device
must accept any interference, including interference that
may cause undesired operation of this device.
L ‘ utilisation de ce dispositif est autorisée seulement aux
conditions suivantes : (1) il ne doit pas produire de
brouillage et (2) l’ utilisateur du dispositif doit étre prét à
accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le
fonctionnement du dispositif.
The term "IC" before the equipment certification number
only signifies that the Industry Canada technical
specifications were met.
IC: 248H-DPA350S

Updated Information for the Portégé® 3500/3505
Computer 19
Caution: FCC Interference Statement
This device complies with part15 of the FCC rules.
Operation is subject to the following two conditions:
❖This device may not cause harmful interference, and
❖This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Any changes or modifications to this
equipment not expressly approved by the
manufacturer may void the authorization to operate
this equipment.
Caution: Exposure to Radio Frequency
Radiation.
The radiated output power of the Bluetooth™ Cards
from Toshiba is far below the FCC radio frequency
exposure limits. Nevertheless, the Bluetooth™ Cards
from Toshiba shall be used in such a manner that the
potential for human contact during normal operation
is minimized. This device has been tested with
Wireless LAN (FCC ID:CJ6PA3171WL) for
co-location requirements. This device and its
antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
NOTE: Changes or modifications made to this
equipment not expressly approved by Toshiba or
parties authorized by

Updated Information for the Portégé® 3500/3505
Computer
20
Toshiba could void the user’s authority to operate the
equipment.
Interference Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in
accordance with the instructions, it may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try and correct the interference
by one or more of the following measures:
❖Reorient or relocate the receiving antenna.
❖Increase the distance between the equipment and the
receiver.
❖Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
❖Consult the dealer or an experienced radio/TV
technician for help.
Toshiba is not responsible for any radio or television
interference caused by unauthorized modification of
the devices included with this Bluetooth™ Cards
from Toshiba, or the substitution or attachment of
connecting cables and equipment other than specified
by Toshiba.
