SERVICE MANUAL

LCD Color Television

22EL833N

Ver. 1.00

Upda ing his ory

Currently there are no updates available.

Please check back at a later time for any future

updates.

CAUTION: Whenever replacing the Main PCB with new one, update the fir ware to the

latest version according to the correct destination.

1. Please copy the files to a USB device (root directory).



mb61_en.bin



mboot.bin



usb_auto_update.t t

2. Turn off the TV power by switching off On/Off Switch or unplugging AC plug.

3. Plug USB device into the USB slot of TV.

4. Press OK button of remote controller and keep holding down. While pressing the OK

button, turn on the TV power by switching on On/Off Switch or plugging AC plug. Release

OK button after Standy LED starts to blink rapidly.

5. After the blinks of LED is stopped, TV will reboot automatically. Firmware Update is

completed.

FIRMWARE UPDATING PROCEDURE

PARTS LIST

Updating history

Currently there are no updates available.

Please check back at a later time for any future updates.

Location Parts No. Description

E200A 75024775 PC BOARD ASSY, MAIN, 22EL 33G, 20550 99

E200B 75026244 PC BOARD ASSY, MAIN, 22EL 33F, 20550931

E250 75024776 POWER MODULE, 22EL 33G, 2054 772

E270 75026226 PC BOARD ASSY, LED, 19EL 33F, 20569207

E300A 75019744 LCD PANEL, LC216EXN-SCA1

E300B 75023 5 LCD PANEL, LC216EXN-SDA1

E310 7502477 LVDS CABLE, 22EL 33G, 20551547

E320 75026246 POWER CORD, 22EL 33F, 20553 35

E330 75024751 SPEAKER, 19EL 32B, 2054 201

E370A 7502477 LVDS CABLE, 22EL 33G, 20551547

E370B 75026651 CABLE, 6P-14P/145, 30070 29

E400 75024755 REMOCON HAND UNIT, CT90326, 19EL 33B, 30070505

E100 75024773 FRONT BEZEL ASSY, 22EL 33G, 2054637

E110 75024774 BACK COVER ASSY, 22EL 33G, 2054 53

E120 75024767 STAND ASSY, 19EL 33G, 20546335

E125 75026646 SCREW, FOR STAND ASSY, 35026122

E130 7502476 KEY PLATE, 19EL 33G, 4004616

E140 75026225 LENS LED, 19EL 33F, 40045 4

E150 75026652 COVER, BRACKET, 40046169

E160 75026240 RELEASE PROTECTIVE COVER, AC CABLE, 40044553

E500 75026655 CARTON BOX, 22EL 33N, 501 456

E520 75026227 BAG, (6 0MM*6 0MM), 50145606

E5 0 750247 2 SNOW BOX ASSY, 22EL 33G, 2054 5

E590A 75026656 ARTWORK TOSHIBA, 22EL 33N, 20565795

E590B 75026657 ARTWORK TOSHIBA, 22EL 33N, 20576172

PL2

1 GND

2 LED 2

3 LED 1

4 IR_IN

5 5V_STBY CN138 CN706 PL703 PL706

1 PANEL_VCC 1 SOFT_SW 1 NC 1 12V_24V_CON

2 PANEL_VCC 2 GND 2 NC 2 12V_24V_CON

3 PANEL_VCC 3 STBY_ON/OFF 3 NC 3 BKL_ON/OFF

4 PANEL_VCC 4 GND 4 NC 4 PWM_DIM

5 PANEL_VCC 5 BACKLIGHT_ON/OFF 5 NC 5 GND

6 GND / NC 6 GND 6 NC 6 GND

7 GND / NC 7 DIMMING 7 12V_VCC

8 GND / NC 8 GND 8 12V_VCC

9 GND / NC 9 5V_STBY 9 5V_VCC

10 PANEL_VCC / OPTION2 / MEGA_DCR_IN / GND / NC 10 12V_VCC 10 5V_VCC

CN703 11 PANEL_VCC / OPTION1 / MEGA_DCR_OUT / GND / NC 11 5V_VCC 11 5V_STBY

1 GND 12 GND 12 5V_VCC 12 NC

2 LED 2 13 TX_A_3_P 13 12V_STBY 13 PWM_DIM

3 LED 1 14 TX_A_3_N 14 12V_STBY 14 GND

4 IR_IN 15 GND 15 3V3_VCC 15 BKL_ON/OFF

5 5V_STBY 16 TX_A_CLK_P 16 5V_VCC 16 GND

17 TX_A_CLK_N 17 3V3_VCC 17 STBY_ON/OFF

18 GND 18 5V_VCC 18 GND

19 TX_A_2_P 19 3V3_VCC 19 GND

20 TX_A_2_N 20 5V_VCC 20 GND

21 GND

22 TX_A_1_P

23 TX_A_1_N

24 GND CN710

25 TX_A_0_P 1 GND

26 TX_A_0_N 2 R_AUDIO_P

27 GND 3 R_AUDIO_N

28 PANEL_VCC / OPTION5 / GND / NC 4 L_AUDIO_P

29 PANEL_VCC / OPTION4 / GND 5 L_AUDIO_N

30 PANEL_VCC / OPTION3 / GND 6 GND

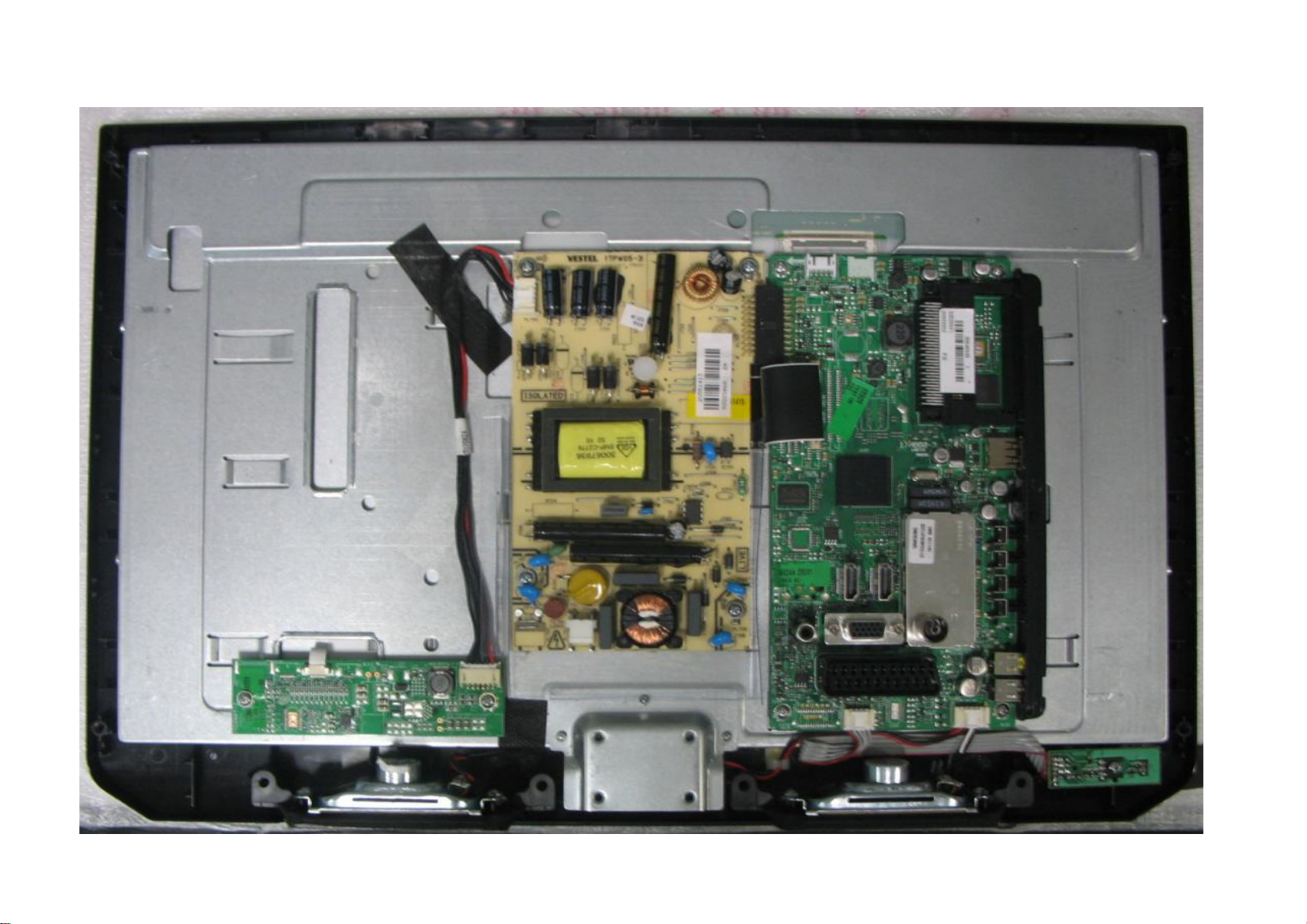

LED-IR BOARD

S

p

eaker

PL701

(

AC cable

)

PANEL

S

p

eaker

POWER BOARD

MAIN BOARD

Global Serial No.

Total digits YWK SET_ID SERIAL Panel

Max 14 YWK xxx ****** **

3 digits 3 digits 6 digits 2digits

(M00001~M99999)

VESTEL

USA -

China -

Asia -

EU P01-P99

Other -

Ｙ：Year 8 2008 Panel vendor and version for the model.

9 2009

A 2010 Marking Marking Marking

B 2011 AJS

C 2012 BKT

…

CLU

WK：Week 01 WK01 DMV

02 WK02 ENW

03 WK03 FPX

04 WK04 GQY

…

HRZ

53 WK53

Model Information

1007289922EL834R (SKD) P81 L1 LG LC216EXN-SDA1

10072028

22EL834G P69 L1 LG LC216EXN-SDA1 10073461

22EL833R (SKD) P80 L1 LG LC216EXN-SCA1

10073460

22EL833R (SKD) P80 L2 LG LC216EXN-SDA1 10072896

22EL833N P76 L1 LG LC216EXN-SDA1

10071875

22EL833F P72 L1 LG LC216EXN-SDA1 10071456

22EL833G P68 L1 LG LC216EXN-SCA1

10071226

22EL833G P68 L2 LG LC216EXN-SDA1 10071876

22EL833B P64 L1 LG LC216EXN-SCA1

Vestel Product Code

22EL833B P64 L2 LG LC216EXN-SDA1 10071465

Model Model ID Panel ID Panel

Panel Vendor Panel Vendor Panel Vendor

AUO SHARP

SAMSUNG

CMO LPL/LGD

IPS

CPT

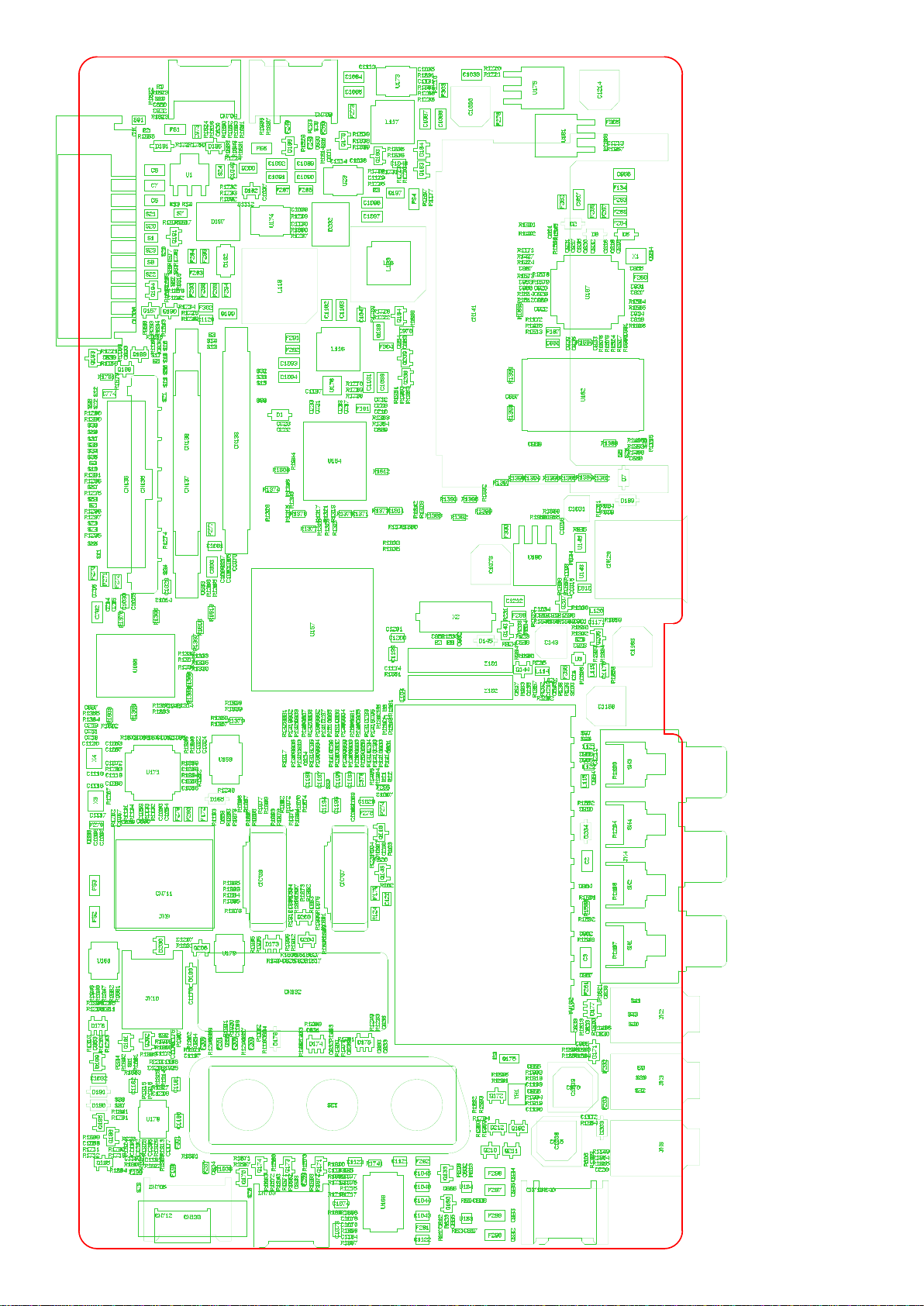

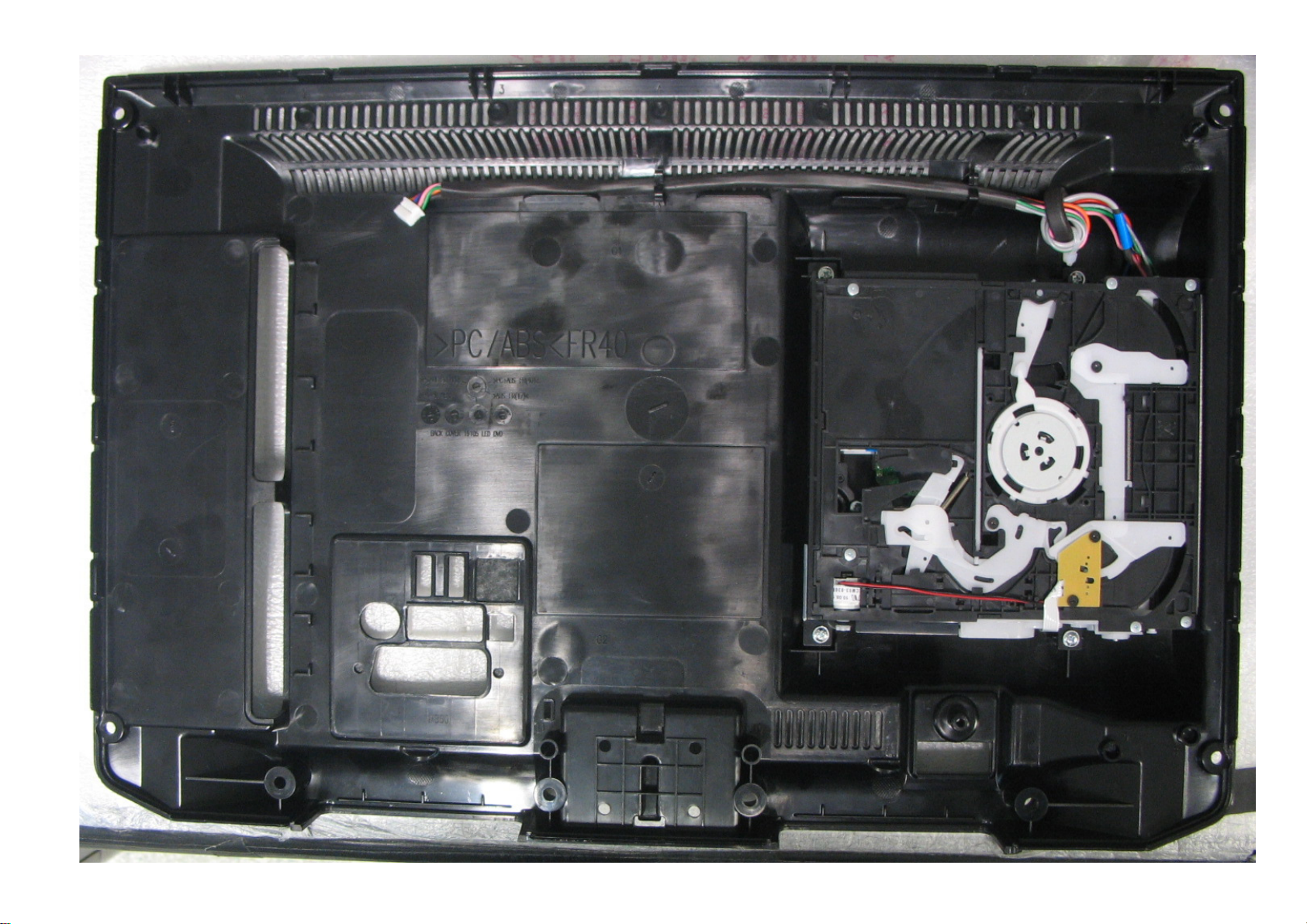

PCB LAYOUT OF 19DL833*

POWER MAIN

BUTTON

LED

DVD

RESET_T2

3V3_DVDD

10V

100n

C914

1V2_CVDD

C911

10V

100n

IF_AGC_T2

1k

R1582

47p

50V

C1211

21

TU102 TDTC-G101D

12

11

10

9

8

7

6

5

4

3

2

1

ANT_PWR

B1

RF_AGC

SCL

SDA

B2

NC

AS

IF_AGC

DIF2

DIF1

AIF

2V5_VCC

5V_TUN

1V2_PVDD

1V2_MVDD

3V3_DVDD

R1857

200R

16V

47u

C143

2 1

1V2_CVDD

3V3_DVDD

SDA_SYS

SCL_SYS

3V3_DVDD

1V2_CVDD

1V2_MVDD

1V2_CVDD

1V2_MVDD

1V2_CVDD

2V5_AVDD

3V3_RVDD

TUN_SCL_T2

1V2_CVDD

3V3_DVDD

1V2_CVDD

100R

R1545 21

47R

R1575

R1576

47R

R1560

10k

R1561

10k

TUN_SDA_T2

R1564

10k

600R

F260

C955

12p

50V

C954

50V

12p

100n

C915

10V

C918

100n

10V

10k

R1566

U167

CXD2820R

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64 IFAGC

RFAGC_GPIO1

PLLBPN

CVDD

VSS9

DVDD

TUNERCLK

TUNERDAT

CVDD6

VSS8

RVDD

RFAIN

AVDD1

AVSS1

AINP

AINM

XVSS

XTALI

XTALO

XVDD

PVDD

PVSS

MVSS4

MVDD4

MVDD3

MVSS3

OSCMODE

RESETN

CVDD5

VSS7

OSCENBN

A0

TSDATA3

MVSS2

MVDD2

CVDD3

VSS4

TSDATA4

TSDATA5

TSDATA6

TSDATA7

VSS5

DVDD2

SCL

SDA

CVDD4

VSS6

TESTMODE

GPIO0

TSERR_GPIO2

TSSYNC

TSVALID

TSCLK

VSS1

CVDD1

MVDD1

MVSS1

VSS2

DVDD1

TSDATA0

TSDATA1

CVDD2

VSS3

TSDATA2

TSMICLK

TSMIVALID

R1578

47R

R1573

47R

R1579

47R

TSMISYNC

TS_MDI0

TS_MDI1

TS_MDI2

TS_MDI3

TS_MDI4

TS_MDI5

TS_MDI6

TS_MDI7

10k

R1565

2V5_AVDD

330R

F267

F262

330R

C929

10V

100n

F264

330R

100n

10V

C933

RF_AGC_MONITOR

100n

10V

C935

100n

10V

C928

100n

10V

C927

100n

10V

C925

100n

10V

C919

C545

47p

50V

10n

L124

100n

10V

C921

100n

10V

C923

100n

10V

C922

F134

330R

F269

330R

F263

330R

3V3_DVDD

3V3_RVDD

3V3_VCC

BC848B

Q207

3

2

1

1V2_PVDD

1V2_MVDD1V2_VCC

1V2_CVDD

100n

10V

C917

100n

C916

10V

C932

10V

100n

10V

C931

100n

C920

10V

100n

330R

F265

DIGITAL_IF_P

DIGITAL_IF_N

R1856

47R

R1583

47R

8

7

6

5 4

3

2

1

R2

R3

R1

R4

R1939

10k

R1584

47R

8

7

6

5 4

3

2

1

R2

R3

R1

R4

C956

22u

16V

C957

22u

16V

2V5_VCC

C953

12p

50V

S96

S97

R1580

47R

X1

41MHz

241 3

R1933

100k 2

1

BC848B

Q205

3

2

1

100k

R1932 2

1

100k

R1934

21

5V_TUN

S100

5V_TUN

C15V

D6 21

C15V

D5 21

10k

R4

17mb60

10 10

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:06

1u

L115

21

47p

50V

C964

21

TH1

2R1

20k

R1586

100n

C965

16V

OVER_CUR_DETECT 10k

R1594

10k

R1593

12V_VCC

R1595

10k

1k

R1581

10k

R1590

FDN336P

Q175 ANT_CTRL

BC848B

Q172

RF_AGC_TUNER

F261

330R

5V_TUN

DIGITAL_IF_P

DIGITAL_IF_N

10V

C907

100n

2

1

10V

C904

100n

2

1

TUN_SDA_T2

ANALOG_IF

5V_TUN

TUN_SCL_T2

TUN_SCL_MST

TUN_SDA_MST

RF_AGC_TUNER

100R

R1588

8

7

6

5 4

3

2

1

R2

R3

R1

R4

IF_AGC_TUNER

1k

R139

330R

F266 21

R138

1k

VIFP

L114

1u

2 1

100k

R209 2

1

BA782

D145

2 1

3k3

R231 21

6k8

R474

21 6k8

R473 21

12V_VCC

680R

R735

2 1

ANALOG_IF

16V

10n

C547

21

5V_TUN

22k

R594

2 1

BSN20

Q140

3

2

1

5V_TUN5V_TUN

C135

10V

100n

2

1

50V

47p

C1210

1k2

R483 21

10R

R384 21

BF799

Q144

3

2

1

SIFM

SIFP

Z102

K3958M 41

5

3

2IN2 GND

OUT2

IN1 OUT1

SIF_CTL

K9656M

Z101 41

5

3

2IN2 GND

OUT2

IN1 OUT1

4k7

R252 21

16V

10n

C546

21

L104

2u2

21

VIFM

IF_AGC_T2

IF_AGC_MST R1597

10k

100n

10V

C912

2

1100n

C910

10V

2

1

100R

R1552 21

100R

R1546 21

IF_AGC_TUNER

10k

R1591

R1592

10k

3V3_VCC

S28

RF_AGC_CTL

100R

R1551 21

C14

100n

10V

2

1

FSA3157

U3 6

5

43

2

1B1

GND

B0 A

VCC

S

6k8

R1598

12k

R1589 100R

R1550 21

100n

C903

10V

2

1

10V

100n

C901

2

1

C902

10V

100n

2

1

100R

R1549 21

RF_AGC_MST

C2

22u

16V

R1596

10k

16V

22u

C3

C15V

D2 21

5V_VCC

RF_AGC_CTL

33R

120nH

0R

33R

2K7

NC

0R

33R

T2 DEMOD

150p

82p

150nH

N.C.

-3

1

2

3

4

5

6

7

8

9

10

11

12

VGA_HSNC

VGA_VSNC

2 1

R1479

75R

DVD_IR

DVD_IR_ON/OFF

3V3_VCC

R694

4k7

2 1

47k

R498 21 BC848B

Q157

3

2

1

IR_IN

TP245

1

12V_VCC

DVD_Y_IN 180R

R1650

75R

R1652

180R

R1651 DVD_C_IN

S80 21

DVD_WAKEUP

D181

C18V

4A/24VDC

FS1

21

R11

270R

TP250

1

CN704

109

87

65

43

21

R1616

4k7

2 1

DVD_SPDIF

R1624

100R 21

10V

100n

C628

21

DVD_SENSE

C650

50V

27p

21

TP247

1

DVD_IR

220p

C972

50V

R1623

100R

R1653

75R

R1620

75R

2 1

75R

R1621

2 1

75R

R1619

2 1

TP246

1

TP248

1

TP249

1

100R

R1946 21

R1949

100R 21

SC_FB

470R

R1423

SCART_CVBS_OUT

33R

R1510

SCART_AUD_R_IN

SC_R

C973

10u

25V

270R

R12

C884

16V 47n

17mb60

55

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:06

600R

F199

2 1

CN133

30 29

28 27

26 25

24 23

22 21

20 19

18 17

16 15

14 13

12 11

10 9

8 7

6 5

4 3

2 1

TP242 1

RCA_PR

S43 21

S78 21 S79 21 5V_STBY 33R

R1509

S9 21

47n

C882

16V

JK3

1

2

3

4

5

6

7

R1409

33R

R1408

33R

JK2

1

2

3

4

5

6

7

S42 21

JK4

6

5

4

3

2

1

RED

WHT

YEL

VGA_VSNC

VGA_HSNC

TP13 1

5V_VCC

U161

ST24LC21

8

7

6

5 4

3

2

1

A0

A1

A2

GNDSDA

SCL

WP

VCC

TP2 1

NUP4004M5

D173 5

4

3

2

1

CN132

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

VGA_DDC_5V

D169

BAV70

3

21

2k2

R1206

2 1

NUP4004M5

D176

5

4

3

2

1

R1265

10k 21

10k

R1310 21

TP3 1

TP36 1

TP37 1

VGA_DDC_5V

C825

27p

50V

21

C663

100n

10V

2

1

R1209

2k2

2 1

VGA_B

VGA_R

VGA_G

R1311

10k 21

100R

R1243 21

R1947

100R 21

50V

C827

27p

21

50V

C826

27p

21

R1404

33R 21

133R

R1403 2TX/SDA_SC

RX/SCL_SC

C807

16V

47n

R1507

33R

47n

16V C881

33R

R1506

C806

16V 47n

C802

16V 47n

R1508

33R 16V C883

47n

16V C886

47n

R1505

33R

R1422

33R

SC_R

SC_G

SC_B

SC_CVBS_IN

16V C810

47n

R1421

33R

RCA_PB

470R

R124

C120

10u

16V

R104

33k

R221

100R

2 1

68k

R103

SC_CVBS_OUT

BC848B

Q119

3

2

1

390R

R102

300R

R620 21

SCART_CVBS_OUT

12V_VCC

Q146

BC858B

3

2

1

C378

10u

10V

F179

330R

21

D171

C5V6

50V

3n3

C856

F202

600R

21

TX/SDA_SC

600R

F198 21

SDA_SYS

12V_VCC

C858

50V

4n7

SC_AUD_R_OUT

NUP4004M5

D174

5

4

3

2

1

D175

NUP4004M5

5

4

3

2

1

50V

C853

3n3

50V

C835

220p

21

C833

220p

50V

2 1

C854

50V

3n3

SC_AUD_R_IN

600R

F206 21

C831

50V

220p

2 1

100R

R1245 21

F201

600R

21

SCART_AUD_R_IN

SCART_AUD_L_IN

C861 1n50V

RX/SCL_SC

TX/SDA_SC

50V

220p

C836

2 1

R1482

75R

2 1

SC_CVBS_OUT

220p

50V

C832

2 1

R1182

4k7 21

SC_PIN8

220R

R1233

47R

R1249

2 1

SC_CVBS_IN

SC_G

SC_R

SC_B

SC_FB

75R

R1483

2 1

100n

10V

C664

2 1

C15V

D178

2 1

22k

R1187 21

50V

C857

4n7

SC_AUD_L_OUT

F205

600R

21 SC_AUD_L_IN

F200

600R

21 R1244

100R 21

12V_VCC

SC1

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SCART LT1

AMP_MUTE

IPOD_Y_IN IPOD_C_IN

SCL_SYS

R1938

56R 8

7

6

54

3

2

1

R2

R3

R1

R4

IPOD_R_IN IPOD_L_IN

IPOD_DETECT

R1484

75R

2 1

R1486

75R

27p

C824

50V

21

IR_IN

600R

F207 21

MAIN_R MAIN_L

RX/SCL_SC

F203

600R

21

50V

C830

220p

2 1

SAV_CVBS_IN

R1494

470R

SAV_L_IN

SAV_R_IN

50V

3n3

C855

S41 21

S40 21

S39 21

R263

4k7

2 1

C809

16V

47n

RCA_PR

50V

27p

C829

21

27p

50V

C823

21

RCA_Y

27p 50V

C828

21

NUP4004M5

D177 5

4

3

2

1

RCA_PR

RCA_PB

RCA_Y

R1420

33R

DVD_C_IN

DVD_Y_IN

IPOD_Y_IN

IPOD_C_IN

RCA_Y

RCA_PB

SAV_R

SAV_L

SAV_CVBS_IN

33R

R1419

U157

MSD9WB7PX-2

W1

AA4

V3

W3

W2

AA5

W5

W4

AC5

V4

T3

R2

R1

T1

T2

U3

U2

Y6

W6

N1

M1

N3

N2

P3

P2

R3

N5

N4

K2

K3

K1

L3

L2

M3

M2 RIN0M

RIN0P

GIN0M

GIN0P

BIN0M

BIN0P

SOGIN0

HSYNC0

VSYNC0

RIN1M

RIN1P

GIN1M

GIN1P

BIN1M

BIN1P

SOGIN1

HSYNC1

VSYNC1

RIN2M

RIN2P

GIN2M

GIN2P

BIN2M

BIN2P

SOGIN2

HSYNC2

CVBS0

CVBS1

CVBS2

CVBS3

CVBS4

CVBS5

CVBSOUT0

CVBSOUT1

VCOM

5

16V

47n

C808

C862

1n 50V

47n

16V C885

SAV_L

R1516

75R

2 1

VGA_G

R1481

75R

2 1

VGA_B

VGA_R

33R

R1418 C798

16V 47n

16V

C796

47n

47n C797

16V

R1417

33R

R1416

RCA_Y

R1480

75R

2 1

R1489

75R

2 1

33R

R1407 16V C805

47n

16V C804

16V 47n

C803

R1405

33R

R1406

C860

1n

50V

47n C795

16V 33R

R1415

C801

16V

47n 33R

R1414

R1413

33R

C800

16V

47n

16V

47n C799 R1412

33R

R1411

47n

16V C794

33R

R1410

47n C793

16V

75R

R1485

21

SC_CVBS_IN

SAV_CVBS_IN

R1515

75R

2 1

R1517

75R

2 1

R1511

33R

SCART_AUD_L_IN

SC_CVBS_IN

JK7

4

3

2

1RED

WHT

YEL

C788

12p

50V

TP38

1

TP44 1

100R

R1948 21

TP42 1

TP4 1

75R

R1587

TP39

1

TP43

1

TP1

1

TP5

1

C959 16V

47n

33R

R1530

S93 21

C859

1n

50V

33R

R1681 21

33R

R1682 21 RX/SCL_SC

TX/SDA_SC

SAV_R

SCART

N.C.

NC

DVD INTERFACE (for 26" to 32")

!SC SVHS opt

INDIA OPTION

N.C.

YPbPr INPUT

hindistan opt.

SCART VIDEO OUTPUT AMPLIFIER

SIDE AV INPUT

IPOD INTERFACE

SAV/YPbPr INPUT

PC INPUT

12K

220R

NC

2K7 2K7

100R

-3

IR_IN

R1528

4k7 21

R1524

4k7

2 1

3V3_VCC

KEYBOARD

SDA_SYS

SCL_SYS

R1527

4k7

2 1

RX/SCL_SC

R1533

1M

3V3_STBY

100R

R1543 21

R1562

10k

R1567

10k 10k

R1568

R1571

220R 21

LED2

R1563

10k

Q170

BC848B

3

2

1

MECH_SWITCH

IPOD_DETECT

KEYBOARD_ONBOARD

47R

R793 21

F248

600R

21

Q171

BC848B

3

2

1

LED1

C949

27p

50V

21

F259

600R

21 IR_IN

220R

R1569 21

Q174

BC858B

3

2

1BC858B

Q173

3

2

1

220R

R1570 21 R1572

220R 21

100n

10V

C630

2

1

KEYBOARD

600R

F249 21 3V3_STBY

S76

50V

C951

18p C952

18p

50V

X2

24MHz

5V_STBY

DVD_WAKEUP R1523

4k7 21

R1522

4k7

2 1

HDMI_WP

HP_DETECT

HDMI1_5V

33k

R1605

33k

R1604

HDMI0_5V

18k

R1607

4k7

R1601

21 3V3_STBY

AMP_MUTE

OVER_CUR_DETECT

CN702

4

3

2

1

PCM_CD1_N

CN703

5

4

3

2

1

DVD_SENSE

DVD_SPDIF

4k7

R344 21

BACKLIGHT_DIM

S99 21

DVD_IR_ON/OFF

3V3_STBY

4k7

R1

2 1

21

C15V

D204

R1615

4k7

2 1

CN709

6

5

4

3

2

1

3V3_VCC

STBY_ON/OFF_NOT

9

17mb60

9

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:06

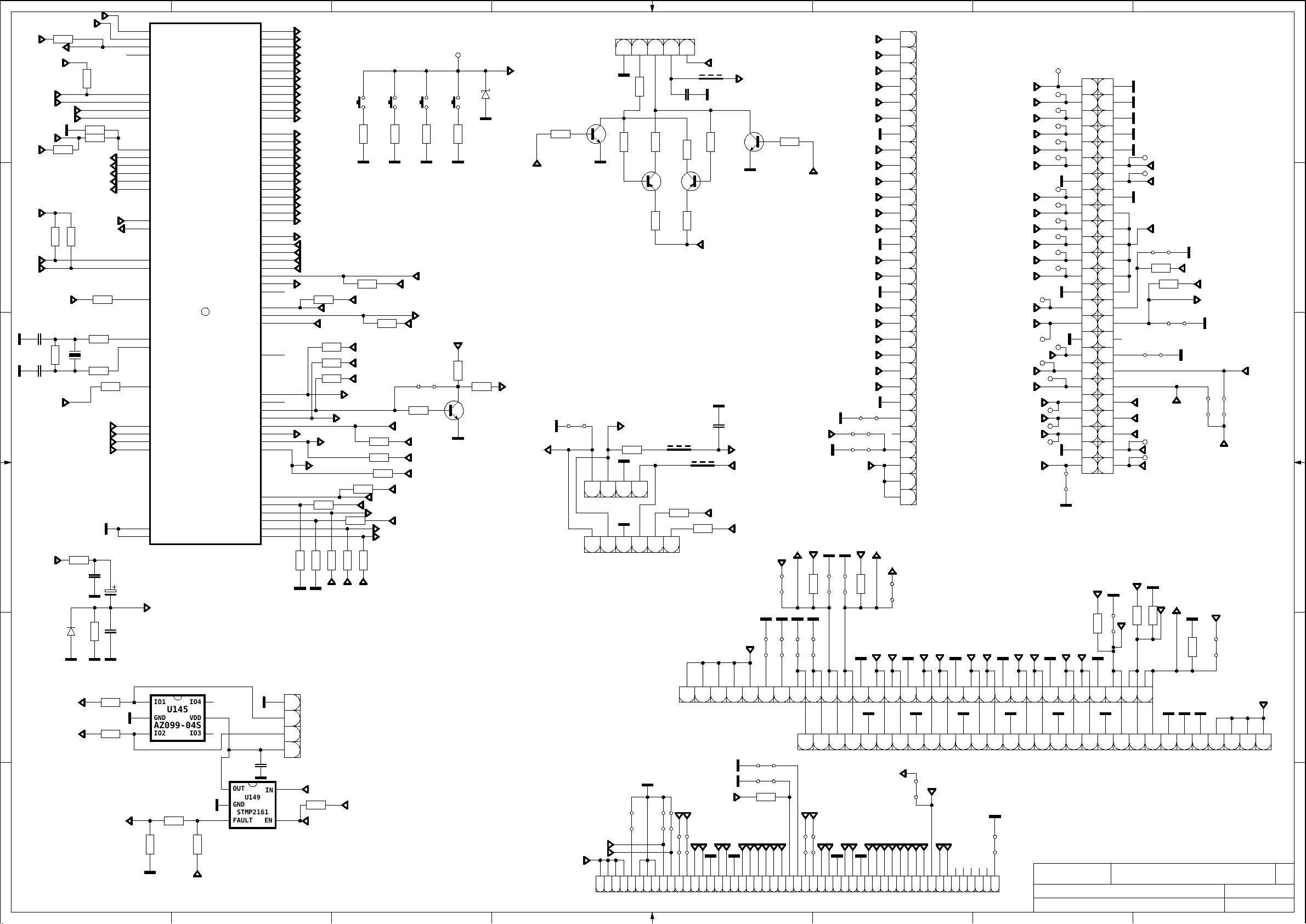

4k7

R1617

2 1

MSD9WB7PX-2

U157

PWM0

AB25

PWM1

AB24

PWM2

E6

PWM3

D6

SAR0

J5

SAR1

G4

SAR2

B4

SAR3

AA7

GPIO12

C4

SCZ

A4

SCK

A2

SDI

B3

SDO

A3

GPIO14

B2

DDCA_CK/UART0_RX

P6

DDCA_DA/UART0_TX

N6

DDCR_CK

AA23

DDCR_DA

AA24

IRIN

G5

XIN

AD1

XOUT

AE2

HWRESET

E5

USB0_DP

C2

USB0_DM

B1

USB1_DP

AD11

USB1_DM

AE11

GND0

F11

GND1

E11

LVB0P AC24

LVB0M AC25

LVB1P AD24

LVB1M AD25

LVB2P AE24

LVB2M AC23

LVBCKP AE23

LVBCKM AD23

LVB3P AE22

LVB3M AC22

LVB4P AC21

LVB4M AD22

LVA0P AC20

LVA0M AD21

LVA1P AE20

LVA1M AD20

LVA2P AE19

LVA2M AC19

LVACKP AC18

LVACKM AD19

LVA3P AC17

LVA3M AD18

LVA4P AE17

LVA4M AD17

GPIO137 AA10

GPIO138 T5

GPIO139/SPDIFI AB10

GPIO140 AB7

GPIO141 AA9

GPIO142 V5

GPIO143 AC11

GPIO144 AA8

GPIO146 R6

GPIO147 Y8

GPIO148 Y9

GPIO152 T4

GPIO32 A7

GPIO33 C7

GPIO34 F4

GPIO35 E4

GPIO36 C3

GPIO37 D4

GPIO44/UART1_RX F6

GPIO45/UART1_TX F5

GPIO6 AB8

GPIO7 H5

GPIO10 C5

GPIO11 K4

GPIO17 L5

GPIO18 M6

4

SPI_SDO

SPI_CSN_1

3V3_STBY

SPI_SDI_1

SPI_SCK

R1618

4k7 21

PANEL_VCC_ON/OFF

3V3_VCC

FLASH_WPN

R1937

47R 21

3V3_VCC

R1198

47k

47R

R1936 21 SDA_SYS

SCL_SYS

PROTECT

USB_ENABLE

CN128

4

3

2

1

5V_VCC

USB_OCD

5V_VCC

U149

STMP2161

5

43

2

1OUT

GND

FAULT EN

IN

R809

4k7

2 1

100k

R884 21

AZ099-04S

U145 6

5

4

2

IO1

1

GND

IO2

3IO3

VDD

IO4

R844

10R

2 1

10R

R845

2 1

USB_DP

USB_DM

USB_DP

USB_DM

USB_OCD

USB_ENABLE

5V_VCC

R1201

47k

S98 21

MEGA_DCR_OUT

SC_PIN8

220R

R1940 21

C610

10u

10V

3V3_VCC

CN135

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CI_POWER_CTRL

R1671

4k7

2 1

4k7

R1672

2 1

4k7

R1952

21

LED1

LED2

3V3_STBY

TP34 1

TP32 1

TP30 1

TP28 1

TP26 1

TP24 1

TP22 1

TP20 1

TP18 1

TP16 1

TP17 1

TP19 1

S4 21

TX_B_4_N

OPTION1

OPTION2

OPTION3

R1945

4k7 21

S6

2 1

CN136

5049

4847

4645

4443

4241

4039

3837

3635

3433

3231

3029

2827

2625

2423

2221

2019

1817

1615

1413

1211

109

87

65

43

21

PANEL_VCC

S57 21

TP21

1

TP23 1

TP25 1

TP27 1

TP29 1

TX_A_2_P

TX_A_CLK_N

TP31 1

S36 21

S34 21

PANEL_VCC

S10 21

3V3_VCC

10k

R1301

2 1

10k

R1266

2 1 3V3_VCC

MEGA_DCR_OUT

TX_B_0_N

TX_B_0_P

TX_B_1_N

TX_B_1_P

TX_B_2_N

TX_B_2_P

TX_B_CLK_N

TX_B_CLK_P

TX_B_3_N

TX_B_3_P

TX_A_0_N

TX_A_0_P

TX_A_1_N

TX_A_1_P

TX_A_2_N

TP33 1

TX_A_CLK_P

TP35 1

TX_A_3_N

TX_A_3_P

MEGA_DCR_IN

S32

2 1

TX_B_0_N

S15

2 1

TX_A_3_N

TX_A_CLK_P

TX_A_2_P

TX_A_2_N

TX_A_1_P

TX_A_1_N

TX_A_0_P

CN139

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

TX_A_0_N

TX_A_CLK_N

TX_A_3_P

TX_B_3_P

TX_B_3_N

TX_B_CLK_P

TX_B_CLK_N

TX_B_2_P

TX_B_1_P

TX_B_1_N

TX_B_0_P

PANEL_VCC

S33

2 1

TX_B_2_N

PANEL_VCC

CN137

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN138

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

S13 21

10k

R1274

2 1

S19 21

PANEL_VCC

TX_A_0_N

S3 21

S14 21

TX_A_0_P

TX_A_1_N

TX_A_1_P

TX_A_2_P

TX_A_CLK_P

TX_A_3_N

TX_A_CLK_N

R1300

10k

2 1 PANEL_VCC

S30 21

PANEL_VCC

R1296

10k

2 1

PANEL_VCC

S55 21

10k

R1297

2 1

PANEL_VCC

10k

R1280

2 1

OPTION2

OPTION1

OPTION3

S94

TX_A_3_P

TX_A_2_N

10k

R1295

2 1 PANEL_VCC

MEGA_DCR_IN

S56 21

MEGA_DCR_OUT

S58 21

OPTION6

OPTION7

OPTION6

OPTION5

OPTION4

S11 21

OPTION5

OPTION4

TX_B_4_N

TX_B_4_P

S74

2 1

S73

2 1

S72

2 1

S71

2 1

S2

2 1

PANEL_VCC

S54

2 1

TX_A_4_P

TX_A_4_N

TX_B_3_P

TX_B_3_N

TX_B_CLK_P

TX_B_CLK_N

TX_B_2_P

TX_B_2_N

TX_B_1_P

TX_B_1_N

TX_B_0_P

TX_B_0_N

PANEL_VCC

TX_A_0_N

TX_A_1_N

TX_A_CLK_P

TX_A_3_N

TX_A_CLK_N

TX_A_2_P

TX_A_1_P

TX_A_2_N

TX_A_0_P

OPTION3

OPTION2

OPTION1

10k

R1275 21

TX_A_3_P

TP7

1

TP6

1

TX_B_4_P

TP8

1

TP9

1

TX_A_4_N

TX_A_4_P

S12

2 1

S35

2 1

S37

2 1

TX_B_CLK_N

TX_B_3_P

TX_B_3_N

TX_B_2_P

TX_B_CLK_P

TX_B_2_N

TX_B_1_P

TX_B_1_N

TX_B_0_P

TX_B_0_N

TX_A_4_P

TX_A_3_P

TX_A_3_N

TX_B_4_N

TX_B_4_P

TX_A_4_N

TX_A_CLK_P

TX_A_CLK_N

TX_A_2_P

TX_A_2_N

TX_A_1_P

TX_A_1_N

TX_A_0_P

TX_A_0_N

KEYBOARD_ONBOARD

R1294

10k

R1497

2k7 21

1k2

R1498 21

R1499

270R 21

SW1

SW2

SW4

SW3

TP10

1

4k7

R1959

21 3V3_STBY

RF_AGC_MONITOR

3V3_STBY

4k7

R1614

21

3V3_STBY

4k7

R1656

21

R1659

4k7 21

R1606 18k

STBY_INFO

R7

100R

2 1

R8

100R

2 1

TX/SDA_SC

5V_STBY

BC848B

Q181

3

2

1

3V3_VCC

4k7

R1663

21

10V

100n

C1016

21

4k7

R1661

21

R1662

4k7 21 3V3_VCC

S81 BACKLIGHT_ON/OFF

1N4148

D189

R1668

1k

22u

C1031

16V

R1667

10k

3V3_STBY

4k7

R1669

21

C1015

100n

10V

2

1

R1666

100R

2 1

RESET

USB_DP_ETH

USB_DM_ETH P0_ETH

3V3_VCC

HP_MUTE

CFG_PWM1

CFG_PWM0

3V3_STBY

RESET_T2

TOUCH_PAD_OPTION

LED SOCKETONBOARD KEYBOARD

RESET

USB

USB INTERFACE

TWISTED PAIR LVDS OPTION

19" TO 22" DOUBLE LVDS FFC OPTIONS

EXT KEYPAD

PANEL_VCC = 5V/12V

PANEL VCC = 5V/12V

SINGLE LVDS FFC OPTIONS

STBY+ - P/VOL

NC

3V6 lik zener kullanilmali

-3

C1177

100n

16V

10u

L120

HPL_MUTE

HPR_MUTE I2S_OUT_SD

L119

10u

C1201

1u

6V3

4k7

R1674

2 1

3V3_VCC

44

17mb60

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:07

200R

R1858

100u

C1169

16V

2 1

16V

C1168

100u

2 1

CN707

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HDMI_1_CLKP

HDMI_1_CLKN

HDMI_1_RX0P

HDMI_1_RX0N

HDMI_1_RX1P

HDMI_1_RX1N

HDMI_1_RX2P

HDMI_1_RX2N

HDMI_0_SCL

HDMI_0_SDA

CEC

HDMI_1_SCL

HDMI_1_SDA

HDMI1_5V

HDMI1_HPD R1881

10R

2 1

10R

R1883

2 1

10R

R1871

2 1

10R

R1870

2 1

10R

R1872 2

10R

R1884 1

R1882

10R

2 1

R1876

10R 1

CEC R1873

10R

2 1

10R

R1875

21

R1862

47k 21

47k

R1863 21

R1874

10R 1

10R

R1877

21

47k

R1864 21

R1865

47k 21

R1885

10R

21

10R

R1888

2 1

21

R1879

10R

R1886

10R

2 1

10R

R1868

21

10R

R1867 2

1

10R

R1869

2 1

10R

R1887

2 1

10R

R1880

2 1

10R

R1878

2 1

HDMI0_HPD

HDMI0_5V

HDMI_0_RX2P

HDMI_0_CLKP

HDMI_0_CLKN

HDMI_0_RX0N

HDMI_0_RX0P

HDMI_0_RX1N

HDMI_0_RX1P

HDMI_0_RX2N

CN708

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

10n

C1183

16V

R1897

4k7

R1899

4k7

R1900

4k7

C1184

16V

10n

R1898

4k7

DSP_MAIN_R

DSP_MAIN_LMAIN_L

MAIN_R

R1905

10k

12k

R1922

50V

470p

C1191

10k

R1906

R1923

12k

470p

C1192

50V

IPOD_AUDIO_IN_R

IPOD_AUDIO_IN_L

IPOD_R_IN

10k

R1904

R1919

12k

50V

C1190

470p

R1903

10k

R1918

12k

SC_AUD_L_IN 10k

R1901

R1920

12k

C1188

50V

470p

SAV_L_IN

470p

50V

C1189

SC_AUD_R_IN

C1187

470p

50V

SAV_R_IN

R1921

12k

10k

R1902 SCART_AUDIO_IN_R

SCART_AUDIO_IN_L

SAV_AUDIO_IN_L

SAV_AUDIO_IN_R

R1925

22k 21 R1924

22k 21

SC_R_OUT

SC_L_OUT

16V

10n

C1186

10n

16V

C1185

DSP_SCART_L

DSP_SCART_R

R222

100R

2 1

100R

R223

2 1

IPOD_L_IN

4k7

R1894

2 1

10V

10u

C1199

100n

C1174

10V

2

1

IPOD_AUDIO_IN_L

IPOD_AUDIO_IN_R

SCART_AUDIO_IN_R

SCART_AUDIO_IN_L

10V

C1194

10u

10V

10u

C1193

10V

C1198

10u

10V

C1197

10u

DSP_HP_R

DSP_HP_L

DSP_SCART_R

DSP_SCART_L

DSP_MAIN_L

DSP_MAIN_R

U157

MSD9WB7PX-2

P5

G6

H6

C1

C6

B6

B5

A6

AC3

AB5

AB4

AE5

AD5

Y5

AA6

V2

V1

AC6

AD6

U5

V6

U6

T6

R5

R4

K5

AC7

AD7

AE7

AD8

AE8

AC10

AE10

AD10

AC9

AD9

AC8

J4

L6

J6

D1

D3

F1

F2

F3

E2

E3

D2

K6

M5

M4

G1

G3

J1

J2

J3

H2

H3

G2

RXA0N

RXA0P

RXA1N

RXA1P

RXA2N

RXA2P

RXACKN

RXACKP

DDCDA_CK

DDCDA_DA

HOTPLUGA

RXB0N

RXB0P

RXB1N

RXB1P

RXB2N

RXB2P

RXBCKN

RXBCKP

DDCDB_CK

DDCDB_DA

HOTPLUGB

RXC0N

RXC0P

RXC1N

RXC1P

RXC2N

RXC2P

RXCCKN

RXCCKP

DDCDC_CK

DDCDC_DA

HOTPLUGC

CEC

AUL0

AUR0

AUL1

AUR1

AUL2

AUR2

AUL3

AUR3

AUOUTL0

AUOUTR0

AUOUTL1

AUOUTR1

EAR_OUTL

EAR_OUTR

AUVRP

AUVAG

AUVRM

I2S_OUT_MCK

I2S_OUT_SD

I2S_OUT_WS

I2S_OUT_BCK

I2S_IN_BCK

I2S_IN_SD

I2S_IN_WS

SPDIFO

3

HDMI1_5V

HDMI_1_SDA

HDMI_1_SCL

HDMI0_HPD

HDMI0_5V

HDMI_0_SDA

HDMI_0_SCL

HDMI_1_CLKP

HDMI_1_CLKN

HDMI_1_RX0P

HDMI_1_RX0N

HDMI_1_RX1P

HDMI_1_RX1N

HDMI_1_RX2N

HDMI_1_RX2P

HDMI_0_RX2P

HDMI_0_RX2N

HDMI_0_RX1P

HDMI_0_RX1N

HDMI_0_RX0P

SPDIF_OUT

R1912

1k

2 1 Q204

BC848B

3

2

1

R1909

1k

2 1

HDMI_0_RX0N

HDMI_0_CLKP

HDMI_0_CLKN

1k

R1911

2 1 Q203

BC848B

3

2

1

1k

R1910

2 1

4k7

R1896 21

C1200

10V

4u7

HDMI1_HPD

4k7

R1895 21

R1917

10R

2 1

TP223 1

R1892

4k7

2 1

CEC

3V3_VCC

ANT_CTRL

10V

C1196

10u

10V

10u

C1195

SAV_AUDIO_IN_R

SAV_AUDIO_IN_L

C1182

10u

10V

C1170

10u

10V

600R

F301

2 1 12V_VCC

TL062

U178 8

7

6

54

3

2

1OUT1

IN1-

IN1+

VSS IN2+

IN2-

OUT2

VDD

R1927

82k 21

33k

R1914

2 1

R1926

82k 21

100p

C1205

50V

R1913

33k 21

V+

C1181

10u

10V

SC_L_OUT20k

R1928 21

SC_AUD_L_OUT

SC_AUD_R_OUT

6V3

1u

C1203 R1929

20k 21

SC_R_OUT

12V_VCC

V+ R1916

33k 21

33k

R1915 21

100p

50V

C1206

S92 21

BC848B

Q202

3

2

1

50V

220p

C1178

2 1

C1202

1u

6V3

SPDIF_OUT

100R

R1907 21

4k7

R1889 21

4k7

R1890 21

5V_VCC

10V

100n

C1175

21

10V

100n

C1176

21

C5V6

D199 21

220p

50V

C1179

21

1k

R1908 21

JK10 3

2

1

WAKEUP_ETH

3V3_VCC

BC848B

Q206

3

2

1

1k

R1935

2 1 HDMI_WP

R1931

4k7 21

TP219 1

TP221 1

BAV70

D200

3

2 1

5V_VCC

TP218

1

TP220 1

24LC02

U179 8

5

6

7

4

3

2

1A0

A1

A2

VSS

WP

SCL

SDA

VCC

HDMI0_5V

HDMI_0_SCL

HDMI_0_SDA

10V

100n

C1207

2

1

RST_ETH

I2S_OUT_MCK

I2S_OUT_BCK

CFG_PWM1

I2S_OUT_BCK

R1835

10k 10k

R1836

CFG_PWM0

I2S_OUT_MCK

I2S_OUT_SD

3V3_STBY 10k

R1833R1839

10k

C1171

10u

10V

R1859

200R

HP_R

HP_L DSP_HP_L

DSP_HP_R

C1180

10u

10V

10k

R1838 10k

R1840

NC

HDMI2 EDID EEPROM

HDMI2

HDMI1

AUDIO OUTPUTs

33n

AUDIO INPUTs

PRE-AMP for SCART AUDIO

COAX SPDIF OUT

MODE SELECTION

NC

COMMON OPTIONAL

100R

22K

NC

220R

0:IPS

1:NAND

-3

60R

F281

F283

60R

600R

F299

12V_VCC

R1684

10k 21

60R

F284

VDD_AUDIO

60R

F285

24V_VCC

18V_VCC

5V_VCC

C870

10V

220u220u

10V

C615

R1711

3k9 21

R1712

15k 21

C1123

1u

50V

12V_VCC

1N4148

D190

2 1

VDD_AUDIO

S87 21

R1718

100k 21

10k

R1701 21

25V

220n

C1045

5V_VCC

D191

1N4148

2 1

Q186

BC848B

3

2

1

50V

C945

1n

C944

1n

50V

F298

600R

F297

1n

C943

50V 50V

1n

C942

R_AUDIO_P_OUT

R_AUDIO_P

L_AUDIO_N

L_AUDIO_P

R_AUDIO_N

C1073

1u

25V

R1687

10k 10k

R1696

S85

C1077

1u

6V3

C10751u

6V3

HP_L

10k

R1854 21

MAIN_R

L_AUDIO_P_OUT

L_AUDIO_N_OUT

R_AUDIO_N_OUT

R_AUDIO_P_OUT

U168

TPA3110D2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

28

27

26

25

24

23

22

21

20

19

18

17

16

15

PVCCR2

PVCCR1

BSPR

OUTPR

PGND2

OUTNR

BSNR

BSNL

OUTNL

PGND1

OUTPL

BSPL

PVCCL1

PVCCL2

PBTL

NC

RINP

RINN

PLIMIT

GVDD

AGND

AVCC

GAIN1

GAIN0

LINN

LINP

FAULT

SD

R1702

10k

2 1

VDD_AUDIO

R1716

100k

R1714

R1715

100k

VDD_AUDIO

CN710

6

5

4

3

2

1

HP_MUTE

C10761u

6V3

R1954

100R 21

C1208

100u

35V 35V

100u

C1209

TP230 1

TP229 1

TP228 1

17mb60

77

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:07

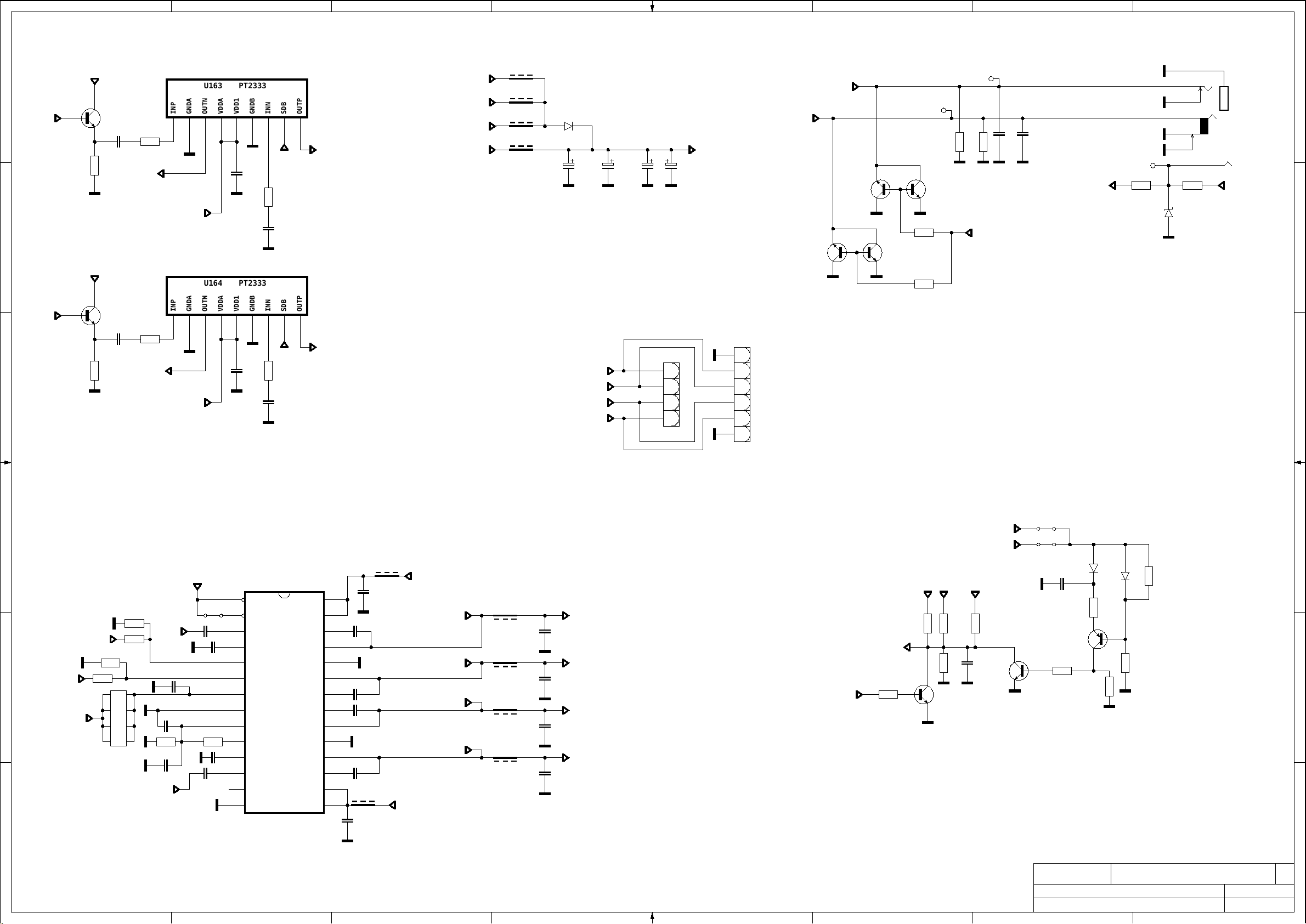

F294

60R

D192

SK24

R1941

10k 21

C1032

10u

25V

Q212

BC848B

3

2

1

HP_R

D203

C15V

21

R1704

680R

25V

1u

C1074

C1078

1u

6V3

Q210

BC848B

AMP_EN

C1172

10n

16V

15k

R623

VDD_AUDIO

R1855

10k 21

R817

100R

Q133

BC848B

3

2

1

100R

R818 VDD_AUDIO

C602

100n

10V

L_AUDIO_P_OUT

L_AUDIO_N_OUT

MAIN_L

15k

R624

10V

C665

100n 2

1

100n

C608

10V AMP_EN

VDD_AUDIO

3V3_VCC

R1309

10k

R616 3V3_STBY

L_AUDIO_N

L_AUDIO_P

R_AUDIO_N

PT2333U164

A1

A2

A3

B1

B2

B3

C1

C2

C3 OUTP

SDB

INN

GNDB

VDD1

VDDA

OUTN

GNDA

INP

MAIN_R

AMP_EN

VDD_AUDIO

R614

15k

R_AUDIO_N_OUT

CN140

4

3

2

1

C612

10V

100n

C666

10V

100n

2

1

R613

15k

Q160

BC848B

PT2333U163

A1

A2

A3

B1

B2

B3

C1

C2

C3 OUTP

SDB

INN

GNDB

VDD1

VDDA

OUTN

GNDA

INP

C617

10V

100n

R_AUDIO_P

Q211

BC848B

C729

10n

16V

BC848B

Q192

JK6

1

2

3

4

5

6

7

3V3_VCC

4k7

R1149 1

HP_DETECT

Q195

BC858B

3

2

1

R1699

10k 21

C1058

100n

16V

AMP_MUTE BC848B

Q185

3

2

1

S86 21

VDD_AUDIO

C1121

100n

50V

100k

R1717

C1122

100n

50V

680R

R1960

VDD_AUDIO

C1043220n

25V

220n

C1044

C1046

220n

25V

F282

60R

AMP_EN

56R

R1741

8

7

6

54

3

2

1

R2

R3

R1

R4

F296

600R

MAIN_L

CONNECT TO DSP_M_L GND

ANALOG VCC

POP NOISE CIRCUIT

CONNECT TO DSP_M_R GND

AUDIO AMP for 26" to 32"

W/2.5W opt.

AUDIO AMP for 16" to 24"

NC

HEADPHONE OUTPUT

opt diode altina yerlestir

NC

100R

3V6 lik zener kullanilmali

-3

SCL_SYS

SDA_SYS

6V3

22u

C970

R1548

33R

L122

270n

50V33p

C905

PCM_CD1_N

R1632

10k

3V3_VCC

3V3_VCC R1642

10k

C1050

100n

16V

R1673

4k7

C966

12p

50V

C969

12p

50V

C968

12p

50V

R1383

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1942

33R

CI_POWER_CTRL

R1393

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

33R

R1382

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1512

33R

41MHz

X4

241 3

5V_VCC

17mb60

6 6

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:07

CN141

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

47R

R1132

R1133

47R

CN711

1

3

2

4

6

5

7

8GND

NC

RCT

RD-

RD+

TCT

TD-

TD+

TP235 1

R1177

4k7 VCC_PCMCIA

R1392

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

TP234 1

TP233 1

4k7

R1953

VCC_PCMCIA

TP236 1

100n

C654

10V

2

1

R1171

4k7

3V3_VCC

1

TP237

C888

100n

16V

VCC_PCMCIA

R1427

33R

R1425

R1172

4k7 3V3_VCC

NAND_CE2

33R

R1397

8

7

6

5 4

3

2

1

R4

R3

R2

R1

33R

R1396

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1399

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

33R

R1394

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1395

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1390

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1426

33R

R1384

8

7

6

54

3

2

1

R4

R3

R2

R1

33R

R1385

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1424

33R

R1401

33R

R1402

U157

MSD9WB7PX-2

PCMDATA[0]/CI_DATA[0]

W21

PCMDATA[1]/CI_DATA[1]

U21

PCMDATA[2]/CI_DATA[2]

U19

PCMDATA[3]/CI_DATA[3]

AD12

PCMDATA[4]/CI_DATA[4]

AC12

PCMDATA[5]/CI_DATA[5]

AD13

PCMDATA[6]/CI_DATA[6]

Y12

PCMDATA[7]/CI_DATA[7]

AA11

PCMADR[0]/CI_A[0]/PF_D[0]

Y24

PCMADR[1]/CI_A[1]/PF_D[1]

Y22

PCMADR[2]/CI_A[2]/PF_D[2]

AB22

PCMADR[3]/CI_A[3]/PF_D[3]

AA22

PCMADR[4]/CI_A[4]/PF_D[4]

AA20

PCMADR[5]/CI_A[5]/PF_D[5]

Y21

PCMADR[6]/CI_A[6]/PF_D[6]

AA18

PCMADR[7]/CI_A[7]/PF_D[7]

AA19

PCMADR[8]/CI_A[8]

AA16

PCMADR[9]/CI_A[9]

AA14

PCMADR[10]/CI_A[10]

AA12

PCMADR[11]/CI_A[11]

Y15

PCMADR[12]/CI_A[12]

AA17

PCMADR[13]/CI_A[13]

AA15

PCMADR[14]/CI_A[14]

AE14

CI_RST

Y20

PCM_IRQ/CI_INT

AD16

PCMOEN

Y13

PCMIOR/CI_RD

Y14

PCMCEN/CI_CS

AA13

PCMWEN

AC14

PAD_PCM_CD_N

AB23

PCMWAIT/CI_WACK

AB20

PCMIOW/CI_WR

AB14

PCMREG/CI_CLK

AA21

GPIO125

Y25

PF_ALE/NAND_ALE

T21

PF_AD[15]/NAND_WPZ

T19

PF_CE0Z/NAND_CEZ

P21

PF_CE1Z/NAND_CLE

P20

PF_OEZ/NAND_REZ

R20

PF_WEZ/NAND_WEZ

T20

F_RBZ/NAND_RBZ

P19

TS1DATA[0] Y16

TS1DATA[1] AD14

TS1DATA[2] AD15

TS1DATA[3] AC15

TS1DATA[4] AC16

TS1DATA[5] Y17

TS1DATA[6] AB17

TS1DATA[7] AB19

TS1CLK Y18

TS1VALID AE16

TS1SYNC AB16

TS0DATA[0] U20

TS0DATA[1] V20

TS0DATA[2] R19

TS0DATA[3] AE13

TS0DATA[4] AC13

TS0DATA[5] Y11

TS0DATA[6] AB11

TS0DATA[7] AB13

TS0CLK Y19

TS0VALID Y23

TS0SYNC W20

IP AA3

IM AA2

QP Y3

QM Y2

VIFP AB1

VIFM AA1

SIFP AB2

SIFM AB3

IF_AGC AD3

RF_AGC AE3

GPIO66 AC4

GPIO67 AD2

GPIO68 AD4

GPIO69 AE4

2

4k7

R1173

R1388

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

R1389

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

FLH_3.3V

NAND_CE2

3k9

R1495

FLH_3.3V

F_RBZ

FLH_3.3V

6V3

22u

C868 C657

10V

100n

2

1

C656

10V

100n

2

1

F187

60R

3V3_VCC

S49

R1155

4k7

3k9

R1496

S5

U162

NAND512-A

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

2524

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1NC1

NC2

NC3

NC4

NC5

NC6

RB

R

E

NC7

NC8

VDD1

VSS1

NC9

NC10

CL

AL

W

WP

NC11

NC12

NC13

NC14

NC15 NC16

NC17

NC18

NC19

I/O0

I/O1

I/O2

I/O3

NC20

NC21

NC22

VSS2

VDD2

NC23

NC24

NC25

I/O4

I/O5

I/O6

I/O7

NC26

NC27

NC28

NC29

S25

R1398

33R

8

7

6

5 4

3

2

1

R4

R3

R2

R1

33R

R1514

10V

100n

C653

2

1

R1513

33R

5V_VCC

F304

60R

VCC_PCMCIA

BC848B

Q208

3

2

1

4k7

R1950R1951

4k7

12V_VCC

BSH103

Q209

ETH_RXP

ETH_RXN

ETH_TXP

ETH_TXN

16V

100n

C1060

3V3_VCC

4k7

R1660

21

R1134

47R

R1131

47R

C1053

100n

16V

100n

C1056C1065

100n

16V16V

100n

C1063C1057

100n

16V

C1072

100n

16V

100n

C890

C967

12p

50V

D7

C15V

21

16V

100n

C889

R6

33R

33R R5

RF_AGC_MST

TUN_SCL_MST

TUN_SDA_MST

C1

12p

50V

330R

F268

2 1 5V_TUN

100n

10V

C913 2

1

IF_AGC_MST

R1529

4k7

33R R1962

C906

33p

50V

33R

R1547 DIGITAL_IF_N

DIGITAL_IF_P

R1961

33R

270n

L121

SIF_CTL

WAKEUP_ETH

RF_AGC_CTL

VIFP

VIFM

SIFP

SIFM

U171

AX88772

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64 GND18A1

XTL25N

XTL25P

VCC18A2

GND5

GND33A_PLL

VCC33A_PLL

DP

DM

RREF

GND33A_H

VCC33A_H

XTL12N

XTL12P

VCCK5

VCC3IO3

V_BUS

VCCK4

GND4

GND3

TEST0

TEST1

RESET_N

VCC3IO2

TCLK_EN

TCLK_0

TCLK_1

EEDIO

EECS

EECK

GND6

VCCK3

VCC3IO1

FDX_LED

SPEED_LED

LINK_LED

VCCK2

USB_LED

GND2

EXTWAKEUP_N

VCCK6

GPIO_2

GPIO_1

GPIO_0/PME

SI_3

SI_2

SI_1

SI_0

RSET_BG

VCC3A3

GND3A3

RXIP

RXIN

VCC18A1

TXOP

TXON

GND18A

V18F

VCC3R3

GND3R3

VCCK0

VCCK1

GND0

GND1

USB_DP_ETH

USB_DM_ETH 50V

C1118

1p

50V

15p

C1120 C1119

50V

15p

41MHz

X3

241 3

R1707

1M

C1116

50V

33p C1117

50V

33p

12k

R1762

R1763

12k

C1055

100n

16V

3V3_VCC

3V3_VCC F278

60R A3V3_VCC

C1068

100n

16V

A3V3_VCC

16V

100n

C1069

A3V3_VCC

16V

100n

C1052

3V3_VCC

16V

100n

C1067

3V3_VCC

C1066

100n

16V

3V3_VCC

1V8_VCC

16V

100n

C1054

16V

100n

C1059

1V8_VCC

60R

F279

1V8_VCC_ETH

60R

F280

1V8_VCC_ETH

1V8_VCC

1V8_VCC_ETH

A1V8_VCC

P0_ETH

A3V3_VCC

ETH_TXN

ETH_TXP

ETH_RXN

ETH_RXP

RST_ETH

TS_MDI1

TS_MDI2

TS_MDI3

TS_MDI4

TS_MDI5

TSMICLK

TSMIVALID

TS_MDI0

PCM_CD2_N

TSMOSTART

TSMOCLK

TSMOVALID

TS_MDO7

TS_MDO6

TS_MDO5

TS_MDO4

TS_MDO3

TS_MDO0

PCM_WE_N

PCM_IORD_N

PCM_IOWR_N

PCM_IRQA_N

PCM_OE_N

PCM_CE_N

PCM_WAIT_N

PCM_RST

PCM_D0

PCM_D1

PCM_D2

PCM_D3

PCM_D6

PCM_D7

PCM_D7 PCM_D5

PCM_D5

PCM_A8

PCM_A9

PCM_A11

PCM_A12

PCM_A10

PCM_A14

PCM_A13

PCM_A7

PCM_A6

PCM_A5

PCM_A4

PCM_A3

PCM_A2

PCM_A1

PCM_A0

TS0_CLK

TS0_SYNC

TS0_VALID

TS0_D7

TS0_D6

TS0_D5

TS0_D4

TS0_D3

TS0_D2

P_D0

P_D0 P_D1

P_D1

P_D2 P_D2

P_D3

P_D5

P_D5 P_D6

P_D6 P_D7

P_D7

P_A0

P_A3

P_A4

P_A5

P_A6

P_A7

P_A8

P_A9

P_A10

P_A11

P_A12

P_A13

P_A14

P_WAIT_N

P_IOWR_N

P_RESET

P_IRQA_N

P_OE_N

P_IORD_N

P_CE_N

P_WE_N

F_RBZ

PF_AD15

NAND_WPz

PF_CE1Z

PF_CE0Z

PF_ALE

PF_OEZ

PF_WEZ

NAND_CLE

NAND_CEz

NAND_ALE

NAND_REz

NAND_WEz

NAND_D7

NAND_D6

NAND_D5

NAND_D4

NAND_D3

NAND_D2

NAND_D1

NAND_D0

TS1_D0TS1_D0 TS1_D1TS1_D1 TS1_D2TS1_D2 TS1_D3TS1_D3

TS1_D4

TS1_D5

TS1_D6

TS1_D7

TS1_D7 TS1_CLK

TS1_CLK TS1_VALIDTS1_VALID

TS1_SYNC

TSMISYNC

TS_MDI6

TS_MDI7

P_CD2_N

P_REG_N

PCM_REG_N

P_A1

P_A2

TS_MDO2

TS0_D0

TS_MDO1

TS0_D1

PCM_D4

P_D4

CI INTERFACE

330N

30p

NAND FLASH

25MHz

NC

12Mhz

Ethernet lines must be 100ohm differential pairs

33R

30p

N.C. 100N

100N

68pF

-3

2 2

17mb60

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:08

R1321

56R

R1319

56R

R1315

56R

R1609

8

7

6

54

3

2

1

R4

R3

R2

R1

R1602

56R

R1374

8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1314

56R

R1335

R1330

56R

R1332

56R

R1333

56R

R1331

R1313

56R

R1327

56R

R1325

56R

R1317

56R

R1603

56R

R1613

8

7

6

54

3

2

1

R4

R3

R2

R1

R1608

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

R1610

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1328

56R

R1612

8

7

6

54

3

2

1

R4

R3

R2

R1

DDR18V

AVDD_DDR

R1356

1k

100n

C683

10V

2

1

R1365

1k

DDR18V

3V3_STBY

DDR18V

1k

R1355

10V

C687

100n

2

1

1k

R1364

R1354

1k

100n

C689

10V

2

1

R1363

1k

100n

10V

C723

2

1100n

C721

10V

2

1

C722

10V

100n

2

1

C719

100n

10V

2

110V

100n

C720

2

1

C717

10V

100n

2

1

DDR18V

100n

10V

C718

2

1

C715

10V

100n

2

110V

C716

100n

2

1

2

110V

C713

100n100n

C714

10V

2

1100n

10V

C711

2

1

100n

C712

10V

2

110V

100n

C709

2

1

1V8_VCC

DDR18V

60R

F181

R1944

150R

R1611

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

R1346

56R

R1373

8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1349

56R

R1350

R1323

56R

R1375

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1377

8

7

6

54

3

2

1

R4

R3

R2

R1

R1378

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

R1380

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

R1370

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1368

8

7

6

54

3

2

1

R4

R3

R2

R1

R1366

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

R1367

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

56R

R1369

8

7

6

54

3

2

1

R4

R3

R2

R1

HY5PS121621C

U154

G8

G2

H7

H3

H1

H9

F1

F7

E8

F3

F9

C8

C2

D7

D3

D1

D9

B1

B9

B7

A8

B3

A2

E2

L1

R3

R7

R8

M8

M3

M7

N2

N8

N3

N7

P2

P8

P3

M2

P7

R2

L2

L3

K7

L7

K3

L8

K2

J8

K8

K9

A3

E3

J3

N1

P9

A7

B2

B8

D2

D8

E7

F2

F8

H2

H8

J7

J2

A9

C1

C3

C7

C9

E9

G1

G3

G7

G9

A1

E1

J9

M9

R1

J1

VDDL

VDD5

VDD4

VDD3

VDD2

VDD1

VDDQ10

VDDQ9

VDDQ8

VDDQ7

VDDQ6

VDDQ5

VDDQ4

VDDQ3

VDDQ2

VDDQ1

VREF

VSSDL

VSSQ10

VSSQ9

VSSQ8

VSSQ7

VSSQ6

VSSQ5

VSSQ4

VSSQ3

VSSQ2

VSSQ1

VSS5

VSS4

VSS3

VSS2

VSS1

ODT

CK_P

CK

CKE

CS_P

WE_P

CAS_P

RAS_P

BA1

BA0

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A0

NC6

NC5

NC4

NC3

NC2

NC1

UDM

UDQS_P

UDQS

DQ15

DQ14

DQ13

DQ12

DQ11

DQ10

DQ9

DQ8

DQ7

LDM

LQDS_P

LQDS

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

R1371

56R 8

7

6

54

3

2

1

R4

R3

R2

R1

U155

HY5PS121621C

G8

G2

H7

H3

H1

H9

F1

F7

E8

F3

F9

C8

C2

D7

D3

D1

D9

B1

B9

B7

A8

B3

A2

E2

L1

R3

R7

R8

M8

M3

M7

N2

N8

N3

N7

P2

P8

P3

M2

P7

R2

L2

L3

K7

L7

K3

L8

K2

J8

K8

K9

A3

E3

J3

N1

P9

A7

B2

B8

D2

D8

E7

F2

F8

H2

H8

J7

J2

A9

C1

C3

C7

C9

E9

G1

G3

G7

G9

A1

E1

J9

M9

R1

J1

VDDL

VDD5

VDD4

VDD3

VDD2

VDD1

VDDQ10

VDDQ9

VDDQ8

VDDQ7

VDDQ6

VDDQ5

VDDQ4

VDDQ3

VDDQ2

VDDQ1

VREF

VSSDL

VSSQ10

VSSQ9

VSSQ8

VSSQ7

VSSQ6

VSSQ5

VSSQ4

VSSQ3

VSSQ2

VSSQ1

VSS5

VSS4

VSS3

VSS2

VSS1

ODT

CK_P

CK

CKE

CS_P

WE_P

CAS_P

RAS_P

BA1

BA0

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A0

NC6

NC5

NC4

NC3

NC2

NC1

UDM

UDQS_P

UDQS

DQ15

DQ14

DQ13

DQ12

DQ11

DQ10

DQ9

DQ8

DQ7

LDM

LQDS_P

LQDS

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

56R

R1379

8

7

6

54

3

2

1

R4

R3

R2

R1

16V

22u

C782

R1183

4k7

F172

330R

21

100n

C658

10V

2

1

TP14

1

TP12

1

U158

MX25L512 8

7

6

54

3

2

1CS#

SO

WP#

GND SI

SCLK

HOLD#

VCC

TP40

1

TP15

1

TP11

1

TP41 1

FLASH_WPN SPI_SCK

SPI_SDO

SPI_CSN_1

100R

R1248 21

SPI_SDI

MSD9WB7PX-2

U157

C10

A22

A9

B23

B9

A23

C9

C23

B8

A24

B22

C8

B24

B7

C13

A19

A12

B19

C20

B12

C19

A13

B14

C18

C14

A18

B18

B13

B17

C15

A16

C16

A15

B15

B16

C17

C12

B11

C21

B20

B10

A10

A21

B21

C22

C11

E23

U24

D24

V25

D25

V24

D23

W25

C25

W24

V23

C24

W23

B25

H23

P24

G24

R23

R24

G25

P23

H24

J25

N23

J24

N24

N25

J23

M25

K23

L24

L23

K24

K25

M23

M24

G23

F25

T23

R25

F23

E24

T24

T25

U23

F24

D22

MVREF

B_ODT

B_BADR[2]

B_BADR[1]

B_BADR[0]

B_CASZ

B_RASZ

B_WEZ

B_CKE

B_MCLKZ

B_MCLK

B_DQM[1]

B_DQM[0]

B_DQSB[1]

B_DQS[1]

B_DQSB[0]

B_DQS[0]

B_MDATA[15]

B_MDATA[14]

B_MDATA[13]

B_MDATA[12]

B_MDATA[11]

B_MDATA[10]

B_MDATA[9]

B_MDATA[8]

B_MDATA[7]

B_MDATA[6]

B_MDATA[5]

B_MDATA[4]

B_MDATA[3]

B_MDATA[2]

B_MDATA[1]

B_MDATA[0]

B_MADR[13]

B_MADR[12]

B_MADR[11]

B_MADR[10]

B_MADR[9]

B_MADR[8]

B_MADR[7]

B_MADR[6]

B_MADR[5]

B_MADR[4]

B_MADR[3]

B_MADR[2]

B_MADR[1]

B_MADR[0]

A_ODT

A_BADR[2]

A_BADR[1]

A_BADR[0]

A_CASZ

A_RASZ

A_WEZ

A_MCLKE

A_MCLKZ

A_MCLK

A_DQM[1]

A_DQM[0]

A_DQSB[1]

A_DQS[1]

A_DQSB[0]

A_DQS[0]

A_MDATA[15]

A_MDATA[14]

A_MDATA[13]

A_MDATA[12]

A_MDATA[11]

A_MDATA[10]

A_MDATA[9]

A_MDATA[8]

A_MDATA[7]

A_MDAT[6]

A_MDATA[5]

A_MDATA[4]

A_MDATA[3]

A_MDATA[2]

A_MDATA[1]

A_MDATA[0]

A_MADR[13]

A_MADR[12]

A_MADR[11]

A_MADR[10]

A_MADR[9]

A_MADR[8]

A_MADR[7]

A_MADR[6]

A_MADR[5]

A_MADR[4]

A_MADR[3]

A_MADR[2]

A_MADR[1]

A_MADR[0]

1

C710

100n

10V

2

1

1k

R1357

SPI_SDI

SPI_SDI_1

3V3_STBY D165

1N4148

2 1

R1358

1k

R1943

150R

D1

C15V

21

AA_DDR2_DQSB0

BB_BADR_BA2

BB_MCLK

BB_MCLKZ

BB_DDR2_DQSB1

BB_DDR2_DQS1

BB_DDR2_DQSB0

BB_DDR2_DQS0

BB_DDR2_DQM0

BB_DDR2_DQM1

BB_BADR_BA0

BB_BADR_BA1

BB_ODT

BB_MCLKE

BB_WEZ

BB_RASZ

BB_CASZ

BB_MDATA15

BB_MDATA14 BB_MDATA14

BB_MDATA13

BB_MDATA12

BB_MDATA11

BB_MDATA10

BB_MDATA9

BB_MDATA8

BB_MDATA7

BB_MDATA6

BB_MDATA5

BB_MDATA4

BB_MDATA3

BB_MDATA2

BB_MDATA1

BB_MDATA0

BB_MADR12

BB_MADR11

BB_MADR10

BB_MADR9

BB_MADR8

BB_MADR7

BB_MADR6

BB_MADR5

BB_MADR4

BB_MADR3

BB_MADR2

BB_MADR1

BB_MADR0

AA_BADR_BA2

AA_MCLK

AA_MCLKZ

AA_DDR2_DQSB1

AA_DDR2_DQS1

AA_DDR2_DQS0

AA_DDR2_DQM0

AA_DDR2_DQM1

AA_BADR_BA0

AA_BADR_BA1

AA_ODT

AA_WEZ

AA_RASZ

AA_CASZ

AA_MDATA15

AA_MDATA14

AA_MDATA13

AA_MDATA12

AA_MDATA11

AA_MDATA10

AA_MDATA9

AA_MDATA8

AA_MDATA5

AA_MDATA2

AA_MDATA0

AA_MADR12

AA_MADR11

AA_MADR10

AA_MADR9

AA_MADR8

AA_MADR7

AA_MADR6

AA_MADR5

AA_MADR4

AA_MADR3

AA_MADR2

AA_MADR1

AA_MADR0

A_MADR12

A_MADR11

A_MADR10

A_MADR9

A_MADR8

A_MADR7

A_MADR6

A_MADR5

A_MADR4

A_MADR3

A_MADR2

A_MADR1

A_MADR0

A_MDATA0

B_MDATA15

B_MDATA13

B_MDATA14

B_MDATA12

B_MDATA10

B_MDATA11

B_MDATA9

B_MDATA7

B_MDATA8

B_MDATA6

B_MDATA4

B_MDATA5

B_MDATA3

B_MDATA1

B_MDATA2

B_MADR12

B_MDATA0

B_MADR10

B_MADR11

B_MADR8

B_MADR9

B_MADR6

B_MADR7

B_MADR4

B_MADR5 B_MADR5

B_MADR2

B_MADR3

B_MADR0

B_MADR1

MVREF

A_BADR_BA2

A_DDR2_DQSB1

A_DDR2_DQS1

A_DDR2_DQSB0

A_DDR2_DQS0

A_DDR2_DQM0

A_DDR2_DQM1

A_BADR_BA0

A_BADR_BA1

A_ODT

A_MCLKE

A_WEZ

A_RASZ

A_CASZ

B_BADR_BA2

B_MCLK

B_MCLKZ

B_DDR2_DQSB1

B_DDR2_DQS1

B_DDR2_DQSB0

B_DDR2_DQS0

B_DDR2_DQM0

B_DDR2_DQM1

B_BADR_BA0

B_BADR_BA1

B_ODT

B_MCLKE

B_WEZ

B_RASZ

B_CASZ

A_MDATA9

A_MDATA2

A_MDATA5

A_MDATA7

A_MDATA8

A_MDATA10

A_MDATA11

A_MDATA12

A_MDATA13

A_MDATA14

A_MDATA15

A_MADR13

AA_MADR13

A_MCLKZ

A_MCLK

B_MADR13

BB_MADR13

AA_MCLKE

A_MDATA6

AA_MDATA6

A_MDATA1

AA_MDATA1

A_MDATA3

AA_MDATA3

A_MDATA4

AA_MDATA4

AA_MDATA7

SERIAL FLASH

22R

OPTIONAL

COMMON

22R

NC

100R

-3

60R

F295

CN706

20 19

18 17

16 15

14 13

12 11

10 9

8 7

6 5

4 3

2 1

R1685

10k

2 1

3V3_VCC

R1678

4k7 21

F250

600R

1

3V3_VCC

DIMMING

PIN_11

BACKLIGHT_ON/OFF

R1679

4k7 21

PIN_11

PIN_10 PIN_9

PIN_7_8

BACKLIGHT_ON/OFF

STBY_ON/OFF

16V

100n

C1022

AVDD_2V5

16V

22u

C990

S8

C1081

6V3

10u

F272

60R

Q194

BC848B

3

2

1

Q193

BC858B

3

2

1

STBY_ON/OFF

60R

F302 21

PIN_7_8

3V3_VCC

R1748

4k7 21

Q188

BC848B

3

2

1

MECH_SWITCH

8

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:11

1

A3

S29

S95

SOFT_SW

16V

100n

C997

16V

100n

C1005 C1070

100n

16V

C1004

100n

16V

S82 21

R1636

10k 21

10k

R1635

2 1

5V_TUN

12V_VCC

3V3_VCC

5V_VCC

22k

R1750

24V_VCC

10k

R1631 21

C1009

100n

16V

C774

10u

10V

BAW56

D184

3

21

10k

R1639 21

Q191

BC848B

3

2

1

STBY_ON/OFF

3V3_STBY

STBY_ON/OFF_NOT

10k

R1638 21

Q178

BC848B

3

2

1

Q180

BC858B

3

2

1

3V3_STBY

R1649

33k

2 1

D185

BAW56

3

21

D186

BAW56

3

21

100n

C971

10V

2

1

PROTECT

TP202

1

18V_VCC

100R

R1761

8

7

6

5 4

3

2

1

R2

R3

R1

R4

F275

60R

10k

R1688 21

4k7

R1166 21

50V

C840

220p

21

3V3_VCC

4k7

R1158 21

BACKLIGHT_DIM DIMMING

50V

C839

220p

21

220p

50V

C838

21

R1165

4k7 21

R1221

1k 21

S18

MEGA_DCR_IN

S16

MEGA_DCR_OUT

S17

BC848B

Q189

3

2

1

60R

F277

R1727

33k

2 1

PIN_7_8

16V

100n

C1025

16V

100n

C1024

C974

1u

6V3

AVSS_PGA

VDD_3V3

AVDD_2V5_PGA

AVDD_DDR

AVDD_3V3

AVDD_2V5

VDDC_1V2

MSD9WB7PX-2

U157

U17

T17

R17

P17

N17

M17

L17

K17

D16

E16

F16

K16

L16

M16

N16

P16

R16

T16

U16

U15

T15

R15

P15

N15

M15

L15

K15

J15

H15

G15

F15

E15

D15

U14

T14

R14

P14

N14

M14

L14

K14

J14

H14

G14

F14

E14

D14

U13

T13

R13

P13

N13

M13

L13

K13

J13

H13

F13

E13

D13

W12

V12

U12

T12

R12

P12

N12

M12

L12

K12

J12

H12

G12

F12

E12

D12

W11

V11

U11

T11

R11

P11

N11

M11

L11

K11

J11

H11

G11

D11

W10

V10

U10

T10

R10

P10

N10

M10

K10

J10

W9

V9

W8

V8

W7

V7

Y10

AE1

AC2

K18

L18

M18

N18

P18

R18

T18

U18

H22

J22

K22

L22

M22

N22

K21

L21

M21

N21

K20

L20

M20

N20

K19

L19

M19

N19

L10

J17

J16

H17

H16

G16

G17

F18

F17

E18

E17

G18

F19

E19

J9

K9

H10

H9

G10

G9

F10

F9

E10

E9

U8

T8

P9

P8

R9

N9

N8

M9

M8

J21

J20

H20

G22

G20

F20

E20

H21

G21

F21

E21

F22

E22 VDDC0

VDDC1

VDDC2

VDDC3

VDDC4

VDDC5

VDDC6

VDDC7

VDDC8

VDDC9

DVDD_DDR0

DVDD_DDR1

AVDD126

AVDD_ADC25_0

AVDD_ADC25_1

AVDD_REF25_0

AVDD_REF25_1

AVDD_AU25

AVDD_MOD25_0

AVDD_MOD25_1

AVDD_PGA25

PGA_COM

AVDD_ALIVE_0

AVDD_ALIVE_1

AVDD_ALIVE_2

AVDD_ALIVE_3

AVDD_ALIVE_4

AVDD_DMPLL

AVDD_CVBS33_0

AVDD_CVBS33_1

AVDD_AU33

AVDD_EAR33

VDDP0

VDDP1

AVDD_LPLL

AVDD_DDR_0

AVDD_DDR_1

AVDD_DDR_2

AVDD_DDR_3

AVDD_DDR_4

AVDD_DDR_5

AVDD_DDR_6

AVDD_DDR_7

AVDD_DDR_8

AVDD_DDR_9

BYPASS

GND3

GND4

GND5

GND6

GND7

GND8

GND9

GND10

GND11

GND12

GND13

GND14

GND15

GND16

GND17

GND18

GND19

GND20

GND21

GND22

GND23

GND24

GND25

GND26

GND27

GND28

GND29

GND30

GND31

GND32

GND33

GND34

GND35

GND36

GND37

GND38

GND39

GND40

GND41

GND42

GND43

GND44

GND45

GND46

GND47

GND48

GND49

GND50

GND51

GND52

GND53

GND54

GND55

GND56

GND57

GND58

GND59

GND60

GND61

GND62

GND63

GND64

GND65

GND66

GND67

GND68

GND69

GND70

GND71

GND72

GND73

GND74

GND75

GND76

GND77

GND78

GND79

GND80

GND81

GND82

GND83

GND84

GND85

GND86

GND87

GND88

GND89

GND90

GND91

GND92

GND93

GND94

GND95

GND96

GND97

GND98

GND99

GND100

GND101

GND102

GND103

GND104

GND105

GND106

GND107

GND108

GND109

GND110

GND111

GND112

GND113

GND114

GND115

GND116

GND117

GND118

GND119

GND120

GND121

GND122

GND123

GND124

GND125

GND126

GND127

GND128

GND129

GND130

GND131

GND132

GND133

GND134

GND135

GND136

GND137

6

3V3_STBY

VDDC_1V2

16V

100n

C1001

C1029

6V3

10u

AVDD_2V5_PGA

C1030

6V3

10u

C1028

6V3

10u

AVDD_DDR

C5

22u

16V

60R

F270

AVSS_PGA

C1008

100n

16V

2V5_VCC

60R

F271

3V3_VCC

60R

F274

C1007

100n

16V

CN1

28 27

26 25

24 23

22 21

20 19

18 17

16 15

14 13

12 11

10 9

8 7

6 5

4 3

2 1

1V8_VCC

1V2_VCC

C1014

100n

16V

2V5_VCC VDD_3V3

AVDD_3V3

DIMMING

STBY_INFO

PANEL_VCC_ON/OFF

PANEL_VCC

F290

60R

21

R1725

47R 21

C1128

470n

25V

33k

R1734 21

R1749

22k

Q199

FDC642P

2

6

5

43

1

TP213

1

F288

60R

21

60R

F289 21

R1693

10k

2 1

10V

100n

C1042 2

1

5V_VCC

12V_VCC

Q190

BC848B

3

2

1

5V_VCC

24V_VCC

3V3_VCC

4k7

R2 21

5V_VCC

C7

22u

16V

PIN_7_8

12V_STBY

PIN_7_8

3V3_STBY

S7

S24

5V_VCC

PIN_9 5V_STBY

S1

S23

PIN_9

PIN_11

12V_VCC

PIN_10

12V_VCC

5V_STBY

S22 12V_VCC

18V_VCC

5V_VCC

S20

S21

PIN_10

PIN_7_8

LM1117

U1

4

3 2

1

ADJ

OUTIN

VOUT

3V3_STBY

5V_STBY

R13

910R 560R

R14

PIN_7_8

S91

R1677

4k7 21

R1676

4k7 21

C6

22u

16V

3V3_VCC

KEYBOARD_ONBOARD

DIMMING CIRCUIT

A/D DIMMING SELECTION

SHORT CCT PROTECTION

NC

W/IPS16

PANEL SUPPLY SWITCH

W/IPS16

26" to 32" POWER SOCKET

16" to 24" POWER SOCKET

PW27 LOW POWER Option

W/IPS16

W/PW26

NC NC

NC

NC NC

NC

17mb60-3

SS33

D202 21

F303 21

60R

5V_VCC

L123

15u

21

S89

12V_STBY

12V_INV

BACKLIGHT_ON/OFF

JK9

5

4

3

2

1

7A/32VDC

FS3

21

DIMMING

12V_INV

CN705

6

5

4

3

2

1

FS4

7A/32VDC

21

TP239

1

12V_VCC

LM1117

U180

4

3 2

1

GND

OUTIN

VOUT

F305

330R

21

C1213

10V

100n

2

1

C1212

22u

16V

R1956

330R

R1955

1k

R1957

330R

R1958

TP243

1

TP231

1

S83

TP240

1

TP241

1

TP232

1

TP244

1

TP238

1

C1107

100n

10V

2

1

8V_VCC

C1033

22u

16V

C1079

100u

16V

L116

15u

C1085

22u

16V

STBY_ON/OFF

STBY_ON/OFF_NOT MOSFET_CONTROL

R1686

10k

2 1

C1089

22u

16V

TP251

1

U181

LM1117

4

3 2

1

GND

OUTIN

VOUT

C1090

22u

16V

C1092

22u

16V

C1094

22u

16V

7A/32VDC

FS2

21

C1101

22u

16V

C1102

22u

16V

330R

F300 21

16V

100u

C1214

C1034

10V

100n

2

1

8V_VCC

CN712

6

5

4

3

2

1 12V_INV

DIMMING

BACKLIGHT_ON/OFF

11 9

17mb60

87654321

A

B

C

D

E

F

AX M

12345678

A

B

C

D

E

F

OF:

A3

PROJECT NAME :

VESTEL

SCH NAME :

DRAWN BY :

SHEET:

12-11-2010_17:10

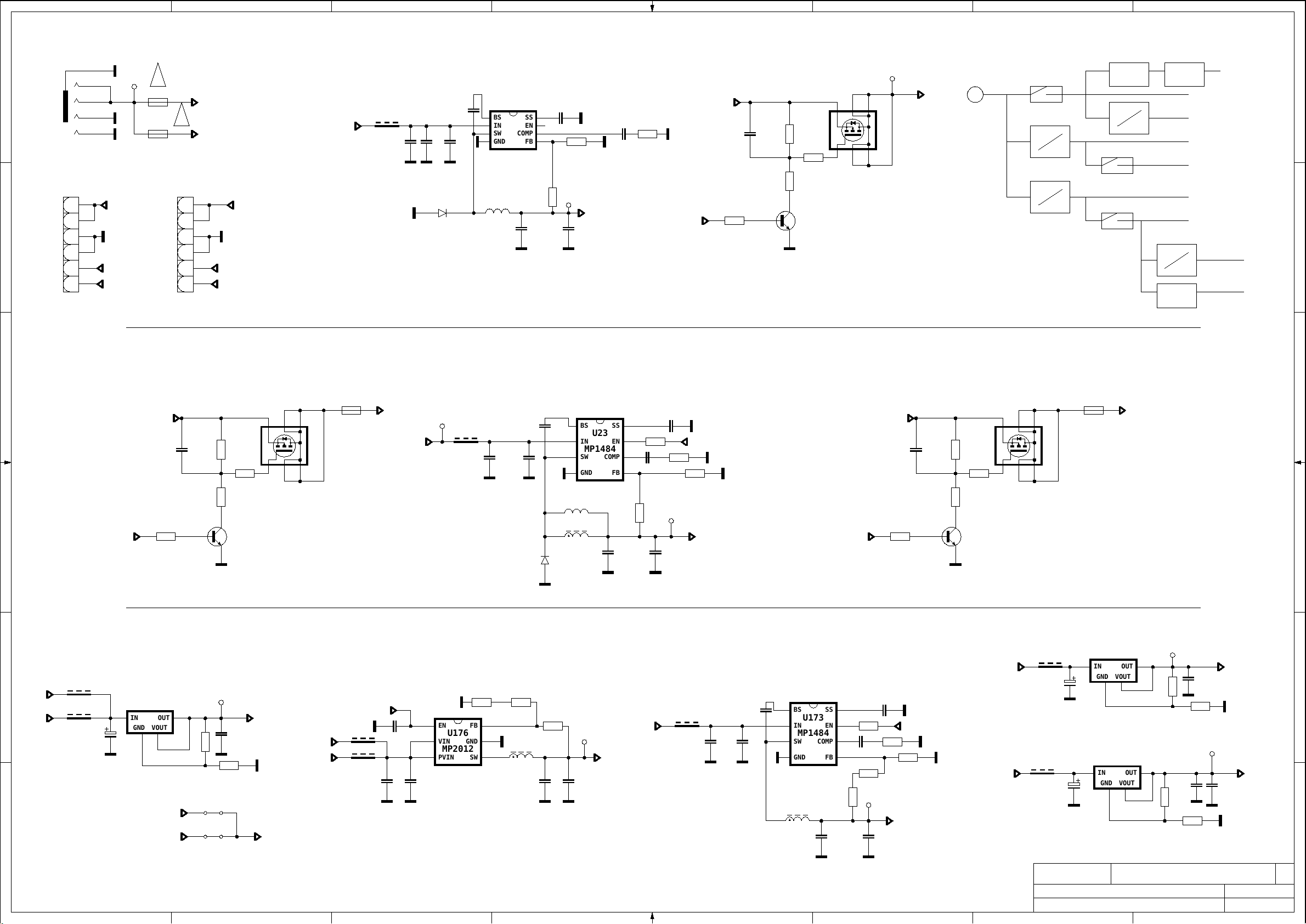

5V_TUN

60R

F291 21

C1036

100n

10V

2

1

C1091

22u

16V

R1697

10k

2 1

5V_VCC F292

60R

21

C1096

22u

16V

C1087

22u

16V

12V_VCC

12V_VCC 10k

R1691

2 1

MP1484

U173 8

7

6

54

3

2

1BS

IN

SW

GND FB

COMP

EN

SS

1k8

R1768

L117

15u 1V2_VCC

C1113

10n

16V

2

1

50V

5n6

C1131

21

F273

60R

21

R1710

3k9 21

R1720

100R 21

33k

R1731

2 1

25V

220n

C1048

21

47R

R1723 21

12V_STBY

BC848B

Q183

3

2

1

3V3_STBY

R1730

33k

2 1

FDC642P

Q197

2

6

5

43

1

5V_STBY

MOSFET_CONTROL

3V3_VCC

C1093

22u

16V

L118

15u

21

C1086

22u

16V

33k

R1736

C1084

22u

16V

33k

R1737

C1035

100n

10V

2

1

C1038

100n

10V

21

C1080

6V3

100u

2 1

3V3_VCC

3k9

R1709 21

50V

5n6

C1130

21

16V

10n

C1112 2

1

SS33

D197 21

TP211

1

MP1583

U174

1

2

3

4

8

7

6

5

FB

COMP

EN

SS

GND

SW

IN

BS

10k

R1690 21

2V5_VCC

LM1117

U175

4

3 2

1

GND

OUTIN

VOUT

60R

F276 21

R1692

10k

2 1

R1721

100R 21

12V_VCC

MOSFET_CONTROL

FDC642P

Q200

2

6

5

43

1

R1733

33k

2 1

12V_STBY

BC848B

Q182

3

2

1

47R

R1724 21

25V

220n

C1049

21

33k

R1732

2 1

60R

F287 21

10V

100n

C1037

2

1

U176

MP2012

6

5

4 3

2

1

FB

GND

SWPVIN

VIN

EN

7A/32VDC

FS5

21

3V3_STBY

R1738

18k R1769

390k

C1103

22u

16V

R1770

510k

1V8_VCC

3V3_VCC

MOSFET_CONTROL 10k

R1698

2 1

5V_VCC

Q198

FDC642P

2

6

5

43

1

33k

R1728

2 1

5V_STBY

Q184

BC848B

3

2

1

R1722

47R 21

25V

C1047

220n

21

R1729

33k

2 1

33k

R1735

R1708

3k9 21

F286

60R

21

50V

C1129

5n6

21

C1114

10n

16V

2

1R1689

10k

2 1

C1097

22u

16V

3V3_STBY

L16

15u

12V_STBY

C1098

22u

16V

12V_STBY

MP1484

U23 8

7

6

54

3

2

1BS

IN

SW

GND FB

COMP

EN

SS

R3

10k

2 1

DC

ADAPTER SOCKET

W_ADAPTER

!

INVERTER SOCKET W/ADAPTER

DC

LDO

12V_STBY 12V_VCC

1V2_VCC

5V_STBY

5V_VCC

3V3_STBY

3V3_VCC

0R

9.1K

DC/DC2

DC/DC4

LDO1

2V5_VCC

1V8_VCC

SW1

DC-DC4

SW2

SW3

DC-DC2

COMMON

W/ADAPTOR & W/IPS16&17&60

DC-DC1

W/ADAPTOR

DC-DC3

POWER BLOCK DIAGRAM

LDO1

LDO2

SW1

DC/DC1

DC/DC3

SW2

SW3

NC

5K6

10UH

3N3

33K

10UH

0R

12K

150K

20K

10UH

15.6" LED SOCKET

LDO

100K

for 3v3 Panel Sup.

LDO 2

8V LDO

LDO2 5V_VCC

CCFL INVERTER SOCKET

-3

R1248

Q188

C1066

S1

R1398

U163

R1920

C721

U164

R1663

R1591

C799

CN711

Q146

R1364

CN710

C839

R124

S33

R1355

C1188

R1597

JK3

R1546

C1070

R1512

R1877

C3

C840Q181

R817

F295

R1349

D178

R1590

R1728

R1870

R1377

R1317

R1667

C1050

S13

C1123

S94

R1606

R1613

R1389

Q178

R1404

C1089

U1

C1008

C1190

D202

S16

R1723

C808

U175

C1086

C1055

C826

C954

S32

S82

R1417

R1399

C883

R1642

R1617

F303

L104

R1620

F181

C1074

R1868

Q186

S35

C1210

R1727

CN138

Q189

R1496

C1073

R1155

U161

R1962

C888

C1184

R1565

R1616

D176

R1412

R1911

R1649

R1921

C612

R1206

C1081

R1309

R818

L124

C1193

R1721

C1176

R1354

S43

R1762

S93

D204

R1363

R13

R1498

JK7

Q200

FS3

R1718

R1839

R1423

R1323

C903

Q207

R1724

C921

R1366

R1932

R1689

R1679

R1711

X4

F250

S86

Q212

C1030

R1415

C1084

R1878

Q173

CN140

R884

L16

D186

R1416

R1394

R1397

R103

C1113

R104

C951

C889

L121

R1373

U149

C1046

F199

C1033

C710

F203

Q206

X3

R1902

R4

R1505

C1129

R1579

R1666

C829

F294

C782

C1189

R1669

Q171

C1096

U3

R1611

TU102

CN702

C953

R1674

R1725

C717

R1635

C1130

C910

C657

R1149

C650

C1207

R1572

C973

R1380

Q185

D192

C804

R1426

C608

R1889

R1632

R1960

L118

R1874

U23

Q211

Q199

Q203

C1060

C1058

F276

R1396

S87

C1200

R1221

S85

R1704

R620

R1957

C1038

R1882

C712

R483

D145

Q210

R1840

R1609

C1182

Q174

R1528

R1484

C683

R1499

C1212

R1166

R1311

S39

FS4

F292

R1615

R1631

R1671

R1410

R1907

C1085

C714

Q204

R1568

R1698

C830

R1177

S78

R1420

C1036

R2

C919

C967

C1116

C905

JK10

R1948

R1607

JK9

R1421

R1914

U173

R1549

Q175

Q190

R1890

C1053

C1118

C945

R1489

SW1

R1315

R1608

C802

FS2

R1405

F259

R1424

R1516

C1094

R1909

L115

R1133

R1636

R8

R1876

S11

R1245

R1691

R1857

C858

C1205

R1701

C835

R1958

C836

C824

R1296

C912

R1894

C861

R1873

R1690

F260

U157

R1928

R1904

R1313

C923

C653

S72

S19

F284

R1917

Q133

Q180

SC1

R5

Q172

R1319

F273

R1583

R1280

F187

R1409

C1120

R1709

R1564

D189

C859

R1265

C825

R1916

R1393

R1335

F134

F279

R12

R1838

C1201

R1855

R1563

R1653

Q192

C925

R1929

R1940

C1203

R1926

R809

R1388

CN703

R1561

R1835

D203

R1604

R1508

R1898

S12

S56

S37

R1869

C723

X2

Q205

C1072

Q160

F302

C1198

C833

C915

R1368

R1527

R1183

C807

R1871

R1682

Q184

C1063

C1004

C1048

R1602

R1923

R1650

C1

F280

C1028

R1686

S73

R1858

R1936

D181

R1378

C1101

CN137

R1897

R1863

R1741

S20

C656

R1514

C997

R1943

F270

R1301

R1383

F287

R1769

U155

R1854

C965

C949 R1884

Q209

C1029

R1621

C1191

C1102

U167

R1915

R1638

R1566

R1692

C793

R1529

R1601

R1331

R1356

S2

R1510

R1910

R1375

C970

U180

R1729

F300

R1836

S91

Z102

C1119

C718

R1734

C828

C1122

R263

R221

CN704

R1385

R1479 C719

R1515

C1005

R1543

S99

R1888

R1673

Q197

R1201

C1211

S58

R1715

U178

C796

SW2

C990

F283

R1419

R1856

R1938

C1174

F275

S18

C1195

C1128

F249

F288

R1950

R1919

R1906

C1087

C715

C943

R1717

C1031

CN709

R1961

R623

CN139

R1598

F201

R223

C1179

R1899

C1199

R1922

C1068

L114

R1656

SW3

R1209

R1243

S29

D174

C545

R1959

C955

L116

R1660

R1732

R1485

R1693

C860

R1677

C929

R1610

R1530

D197

F282

C1079

R1659

C1052

CN128

R1913

R1735

C1196

C964

R1685

F271

D5

C14

C1091

R1480

FS5

C630

C1202

R1605

F286

C628

R1737

R1881

C806

C944

C966

R844

R1548

R1171

C547

F290

R1750

R1672

R1867

C1078

C1175

R1862

S15

S23

C666

D6

R1952

R1384

D173

R1941

C798

R1314

R1165

C911

C713

R1321

R1946

R1619

R1722

S28

S17

R1310

R1886

C956

R1552

D184

C857

R1497

C1057

R1495

S79

C969

C1178

R1594

C1034

R1382

C774

R616

C1172

R1931

C1187

R1587

C1121

R1575

R1494

Z101

R1892

D169

U158

C5

R498

C1001

R1401

R1374

R1623

C959

C1056

R1699

R735

S34

R1406

R1509

C602

U154

R1584

F172

R1731

R14

R7

Q208

R1586

R1408

F263

R1581

R1895

F305

C931

C687

S96

R1736

R1294

F205

R1905

C885

C914

R1413

C904

R209

C1043

F285

R1131

C1092

C922

D171

R1900

R1662

R1

C856

R1330

F281

R1325

R1761

C928

R1327

C886

R1274

C689

Q119

F278

C1209

U162

C716

C7

R1925

R1350

S81

C855

C135

C1114

D175

C1077

Q157

F179

R1233

R1696

R1707

R1833

R1578

R1912

R1945

R1425

C827

R1517

R1346

CN136

S55

C901

R102

R1875

C795

D185

F296

R1511

C1168

C1025

R1749

Q191

R1639

R1937

C1208

Q195

S7

C1035

CN133

R1560

R1403

C1194

C546

F198

C902

R3

R1570

R1697

S41

R1688

D7

F301

C797

C932

R1524

C1022

R1573

R1486

R1903

R1390

C907

C1183

C1186

U168

S92

R1908

R1933

C1069

C658

C916

C1016

L122

F265

CN705

C788

R594

U174

D191

R1944

R1414

C1093

C1213

R1297

R1618

R1949

R624

R1720

C1042

C933

R1198

R1710

D165

JK4

CN135

C957

F277

R1365

R1733

R1545

C1180

S57

R1506

F269

C906

JK2

R1422

C832

R613

S80

C1117

R1859

R1956

R1550

R1951

R1939

R1369

R1418

C615

F289 R1624

R473

R1187

R1358

C935

C1037

C120

C917

CN141

S98

R1402

C1098

R1596

R1678

C805

R222

C1067

R1134

C1169

C809

R1955

C1214

R1173

R1275

C1080

S4

F274

R344

C720

R1770

S97

R1687

R1588

S83

R1603

R1507

C803

R1522

D190

C665

R1708

C1049

C968

R1614

R1942

R1182

D177

C378

R1879

C823

C1024

R1395

S49

S10

Q194

R1681

D200

R1562

C1131

C972

R1249

C6

R1328

R1513

R1567

R1332

R1172

Q193

F267

R1593

R1651

F200

R1712

S9

S74

R1569

C663

F272

C1045

R1865

S36

CN712

R1547

C838

Q183

C831

C952

R1954

R1481

R1411

R1880

R1367

R614

R1684

R1379

R1763

R1748

L119

R1295

Q170

S42

U145

CN132

C1206

C1192

C918

R1551

R384

R1576

R1927

U176

CN706

C853

C971

S6

CN708

R1357

R474

R1371

L120

C942

R1533

R1668

C664

S3

C1054

R1300

R1896

S25

C1014

F206

Q182

C800

F207

C1097

S89

SW4

Q202

R845

R1716

C882

R1244

S76

C1007

R1483

D1

Q140

C854

X1

CN1

C654

D199

L123

R231

R1883

U181

R1918

C722

C1177

R138

R1652

R252

C1170

R1266

C1076

R1612

C920

R1370

C610

F266

C711

R1427

R1901

S100

C1197

R1738

C617

R1953

S14

S30

R1407

R1482

C890

L117

F298

C1065

C1059

TH1

C1107

FS1

R1702

C1032

R11 C801

R1592

R1589

C810

C927

R1333

R1934

C1171

R1864

R1730

C2

C1075

C1009

R1132

C1181

F262

R793

S21

S24

C868

S8

R1523

R1661

R1887

R6

C884

R1580

S54

R1885

R1947

F268

F261

F248

F297

S22

U179

F304

CN707

R139

F299

JK6

S95

R1872

C729

C1015

F264

U171

S71

F202

R694

C794

R1595

C1047

C143

C1112

Q144

R1676

C1044

R1924

C881

R1714

Q198

C1090

S40

C870

C709

S5

R1571

C974

C913

R1935

R1768

D2

R1158

C862

F291

C1103

R1392

R1582

C1185

Toshiba 22EL833N User manual

Popular LCD TV manuals by other brands
