Toshiba EM128A2EC-ESHA0L User manual

MICROWAVE OVEN
INSTRUCTION MANUAL
EM128A2EC-ESHA0L
Please review this instruction manual before operating.

6. Multi-stage Cooking
10. Lock Function
11.Eco Function
18
21
21
7. Memory Function 19
8. Speed Cooking 20
9. Silent Mode 21
CONTENTS
PRODUCT SAFETY
Precautions to avoid possible exposure to excessive microwave energy
Important safety instructions
Grounding instructions
Radio interference
Utensils
Materials you can use in microwave oven
Materials can not be used in microwave oven
01
02
05
06
06
07
09
PRODUCT SETTING
Setting up your oven 10
INSTRUCTION FOR USE
Before using for the first time
Operation
1. Power Levels
2. Clock Setting
3. Kitchen Timer
4. Microwave Cook
5.Defrost
13
14
15
15
16
16
17

12. Inquiring Function 22
13. Wi Function 22
14. Special Auto Menu 23
24
15. Auto Menu
MAINTENANCE
Trouble shooting
One year limited warranty
29
30
BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND
FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE.
NOTE
The hardware and software after-sale service can be received from the authorized dealer.
Software updates service will be available for 5 years from the manufacture via the OTA
(Over-The-Air) download technology. Please contact the authorized dealer in your region for
detailed information.

01
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a). Do not attempt to operate this oven with the door open since open door operation can result
in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b). Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c). Do not operate the oven if it is damaged. It is particularly important that the oven door closes
properly and that there is no damage to the:
(1). DOOR (bent)
(2). HINGES AND LATCHES (broken or loosened)
(3). DOOR SEALS AND SEALING SURFACES
(d). The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
PRODUCT SAFETY
SPECIFICATIONS
RATED VOLTAGE
MICROWA
V
E INPUT
MICROWA
V
E OUTPUT
MODEL EM128A2EC-ESHA0L
120 V~ 60 Hz
1550W
1100W

When cleaning surfaces of door
and oven that comes together on
closing the door, use only mild,
nonabrasive soaps, or detergent
applied with a sponge or soft cloth.
Keep cord away from heated surface.
To reduce the risk of fire in the
oven cavity:
1. Do not overcook food.
Carefully attend appliance when
paper, plastic, or other
combustible materials are placed
inside the oven to facilitate
cooking.
2. Remove wire twist-ties from paper
or plastic bag before placing bag
in oven.
3. If material inside of the oven
ignite, keep oven door closed,
turn oven o, and disconnect
the power cord, or shut o power
at the fuse or circuit breaker
panel.
4. Do not use the cavity for storage
purposes. Do not leave paper
products, cooking utensils, or
food in the cavity when not in
use.
Read and follow the specific:
"PRECAUTIONSTOAVOIDPOSSIBLE
EXPOSURETO EXCESSIVE
MICROWAVE ENERGY" found on
page 1.
02
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should
be followed, including the following.
To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave energy.
Read all instructions before using
the appliance.
Install or locate this appliance only
in accordance with the provided
installation instructions.
As with any appliance,
close supervision is necessary
when used by children.
This appliance should be serviced
only by qualified service personnel.
Contact nearest authorized service
facility for examination, repair, or
adjustment.
This appliance must be grounded.
Connect only to properly grounded
outlet.
See "GROUNDING INSTRUCTIONS"
found on page 5.
WARNING

03
IMPORTANT SAFETY INSTRUCTIONS
Do not store this appliance outdoors.
Do not use this product near water -
for example, near a kitchen sink, in
a wet basement, near a swimming
pool, or similar location.
Do not immerse cord or plug in water
or any other liquid.
Oversized food or oversized metal
utensils should not be inserted in
a microwave/toaster oven as they may
create a fire or risk of electric shock.
Some products such as whole eggs
and sealed containers, for example,
closed glass jars are able to explode
and should not be heated in this oven.
Liquids, such as water, coee, or
tea are able to overheat beyond
the boiling point without
appearing to be boiling. Visible
bubbling or boiling when the
container is removed from the
microwave oven is not always
present.
THIS COULD RESULT IN VERY
HOT LIQUID SUDDENLY
BOILING
OVER WHEN THE CONTAINER IS
DISTURBED OR A UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to
persons:
1. Do not overheat the liquid.
2.Stir the liquid both before and
halfway through heating it.
3. Do not use straight-sided con-
tainers with narrow necks.
4. After heating, allow the
container to stand in the
microwave oven for a short time
before removing the container.
5. Use extreme care when inserting
a spoon or other utensil into
the container.

04
IMPORTANT SAFETY INSTRUCTIONS
Do not let cord hang over edge of
table or counter.
HOUSEHOLD USE ONLY(NOT FOR
COMMERCIAL USE)
SAVE THESE INSTRUCTIONS
Do not cover or block any openings
on the appliance.
Use this appliance only for its
intended use as described in the
manual.
Do not use corrosive chemicals or
vapors in this appliance. This type
of oven is specifically designed to
heat, cook or dry food.
It is not designed for industrial or
laboratory use.
Do not operate this appliance if it
has a damaged cord or plug, if it is
not working properly, or if it has
been damaged or dropped.
Do not clean with metal scouring
pads.
Pieces can burn o the pad and
touch electrical parts involving a
risk of electric shock.
Do not store any materials, other
than manufacturer's recommended
accessories, in this oven when not
in use.
Do not use paper products when
appliance is operated in the toaster
mode.
Do not cover racks or any other
part of the oven with metal foil.
This will cause over-heating of the
oven.

05
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will
accept the plug on the appliance. The marked rating of the extension cord shall be equal to or
greater than the electrical rating of the appliance.
Electric Shock Hazard:
Touching some of the internal components can cause serious personal
injury or death. Do not disassemble this appliance.
Electric Shock Hazard:
Improper use of the grounding can result in electric shock. Do not plug
into an outlet until appliance is properly installed and grounded.
1. A short power-supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used
if care is exercised in their use.
3. If a long cord or extension cord is used:
(1). The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
(2). The extension cord must be a grounding-type 3-wire cord.
(3). The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
DANGER
WARNING

06
RADIO INTERFERENCE
1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
(1). Clean door and sealing surface of the oven.
(2). Reorient the receiving antenna of radio or television.
(3). Relocate the microwave oven with respect to the receiver.
(4). Move the microwave oven away from the receiver.
(5). Plug the microwave oven into a dierent outlet so that microwave oven and receiver are
on dierent branch circuits.
This device complies
with part 18 of the FCC Rules.
UTENSILS
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water
(8.5 oz) along with the utensil in question.
2. Cook on maximum power for 1 min.
3. Carefully feel the utensil. If the empty utensil is warm,
do not use it for microwave cooking.
4. Do not exceed 1 min cooking time.
KEEP THE CAVITY CLEAN
• Personal Injury Hazard:
Tightly-closed utensils could explode. Closed containers should
be opened and plastic pouches should be pierced before cooking.
See the instructions on "Materials you can use in microwave oven or to
be avoided in microwave oven."
There may be certain non-metallic utensils that are not safe to use
for microwaving. If in doubt, you can test the utensil in question
following the procedure below.
CAUTION
NOTE

07
Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with
metal tie.
Make slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Browning dish
Dinnerware
MATERIALS YOU CAN USE IN
MICROWAVE OVEN
UTENSILS REMARKS
Glass jars
Glassware
Oven cooking bags
Paper plates and cups
Paper towels
Parchment paper
Use to cover food for reheating and absorbing fat.
Use with supervision for a short-term cooking only.
Follow manufacturer’s instructions.
The bottom of browning dish must be at least 3/16 inch
(5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer’s instructions.
Do not use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Use as a cover to prevent splattering or a wrap for
steaming.

08
MATERIALS YOU CAN USE IN
MICROWAVE OVEN
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Microwave-safe only (meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
UTENSILS REMARKS
Plastic
Plastic wrap
Thermometers
Wax paper
Microwave-safe only. Follow the manufacturer’s
instructions. Should be labeled “Microwave Safe”. Some
plastic containers soften, as the food inside gets hot.
“Boiling bags”and tightly closed plastic bags should be
slit, pierced or vented as directed by package.

09
UTENSILS REMARKS
May cause arcing. Transfer food into microwave-safe dish.
Metal shields the food from microwave energy.

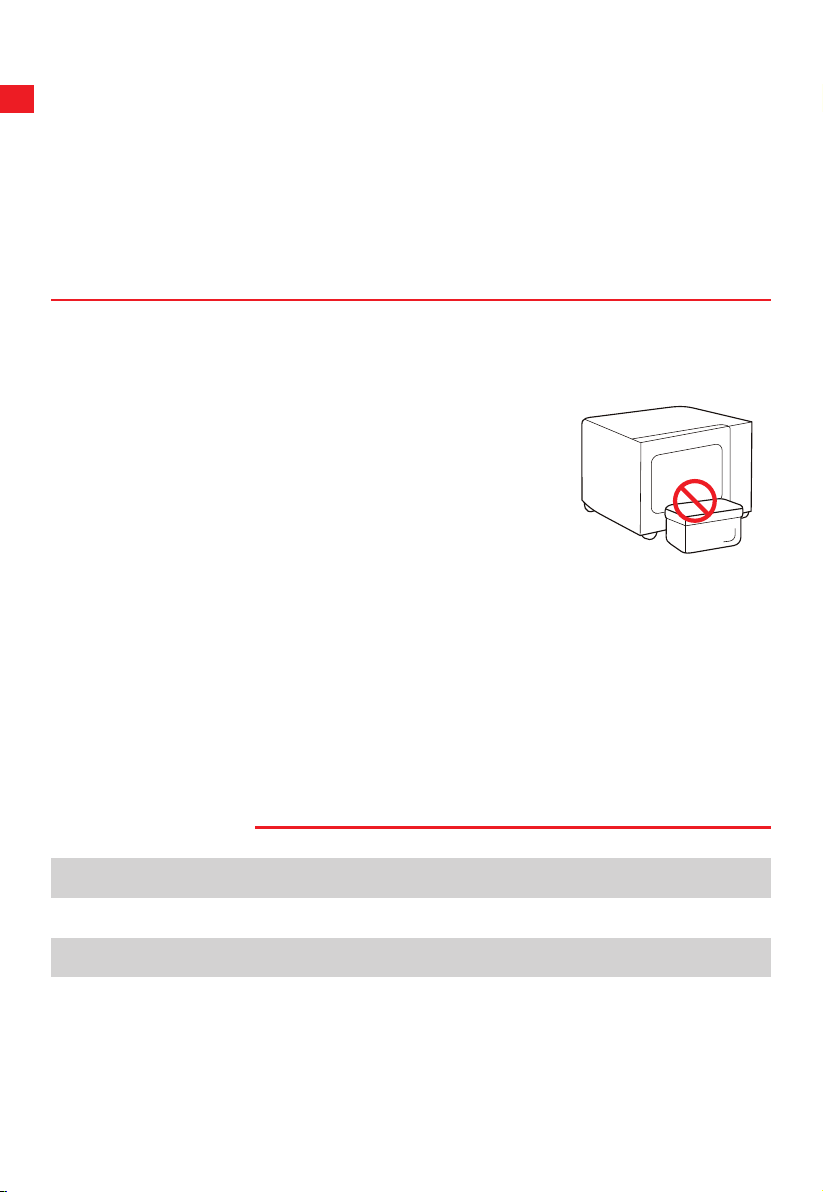

Metal trim may cause arcing.
Aluminum tray
Food carton with
metal handle
Metal or metal
trimmed utensils
May cause arcing and could cause a fire in the oven.
Metal twist ties
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood will dry out when used in the microwave oven and
may split or crack.
Paper bags
Plastic foam
Wood
May cause arcing. Transfer food into microwave-safe dish.
MATERIALS CAN NOT BE USED
IN MICROWAVE OVEN

10
PRODUCT SETTING
SETTING UP YOUR OVEN

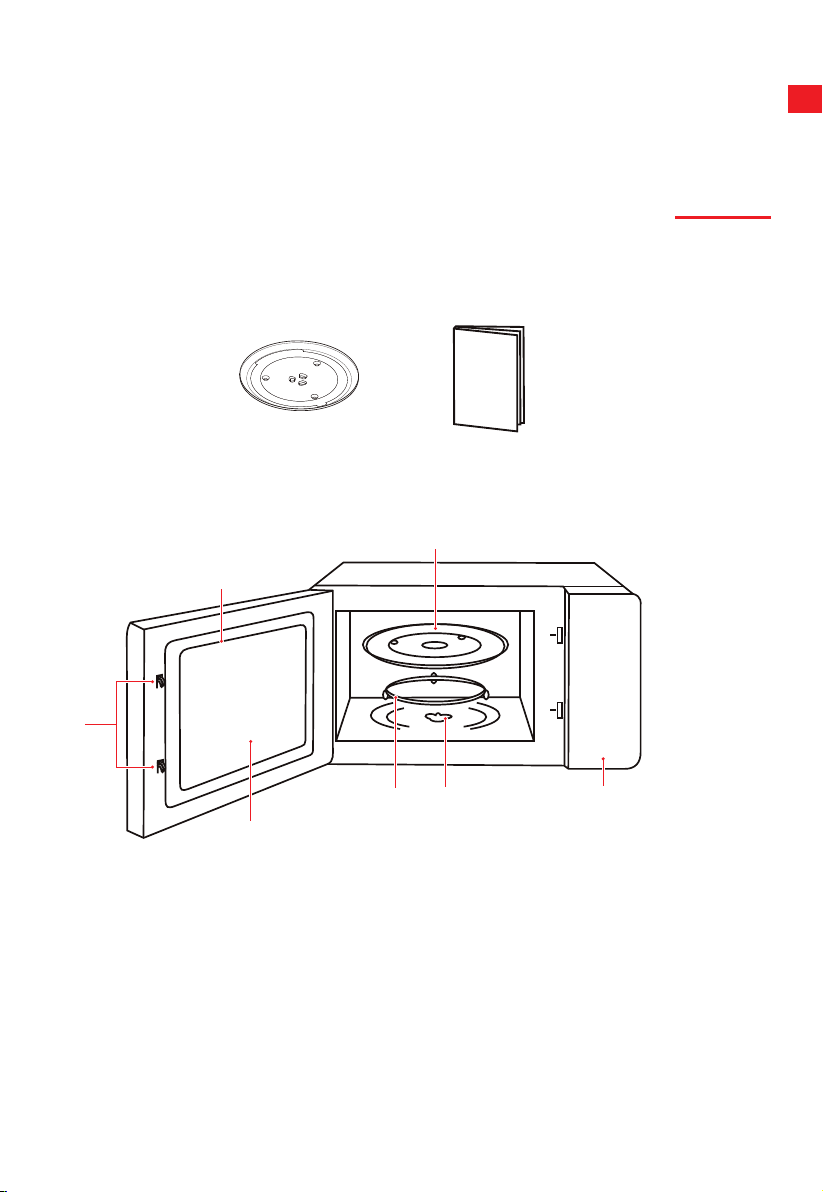

NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES
Remove the oven and all materials from the carton and oven cavity.
A. Control panel
B. Glass turntable
C. Turntable shaft
D. Turntable ring assembly
E. Door assembly
F. Observation window
G. Safety interlock system
E
G
F
B
AD C
Instruction Manual
Glass turntable

11
Cleaning the cooking compartment and putting the turntable in place.
For new installations, make sure all packaging and shipping tape has been removed from the
turntable shaft.
Before using the appliance to prepare food for the first time, you will need to put the turntable in
place correctly. You must clean the cooking compartment and accessories.
TURNTABLE INSTALLATION
1
2
3
SETTING UP YOUR OVEN

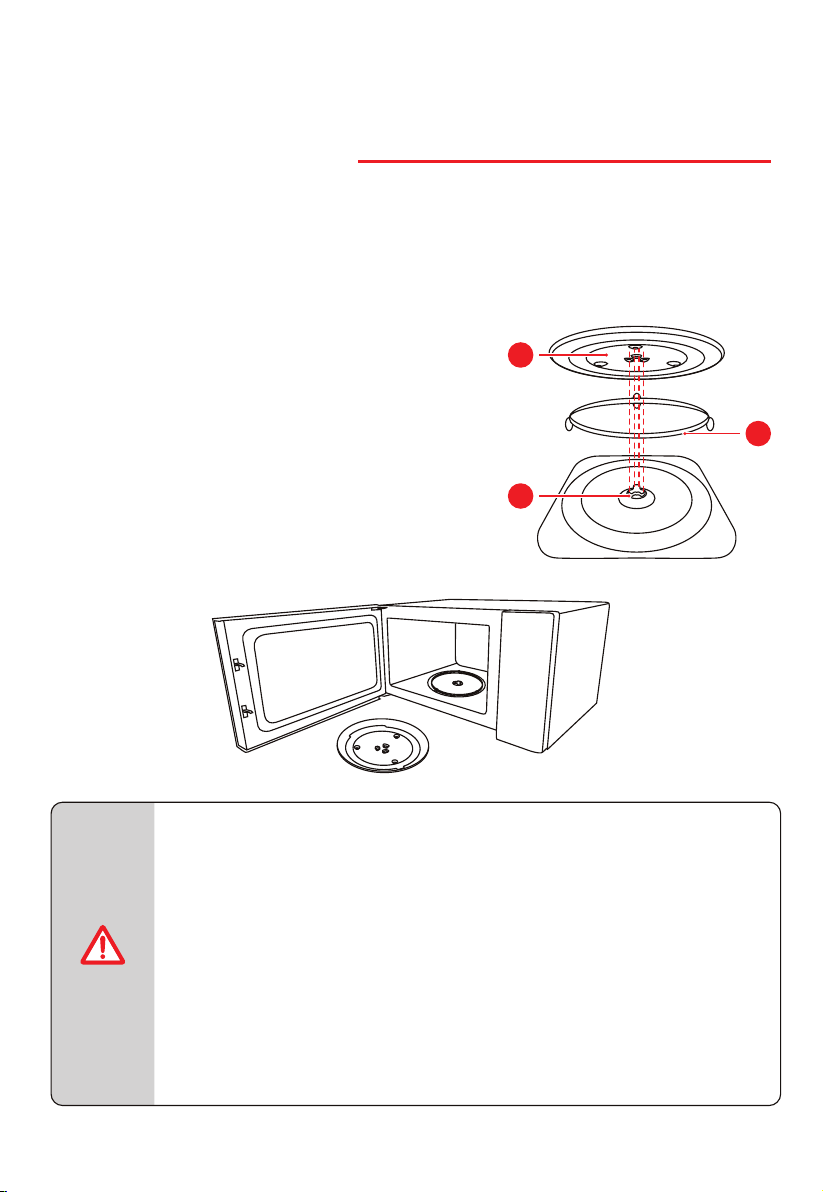

How to put the turntable in place:
1. Place the turntable ring assembly③into the recess
in the cooking compartment.
2. Place the glass turntable①on the turntable ring assembly③.
Fit the raised, curved lines in the center of the glass turntable
bottom between the three spokes of the shaft.
Make sure that the glass turntable①engages in the
turntable shaft ②in the center of the cooking
compartment floor. The rollers on the shaft should fit inside
the turntable bottom ridge.
• Never use the appliance without the turntable. Make sure that it is
properly engaged. The turntable can turn clockwise or anti-clockwise.
• Never place the glass turntable upside down. The glass turntable should
never be restricted.
• Both glass turntable
and turntable ring assembly must always be used
during cooking.
• All food and containers of food are always placed on the glass turntable
for cooking.
• Never restrict the movement of the turntable.
• If glass turntable or turntable ring assembly cracks or breaks, contact
your
nearest authorized service center.
NOTE

12
COUNTERTOP INSTALLATION
Remove all packing material and accessories. Examine the oven for any damage such as dents
or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not
remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
INSTALLATION
1. Select a level surface that provide enough open space for the intake and/or outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls.
One side must be open.
The minimum installation height is 3.0ft(91.6cm).
a. Leave a minimum clearance of 12 inches (30cm) above the oven.
b. Do not remove the legs from the bottom of the oven.
c. Blocking the intake and/or outlet openings can damage the oven.
d. Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug microwave oven into a standard household outlet. Be sure the voltage and the frequency
is the same as the voltage and the frenquency on the rating label.
NOTE
12 inches(30cm )
3.0 inches
(7.5cm)
>3.0ft
(91.6cm)
3.0 inches
(7.5cm) Open
• Do not install oven over a range cooktop
or other heat-producing appliance.
If installed near or over a heat source, the
oven could be damaged and the warranty
would be avoid.
The accessible surface may be
hot during operation

13
INSTRUCTION FOR USE
BEFORE USING FOR THE FIRST TIME
This section tells you what you need to do before using your microwave to prepare food for the
first time. Read the section entitled "SAFETY INFORMATION" beforehand.
"IMPORTANT SAFETY INFORMATION" on page 2.
Before you can use your new appliance, you will need to put the turntable in place correctly.
You must also clean the cooking compartment and accessories.
Cleaning the cooking compartment and putting the turntable in place
Before using the appliance to prepare food for the first time, you must clean the cooking
compartment and accessories.
• Never use the appliance without the turntable.
• Make sure that it is properly engaged.The turntable canturn clockwise
or anti-clockwise.
NOTE
It is normal that the stove may produce unpleasant odors when it is used for the first time.

14
OPERATION
CONTROL PANEL AND FEATURES

15
1. POWER LEVELS
Ten power levels are available.
1P100 100%
90%
80%
70%
2P90
60%
50%
40%
30%
3
P30
P40
P50
P60
P70
P80
20%
10%
4
5
6
7
8
9
10
P20
P10
LEVEL POWER DISPLAY

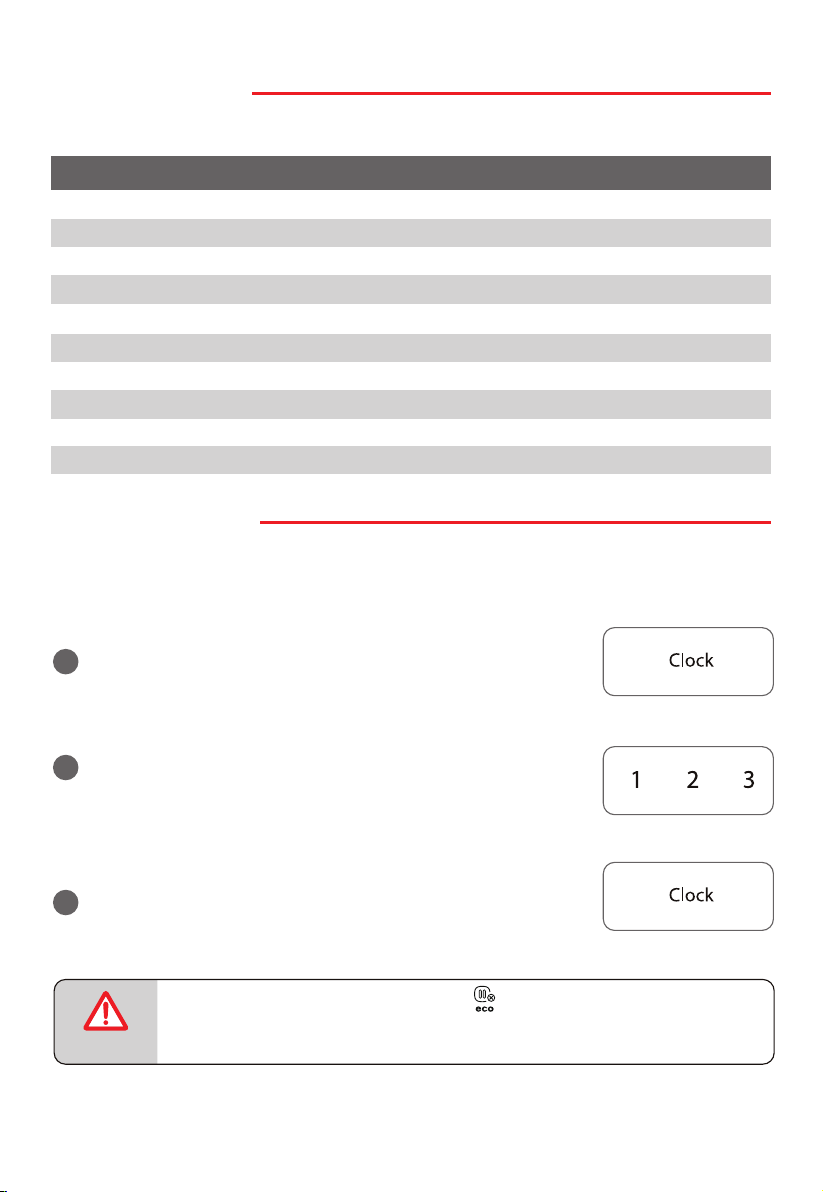

2. CLOCK SETTING
When the microwave oven is plugged into an outlet, "0:00" will display.
Press Clock once.
Press Clock
to conrm.
a
c
bPress number keys to set the hour gures,it should be within
1:00~12:59.
• In the process of setting clock, if the " " pad is pressed or if there is
no operation within 1 minute, the display will automatically return to the
previous clock setting.
NOTE

16

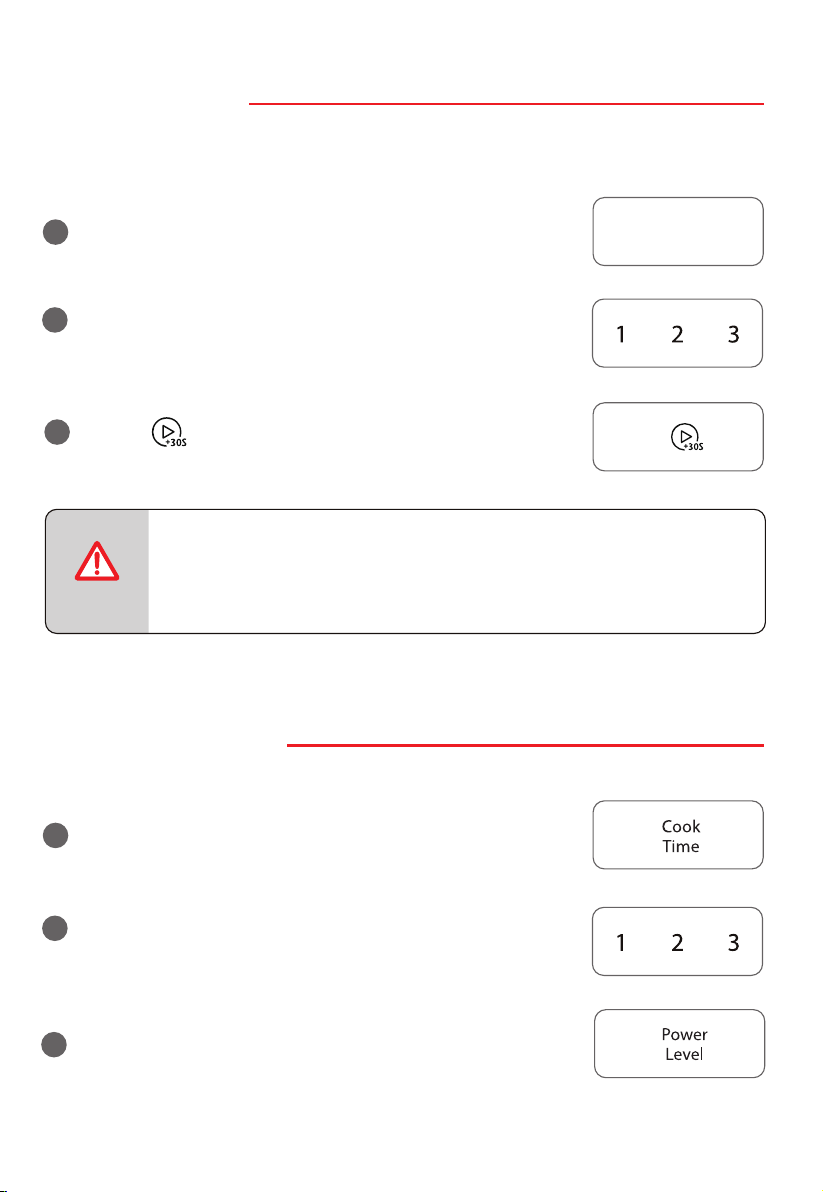

3. KITCHEN TIMER
4. MICROWAVE COOK
1616
When the microwave oven is plugged into an outlet, "0:00" will display.
Press Power Level once.
b
• The Kitchen Timer setting is dierent from the Clock setting; it is simply
a timer.
• During the Kitchen Timer function, no cooking function can be set into
operation.
NOTE
Press
to start counting down.
c
Press Timer once.
aTimer
Press Cook Time once.
a
bPress number keys to set the time,it should be within
00:01~99:99.
bPress number keys to set the time,it should be within
00:01~99:99.

• Press to increase the cook time by 30 seconds during cooking.
NOTE
17
Press
to start cooking.
c
bPress number keys to set the power level.
• The buzzer will sound twice to remain you of turning over the food
at the end of the half of the time.
NOTE
Press
to start defrosting.
c
Press number keys to set the defrost weight.
it should be within 2~96 Oz.
5. DEFROST
aPress Auto Defrost repeatedly to choose the defrost menu,
“dEF1”,“dEF2”,“dEF3”are available.
b
