INSTRUCTION MANUAL
ML-EC42S(BS)
MICROWAVE OVEN

BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
NOTE
CONTENTS
PRODUCT SAFETY
IMPORTANT SAFETY INSTRUCTIONS ...................................................................... EN-3
PRODUCT INTRODUCTION
PRECAUTIONS MICROWAVE ENERGY ...................................................................... EN-6
GROUNDING INSTRUCTIONS ..................................................................................... EN-7
MATERIALS YOU CAN USE IN MICROWAVE OVEN ............................................. EN-9
MATERIALS CAN NOT BE USED IN MICROWAVE OVEN ....................... .......... EN-10
INSTRUCTION FOR USE
SETTING UP YOUR OVEN ............................................................................................... EN-11
OPERATION INSTRUCTIONS ..................................................................................... EN-14
MAINTENANCE
TROUBLE SHOOTING .................................................................................................... EN-25
.

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic precautions, including the following:
1. Read and follow the specific: “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”.
2. This appliance can be used by children and persons with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not
be made by children unless they are supervised.
3. Keep the appliance and its cord away from children unless they
are continuously supervised.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that involves
the removal of a cover which gives protection against exposure
to microwave energy.
7. WARNING: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
SAFETY WARNING
EN-3

IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING
8. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and
Ckeep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when handling
the container.
12. The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits
removed.
15. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
16. Only use the temperature probe recommended for this oven.
(for ovens provided with a facility to use a temperature-sensing
probe.)
17. The microwave oven shall not be placed in a cabinet unless it
has been tested in a cabinet.
18. This appliance is intended to be used in household and similar
applications such as:
PRODUCT SAFETY
EN-4

IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING
- staff kitchen areas in shops, offices and other working
environments;
- by clients in hotels, motels and other residential type
environments;
- farm houses;
- bed and breakfast type environments.
19. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to
risk of injury, ignition or fire.
20. Metallic containers for food and beverages are not allowed
during microwave cooking.
21. The appliance shall not be cleaned with a steam cleaner.
22. The appliance is intended to be used freestanding.
23. The rear surface of appliances shall be placed against a wall.
24. The appliances are not intended to be operated by means of
an external timer or separate remote-control system.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
EN-5

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since
this can result in harmful exposure to microwave energy.
It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the
door or allow cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness,
its surface could be degraded and affect the life span of the
apparatus and lead to a dangerous situation.
ML-EC42S(BS)
230V~50Hz
1550W
1000W
1300W
Model:
Rated Voltage:
Power Consumption (Microwave):
Rated Output Power (Microwave):
Rated Input(Grill):
Rated Input(Convection):
SPECIFICATIONS
2700W
PRODUCT INTRODUCTION
EN-6

DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric shock.
Do not plug into an outlet until appliance is properly installed
and grounded.
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding
instructions are not completely understood or if doubt exists as
to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-wire
extension cord.
1. A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a longer
cord.
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the
appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
TO REDUCE THE RISK OF INJURY TO PERSONS
GROUNDING INSTALLATION
EN-7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned
carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add
300ml (1/2 pint) water and heat on 100% microwave power for
10 minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry
out any service or repair operation that involves the removal of a
cover which gives protection against exposure to microwave
energy.
See the instructions on “Materials you can use in microwave oven
or to be avoided in microwave oven.” There may be certain
non-metallic utensils that are not safe to use for microwaving.
If in doubt, you can test the utensil in question following the
procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml)
along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not
use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
TO REDUCE THE RISK OF INJURY TO PERSONS
GROUNDING INSTALLATION
EN-8
PRODUCT INTRODUCTION

Browning dish Follow manufacturer’s instructions. The bottom of browning dish must
be at least 3/16 inch (5mm) above the turntable. Incorrect usage may
cause the turntable to break.
MATERIALS YOU CAN USE IN MICROWAVE OVEN
Dinnerware Microwave-safe only. Follow manufacturer’s instructions.
Do not use cracked or chipped dishes.
UTENSILS REMARKS
Glass jars Always remove lid. Use only to heat food until just warm. Most glass
jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates
and cups
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Wax paper Use as a cover to prevent splattering and retain moisture.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should
be labeled “Microwave Safe”. Some plastic containers soften, as the
food inside gets hot. “Boiling bags” and tightly closed plastic bags
should be slit, pierced or vented as directed by package.
EN-9

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
UTENSILS REMARKS
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy.
Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to
high temperature.
Wood Wood will dry out when used in the microwave oven and may split or
crack.
PRODUCT INTRODUCTION
EN-10

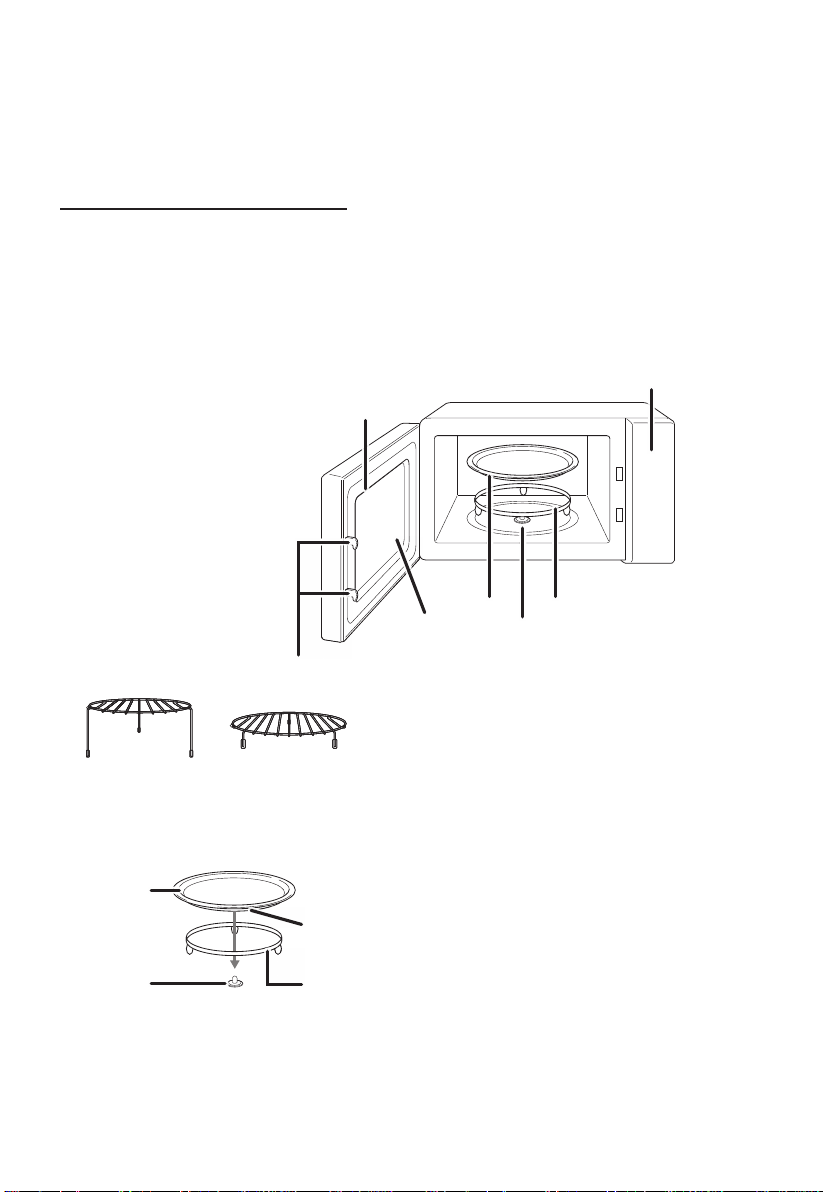

a. Never place the glass tray upside down.
Follow the instruction to place the glass
tray on the turntable ring with correct
direction. The glass tray should rotate
smoothly.
b. Both glass tray and turntable ring
assembly must always be used during
cooking.
c. All food and containers of food are
always placed on the glass tray for
cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorized service center.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Turntable Shaft 1
Grill Rack
Turntable Installation
Control panel
Door assembly
Turntable shaft
Safety interlock system
Grill Rack (Can not be used in microwave func-
Turntable ring assemblyGlass tray
Observation
window
Glass tray
Hub (underside)
Turntable ring
assembly
Turntable
shaft
tion and must be placed on the glass tray)
2
EN-11
Instruction Manual 1

SETTING UP YOUR OVEN
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such as
dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to
protect the magnetron.
Installation
1. Select a level surface that provide enough open space for the intake and/or outlet
vents.
(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of
20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/ or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave
oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the
frequency is the same as the voltage and the frequency on the rating label.
20cm
min85cm
20cm
30cm
0cm
Side Distance
(cm)
Top 30
Left 20
Right 20
Front Open
Rear 0
Bottom 0
INSTRUCTION FOR USE
EN-12

The accessible surface may be
hot during operation.
SETTING UP YOUR OVEN
Do not install oven over a range cooktop or other heat-producing
appliance.
If installed near or over a heat source, the oven could be damaged
and the warranty would be void.
WARNING
EN-13

OPERATION INSTRUCTIONS
CONTROL PANEL
DIGITAL DISPLAY
Conv.
For Convection Cooking
Home Fry
For Home Fry Cooking
START/+30Sec.
For starting cooking or adding
cooking time of 30sec. by
every press.
STOP/Cancel
Memory
Press to set specic cooking
mode memory.
Defrost
Press to set defrost mode.
Micro.
Press to select
Microwave power level
Reheat
Press to select
reheating mode.
Clock/Pre-set
Press to set
Clock and Pre-set.
Grill/Combi
For Grill Cooking &
Combination
Cooking (Microwave+Grill)
Auto Menu
Vegetable, Fish, Meat,
Pasta, Potato, Soup,
Roast, Bread, Cake,
Pizza
INSTRUCTION FOR USE
EN-14

OPERATION INSTRUCTIONS
1. CLOCK SETTING
When the microwave oven is electrified, the oven will display"0:00", buzzer will ring
once.
The input time should be within 0:00--23:59(24 Hour) or 0:00--12:59(12 Hour).
a. Press " Clock/ Pre-set" once, buzzer will ring once and "24H" displays.
b. Press " Clock/ Pre-set" repeatedly to choose 24H or 12H system.
c. Press the number buttons to set clock.
d. Press " Clock/ Pre-set" to finish clock setting. ":" will flash, and the time will light.
2. MICROWAVE COOKING
Select different microwave power level and set cooking time as you wish. There are five
power levels available for choosing. Keep on pressing "Micro." to choose the power.
Example: If you want to use 80% microwave power to cook for 10 minutes, you can
operate the oven as the following steps.
a. Press "Micro." once, the oven will display "P100".
b. Press "Micro." once again to choose 80% power, the oven will display "P80".
c. Press the number buttons of "1","0","0","0" in order, the oven will display "10:00".
d. Press "START/+30Sec." to start cooking, ":" will light.
NOTE
• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press "STOP/Cancel", the
oven will go back to the previous status automatically.
NOTE "Micro." Pad presses instructions
Presses Instructions
1
2
3
4
5
Display
P100
P80
P50
P30
P10
Microwave Power
100%
80%
50%
30%
10%
EN-15

3. GRILL & COMBINATION COOKING
GRILL COOKING
Example: If you want to use grill to cooking for 35 minutes, you can operate the oven
as the following steps.
a. Press the "Grill/Combi" key once, the oven will display "G-1".
b. Press the number buttons of "3","5","0","0" in order, the oven will display "35:00"
c. Press the "START/+30Sec." key to start cooking.
COMBINATION COOKING
Example: If you want to use combination to cook (C-1) for 40 minutes, you can
operate the oven as per the following steps.
a. Press the "Grill/Combi" key twice, the oven will display "C-1".
b. Press the number buttons of "4","0","0","0" in order, the oven will display "40:00".
c. Press the "START/+30Sec." key to start cooking.
OPERATION INSTRUCTIONS
NOTE
If half the grill time passes, the oven sounds twice, and this is normal.
In order to have a better effect of grilling food, you should trun the food
over, close the door, and then press "START/+30Sec." to continue
cooking.
If no operation, the oven will continue working.
NOTE "Grill/Combi" Pad presses instructions
Presses Instructions
1
2
3
4
5
Display
G-1
C-1
C-2
C-3
C-4
Microwave Power Grill Power Covenction Power
INSTRUCTION FOR USE
EN-16

OPERATION INSTRUCTIONS
4. REHEAT FUNCTION
a. Press "Reheat" pad once, the "h-1" will display and flash.
(Press the "Reheat" pad several times to select the cooking program you wanted.)
b. Press "START/+30Sec." key to confirm, the "h-1" will display.
c. Press "Reheat" pad, the oven will display "150".
(Press the "Reheat" pad several times to selecct the weight of the cooking food.)
d. Press "START/+30Sec." key to start cooking.
5. CONVECTION COOKING
With preheating function
The convection cooking can let you to cook the food as a traditional oven. Microwave
is not used. It is recommended that you should preheat the oven to the appropriate
temperature before placing the food in the oven.
a. Press the "Conv." key once, the oven will display "140".
(Press the "Conv." key several times to select the temperature.)
Convection temperature is from 140 degrees to 230 degrees.
Reheat Chart
Menu
(Coee)
Weight(g)
150
250
350
450
250
350
450
0g)
150
250
350
450
250
350
450
1
2
3
1
2
3
EN-17

OPERATION INSTRUCTIONS
b. Press the "START/+30Sec." key to start preheating. The temperature figure will flash
when reach to the temperature in advance and buzzer will ring twice to remind you
to put the food into the oven.
c. Press the number buttons of "4","0","0","0" in order, the oven will display "40:00"
d. Press the "START/+30Sec." key to start cooking.
Without preheating function
a. Press the "Conv." key once, the oven will display "140".
(Press the "Conv." key several times to select the temperature.)
Convection temperature is from 140 degrees to 230 degrees.
b. Press the number buttons of "4","0","0","0" in order, the oven will display "40:00"
c. Press the "START/+30Sec." key to start cooking.
NOTE
• Cooking time cannot be input until the preheating temperature
arrives. If the temperature arrives, door must be opened to input the
cooking time.
• If the time not input in 5 minutes, the oven will stop preheating.
The buzzer sound five times and turn back to waiting state.
6. HOME FRY COOKING
a. Press "Home Fry" pad once, the "F1" will display in oven.
(Press the "Home Fry" pad several times to select the cooking program you wanted.)
b. Press "START/+30Sec." key to start cooking.
INSTRUCTION FOR USE
EN-18

200g
200g
120g
OPERATION INSTRUCTIONS
7. DEFROST BY TIME
a. Press "Defrost" pad once, the oven will display "d-1".
b. Input the figure of the time of cooking.
(The maximum cooking time is 99 minutes and 99 seconds.)
c. Press "START/+30Sec." key to start defrosting.
8. DEFROST BY WEIGHT
a. Press "Defrost" pad twice, the oven will display "d-2".
b. Input the figure of the weight of food.
(The input figure of the weight should be within 100--2000g.)
c. Press "START/+30Sec." key to start defrosting.
9. DEFROST GROUND MEAT
a. Press "Defrost" pad thrice, the oven will display "d-3".
b. Input the figure of the weight of food.
(The input figure of the weight should be within 100--2000g.)
c. Press "START/+30Sec." key to start defrosting.
EN-19
