Toshiba Strata CIX DKT2404-UDR200 User manual

TOSHIBA Telecommunication Systems Division
DKT2404-UDR200
Repeater
Operation Guide
Title Page
December 2010

Publication Information
Toshiba America Information Systems, Inc.
Telecommunication Systems Division
Publication Information
Toshiba America Information Systems, Inc., Telecommunication Systems Division, reserves the right,
without prior notice, to revise this information publication for any reason, including, but not limited to,
utilization of new advances in the state of technical arts or to simply change the design of this document.
Further, Toshiba America Information Systems, Inc., Telecommunication Systems Division, also reserves
the right, without prior notice, to make such changes in equipmentdesign or components as engineering or
manufacturing methods may warrant.
CIX-UG-2404-DECT-UDR200_Reptr-VA-E
Version A, December, 2010
Our mission to publish accurate, complete and user accessible documentation. At the time of publication
the information in this document was as accurate and current as was reasonably possible. However, in the
time required to distribute this manual additions, corrections or other changes may have been made. To
view the latest version of this or other documents please refer to the Toshiba FYI web site.
Toshiba America Information Systems shall not be liable for any commercial losses, loss of revenues or
profits, loss of goodwill, inconvenience, or exemplary, special, incidental, indirect or consequential
damages whatsoever, or claims of third parties, regardless of the form of any claim that may result from the
use of this document.
THE SPECIFICATIONS AND INFORMATION PROVIDED HEREIN ARE FOR INFORMATIONAL
PURPOSES ONLY AND ARE NOT A WARRANTY OF ACTUAL PERFORMANCE, WHETHER
EXPRESSED OR IMPLIED. THE SPECIFICATIONS AND INFORMATION ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ACTUAL PERFORMANCE MAY VARY BASED ON INDIVIDUAL
CONFIGURATIONS, USE OF COLLATERAL EQUIPMENT, OR OTHER FACTORS.
© Copyright 2010
This document is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under
the copyright laws, this document cannot be reproduced in any form or by any means—graphic, electronic,
or mechanical, including recording, taping, photocopying, without prior written permission of Toshiba. No
patent liability is assumed, however, with respect to the use of the information contained herein.
Trademarks
Toshiba, Strata, and CIX are trademarks of Toshiba Corporation.
Trademarks, registered trademarks, and service marks are the property of their respective owners.

T
Toshiba America Information Systems, Inc.
Telecommunication Systems Division
End-User Limited Warranty
Toshiba America Information Systems, Inc., (“TAIS”) warrants that this telephone equipment manufactured by
Toshiba (except for fuses, lamps, and other consumables) will, upon delivery by TAIS or an authorized TAIS
dealer to a retail customer in new condition, be free from defects in material and workmanship for twenty-four (24)
months after delivery, except as otherwise provided by TAIS in the TAIS warranty accompanying the products or
posted on TAIS’s website. Products which are not manufactured by Toshiba but are purchased from Toshiba, will
be subject to the warranty provisions provided by the equipment manufacturer, unless TAIS notifies the end-user
of any additional warranty provisions in writing.
This warranty is void (a) if the equipment is used under other than normal use and maintenance conditions, (b) if
the equipment is modified or altered, unless the modification or alteration is expressly authorized by TAIS, (c) if
the equipment is subject to abuse, neglect, lightning, electrical fault, or accident, (d) if the equipment is repaired
by someone other than TAIS or an authorized TAIS dealer, (e) if the equipment’s serial number is defaced or
missing, or (f) if the equipment is installed or used in combination or in assembly with products not supplied by
TAIS and which are not compatible or are of inferior quality, design, or performance.
The sole obligation of TAIS or Toshiba Corporation under this warranty, or under any other legal obligation with
respect to the equipment, is the repair or replacement of such defective or missing parts as are causing the malfunc-
tion by TAIS or its authorized dealer with new or refurbished parts (at their option). If TAIS or one of its autho-
rized dealers does not replace or repair such parts, the retail customer’s sole remedy will be a refund of the price
charged by TAIS to its dealers for such parts as are proven to be defective, and which are returned to TAIS through
one of its authorized dealers within the warranty period and no later than thirty (30) days after such malfunction,
whichever first occurs.
Under no circumstances will the retail customer or any user or dealer or other person be entitled to any direct,
special, indirect, consequential, or exemplary damages, for breach of contract, tort, or otherwise. Under no circum-
stances will any such person be entitled to any sum greater than the purchase price paid for the item of equipment
that is malfunctioning.
To obtain service under this warranty, the retail customer must bring the malfunction of the machine to the
attention of one of TAIS’ authorized dealers within the applicable warranty period and no later than thirty (30)
days after such malfunction, whichever first occurs. Failure to bring the malfunction to the attention of an autho-
rized TAIS dealer within the prescribed time results in the customer being not entitled to warranty service.
THERE ARE NO OTHER WARRANTIES FROM EITHER TOSHIBA AMERICA INFORMATION SYSTEMS,
INC., OR TOSHIBA CORPORATION WHICH EXTEND BEYOND THE FACE OF THIS WARRANTY. ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, AND FITNESS FOR USE, ARE EXCLUDED.
No TAIS dealer and no person other than an officer of TAIS may extend or modify this warranty. No such modifi-
cation or extension is effective unless it is in writing and signed by the Vice President and General Manager,
Telecommunication Systems Division.

DKT2404-UDR200 Repeater 12/10 TOSHIBA i of ii
Contents
DKT2404-UDR200 DECT Repeater
INTRODUCTION................................................................................................................................... 1
Package Contents ............................................................................................................................ 2
SPECIFICATIONS................................................................................................................................ 2
OPERATION RANGE........................................................................................................................... 2
EXTENDED COVERAGE..................................................................................................................... 3
MULTIPLE REPEATER CONFIGURATION......................................................................................... 4
UDR200 REGISTRATION .................................................................................................................... 6
Registering Multiple Repeaters.......................................................................................................... 7
MAP BASE STATION COVERAGE...................................................................................................... 7
INSTALLING THE REPEATER............................................................................................................. 8
Correct Location ............................................................................................................................... 8
Test The Location.............................................................................................................................. 9
Installation.......................................................................................................................................... 9
MAINTENANCE.................................................................................................................................. 10
SAFETY INFORMATION.................................................................................................................... 10
TROUBLE SHOOTING....................................................................................................................... 11
IMPORTANT ELECTRICAL CONSIDERATIONS .............................................................................. 11
FCC REGULATORY INFORMATION................................................................................................. 12
Part 15 Compliance ......................................................................................................................... 12
Privacy Information.......................................................................................................................... 12
Radio Interference Information ........................................................................................................ 12
I.C. NOTICE........................................................................................................................................ 13
Terminal Equipment......................................................................................................................... 13
Radio Equipment ............................................................................................................................. 13

This page is intentionally left blank.

DKT2404-UDR200 Repeater 12/10 TOSHIBA 1 of 16
DKT2404-UDR200 DECT Repeater
INTRODUCTION The DKT2404-UDR200 repeater replaces the DKT2404-UDR100
repeater, ot works exclusively with the DKT2404-DECT base station. The
DKT2404-UDR200 is more compact and easier to deploy than the
DKT2404-UDR100. Refer to Figure 1.
The DKT2404-UDR200 repeater has the following features and
enhancements:
•Supports up to 6 repeaters to a base station in star-configuration and
up to 3 repeaters in a daisy-chain configuration.
•Eliminates the need for complex and time-consuming programming
when adding two or more repeaters in a daisy-chain configuration.
Simply register the UDR200 to a base station and it will self-configure
itself as the second or third repeater when installed in a daisy-chain.
(The DKT2404-PRGKT is not needed.)
•IP54 enabling outdoor installation (not waterproof)
•Complies with FCC Part 15.
•Includes AC power adaptor and wall-mount hardware.

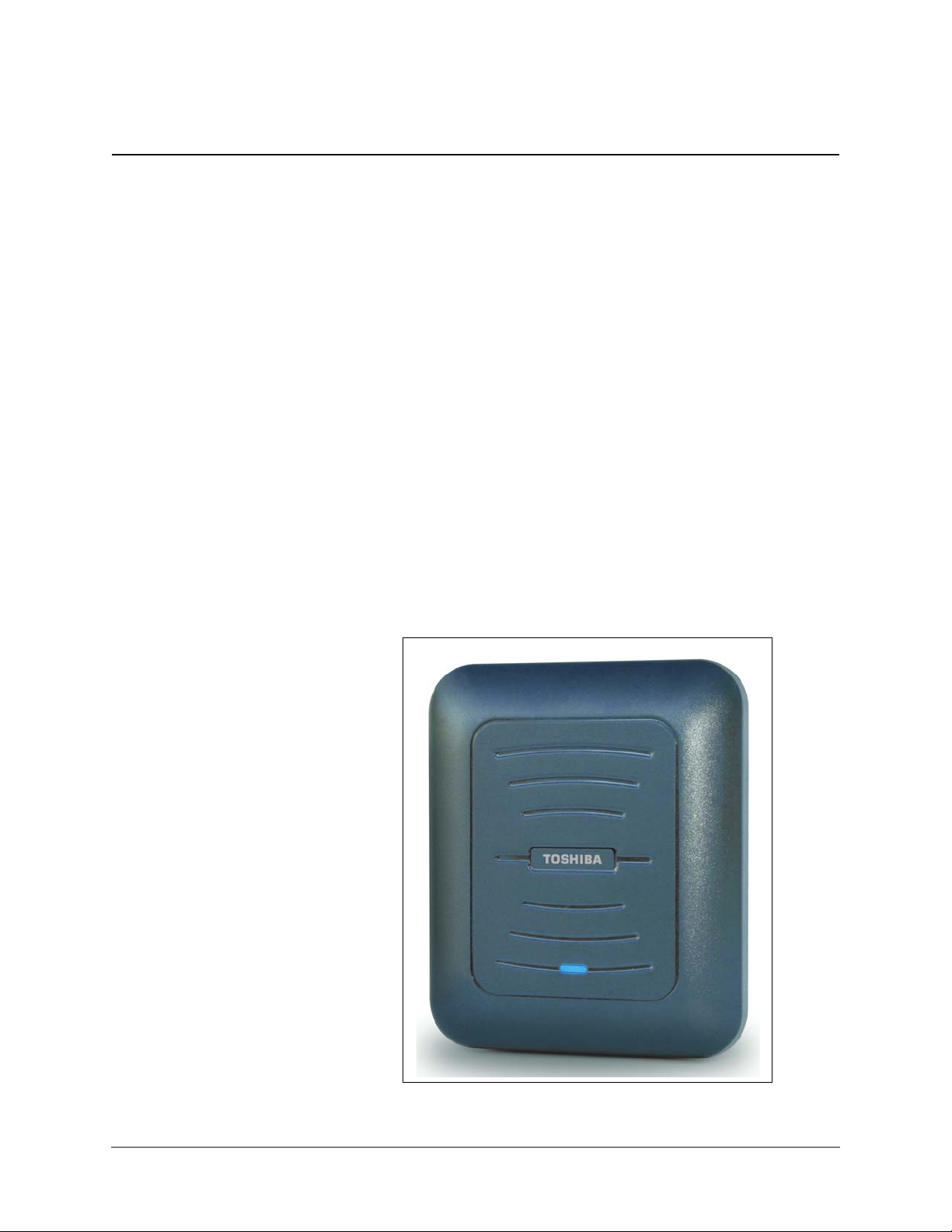

Figure 1 – DKT2404-UDR200 DECT Repeater

DKT2404-UDR200 DECT Repeater
SPECIFICATIONS
2 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
Package Contents Each DKT2404-UDR200 DECT Repeater package (Part Number
DKT2404-UDR200) includes the following items:
•DKT2404-UDR200 DECT repeater
•AC adapter (with six-foot cord)
•Mounting screw and wall anchor
SPECIFICATIONS
OPERATION RANGE Telephone base station ranges of 300 to 400 feet are possible depending
on the building structure in which it is used. Each DKT2404-UDR200
repeater has similar range. The range is affected by the operating
environment and can be impacted by factors including metal walls, walls
with metal studs, office partitions, cabinets, other radio frequency (RF)
sources in the area, and nearby equipment. For optimum range and
performance from your handset, try the following:
•Place the repeaters at least three feet from metal structures; and six
feet from computers, fax machines or other electronic equipment.
•Place the repeater unit as high as possible in the room
•Use an AC outlet not associated with computer or electromagnetic
equipment.
Refer to “MULTIPLE REPEATER CONFIGURATION” on page 4, “MAP
BASE STATION COVERAGE” on page 7 and “INSTALLING THE
REPEATER” on page 8.
Table 1: DKT2404-UDR200 Repeater Specifications
Item Specifications
AC Power Adapter Input: 100 ~ 240 VAC 50 ~ 60 Hz
Output: 9 VDC 350 mA
Unit Weight 4.8 oz. (136 g)
Unit Size (Approx.) 4.5 in. W x 5.3 in. H x 1.22 in. D
(114 cm W x 135 cm H x 31 cm D)
Frequency Band 1.9 GHz
Transmitter Power 100 mW (+20 dBm)
Receiver Sensitivity -96 dBm (nominal) BER @ 1000 PPM
Operating Temperature 32° ~ 122° F (0° ~ 50° C)
Standards • Designed in accordance with the Digital
EnhancedCordlessTelecommunications
(DECT) standard for USA.
• Compliant with FCC Part 15

DKT2404-UDR200 DECT Repeater
EXTENDED COVERAGE
DKT2404-UDR200 Repeater 12/10 TOSHIBA 3 of 16
EXTENDED COVERAGE The DKT2404-UDR200 repeater extends the operating range of the base
station in all directions, including up and down. When it’s connected
through the repeater, the mobile handset operates in the same manner as
when connected to the base. Refer to Figure 2. The handoff from the
base to the repeater can be completely invisible to the end user, even
during an active call. Each base station can support up to six repeaters,
refer to Figure 3. The repeater must be at least 35 feet (10 meters) from
the base station. Use the mapping procedure (“MAP BASE STATION
COVERAGE” on Page 7) to determine where to place repeaters.
Figure 2 – Coverage with a Base Station and One Repeater

DKT2404-UDR200 DECT Repeater
MULTIPLE REPEATER CONFIGURATION
4 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
MULTIPLE REPEATER
CONFIGURATION Up to six repeaters can be registered to a base station. Base station and
repeaters operate in all directions. Coverage is spherical, extending in all
directions including up and down.
Repeaters must be at least 35 feet (10 m) apart and the same minimum
distance from the base station.

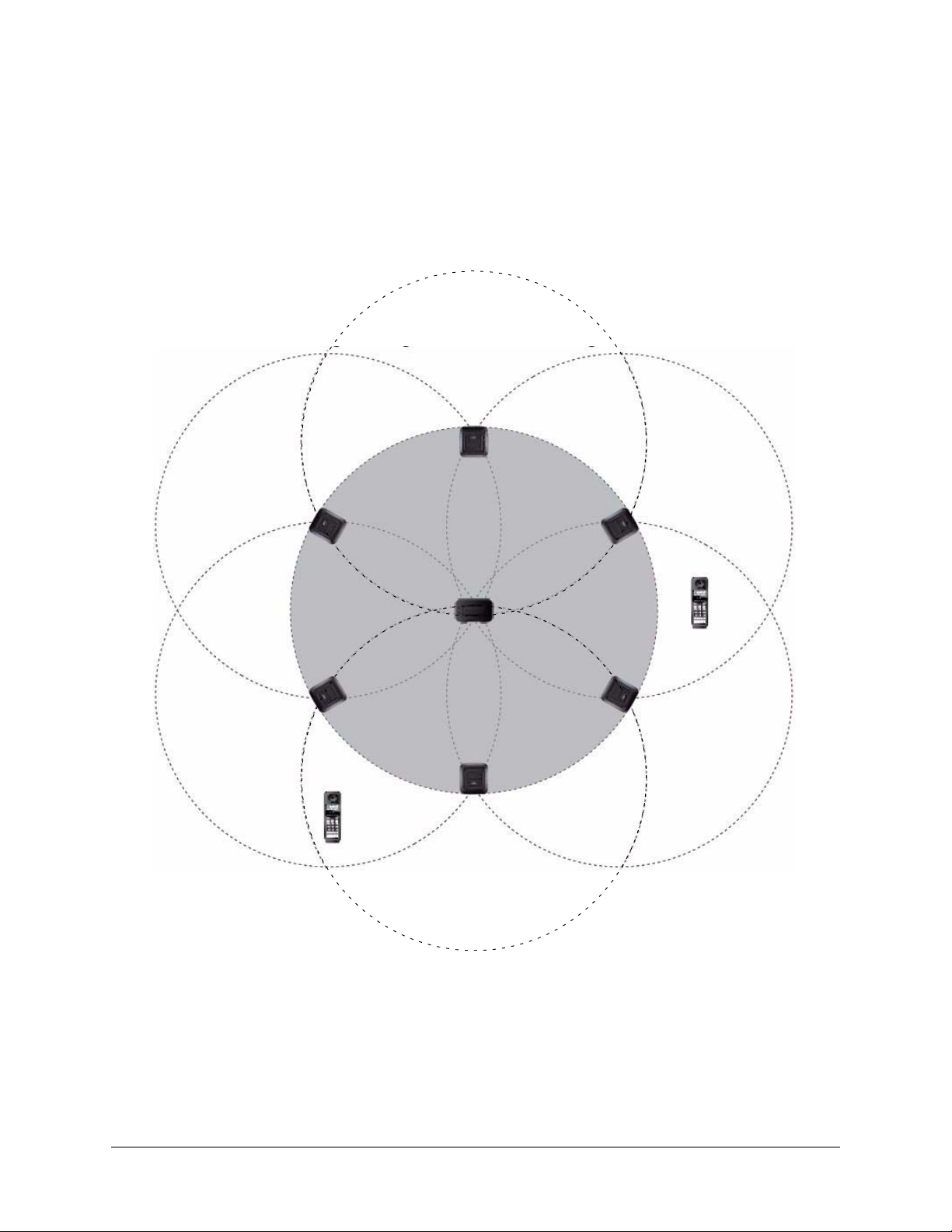

Figure 3 – Overhead view of Multiple Repeater Coverage

DKT2404-UDR200 DECT Repeater
MULTIPLE REPEATER CONFIGURATION
DKT2404-UDR200 Repeater 12/10 TOSHIBA 5 of 16
Repeaters can be daisy chained to increase the coverage area in one
direction.

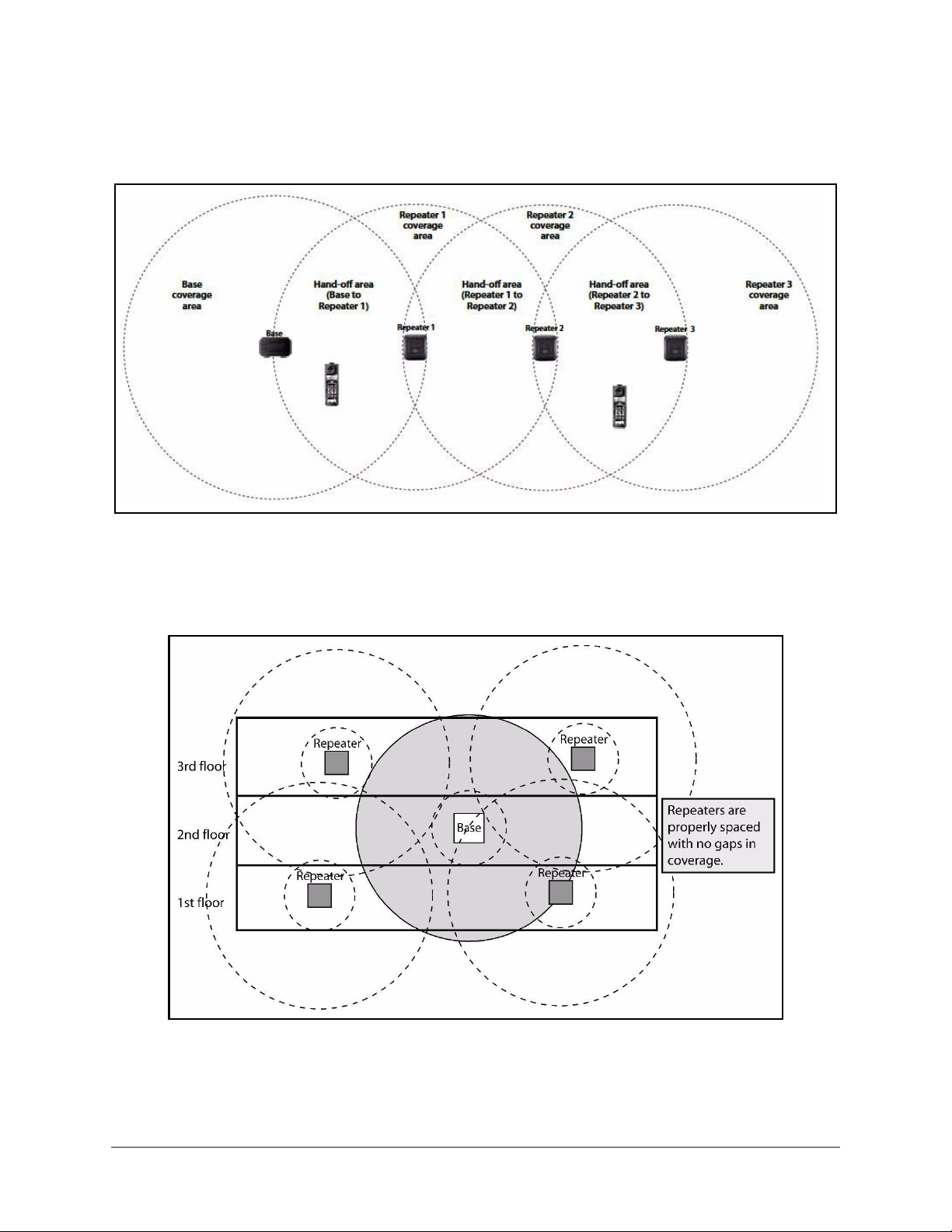

Figure 4 – Daisy-chain Repeater Configuration
The coverage area of the base stations and repeaters is spherical, it
extends through walls, floors and ceilings.
Figure 5 – Correct Repeater Placement

DKT2404-UDR200 DECT Repeater
UDR200 REGISTRATION
6 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
Figure 6 – Incorrect Repeater Placement
UDR200 REGISTRATION The UDR200 must be registered to the base station before use.
1. Ensure that the repeater is close to the base station. Connect the AC
adapter cable to the repeater.
CAUTION! Use ONLY the power adapter that came with your
repeater. A different power adapter may cause an
electrical hazard or damage the repeater.
2. Press and hold the registration key on the back of the repeater. This
will start the registration process. The LINK LED on the front of the
repeater will flash once per second (On: 500 ms/Off: 500 ms) in
registration mode.
3. Press and hold the Base Left key (CT Phone select Key) on the base
station. This will start the registration. The POWER LED on the Base
will start to flash, almosttwice each second, (On: 300 ms/Off: 300 ms)
in registration mode.
4. Wait 60 seconds for the registration process to complete.
5. When the registration is successful, the LINK LED of the repeater will
stop flashing and stay on.
If the registration fails, the LINK LED on the repeater will slowly flash (On:
1 s/Off: 1 s). If this happens repeat Steps 1 ~ 5.

DKT2404-UDR200 DECT Repeater
MAP BASE STATION COVERAGE
DKT2404-UDR200 Repeater 12/10 TOSHIBA 7 of 16
The repeater is now registered to this base and is ready to use. You can
safely disconnect the power. The repeater remains registered even if you
disconnect the AC adapter or there is a power failure. Move the repeater
to the selected location, the repeater will stay registered to the base.
Registering Multiple
Repeaters Use this procedure to register more than one repeater to a base station.
1. Plug in the power supply to the repeater.
2. Register this repeater to the base station using the registration steps
above.
3. Disconnect the power supply from the repeater.
4. Perform 1 ~ 3 for each repeater for this base station.
5. Physically install the repeaters. As the power supply is connected to
each repeater the Link LED should remain lit.
UDR100 and UDR200 repeaters can be combined in a ‘star’
configuration. Refer to Figure 3 on Page 4.
Figure 7 – Both Types in Star Configuration
Do not mix UDR100 and UDR200 repeaters in a ‘daisy-chain’
configuration.
Figure 8 – Do Not Mix Repeater Types in Daisy Chain
MAP BASE STATION
COVERAGE Use this process to map the base station coverage area.
1. Stand near the base and make a call.
2. Continue the call, and carry the handset away from the base.
3. Make a note where you start to hear noise on the line, which indicates
the signal is getting weaker. Refer to Figure 9 on Page 8.

DKT2404-UDR200 DECT Repeater
INSTALLING THE REPEATER
8 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
The optimum location for the repeater is as far from the base as possible
while still maintaining a good signal, or just inside the location where the
noise became noticeable.
Figure 9 – Mapping the Base Station Coverage Area
INSTALLING THE
REPEATER Register the repeaters before installing them. Repeaters can be installed:
•Wide area array where are base stations are within the range of the
base station
•Daisy-chain (sequential) array
•Mix of both.
Ensure that each repeater is at least 35 feet (10 m) away from the base
station or other repeaters. Refer to Figure 2 on Page 3.
Correct Location • Place the repeater as high as possible. It should be at least six feet
above the floor.
•Make sure you have good reception from the base, refer to “MAP
BASE STATION COVERAGE” on Page 7.

DKT2404-UDR200 DECT Repeater
INSTALLING THE REPEATER
DKT2404-UDR200 Repeater 12/10 TOSHIBA 9 of 16
•Make sure the location is close enough to a standard 120 V AC power
outlet for the power cord to reach the repeater. Never install electrical
cords across traffic areas where they cause a trip hazard. If the cords
become damaged, they may create fire or electrical hazards.
•Allow at least 35 feet between repeaters. When installing repeaters
across multiple floors allow at least 35 feet vertically.
•Avoid sources of electrical interference, such as hi-fi systems, office
equipment or microwave ovens.
•Avoid heat sources and direct sunlight.
•Avoid things that can interfere with radio signals, such as metal
doors, thick walls, niches and cupboards.
Test The Location Plug the AC adapter into the repeater, then hold the repeater in the place
where you plan to mount it. The LED should remain on and steady,
indicating that the repeater has a good signal from the base. If the LED
flashes, the repeater is not getting a good signal. The repeater may be
too far away from the base, there may be interference from electronic
devices, or the signal might beblocked by thick walls or metal objects. Try
moving the repeater to another location.
Installation 1. Hold the repeater in its final location, and mark the center of the top
edge.
2. From the edge mark, measure down about 1½ inches (approximately
38 mm), and mark the screw location.
3. At the screw location, use a 3⁄16 inch (4.8 mm) drill bit to make a pilot
hole approximately 1 inch (25.5 mm) deep.
4. Place the wall anchor into the pilot hole and tap it gently with a
hammer until the anchor is flush with the wall.
5. Insert the mounting screw into the anchor, leaving approximately 1/4
inch (6.4 mm) of space between the screw head and the wall.
6. Plug the AC power adapter cable into the repeater.
7. Put the repeater over the screw head and slide it down into place.
8. Plug the AC adapter to a 120 V AC power outlet.

DKT2404-UDR200 DECT Repeater
MAINTENANCE
10 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
MAINTENANCE There are no user adjustments on the DKT2404-UDR200 Repeater.
Maintenance is only cleaning the case as needed.
CAUTION! Unplug the repeater from the AC power outlet before
cleaning.
•Wipe the front of the repeater with a damp cloth or antistatic wipe.
•Do not apply liquid cleaners directly on the repeater.
•Never use aerosol cleaners or solvents.
•To avoid static discharge, never use a plain dry cloth.
SAFETY INFORMATION When using telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electrical shock, and injury to
persons, including the following:
•Read and understand all instructions.
•Follow all warnings and instructions marked on the product.
•Do not use this product near water; for example, near a sink or in a
wet area.
•Do not place this product on an unstable cart, stand, or table. The unit
can fall, causing serious damage to the unit.
•To protect the product from overheating, do not block or cover any
slots or openings in the base unit. This product should never be
placed near or over a radiator or heat register. This product should
not be placed in a built-in installation unless the proper ventilation is
provided.
•This product should be operated only from the type of power source
indicated on the marking label.
•Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by people walking on it.
•Do not overload wall outlets and extension cords, as this can result in
the risk of fire or electrical shock.
•Never push objects of any kind into this product through the base unit
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electrical shock. Never spill liquid of
any kind on the product.
•To reduce the risk of electric shock, do not disassemble this product.
Contact qualified service personnel when some service or repair work
is required. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause
electric shock when the appliance is subsequently used.
Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
•When the power supply cord is damaged or frayed.
•If liquid has been spilled onto the product.

DKT2404-UDR200 DECT Repeater
TROUBLE SHOOTING
DKT2404-UDR200 Repeater 12/10 TOSHIBA 11 of 16
•If the product has been exposed to water or rain.
•If the product does not operate normally when following the operating
instructions. Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls can
result in damage, and will often require extensive work by a qualified
technician to restore the product to normal operation.
•If the product has been dropped, or the cabinet has been damaged.
•If the product exhibits a distinct change in performance.
TROUBLE SHOOTING
IMPORTANT ELECTRICAL
CONSIDERATIONS WARNING! Do not attempt to unplug any appliance during an
electrical storm.
Unplug all electrical appliances when you know an electrical storm is
approaching. Lightning can pass through your household wiring and
damage any device connected to it. This repeater is no exception.
Changes or modifications to this product not expressly approved by
Toshiba America Information Systems, Inc., or operation of this product in
any way other than as detailed by this manual, could void your authority
to operate this product.
Table 2: Trouble Shooting for Users
Problem Solution
There is a lot of static when calls hand-off
to the repeater. AND/OR the LED on the
repeater won’t stop flashing.
Move the repeater closer to the base. Check for
interference from electronic devices. Make sure the
repeater is not too close to metal objects or thick walls.
I used to be able to connect to the base,
but now I can’t. Make sure the repeater is powered on. Register the repeater to the base again.
Calls won’t hand-off to the repeater. Make sure the repeater is inside the base’s good signal
range. Make sure there is at least 35 feet between
repeaters. Reset the repeater and register it to the base
again.

DKT2404-UDR200 DECT Repeater
FCC REGULATORY INFORMATION
12 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
FCC REGULATORY
INFORMATION Information for users in the United States.
Part 15 Compliance This device complies with part 15 of the FCC rules. Operation is subjectto
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this phone.
Privacy Information Cordless telephones are radio devices. Communications between the
handset and base of the cordless telephone are accomplished by means
of radio waves which are broadcast over the open airways. Because of
the inherent physical properties of radio waves, communication can be
received by radio receiving devices other than your own telephone unit,
consequently, any communications using the cordless telephone may not
be private.
Radio Interference
Information Radio interference may occasionally cause buzzing and humming in your
cordless handset, or clicking noises in the base unit. This interference is
caused by external sources such as TV, fluorescent lighting, or electrical
storm. Your unit is NOT DEFECTIVE. If these noises continue and are too
distracting, check around your office to see what appliances may be
causing the problem. In addition, we recommend that the base not be
plugged into a circuit that also powers a major appliance because of the
potential of interference. For best performance, ensure that the antenna
on the base unit is fully extended.
In the unlikely event that you consistently hear other voices or distracting
transmissions on your telephone, you may be receiving radio signals for
another cordless telephone or other source of interference. If you cannot
eliminate this type of interference, you need to change to a different
channel.
Finally, it should be noted that some cordless telephones operate at
frequencies that may cause interference to nearby TVs and VCRs. To
minimize or prevent such interference, the base of the cordless telephone
should not be placed near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or
VCR will often reduce or eliminate the interference.
Radio interference causes interruptions in conversation. When this
happens, your unit is not defective. When noise continues, move to a
different location while you talk. (You might even need to move the base
unit.) When the situation persists, contact Customer Service.
CAUTION! The base station must be placed at least 8 inches (20 cm)
from nearby persons for compliance with FCC exposure
guidelines.

DKT2404-UDR200 DECT Repeater
I.C. NOTICE
DKT2404-UDR200 Repeater 12/10 TOSHIBA 13 of 16
I.C. NOTICE Information for users in Canada.
Terminal Equipment NOTICE: This equipment meets the applicable Industry Canada Terminal
Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of Conformity
indicating that Industry Canada technical specifications were met. It does
not imply that Industry Canada approved the equipment.
Radio Equipment The term “IC:” before the radio certification number only signifies that
Industry Canada technical specifications were met. Operation is subject
to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference
that may cause undesired operation of the device. “Privacy of
communications may not be ensured when using this telephone.”

DKT2404-UDR200 DECT Repeater
I.C. NOTICE
14 of 16 TOSHIBA DKT2404-UDR200 Repeater 12/10
